PERFORMANCE EVALUATION OF QUERY TRIMMING

STRATEGIES IN SEMANTIC CACHING ENVIRONMENT

S. Kami Makki, Stefan Andrei, Yanwen Guan

Department of Computer Science, Lamar University, Beaumont, Texas, U.S.A.

Mattie Sue Judd

Department of Mathematics and Computer Science, Oral Roberts University, Tulsa, Oklahoma, U.S.A.

Keywords: Boolean logic, Query Optimization, Query Containment, Semantic caching.

Abstract: The Semantic caching is an efficient caching strategy for client-side processing of queries. This strategy

involves comparing user queries with previously cached queries and finding the similarities between these

queries. These similarities constitute the partial answer to the user query and therefore they would be

extracted from the user query. Then only the remainder of the user query would be sent to the server.

Therefore, this can reduce significantly not only the communication between client and server and as a

result free network bandwidth, but also improves the speed of query processing in a distributed

environment. This paper presents simulations for manipulation of multi-table queries and provides extensive

simulations for single-table queries in comparison with previous methods.

1 INTRODUCTION

The semantic model for client side caching was first

proposed by Dar et al. (Dar

et al., 1996). Their study

demonstrated the significant improvements in

efficiency of semantic caching over traditional page

and tuple caching methods. They also explored

several of the most important benefits of semantic

caching, including a reduction in network traffic and

the ability to partially or fully answer some queries

without contacting the server.

Ren et al. (Ren et al., 2003) presented a query

splitting method which has direct application of

Boolean logic. However, their method is very

computationally complex and ineffective for queries

with medium to large numbers of predicate clauses

in the queries. This inefficiency is due to the use of

satisfiability concepts which are necessary to

generate the probe and remainder queries.

Guo et al. (Guo et al., 1996) analyzed the

question of satisfiability-based methods for database

query processing. They demonstrated that a method

based on restricted satisfiability concepts is

potentially solvable in linear time. Also, the authors

in (Hao, et al., 2005) and (Li, et al., 2008) used

extensive logical rules to restrict the satisfiability

problem to a more manageable size. Although these

methods make the actual comparison simpler, the

introduction of other logical computations largely

obviate the improvements in efficiency that they

offer.

Makki et al. (Makki, and Rockey, 2010)

presented a novel method for semantic caching

which sidestepped the complexity of the

satisfiability problem by visualizing the data in the

user query and cache data as materialized “layers.”

This visualization method allows for a direct

comparison of the upper and lower bounds of the

respective semantic segments and should be much

more efficient for query processing. However, they

did a very limited experiment to compare their

visualization method with the Ren et al.’s method.

2 GENERAL TERMS

AND DEFINITIONS

The following terms and definitions are derived

from those used by previous works Ren et al. (Ren et

al., 2003) and Guo et al. (Guo et al., 1996).

A database D, consists of a set of relations R

…,

169

Kami Makki S., Andrei S., Guan Y. and Sue Judd M..

PERFORMANCE EVALUATION OF QUERY TRIMMING STRATEGIES IN SEMANTIC CACHING ENVIRONMENT.

DOI: 10.5220/0003446001690176

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 169-176

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

, so that D = {R

, 1≤ i ≤n}. Each relation R

associated with an attribute set, denoted A

, and we

may represent the attribute set of the entire database

by A, where A = ∪A

Ri,

1≤ i ≤n. A compare

predicate, P, is defined by P = a op c, where a ϵ A,

op ϵ {≤, <, ≥, >, =}, and c is a real constant bound.

The authors in (Rosenkrantz and Hunt, 1980) and

Guo et al., 1996) have demonstrated that

introduction of the comparison operator ≠ makes this

problem NP-hard over the integer domain. Since we

are primarily interested in comparing the efficiency

of two query processing methods, we follow both

(Ren et al., 2003) and (Makki and Rockey, 2010) in

ignoring ≠ comparison in this simulation.

The primary unit with which semantic caching is

concerned is the semantic segment or region. A

semantic segment is an earlier (either original or

decomposed) query, which is stored together with its

result in the cache. Formally, a semantic segment is

defined as a tuple <S

, S

>, where S

ϵ D, S

⊆ A, S

=π

, and S

= T

∨T

∨...∨T

, where

each T

is a disjunctive of predicates, such that T

∧P

∧...∧P

. Each a in P

, or each predicate term, is

such that a ϵ A of S

A user query Q is a semantic segment <Q

, Q

> which is introduced into the cache for

comparison. Semantic caching methods split Q into

two new, discrete queries: the probe query Q

PQ,

and

the remainder query Q

, such that Q

∪ Q

= Q

and Q

∩ Q

= Ø. Here, Q

is equivalent to

directly querying the server without consulting the

cache; while Q

retrieves the data which is

available in the semantic regions of the cache, since

it is the intersection of the data sets of S and Q. And

we may define the probe query formally as Q

= Q

∧ S

. The remainder query requests the data not

available in the cache, and can thus be considered

= Q

∧ ¬S

3 RELATED WORK

Query trimming, the mechanism of splitting the user

query into the probe and remainder queries, is one of

the most computationally intensive sections of any

semantic caching method. As mentioned above, the

method proposed by (Ren, et al., 2003) uses

satisfiability concepts. The visualization method of

(Makki and Rockey, 2010) on the other hand, seems

to adopt a much simpler approach to the issue of

query trimming. In this Section, we will outline first

the method used by (Ren, et al., 2003) and then the

visualization method of (Makki and Rockey, 2010)

for query processing, concluding with complexity

analysis of the two methods.

3.1 Ren et al.’s Method

The method proposed by (Ren, et al., 2003) for

query trimming follows directly from the formal

definitions, explained in Section 2, for the probe and

remainder query. This method uses Boolean logic to

compare the predicate clauses of the user query with

those of the semantic regions in order to generate

equations of similar form for sending to the cache

and server. Recall that we define the probe query as

= Q

∧ S

and the remainder query as Q

= Q

∧ ¬S

. By solving these two satisfiability problems,

the Ren et al.’s method locates the intersections

between the user query (Q

) and the semantic

sections in the cache (S

). This method is intuitively

straightforward and consistently generates an

accurate description of Q

and Q

Though the details of implementation differ

among the previous proposed algorithms, the general

model is consistent in its use of two separate

subroutines to compute Q

and Q

. Further,

though different methods of solving the satisfiability

problem have been proposed, all of them seek to

solve the same definitions of the probe and

remainder queries. These overriding similarities

enable general analysis of the Ren et al.’s method to

proceed without detailed implementation of each

individual algorithm.

Let us consider below an example of calculating

and Q

based on S

and Q

(Notice the

complexity introduced by the negation of S

in the

term.)

= (x ≥ 10 ∧ x ≤ 15 ∧ y ≥ 5 ∧ y ≤ 20) ∨ (x ≥ 5 ∧ x ≤ 20 ∧ y ≥ 2

∧ y ≤ 10)

= (x ≥ 8 ∧ x ≤ 17 ∧ y ≥ 3 ∧ y ≤ 8)

Probe Query:

= Q

∧ S

= (x ≥ 8 ∧ x ≤17 ∧ y ≥ 3 ∧ y ≤ 8) ∧ ( (x ≥10 ∧ x ≤

15 ∧ y ≥ 5 ∧ y ≤ 20) ∨ (x ≥ 5 ∧ x ≤ 20 ∧ y ≥ 2 ∧ y ≤ 10) )

Remainder Query:

= Q

∧ ¬S

(x ≥ 8 ∧ x ≤ 17 ∧ y ≥ 3 ∧ y ≤ 8) ∧ ¬ ((x ≥ 10 ∧ x ≤ 15 ∧ y ≥ 5 ∧ y

≤ 20) ∨ (x ≥ 5 ∧ x ≤ 20 ∧ y ≥ 2 ∧ y >10) ) ≡ (x ≥ 8 ∧ x ≤ 17 ∧ y ≥

3 ∧ y ≤ 8) ∧ (¬ (x ≥ 10) ∨ ¬ (x ≤ 15) ∨ ¬ (y ≥ 5) ∨ ¬ (y ≤ 20)) ∧

(¬ (x ≥ 5) ∨ ¬(x ≤ 20) ∨ ¬ (y ≥ 2) ∨ ¬ (y > 10)) ≡ (x ≥ 8 ∧ x ≤

∧ y ≥ 3 ∧ y ≤ 8) ∧ (x < 10 ∨ x >15 ∨ y < 5 ∨ y > 20) ∧ (x < 5 ∨ x

> 20 ∨ y < 2 ∨ y ≤ 10) ≡ (x ≥ 8 ∧ x ≤ 17 ∧ y ≥ 3 ∧ y ≤ 8) ∧ (x < 5

∨ (x < 10 ∧ y < 2) ∨ (x < 10 ∧ y < 10) ∨ x > 20 ∨ (x > 15 ∧ y < 2)

∨ (x > 15 ∧ y > 10) ∨ (x < 5 ∧ y < 5) ∨ (x < 20 ∧ y < 5) ∨ y < 2 ∨

(x < 5 ∧ y > 20) ∨ (x > 20 ∧ y > 20) ∨ y > 20)

Figure 1: A sample query processed using the Ren et al.’s

method.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

170

Despite its accuracy, a significant disadvantage

is posed by the logical derivation of the Ren et al.’s

method from the formal definitions of Q

and Q

Because of the negation of S

involved in generating

the remainder query, the calculations that this

method requires often become very intense quickly.

Since the Boolean negation operations exponentially

increase the number of clauses in the problems to

which they are applied, the Ren et al.’s method often

spends most of its execution time calculating Q

RQ.

This is particularly the case when there is a large

number of compare predicates to begin with in the

user query or a large number of semantic sections in

the cache. The efficiency of the Ren et al.’s method

is thus unfortunately dependent on the complexity

involved in solving Q

= Q

∧ S

and Q

= Q

∧

¬S

. In addition, previous algorithms’ consideration

of the attributes x and y as coordinates of the

semantic regions in a two-dimensional plane is not

compatible with the reality of database tables.

3.2 Visualization Method

The visualization method for query trimming

proposed by (Makki and Rockey, 2010) was

intended to avoid the complexity of the satisfiability

problem involved in the Ren et al.’s method. The

method’s most important difference from previous

algorithms rests in its use of relation pointers to

represent each compare predicate. In other words,

each segment S will be presented by k relation

pointers, where k is the number of compare

predicates in S. We can call the set of all the relation

pointers in the user query Q

and the set of those in

the cache C

= k

∨ k

∨...∨ k

, where S

..., S

are

the semantic segments stored in the cache.

By sorting the compare predicates of both Q

and C

by means of these relation pointers, the

method is able to process the predicates as

individual units and thus directly find areas of

intersection between them. The visualization

algorithm details a method of comparison of upper

and lower bounds to do this comparison;

importantly, this operation is identical to the bounds’

comparison employed in the final stage of many

satisfiability based methods.

Given the formal definitions of Q

and Q

, we

recognize that the visualization method must have a

description in the language of satisfiability. In fact,

this method essentially reframes the satisfiability

problem of the Ren et al.’s method into a much

simpler form. By directly comparing the relation

pointers, the method implicitly finds the area of

intersection between the user query and the cached

segments, or Q

≈ Q

∩ C

≈ Q

∧

Rather than comparing some negation of the

pointers to find Q

, the visualization method

removes this set of relation pointers from the whole

set of compare predicates in the original user query:

= Q

- Q

. The real advantage of the use of

relation pointers in the visualization method

becomes obvious at this point, as this removal

operation in linear time would be impossible without

the use of relation pointers. With them, the

calculation of the remainder query becomes a matter

of simple subtraction, and eliminates the need for the

complex negations of the Ren et al.’s method. This

difference represents a significant improvement in

efficiency in visualization method. Finally, this

reduced set of pointers remaining in Q

and the set

of overlapping pointers earlier identified between

and C

can be easily translated back into query

form as Q

and Q

, respectively.

3.3 Complexity Analysis

Analysis of the algorithm presented by Ren et al.

suggests that their method should be of order O(n

where

2≥k

, since the computation of Q

is alone

of order O(n

) in many cases. Simulations of Ren et

al.’s method by (Ren, et al., 2003), (Guo, et al.,

1996), (Hao, et al., 2005) have all produced results

that can be best matched to exponential curves.

Analysis of the algorithm presented by (Makki

and Rockey, 2010) suggests that the visualization

method should be of order O(n), since the

comparisons involved occur individually to each set

of relation pointers. Previous simulations have not

included a large enough sample set to allow curve

matching.

4 SIMULATION

The previous simulations of the methods of (Ren,

Dunham, et al., 2003) and (Makki and Rockey,

2010) have been limited to queries requesting data

from only one table (Ren, et al., 2003), (Guo, et al.,

1996), (Makki and Rockey, 2010). We extended our

simulation to model join queries, where users may

request data from two or more tables joined by the

specification of a join condition. This section

provides the simulation result not only for join

queries but also for single table selection query.

PERFORMANCE EVALUATION OF QUERY TRIMMING STRATEGIES IN SEMANTIC CACHING

ENVIRONMENT

171

4.1 Join Queries

This section provides an overview of the setup, test

cases, and results of our join queries simulation.

In order to make the comparison between the

two methods as clear and fair as possible, we began

our simulation setup by identifying points of

similarity in the Ren et al. and visualization

algorithms. We developed an efficient method for

modelling a small cache and reading in user queries

and implemented the two query processing

algorithms with two programs based on this

modelling method. By using the same data structure

in both programs to contain our simulated cache,

user queries, temporary remainder query (after

processing each individual semantic region), and so

on. We were able to produce two streamlined

programs that worked in much the same way, except

for the specific methods of query trimming. This

approach allowed us to test the efficiency of the

query processing trimming methods directly. Both

programs were based on the use of an original object

class,

RelationPredicate(), which contained the

table name, primary keys, attributes, and compare

predicates for each query. Each program was written

in Java and ran on a Pentium processor running

Windows Vista with 2 GB of RAM.

4.1.1 Test Cases

Following similar simulations conducted in (Ren, et

al., 2003), (Guo, et al., 1996), (Hao, et al., 2005) and

(Li, et al., 2008), we chose to compare the two

programs on the basis of execution time. We

modelled growing query complexity by gradually

increasing the number of semantic regions to be

processed. Since this method of measuring time

sometimes produces wildly varying results because

of other operations running on the system, we ran

each simulation 15 times and computed the mean of

the middle 10 results, allowing us to discard

obviously exotic times. We selected a variety of test

cases (Table 1 lists the test queries), ranging from

full containment (no remainder query generated) to

no intersection between the user query and the

semantic region (no probe query generated).

4.1.2 Results for Join Queries

Over the 10 cases that we tested, a consistent pattern

of differing efficiencies between the Ren et al. and

visualization methods clearly emerged. The

visualization method’s execution time increases

linearly, as we predicted, while the Ren et al.

method’s execution time increases exponentially in

some cases.

Table 1: Test queries for Case 1 through 5.

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1.x>=3&

t1.x<=8& t1.y>=8&t1.y<=12&t2.x>=4&t2.x<=11&t2.y>=4

& t2.y<=10;

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1.id=t2.id&

t1.x>=0&t1.x<=2&t1.y>=0&t1.y<=2&t2.x>=0&t2.x<=2&

t2.y>=0& t2.y<=2;

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1.id>=t2.id&

t1.x>=5&t1.x<=8&t1.y>=6&t1.y<=8&t2.x>=6&t2.x<=7&

t2.y>=5&t2.y<=7;

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1.id>=t2.id&

t1.x>=1&t1.x<=2&t1.y>=6&t1.y<=8&t2.x>=2&t2.x<=15&

t2.y>=2&t2.y<=7;

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1.id=t2.id&

t1.x>=0&t1.x<=10&t1.y>=0&t1.y<=20&t2.x>=5&t2.x<=10

&t2.y>=2&t2.y<=7;

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1.id=t2.id&

1.x>=3& t1.x<=11&t1.y>=9&t1.y<=14&t2.x>=8&t2.x<=13

& t2.y>=9 & t2.y<=13

Select t1.x, t1.y, t2.x, t2.y from t1, t2 where t1=t2.id&

t1.x>=3&t1.x<=8&t1.y>=8&t1.y<=12&t2.x>=4&t2.x<=11

& t2.y>=4&t2.y<=10;

Select t1.x,t1.y,t2.x,t2.y from t1,t2 where t1.id=t2.id&

t1.x>=0& t1.x <=2&t1.y>=0&t1.y<=2& t2.x>=0&t2.x<=2&

t2.y>=0&t2.y<=2;

Select t1.x,t1.y,t2.x,t2.y from t1,t2 where t1.id>=t2.id&

t1.x>=5 &t1.x<=8&t1.y>=6&t1.y<=8&t2.x>=6&t2.x<=7&

t2.y>=5&t2.y<=7;

Case 1: No Intersection

Figure 2 models the performance of the two methods

for two test queries that represent the case where

there is no probe query generated (Q

= Ø). For

both examples (Query2 and Query4), the

visualization method is clearly more efficient than

the Ren et al.’s method as the number of semantic

regions increases (Note: Query 2 and Query 4 of

visualization have completely overlapped in the

Figure 2).

Figure 2: No Containment.

Case 2: Full Containment

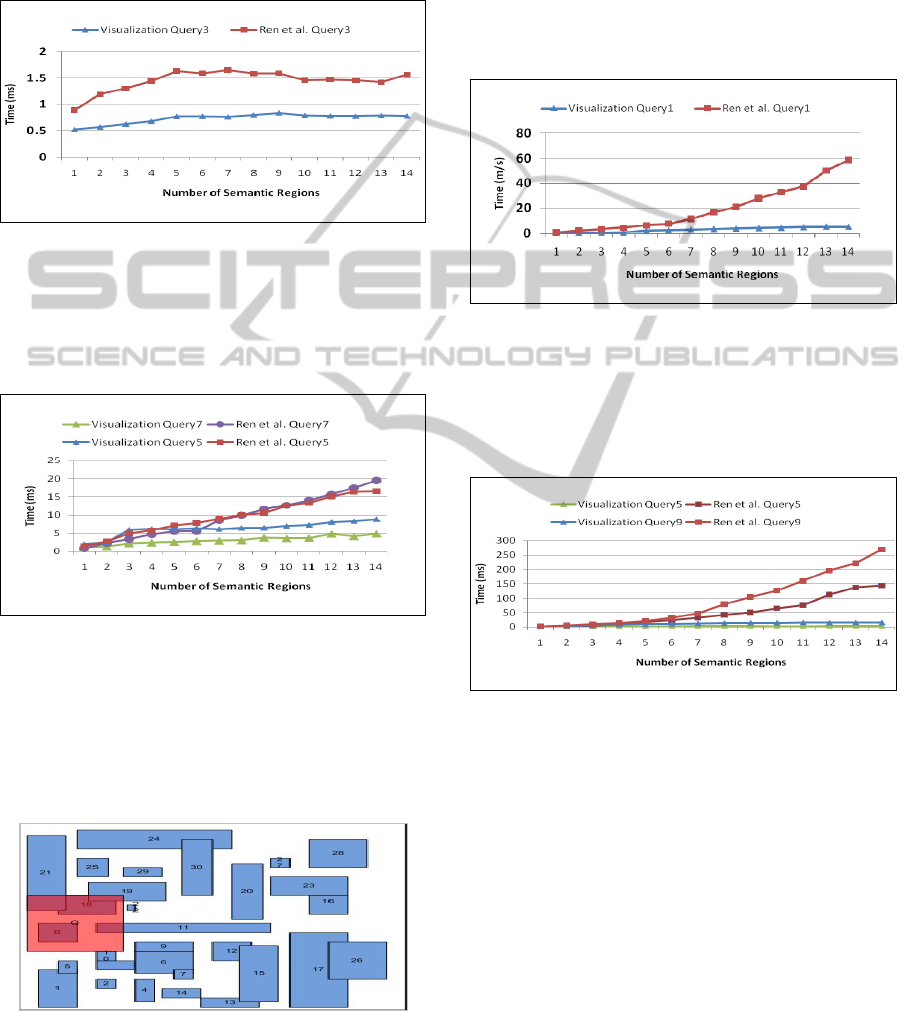

Figure 3 models performance for our other base

case, where there is no remainder query because the

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

172

user query is fully contained within a semantic

region in cache (Q

= ∅). Because both algorithms

exit the query trimming process as soon as a null

remainder query is returned, which happens after

semantic region 5, both methods remain consistent

as further new semantic regions are added.

Figure 3: Full Containement.

Case 3: Hybrid Query Trimming I

Figure 4 models performance for two relatively

small user queries that require hybrid query

trimming over both tables.

Figure 4: Hybrid Trimming I.

Hybrid trimming means that a semantic region

shares some columns and rows of those columns

with the query (see Figure 5). For both examples

(Query6 and Query7), the visualization method is

more efficient than the Ren et al.’s method as the

number of semantic regions increases.

Figure 5: This box models a user query (red box) that

requires hybrid trimming of the semantic regions (blue

boxes), since it needs both “vertical” and “horizontal”

trimming.

Case 4: Hybrid Query Trimming II

Figure 6 models performance for a user query that

requires the hybrid query trimming over a larger

area of the cache. It places upper and lower bounds

on every attribute selected. This increase in the

complexity of the probe and remainder query has

noticeable effects in the efficiency of the Ren et al.’s

method, which grows in execution time sharply,

while the visualization method grows consistently.

Figure 6: Hybrid Trimming II.

Case 5: Hybrid Query Trimming III

Figure 7 models performance for two user queries

that require more complex hybrid query trimming

over a larger area of cache.

Figure 7: Hybrid Trimming III.

These queries were specifically written to model

a situation in which a query intersects with many

different semantic regions. The differences in

efficiency between the Ren et al. and visualization

methods are extremely pronounced in these cases, as

the graph of the Ren et al.’s method begins to

assume an exponential shape. To offer perspective

on this figure, the Ren et al.’s method took (on

average) 17 times as long as the visualization

method to generate the probe and remainder queries

over 15 regions for Query9, and 47 times as long for

Query5, demonstrating the increased efficiency of

the visualization method for multiple-table joins.

PERFORMANCE EVALUATION OF QUERY TRIMMING STRATEGIES IN SEMANTIC CACHING

ENVIRONMENT

173

4.2 Simple Select Queries

In this section we extended (Makki and Rockey,

2010)’s simulation of single-table queries by

enlarging the number of semantic regions used,

which allowed us to obtain a better comparison of

the Ren et al. and Makki et al.’s methods. We again

made use of the

RelationPredicate() object

class for both programs. This object contains the

attributes, compare predicates, table names, and

primary keys for each query submitted by the user or

stored in cache, making comparisons on the basis of

the attributes or primary keys simple. Each program

was written in Java and ran on a Pentium processor

running Windows Vista with 2 GB of RAM.

4.2.1 Test Cases

As in our multiple-table query simulation, we

modelled an increase in query complexity by

gradually increasing the number of semantic regions

to be processed, beginning with 2 and progressing

up to 30 regions stored in the model cache. We again

chose a variety of test cases, from full containment

of the user query to no intersection between the

query and the semantic regions stored in cache

(Table 2 lists the five test queries). Since we were

interested in observing the change in efficiency of

the respective methods as the complexity of the

query increased, several of these cases represented

overlaps and expansions of each other. Again, this

large sample set allowed us to create graphs to

evaluate our complexity analysis.

Table 2: Test queries for Case1 through 5.

Q1 Select x, y from t where x>60&x<70& y>87&y<97;

Q2 Select x, y from t where x>70&x<78&y>8&y<18;

Q3 Select x, y from t where x>2&x<27&y>35&y<65;

Q4 Select x, y from t where x>22&x<52&y>2&y<77;

Q5 Select x, y from t where x>25&x<70&y>3&y<100;

4.2.2 Results for Simple Select Queries

Over the 10 cases that we tested, a consistent pattern

of differing efficiencies between the two methods of

Ren et al. and Makki et al. quickly emerged. The

following is a sample of five specific cases that

illustrate in detail the differences between the two

methods, and serves as a fair representation of the

whole test set in general. These queries can be

modelled in the cache as shown in Figures 8a, 8b.

Figure 8a: Models Query4. Figure 8b: Models Query5.

Case 1: No Intersection

Figure 9 models the performance of the two methods

for one of our two base cases (Query1), where there

is no probe query. Visualization is clearly more

efficient than Ren et al. as the number of semantic

region increases.

Figure 9: No Intersection.

Case 2: Full Containment

Figure 10 models the performance for our other base

case, where there is no remainder query because the

user query is fully contained within a semantic

region in cache (Query2). Again, visualization

remains consistent as the Ren et al.’s method

execution time continues to rapidly grow.

Figure 10: Full Containment.

Case 3: Hybrid Query Trimming I

Figure 11 models performance for a user query that

requires hybrid query trimming over a relatively

small area in a single table (Query3).

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

174

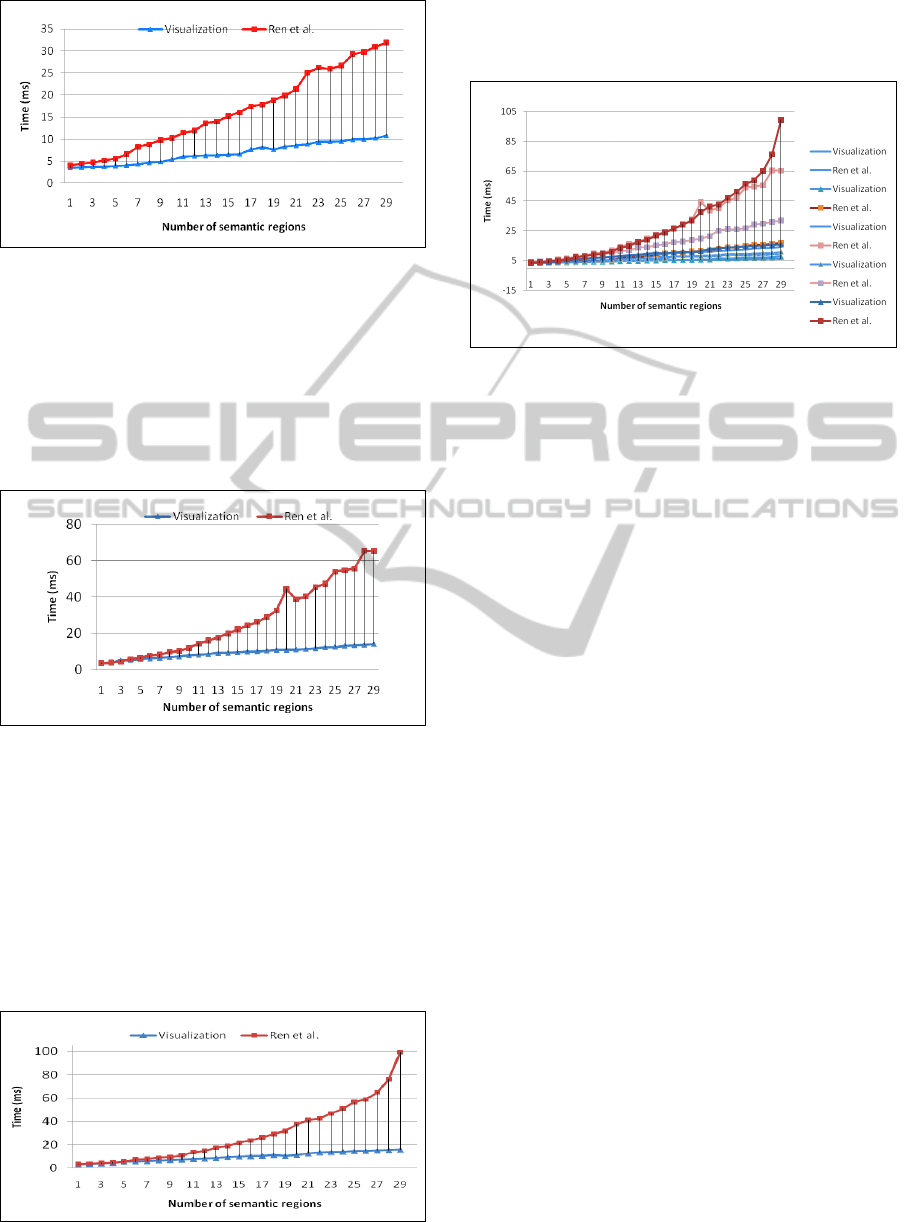

Figure 11: Hybrid Trimming I.

Case 4: Hybrid Query Trimming II

Figure 12 models the performance for a user query

that requires hybrid query trimming over a larger

area of cache (Query4; see Figure 8a). This increase

of complexity has noticeable effects in the efficiency

of the Ren et al.’s method, which grows in execution

time sharply.

Figure 12: Hybrid Trimming II.

Case 5: Hybrid Query Trimming III

Figure 13 models performance for a user query that

requires hybrid query trimming over a still larger

area of cache (Query5; see Figure 8b).

The differences in efficiency between the Ren et

al. and visualization methods are even more

pronounced in this case, as the graph for Ren et al.’s

method assumes a definitively exponential shape

while the visualization grows very slowly.

Figure 13: Hybrid Trimming III.

Figure 14 overlays the graphs of the five

previous cases over each other in order that a scalar

comparison can be made.

Figure 14: Overlay of 5 Cases.

It is immediately obvious from this figure that

the efficiency of the Ren et al.’s method varies

drastically depending on the particular query being

processed, while the visualization method is of

nearly identical efficiency and grows linearly no

matter what query is being processed. While this

variation means that in some cases (such as full

containment) Ren et al.’s method may be only

slightly less efficient than the visualization method,

visualization is consistently a much more efficient

algorithm than Ren et al. Further, it is clear that the

more complex the user query is, the more closely the

Ren et al.’s method follows an exponential growth

pattern, while visualization remains linear,

confirming our previous analysis.

5 CONCLUSIONS

This paper compared a new technique for semantic

caching, visualization, with the previous Ren et al.’s

method with regards to complexity and efficiency.

Both methods were explained and their relationships

to the problem of satisfiability were explored. Our

initial complexity analysis of the Ren et al. and

visualization algorithms was supported by our two

simulation studies of the two methods, where the

visualization method proved consistently more

efficient--O(n)--than the Ren et al.’s method as the

complexity of the query increased for both single

and multiple table queries. This finding

demonstrates that the visualization method is a faster

and simpler method for query optimization and

processing and it represents a significant

improvement over previous methods.

PERFORMANCE EVALUATION OF QUERY TRIMMING STRATEGIES IN SEMANTIC CACHING

ENVIRONMENT

175

REFERENCES

Dar, S., Franklin, M., Jónsson, B, Srivastava, D., Tan, M.

“Semantic Data Caching and Replacement.”

Proceedings of the 22

VLDB Conference, 1996.

Ren, Q., Dunham, M. Kumar, H., “Semantic Caching and

Query Processing.” IEEE Transactions on Knowledge

and Data Engineering, V. 15, no. 1, 2003.

Guo, S., Sun, W., and Weiss, M. A., “Solving satisfiability

and implication problems in database systems.” ACM

Transactions on Database Systems, V. 21, no. 2, 1996.

Hao, X., Zhang, T., and Li, L., “Optimization technology

of query processing based on logic rules in semantic

caching.” Chinese Journal of Computers, vol. 28, no.

7, pp. 1096-1103, July 2005.

Li, D., Ye, Y., and Xie, F., “Optimization technology of

query trimming in semantic caching,” Application

Research of Computers. V. 25, no. 12, Dec. 2008.

Makki, S. K., Rockey, M., "Query Visualization for Query

Trimming in Semantic Caching," IEEE 24th

International Conference on Advanced Information

Networking and Applications Workshops, pp. 443-448,

2010.

Rosenkrantz, D. J. and Hunt, H. B., “Processing

Conjunctive Predicates and Queries.” Proceedings of

the 6

VLDB Conference, pp. 64-71, 1980.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

176
