TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES

The Power of the Ternary Tree

Kazuhide Fukushima

∗1

, Shinsaku Kiyomoto

, Yutaka Miyake

and Kouichi Sakurai

∗2,3

KDDI R&D Laboratories Inc., Saitama, 356–8502, Japan

Faculity of Information Science and Electrical Engineering, Kyushu University, Fukuoka, 819–0395, Japan

Institute of Systems, Information Technologies and Nanotechnologies, Fukuoka, 814–0001, Japan

Keywords:

Broadcast encryption, Subset difference method, Traitor tracing, Ternary tree.

Abstract:

Digital content distribution services require that 1) only valid user devices that has a valid key can decrypt the

broadcasting content, 2) the keys can no longer be used to decrypt the content, if keys in a device are revealed,

and 3) invalid users who illegally use keys in a device can be identiﬁed. This paper proposes a broadcast

encryption scheme with traitor tracing based on the ternary tree structure. We design a new cover-ﬁnding algo-

rithm and label assignment algorithm in order to achieve a coalition-resistant revocation and tracing schemes.

In our scheme, the number of labels stored in a client device can be reduced by about 20.4 percent and the

average header length by up to 15.0 percent in the case where the total number of devices is 65,536. The efﬁ-

ciency of the traitor tracing is the same as the complete subtree method, and its computational cost imposed on

a client device stays within O(logn). Our scheme is an improvement of the complete subtree and difference

subset methods.

1 INTRODUCTION

1.1 Background

Digital content broadcasting services have become

major in the 3G and beyond 3G mobile market due

to advancing of its communication speed. Unautho-

rized use of the digital content has been a major issue

for the mobile services. In digital content distribution,

properties should satisfy the following three require-

ments: 1) only valid user devices that has a valid key

can decrypt the broadcasting content, 2) the keys can

no longer be used to decrypt the content, if keys in a

device are revealed, and 3) invalid users who illegally

use keys in a device can be identiﬁed. A broadcast

encryption scheme with a traitor tracing algorithm is

an essential technique to realize these requirements.

∗

The ﬁrst and forth authors are partially supported by

Strategic Japanese-Indian Cooperative Programme on Mul-

tidisciplinary Research Field, which combines Informa-

tion and Communications Technology with Other Fields by

Japan Science and Technology Agency and Department of

Science and Technology of the Government of India, en-

titled “Analysis of Cryptographic Algorithms and Evalua-

tion on Enhancing Network Security Based on Mathemati-

cal Science”.

1.2 Previous Work

Broadcast Encryption Scheme. The ﬁrst scheme

is proposed by Berkovits (Berkovits, 1991). Fiat et

al. (Fiat and Naor, 1994) formalized the basic def-

inition of a broadcast encryption scheme. Naor et

al. (Naor et al., 2001) proposed the complete sub-

tree method (the CS method). This scheme uses a

tree and devices are assigned to the leaf nodes of the

tree. Valid devices are covered by complete subtrees

and a key to encrypt the session key is assigned to

each subtree. There is one problem associated with

the CS method in that the header length increases in

proportion to the number of revoked devices. The av-

erage header length is given by O(rlog(n/r)) for the

number of total devices n, the number of revoked de-

vices r. The subset difference method (SD method)

is proposed by Naor et al. (Naor et al., 2001). This

method uses a binary tree to assign labels to devices.

A valid device can derive the key to decrypt the mes-

sage using its labels. The valid devices are covered

by subtrees with another subtree covering revoked de-

vices. A key to encrypt the session key is assigned to

each subtree. The header lengths in the average and

worst case scenarios are given by 2rlog2 and 2r− 1,

and each device stores ((logn)

/2 + logn/2 + 1) la-

Fukushima K., Kiyomoto S., Miyake Y. and Sakurai K..

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree.

DOI: 10.5220/0003447100370049

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 37-49

ISBN: 978-989-8425-71-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

bels. Many improvements to these SD methods have

been proposed. Halevy-Shamir (Halevy and Shamir,

2002), Goodrich et al. (Goodrich et al., 2004), Jho

et al. (Jho et al., 2005), Hwang et al. (Hwang et al.,

2005) and Attrapadung-Imai (Attrapadung and Imai,

2007) proposed schemes based on a pseudo-random

number generator. Asano (Asano, 2002), Attra-

padung et al. (Attrapadung et al., 2003) and Gentry-

Ramzan (Gentry and Ramzan, 2004) proposed a

scheme based on the RSA cryptosystem. Jho et

al.’s scheme reduces the header length to r/c but in-

creases the storage size in devices to O(n

) where c

is constant. Other schemes reduce the storage size to

less than O((logn)

) but increase the average header

length to greater than 2rlog2. Boneh et al. (Boneh

et al., 2005) proposed a scheme based on pairing in

which the header length and storage size do not de-

pend on r; however, this scheme imposes a heavy

computational cost: O(n) on devices.

Group key-management schemes based on the

ternary tree have been proposed (Wang et al., 2006;

Graham et al., 2007; Tripathi and Biswas, 2009). The

CS method can reduce the storage size and tracing

cost by using the ternary tree instead of the binary

tree. However, the SD method cannot protect against

coalition attacks if it is straightforwardly extended

to the ternary tree. The construction of a coalition-

resistant ternary SD method had been an open prob-

lem and we showed a possible solution (Fukushima

et al., 2008).

Traitor Tracing Scheme. Chor et al. (Chor et al.,

1994) proposed the ﬁrst scheme based on combina-

torics. This scheme requires O(k

logn) header length

and O(k

logn) storage size where k is the allowable

number of collaborative traitors. Their other scheme

is probabilistic one that requires O(k

log(n/p))

header length and O(klog(n/p)) storage size. This

scheme can prevent up to k collaborative traitors from

producing a pirated decoder with probability 1 − p.

Kurosawa-Desmedt (Kurosawa and Desmedt, 1998)

and Boneh-Franklin (Boneh and Franklin, 1999) pro-

posed schemes based on number theory. Then, Kuro-

sawa and Yoshida (Kurosawa and Yoshida, 2002)

showed that these schemes are identical. Chabanne et

al. (Chabanne et al., 2005) and Boneh et al. (Boneh

et al., 2006) proposed a scheme based on bilinear

maps. The schemes based on number theory and

bilinear maps are efﬁcient in terms of the commu-

nication overheads and the required storage size of

devices; however, they impose heavy computational

costs on devices.

1.3 Our Contribution

There exist many improved versions of the CS and

SD method providing a traitor tracing. However, no

method provide efﬁcient traitor tracing using a feasi-

ble header length. The CS method by Naor et al. pro-

vides an efﬁcient tracing with (t logn/log2) compu-

tational overhead, but the header length is rlog(n/r),

where t is the number of traitors. Their SD method

reduces the header length to 2rlog2; however, the

traitor tracing requires (t logn/log(3/2)) computa-

tion.

This paper proposes a coalition-resistant broad-

cast encryption scheme; its header length is re-

duced to 3rlog2 and the traitor tracing requires

(t logn/ log2) computation that is the same as the

computational cost of the CS method. The simula-

tion results show that the proposed method reduces

the average header length by up to 15.0 percent of

the SD method. However, straightforward optimiza-

tions do not work due to the lack of the resistance

against coalition attacks; thus, we need new algo-

rithms. We design a new cover-ﬁnding algorithm, la-

bel assignment algorithm and encryption algorithm

in order to achieve a coalition-resistant revocation

scheme, and then we evaluate the efﬁciency of the

proposed scheme and prove it is secure against coali-

tion attacks.

The rest of the paper is organized as follows:

Section 2 provides the preliminary. We propose the

ternary SD (3SD) method in Sect. 3 and analyze its

security and efﬁciency in Sect. 4. Section 5 discusses

the comparison with existing schemes and further ex-

tension of our scheme and we conclude our paper in

Sect. 6.

2 PRELIMINARY

Let N be the set of all of the devices, R(⊂ N) be the

set of revoked devices, and |N| = n, |R| = r. Broad-

cast encryption schemes enable the content distribu-

tion center to transmit message M to all devices such

that any valid devices in N\R can decrypt the mes-

sage, but none of the coalitions of revoked devices

can decrypt it. Keys (or labels to derive keys) are pre-

installed on each device and never updated.

The proposed scheme consists of 1) a label assign-

ment algorithm, 2) a cover-ﬁnding algorithm, 3) an

encryption algorithm, 4) a decryption algorithm, and

5) a tracing algorithm.

Label Assignment Algorithm. (by the content dis-

tribution center)

SECRYPT 2011 - International Conference on Security and Cryptography

Assign labels to each device. The labels are used

to derive a key to decrypt the session key.

Cover-Finding Algorithm. (by the content distribu-

tion center)

Find a family of disjoint subsets {S

,.. .,S

}

such that ∪

t=1

= N\R.

Encryption Algorithm. (by the content distribution

center)

Derive keys L

, ..., L

to disjoint subsets

,.. .,S

} output by the cover-ﬁnding algo-

rithm. Then, encrypt message M with session key

K and encrypt K with keys L

, ... , L

Decryption Algorithm. (by each device d ∈ N\R)

Find subset S

to which d belongs. Then, derive

key L

to decrypt K and obtain M.

Tracing Algorithm. (by the content distribution cen-

ter)

Find traitors who produced a pirated decoder and

revoke them.

3 PROPOSED SCHEME

We propose a coalition-resistant ternary subset differ-

ence (3SD) method. The proposed scheme can reduce

the communication cost and storage size in devices,

and provide efﬁcient traitor tracing. The 3SD method

can be implemented using encryption functions and

one-way functions; that is, the required primitives are

the same as the SD method.

3.1 Primitives

The 3SD method uses the following primitives;

• A symmetric key encryption function F

{0,1}

∗

→ {0,1}

∗

to encrypt message M.

• A symmetric key encryption function E

{0,1}

→ {0,1}

to encrypt session key K.

• One-way functions with pre-image resistance f

lbl

l ft

, f

cnt

, f

rgt

and f

kgf

: {0,1}

→ {0,1}

. These

one-way functions have to be pairwise distinct.

Note that one-way functions F

and F

are pair-

wise distinct (Shin et al., 2005) if there is no prob-

abilistic polynomial time adversary that calculates

) from given F

), or F

) from given

), for any x

∈ {0,1}

l ft

, f

cnt

, f

rgt

Naor et al. (Naor et al., 2001) constructed three

functions using a pseudo random function G : {0,1}

∗

→

{0,1}

3λ

. In the SD method, they used G

(S), G

(S), and

(S) which are the ﬁrst, second, and third λ bits of G(S),

respectively. We can construct the ﬁve functions f

lbl

, f

l ft

j1 j2

i,j1

=D D

i,j1 j2

=D D

)

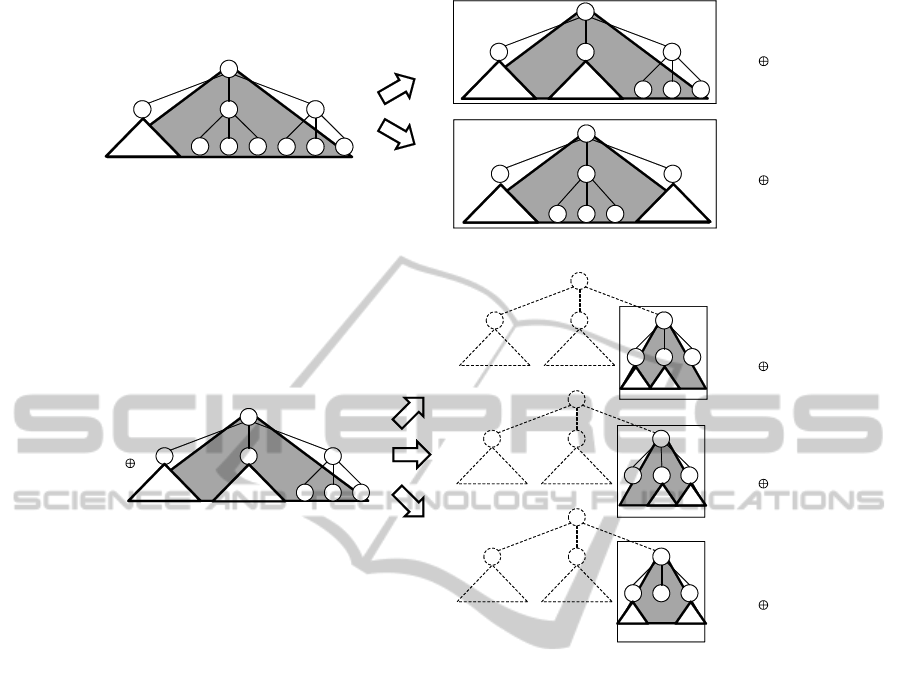

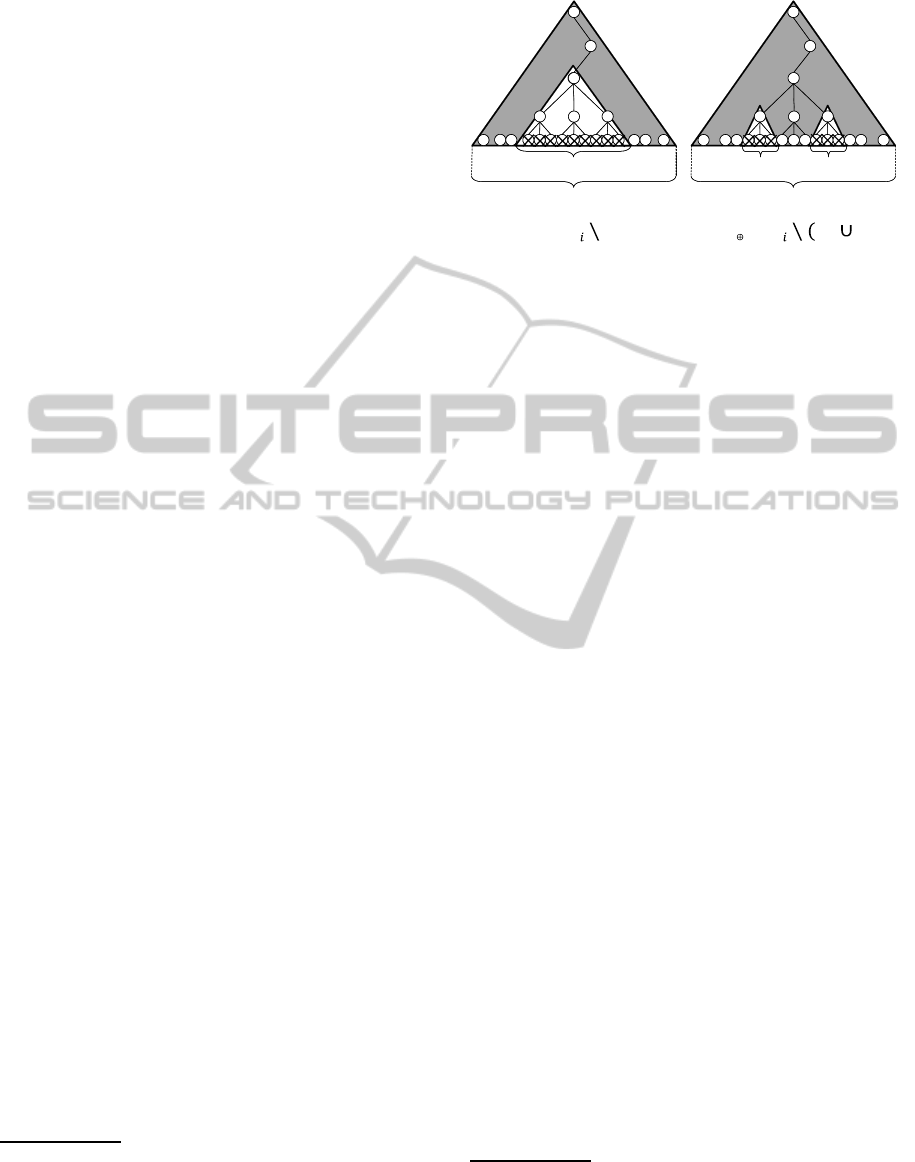

Figure 1: Subsets in 3SD method.

and f

lbl

are used to derive a label l(u,w) from

a label l(u,v) or transformed label f

lbl

(l(u, v)),

where node w is a child of node v. l(u, w) =

l ft

( f

lbl

(l(u, v))) holds for any u, v and w such

that w is the left child of v. Similarly, l(u,w) =

cnt

( f

lbl

(l(u, v))) or l(u,w) = f

rgt

( f

lbl

(l(u, v)))

holds if w is the center or right child of v. f

kgf

is used to derive a key from a label.

We deﬁne the subsets used in the 3SD method.

Then, detailed descriptions of each algorithm is pro-

vided in Sect. 3.3.

3.2 Subsets

In the 3SD method, all the devices in N\R are covered

by the collection of disjoint subsets S

, ..., S

. Each

subset S

is in the form of D

or D

\(D

∪ D

The former is used in the SD method and denoted by

i, j

. The latter is a characteristic subset in the 3SD

method and denoted by D

i, j

⊕ j

. In this subset, all of

the devices in D

and D

are revoked. The nodes

and j

must be siblings and the descendants of i.

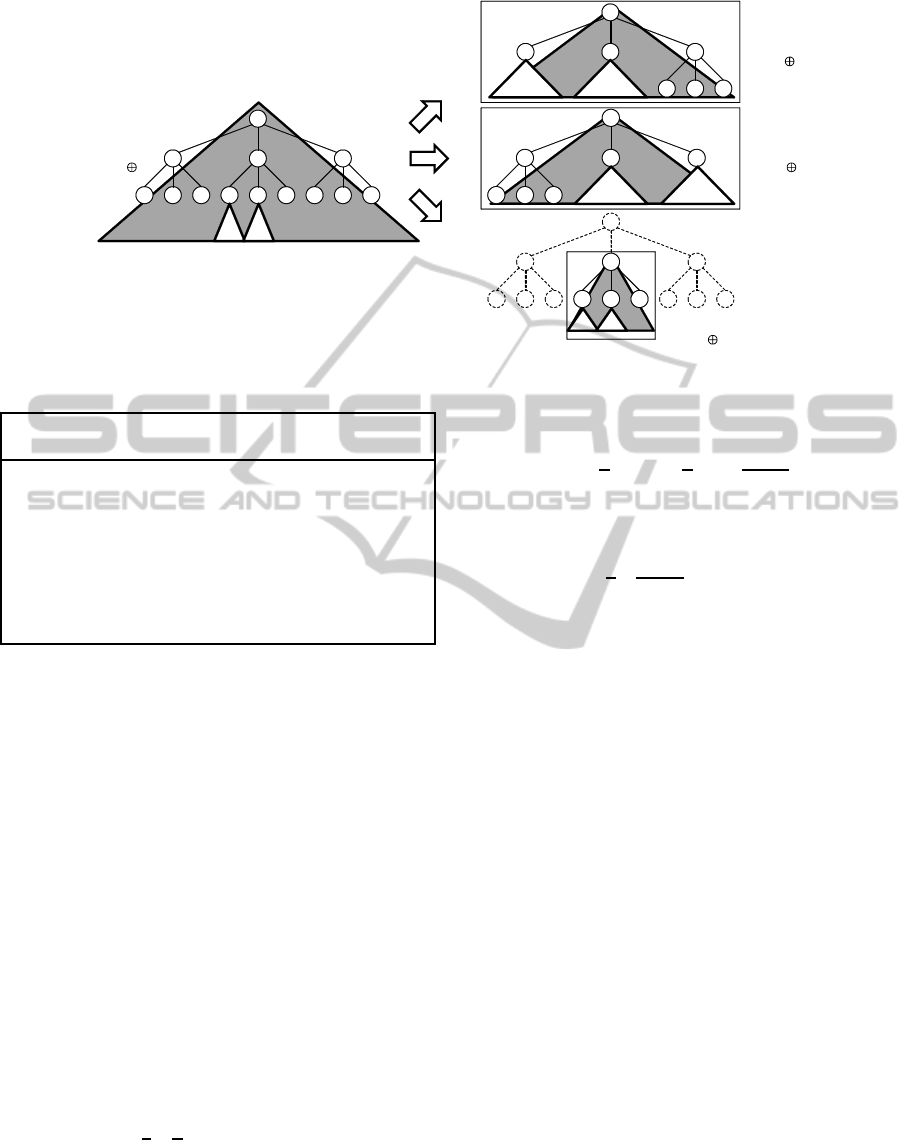

Figure 1 shows these two subsets.

3.3 Revocation Scheme

We describe the detail of the label assigned algorithm,

encryption algorithm and decryption algorithm. The

encryption algorithm takes the set of revoked devices

as input, and the revoked devices cannot decrypt mes-

sages. Thus, these algorithms provide a revocation

mechanism.

3.3.1 Label Assignment Algorithm

This algorithm is executed in the content distribution

center;

cnt

, f

rgt

, and f

kg f

based on another pseudo random func-

tion G

′

: {0,1}

∗

→ {0,1}

5λ

. Let G

′

(S) be i-th λ bits of

′

(S); then, we have f

lbl

(S) = G

′

(S), f

l ft

(S) = G

′

(S),

cnt

(S) = G

′

(S), f

rgt

(S) = G

′

(S), and f

kg f

(S) = G

′

(S).

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree

Step 1. Construct a ternary tree to manage devices.

These devices are assigned to leaf nodes of the

tree.

Step 2. Generate random initial labels with λ bits for

all of the nodes except for the leaf nodes in the

tree. Let the initial label for node u be l(u,u). All

of the other labels required in this scheme are de-

rived from these initial labels using one-way func-

tions f

l ft

, f

cnt

, f

rgt

and f

lbl

. Label l(u,w) can be

derived as f

l ft

( f

lbl

(l(u, v))), f

cnt

( f

lbl

(l(u, v))), or

rgt

( f

lbl

(l(u, v))) when w is the left, center or right

child of v, respectively.

Step 3. Assign labels and transformed labels to de-

vices. The set Label(u) that the device at the node

u has is given by

Label(u) ={ f

lbl

(l(v,w))|v ∈ Path(u), w ∈ LN(u)}

∪ {l(v,w)|v ∈ Path(u), w ∈ RN(u)}

∪ {l(all)}. (1)

Path(u) is the set of nodes that are on the path

from the root node to u. LN(u) denotes the set

of nodes that hang on the left of the Path(u). If

Path(u) contains the leftmost node, the rightmost

sibling is in LN(u). RN(u) denotes the set of

nodes that hang on the right of the Path(u). If

Path(u) contains that rightmost node, the leftmost

sibling is in RN(u). l(all) is a random label to

be used in the special case where there are no re-

voked devices.

3.3.2 Cover-ﬁnding Algorithm

The cover-ﬁnding algorithm takes the set of revoked

devices R as the input and outputs the collection of

disjoint subsets {S

,.. .,S

} that partition N\R. Let

ST(R) be the tree that consists of leaf nodes that cor-

respond to revoked devices and their ancestor nodes.

φ denotes the empty set. The output is used for an in-

put parameter of the encryption algorithm. Figure 2

shows the details of this algorithm.

The cover-ﬁnding algorithm ﬁrstly ﬁnds the root

nodes of eliminating subtrees. If a leaf node in tree

T has no sibling (case where k = 1) or only one sib-

ling (case where k = 2), the algorithm selects these

nodes as the root nodes; otherwise (case where k=3),

it scans the higher layers. Then, the cover-ﬁnding al-

gorithm ﬁnds the root node of a covering tree. If the

parent node of the root nodes of eliminating subtrees

has sibling(s), the algorithm selects this node as the

root node; otherwise it scans the higher layers. After

ﬁnding the root node of the covering tree, the algo-

rithm removes all the descendant nodes of it. This

algorithm terminates when tree T contains only the

root node.

Input Set of revoked devices R

Output Partition {S

,...,S

} such that

∪

t=1

= N\R

1: T ← ST(R);

2: C ← φ;

3: Do loop

4: Find leaf nodes j

, ..., j

that are siblings of

each other;

5: If k = 3 then

6: Remove nodes j

, j

and j

from T;

7: Else then /* k = 1 or k = 2 */

8: i ← the lowest ancestor node of j

(and j

) that has sibling(s);

9: If not found then

10: i ← root;

11: End if

12: If k = 1 then

13: C ← C ∪ {D

i, j

};

14: Else then /* k = 2 */

15: C ← C ∪ {D

i, j

⊕ j

};

16: End if

17: Remove all of the descendant nodes

of i from T;

18: End if

19: Until T = {root}

20: Return C;

Figure 2: Cover-ﬁnding algorithm.

3.3.3 Encryption Algorithm

The encryption algorithm is executed in the content

distribution center on message M:

Step 1. Choose session key K and encrypt M with K.

Step 2. Partition all of the valid devices into dis-

joint subsets S

, ..., S

using the cover-ﬁnding

algorithm. Let L

, ..., L

be the keys asso-

ciated with these subsets. The key for subset

i, j

is given by f

kgf

( f

lbl

(l(i, j

))), and the key

for subset D

i, j

⊕ j

where right( j

, j

) is given by

kgf

(l(i, j

)). right(u,v) means that v is the im-

mediate right sibling of u. If u is the rightmost

node, v is the leftmost sibling. Any two sibling

nodes in a ternary tree can be described in the

form “right(u, v)”.

Step 3. Encrypt session key K with keys L

, ..., L

and send broadcast message

h[S

,.. .,S

(K),. .. ,E

(K)],F

(M)i (2)

to all of the devices.

3.3.4 Decryption Algorithm

The decryption algorithm is executed in a device on a

received broadcast message:

Step 1. Find subset S

to which the device belongs.

The result is ⊥ when the device is revoked.

SECRYPT 2011 - International Conference on Security and Cryptography

Input Current partition {S

,...,S

}

Output New partition where traitors are eliminated

1: S ← {S

,...,S

};

2: Do loop

3: S

← subset tracing algorithm(S );

4: If S

= ⊥ then

5: Return S ;

6: Else if S

contains only one device then

7: S ← S \{S

};

8: Else then

9: Split S

into two or three subsets:

, S

(and S

in some cases);

10: S ← S \{S

} ∪ {S

(,S

)};

11: End if

Figure 3: Global tracing algorithm.

Step 2. Derive key L

from a label or transformed us-

ing one-way functions.

Step 3. Decrypt E

(K) using L

to obtain key K.

Step 4. Decrypt F

(M) using K to obtain and output

message M.

3.4 Tracing Scheme

We use a global tracing algorithm when we ﬁnd a pi-

rated decoder. This algorithm outputs the new parti-

tion where traitors are eliminated, and this partition is

used for further message broadcasting.

3.4.1 Global Tracing Algorithm

The global tracing algorithm takes the current parti-

tion as the input and outputs a new partition where

traitors are eliminated. We use the subset tracing al-

gorithm to ﬁnd the subset containing traitors, which is

described in the next subsection. Figure 3 shows the

details of the global tracing algorithm.

This algorithm is based on the divide-and-conquer

strategy. Thus, a subset should be split into subsets

of approximately the same size in Line 9 in order to

improve the efﬁciency. Figure 4, 5, and 6 shows the

splitting method for a subset. We consider the follow-

ing three cases:

i) The root node of the subtree and the root node of

an eliminating subtree are adjacent.

ii) The root node of the subtree and the root nodes of

two eliminating subtrees are adjacent.

iii) The root node of the subtree and the root node(s)

of the eliminating subtree(s) are non-adjacent.

3.4.2 Subset Tracing Algorithm

The subset tracing algorithm takes a partition as the

input and outputs a subset containing traitors. The

algorithm tests whether the pirated decoder can de-

crypt the message on the partition with probability p

greater than the threshold (i.e., 0.5). If the decoder

cannot decrypt the message, the algorithm outputs ⊥.

Otherwise, the algorithm outputs subset S

such that

− p

j−1

| > p/w where w is the number of subsets

in the partition. We deﬁne p

by the probability that

the box decodes the ciphertext

h[i

,.. .,i

(R),E

(R),...,E

(R),

j+1

(K),E

j+2

(K),. .. ,E

(K)],F

(M)i, (3)

where R is a random number with the same length as

key K. Note that p

= p, p

= 0; thus, there exists j

such that |p

− p

j−1

| > p/w. The value j can be found

efﬁciently using the binary search algorithm. Figure 7

shows the details of the subset tracing algorithm.

4 ANALYSIS

The efﬁciency and security of the 3SD method is an-

alyzed in this section.

4.1 Efﬁciency

We evaluate the 3SD method from four perspectives:

• Communication cost, i.e., the length of the header

that is attached to F

(M), which can be evaluated

by the number of subsets.

• Storage size, which can be evaluated by the num-

ber of labels and transformed labels in each de-

vice.

• Computational cost, which is imposed on devices

to derive the session key.

• Computational cost, which is imposed on the con-

tent distribution center to trace traitors.

The header length depends on the location to which

revoked devices are assigned, while the storage size

and the computational cost are not dependent on this

location. Therefore, an analysis of worst and average

case scenarios is presented.

4.1.1 Communication Cost

The header length is evaluated in worst and average

case scenarios.

Worst Case Analysis. A trivial upper bound of the

number of subsets is given by n/3. In this case, all of

the devices are covered by ternary trees with height 1.

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree

j2 j3

i,j1

i,j3 j1

i,j1 j2

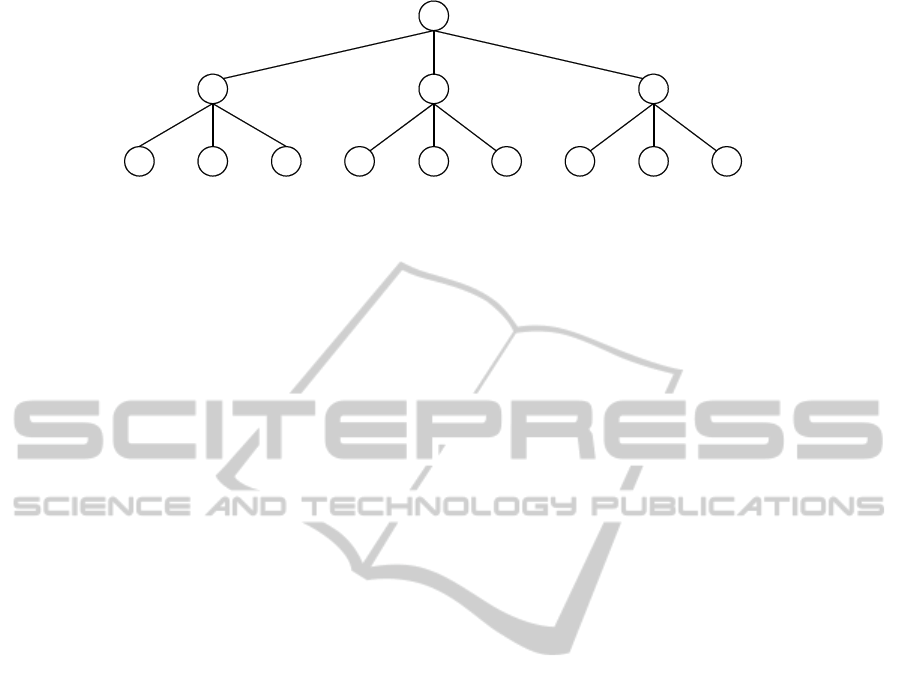

Figure 4: Subset splitting method in case i).

j1 j2

k1 k2 k3

j3,k2 k3

j3,k3 k1

j3,k1 k2

i,j1 j2

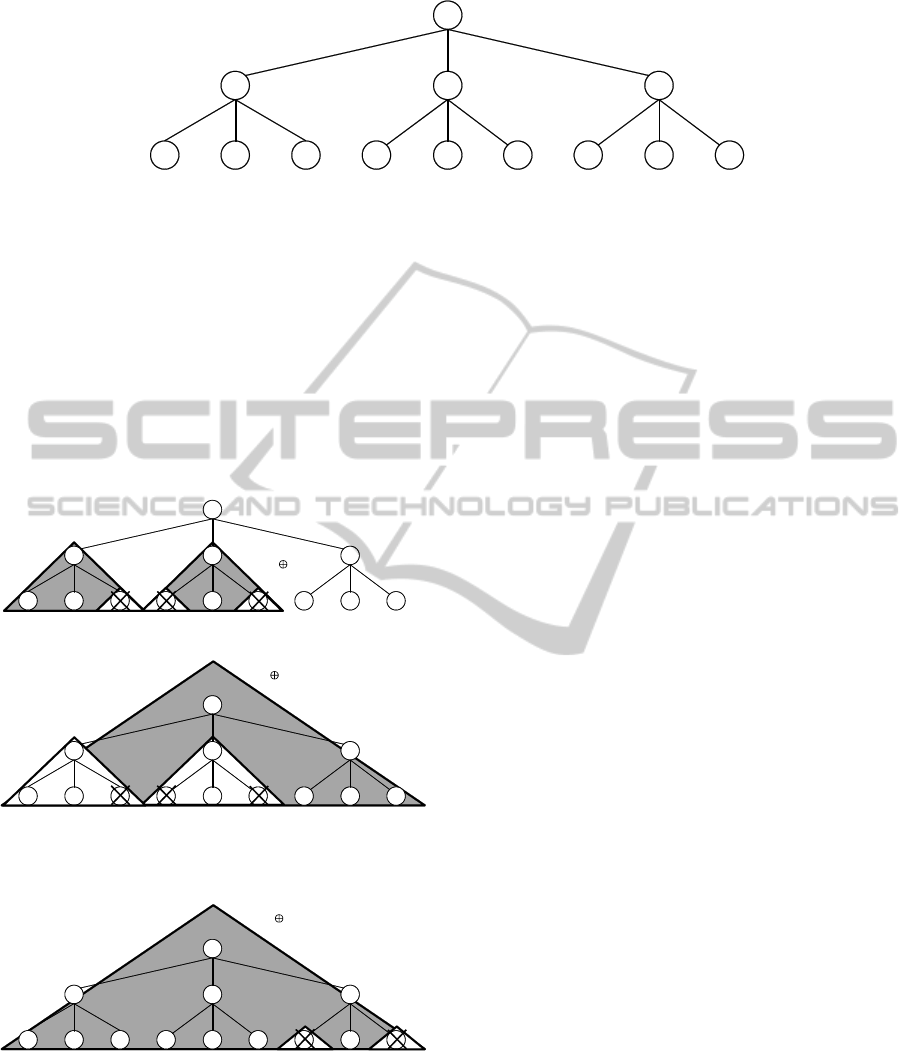

Figure 5: Subset splitting method in case ii).

The upper bound in terms of r can be evaluated

by the number of chains in the alternative descrip-

tion of the cover-ﬁnding algorithm in Naor et al.’s pa-

per (Naor et al., 2001) (in Sect. 3.2). This alterna-

tive description is used to construct chains of nodes in

ST(R). In the SD method, each chain is in the form

,.. .,u

] and satisﬁes the following conditions:

• u

, ..., u

l−1

have an outdegree of 1.

• u

is either a leaf node or a node with an outdegree

of 2.

• The parent of u

is either a node with an outdegree

of 2 or the root node.

Subset D

i, j

corresponds to chain [i,. .., j]. In the

3SD method, each chain is in the form [u

,.. .,u

(1)

]

or [u

,.. .,u

l−1

(1)

(2)

] and satisﬁes the following

conditions:

• u

, . .., u

l−2

have an outdegree of 1 and u

l−1

has

an outdegree of 1 or 2.

• u

(1)

and u

(2)

are leaf nodes or nodes with an out-

degree of 3.

• The parent of u

is a node with an outdegree of 2

or 3, or the parent is the root node.

Subset D

i, j

corresponds to chain [i, ... , j

] and

subset D

i, j

⊕ j

corresponds to chain [i,. .. , j

; j

]. The

head vertex of a chain must be the root node or a child

of a node with an outdegree of greater than 1. Thus,

a parent node of the head vertices is a branch node

of ST(R) (or the head vertex is a root). Let the out-

degree of the branch node be b. Then, the number

of branch nodes is given by r/b + r/b

+ · ·· + 1 =

(r − 1)/(b − 1). Assume that the number of branch

nodes with b = 2 is a

, that of nodes with b = 3 is a

and a = a

+ a

. The proportion of branch nodes with

b = 2 is a

/a and that of nodes with b = 3 is a

/a.

The number of chains is given by

∑

b=2

/a)[b(r− 1)/(b − 1)] + 1. (4)

Note that the root node is an additional head vertex.

The number of chains is simpliﬁed to

(4a− a

)/(r− 1)/(2a) + 1, (5)

and it takes the maximal value 2r−1 for a

= 0. Thus,

the upper bound in terms of r is 2r− 1.

Average Case Analysis. Naor et al. showed the

upper bound of the average header length in the SD

SECRYPT 2011 - International Conference on Security and Cryptography

v2 v3

v1 v2 v3

i,v1 v2

i,v2 v3

v2,j1 j2

i,j1 j2

Figure 6: Subset splitting method in case iii).

Input Partition {S

,.. .,S

}

Output Subset containing traitors or ⊥

1: S ← {S

,.. .,S

};

2: p ← the probability that the pirated decoder

can decrypt the message on S ;

3: If p <threshold then

4: Return ⊥;

5: Else then ﬁnd S

such that |p

− p

j−1

| > p/w;

6: Return S

;

7: End if

Figure 7: Subset tracing algorithm.

method. They evaluated the expected number of sub-

sets by counting the number of chains with an outde-

gree of 1 that are not empty; that is, contain multiple

vertices. Note that an empty chain is a chain that con-

sists of one node and the term empty does not mean

an empty set. No subsets are added to the partition

when a chain is empty. Consider a chain on which

t devices hang; that is, t revoked devices lie down-

stream of the chain. The condition that a chain is not

empty is that all t devices exist on one side down-

stream of this chain. Then, the probability that the

chain is not empty is 2

−(t−1)

, which is the probability

that all t devices exist only on the left side or the right

side. For any 1 ≤ t ≤ r, there are up to r/t chains on

which t devices hang since each chain contains dis-

tinct t devices. Thus, the expected number of non-

empty chains in the SD method is bounded by

∑

t=1





t−1

≤ 2rlog2. (6)

In the 3SD method, a chain is empty if there is no

downstream that has no devices. Thus, a chain is not

empty if there is downstream without devices. The

probability that a chain is not empty is calculated as





− 3





− 1

t−1

. (7)

The average header length in the 3SD method is

bounded by

∑

t=1



− 1

t−1



≤ 3rlog2. (8)

The upper bound in the 3SD method is larger than that

in the SD method based on this evaluation.

Next, we evaluated the average number of sub-

sets in the 3SD method using a simulation. The to-

tal number of devices is 65,536 and the position of

revoked devices is randomly determined. We com-

pare the SD method and the 3SD method. Figure 8

shows the comparison results. We refer the Okuaki et

al.’s results (Okuaki et al., 2008) to estimate the aver-

age number of subsets in the SD method. The subsets

number in the 3SD method is lower than that in the

SD method for a large number of revoked devices.

The rate of reduction is up to 15.0 percent. Note that

this condition is disadvantageous to the 3SD method

with regard to unused nodes.

Finally, we compare the theoretical results and

our simulation results. The header length of the SD

method is smaller than that of the 3SD method in

some of our simulation trials where r ≤ 1,000. In this

situation, our simulation results agree with the theo-

retical upper bounds for the average header lengths.

The theoretical upper bound of the header length in-

creases in proportion to the number of revoked de-

vices. However, it is not necessary for the header

length to be proportionate to the number of revoked

devices in the average case. Additionally, a lot of de-

vices can be revoked simultaneously with high prob-

ability as the number of revoked devices approaches

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree

the total number of devices. In this situation, there is a

gap between our simulation results and the theoretical

upper bounds for the average header lengths. If r =

n/2, the average header lengths reach the maximum

values. That is, the lengths approach the other theo-

retical results (the trivial upper bound for the header

lengths: n/3 for the 3SD method and n/2 for the SD

method). Our simulation results indeed show that the

header length of the 3SD method is smaller than that

of the SD method in the case where r = 32,768. The

reduction ratio of the header length using the 3SD

method takes the most signiﬁcant value in this situa-

tion. Our simulation results agree with the theoretical

results in this situation.

4.1.2 Storage Size

Each device has d

− d labels of l(u,∗) and d

−

d transformed labels of f

lbl

(l(u, ∗)) for an ancestor

node u at depth d, where d

∼ log

n is the height of

the tree. The label l(all) is needed for the case where

there is no revoked key. The number of labels and

transformed labels stored in devices is given by;

log

∑

d=0

2(log

n− d)+ 1 ∼ (logn)

/(log3)

. (9)

4.1.3 Decryption Cost

We evaluate the computational cost imposed on de-

vices to derive the session key. First, a device ﬁnds

the subset to which the device belongs. The subset

can be found in O(loglogn) using the techniques for

ﬁnding table structures in the CS method. And then,

the device derives the key. In this process, the device

uses a one-way function up to 2log

n− 1 times. The

total computational cost is bounded by

O(loglogn) + 2(log

n− 1) = O(logn). (10)

4.1.4 Tracing Cost

We consider the bifurcation value that is the relative

size of the largest split subset to the original subset in

order to evaluate the efﬁciency of the global tracing

algorithm. Let the number of splits required to iden-

tify one of the traitors be x. Nb

= 1 holds for the

bifurcation number b, and we have

x =

logn

log(1/b)

. (11)

The computational overhead required to trace all of

the t traitors is bounded by t logn/ log(1/b). We can

see the relative size of the largest split subset is 1/2,

1/3, and 3/7 in case i), ii), and iii), respectively. Com-

paring these three cases, the bifurcation value is 1/2,

which occurs in case i). Thus, our global tracing algo-

rithm requires (t logn/ log2) computational overhead

in the worst case scenario.

4.2 Security

The 3SD method is secure if F

and E

are secure

encryption algorithms and the label assignment al-

gorithm is coalition resistant. This security result

follows by the same argument as Naor et al.’s the-

orem (Naor et al., 2001). Note that the label as-

signment algorithm is different from that of the SD

method. We discuss the coalition resistance of our la-

bel assignment algorithm.

First, we deﬁne the security conditions of the

primitives as follows;

Deﬁnition 1. For any probabilistic polynomial time

adversary A , for every message M, random mes-

sage R

with length |M| and random session key

K ∈ {0,1}

|Pr[A (F

(M)) = 1]−Pr[A (F

)) = 1]| ≤ ε; (12)

then, F

is a secure encryption algorithm with secu-

rity parameter ε.

Deﬁnition 2. For any probabilistic polynomial time

adversary A , for every message x, random message

with length |K| and random key L ∈ {0,1}

|Pr[A (E

(x)) = 1] − Pr[A (E

)) = 1]| ≤ ε; (13)

then, E

is a secure encryption algorithm with secu-

rity parameter ε.

Deﬁnition 3. Assume an adversary A against the la-

bel assignment algorithm and oracle O for which be-

haviors are deﬁned below;

1. A determines the set of all of the devices N and

the set of revoked devices R and sends them to O .

2. O assigns labels to devices and separates N\R

into S

, S

, ..., S

; then, O sends (S

,.. .,S

)

to A .

3. A selects t (1 ≤ t ≤ w) and sends it to O .

4. O sends Label(N\S

), which is the set of labels

that all of the devices in N\S

have, to A .

5. O derives key L

, selects random R

with length

|; then, O sets K

= L

and K

= R

6. O ﬂips a coin b ∈ {0,1} and sends K

to A .

For any probabilistic polynomial time adversary A ,

|Pr[A (L

,Label(N\S

)) = 1]

− Pr[A (R

,Label(N\S

)) = 1]| ≤ ε; (14)

then, the label assignment algorithm is coalition re-

sistant with security parameter ε.

SECRYPT 2011 - International Conference on Security and Cryptography

5000

10000

15000

20000

25000

0 10000 20000 30000 40000 50000 60000

the number of subsets

the number of revoked devices

i) SD method

ii) 3SD method

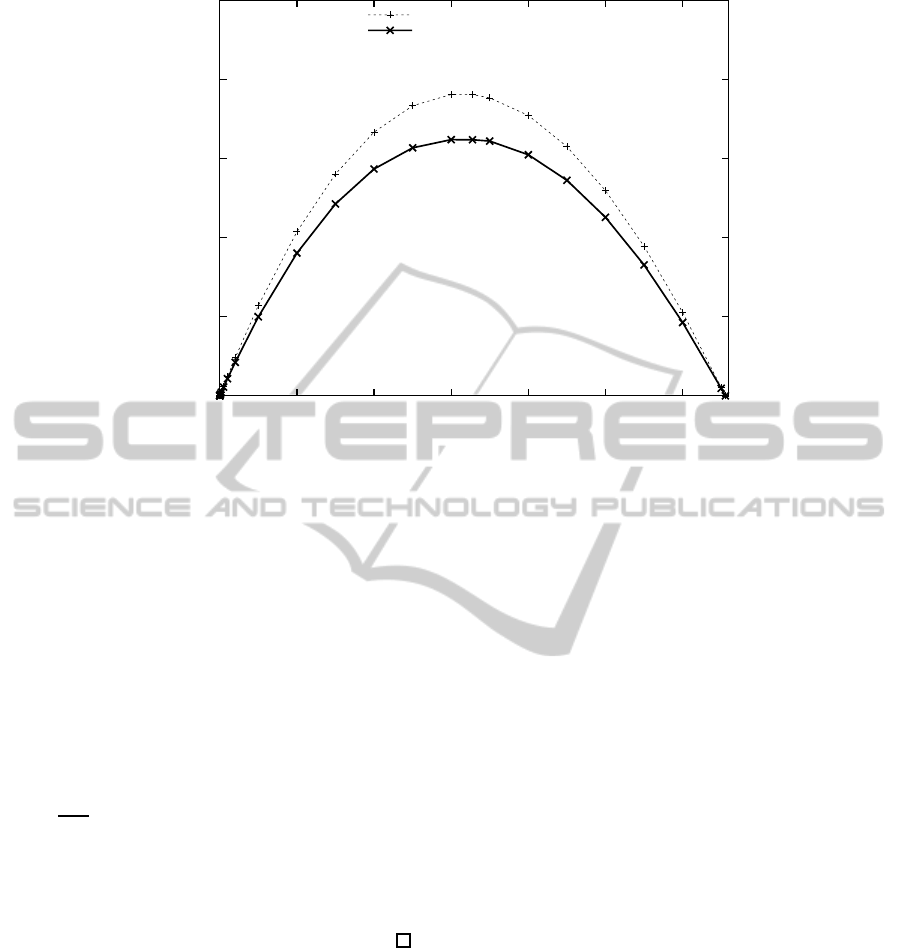

Figure 8: Average header length estimated by simulation.

We now state and prove the main security theorem.

Theorem 1. F

, E

are secure encryption algorithms

and the label assignment algorithm is coalition resis-

tant with security parameters ε

, ε

and ε

, respec-

tively. Then, for any probabilistic polynomial time

adversary A with the header of a broadcast message

,.. .,S

(K),. .. ,E

(K)], (15)

for every encrypted message F

(M), encrypted ran-

dom F

) with length M and random key K,

|Pr[A (F

(M),[S

,...,S

(K), . .. , E

(K)]) = 1]

− Pr[A (F

),[S

,...,S

(K), . .. , E

(K)]) = 1]|

≤ ε

2nw

(ε

+ 4wε

). (16)

Proof. This theorem follows from Theorem 11 of the

full version of Naor et al.’s paper (Naor et al., 2001).

Note that the structure of a broadcast message of the

3SD method is exactly the same as that of the SD

method.

This security theorem assumes the security of the

label assignment algorithm. The following lemma

shows that our label assignment algorithm can protect

against coalition attacks.

Lemma 1. The label assignment algorithm of the

proposed method is coalition resistant.

Proof. We show that for each subset S

, a coalition of

devices that do not belong to this subset cannot obtain

the corresponding key L

. In the 3SD method, a subset

may be D

i, j

with the revoked subtree rooted at j

or D

i, j

⊕ j

with the two revoked subtrees rooted at j

and j

The case where S

is D

i, j

. In this case, the corre-

sponding key is L

= f

kgf

( f

lbl

(l(i, j

))), which can

be derived by using label l(i, j

) or transformed la-

bel f

lbl

(l(i, j

)). What needs to be determined is

that none of the coalitions of devices in N\D

and

can obtain the label l(i, j

) or transformed label

lbl

(l(i, j

)).

No coalition of devices in N\D

can obtain the

key. The label l(i,∗) can be derived only from the

initial label l(i,i) that is generated randomly and in-

dependently of other initial labels. Thus, a coalition

of these devices in N\D

cannot obtain labels or trans-

formed labels in the form of l(i,∗) and f

lbl

(l(i,∗))

since node i is not on the paths from the root node

to the leaf nodes where these devices are assigned.

Now, we only have to consider that no coalition of

devices in D

can obtain the key. No device in D

has labels or transformed labels in the form of l(i, j

lbl

(l(i, j

)), l(i,u) and f

lbl

(l(i,u)), where u is an an-

cestor node of j

. Note that the coalition of all of the

devices in D

can collect all of the labels in the form

of l(i,v), where v is a descendant of j

. However, this

coalition cannot derive l(i, j

) from these labels since

it is infeasible to ﬁnd the inverse of the one-way func-

tions.

The case where S

is D

i, j

⊕ j

. In this case, the cor-

responding key is L

= f

kgf

(l(i, j

)), which can be

derived by using label l(i, j

). What needs to be de-

termined is that none of the coalitions of devices in

N\D

, D

and D

can obtain label l(i, j

No coalition of devices in N\D

can obtain the key

since none of the coalitions has any labels or trans-

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree

Table 1: Comparison between CS, SD, and 3SD methods.

Method

Header Len. Header Len.

Stor. Size Comp. Cost Tracing Cost

(Max.) (U.B. of Ave.)

CS method (binary) O(rlog(n/r)) N/A logn/log2 O(logn) t logn/ log2

CS method (ternary) O(rlog(n/r)) N/A logn/log3 O(logn) t logn/ log3

SD method n/2, 2r − 1 2rlog2 (logn)

/2(log2)

O(logn) t logn/ log(3/2)

3SD method n/3, 2r − 1 3rlog2 (logn)

/(log3)

O(logn) t logn/ log2

formed labels in the form of l(i,∗) and f

lbl

(l(i,∗)).

Now, we only have to consider that no coalition of

devices in D

and D

can obtain the key. No device

in D

has labels or transformed labels in the form of

l(i, j

), l(i,u) and f

lbl

(l(i,u)) where u is an ancestor

node of j

. Note that devices in D

have the label

lbl

(l(i, j

)); however, it is infeasible to derive l(i, j

)

from f

lbl

(l(i, j

)). The coalition of all of the devices

in D

and D

can collect all of the labels in the form

of l(i,v) where v is a descendant of j

. However, this

coalition cannot derive l(i, j

) from these labels since

it is infeasible to ﬁnd the inverse of the one-way func-

tions.

5 DISCUSSION

In this section, we discuss a comparison with the

SD method and an extension to a general a-array SD

method.

5.1 Comparison with Existing Schemes

The upper bound of the header length in the 3SD

method, n/3, is lower than that in the SD method:

n/2 and CS method: O(rlog(n/r)). The simulation

results show that the 3SD method reduces the average

header length by up to 15.0 percent of the SD method,

even though the upper bound of header length in the

3SD method is slightly larger than that in the SD

method. In the 3SD method, the storage size on de-

vices is approximated by (logn)

/(log3)

, which is

about 20.4 percent smaller than that in the SD method,

approximated by (logn)

/2(log2)

. The storage size

is slightly larger than the CS method (logn/ loga

where a denote the degree of the tree). However, it

still stays within the polylogarithmic order. The 3SD

method imposes O(logn) computational overhead on

devices, which is identical to the overhead of the CS

and SD methods. The computational cost to trace all

of the t traitors is bounded by (t logn/log(3/2)) in

the SD method. The upper bound of the computa-

tional cost in the 3SD method is (t logn/log2), which

is 41.5 percent lower than that in the SD method and

identical to the CS method with the binary tree. We

summarize the above discussion in Table 1.

5.2 Extension to General SD Method

In the ternary tree, any one or two nodes are adjacent.

Note that we consider that the leftmost node is next to

the rightmost sibling. The proposed label assignment

algorithm based on a one-way chain technique works

in this situation. Two different labels generated by the

algorithm are used in the 3SD method. A transformed

label is used to revoke only single subtree, i.e., the

devices in the other two sibling subtrees that are sub-

trees rooted at the sibling nodes still obtain this key

from the transformed label. A non-transformed label

is used to revoke two adjacent subtrees. The devices

in the remaining subtree only derive the key using this

label.

However, in a general a-array tree where a ≥ 4,

there exists a set of nodes that is non-adjacent. The

proposed one-way chain approach does not work for

this non-adjacent point. Thus, a coalition-resistant a-

array SD method is an open problem.

6 CONCLUSIONS

In this paper, we proposed a coalition-resistant ternary

subset difference (3SD) method and presented quan-

titative analysis of efﬁciency and security of the

method. This method has the following advantages:

1) both the average header length and storage size im-

posed are lower than those in the SD method and CS

method, 2) the tracing algorithm is more efﬁcient than

the SD method and it requires the same computational

cost as the CS method.

REFERENCES

Asano, T. (2002). A revocation scheme with minimal stor-

age at receivers. In Proc. of Advances in Cryptology

(ASIACRYPT2002), Lecture Notes in Computer Sci-

ence 2501, pages 433–450.

SECRYPT 2011 - International Conference on Security and Cryptography

Attrapadung, N. and Imai, H. (2007). Practical broad-

cast encryption from graph-theoretic techniques and

subset-incremental-chain structure. IEICE Transac-

tion on Fundamentalof Electronics, Communications

and Computer Sciences, Special Section on Cryptog-

raphy and Information Security, E90-A(1):187–203.

Attrapadung, N., Kobara, K., and Imai, H. (2003). Sequen-

tial key derivation patterns for broadcast encryption

and key predistribution schemes. In Proc. of Advances

in Cryptology (ASIACRYPT2003), Lecture Notes in

Computer Science 2894, pages 374–391.

Berkovits, S. (1991). How to broadcast a secret. In Proc. of

Advances in Cryptology (EUROCRYPT’91), Lecture

Notes in Computer Science 547, pages 535–541.

Boneh, D. and Franklin, M. (1999). An efﬁcient public

key traitor tracing scheme. In Proc. of Advances in

Cryptology (CRYPTO1999), Lecture Notes In Com-

puter Science 1666, pages 338–353.

Boneh, D., Gentry, C., and Waters, B. (2005). Collusion

resistant broadcast encryption with short ciphertexts

and private keys. In Proc. of Advances in Cryptology

(CRYPTO2005), Lecture Notes in Computer Science

3621, pages 258–275.

Boneh, D., Sahai, A., and Waters, B. (2006). Fully collu-

sion resistant traitor tracing with short ciphertexts and

private keys. In Proc. of Advances in Cryptology (EU-

ROCRYPT2006), Lecture Notes in Computer Science

4004, pages 573–592.

Chabanne, H., Phan, D. H., and Pointcheval, D. (2005).

Public traceability in traitor tracing schemes. In Proc.

of Advances in Cryptology (EUROCRYPT2005), Lec-

ture Notes in Computer Science 3494, volume 542-

558.

Chor, B., Fiat, A., and Naor, M. (1994). Tracing traitors.

In Proc. of Advances in Cryptology (CRYPTO1994),

Lecture Notes In Computer Science 839, pages 257–

270.

Fiat, A. and Naor, M. (1994). Broadcast encryption.

In Proc. of Advances in Cryptology (CRYPTO1993),

Lecture Notes in Computer Science 773, pages 480–

491.

Fukushima, K., Kiyomoto, S., Tanaka, T., and Sakurai,

K. (2008). Ternary subset difference method and

its quantitative analysis. In Proc. of 9th Interna-

tional Workshop on Information Security Applica-

tions (WISA2008), Lecture Notes in Computer Science

5379, pages 225–239.

Gentry, C. and Ramzan, Z. (2004). RSA accumulator based

broadcast encryption. In Proc. of 7th International

Conference (ISC2004), Lecture Notes in Computer

Science 3225, pages 73–86.

Goodrich, M. T., Sun, J. Z., and Tamassia, R. (2004).

Efﬁcient tree-based revocation in groups of low-

state devices. In Proc. of Advances in Cryptology

(CRYPTO2004), Lecture Notes in Computer Science

3152, pages 511–527.

Graham, R. L., Li, M., and Yao., F. F. (2007). Optimal

tree structures for group key management with batch

updates. SIAM J. on Discrete Mathematics, 21:532–

547.

Halevy, D. and Shamir, A. (2002). The LSD broadcast en-

cryption scheme. In Proc. of Advances in Cryptology

(CRYPTO2002), Lecture Notes in Computer Science

2442, pages 145–161.

Hwang, J. Y., Lee, D. H., and Lim, J. (2005). Generic

transformation for scalable broadcast encryption

schemes. In Proc. of Advances in Cryptology (ASI-

ACRYPT2005), Lecture Notes in Computer Science

3621, pages 276–292.

Jho, N. S., Hwang, J. Y., Cheon, J. H., Kim, M. H., Lee,

D. H., and Yoo, E. S. (2005). One-way chain based

broadcast encryption schemes. In Proc. of Advances

in Cryptology (EUROCRYPT2005), Lecture Notes in

Computer Science 3494, pages 559–574.

Kurosawa, K. and Desmedt, Y. (1998). Optimum traitor

tracing and asymmetric schemes. In Proc. of Advances

in Cryptology (EUROCRYPT1998), Lecture Notes in

Computer Science 1403, pages 172–187.

Kurosawa, K. and Yoshida, T. (2002). Linear code implies

public-key traitor tracing. In Proc. of the 5th Inter-

national Workshop on Practive and Theory in Pub-

lic Key Cryptosystems (PKC2002), Lecture Notes in

Computer Science 2274, pages 172–187.

Naor, D., Naor, M., and Lotspiech, J. (2001). Revocation

and tracing schemes for stateless receivers. In Proc.

of Advances in Cryptology (CRYPTO2001), Lecture

Notes in Computer Science 2139, pages 41–62. The

full version is available at eprint.iacr.org/2001/059.

Okuaki, S., Kunihiro, N., and Ohta, K. (2008). Estimation

of a message length for subset difference method (in

Japanese). In Proc. of Symposium on Cryptography

and Information Security (SCIS2008), 2E1-2.

Shin, S., Kobara, K., and Imai, H. (2005). A secure network

storage system with information privacy. In Proc. of

Western European Workshop on Research in Cryptol-

ogy (WEWoRC2005), Lecture Notes in Informatics,

LNI P-74, pages 22–31.

Tripathi, S. and Biswas, G. P. (2009). Design of efﬁ-

cient ternary-tree based group key agreement protocol

for dynamic groups. In Proc. of First international

conference on Communication Systems and Networks

(COMSNET2009).

Wang, W., Ma, J., and Moon, S. (2006). Ternary tree based

group key management in dynamic peer networks. In

Proc. of 2006 International Conference on Compu-

tational Intelligence and Security (CIS2006), Lecture

Notes in Computer Science 4456, pages 1265–1268.

APPENDIX

Example

We show toy exampleswhere the number of devicesis

n = 9. Devices d

, d

, ..., d

are assigned to the leaf

nodes 5, 6, ..., 13. Then, the devices are given the

labels and transformed labels as shown in Figure 9.

We consider the case where devices d

, d

and d

are revoked. The collection of subsets

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree

l(1,3) l(1,3)

l(1,3) l(1,4) l(1,4) l(1,4) l(1,2) l(1,2)

l(1,2)

lbl

(l(1,4)) f

lbl

(l(1,4))

lbl

(l(1,4)) f

lbl

(l(1,2)) f

lbl

(l(1,2)) f

lbl

(l(1,2)) f

lbl

(l(1,3)) f

lbl

(l(1,3))

lbl

(l(1,3))

l(1,6) l(1,7)

l(1,5) l(1,9) l(1,10) l(1,8) l(1,12) l(1,13)

l(1,11)

lbl

(l(1,7)) f

lbl

(l(1,5))

lbl

(l(1,6)) f

lbl

(l(1,10)) f

lbl

(l(1,8)) f

lbl

(l(1,9)) f

lbl

(l(1,13)) f

lbl

(l(1,11))

lbl

(l(1,12))

l(2,6) l(2,7)

l(2,5) l(3,9) l(3,10) l(3,8) l(4,12) l(4,13)

l(4,11)

lbl

(l(2,7)) f

lbl

(l(2,5))

lbl

(l(2,6)) f

lbl

(l(3,10)) f

lbl

(l(3,8)) f

lbl

(l(3,9)) f

lbl

(l(4,13)) f

lbl

(l(4,11))

lbl

(l(4,12))

l(all) l(all)

l(all) l(all) l(all) l(all) l(all) l(all)

l(all)

3 4

5 6 7 8 9 10 11 12 13

Figure 9: Assignment of labels in 3SD method.

2 3

5 6 7 8 9 10 11 12 13

1,2 3

3,8 10

2,7

Figure 10: Disjoint subsets in ﬁrst example.

5 6 7 8 9 10 11 12 13

1,11 13

Figure 11: Subset in second example.

2,7

3,10⊕8

1,2⊕3

} shown in Figure 10 can be

found using the cover-ﬁndingalgorithm in Sect. 3.3.2.

The content distribution center encrypts session key K

with keys L

2,7

, L

3,10⊕8

and L

1,2⊕3

. The content distri-

bution center sends the broadcast message

h[(2,7),(3,10⊕ 8),(1,2 ⊕ 3),

2,7

(K),E

3,10⊕8

(K),E

1,2⊕3

(K)],F

(M)i (17)

to all of the devices. Devices d

and d

can derive key

2,7

as;

2,7

= f

kgf

( f

lbl

(l(2, 7))) (18)

since they have l(2,7) or f

lbl

(l(2, 7)). d

can derive

3,10⊕8

as;

3,10⊕8

= f

kgf

(l(3, 10)). (19)

, d

and d

can derive key L

1,2⊕3

as;

1,2⊕3

= f

kgf

(l(1, 2)). (20)

The coalition of d

, d

and d

cannot derive L

2,7

3,10⊕8

or L

1,2⊕3

since neither f

lbl

(l(2, 7)), l(3,10),

nor l(1,2) can be derived from all of the labels and

transformed labels stored in these devices, which

are f

lbl

(l(1, 2)), l(1,3), l(1,4), l(1,5), f

lbl

(l(1, 6)),

l(1, 8), l(1,9), f

lbl

(l(1, 10)), l(2,5), f

lbl

(l(2, 6)),

l(3, 8), l(3, 9), f

lbl

(l(3, 10)) and l(all).

Next, we consider the case where d

and d

are

revoked. The collection of subsets {D

1,13⊕11

}, shown

in Figure 11, can be found using the cover-ﬁnding al-

gorithm. The content distribution center encrypts ses-

sion key K with keys L

1,13⊕11

. The content distribu-

tion center sends the broadcast message

h[(1,13⊕ 11),E

1,13⊕11

(K)],F

(M)i (21)

to all of the devices. Devices d

, d

, ..., d

can derive

key L

1,13⊕11

using l(1,4) or f

lbl

(l(1, 4)) as;

1,13⊕11

= f

kgf

(l(1, 13)) = f

kgf

( f

rgt

( f

lbl

(l(1, 4)))).

(22)

SECRYPT 2011 - International Conference on Security and Cryptography

l(1,3) l(1,3)

l(1,3) l(1,4) l(1,4) l(1,4) l(1,2) l(1,2)

l(1,2)

l(1,4) l(1,4)

l(1,4) l(1,2) l(1,2) l(1,2) l(1,3) l(1,3)

l(1,3)

l(1,6) l(1,7)

l(1,5) l(1,9) l(1,10) l(1,8) l(1,12) l(1,13)

l(1,11)

l(1,7) l(1,5)

l(1,6) l(1,10) l(1,8) l(1,9) l(1,13) l(1,11)

l(1,12)

l(2,6) l(2,7)

l(2,5) l(3,9) l(3,10) l(3,8) l(4,12) l(4,13)

l(4,11)

l(2,7) l(2,5)

l(2,6) l(3,10) l(3,8) l(3,9) l(4,13) l(4,11)

l(4,12)

l(all) l(all)

l(all) l(all) l(all) l(all) l(all) l(all)

l(all)

3 4

5 6 7 8 9 10 11 12 13

Figure 12: Straightforward extension of SD method.

can derive L

1,13⊕11

as;

1,13⊕11

= f

kgf

(l(1, 13)). (23)

The coalition of d

and d

cannot derive L

1,13⊕11

since neither f

lbl

(l(1, 4)) nor l(1, 13) can be derived

from all of the labels and transformed labels stored in

these devices, which are l(1,2), f

lbl

(l(1, 3)), l(1,11),

l(1, 12), f

lbl

(l(1, 13)), l(4,11), l(4,12), f

lbl

(l(4, 13))

and l(all).

Straightforward Extension of SD Method

The SD method cannot protect against coalition at-

tacks if it is straightforwardly extended to the ternary

tree. Figure 12 shows the label assignment. Note that

all the labels stored in device d

can be obtained from

either device d

or d

. Devices d

and d

can decrypt

session keys by pretending to be device d

even if

they are revoked. This extended method is no longer

coalition-resistant. Thus, we designed the new label

assignment algorithm in Sect. 3.3.1.

TOWARDS OPTIMAL REVOCATION AND TRACING SCHEMES - The Power of the Ternary Tree
