COST-OPTIMAL STRONG PLANNING

IN NON-DETERMINISTIC DOMAINS

Giuseppe Della Penna, Fabio Mercorio

Dept. of Computer Science, University of L’Aquila, L’Aquila, Italy

Benedetto Intrigila

Dept. of Mathematics, University of Rome Tor Vergata, Rome, Italy

Daniele Magazzeni

Dept. of Sciences, University of Chieti-Pescara, Chieti and Pescara, Italy

Enrico Tronci

Dept. of Computer Science, University of Rome La Sapienza, Rome, Italy

Keywords:

Non-deterministic systems, Strong planning, Optimal planning.

Abstract:

Many real world domains present a non-deterministic behaviour, mostly due to unpredictable environmental

conditions. In this context, strong planning, i.e., ﬁnding a plan which is guaranteed to achieve the goal regard-

less of non-determinism, is a signiﬁcant research challenge for both the planning and the control communities.

In particular, the problem of cost-optimal strong planning has not been addressed so far. In this paper we pro-

vide a formal description of the cost-optimal strong planning problem in non-deterministic ﬁnite state systems,

present an algorithm to solve it with good complexity bounds and formally prove the correctness and com-

pleteness of the proposed algorithm. Furthermore, we present experimental results showing the effectiveness

of the proposed approach on a meaningful case study.

1 INTRODUCTION

In recent years, a mutual interest between control the-

ory and AI planning communities has emerged, show-

ing that planning and control are closely related areas.

The use of sophisticated controllers as well as intel-

ligent planning strategies has become very common

in robotics, manufacturing processes, critical systems

and, in general, in hardware/software embedded sys-

tems (see, e.g., (Chesi and Hung, 2007)).

In particular, efforts made to deal with planning

in non-deterministic domains could be very helpful to

solve control problems for real-world appliances. In-

deed, many processes take place in an environment

that may have variable and unpredictable inﬂuences

on the action outcomes, which need to be taken into

account to design a correct and efﬁcient control sys-

tem. In this context, strong planning, that is ﬁnding

automatically a plan which is guaranteed to achieve

the goal regardless of non-determinism, is a very in-

teresting research challenge.

To this aim, planning based on Markov Decision

Processes (MDP) has been proved very effective (see,

e.g., (Boutilier et al., 1999; Bonet and Geffner, 2005;

Yoon et al., 2002)), and, more recently, a variety

of techniques have been proposed to solve continu-

ous MDPs (see, e.g., (Meuleau et al., 2009; Mausam

and Weld, 2008; Mausam et al., 2007)). However,

MDP-based approaches deal with probabilistic distri-

butions taking into account the stochastic outcomes

of actions. Therefore, whether a solution provided by

MDP planning algorithms is strong depends on prob-

ability and cost distribution.

On the other hand, planning under partial observ-

ability works on a setting where only a subset of vari-

ables are observable, and looks for conditional plans

(see, e.g., (Bertoli et al., 2001; Bertoli et al., 2006;

Huang et al., 2007)), whilst in conformant planning

(Bonet and Geffner, 2000; Albore et al., 2010) no ob-

servation is available.

In this paper we focus on non-deterministic do-

mains with full observability. In our setting, as typi-

cally in the case of dynamic systems, the size of the

graph deﬁning the dynamics of the system is exponen-

Della Penna G., Mercorio F., Intrigila B., Magazzeni D. and Tronci E..

COST-OPTIMAL STRONG PLANNING IN NON-DETERMINISTIC DOMAINS.

DOI: 10.5220/0003448200560066

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 56-66

ISBN: 978-989-8425-74-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

tial (state explosion) in the size of the input (i.e., the

code which implicitly describes the graph by means

of a next state function). As a result, classical algo-

rithms for explicit graphs cannot be used, and instead

suitable symbolic (e.g., (Burch et al., 1992)) or ex-

plicit (e.g., (Della Penna et al., 2004)) algorithms are

used to counteract state explosion. This is also the

typical situation for model checking problems.

Indeed, a key contribution to this ﬁeld is described

in (Cimatti et al., 1998), where the authors present an

algorithm to ﬁnd strong plans which has been imple-

mented in MBP, a planner based on symbolic model

checking. MBP produces a universal plan (Schop-

pers, 1987) which provides optimal solutions with

respect to the plan length (i.e., the worst execution

among the possible non-deterministic plan executions

is of minimum length). Moreover, the use of Ordered

Binary Decision Diagrams (OBDDs) together with

symbolic model checking techniques allows a com-

pact encoding of the state space and very efﬁcient set

theoretical operations.

Our work is strictly based on (Cimatti et al., 1998),

however, there are the following main differences: (i)

we consider a cost function and present a novel tech-

nique to look for cost-optimal strong plans while pre-

serving a good complexity bound, and (ii) we use an

explicit approach rather than a symbolic one, so ex-

tending the class of problems on which strong plan-

ning can be applied to hybrid and/or nonlinear con-

tinuous domains, which are actually very common in

the practice. In fact, since representing addition and

comparison with OBDDs requires opposite variable

orderings and since this kind of problemsinvolveboth

such operations, OBDDs in our context tend to have

size exponential in the input size. On the other hand,

using an explicit approach allows us to expand “on

demand” the transition relation, generating and repre-

senting only the reachable states.

Note that the algorithm in (Cimatti et al., 1998)

could be adapted to support costs and devise cost-

optimal solutions only by ”unary encoding” the

weights, i.e., by replacing a transition of weight k with

k contiguous deterministic transitions. In this case,

however, its complexity, in the worst case, would be

exponentially higher than the one of the algorithm

presented in this paper.

Our synthesis problem could also be cast as a

strategy synthesis problem for a multistage game with

two players moving simultaneously (see, e.g., (Fu-

denberg and Tirole, 1991)), where the ﬁrst player is

the controller, the second is the disturbance (caus-

ing the non-deterministic behaviours), and the game

rules are given by the plant dynamics. In this set-

ting, our control strategy could be seen as a minmax

strategy for the controller player. That is, in each

game state, the controller chooses the action that min-

imises the maximum cost (to reach the goal) that the

disturbance, with its (simultaneous) choice, may in-

ﬂict to it. Such a game theoretic casting, however,

would be of little help from a computational point of

view, since in our setting the normal form of the game

would be intractable even for small systems. Indeed,

if the game has |S| states and, in each state, the con-

troller and the disturbance have at most |A | and |D|

actions available, respectively, then the game would

be represented by a graph with |S| nodes, each hav-

ing |A ||D| outgoing edges. Thus, even considering

simple plants, we would have very large graphs: for

example, in the case study presented in Section 4, we

have that |S| = 5 · 10

, |A | = 25 and |D| = 17, thus

representing explicitly such a problem would yield a

graph with 5· 10

nodes and more than 2·10

edges.

To the best of our knowledge, no tool based on game

theory techniques can handle games of such size.

The situation is exactly analogous to that for

model checking based analysis of Markov chains (e.g,

see (Kwiatkowska et al., 2004), (Della Penna et al.,

2006)). Of course, in principle, stationary distribu-

tions for Markovchains can be computed using classi-

cal numerical techniques (e.g., see (Behrends, 2000))

for Markov chains analysis. However, for dynamic

systems, our setting here, the number of states (eas-

ily beyond 10

) of the Markov chains to be analysed

rules out matrix based methods.

Finally, casting our problem as a Mixed Integer

Linear Programming (MILP) problem would be pos-

sible but, again, it would generate a MILP of size ex-

ponential in the input. Thus, to the best of our knowl-

edge, this is the ﬁrst approach to cost-optimal strong

planning and no better solutions for this problem have

been devised so far, even in other computer science

ﬁelds.

In this paper we make the following contribu-

tions: we provide a formal description of cost-optimal

strong planning in non-deterministic ﬁnite state sys-

tems (NDFSS), then we present an algorithm for cost-

optimal strong planning on NDFSS, proving its cor-

rectness and completeness, and ﬁnally we show some

meaningful experimental results.

The paper is structured as follows. Section 2 in-

troduces the cost-optimal strong planning problem

together with all the required background notions.

Then, Section 3 describes an algorithm to solve this

problem and proves its correctness. Section 4 presents

a non-deterministic planning problem and shows the

solution obtained through our algorithm. Finally, Sec-

tion 5 outlines some concluding remarks.

COST-OPTIMAL STRONG PLANNING IN NON-DETERMINISTIC DOMAINS

2 STATEMENT OF THE

PROBLEM

In this section we ﬁrst introduce some background

notions about non-deterministic systems and non-

deterministic planning, then we deﬁne the concept of

cost-optimal strong plan and the corresponding plan-

ning problem.

2.1 Non-deterministic Finite State

Systems

We now introduce the formal deﬁnition of the non-

deterministic systems we are interested in.

Deﬁnition 1. A Non-Deterministic Finite State Sys-

tem (NDFSS) S is a 4-tuple (S,s

,A ,F), where: S

is a ﬁnite set of states, s

∈ S is the initial state, A

is a ﬁnite set of actions and F : S × A → 2

is the

non-deterministic transition function, that is F(s,a)

returns the set of states that can be reached from state

s via action a.

It is worth noting that we are restricting our at-

tention to NDFSS having a single initial state s

only

for the sake of simplicity. Indeed, if we are given a

NDFSS S

′

with a set of initial states I ⊆ S, we may

simply turn it into an equivalent NDFSS by adding a

dummy initial state connected to all the states in I by a

deterministic transition with ﬁxed cost. The algorithm

given in Section 3 could then be trivially adapted to

return the set of cost-optimal strong plans for I.

The non-deterministic transition function implic-

itly deﬁnes a set of transitions between states which,

in turn, give raise to a set of trajectories as speciﬁed

in the following deﬁnitions.

Deﬁnition 2. Let S = {S,s

,A ,F} be an NDFSS. A

non-deterministic transition τ is a triple of the form

(s,a, F(s,a)) where s ∈ S and a ∈ A . A determin-

istic transition (or simply a transition) τ is a triple

of the form (s,a,s

′

) where s,s

′

∈ S, a ∈ A and s

′

∈

F(s,a). We say that τ = (s,a,s

′

) is in (s,a,F(s,a))

if s

′

∈ F(s,a). We denote with S

the set of all the

transitions in S .

Deﬁnition 3. A trajectory π from a state s to a state s

′

is a sequence of transitions τ

,. .. ,τ

such that τ

has

the form (s,a,s

), for some s

and some a, τ

has the

form (s

′

), for some s

and some a

′

and for every

i = 0, ...,n−1 if τ

= (s

i+1

), for some s

i+1

then τ

i+1

= (s

i+1

i+2

), for some s

i+2

i+1

. We

denote with |π| the length of π, given by the number

of transitions in the trajectory.

As usual we stipulate that the empty set of transi-

tions is a trajectory from any state to itself.

We now need to specify several notions concern-

ing non-deterministic transitions and trajectories.

Deﬁnition 4. Let S = {S,s

,A ,F} be an NDFSS

and Π be a set of non-deterministic transitions. We

say that a transition τ = (s,a,s

′

) is extracted from Π

if (s,a, F(s,a)) ∈ Π and (s,a,s

′

) is in (s,a,F(s,a)).

Similarly, we say that a trajectory π = τ

,. .. ,τ

extracted from Π if ∀i = 0...n,τ

= (s

′

) is in

,F(s

)) and (s

,F(s

)) ∈ Π. Finally, we

say that a state s is in Π if there exists a transition

τ = (s,a,s

′

) extracted from Π.

Since we are interested in cost-optimal solutions,

we extend our setting with a cost function.

Deﬁnition 5. Let S = {S,s

,A ,F} be an NDFSS. A

cost function (also called weight function) for S is

a function W : S

→ R

that assigns a cost to each

transition in S . Using the cost function for transi-

tions, we deﬁne the cost of the non-deterministic tran-

sition (s,a,F(s, a)), denoted by W (s,a), as follows:

W (s,a) = max

′

∈F(s,a)

W ((s,a, s

′

)).

It is worth noting that, for the sake of general-

ity, the deﬁnition of the cost function above allows

the transition cost to depend on both the correspond-

ing action and the source state. However, usually the

transition costs are bound to the corresponding action

only.

2.2 Cost-optimal Strong Plan

Now let S be a given NDFSS. In order to deﬁne the

cost-optimal strong planning problem for such a kind

of system, we assume that a non-empty set of goal

states G ⊂ S has been speciﬁed.

Deﬁnition 6. Let S = {S,s

,A ,F} be an NDFSS.

Then a Cost-Optimal Strong Planning Problem

(COSPP) is a triple P = (S ,W ,G) where G is the

set of the goal states and W : S

→ R

is the cost

function associated to S .

In this setting, we aim to ﬁnd a strong plan from

the initial state s

to G, that is a sequence of actions

that, starting from s

, leads the system to the goal

states, regardless of the non-deterministic outcome of

each action. Before formally describe such a solution,

we need the following deﬁnitions.

Deﬁnition 7. Let P = {{S,s

,A ,F},W ,G} be a

COSPP and s ∈ S. A deterministic plan p from s to

a goal g ∈ G is a trajectory π such that:

• either s ∈ G and |π| = 0;

• or π = τ

,τ

,. .. ,τ

, with τ

= (s,a, s

) and π

′

,. .. ,τ

is a deterministic plan from s

to g.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

Now we can formally deﬁne the cost-optimal

strong solutions we are interested in ﬁnding.

Deﬁnition 8. Let P = {{S,s

,A ,F},W ,G} be a

COSPP. Let s be a state in S. A strong plan from s

to G is a set P of non-deterministic transitions such

that either s ∈ G and P =

0 or s /∈ G and P satisﬁes

the following conditions:

1. there exists a natural number n

such that ev-

ery trajectory π that can be extracted from P has

length |π| ≤ n

;

2. every trajectory π starting from s which can be

extracted from P, can be extended to a determin-

istic plan π

′

from s to a goal s

∈ G such that π

′

extracted from P;

3. for every state s

′

such that s

′

/∈ G and s

′

is in P

there exists a trajectory π, extracted from P, start-

ing from s and ending in s

′

;

4. for every state s

′

such that s

′

/∈ G and s

′

is in P,

there exists exactly one non-deterministic transi-

tion in P of the form (s

′

,a, F(s

′

,a)), for some a ∈

A . We denote with P(s

′

) such non-deterministic

transition.

We have the following characterisation of plans.

Proposition 1. Let P = {S ,W ,G} be a COSPP.

P is a strong plan from s to G iff P is a set of

non-deterministic transitions such that either s ∈ G

and P =

0 or s /∈ G and there exists a unique

non-deterministic transition in P of the form τ =

(s,a, F(s,a)), for some a ∈ A , such that:

• either F(s,a) ⊆ G;

• or P\ {(s,a,F(s,a))} is the union of strong plans

from every state s

in F(s,a) to G.

Proof 1. Assume ﬁrst that P is a strong plan from

s to G. If P is not empty, then there exists a unique

non-deterministic transition τ = (s,a,F(s,a)) ∈ P, for

some a. Let s

be an element of F(s,a). We deﬁne P

the set of non-deterministic transitions in P such that

contains some transitions of a deterministic plan

from s

Now observe that any sequence starting from s

can be completed in P to a deterministic plan with-

out using the node s. Indeed, no deterministic plan

extracted from P can return to the node s, since oth-

erwise there would be a cycle, contradicting the re-

quirement that every deterministic sequence in P is

bounded. It follows that P

is a subset of P\ {τ} and

is a strong plan from s

Moreover, let s

′

be any node in P\{τ}. Then there

exists a trajectory π from s to s

′

. By the uniqueness of

τ, the ﬁrst transition of π is in τ and therefore has the

form (s,a,s

) for some s

, it follows that s

′

is in P

, and

that P\ {τ} =

∈F(s,a)

The other direction is easy and left to the reader.

By Proposition 1 we can deﬁne the cost of a plan

as follows:

Deﬁnition 9. The cost of a strong plan P from s to G,

denoted by W (P), is deﬁned by recursion as follows:

• if P is empty then W (P) = 0;

• if P is composed only of the non-deterministic

transition (s,a,F(s,a)), for some a, then W (P) =

W (s,a);

• if P is composed of the non-deterministic tran-

sition (s,a,F(s,a)), for some a, and of plans

from every node s

in F(s,a) then W (P) =

max

∈F(s,a)

(W ((s,a,s

)) + W (P

)).

It is easy to see that the cost of a plan P is the

maximum cost of a deterministic plan extracted from

Deﬁnition 10. Let P = {S ,W ,G} be a COSPP, with

S = {S,s

,A ,F}. Then a cost-optimal strong solution

of the COSPP P = {S ,W ,G} is a strong plan P from

to G such that the cost of P is minimal among the

strong plans from s

to G.

2.3 An Example of Cost-optimal Strong

Planning Problem

As an example of COSPP, let us consider the hurried

passenger problem. A passenger wants to arrive to

San Francisco airport (SFO) departing from one of

the Rome airports (CIA or FCO) and according to the

ﬂight scheduling shown in Table 1. Moreover, there

is a bus on every hour that allow the passenger to go

from home to one of the Rome airports above in one

hour.

Table 1: Flight scheduling.

From To Flight #DepartArrive

Rome-FCO Paris-CDG A 08.00 09.00

Rome-FCO Berlin-BER E 08.00 10.00

Rome-CIA Amsterdam-AMS D 05.00 08.00

Paris-CDG San Francisco-SFOB 10.00 12.00 (GMT-7)

Paris-CDG San Francisco-SFOC 19.00 21.00 (GMT-7)

Berlin-BER San Francisco-SFOF 11.00 14.00 (GMT-7)

Berlin-BER Amsterdam-AMS I 12.00 13.00

Berlin-BER San Francisco-SFOG 12.00 15.00 (GMT-7)

Amsterdam-AMSSan Francisco-SFOH 15.00 20.00 (GMT-7)

The goal is to arrive to San Francisco as soon as

possible, and, however, no later than 21.00 local time.

We require the passenger to arrive at the airport at

least one hour before a ﬂight departure. Moreover,

we assume that each ﬂight may arrive at destination

later than the expected arrival time. The objective is

COST-OPTIMAL STRONG PLANNING IN NON-DETERMINISTIC DOMAINS

to generate a strong plan (if any) that guarantees the

passenger to reach the San Francisco airport before

21.00 local time regardless of possible ﬂight delays.

Table 2: COSPP for the hurried passenger problem.

home = s

, AMS = s

, AMS

= s

, CDG = s

, CDG

= s

, CIA = s

FCO = s

, BER = s

, BER

= s

. SFO

= s

, SFO

= s

, SFO

= s

A A, B, C, D, E, F, G, H, I, P, Q

F(s

,Q) = {s

}, F(s

,P) = {s

}

F(s

,H) = {s

}, F(s

,H) = {s

}

F(s

,B) = {s

} , F(s

,C) = {s

}

F(s

,D) = {s

}

F(s

,A) = {s

}, F(s

,E) = {s

}

F(s

,F) = {s

}, F(s

,G) = {s

}, F(s

,I) = {s

}

W (s

,Q, s

) = 1,W (s

,P,s

) = 1;

W (s

,H, s

) = 12,W (s

,H, s

) = 13;

W (s

,H, s

) = 11,W (s

,H, s

) = 12;

W (s

,B, s

) = 10,W (s

,B, s

) = 11;

W (s

,C,s

) = 18,W (s

,C,s

) = 19;

W (s

,D, s

) = 9,W (s

,D, s

) = 10 ;

W (s

,A, s

) = 2,W (s

,A, s

) = 3,

W (s

,E,s

) = 3,W (s

,E,s

) = 4;

W (s

,F,s

) = 11,W (s

,F,s

) = 12;

W (s

,G, s

) = 11,W (s

,G, s

) = 12,

W (s

,I, s

) = 3,W (s

,I, s

) = 2;

G s

P(s

) = Q(17);P(s

) = D(22);P(s

) = E(16);P(s

) = F(12);

P(s

) = G(12);P(s

) = H(12);P(s

) = H(13), P(s

) = B(11)

The corresponding COSPP (according to Deﬁ-

nitions 1,5 and 6) is reported in Table 2. Here

the actions correspond to the ﬂights and the non-

determinism is given by the possible delay which, for

the sake of simplicity, we assume to be limited to one

hour for each ﬂight. Note that the delay probabil-

ity distribution is uniform, i.e., each ﬂight has equal

probability to arrive on time or with a 1-hour delay.

The cost of each transition (d, f,a) is W (d, f,a) =

(t(d)+t( f)+t(a)) where t(d) is the time spent at air-

port d waiting for the ﬂight departure, t( f) is the du-

ration of the ﬂight and t(a) is the time spent at airport

a waiting for the next ﬂight (which could be zero).

Moreover, the special actions P and Q represent the

bus journey from home (state s

) to Rome-CIA and

Rome-FCO, respectively: for the sake of simplicity,

we do not consider delays on these actions, so the cor-

responding transitions are deterministic and have cost

1 (i.e., the bus journey takes an hour).

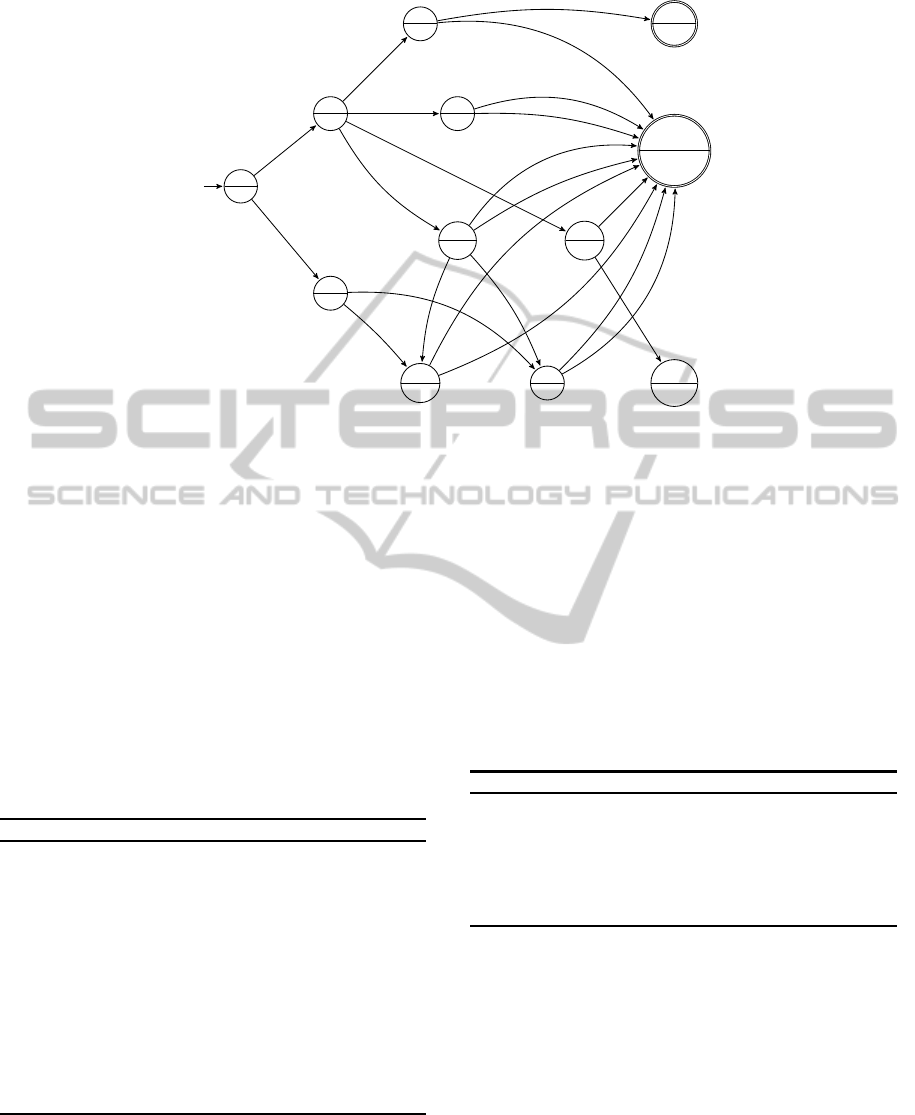

A graphical description of the problem is given

in Figure 1 where tagged nodes represent the arrival

time at the corresponding airport, while the edges are

labelled with the ﬂight code.

The cost-optimal solution consists in ﬂying from

Rome-FCO to Berlin-BER and then to San Francisco-

SFO. The total cost of the solution (considering all the

possible delays) is 17. Note that another strong solu-

tion would be ﬂying from Rome-CIA to Amsterdam-

AMS and then to San Francisco-SFO, but its cost is

23. Finally, ﬂying from Rome-FCO to Paris-CDG is

not a strong solution since in case of delay of ﬂight

A it would be impossible to reach San Francisco on

time.

3 THE COST-OPTIMAL STRONG

PLANNING ALGORITHM

In this section we describe a procedure that looks for

a cost-optimal strong solution to a given COSPP. The

main algorithm (Procedure 4) consists of two subrou-

tines described in the following. All the procedures

make use of some auxiliary functions and sets : Cost,

Cand, ExtGoals, OldExtGoals and ∆ .

The cost function Cost(s) returns the minimum

cost of a strong plan from s to the goals calculated

so far. The algorithm updates this function every time

a better strong plan is found for s. Initially all the goal

states have a cost equal to zero, while the cost of the

other states is set to ∞.

The set of candidates (Cand) contains the pairs

(s,a) corresponding to all the states s which, at any

step, are recognised to have a plan starting with action

a, possibly of non minimum cost. The elements in the

set Cand can be partially ordered with respect to the

cost function Cost. Initially the set Cand is empty.

The set of extended goals (ExtGoals) contains all

the states s which, at any step, are recognised to have

a plan P of minimum cost. Initially the set ExtGoals

contains all the goal states in G. On the other hand,

the set of old extended goals ( OldExtGoals) con-

tains, at any step, the extended goals collected up to

the previous step: that is, the expression ExtGoals \

OldExtGoals represents the states that have been just

added to the extended goals.

Finally, each set ∆(s,a) in initialised with the

states reachable from s via action a, i.e., F(s,a),

which are consumed during the algorithm iterations.

In the following, we assume that all procedures

take as input the COSPP P = ((S,s

,A ,F),W ,G) as

well as the auxiliary sets and functions. The output is

a strong plan SP.

Note that, in the algorithms, some arithmetic op-

erations (i.e., min, max and sum) may involve inﬁn-

ity. In this case, we assume the usual semantics, e.g.,

max(x,∞) = ∞ or x+ ∞ = ∞.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

home

start

CIA

04.00

FCO

07.00

BER

10.00

BER

11.00

CDG

09.00

CDG

10.00

AMS

14.00

AMS

13.00

SFO

night

> 21

SFO

af t

13 − 21

SFO

morn

≤ 12

Q,1

P, 1

A,1+ 2

A,1 + 1

E,1+ 3

E,1+ 2

D,1 + 3+ 5

D,1 + 4+ 5

B,1 + 9

B,1 + 10

C, 9+9

C, 10+9

F,1+ 10

F,1+ 11

G,1 + 10

I, 1 +1

G,1 + 11

I, 1 +2

H, 2+ 10

H, 2+ 11

H, 1+ 11

H, 1+ 10

Figure 1: Graphical description of the COSPP for the hurried passenger problem.

3.1 The CandidateExtension Routine

The CANDIDATEEXTENSION routine (Procedure 1)

extends the set Cand of candidates. The function

Pre(s) returns all the transitions leading to s and is

applied to the extended goals found in the previous

iteration of the main algorithm. At any step, the set

∆(s,a) contains only the states reachable from s via

action a which have not been moved to the extended

goals yet. Thus, once ∆(s,a) is empty, s is guaranteed

to have a strong plan through action a, since all the

transitions in (s,a,F(s,a)) lead to an extended goal.

The pair (s,a) is then added to the set of candidates if

it improves the cost currently associated to s.

Procedure 1: CANDIDATEEXTENSION.

1: for all s

′

∈ (ExtGoals\ OldExtGoals) do

2: Pre(s

′

) ← {(s,a) ∈ S× A |s

′

∈ F(s, a)};

3: for all (s,a) ∈ Pre(s

′

) do

4: ∆(s,a) ← ∆(s,a) \ {s

′

};

5: if ∆(s,a) =

0 then

6: c

′

= max

¯s∈F(s,a)

(W (s, a, ¯s) +Cost( ¯s));

7: if c

′

< Cost(s) then

8: Cand ← Cand ∪ (s,a);

9: Cost(s) = c

′

;

10: end if

11: end if

12: end for

13: end for

3.2 The PlanExtension Routine

The effect of the PLANEXTENSION routine (Proce-

dure 2) is twofold. First, it selects the states in the

candidates set of minimum cost and moves them to

the set of extended goals. Indeed, the current solution

for such states cannot be improved, since there are no

actions which provide a strong solution with a lower

cost (see Proposition 2). Second, it inserts the new ex-

tended goals together with the associated action (i.e.,

the corresponding non-deterministic transition) in the

strong plan SP.

Procedure 2: PLANEXTENSION.

1: α ← min

(s,a)∈Cand

Cost(s);

2: for all (s,a) ∈ Cand|Cost(s) = α do

3: ExtGoals ← ExtGoals∪ {s};

4: Cand ← Cand \ {(s,a)};

5: SP ← SP∪ (s, a, F(s, a));

6: end for

Note that the extraction of the candidates with the

lowest cost (ﬁrst two lines of Procedure 2) can be ac-

complished with a small complexity if we suppose

to have a structure costvector where each element

costvector[c] holds a list of references to the states

with cost c. Insertion in this structure is constant time,

whereas updates can be also accomplished in constant

time by re-inserting the state with updated cost with-

out removing the previous instance (i.e., creating a

duplicate with different cost). Indeed, the states with

minimum cost can be extracted from this structure as

shown by the MINCOSTCAND routine (Procedure 3).

The procedure takes as input the cost of the last

COST-OPTIMAL STRONG PLANNING IN NON-DETERMINISTIC DOMAINS

Procedure 3: MINCOSTCAND.

Input: lastc, the cost of the last states returned

1: c ← lastc

2: loop

3: c ← c+ 1

4: AllCand

← costvector[c]

5: if AllCand

0 then

6: Cand

←

7: for all s ∈ AllCand

8: if s 6∈ ExtGoals then

9: Cand

← Cand

∪ {s}

10: end if

11: end for

12: if Cand

0 then

13: lastc ← c

14: return Cand

15: end if

16: end if

17: end loop

states returned, and scans the costvector starting from

the element corresponding to the next (higher) cost c

(for the sake of simplicity, in the pseudocode we sup-

pose it to be lastc+ 1, but in general it depends on the

approximation of the cost function). If costvector[c]

contains some states that are not yet in the extended

goals, the procedure returns them, otherwise it in-

creases c and loops. Thus, even if updates may create

duplicates of the same state in different elements of

costvector, since the algorithm always extracts ﬁrst

the minimum cost instance of a state, and inserts it in

ExtGoals, all its further instances (with higher cost)

in costvector will be simply ignored.

3.3 The CostOptimalStrongPlan

Routine

Finally, the COSTOPTIMALSTRONGPLAN routine

(Procedure 4) initialises the cost value of each state

and the sets ∆, Cand, ExtGoals and OldExtGoals,

then iterates applying the subroutines described

above. In particular, the procedure loops until either

the initial state s

is included in the extended goals

(that is a strong solution has been found) or a ﬁx point

is reached, since there are no new extended goals (in

this case there is no strong solution for s

). Note that,

as a collateral effect, the algorithm also ﬁnds all the

strong plans for the states in S having minimal cost

less or equal to the cost of s

. Thus, if s

does not

reach the goal (i.e., its cost is ∞), or if we explic-

itly remove the guard that stops the algorithm in this

case, the COSTOPTIMALSTRONGPLAN would actu-

ally calculate a cost-optimal strong universal plan.

Procedure 4: COSTOPTIMALSTRONGPLAN.

Input: a COSPP P = ((S,s

,A , F),W ,G)

Output: a cost-optimal strong plan SP

1: for all (s,a,s

′

) ∈ S

2: if s ∈ G then

3: Cost(s) = 0;

4: else

5: Cost(s) = ∞;

6: ∆(s,a) = F(s,a);

7: end if

8: end for

9: Cand ←

10: SP ←

11: OldExtGoals ←

12: ExtGoals ← G;

13: while (ExtGoals 6= OldExtGoals) do

14: if s

∈ ExtGoals then

15: return SP;

16: end if

17: CANDIDATEEXTENSION();

18: OldExtGoals ← ExtGoals;

19: PLANEXTENSION();

20: end while

21: return Fail;

3.4 Complexity of the Algorithm

Let m

′

be the number of transitions visited by the al-

gorithm, which is less or equal than the total number

of transitions in the graph, which mainly depends on

the degree of non-determinism of the system. More-

over, let c

′

be the number of different costs that a state

can be assigned to.

The CANDIDATEEXTENSION procedure removes

at least one state from a set ∆(s,a) in each iteration.

In other words, it consumes at least a transition of the

transition graph for each call. The cost of each execu-

tion is constant, thus the complexity of the procedure

is O(m

′

), since it is executed once for each visited

transition.

On the other hand, the MINCOSTCAND algo-

rithm, which is the core of the PLANEXTENSION pro-

cedure, scans the costvector exactly once, thus O(c

′

If a particular element costvector[c] does not have

states assigned, the algorithm does not perform any

other operation, otherwise it looks at each state with

cost c to see if it has been already used. Since the cost

of a state can be updated by CANDIDATEEXTENSION

(and thus the state itself duplicated in costvector) at

most once for each possible transition, the algorithm

performs this check O(m

′

) times. It follows that the

complexity of PLANEXTENSION is O(m

′

+ c

′

)

The overall complexity of COSTOPTIMAL-

STRONGPLAN is therefore O(m

′

+ c

′

). It is worth

noting that, if c

′

becomes too large, the costvector

could not ﬁt in RAM, and the algorithm complexity

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

measure could be unacceptable. In this case, we may

employ a suitable sparse structure for costvector, e.g.,

a Fibonacci heap: indeed, with this kind of structure,

it is easy to see that the complexity would become

O(m

′

logm

′

), which does not depend on c

′

any more.

Note that in CANDIDATEEXTENSION we suppose

to use a precalculated Pre function. Otherwise, we

may apply an explicit state space exploration algo-

rithm to build it in O(|S

|).

3.5 Correctness and Completeness of

the Algorithm

The algorithm given in Procedure 4 essentially it-

erates the two procedures CANDIDATEEXTENSION

and PLANEXTENSION until the desired state has a

plan or the ﬁx point is reached. Let us indicate with

ExtGoals

and Cand

the contents of the ExtGoals

and Cand sets, respectively, at the k-th step of the

algorithm. Moreover, let us call Goals

the union

G∪ ExtGoals

Proposition 2. Let u

be the maximum cost of a state

in Goals

, that is u

= max

s∈Goals

Cost(s). Then, in

any step k ≥ 1 of the COSTOPTIMALSTRONGPLAN

algorithm, all the states with a plan of minimum cost

no greater than u

are in Goals

. That is ∀s ∈ S,

Cost(s) ≤ u

⇒ s ∈ Goals

Proof 2. At the ﬁrst iteration of the algorithm (k = 1),

Goals

= ExtGoals

= G contains, by deﬁnition, all

the states with a plan having cost zero (i.e., the goals).

Now, let us assume by induction that the property

holds at step k. We shall prove that it still holds at

step k+ 1, i.e., the new elements inserted in Goals

k+1

do not falsify it.

To this aim, let α

k+1

be the minimum cost

of a candidate in Cand

k+1

, that is α

k+1

min

s∈Cand

k+1

Cost(s). We can simply prove that u

k+1

. Indeed, assume that u

≥ α

k+1

: then there ex-

ists a state s ∈ Cand

k+1

s.t. Cost(s) ≤ u

. However,

a state in Cand

k+1

cannot be in Goals

(since the al-

gorithm moves to the ExtGoals only states that are

already in Cand), and this contradicts the induction

hypothesis.

Note that the fact above implies that, at the end of

step k + 1, i.e., after the execution of PLANEXTEN-

SION, we have that u

k+1

= α

k+1

, since the algorithm

moves in Goals

k+1

all the candidates with cost α

k+1

which is greater than the previous maximum cost u

Now assume that the property to be proved is fal-

siﬁed at step k + 1. This implies that there exist one

or more states s s.t. Cost(s) ≤ u

k+1

but s 6∈ Goals

k+1

Let us choose among these states the one with mini-

mum cost. Since we know that u

k+1

= α

k+1

, we can

also write that Cost(s) ≤ α

k+1

By induction hypothesis, since a state which is not

in Goals

k+1

could not also be in Goals

, we have that

< Cost(s). Let us consider a cost-optimal strong

plan for s. Such plan must contain at least one state

′

6∈ Goals

. Indeed, if all the states of such plan were

in Goals

, then s should be in Goals

k+1

. Let us choose

among these states the one with minimum cost.

We have two cases: if s

′

= s, then we have that, for

some suitable action a, F(s,a) ⊆ Goals

. This would

imply that s ∈ Cand

k+1

and, since Cost(s) ≤ α

k+1

, we

would have that Cost(s) = α

k+1

(recall that α

k+1

the minimum cost of a candidate in Cand

k+1

). But

in this case the algorithm would move s in Goals

k+1

contradicting the hypothesis.

Finally, if s 6= s

′

, then Cost(s

′

) < Cost(s) (by deﬁ-

nition of cost of a plan). Again, since Cost(s) ≤ α

k+1

we have that Cost(s

′

) < α

k+1

, so s

′

6∈ Cand

k+1

. Thus

we also have that s

′

6∈ Goals

k+1

, and this contradicts

the hypothesis since s would not be the state with min-

imum cost s.t. Cost(s) ≤ α

k+1

and s 6∈ Goals

k+1

Thus, if a state enters in the extended goals (and

is therefore included in the strong optimal plan), then

its cost, i.e., the cost of the corresponding strong plan,

cannot be improved. This shows the algorithm cor-

rectness.

The algorithm completeness can be easily derived

from Proposition 2, too. To this aim, we can use the

following proposition.

Proposition 3. Let s ∈ S. If s has a cost-optimal

strong plan P, whose cost is not greater thanCost(s

then there exists k > 0 s.t. s ∈ ExtGoals

and

(s,a, F(s,a)) is added to SP.

Proof 3. The proof follows from Proposition 2. In-

deed, we have that the minimum cost of a candidate

′

is strictly increasing in each step of the algorithm

(otherwise, u

′

< α

′

would not hold). Thus, the

process will eventually end with one of the following

conditions:

• the initial state s

is in ExtGoals

(if a strong plan

exists for such state): in this case, at step k all

the states whose cost is not greater than Cost(s

including s, are guaranteed to be in ExtGoals

too.

• there are no more candidate states that can be

reached from the (extended) goals: in this case,

since by hypothesis s has a strong plan, thus it can

reach the goal, it would be included in the last set

ExtGoals

Finally, the algorithm termination is guaranteed

by the arguments used in Proposition 3. Indeed, since

COST-OPTIMAL STRONG PLANNING IN NON-DETERMINISTIC DOMAINS

the minimum cost of a candidate is strictly increasing,

the algorithm will eventually build the cost-optimal

strong plans for the states with highest cost: at this

point, no new candidates will be available, and the

process will terminate.

4 EXPERIMENTAL RESULTS

In this section we present a case study for the cost-

optimal strong planning algorithm, the inverted pen-

dulum on a cart, depicted in Figure 2.

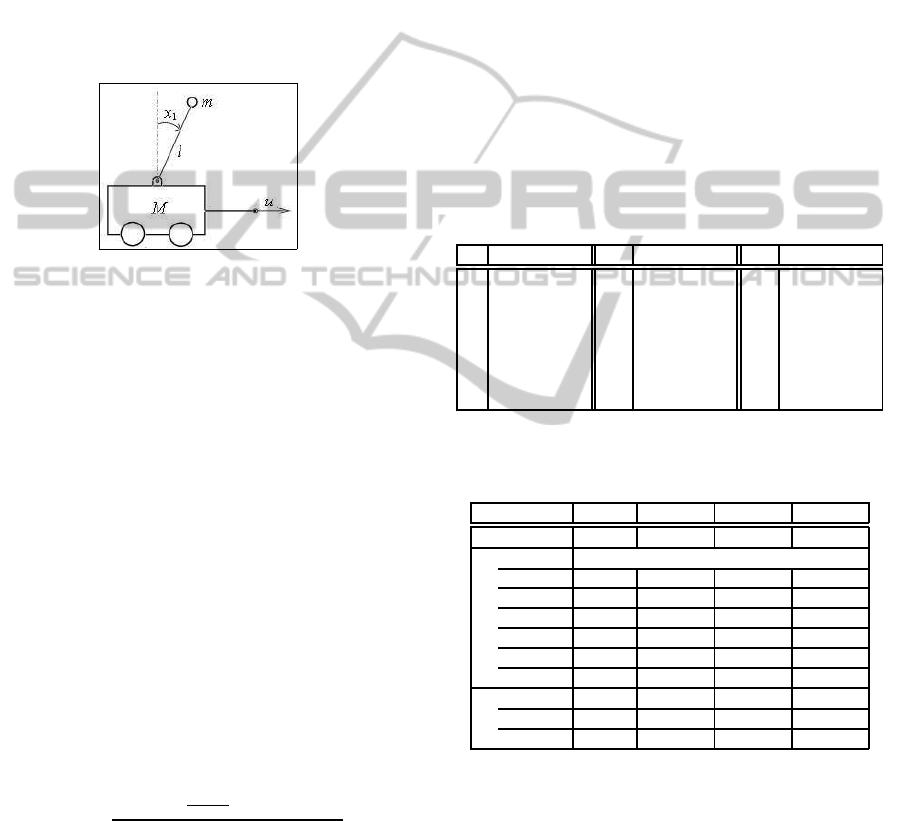

Figure 2: Inverted pendulum on a cart.

Here the goal is to bring the pendulum to equilib-

rium using a minimum amount of force applied to the

cart. The non-determinismis givenby possible distur-

bances on the actuator that may result in a variation

of the force actually applied. Note that this appar-

ently simple case study is instead an important issue

in the controller design for many real-world systems.

Indeed, many control problems, e.g., in engineering

(i.e., the regulation of a steering antenna (Ilcev, 2009))

or robotics (Yokoi et al., 2003) can be reduced to an

inverted pendulum problem.

The pendulum state is described by two real vari-

ables:

• x

is the pendulum angle (w.r.t. the vertical axis)

with x

∈ [−1.5,1.5] rad;

• x

is the angular velocity with x

∈ [−8,8] rad/sec.

The continuous dynamics is described by a system

of differential equations:







˙x

= x

˙x

sin(x

)−[

cos(x

)

][m

sin(x

)+u]

4l/3−[m

/(m

)]lcos

)

where g

is the gravitational constant, m

= 0.1Kg

is the mass of the pole, m

= 0.9Kg is the mass

of the cart, l = 0.5m is the half-length of the pole

and u ∈ [−50, −46, .. .,46,50]N is the force applied

to the cart. Note that, due to disturbances, x

can

non-deterministically assume, with uniform probabil-

ity distribution, a value that differs from the expected

one by a small λ ∈ [−Λ,Λ] with steps of 0.01 rad/sec.

The actions that can be applied in each state of

the system correspond to the force applied to the cart,

i.e., A = [−50,−46, .. .,46,50]. In this setting, the

cost of a transition is given by the absolute value of

the applied force, i.e., for any s,s

′

, W (s,a, s

′

) = |a|.

Therefore, a plan of minimum cost minimises the en-

ergy consumption.

In order to solve this continuous non-deterministic

problem, we ﬁrst had to approximate its continuous

behaviour, i.e., to ﬁnd a suitable discretisation. To

this aim we exploited the discretise and validate ap-

proach implemented in the UPMurphi planner (Della

Penna et al., 2009b), applied to the deterministic

version of the problem, to devise such a discretisa-

tion. Then we applied the same discretisation to the

non-deterministic version of the problem and ran the

strong algorithm on the resulting NDFSS.

Table 3: Initial states for the inverted pendulum on a cart

problem.

# x

1 0.039 1.92 8 0.038 1.85 15 0.037 1.79

2 0.037 1.72 9 0.036 1.66 16 0.035 1.60

3 0.035 1.53 10 0.034 1.47 17 0.033 1.40

4 0.033 1.34 11 0.032 1.27 18 0.032 1.21

5 0.031 1.14 12 0.030 1.08 19 0.030 1.01

6 0.026 6.3 13 0.025 5.7 20 0.024 5.0

7 0.024 4.4 14 0.023 3.7 21 0.022 3.1

Table 4: Experimental results for the inverted pendulum on

a cart problem.

Instance 1 2 3 4

Λ 0.02 0.04 0.07 0.08

|S| 5· 10

| 6.25· 10

1.125· 10

1.875· 10

2.125· 10

Reach 11,439 11, 889 12,509 12,649

G Reach

342,272 643,370 1,114,484 1,279, 010

|A | 25 25 25 25

max(δ(s)) 77 140 244 284

avg(δ(s)) 29.9 51.14 89.09 101.12

size 1,146 1,198 698 —

max(C (s)) 75N 304N 180N —

time 10 18 13 7

In particular, we considered different instances of

the problem, taking into account disturbances of in-

creasing size, i.e., with Λ ∈ {0.02,0.04,0.07,0.08}.

For each instance, we applied the strong algorithm on

the sample set of initial states shownin Table 3, which

produced the results summarised in Table 4. Here,

for each problem instance, we report some statis-

tics about the corresponding graph G, i.e., total num-

ber of states (|S|), the total number of edges (|S

|),

the number of reachable states and edges (Reach and

Reach

, respectively), the number of actions (|A |) and

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

the average and maximum out degree (avg(δ(s)) and

max(δ(s)), respectively) of the states. Then, we sum-

marise the correspondingcost-optimal strong plan SP,

as devised by the algorithm, giving its size (i.e., the

number of plans that can be extracted from SP), the

maximum cost (max(C (s)) of a cost-optimal strong

plan that can be extracted from SP and the total plan

synthesis time (in minutes). The complete data set is

available online at (Della Penna et al., 2010).

Note that, as discussed in Section 1, the size of the

explicit graph representation of even a simple prob-

lem is huge: |S| = 5· 10

nodes and |S

| = 6.25 · 10

edges in our best case. By visiting only the reachable

states, our algorithm succeeds in effectively counter-

acting state explosion.

We may note that, as expected, the greater the size

of disturbances, the bigger the number of transitions,

the smaller the number of states for which a strong

plan is found. In particular, for the fourth instance,

no strong plan exists. Moreover, the size of the re-

sulting strong plan could be effectively compressed

making use of Ordered Binary Decision Diagrams, as

described in (Della Penna et al., 2009a).

5 CONCLUSIONS AND FUTURE

WORK

In this paper we described an algorithm to solve

the cost-optimal strong planning problem in non-

deterministic ﬁnite state systems.

The presented approach extends the strong plan-

ning methodology given in (Cimatti et al., 1998) by

introducing the concept of cost, and thus generating

cost-optimal strong plans, and by exploiting explicit

algorithms to extend the class of solvable problems.

The devised algorithm has been formally proved

as correct and complete, and its complexity, if the

number of transitions in the system or the range of

possible transition costs are reasonable (to say, a bil-

lion of transitions or different costs), is dominated

by the number of (visited) transitions in the system

graph, which is a good bound for such kind of prob-

lem.

Finally, the proposed methodology has been illus-

trated through a case study based on the well known

inverted pendulum on a cart problem. Future work

will include an extensive experimentation on differ-

ent case studies. However, the ﬁrst results are very

promising and show how the algorithm is effective

and scalable.

REFERENCES

Albore, A., Palacios, H., and Geffner, H. (2010). Compil-

ing uncertainty away in non-deterministic conformant

planning. In ECAI, pages 465–470.

Behrends, E. (2000). Introduction to Markov Chains.

Vieweg.

Bertoli, P., Cimatti, A., Roveri, M., and Traverso, P. (2001).

Planning in nondeterministic domains under partial

observability via symbolic model checking. In Proc.

17th IJCAI, pages 473–478. Morgan Kaufmann.

Bertoli, P., Cimatti, A., Roveri, M., and Traverso, P. (2006).

Strong planning under partial observability. Artif. In-

tell., 170:337–384.

Bonet, B. and Geffner, H. (2000). Planning with incom-

plete information as heuristic search in belief space.

In Chien, S., Kambhampati, S., and Knoblock, C., ed-

itors, Proc. 6th ICAPS, pages 52–61. AAAI Press.

Bonet, B. and Geffner, H. (2005). mGPT: A probabilistic

planner based on heuristic search. JAIR, 24:933–944.

Boutilier, C., Dean, T., and Hanks, S. (1999). Decision-

theoretic planning: Structural assumptions and com-

putational leverage. JAIR, 11:1–94.

Burch, J. R., Clarke, E. M., McMillan, K. L., Dill, D. L.,

and Hwang, L. J. (1992). Symbolic model checking:

states and beyond. Inf. Comput., 98(2):142–170.

Chesi, G. and Hung, Y. (2007). Global path-planning for

constrained and optimal visual servoing. IEEE Trans.

on Robotics, 23(5):1050–1060.

Cimatti, A., Roveri, M., and Traverso, P. (1998). Strong

planning in non-deterministic domains via model

checking. In AIPS, pages 36–43.

Della Penna, G., Intrigila, B., Lauri, N., and Magazzeni,

D. (2009a). Fast and compact encoding of numerical

controllers using obdds. In Informatics in Control, Au-

tomation and Robotics: Selected Papers from ICINCO

2008, pages 75–87. Springer.

Della Penna, G., Intrigila, B., Magazzeni, D., and Mercorio,

F. (2009b). UPMurphi: a tool for universal planning

on PDDL+ problems. In Proc. ICAPS 2009, pages

106–113. AAAI Press.

Della Penna, G., Intrigila, B., Magazzeni, D., and Mercorio,

F. (2010). Non-deterministic inverted pendulum on a

cart data set.

Della Penna, G., Intrigila, B., Melatti, I., Tronci, E., and

Venturini Zilli, M. (2004). Exploiting transition local-

ity in automatic veriﬁcation of ﬁnite state concurrent

systems. STTT, 6(4):320–341.

Della Penna, G., Intrigila, B., Melatti, I., Tronci, E., and

Zilli, M. V. (2006). Finite horizon analysis of markov

chains with the murphi veriﬁer. STTT, 8(4-5):397–

409.

Fudenberg, D. and Tirole, J. (1991). Game theory. MIT

Press.

Huang, W., Wen, Z., Jiang, Y., and Wu, L. (2007). Observa-

tion reduction for strong plans. In Proc. 20th IJCAI,

pages 1930–1935. Morgan Kaufmann.

COST-OPTIMAL STRONG PLANNING IN NON-DETERMINISTIC DOMAINS

Ilcev, S. D. (2009). Antenna systems for mobile satellite ap-

plications. In Microwave Telecommunication Technol-

ogy, 2009. CriMiCo 2009. 19th International Crimean

Conference, pages 393 –398.

Kwiatkowska, M. Z., Norman, G., and Parker, D. (2004).

Probabilistic symbolic model checking with prism: a

hybrid approach. STTT, 6(2):128–142.

Mausam, M., Bertoli, P., and Weld, D. S. (2007). A hy-

bridized planner for stochastic domains. In Proc. 20th

IJCAI, pages 1972–1978. Morgan Kaufmann.

Mausam, M. and Weld, D. S. (2008). Planning with durative

actions in stochastic domains. JAIR, 31:33–82.

Meuleau, N., Benazera, E., Brafman, R. I., Hansen, E. A.,

and Mausam, M. (2009). A heuristic search approach

to planning with continuous resources in stochastic

domains. J. Artif. Int. Res., 34:27–59.

Schoppers, M. (1987). Universal plans of reactive robots in

unpredictable environments. In Proc. IJCAI 1987.

Yokoi, K., Kanehiro, F., Kaneko, K., Fujiwara, K., Kajita,

S., and Hirukawa, H. (2003). Experimental study of

biped locomotion of humanoid robot hrp-1s. In Exper-

imental Robotics VIII, volume 5 of Springer Tracts in

Advanced Robotics, pages 75–84. Springer.

Yoon, S. W., Fern, A., and Givan, R. (2002). Inductive

policy selection for ﬁrst-order MDPs. In UAI, pages

568–576.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics
