SOFTWARE MODULES AND APPLICATION LAYER’S SECURITY

STRUCTURE OF RSMAD

Slawomir Gajewski, Malgorzata Gajewska, Marcin Sokol and Michal Brewka

Department or Radiocommunication Systems and Networks, Faculty of Electronics, Telecommunications and Informatics

Gdansk University of Technology, Gdańsk, Poland

Keywords: AES, RSA, RSMAD, VPN.

Abstract: The paper discusses the software modules of Radio System for Monitoring and Acquisition of Data from

Traffic Enforcement Cameras (in short RSMAD). The structure of the application layer of the system has

also been analysed in details, including: purpose, structure and principles of operation of software modules

constituting this system. In addition, the paper presents and discusses the structure of security of application

layer in the RSMAD system. What is more the paper highlights the advantages and disadvantages of the

modular construction of ICT systems basing on the example of the RSMAD system.

1 INTRODUCTION

Radio System for Monitoring and Acquisition of

Data from Traffic Enforcement Cameras (in short

RSMAD) allows automatic transmission of image

data (recorded by a traffic enforcement camera),

storage and processing them for the purposes of

proceedings against traffic offenders. RSMAD

specificity means that the image data stream is gen-

erated, transmitted and stored in the system continu-

ously.

RSMAD use appropriate technology solutions,

ensuring the safety of data transmitted and stored

within the system. A description of designs and

procedures is presented later in this paper.

2 MODULAR STRUCTURE

OF RSMAD

The basic assumptions made at the design stage of

the RSMAD system were:

 Mobility of the solution and openness to differ-

ent techniques and technologies of wireless data

transmission,

 Independence on the used transmission technol-

ogy, encryption, authentication and verification

of the integrity algorithms,

 High scalability of the solution achieved by

using a modular architecture,

 Secure transmission over the Internet by

subtracting the VPN (Virtual Private Network)

subnet which type and parameters have been

chosen as the result of simulation,

 Centralized management of cryptographic

parameters of the selected software modules,

providing increased security and flexibility of the

system.

Both the physical and application layers of the

RSMAD system have a modular structure. The ap-

plication layer consists of a group of functionally

advanced and co-operating applications. Technical

and functional parameters of these solutions, both

hardware and software, are designed to handle very

large amounts of data. Modular architecture of

RSMAD is shown in Figure 1. The rest of this article

will discuss the advantages and disadvantages of

using this approach (Anderson, 2008).

2.1 Modules Description

RSMAD consists of five main modules. Three of

them are directly involved in data transmission.

These are RCM, RDM, RUM (Figure 1). Other

modules: RLM and RKMM support the work of the

whole system

(KSSR DT 07.100 v. 1.0.1, 2009).

2.1.1 RSMAD’s Licence Module (RLM)

RLM module is used for license management. The

appropriate license code is generated for each unit

Gajewski S., Gajewska M., Sokol M. and Brewka M..

SOFTWARE MODULES AND APPLICATION LAYER’S SECURITY STRUCTURE OF RSMAD.

DOI: 10.5220/0003454000890093

In Proceedings of the International Conference on Data Communication Networking and Optical Communication System (DCNET-2011), pages 89-93

ISBN: 978-989-8425-69-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

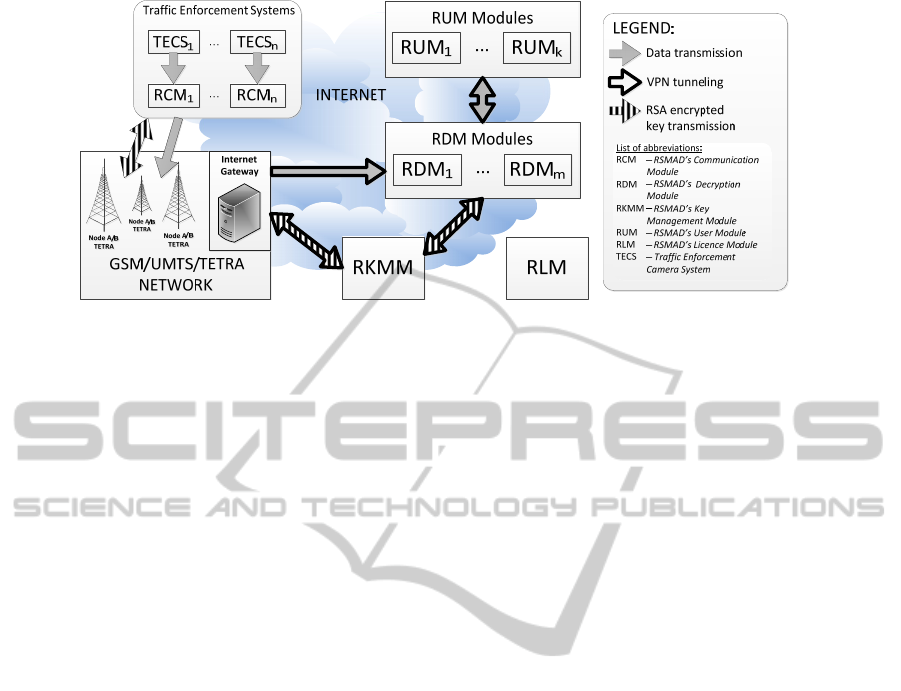

Figure 1: Modular architecture of the RSMAD system.

and stored in the database along with details of the

owner of the traffic enforcement camera, the charac-

teristic parameters of the device and its identifier.

During saving of this data the license application

creates a personal FTP (File Transfer Protocol) ac-

count and the appropriate folder structure on a net-

work drive connected to the database server. The

folder names correspond to unique identifiers which

are set according to specific rules for each camera.

2.1.2 RSMAD’s Key Management Module

(RKMM)

One of the major modules of the RSMAD system is

RKMM. It is responsible for distribution and man-

agement of cryptographic parameters. These pa-

rameters are needed to control encryption procedure

by the individual RCM.

RKMM

assigns an individ-

ual vector of cryptographic parameters to each

RCM. Elements of this

vector define: the type of

encryption algorithm, its parameters and the

encryption key with a validity period

. These pa-

rameters are generated and stored by the RKMM, in

accordance to current security policies. This solution

enables the selection of an encryption algorithm

corresponding to the capacity of each terminal and

compliant with current security policy.

Database, which co-operates with RKMM, stores

all the generated cryptographic vectors which are

unambiguously associated with the appropriate traf-

fic enforcement cameras (Lam and LeBlanc and

Smith, 2004).

2.1.3 RSMAD’s Communication Module

(RCM)

The role of the

RCM

module is proper preparing of

a transport block which includes: a file in the JPEG

(Joint Photographic Experts Group) format, addi-

tional information about the infraction obtained

automatically from the traffic enforcement camera

and a set of data entered by the user. Each block

contains also the GPS (Global Positioning System)

position which sets out unambiguously the location

of the incident. All information except the JPEG file

is saved to XML (Extensible Markup Language)

file, to facilitate its further processing.

The next activity of the RCM module is the en-

cryption and creation of abridged messages archive

containing the JPEG and XML files. This operation

is performed in order to prepare the transport block.

Input parameters of the encryption process are de-

termined basing on the vector of cryptographic pa-

rameters. After encrypting a transport block, the

RCM application connects to an FTP server, using a

personalized account (created by the RLM applica-

tion). Thereby it obtains access to the assigned

folder on the network drive of the regional data

centre. RCM has the authorization only to record

data (Postel,1985).

2.1.4 RSMAD’s Decryption Module (RDM)

Most demanding in terms of complexity and CPU

power module is RDM. This application is responsi-

ble for the decryption of transport blocks and saving

them into database.

The realisation of the RDM module’s tasks

starts with the creation of a list of new transport

blocks stored on an FTP server. In the next step, this

module sends a request, to define a set of encryption

vectors for all received transport blocks, to the

RKMM server. A successful decryption procedure

and verification of digital signature results in separa-

tion of a pair of JPEG and XML files.

The final stage of the algorithm implemented by

the RDM module is the archiving of JPEG and XML

files on a network drive and making an entry into

DCNET 2011 - International Conference on Data Communication Networking

database cooperating with the module. This entry

contains, among others, the actual location of the

JPEG file and all the additional data obtained from

an XML file.

2.1.5 RSMAD’s User Module (RUM)

Users’s RUM module is responsible for communi-

cating with the database and other IT systems par-

ticipating in the procedure of issuance of a penal

ticket. It allows the system operator to download

photos and additional information stored in the data-

base of the system. The extensive functionality of

the application allows automatic filling in the penal

documentation.

2.2 Security of RSMAD

When designing a RSMAD, it was decided to use a

VPN solution, implemented in both the network and

application layers. In turn, in the process of distribu-

tion of cryptographic vectors, it was decided to use

the proven RSA algorithm ensuring secure, asym-

metric encryption which protects it from eavesdrop-

ping in the channel (KSSR RT02.901v.1.1.0, 2009).

The RSMAD system’s security structure is multi-

layered and very complex, therefore in the rest of the

work only some aspects of security architecture of

the system will be discussed (Pieprzyk and Hardjono

and Seberry, 2003).

2.2.1 VPN Tunnelling

VPN networks have been used to secure the trans-

mission realized over the Internet. For this purpose,

the private subnet from which the communication

takes place via VPN tunnels has been isolated in the

infrastructure of the mobile network operator.

Tunnels between the server and client parts of

the RUM application are implemented basing on the

L2TP (Layer Two Tunnelling Protocol). It results

from the fact that there are many more RUM mod-

ules than the RDM modules, and they are supported

by those who are responsible for preparing penal

documentation. Using the tunnel in the connection,

which is realized by software, is much easier to

implement, and it provides much more scalable

solution (Townsley and Valencia and Rubens and

Pall and Zorn and Palter, 1999).

2.2.2 Structure of a Modified RSA

Algorithm

A modified structure of the RSA algorithm which

was decided to be used in the RSMAD system, is

shown in Fig. 2. It is the typical RSA algorithm,

enriched by an additional procedure of password

verification. The verification is designed to filter out

unwanted connections which would have to offload

server performance with further steps of the RSA

algorithm.

The procedure for determining an encrypted



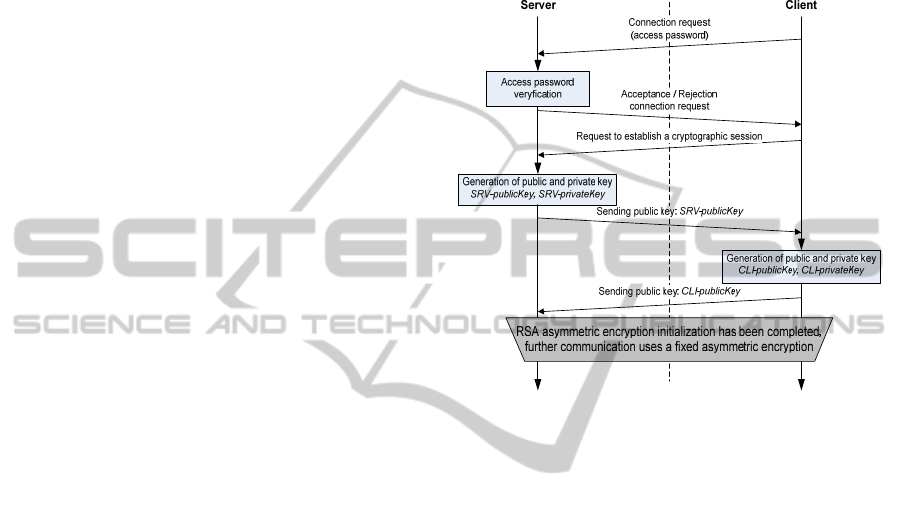

Figure 2: RSA algorithm adopted for RSMAD.

connection using the RSA algorithm is to generate

public and private key on each side of the transmis-

sion. Only public keys are transmitted in the chan-

nel. After an exchange of these keys the encrypted

transmission may begin.

The principle of the RSA algorithm performance

is very simple – the sent public key allows encrypt-

ing messages. On the other hand, the complementary

(generated by the same side) private key is necessary

for decryption. Since the private key has not been

sent within the channel, it is impossible (without a

thorough analysis) for a third party to read the mes-

sage secured in this way.

The main reason why RSA is used is the need to

secure the transmission of the symmetric key used

for encryption a transport block. The implemented

solution allows the operation of the RCM and the

RDM modules independently from each other, by

using an FTP server. This means that despite the

disruption in RDM application performance (e.g.

due to an upgrade) it is not necessary to suspend the

transfer of transport blocks by the RCM modules.

This is a very important solution because it allows a

temporary exemption (partial or total) of one module

without affecting the whole system.

Because of the relatively short validity (for the

current connection) of the set RSA key, a potential

SOFTWARE MODULES AND APPLICATION LAYER'S SECURITY STRUCTURE OF RSMAD

intruder does not have enough data to make an at-

tempt of breaking a message encrypted this way.

This means that the distribution of cryptographic

parameters vectors, through the central RKMM

module which is secured by RSA algorithm, can be

considered safe (Wobst, 2002).

2.2.3 Encrypted Data

Data sent by the RCM module is first transmitted

over the radio channel and then via GSM / UMTS /

TETRA links to their networks’ connection to the

Internet. Between the operator’s network and the

Data Acquisition Center (in short DAC) VPN tun-

nels that protect data transmitted over the Internet

have been compiled.

In addition, regardless of the security offered by

the technology used for data transmission, it was

decided to use the additional data encryption. En-

cryption algorithms supported by the RCM module

are: AES-128; AES-192; AES-256; Triple-DES.

These are algorithms approved by the National Insti-

tute of Standards and Technology and their safety is

estimated to at least 2030 (NIST, 2003-2007). There

is also an opportunity of easy migration to other

solutions.

RKMM is equipped with mechanisms to improve

the security of the system. It provides, inter alia,

easy change of the data encryption algorithm in a

situation of violation of any of the used algorithms.

2.3 Modular Architecture of RSMAD

System as a Form of Securing and

Increasing the System Reliability

This section will show the benefits of the modular

system structure and policies of limited confidence

in the RSMAD system. These benefits could be

presented on examples of various types of interfer-

ence in the system: acquisition of one of the RCM

modules, acquisition of one of the RUM modules,

eavesdropping of transmission in a wireless network,

eavesdropping of transmission in the Internet. Those

are the most probable attempts to intervene in the

RSMAD system. However, there is also some prob-

ability of attempts of unauthorized physical access to

servers on which RKMM, RLM, and RDM applica-

tions run. Physical security of the RSMAD system’s

servers unfortunately exceeds the scope of this pa-

per.

A hypothetical situation can be imagined that the

intruder steals a unit with an installed RCM module,

for its thorough analysis and to gain unauthorized

access to the RSMAD system.

The only data that can theoretically bring any

benefit to an intruder are: license number of the

RCM and IP addresses of the RKMM and the RDM

modules. Trying to use the license would not bring

any benefit, because each one is verified on-line

during its input. Address of RDM module allows

only access to the FTP server, with write-only per-

missions. RKMM IP address is useless, because this

module verifies the password which is implemented

in code of the software. Even if it would be over-

heard, in response to a query, the RCM module can

only get an encryption parameters vector containing

the information on encryption key with which the

messages are protected, but not the pictures stored

on this device.

In summary, the RCM module has been de-

signed so that a failure or attack on one traffic

enforcement camera does not endanger the safety

of the entire RSMAD system.

3 CONCLUSIONS

Solutions used in the RSMAD system, and espe-

cially its modular architecture are its major asset.

Security policy, developed specifically for the sys-

tem, provides a very high level of data security. It

should be noted that the maintenance of the RSMAD

system in continuous operation is crucial because

with the large number of supported devices, even a

brief failure could result in very large losses. Thus,

the system lets users to perform a software update on

individual devices without interrupting the operation

of the whole system. Flexibility that characterizes

this system allows its easy and sustainable develop-

ment and ensures low maintenance costs.

ACKNOWLEDGEMENTS

The project of RSMAD is realized under the re-

search - development grant R02 N 0034 06

in years 2009-2012 in the Department of Radio-

communication Systems and Networks, Faculty of

Electronics, Telecommunications and Informatics at

Gdansk University of Technology in Poland. It’s

funded entirely by the National Centre for Research

and Development.

REFERENCES

KSSR DT 07.100 v. 1.0.1, 2009. General concept of

DCNET 2011 - International Conference on Data Communication Networking

RSMAD’s DAC (in Polish), Gdansk University of

Technology, Poland.

Anderson, R., 2008. Security Engineering: A Guide to

Building Dependable Distributed Systems.

Lam, K., LeBlanc, D., Smith, B., 2004. Assessing Net-

work Security.

J. Postel,1985. RFC959: File Transfer Protocol (FTP).

KSSR RT 02.901 v. 1.1.0, 2009. Security architecture of

the RSMAD system (in Polish), Gdansk University of

Technology, Poland.

Pieprzyk, J., Hardjono, T., Seberry, J., 2003.

Fundamentals of Computer Security.

Townsley W., Valencia A., Rubens A., Pall G, Zorn G.,

Palter B., 1999. RFC2661: Layer Two Tunneling Pro-

tocol "L2TP". The Internet Society.

Wobst, R., 2002. Abenteuer Kryptologie

NIST, 03-2007. Special Publication 800-57

Recommendation for Key Management – Part 1:

General (Revised).

SOFTWARE MODULES AND APPLICATION LAYER'S SECURITY STRUCTURE OF RSMAD
