A NON-UNIFORM REAL-TIME SPEECH TIME-SCALE

STRETCHING METHOD

Adam Kupryjanow and Andrzej Czyżewski

Multimedia Systems Department, Gdańsk University of Technology, Narutowaicz 11/12, Gdańsk, Poland

Keywords: Time-scale modification, Voice detection, Vowels detection, Rate of speech estimation.

Abstract: An algorithm for non-uniform real-time speech stretching is presented. It provides a combination of typical

SOLA algorithm (Synchronous Overlap and Add ) with the vowels, consonants and silence detectors. Based

on the information about the content and the estimated value of the rate of speech (ROS), the algorithm

adapts the scaling factor value. The ability of real-time speech stretching and the resultant quality of voice

were analysed. Subjective tests were performed in order to compare the quality of the proposed method with

the output of the standard SOLA algorithm. Accuracy of the ROS estimation was assessed to prove its

robustness.

1 INTRODUCTION

Time-scale modification algorithms have been

widely investigated by many researchers over last 25

years. Mainly this issue was considered in terms of

maximizing the quality of synthesized speech

(Moulines, 1995), reduction of computational

complexity or its adaptation for real-time signal

processing (Pesce, 2000). In this work the main

stress was put on design and evaluation of the

algorithm which will be able to stretch the speech

signal in a real-time, whilst preserving the general

synchronization of the original and modified signal.

Synchronization is obtained here by the reduction of

redundant information in the input signal i.e.

shortening of silence and vowels prolongation

intervals, stretching vowels and consonants with a

different stretching factors and adjusting stretching

factor value according to the actual ROS (Rate of

Speech).

The proposed algorithm, named Non-Uniform

Real-Time Speech Modification algorithm (NU-

RTSM), was designed to improve the perception of

speech by people with the hearing resolution deficit.

It was shown in Tallal’s work that the reduction of

the speech speed improves its intelligibility

(Tallal, 1996). Authors of this paper had proposed

the idea of the real-time speech stretching using

mobile devices (e.g. Smartphone). Results of that

work were described in the conference paper

(Kupryjanow, 2010). Some improvements of that

algorithm are proposed, i.e. usage of non-uniform

time-scaling, in this paper.

As it was shown by Demol (Demol, 2005), non-

uniform time-scaling algorithm can improve the

quality of processed signal. The assumption of his

work was based on the idea that every unit of speech

such as: vowels, consonants, plosives, phones

transitions and silence should be time-scaled using

different scaling factors. Differences between factors

were implicated by the prosody rules. Realization of

that algorithm is impossible in real-time conditions,

because of the problem with the synchronization of

the input and output signal (there is no mechanism

for the reduction of redundant signal content). In this

paper such a mechanism is proposed and examined.

Owing to the structure of the algorithm, it could

be implemented on the mobile phone, but because of

the legal limitations the processing of the incoming

speech stream may be prohibited. Despite the

limitations, the modification of the speech could be

implemented on the telephone service provider

severs or locally on the mobile device working in

off-line mode.

2 ALGORITHM DESCRIPTION

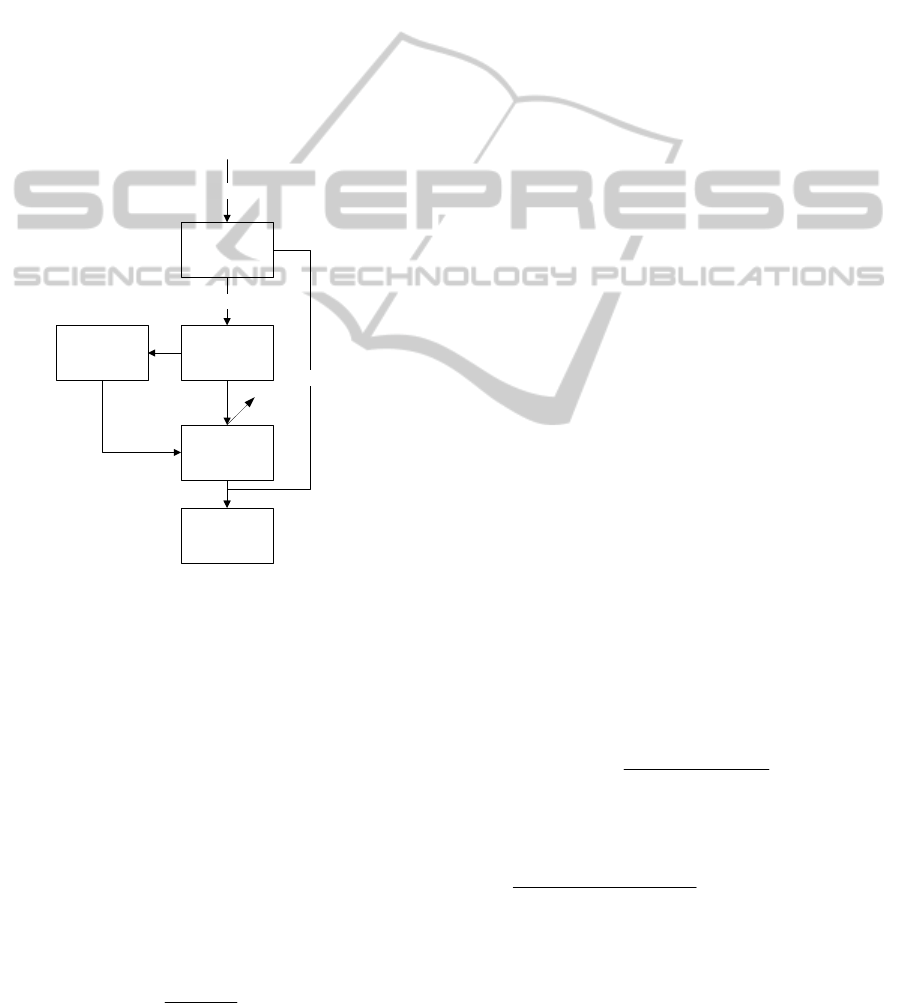

In Fig. 1, a block diagram of the NU-RTSM

algorithm is presented. The algorithm provides a

Kupryjanow A. and Czyzewski A..

A NON-UNIFORM REAL-TIME SPEECH TIME-SCALE STRETCHING METHOD.

DOI: 10.5220/0003456300270033

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 27-33

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

combination of voice activity detection, vowels

detection, rate of speech estimation and time-scale

modification algorithms. Signal processing is

performed in time frames in the following order:

1. Voice activity detector examines speech

presence,

2. For noisy components frame synchronization

procedure is performed; if the output signal is

not synchronized with the input then noise

sample frames are not sent to the output,,

3. Speech sample frames are tested in order to find

vowels,

4. Information about vowels locations is used by

the ROS estimator to determine the speech rate,

5. Speech frames are stretched up with different

stretching factors.

Voice activity

detector

Vowels

detector

ROS estimator

speech

Time-scale

modification

Output

noise

Microphone

Figure 1: NU-RTSM block diagram.

All algorithms presented in this section were

designed and customized to work in a real-time. The

input signal for all of them was captured by the

headset microphone.

2.1 Voice Activity Detector

Voice activity detection is performed at the

beginning of the analysis. The algorithm is designed

as a typical VoIP voice detector. Detection of the

voice is done in the time frames with a length of

46 ms. For every signal frame spectral energy,

defined by Eq. 1, is determined and compared with

the energy threshold Eth:

∑

)(

(1)

where E represents energy of the frame, A(k) is

the k-th spectral line of the input’s signal magnitude

spectrum and K is the total number of spectrum

lines. Energy threshold is obtained at the beginning

of the processing, by calculating the mean value of

the energy determined for the first 20 frames of the

signal. It is assumed that at the beginning of the

analysis only noise is recorded by the microphone.

Frame is marked as speech if its energy exceeds the

Eth value.

Threshold value is adjusted to the current noise

variations using the two-stage adaptation procedure.

First stage is done every time when the frame was

marked as noise. For that situation Eth is updated

using the following formula (Eq. 2):

))1(( EpEthpCEnth ⋅+⋅

−

(2)

where Enth is the new value of energy threshold,

Eth is the previous value of energy threshold, E is

the energy of the current frame, C is correction

factor, and p is the variable which determines how

much the new value of the noise energy will

influence the value of Enth.

The task of the second stage is to fit p value to

the actual background noise energy fluctuations. If

the variation of the vector that contains last 10

energies, used in the first stage of adaptation, is low,

then the energy for the current frame should have

low impact on Eth adaptation. Therefore, p value is

set to 0,2. Otherwise, impact of the current energy

should be high, so the p value is set to 0,1.

2.2 Vowels Detector

Vowels detection algorithm is based on the

assumption that all vowels amplitude spectra are

consistent. To quantify this similarity parameter

called PVD (peak-valley difference) is used

(Moattar, 2010). Initially PVD was introduced for

the robust voice activity detection. It is defined by

the following formula (Eq. 3):

∑

−

−⋅

−

⋅

))(1(

)))(1()((

)(

))()((

),(

kVM

kVMkA

kVM

kVMkA

AVMPVD

(3)

where PVD(VM, A) is the value of peak-valley

difference for one frame of the input signal, A(k) is

the value of the k-th spectral line of the input’s

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

signal magnitude spectrum and VM(k) is the value of

the k-th value in the vowel model vector.

VM is created in the training stage on the basis of

the average magnitude spectra calculated for the pre-

recorded vowels. The model consists of the binary

values, where 1 is placed in the position of the peak

in the average magnitude spectrum and 0 for all

other positions. When the magnitude spectrum of the

input signal is highly correlated with the vowels

spectra, PVD value is high. Therefore, for the

vowels PVD takes higher values than for consonants

or silence parts.

Vowels detection is executed only for speech

frames. Algorithm is based on time frames with the

duration of 23 ms. Each signal frame is windowed

using triangular window defined as:

⎪

⎩

⎪

⎨

⎧

≤≤+

+−

≤≤

)1(2

)(

(4)

where L- is the size of the window and n - is the

sample number. This type of window ensures a

higher accuracy of vowels detection than other

shapes.

Vowel detection requires the initialization step

which is performed in parallel to the initialization of

the voice activity detection algorithm. In this step

the threshold for the PVD is calculated as the mean

value of first 40 frames of the signal according to the

formula (Eq. 5):

nPVD

CPth

∑

)(

(5)

where Pth- is initial value of the threshold, PVD(n) -

is the value of peak-valley difference for the n-th

signal frame, N - is number of frames that were used

for initial threshold calculation, C - is correction

factor. The correction factor was selected

experimentally and was set to 1,1.

For every signal frame PVD value is determined

and smoothed by calculating the average of last

three values. The signal frame is marked as a vowel

when: the value of the smoothed PVD is higher than

Pth threshold and it has a local maximum in the

PVD curve or its value is higher than 75 % of the

value of the last local maximum. If the value is

lower than Pth then the decision of voice activity

detector is corrected and frame is marked as silence.

For other situations frame is assigned to the

consonant class.

In the real-time analysis assumptions presented

above are tested in the following manner:

1. if the PVD for the frame n-1 is greater than for

frames n and n-2, where n is the number of the

current analysis frame, and greater than Pth

threshold, then frame n-2 is marked as vowel

and information about peak detection in n-1

frame is saved,

if the condition 1 is not fulfilled, the second

condition is checked, namely: if the information

about peak presence is up to date and PVD

value for the frame n-2 is greater than 75 % of

that peak, then frame n-2 is marked as vowel,

if conditions 1 and 2 are not fulfilled and PVD

value for the frame n-2 is lower than Pth, then

decision obtained using voice detector is

corrected and frame is marked as noise

(information about peak presence is canceled),

otherwise frame n-2 is marked as consonant

and information about peak presence is

canceled.

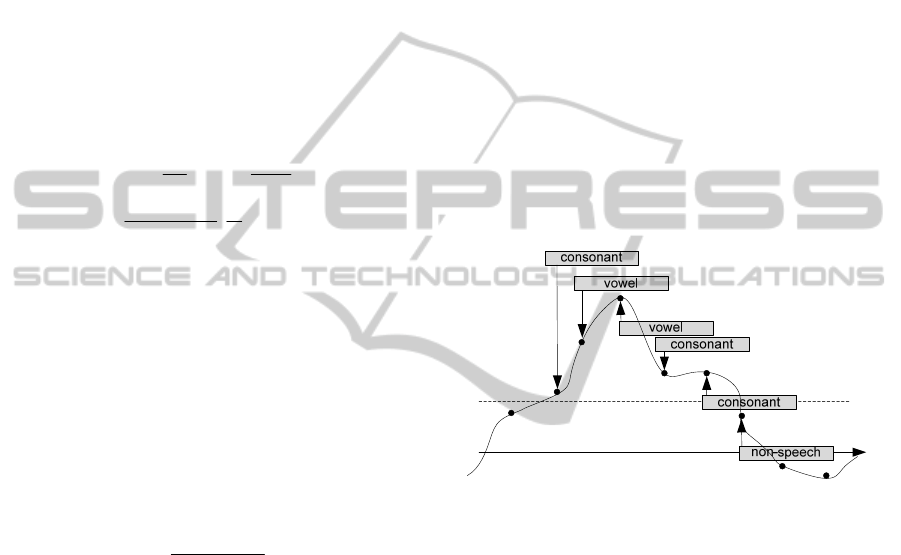

An example of the vowels detection in real-time

conditions is presented in Fig 2.

Figure 2: Vowels detection in real-time. Grey boxes

represent analysis frames, dotted line represents Pth value.

Despite the fact that a simple voice activity

detection algorithm was used, false positive errors

appearing during the classification, have no impact

on the vowel detection algorithm. It is achieved

owing to the third step of the vowel detection

algorithm, where all misclassified noise frames are

detected and removed from the analysis.

2.3 ROS Estimation

ROS is a useful parameter in many speech

processing systems. For the most part it is used in

the automatic speech recognition (ASR). In the ASR

many speech parameters are highly related to ROS.

Hence, ROS is used to adjust the HMM model for

different speech rates (Narayanan, 2005).

In the literature several definitions of ROS can

be found. All of them require speech signal

segmentation. For example Narayanan defines ROS

as a number of syllables per second (SPS). In other

A NON-UNIFORM REAL-TIME SPEECH TIME-SCALE STRETCHING METHOD

works ROS is defined inter alia as: phones per

second (PPS) (Mirghafori, 1996), vowels per second

(VPS) (Pfau, 1998), phones per second normalized

to the probability of the specific phone duration

(Zheng, Franco, Stolcke, 2000), word duration

normalized to the probability of its duration

(Zheng, Franco, Weng, 2000). Some measures, like

those proposed by the Zheng et al., required the ASR

or the transcription of the utterances. Therefore, for

real-time unknown input signal, ROS estimation

could be done only by statistical analysis. In this

work, as ROS definition, the VPS parameter is used,

as the derivate of SPS measure. Therefore, ROS is

defined as (Eq. 6):

nROS

vowels

=)(

(6)

For every signal frame ROS estimation is

performed using the knowledge about the frame

content, which is provided by vowels and voice

activity detectors. Therefore, ROS value is updated

for every 23 ms (length of the vowel detector

analysis frame). Instantaneous ROS value is

calculated as the mean number of vowels in the last

2 s of speech signal. Period of the time for the

averaging was chosen experimentally in such a way

that local ROS changes could be captured.

The highest ROS value that could be measured

by this method equals 21 vowels/s, provided that all

vowels and consonants durations are equal to 23 ms.

It is worth mentioning that the instantaneous value

of ROS is updated only when the current frame does

not contain silence or prolongation of the vowel. At

the beginning of the algorithm work, to eliminate the

situation when the ROS values increase from zero to

some value, initial ROS value is set to 5,16

vowels/s.

During the analysis instantaneous ROS value is

used to assign, to the current utterance, one of

speech rates categories, high or low. This division is

obtained using the ROS threshold value (ROSth).

ROSth was determined during the analysis of the

mean ROS values of the speech rates recorded for 8

persons. Each person read five different phrases with

three speech rates: high, medium and low. Results of

the ROS statistics were presented in Tab. 1.

Table 1: Mean value and standard deviation of ROS

calculated for the different speech rates.

speech rate low medium high

µ(ROS)[vowels/s] 4,80 5,17 5,52

σ(ROS)[vowels/s] 0,76 0,75 0,79

It can be seen that, because of the high value of the

standard deviation (nearly 0.76 for all classes) and as

a consequence of the low distance between the

neighbouring classes, only two classes could be

separated linearly using the instantaneous ROS

value. On the basis of the statistics, the ROS value

was set to 5.16 vowels/s. The threshold was

calculated according to the equation (7):

)()(

highlow

ROSROS

ROS

μμ

(7)

where µ(ROS)

low

is the mean value of ROS for the

low rate speech and µ(ROS)

high

is the mean value of

ROS for the high rate speech.

In Sec. 3 the accuracy of speech rate class

recognition as well as its applicability to the non-

uniform speech stretching are investigated.

2.4 Time-scale Modification Algorithm

Selection

Many algorithms dedicated for speech time-scaling

can be found in literature. All of them are based on

the overlap-and-add technique. Most of the known

algorithms were not optimized for real-time signal

processing. Therefore, for real-time speech

stretching only a few methods could be used. The

best quality of time-scaled speech is achieved for

complex methods that combine precise speech signal

analysis such as speech periodicity judgment and

adjustment of the analysis and synthesis frame sizes

to the current part of the signal (Moulines, 1995).

The algorithms, for instance PSOLA (Pitch

Synchronous Overlap and Add) or WSOLA

(Waveform Similarity Based Overlap and Add)

produce high quality modified signals (Grofit, 2008;

Verhelst, 1993), but require changing analysis shift

sizes (WSOLA) or synthesis (PSOLA) frame sizes

according to the current speech content.

It was shown that those algorithms could be used

for real-time signal processing (Verhelst, 1993; Le

Beux 2010), but for the non-uniform time-scale

modification variable sizes of analysis time shift or

synthesis frame would add complexity to the

detection algorithms (voice activity detection,

vowels detection). For this reason, NU-RTSM

algorithm is based on the SOLA algorithm

(Synchronous Overlap-and-Add) which in the

fundamental form uses constant values of the

analysis/synthesis frame sizes and analysis/synthesis

time shift (Pesce, 2000) as well ensures quality of

the processed speech nearly as good as for the other

methods (Verhelst; 1993; Kupryjanow, 2009).

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

2.5 SOLA based Non-uniform

Time-scale Modification Algorithm

To achieve a high quality of the stretched speech,

analysis/synthesis frame size and analysis time shift

should be selected properly i.e. frame length L

should cover at least one period of the lowest speech

component and in the synthesis stage, for all used

scaling factors α(t), overlap size should be at least

L/3 length. For the designed algorithm L value was

set to 46 ms and analysis time shift Sa to 11,5 ms.

The synthesis time shift Ss is dependent on the

current value of the scaling factor α(t). The scaling

factor is defined as:

()

t =

(8)

Synchronization between two synthesized

overlapped frames is obtained by calculating the

highest similarity point which is determined by the

maximum of the cross-correlation function

calculated for the overlapped parts of successive

frames.

To reduce the duration of the stretched speech

and to improve the quality of the modified signal,

the scaling factor is changed for different speech

content. For both speech rates (low and high) vowels

are stretched up with the designed scale factor value

(α(t)=α

, being the value that is specified for the

processing), and noise is not modified (α(t)=1) or

removed from the signal dependently on the

input/output synchronization state. For the low rate

speech consonants are stretched up with the factor

lower than α

and equal to α(t)=0,8·α

, and for the

high rate speech consonants are not stretched

(α(t)=1). As it was shown in the third Sec. of this

paper, the quality of speech preserved with the

proposed method is better than the quality achieved

with typical uniform SOLA algorithm.

3 EXPERIMENTS

The evaluation of the proposed algorithms was

presented in this section. All algorithms were

implemented in Matlab in such a way that the real-

time signal processing was simulated. Sampling

frequency of processed signals was set to 22,05 kHz.

3.1 Rate of Speech Estimation

The proposed method of real-time ROS estimation

was tested using 80 recordings of 8 persons (1

woman, 7 men). Each person spoke five different

phrases with 2 different speech rates: low, and high.

Tab. 2 presents the accuracy of the speech rate

detection. It can be seen that for the slow speech rate

nearly 73 % frames were recognized correctly and

for the high rate speech: 66 %. The main errors are

connected to the fact that the rate of speech in the

recording was not ideally constant.

In Fig. 3 waveforms corresponding to the

recorded male high rate speech with the detected

vowels and estimated speech rate are presented. It

can be observed that the main error occurs at the

beginning of the ROS extraction. It is connected to

the fact that the ROS algorithm assumes that the

most probable is low speech rate as a typical speech

rate of every person (it is assumed in the ROS

initialization phase). The second type of error can be

seen after the prolongation of the vowel. It is

connected to the fact that the current value of ROS is

highly related to the historical data, so ROS

estimation needs several new frames to enable

following high variations of the instantaneous ROS.

Table 2: Percentage number of frames marked as low/high

rate speech, calculated for female and male speech

expressed with low and high rate.

Speech rate

low rate speech

recording

high rate speech

recording

Low

72,67

34,15

high 27,32

65,84

3.2 Time-scaled Speech Assessment

Quality of NU-RTSM algorithm was assessed in

subjective tests performed for 19 healthy persons (2

women, 17 men). Each person had to assess the

quality of the speech stretched using the typical

SOLA algorithm implementation and the proposed

NU-RTSM algorithm. Two values of the stretching

factors were chosen: 1,9 and 2,1. Four recordings

were used during the experiment: two spoken with

the low rate, and two with the high rate. Both of

them were spoken by a woman and a man. In all

recordings the same phrase was uttered.

Three parameters were rated during tests: signal

quality, speech naturalness and speech intelligibility.

The assessment was made using the following scale:

1- very poor, 2- poor, 3-medium, 4-good, 5-very

good. In Figs. 4-6 histograms of the speech

stretching assessment are presented. It can be seen

that for both speech rates, as well as for all

parameter values, histograms that represent NU-

RTSM assessment have higher placed gravity

centres than for the SOLA algorithm. For the high

rate speech this difference becomes more significant.

A NON-UNIFORM REAL-TIME SPEECH TIME-SCALE STRETCHING METHOD

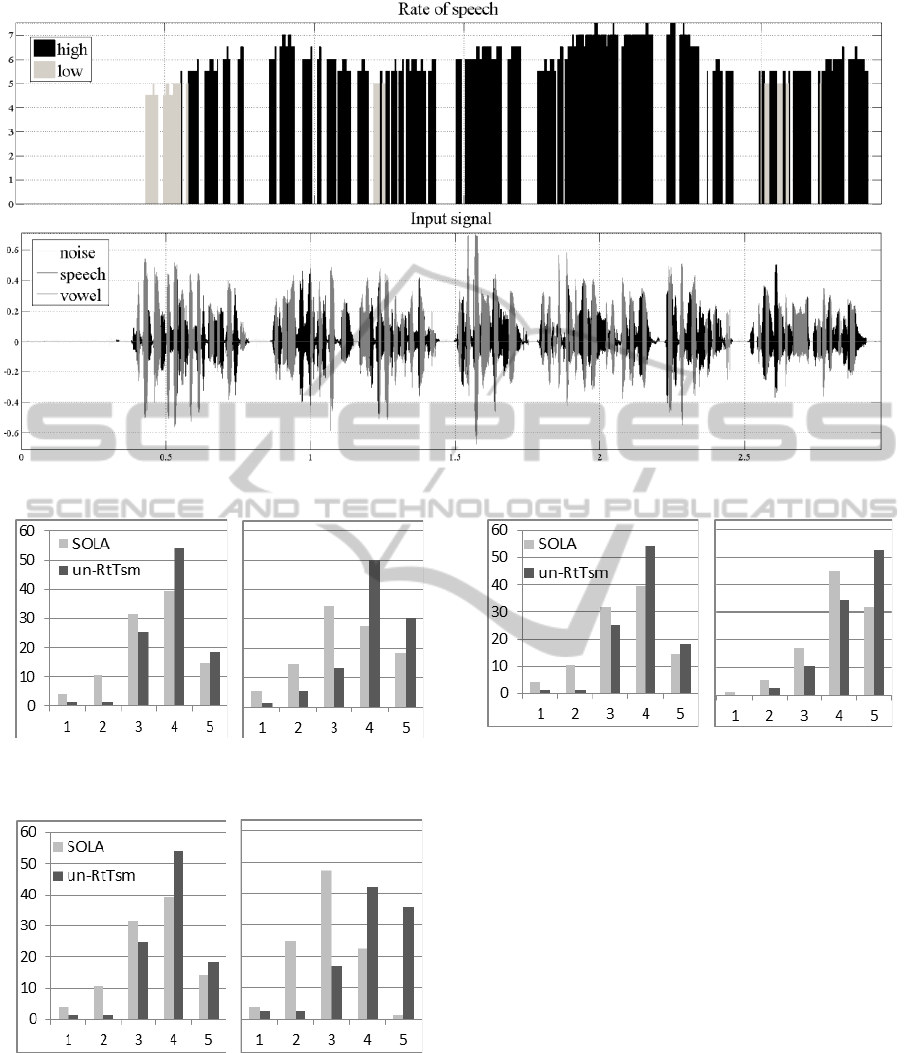

Figure 3: Speech rate recognition for high rate male speech.

a) b)

Figure 4: Signal quality assessment for different speech

rates: a) low, b) high.

a) b)

Figure 5: Speech naturalness assessment for different

speech rates: a) low, b) high.

a) b)

Figure 6: Speech intelligibility assessment for different

speech rates: a) low, b) high.

4 CONCLUSIONS

The proposed Non-Uniform Speech Real-Time

Speech Modification algorithm ensures high quality

of the stretched speech. Subjective tests have shown

that naturalness and intelligibility of the processed

speech is higher than in case of a typical uniform

signal stretching. In the future implementation of the

algorithm real-time mode should be enabled on a

mobile device. Moreover, speech perception tests for

the people with hearing time-resolution problems

should be made in order to verify modification

usability.

ACKNOWLEDGEMENTS

Research funded within the project No.POIG.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

01.03.01-22-017/08, entitled "Elaboration of a series

of multimodal interfaces and their implementation to

educational, medical, security and industrial

applications". The project is subsidized from the

European Regional Development Fund by the Polish

State budget".

REFERENCES

Demol, M., Verhelst W., Struye K., Verhoeve P., 2005.

Efficient Non-Uniform Time-Scaling of Speech with

WSOLA. Speech and Computers (SPECOM).

Grofit, S., Lavner, Y., Jan. 2008. Time-Scale Modification

of Audio Signals Using Enhanced WSOLA With

Management of Transients.IEEE Trans. On audio,

speech, and language processing, vol. 16, no. 1.

Kupryjanow, A., Czyzewski, A., London, 2010. Real-time

speech-rate modification experiments. Audio

Engineering Society Convention Paper, preprint No.

8052.

Kupryjanow, A., Czyzewski, A., Poznań 2009. Time-scale

modification of speech signals for supporting hearing

impaired schoolchildren. Proc. of the International

Conference NTAV/SPA, New Trends in Audio and

Video, Signal Processing: Algorithms, Architectures,

Arrangements and Applications, pp. 159-162.

Le Beux, S., Doval, B., d’Alessandro, C., 2010. Issues and

solutions related to real-time TD-PSOLA

implementation. Audio Engineering Society

Convention Paper, Preprint No. 8085.

Mirghafori, N., Fosler, E., Morgan, N. 1996. Towards

Robustness to Fast Speech in ASR. Proc. ICASSP’96,

pp. I335-338.

Moattar, M., Homayounpour, M., Kalantari, N., 2010. A

new approach for robust realtime voice activity

detection using spectral pattern. ICASSP.

Morgan, N., Fosler-Lussier ,E., Seattle, 1998. Combining

multiple estimators of speaking rate.Seattle. ICASSP.

Moulines, E., Laroche, J., 1995. Non-parametric

techniques for pitch-scale and time-scale modification

of speech. Speech Communication 16(2): 175-205.

Narayanan, S., Wang D., 2005. Speech rate estimation via

temporal correlation andselected sub-band correlation.

ICASSP.

Pesce, F., Italy, 2000. Realtime-stretching of speech

signals. DAFX.

Pfau, T., Ruske, G., 1998. Estimating the speaking rate by

vowel detection. IEEE.

Tallal ,P. et.al, 5 January, 1996. Language Comprehension

in Language-Learning Impaired Children Improved

with acoustically modified speech.Science, Vol. 271.

Verhelst, W., Roelands, M., 1993. An overlap-add

technique based on waveform similarity (WSOLA) for

high quality time-scale modification of speech.

Zheng, J., Franco, H., Stolcke, A., 2000. Rate of Speech

Modeling for Large Vocabulary Conversational

Speech Recognition.

Zheng, J., Franco, H., Weng, F., Sankar, A., Bratt, H.,

2000.Word-level rate-of-speech modeling using rate-

specificphones and pronunciations. In: Proc. IEEE Int.

Conf.Acoust. Speech Signal Process, Istanbul, Vol. 3,

pp. 1775–1778.

A NON-UNIFORM REAL-TIME SPEECH TIME-SCALE STRETCHING METHOD
