FORECAST ERROR REDUCTION BY PREPROCESSED

HIGH-PERFORMANCE STRUCTURAL BREAK DETECTION

Dirk Pauli, Jens Feller, Bernhard Mauersberg

FCE Frankfurt Consulting Engineers GmbH, Frankfurter Str.5, 65239 Hochheim/Main, Germany

Ingo J. Timm

Department IV, Institute of Business Information Systems, Business Informatics I, University of Trier, 54286 Trier, Germany

Keywords:

Change-point detection, Hypothesis testing, Chernoff bounds, Binomial distribution, Additive changes, Non-

additive changes, Multiple structural break detection.

Abstract:

In this paper a new method for detecting multiple structural breaks, i.e. undesired changes of signal behavior,

is presented and applied to real-world data. It will be shown how Chernoff Bounds can be used for high-

performance hypothesis testing after preprocessing arbitrary time series to binary random variables using

k-means-clustering. Theoretical results from part one of this paper have been applied to real-world time series

from a pharmaceutical wholesaler and show striking improvement in terms of forecast error reduction, thereby

greatly improving forecast quality. In order to test the effect of structural break detection on forecast quality,

state of the art forecast algorithms have been applied to time series with and without previous application of

structural break detection methods.

1 INTRODUCTION

Structural break detection concentrates on discover-

ing time points at which properties of time series

change signiﬁcantly. This term is used e.g. in (Per-

ron, 2006) but other terms like change-point, event,

novelty, anomaly or abnormality detection, e.g. in

(Kawaharaand Sugiyama, 2009), (Markou and Singh,

2003), (Guralnik and Srivastava, 1999), (Ma and

Perkins, 2003), and (Ibaida et al., 2010) refer to this

problem in a similar manner. The problem itself

varies with its application. For example, consider a

time series with a stable trend. Despite changes in

statistical moments of the distribution, this results in

no loss of forecast quality if the data represents the

historical demand of an article and the task is to fore-

cast future demands. In contrast, if the same time se-

ries is a vibration signal of a gas turbine, a stable trend

leads to an undesired state of the machine and must be

detected as soon as possible, compare (Feller et al.,

2010). Further real-world applications include e.g.

fraud detection in (Murad and Pinkas, 1999), anomaly

detection for spacecraft in (Fujimaki et al., 2005) or

(Schwabacher et al., 2007), detecting abnormal driv-

ing conditions in (Gustafsson, 1998), and anomaly

detection in multi-node computer systems in (Ide and

Kashima, 2004) to name but a few. More applica-

tion domains and examples are provided in (Chandola

et al., 2009). All these applications emphasize the im-

portance and need of algorithms for change-point de-

tection for a broad community.

Another real-world application is the forecast of

future demands, which is a crucial element of calcu-

lating an optimal stock policy. In many cases, large

amounts of data are available, but information can-

not be retrieved completely, due to limited resources

in terms of e.g. computing time or inefﬁcient algo-

rithms. In order to gain the full information available

an automated, reliable, and efﬁcient work ﬂow has to

be established.

In this paper, a novel approach to structural break

detection is introduced in order to reduce forecast er-

rors and thereby increase accuracy and reliability of

forecasts. The algorithm is validated on a real-world

data set consisting of 8002 independent time series

of historical demands of articles of a pharmaceutical

wholesaler. The performance of the new algorithm is

measured in terms of forecast error reduction, statisti-

cal power, signiﬁcance and runtime on this particular

data set.

262

Pauli D., Feller J., Mauersberg B. and J. Timm I..

FORECAST ERROR REDUCTION BY PREPROCESSED HIGH-PERFORMANCE STRUCTURAL BREAK DETECTION.

DOI: 10.5220/0003457202620271

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 262-271

ISBN: 978-989-8425-74-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Related work, compare (Basseville and Nikiforov,

1993), shows that a common approach in the area of

change-point detection is to divide the task at least

into two parts: the ﬁrst step generates residuals of the

original measurements that reﬂect the changes of in-

terest, e.g. the residuals are close to zero before and

nonzero after the change. The second step contains

the design of a decision rule based upon these resid-

uals. The algorithm presented in this paper proceeds

in a similar way. The ﬁrst task is to transform an ar-

bitrary time series x

,...,x

∈ R to a sequence of bi-

nary numbers, which is interpreted as the outcome of

a binary stochastic process {Y

}

i∈N

with Ω := {0, 1}.

Afterwards Chernoff Inequalities are used for hypoth-

esis testing, i.e. to estimate the probability of subse-

quences and detect structural breaks.

In the context of this paper, the new algorithm is

adjusted to detect additive changes. However, the

novel approach can be adapted to detect nonaddi-

tive changes as well, which is discussed in section

2.4. In e.g. (Basseville and Nikiforov, 1993) addi-

tive changes are deﬁned as shifts in the mean value

of a signal, while nonadditive changes are deﬁned as

changes in variance, correlations, spectral characteris-

tics, or dynamics of the signal or system. Both deﬁni-

tions will be used throughout this paper. Furthermore,

this paper concentrates on ofﬂine detection, since it is

sufﬁcient for the current application. An online vari-

ant of this algorithm will be discussed in section 4.

The paper is structured as follows: section 2.1

presents how Chernoff’s Inequalities can be used for

high-performance hypothesis testing to detect struc-

tural breaks. Section 2.2 provides the design of a

transformation routine that fulﬁls the goal of the case

study and reﬂects additive changes. In section 2.3

the basic algorithm is extended to multiple structural

break detection. In order to show the ﬂexibility of the

novel approach, the detection of nonadditive changes

is discussed in section 2.4. Section 3 contains the ap-

plication of the new algorithm to a real-world prob-

lem. Since forecast error reduction will be used as

a key performance indicator of the new algorithm, a

set of forecast methods is shortly introduced in sec-

tion 3.1. Test scenarios and error estimates are de-

ﬁned in section 3.2. The results of the case study and

performance indicators of the algorithm are presented

in section 3.3. In section 4 results of this paper are

discussed and potential future enhancements are sug-

gested.

2 A NOVEL APPROACH TO

HIGH-PERFORMANCE

STRUCTURAL BREAK

DETECTION

The algorithm used in this paper can be separated into

two parts. The ﬁrst step is to generate random vari-

ables y

∈ {0,1} for all i ∈ [1,s] from the correspond-

ing x

in order to satisfy the requirements of the vari-

ant of Chernoff’s bounding method used here. The

second step is to prepare and to perform a hypothesis

test. The authors of this paper decided to start with

step two for reasons of clarity, therefore it will be as-

sumed until section 2.2 that a routine P : R → {0,1}

does exist to transform x

adequately.

2.1 Chernoff’s Bounding Method for

Hypothesis Testing

In this section the application of Chernoff’s bounding

method to detect structural breaks in time series y

presented. First Chernoff’s Inequality is described.

Theorem (Chernoff’s Inequality). Given s in-

dependent Bernoulli-experiments y

,...,y

with

probability Pr[y

= 1] = p and Pr[y

= 0] = 1 − p,

then for each α > 0

∑

i=1

≥ (1+ α) · p · s

≤ e

−

·p·s

(1)

and for each α ∈ [0,1]

∑

i=1

≤ (1− α) · p· s

≤ e

−

·p·s

(2)

holds, compare (Chernoff, 1952).

In other words, large linear deviations from the

expectation are highly improbable. Starting at this,

point a hypothesis test can be deﬁned as follows: it

is assumed that all y

are independent and identically

distributed, therefore the sum of events y

will only

exceed each bound with probability less than γ, where

γ = e

−

·p·s

(3)

and c ∈ {2,3}. If bounds are exceeded, the assump-

tion is considered to be wrong and the hypothesis is

rejected. The probability γ is antiproportional to the

risk of making a wrong decision.

The central idea of this paper is to perform hy-

pothesis tests for each continuous subsequence of

length τ and verify whether the occurrence of events

= 1 notably differ from their expectation. If they

FORECAST ERROR REDUCTION BY PREPROCESSED HIGH-PERFORMANCE STRUCTURAL BREAK

DETECTION

263

do, the distribution of y

has changed or differs be-

tween certain subsequences and a structural break is

considered. As the distribution of 1’s and 0’s is as-

sumed to be binomial, p can be estimated as follows:



j| j ∈ {1, . . . , s} , y

= 0



(4)



j| j ∈ {1, . . . , s} , y

= 1



(5)

Then r

and r

lead to p := r

The upper and lower bounds are dependent on α

and α

, which can be estimated for a given γ ∈ (0,1)

as follows:

γ = e

−

·p·τ

⇔ α

−

3· ln(γ)

τ· p

(6)

γ = e

−

·p·τ

⇔ α

−

2· ln(γ)

τ· p

(7)

The next step is to test ∀i ∈ [1,...,s− τ + 1], whether

the distribution of y

,...,y

i+τ−1

is likely using Cher-

noff bounds for an estimated p. In other words, it

is checked if the sum over y

,...,y

i+τ−1

deviates from

its expectation by more than a factor of 1+α or 1−α,

respectively. Such a deviation of the sum from its ex-

pectation can only happen with a probability less than

or equal to γ. As gamma is small, deviation leads to

the hypothesis being rejected, and a structural break

is assumed. If the 1’s are uniformly distributed ac-

cording to p, the hypothesis will hold with probability

1− γ.

Hypothesis H

∀i ∈ [1, . . . , s− τ+ 1] is tested and

set as follows:











reject if (S ≥ (1+ α

) · p· τ)

∨(S ≤ (1 − α

) · p· τ)

accept else

(8)

with S :=

∑

i+τ−1

j=i

If at least for one sequence y

,...,y

i+τ−1

the hy-

pothesis H

is rejected, then a clustering of 1’s or 0’s

can be assumed and a structural break is likely. If a

structural break occurs, it is valuable to know the ex-

act time index of the break, e.g. to cut off the time

series to improve forecasting methods.

Case I: Actual Samples belong to the Group of

0’s. Select rejected hypothesis k with smallest in-

dex, which means that sequence y

,...,y

k+τ−1

is as-

sumed to be unlikely. Returning b = k as the result of

the analysis might cause a loss of reliable samples in

the time series. Therefore return

b = min



j| j ∈ {k,...,k + τ − 1},y

= 1



(9)

as the ﬁrst index of the invalid subsequence.

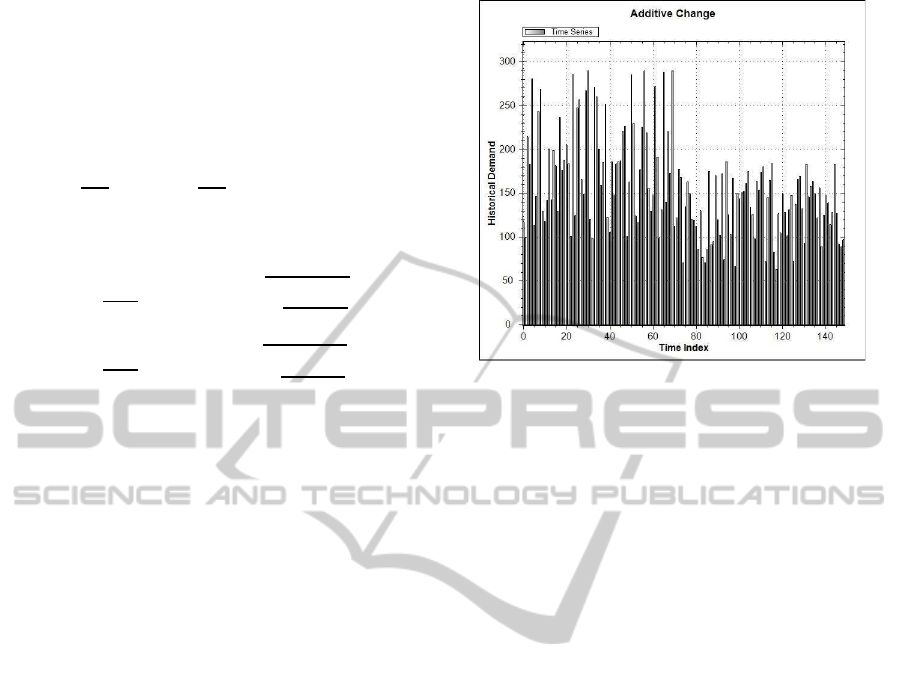

Figure 1: Example of an additive change. At break time

index 69 the arithmetic mean shifts from 181 items to 119

items.

Case II: Actual Samples belong to the Group of

1’s. Select holding hypothesis k with smallest in-

dex. In contrast to case I, the sequence y

,...,y

k+τ−1

is assumed to be likely and to keep as many samples

as possible, return

b = min



j| j ∈ {k,...,k + τ − 1},y

= 0



(10)

as the ﬁrst index of the invalid subsequence.

2.2 Transformation Routine

Finding an adequate transformation routine of course

requires a clear deﬁnition of what shall be detected

as a discontinuous behavior, and consequently its de-

sign is absolutely dependent on this deﬁnition. There-

fore this paper cannot provide a general answer to this

problem. Instead, a strategy for the practical problem

considered in the context of this paper is discussed in

this section.

Consider a company with a large amount of prod-

ucts, whose demand needs to be forecasted day by

day, e.g. a supermarket or any wholesaler. Obviously,

forecasting cannot be done manually in such cases,

and reliable strategies have to be chosen to solve the

problem. The success of forecasting strategies de-

pends on the quality of considered time series and on

the robustness of applied methods. Having a large

amount of articles and the necessity of daily forecasts

multiplies to a number of events, which is likely to

bring up even rare cases. However, even the most ro-

bust strategies cannot cover each and every situation.

Hence a different approach to improving the forecast

quality is to improve the quality of the input data us-

ing preprocessing methods, and especially in this con-

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

264

text a method to detect and remove structural breaks.

Following a structural break means a rapid and strong

shift of the mean demand of a certain article. In other

words, one can ﬁnd two different distributions which

can be separated at a certain point in time. Figure 1

shows an example for such a strong and rapid shift

of the mean. One can see that in week 69 the behav-

ior of the time series changes dramatically. The mean

demand changes from 181 items based on the deliver-

ies until week 69 to 119 items based on the deliveries

starting from week 70. Since safety stock levels are

often affected by variance or standard deviation, an

estimation of stock level based on the complete time

series can lead to overstocking in cases as described

above.

Taking the previous considerations into account,

the task can be summarized as follows: If a set of data

is likely to correspond to two differentdistributions, is

there a point in time which can be used to differentiate

between both distributions, or do the random numbers

come alternating from both distributions? Having ob-

tained the results from section 2.1 it is necessary to

ﬁnd an adequate transformation routine.

A well-known clustering algorithm is the k-

means-clustering as described e.g. in (Press et al.,

2007). Clustering is known to be NP-hard in stan-

dard scenarios, hence polynomial clustering heuris-

tics like k-means-clustering do not guarantee optimal

solutions. Since in this case clustering is performed

for only one dimension the algorithm convergesto the

optimum as described in (Hartigan and Wong, 1979).

The goal of the algorithm is to ﬁnd k clusters in n-

dimensional space, where a cluster is described by its

n-dimensional mean vector. Whereas some modiﬁca-

tions of the algorithm allow an adaptive ﬁt of k to the

data samples, the problem described above requires

to set k = 2, as the task is to ﬁnd two separate distri-

butions of samples. Unfortunately, using exactly two

clusters brings up a weakness of this method concern-

ing outliers. In order to prevent identifying outliers as

a cluster, it is recommended to remove outliers prior

to the analysis, e.g. by using the 3σ rule, i.e. elimi-

nating samples which deviate from the mean value by

more than three times the standard deviation, compare

(Wadsworth, 1997).

Having found two clusters, C

and C

, the trans-

formation routine P

: R → {0,1} can be deﬁned as

follows and the time series x

∈ R can be transformed

to y

∈ {0,1}



0 x ∈ C

1 x ∈ C

(11)

Just as the design of the transformation routine de-

pends on the task considered, certain parameters have

to be set depending on it. Since the task in this case

is to detect a clustering of samples from different dis-

tributions, it is recommended to set the length of the

analyzed subsequence τ in section 2.1 equals

τ = min{|C

|,|C

|} (12)

by default. In order to reduce the number of false

alarms it is helpful to deﬁne an offset. This has the

effect that a time series can only be reduced to a cer-

tain minimum number of samples. Another strategy

to prevent false alarms is to demand a minimum size

of each cluster. Both points are justiﬁed by the goal to

analyze whether the distribution of samples has reli-

ably changed and choice of settings should depend on

risks associated with increasing either type I or type

II error.

2.3 Dealing with Multiple Structural

Breaks

In order to deal with multiple structural breaks, an it-

erative procedure of the algorithm presented within

this paper is applied. Given a time series x

,...,x

and the algorithm detects a structural break at time

index b, the algorithm is applied again on time series

,...,x

until convergence, i.e. no further change-

point is detected on the subsequence. If one is inter-

ested in identifying all change-points, the procedure

can be applied to all remaining subsequence until con-

vergence.

2.4 A Brief Note on Dealing with

Nonadditive Changes

Nonadditive changes are deﬁned in e.g. (Basseville

and Nikiforov, 1993) as changes in variance, corre-

lations, spectral characteristics, and dynamics of the

signal or system. Hence, these types of changes are

considered to be more complex to detect than addi-

tive changes, i.e. shifts in the mean value. Although

additive changes play the central role in the follow-

ing application on real data, the algorithm can easily

be adapted to detect nonadditive changes. In order

to demonstrate the ﬂexibility of the novel approach, a

rough recipe for this adaptation is provided.

The task of detecting either additive or nonaddi-

tive changes can be summarized as generating resid-

uals of the original measurements that reﬂect the

changes of interest, which are in this particular case

of nonadditive nature. As stated above, instead of

residuals the algorithm introduced within this paper

demands a sequence of binary numbers, which is in-

terpreted as the outcome of a binary stochastic pro-

cess {Y

}

i∈N

with Ω := {0,1}. Afterwards, the se-

FORECAST ERROR REDUCTION BY PREPROCESSED HIGH-PERFORMANCE STRUCTURAL BREAK

DETECTION

265

quence can be analyzed using Chernoff’s Bounding

Method as described in section 2.1.

Alternatively to the transformation routine P

, in-

troduced in section 2.2, one can deﬁne new routines

to face nonadditive changes. Speciﬁcally when an-

alyzing changes in variance or higher statistical mo-

ments, one challenge is to avoid problems with shift-

ing means in time series. Therefore, preprocessing in

terms of e.g. high pass or wavelet ﬁltering is recom-

mendable, of which (Strang, 1989) provides a good

survey on the latter. The outcome of the preprocess-

ing shall be denoted as x

′

,...,x

′

∈ R and is assumed

to be free of shifts in mean.

In a second step, the following transformation re-

sults in a reduction of the variance change detec-

tion problem to the additive change detection problem

solved by the procedure deﬁned in section 2.2.

˙x



′

k i = 1



′

− x

′

i−1



i ≥ 2

(13)

Assuming that elements of time series x

,...,x

are stochastically independent and that elements x

and x

i+1

follow the same distribution, it is known

that the variance of distributions of derivatives of two

i.i.d. variables summarizes to 2 · σ

, compare (Feller,

2009). However, this ensures that information on

shifts in variance is not destroyed by the derivation in

equation 13. Furthermore, using the absolute value

in equation 13 and the symmetric character of the

derivatives distribution reduces the problem to the ad-

ditive change detection problem.

3 APPLICATION ON REAL DATA

This section provides a real-world application of the

algorithm presented in this paper. The evaluation of

the algorithm is based on 8002 real-world time se-

ries of a pharmaceutical wholesaler. These time se-

ries represent historical demands and, in their very na-

ture, can imply seasonality, trends, slow or fast mov-

ing articles, or nonadditive changes as well as addi-

tive changes. The elements of each time series will be

considered as independent and of unknown distribu-

tion, since no a priori information is available. Goal

of this section is to show that the detection and re-

moval of additive changes using the novel approach

will reduce the forecast error signiﬁcantly.

In section 3.1 forecast methods used for this eval-

uation are shortly introduced. In order to compare the

novelapproach to competitivestrategies test scenarios

are deﬁned in section 3.2. Furthermore, the relative

forecast error is deﬁned as a measure to compare two

given strategies. In section 3.3 results of evaluation

are presented and discussed.

3.1 Forecast Methods

In order to estimate the value of preprocessing the fol-

lowing forecast methods have been implemented and

applied on original and shortened time series.

• The arithmetic mean estimator is used as a rep-

resentative of naive forecasting procedures. Ad-

ditionally, this estimator should perform well on

stationary time series.

• Single exponential smoothing is considered to be

robust on seasonality, seasonal correlation, chang-

ing trends and suitable for forecasting in the

presence of outliers as quoted in (Taylor, 2010)

and (Gelper et al., 2010). Therefore, it should

perform well even in the presence of structural

changes. Considered for original work are Brown

and Holt in the 1950s, compare e.g. (Holt, 1957)

and (Brown, 1959), and a review on exponential

smoothing in general is provided in (Gardner Jr,

1985).

• Linear regression analysis is recommendable for

predictions on basis of time series containing

trends. State of the art applications are provided

in (Ng et al., 2008), (Xia and Zhao, 2009), and

(Pinson et al., 2008) to name but a few.

In combination, these algorithms address important

issues of time series prediction. The selection proce-

dure to decide which forecast method should be used

for a particular time series can be described as best

historical performance principle. This principle pre-

tends that historical performance is an indicator for

future performance. Formally speaking, the goal is

to determine a method to predict ˆx

s+1

. Each forecast

method available can now be used to forecast w sam-

ples ˆx

s−w+1

,..., ˆx

of time series x

,...,x

. The best

method is determined e.g. with respect to the average

mean squared error

AMSE =

∑

t=s−w+1

( ˆx

− x

)

(14)

and used to estimate ˆx

s+1

3.2 Design of Test Scenarios and

Relative Error Estimates

The goal is to analyze whether preprocessing in terms

of structural break detection is an improvement to

forecasting or not. Hence, test scenarios will be

deﬁned which are composed of two preprocessing

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

266

Table 1: Overview on scenarios. Each scenario contains

a reviewed preprocessing strategy, a reference preprocess-

ing strategy and a set of forecast functions applied on either

preprocessed time series.

Scenario Reviewed Reference Forecast

ID Strategy Strategy Functions

1 CB None AME

2 CB NA AME

3 CB BinDist AME

4 CB None Combo

5 CB NA Combo

6 CB BinDist Combo

7 BinDist None AME

8 BinDist NA AME

9 BinDist CB AME

10 BinDist None Combo

11 BinDist NA Combo

12 BinDist CB Combo

modes and a set of forecast functions. The prepro-

cessing mode can be any one of the following:

• None (None). No preprocessing in the sense of

structural break detection is applied at all. This

mode will be used to illustrate the value of struc-

tural break detection.

• Chernoff Bounds (CB). The algorithm presented

in this paper is applied for structural break de-

tection. If a break is detected, the time series is

abridged accordingly.

• Binomial distribution (BinDist). The algorithm

presented in this paper is applied for structural

break detection but instead of Chernoff’s approx-

imations the exact bounds of the Binomial distri-

bution are used. This is done for comparison of

both thresholds. Previous work (Pauli et al., 2011)

has shown that for short time series containing no

more than 150 samples, the run time of the algo-

rithm using exact thresholds rather than Chernoff

Bounds can be approximated by a factor of three.

• Naive approach (NA). In order to compare accu-

rate detection methods to a naive approach, one

strategy will be to cut off the time series at point

b = ⌈s/2⌉.

Furthermore, two sets of forecasting functions are de-

ﬁned:

• The ﬁrst set (AME) only contains the arithmetic

mean estimator. This is reasonable since it rep-

resents naive forecasting methods and should per-

form well especially on stationary time series.

• The second set (Combo) contains the arithmetic

mean estimator, single exponential smoothing and

linear regression for reasons given in section 3.1.

Scenarios are composed of preprocessing strategies

and a set of forecast functions. Table 1 provides a

list of all scenarios to be evaluated in section 3.3. The

relative forecast error is estimated for each time series

separately in the following way. In order to reduce

type II errors or false alarms, the best historical per-

formance principle, as introduced in section 3.1 for

forecasting, is applied for the selection of the prepro-

cessing strategy as well. If the reviewed strategy per-

formed better in the past on x

,...,x

s−1

than the ref-

erence strategy in terms of AMSE, then the reviewed

strategy is used for the actual forecast of sample x

as well. If the reviewed strategy performed better

in the past, then the relative error is measured. The

AMSE received by the reference strategy is denoted

as AMSE

Ref

and the AMSE received by the reviewed

strategy as AMSE

Rev

and the estimates ˆx

Ref

and ˆx

Rev

at time index s, respectively. The residua are denoted

as δ

Ref

and δ

Rev

, respectively.

Then the relative error R

of time series η is de-

ﬁned as













Ref



−

Rev



Ref



Rev



Ref



Ref



−

Rev



Rev



Ref



0 else

(15)

Consider that the AMSE is estimated on x

,...,x

s−1

and the improvement might be negative, if ˆx

Rev

proves

to be a worse estimator than ˆx

Ref

, even if AMSE

Rev

AMSE

Ref

. Hence, missed and false alarms will be

measured as described in table 2. Whereas missed

structural breaks fail to reduce forecast errors, false

structural breaks increase forecast errors. Obviously

it is worthwhile avoiding both of them. Formula 15

returns the percentage error decrease in case ˆx

Rev

a better estimator than ˆx

Ref

and the percentage error

increases in case of false alarms.

Finally, the relative error improvement E

of time

series η is deﬁned as







AMSE

Rev

< AMSE

Ref

0 else

(16)

3.3 Evaluation

The evaluation of the algorithm is based on 8002 real-

world time series of a pharmaceuticalwholesaler. The

elements of each time series have been considered to

be independent and of unknown distribution. In this

section, results of test scenarios as deﬁned in section

FORECAST ERROR REDUCTION BY PREPROCESSED HIGH-PERFORMANCE STRUCTURAL BREAK

DETECTION

267

Table 2: Classiﬁcation of historical and present strategies. In order to reduce false alarms the best historical performance

principle is applied, but on account of missed alarms. Measuring false and missed alarms indicates success of the method.

Classiﬁcation Historical Performance Present Performance

Sensitivity AMSE

Rev

> AMSE

Ref

Rev

> δ

Ref

Speciﬁcity AMSE

Rev

< AMSE

Ref

Rev

< δ

Ref

False alarm AMSE

Rev

< AMSE

Ref

Rev

> δ

Ref

Missed alarm AMSE

Rev

> AMSE

Ref

Rev

< δ

Ref

3.2 are discussed. In order to increase the clarity of

graphical presentation, the scenarios have been subdi-

vided into four groups of three each. The performance

measures in terms of signiﬁcance, power, forecast er-

ror improvement and runtime are summarized in table

3 for all scenarios.

When performing the tests, it became obvious that

results have been volatile to a certain extend for the

following reason. Assume AMSE

Rev

< AMSE

Ref

and

ˆx

Rev

is taken as the next forecast, φ is the true distri-

bution of x

∈ X and



E [X] − ˆx

Rev



E [X] − ˆx

Ref



(17)

then the probability P that ˆx

Ref

is a better estimator

for x

than ˆx

Rev

is given by

P :=







∞

φ(x) dx ˆx

Rev

< ˆx

Ref

φ(x) dx ˆx

Rev

> ˆx

Ref

(18)

where a =



ˆx

Rev

+ ˆx

Ref



In order to reduce the volatility of the results, the

test sequence to determine the performance indicators

has been increased from one to ten, or in other words,

instead of estimating ˆx

Rev

and ˆx

Ref

, the sequences

ˆx

Rev

s−9

,..., ˆx

Rev

and ˆx

Ref

s−9

,..., ˆx

Ref

have been estimated.

Figure 2 shows the cdf for the ﬁrst three scenarios. In

each of the three scenarios, structural break detection

using Chernoff Bounds was the reviewed method and

the arithmetic mean estimator was the only forecast

method used. As can be seen in the ﬁgure, the Cher-

noff Bounds competed well against all three competi-

tors. The cdf takes a forecast error into account if

an additive change has been detected and therefore

AMSE

Ref

6= AMSE

Ref

. The relative error has been

measured as depicted in equations 16 and 15. The

curve shows that for scenario one about 40% of the

forecasts could be improved if a structural break had

been detected. In 18% of the forecasts, the error could

be reduced by more than 50%. The forecast error was

increased by 50% in less than 2% of the forecasts,

due to false alarms. The ﬁrst scenarios show that es-

pecially when dealing with naive forecast methods,

structural break detection results in great improve-

ments in terms of relative forecast errors.

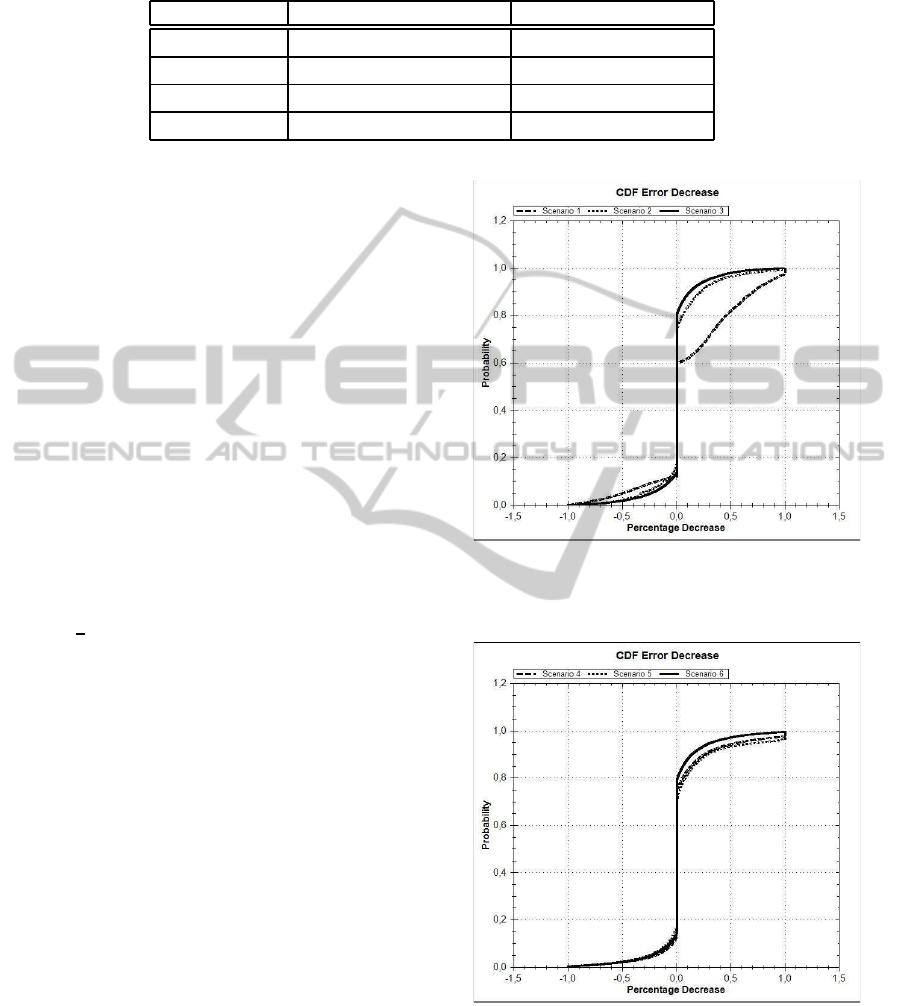

Figure 2: CDF’s of the relative forecast error reduction of

scenario one, two and three.

Figure 3: CDF’s of the relative forecast error reduction of

scenario four, ﬁve and six.

Figure 3 displays similar scenarios to those shown

in ﬁgure 2, with more sophisticated forecast methods

having been used in the former. Comparing scenario

one and four, the effect of improving forecast meth-

ods can be seen if no preprocessing has been applied

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

268

Table 3: Sensitivity, missed alarm, speciﬁcity, and false alarm classify success in terms of forecast error reduction only if

a structural break has been detected. Ratios of improved or worsened forecasts reﬂect success in terms of forecast error

reduction proportional to the overall number of forecasts done. The runtime is standardized by the fastest scenario, which

took approximately four seconds.

Scenario Sensitivity Missed Speciﬁcity False Ratio of Ratio of Relative

ID Alarm Alarm Improved FCs Worsen FCs Runtime

1 0.67 0.33 0.81 0.19 0.26 0.06 1

2 0.71 0.29 0.62 0.38 0.28 0.17 1

3 0.78 0.22 0.71 0.29 0.21 0.09 3

4 0.71 0.29 0.73 0.27 0.20 0.07 190

5 0.62 0.38 0.62 0.38 0.29 0.18 96

6 0.77 0.23 0.72 0.28 0.25 0.10 103

7 0.61 0.39 0.79 0.21 0.33 0.09 2

8 0.67 0.33 0.65 0.35 0.30 0.16 2

9 0.71 0.29 0.78 0.22 0.26 0.07 3

10 0.64 0.36 0.71 0.29 0.24 0.10 127

11 0.60 0.40 0.64 0.36 0.28 0.16 82

12 0.72 0.28 0.77 0.23 0.24 0.07 103

before. Scenarios one to six have been repeated, us-

ing the exact bounds of the binomial distribution in-

stead of Chernoff’s approximations. The results of

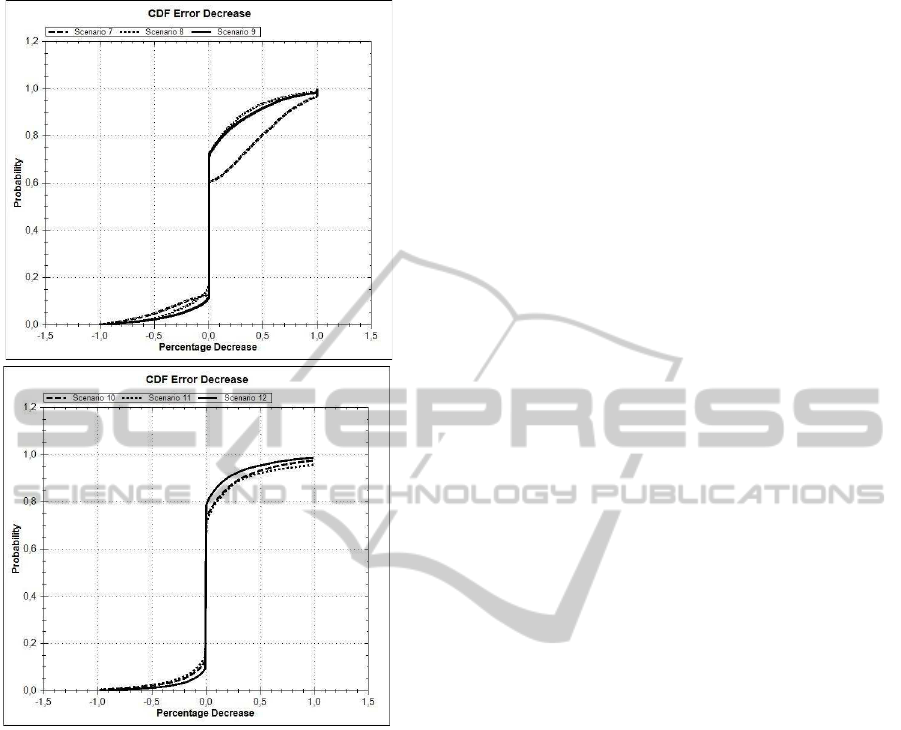

scenario seven to twelve, compare ﬁgure 4, are simi-

lar to those of scenario one to six, but using the exact

bounds increases the relative forecast error reduction

as expected.

Table 3 extends the results given in ﬁgures 2 to

4. As deﬁned in table 2, sensitivity, speciﬁcity, false

alarms, and missed alarms have been measured. This

classiﬁcation can only take into account forecasts of

time series, for which structural breaks have been de-

tected. Since the time series represent real-life data

instead of artiﬁcial ones, break dates are unknown.

Therefore relative error reduction is used as perfor-

mance measure. The ratio of improved or worsened

forecasts takes all forecasts into account, i.e. it is

the absolute number of speciﬁcities or false alarms

divided by the total number of forecasts done, respec-

tively. For example in scenario one, 26% of all fore-

casts have been positively inﬂuenced by using struc-

tural break detection.

The results in table 3 show the positive effect

of using sophisticated preprocessing methods and di-

verse forecasting methods. Results of scenarios in

which naive preprocessing was involved appear to be

arbitrary, indicated by high ratios of both improved

and worsened forecasts.

The runtime of scenarios has been standardized.

Scenario one took about four seconds to complete.

Previous studies in (Pauli et al., 2011) show that the

runtime of exact bounds differs by a factor of three in

comparison to Chernoff’s Inequalities for short time

series and increases exponentially for longer time se-

ries. The increase of runtime when using a combi-

nation of forecasting methods is considerable. Taking

into account runtime and error reduction ratios, apply-

ing preprocessing methods appears to be very worth-

while.

4 CONCLUSIONS AND FUTURE

PROSPECTS

In section 3.3 the evaluation of the novel approach to

structural break detection and its impact on forecast-

ing have been performed and discussed. Results are

striking in terms of forecast error reduction and run-

time as can be seen in table 3.

The scenarios contained both naive and sophisti-

cated forecast and structural break detection methods.

Table 3 shows that using sophisticated forecast meth-

ods raises the runtime enormously in relation to its

error improvement, compare scenario one and four.

A possible explanation for the success of preprocess-

ing in terms of change-point detection might be that

it is more widely applicable than additional forecast

algorithms. New forecasting algorithms are often de-

signed to deal with special characteristics on certain

time series, whereas prepocessing will affect forecast-

ing performance in a wider range of time series.

The algorithm used in this paper is designed to

deal with additive changes, i.e. shifts in the mean

value. Nonadditive changes which occur in variance,

correlations, spectral characteristics, and dynamics of

the signal or system, compare (Basseville and Niki-

forov, 1993), are the topic of future work. It will be

FORECAST ERROR REDUCTION BY PREPROCESSED HIGH-PERFORMANCE STRUCTURAL BREAK

DETECTION

269

Figure 4: CDF’s of the relative forecast error reduction of

scenario seven to twelve.

shown that this detection problem can be solved by

adequate transformation routines that reﬂect changes

of interest. The special aim will be to design those

transformation routines with respect to efﬁciency and

robustness. Section 2.4 provided a brief note to this

topic in order to show the ﬂexibility of the novel ap-

proach.

From the theoretical point of view the current ap-

plication is an ofﬂine detection problem. In future

work this algorithm will be applied to online detec-

tion problems, which demands new performance in-

dicators such as mean time between false alarms or

mean delay for detections.

The goal of this paper is to demonstrate the appli-

cability of the algorithm to a real-world problem and

facing real-world data. Future prospects will be to

analyze more general performance indicators as pro-

posed for example in (Basseville and Nikiforov,1993)

such as mean time between false alarms, probability

of false detections, mean delay for detection, proba-

bility of nondetection, statistical power, and required

effect size to name but a few. The goal will be to an-

swer these questions analytically and by simulation.

REFERENCES

Basseville, M. and Nikiforov, I. (1993). Detection of Abrupt

Changes: Theory and Application. Prentice-Hall,Inc.

Brown, R. (1959). Statistical forecasting for inventory con-

trol. McGraw-Hill New York.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly detection: A survey. ACM Computing Sur-

veys (CSUR), 41(3):1–58.

Chernoff, H. (1952). A Measure of Asymptotic Efﬁciency

for Tests of a Hypothesis Based on the Sum of Ob-

servations. The Annals of Mathematical Statistics,

23:493–507.

Feller, S., Chevalier, R., and Morsili, S. (2010). Parame-

ter Disaggregation for High Dimensional Time Series

Data on the Example of a Gas Turbine. In Proceedings

of the 38th ESReDA Seminar, Pcs, H, pages 13–26.

Feller, W. (2009). An introduction to probability theory and

its applications. Wiley-India.

Fujimaki, R., Yairi, T., and Machida, K. (2005). An

Approach to Spacecraft Anomaly Detection Prob-

lem Using Kernel Feature Space. In Proceedings of

the 11th ACM SIGKDD International Conference on

Knowledge Discovery in Data Mining, pages 401–

410. ACM.

Gardner Jr, E. (1985). Exponential smoothing: The state of

the art. Journal of Forecasting, 4(1):1–28.

Gelper, S., Fried, R., and Croux, C. (2010). Robust fore-

casting with exponential and Holt-Winters smoothing.

Journal of Forecasting, 29(3):285–300.

Guralnik, V. and Srivastava, J. (1999). Event Detection

from Time Series Data. In Proceedings of the 5th

ACM SIGKDD International Conference on Knowl-

edge Discovery and Data Mining, pages 33–42. ACM.

Gustafsson, F. (1998). Estimation and Change Detection

of Tire-Road Friction Using the Wheel Slip. IEEE

Control System Magazine, 18(4):42–49.

Hartigan, J. and Wong, M. (1979). Algorithm AS 136:

A k-means Clustering Algorithm. Journal of the

Royal Statistical Society. Series C (Applied Statistics),

28(1):100–108.

Holt, C. (1957). Forecasting trends and seasonals by expo-

nentially weighted moving averages. ONR Memoran-

dum, 52:1957.

Ibaida, A., Khalil, I., and Suﬁ, F. (2010). Cardiac abnor-

malities detection from compressed ECG in wireless

telemonitoring using principal components analysis

(PCA). In Intelligent Sensors, Sensor Networks and

Information Processing (ISSNIP), 2009 5th Interna-

tional Conference on, pages 207–212. IEEE.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

270

Ide, T. and Kashima, H. (2004). Eigenspace-based

Anomaly Detection in Computer Systems. In Pro-

ceedings of the 10th ACM SIGKDD International

Conference on Knowledge Discovery and Data Min-

ing, pages 440–449. ACM.

Kawahara, Y. and Sugiyama, M. (2009). Change-point De-

tection in Time Series Data by Direct Density-Ratio

Estimation. In Proceedings of 2009 SIAM Interna-

tional Conference on Data Mining (SDM2009), pages

389–400.

Ma, J. and Perkins, S. (2003). Time Series Novelty De-

tection Using One-class Support Vector Machines. In

Proceedings of the International Joint Conference on

Neural Networks, volume 3, pages 1741–1745.

Markou, M. and Singh, S. (2003). Novelty Detection: a

Review–Part 1: Statistical Approaches. Signal Pro-

cessing, 83(12):2481–2497.

Murad, U. and Pinkas, G. (1999). Unsupervised Proﬁl-

ing for Identifying Superimposed Fraud. Principles

of Data Mining and Knowledge Discovery, 1704:251–

261.

Ng, T., Skitmore, M., and Wong, K. (2008). Using genetic

algorithms and linear regression analysis for private

housing demand forecast. Building and Environment,

43(6):1171–1184.

Pauli, D., Timm, I., Lorion, Y., and Feller, S. (2011). Using

Chernoff’s Bounding Method for High-Performance

Structural Break Detection. Submitted for publication.

Perron, P. (2006). Dealing with Structural Breaks. Palgrave

handbook of econometrics, 1:278–352.

Pinson, P., Nielsen, H., Madsen, H., and Nielsen, T. (2008).

Local linear regression with adaptive orthogonal ﬁt-

ting for the wind power application. Statistics and

Computing, 18(1):59–71.

Press, W., Teukolsky, S., Vetterling, W., and Flannery, B.

(2007). Numerical Recipes: The Art of Scientiﬁc Com-

puting. Cambridge University Press.

Schwabacher, M., Oza, N., and Matthews, B. (2007).

Unsupervised Anomaly Detection for Liquid-Fueled

Rocket Propulsion Health Monitoring. In Proceedings

of the AIAA Infotech@ Aerospace Conference, Reston,

VA: American Institute for Aeronautics and Astronau-

tics, Inc.

Strang, G. (1989). Wavelets and dilation equations: A brief

introduction. Siam Review, 31(4):614–627.

Taylor, J. (2010). Multi-item sales forecasting with total

and split exponential smoothing. Journal of the Oper-

ational Research Society.

Wadsworth, H. (1997). Handbook of statistical methods for

engineers and scientists. McGraw-Hill Professional.

Xia, B. and Zhao, C. (2009). The Application of Multiple

Regression Analysis Forecast in Economical Forecast:

The Demand Forecast of Our Country Industry Lava-

tion Machinery in the Year of 2008 and 2009. In Sec-

ond International Workshop on Knowledge Discovery

and Data Mining, 2009. WKDD 2009, pages 405–408.

FORECAST ERROR REDUCTION BY PREPROCESSED HIGH-PERFORMANCE STRUCTURAL BREAK

DETECTION

271
