AN ADAPTABLE BUSINESS COMPONENT BASED ON

PRE-DEFINED BUSINESS INTERFACES

Oscar M. Pereira, Rui L. Aguiar

Instituto de Telecomunicações, University of Aveiro, Aveiro, Portugal

Maribel Yasmina Santos

Algoritmi Research Center, University of Minho, Guimarães, Portugal

Keywords: Component-based software, Adaptability, Business tier, Databases, Impedance mismatch.

Abstract: Object-oriented and relational paradigms are simply too different to bridge seamlessly. Architectures of

database applications relying on three tiers need business tiers to bridge application tiers and database tiers.

Business tiers hide all the complexity to convert data between the other two tiers easing this way

programmers’ work. Business tiers are critical components of database applications not only for their role

but also for the effort spent on their development and their maintenance. In this paper we propose an

adaptable business component (ABC) able to manage SQL statements on behalf of other components. Other

components may create in run-time a pool of SQL statements of any complexity and delegate their

management to the ABC component. The only constraint is that the SQL statements schema must be in

conformance with one of the predefined schemas (interfaces) provided by the ABC component. The main

contribution of this paper is twofold: 1) the presentation of an adaptable business component and 2) to show

that the ABC source code may be automatically generated. The main outcome of this paper is the evidence

that the ABC component is an effective alternative approach to build business tiers to bridge object-oriented

and relational paradigms.

1 INTRODUCTION

Good programming practices advise the

development of database applications relying on a

multi-tier architecture. The three tier architecture is

the most widespread one comprising the application

tier, the database tier and the middle tier known as

the business tier. The business tier may provide a

clear separation (technological, business and

administrative/administration) between host

databases and client applications (CA). When

database tiers and application tiers rely on different

paradigms, as the relational and object-oriented,

respectively, business tiers are responsible for

relieving programmers of client applications from

several critical issues being impedance mismatch

(David, 1990) the most noticeable one. Impedance

mismatch is an outcome of the diverse foundation of

both paradigms raising a major hindrance for their

integration, being an open issue for more than 50

years (Cook and Ibrahim, 2006). Despite their

advantages, business tiers present some weaknesses

among them we emphasize their inertia to evolve in

consequence of maintenance needs. These needs

may have their origin in the need for new queries,

the need to update existent queries or changes in the

database schema. Inertia may reach increased

relevancy if SQL statements are wrapped into

classes with improved usability to ease their usage

by programmers of client applications. In this case,

maintenance activities will not only comprise lower-

level issues as writing or re-writing the SQL queries

but will also comprise the development or

maintenance of the involved wrappers to keep their

usability (examples: getter and setter methods).

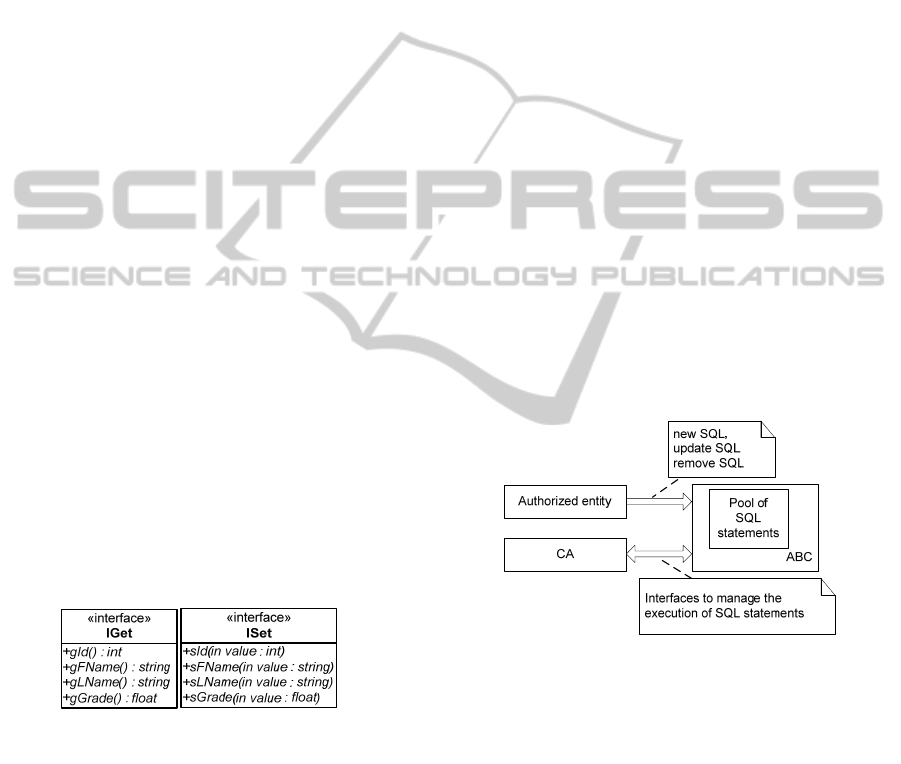

Figure 1 shows a simple example of two interfaces

to wrap the SQL statement Select id, fName, lName,

grade from …. A study reported in (Keene, 2004)

shows that business tiers may consume up to 30%-

40% of the total effort of a project. The difficulties

to build and maintain business tier components may

M. Pereira O., L. Aguiar R. and Santos M..

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES.

DOI: 10.5220/0003462100920103

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 92-103

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

have a shelter on the Component-Based Software

Engineering (CBSE) (Heineman and Councill,

2001) subject. CBSE is widely recognized as a sub-

discipline of Software Engineering to build complex

systems. The main goals of CBSE are threefold: 1)

to provide guidelines for the development of

systems as assemblies of components; 2) to provide

guidelines for the development of components as

reusable artifacts and finally 3) to provide guidelines

for the maintenance of systems through the adaption

and replacement of their constituent components.

Using commercial off-the-shelf (COTS) software

components to build software systems may be seen

as a goal for many system architects. Unfortunately,

component reutilization may raise several

technological difficulties and, maybe not least

important, may easily gather voices against its

adoption. In reality, despite the relevancy of the

CBSE postulates, several issues are difficult to

tackle as the replacement and adaptation of

components. Component replacement has some

disadvantages conveying an impact on the overall

system. Some of the disadvantages are (Costa et al.,

2007): 1) the state of the replaced component may

be lost; 2) component or even system availability

may be affected; 3) performance decay during the

replacement process – additional power computation

is required. In order to avoid the replacement of

components, components must be able to adapt

dynamically at run-time, which is one of the crucial

aspects of CBSE (Bracciali et al., 2005). The

adaptation of components should comprise not only

the configuration process but mainly the

replacement of old services and also the definition

of new services in a seamlessly way.

Figure 1: Example of interfaces to wrap a business entity.

In this paper we are focused on a reusable

business tier component for database applications

where client applications are developed in the

object-oriented paradigm and the host database

relies on the relational paradigm. The component is

herein known as Adaptable Business Component

(ABC). ABC component pretends to achieve the

following three main goals: to comply with full

expressiveness of SQL, to provide an enhanced

usability from client applications point of view and

to provide supervised adaptability to SQL

statements deployed in run-time. Full SQL

expressiveness is achieved by using Call Level

Interfaces (CLI) (ISO, 2003) as a low-level API to

communicate with the host database. Call Level

Interfaces will be addressed with some detail in

Section 4. Usability is assured by the implemented

interfaces to communicate with client applications.

These interfaces are based on the schema of the SQL

statements and are also type-safe. This issue will be

addressed with more detail in Section 5. Supervised

adaptability is assured by the ability to dynamically,

in run-time, as a server component, receive

messages from “authorized” entities to accept new,

remove existent and update existent SQL statements

of any complexity and, on behalf of client

applications, manage their execution. The results of

their execution are accessible to client applications

through the aforementioned interfaces. This issue

will be addressed with more detail in Section 5 and

Section 6. Figure 2 presents a general view of the

interaction between ABC components and other

client entities. Authorized entities may create and

update a pool of SQL statements in run-time and

delegate their management to the ABC component.

Then client applications may ask the execution of

SQL statements through the interfaces provided by

the ABC components.

Figure 2: General view of CA and ABC interactions.

In this paper we are focused on defining a

strategy based on software product lines for business

tier components in the context of CBSE. Software

product lines address specific needs of a domain

analysis and are developed from a set of assets that

share the commonality of particular features

(Clements and Northrop, 2001). Some of the main

advantages of software product lines approach are:

reduced time-to-market (Hetrick et al., 2006),

reduced cost (Pohl et al., 2005) and improved

quality (Pohl et al., 2005, Hetrick et al., 2006).

Product-lines enable more effective component

reuse (Griss, 2000).

It is expected that the outcome of this paper will

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES

contribute to open a new approach to the

development of business tier components.

Throughout this paper all examples are based on

Java, SQL Server 2008 and JDBC for SQL Server

(sqljdbc4.jar). Code may not execute properly since

we only show the relevant parts for the points under

discussion.

The paper is structured as follows. Section 2

presents the motivation; Section 3 presents the

related work; Section 4 concisely presents the

JDBC; Section 5 presents ABC architecture; Section

6 presents ABC Life-Cycle and Section 7 present

the final conclusion and future work.

2 MOTIVATION

Database applications of some complexity may

comprise hundreds of SQL statements to deal with

business requirements. This leads to situations

where the development and maintenance processes

of business tiers are very tedious and exhaustive.

Programmers are pushed to write similar source

code for each SQL statement. Moreover, Select

statements with a long select-list also convey to a

repetitive source code around each element of the

select-list in order to read its value. There should

exist a methodology to relieve programmers from

these tedious, exhaustive and error-prone processes.

-- a simple query

Select p.id,p.fName,p.lName

From pilot p

-- a more complex query

select p.id,p.fName,p.lName

From pilot p,circuit c,classif f

Where p.id=f.id and

f.date=c.date and

f.position between 1 and 3

Group by p.id,p.fName,p.lName

Having count(f.position)=

(select count(*) from ...)

Union

Select ...

...

Order by ...

We may classify SQL statements in two orthogonal

groups: by complexity and by schema. Complexity

says if a SQL statement is simple or complex. The

schema characterizes each SQL statement in terms

of the schema of its parameters and the schema of

the returned relation (only for Select statements). An

SQL statement may be simple and have a simple or

a complex schema or an SQL statement may be

complex and have a simple or a complex schema.

Moreover, several SQL statements, simple or

complex, may share the same schema. The two

queries previously presented share a simple schema.

The first query is very simple and the second query

is not very simple. The code to execute the query

and to read the returned data is the same for both

queries. This evidence raises the following question:

if several SQL statements may share the same

schema why not make use of it to optimize the

source code editing process? The first question to be

put is: “Have we been spreading boilerplate code in

business tiers?”. Another relevant issue is the access

and manipulation of data/information/ knowledge

kept in databases. While the issue previously

discussed was essentially technological, the access

and manipulation of data/information/knowledge

concerns the soul of companies. Very often

data/information/knowled-ge is the most important

asset in companies conveying an unavoidable need

to completely control and protect it.

In this paper we present the ABC component

relying on an architecture aimed at coping with two

important features: 1) Re-use of source code to

manage different SQL statements, simple or

complex, defined after ABC deployment (the unique

constraint is the common schema they must rely on).

2) To follow the separation of concerns regarding

the use of ABC components by programmers of

client applications from all other issues related to the

development, configuration and administration

processes.

3 RELATED WORK

In (Schmoelzer et al., 2006) is presented a concept

for model-typed interfaces concept relying on

generic interface parameters. These parameters are

characterized as Model-defined Types whose

schema is defined by a Data Model. The authors

claim that by this way complex data structures

(based on Data Models) may be transferred between

components in a single method invocation avoiding

successive calls to accomplish the same task. This

methodology is very useful when two conditions

occur simultaneously: 1) the involved components

do not share the same working address space and 2)

the component playing the client role has full

control and knowledge about the amount of data

being transferred. In this work ABC components

share the same address space as client applications

and the access to the returned data (from Select

statements) is to be implemented in attribute by

attribute and row by row basis. This work could

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

profit from (Schmoelzer et al., 2006) if or when

ABC components and client application run in

different address spaces.

Data Transfer Objects (Flower, 2002) is a design

pattern used whenever an entity gathers a group of

attributes that must be accessed in a swift way.

Accessing those attributes one by one through a

remote interface raises several disadvantages such as

the increase of the network traffic, latency is

increased, performance is negatively affected,

demand on server and client processing is increased.

Data Transfer Objects are tailored to address these

situations. They are organized in serializable classes

gathering the related attributes and forming a

composite value. An entire instance of the serialized

object is transferred from the server to the client.

This approach is quite similar to the previous

conveying the same disadvantages.

O/RM tools (Hibernate (Bauer and King, 2007),

TopLink (2011), LINQ (Erik et al., 2006)) are

powerful tools to integrate object-oriented

applications with relational databases. Their

extended functionalities are mostly used to build

persistent business tiers relying on object to

relational mapping techniques. They may also

support native queries, proprietary SQL language,

language extensions and other relevant tools to ease

programmers’ work. Their scope is too wide and

deeply diverges from the scope of this work.

Anyway, if required, ABC components may be

developed with and above O/RM frameworks. Their

services have to be coordinated, integrated and

wrapped by the architecture herein presented.

4 JDBC

One of the key requirements of ABC component is

the ability to execute any SQL statement, very

simple ones and very complex ones. Before this

requirement, the option for a database driver (DB

Driver) is a key issue. The choice fell upon low-

level APIs being Call Level Interfaces an important

candidate. Call Level Interfaces are considered

important options whenever performance and SQL

expressiveness are considered key issues (Cook and

Ibrahim, 2006). Call Level Interfaces provide

mechanisms to encode Select, Insert, Update and

Delete SQL expressions inside strings, easily

incorporating the power and the full expressiveness

of SQL. JDBC (Microsystems, 2008) and ODBC

(Microsoft, 2010) are two of the most relevant Call

Level Interfaces. We will explore JDBC as

representative of Call Level Interfaces. JDBC has

two main interfaces to manage the execution of SQL

statements: the Statement interface (Microsystems,

2010b) and the ResultSet interface (Microsystems,

2010a). The Statement interface is used to execute

SQL statements and to return the possible results

they produce (only for Select statements). The

returned results are managed by the ResultSet

interface. Loosely speaking, ResultSet interface

provides two orthogonal functionalies: scrollability

and updatability. Scrollability defines the ability to

scroll over the retuned relation from the database.

There are two possibilities: forward-only – in this

case cursors may only move forward one row at a

time; scrollable – in this case cursors may move in

any direction and jump several rows at a time.

Updatability defines the capacity to change the in-

memory data managed by the ResultSet interface

and therefore the content of the host database. There

are two possibilities: read-only – the content of the

ResultSet is read-only and, no changes are allowed;

updatable – changes may be performed over the in-

memory data (insert new rows, update current rows

and delete rows). These functionalities are defined at

instantiation time of the parent Statement (or

PreparedStatement) entity and will be incorporated

and made available in the ABC architecture.

5 ABC ARCHITECTURE

The main goal of this paper is to present a

component, known as ABC component, with the

ability to manage and execute a pool of SQL

statements on behalf of client applications. The pool

of SQL statements is dynamically updated in

runtime by an external authorized entity. From client

applications (CA) point of view ABC components

always play the role of server components. From

host database point of view ABC components

always play the role of client components. Figure 3

presents a possible deployment of database

applications relying on ABC components. The

communication between client applications and

ABC components are always through predefined

interfaces. The static architecture of ABC

components comprises three main blocks: Business

Manager (BM), Business Entities (BE) and the

Database Driver (DB Driver), as shown in Figure 4.

The DB Driver is the block responsible for

providing the required services to manage the

communication with a local or remote database

management system (DBMS).

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES

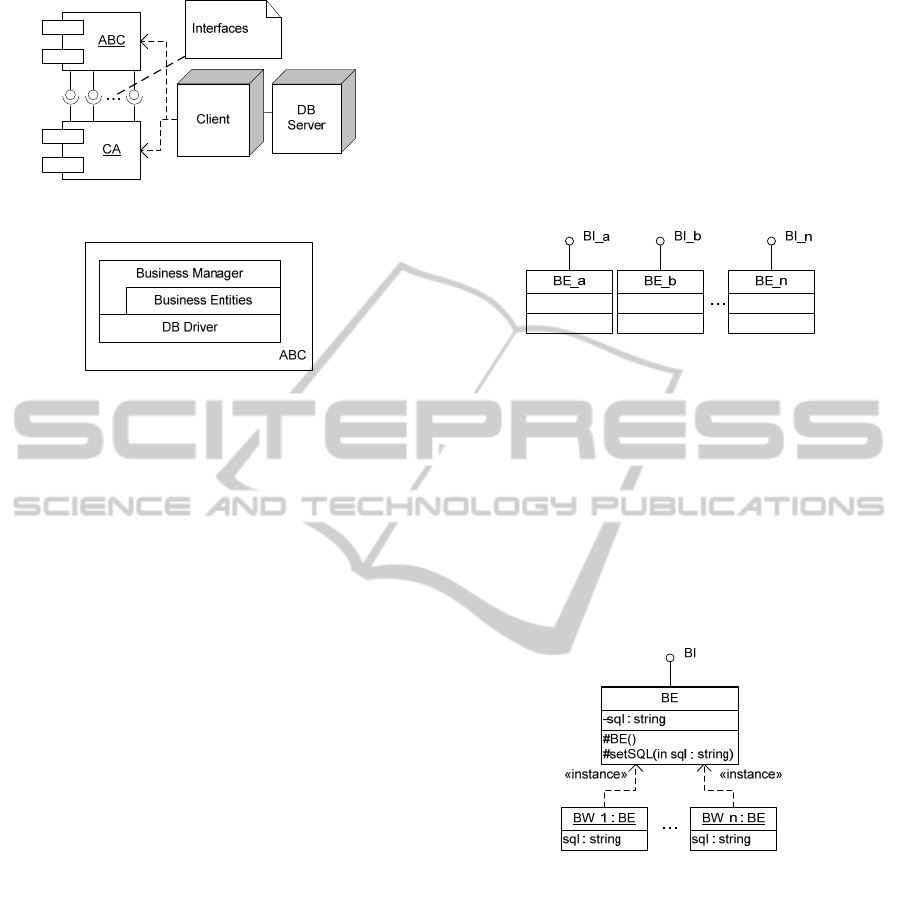

Figure 3: Possible deployment for database applications.

Figure 4: ABC main blocks.

The services include, but not exclusively, the

management of connections to the database and the

execution of SQL statements. Business Entities are

responsible for the definition of contracts between

ABC components and client applications. Each

contract is specified by one interface. Business

Manager is responsible for the management of the

local pool of SQL statements. Business Manager

also manages a local pool of active connections with

the database in order to improve the overall system

performance. This functionality demands the

interaction between the Business Manager block and

the DB Driver block. The connection pool is out of

the scope so it will not be addressed in this paper.

5.1 DB Driver

DB Driver is responsible for providing internal

services to ABC components in order to ease their

communication with the host DBMS. The choice for

the specific DB Driver depends on several issues as

the host DBMS and the host programming language

of the client application. In this paper the

programming language is Java and the host DBMS

is SQL Server 2008 and, therefore, we will use

sqljdbc4.jar, which is an implementation of JDBC

for SQL Server. In this paper we will present ABC

components architecture coping with the following

functionalities of ResultSet: forward-only and read-

only, forward-only and updatable, scrollable and

read-only and, finally, scrollable and updatable.

5.2 Business Entities

Business Entities (BE) are software artifacts respon-

sible for the implementation of contracts (services)

between ABC components and client applications.

Each Business Entity implements one contract

which is specified by an interface known as

Business Interface (BI). ABC components may

comprise one or more Business Entities. Figure 5

presents a concise class diagram for Business

Entities and Business Interfaces. The correspondent

dynamic artifacts are the

Figure 5: BE and BI.

Business Workers (BW). Business Workers are

active entities, in other words, are running instances

of Business Entities. A Business Worker accepts one

SQL statement whose execution context is in

accordance to the Business Interface implemented

by its source Business Entity. Thus, Business

Entities address the key issue of reuse of

computation (Elizondo and Lau, 2010). Figure 6

presents the basic relation between Business Entities

and Business Workers.

Figure 6: Relationship between BE and BW.

SQL statements are defined through the setSQL to

allow its definition and updating processes to be

carried out after Business Workers instantiation.

These processes are managed by Business Manager

in a transparent way for client applications.

5.2.1 Business Interfaces

A Business Interface is a contract that a Business

Entity is committed to implement. Business

Interfaces define how client applications and

Business Entities may communicate. The schema of

a Business Interface is directly dependent on the

queries to be processed and, in case of Select

statements, on the functionalities to be made

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

available (scrollability and updatability). There are

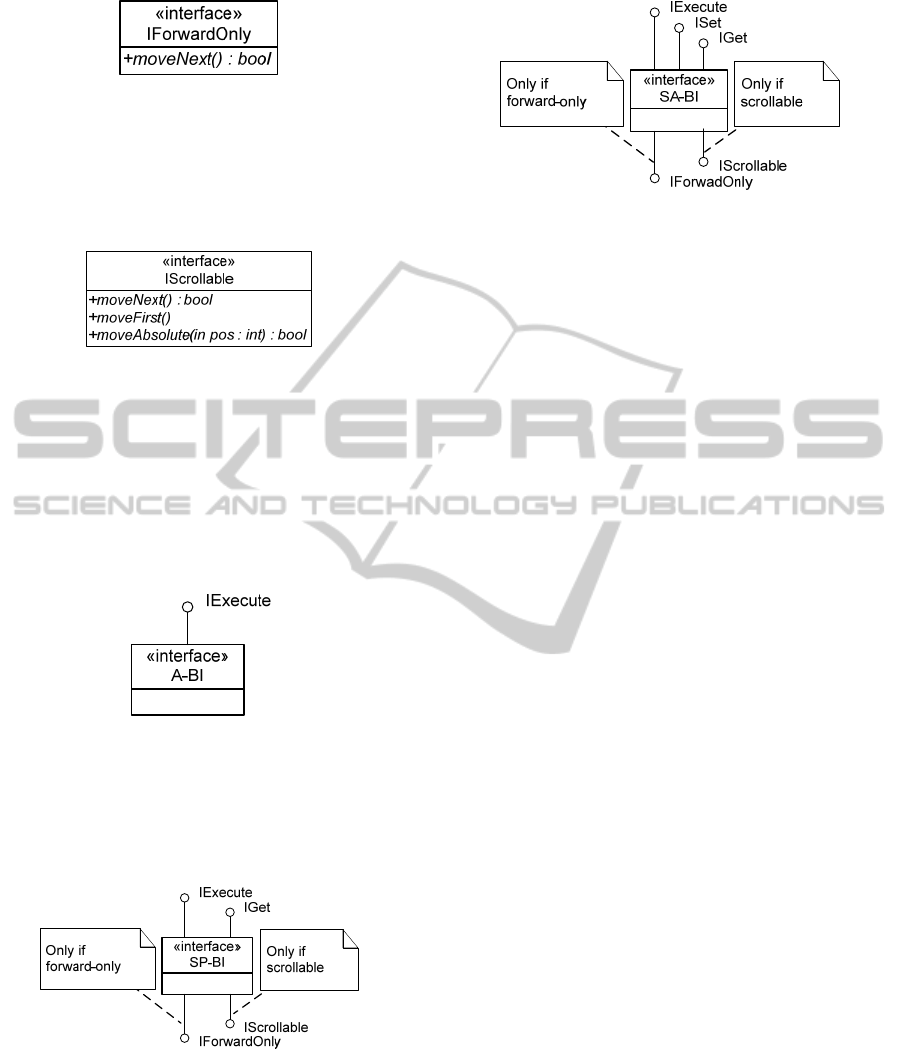

three types of Business Interfaces: 1) Alter Business

Interface (A-BI) – for Insert, Update and Delete

SQL statements; 2) Select Active Business Interface

(SA-BI) – for Select SQL statements that create

updatable ResultSets and 3) Select Passive Business

Interface (SP-BI) – for Select SQL statements that

create read-only ResultSets. Select Active Business

Interfaces and Select Passive Business Interfaces

implement one of the two scrollability facets:

forward-only or scrollable.

Before delving into the Business Interfaces

details, let’s consider a single table with the

following schema:

Table(SqlDT1 att_1,

SqlDT2 att_2,

...,

SqlDTn att_n)

where SqlDTn is the SQL data type of the attribute

att_n. The correspondent data type of SqlDTn in the

host programming language is represented by DTn.

This table will be used as the basis for the Business

Interfaces specification. Each Business Interface

may be considered as aggregations of sub-interfaces.

Therefore, we will begin the description of Business

Interfaces by their elementary sub-interfaces.

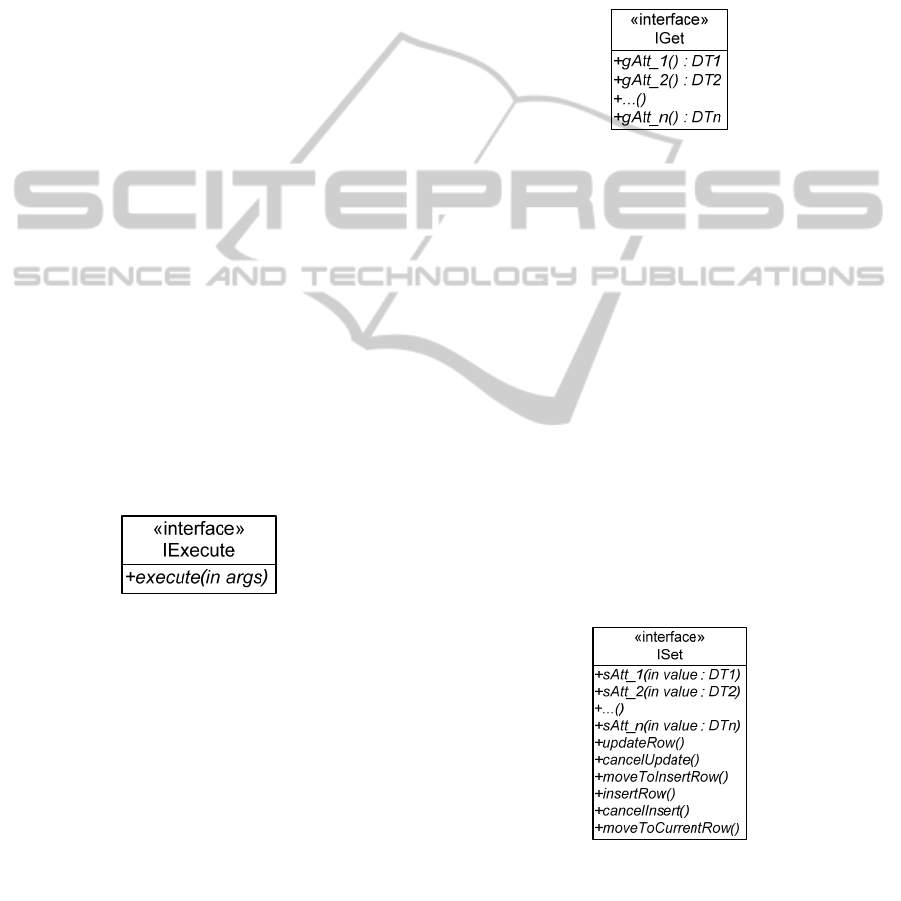

The sub-interface IExecute, presented in Figure

7, is shared by all Business Interfaces. It comprises

only one method. This method is invoked by client

applications to trigger the execution of the

associated SQL statement.

Figure 7: Sub-interface IExecute.

The method may be invoked as often as necessary to

re-execute the SQL statement. The argument args

comprises all the arguments to be used in conditions

inside the SQL statement and also as the values to

be inserted or updated on tables of the host database.

As an example, the following SQL statement:

Update Table

Set (att_1=@v_1,

att_n=@v_2)

Where (att_2=@v_3);

leads to the following signature:

void execute(DT1 v_1,

DTn v_2,

Dt2 v_3)

The sub-interface IGet gathers all necessary

methods to read all attributes of one row from the

ResultSet in-memory data.

Select *

From Table

For the SQL statement the correspondent IGet

interface is presented in Figure 8. The method

signatures are based on the schema of the Select

statement and are also type-safe.

Figure 8: Sub-interface IGet.

These features improve ABC component

usability when compared with the standard JDBC

API. Users of ABC components are before

signatures type-safe and schema oriented easing this

way both the understanding of their meaning and the

associated data-type.

The sub-interface ISet gathers all necessary

methods to update/insert data in the ResultSet in-

memory. This is only possible if the ResultSet is

updatable. For the statement the correspondent ISet

interface is presented in Figure 9. The signatures of

setter methods are based on the schema of the Select

statement and are also type-safe as with the IGet

interface. The remaining methods are used to

implement the protocols to update and to insert

rows.

Select *

From Table

Figure 9: Sub-interface ISet.

The sub-interface IFowardOnly comprises all

methods associated to the scrolling policy of

forward-only ResultSets. Figure 10 only presents the

main method which allows the cursor to move one

row forward.

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES

Figure 10: Sub-interface IForward-only.

The sub-interface IScrollable gathers all methods

associated to the scrolling policy of scrollable

ResultSets. Figure 11 only presents three of the main

methods.

Figure 11: Sub-interface IScrollable.

All the sub-interfaces of Business Interfaces

have been individually presented. Now let’s present

the schema for each Business Interface type. Figure

12, Figure 13 and Figure 14 present the Business

Interfaces for A-BI, SP-BI and SA-BI, respectively.

A-BI, shown in Figure 12, only comprises the

interface IExecute.

Figure 12: A-BI interface.

SP-BI, shown in Figure 13, comprises three

interfaces: IExecute, IGet and, depending on the

instantiation of the parent Statement interface,

IForwardOnly or IScrollable.

Figure 13: SP-BI interface.

SA-BI, shown in Figure 14, comprises four

interfaces: IExecute, IGet, ISet and, depending on

the instantiation of the parent Statement interface,

IFoward or IScrollable.

Figure 14: SA-BI interface.

5.2.2 Business Workers

Business Entities are classes and Business Workers

are running instances of those classes. From each

Business Entity it is possible to create as many

Business Workers as necessary. Each Business

Worker is identified by its type (parent Business

Entity) and the SQL statement to be executed. Each

SQL statement is uniquely identified by a token.

There cannot be two tokens with the same value in

the same ABC component instance. Business

Workers instantiated from the same Business Entity

are called sibling Business Workers. Business

Workers running the same SQL statement are called

true sibling Business Workers and Business

Workers running different SQL statements are

called false sibling Business Workers. Examples of

two SQL statements managed by the same Business

Entity and, therefore, running on false sibling

Business Workers could be:

Select *

From Table

Where att_1=@v_1

Select t1.*

From Table t1, Table t2

Where t1.att_1=@v_1 and

t1.att_2=t2.att_2 and

t2.att_3=1

Despite some restrictions, each Business Entity

may support an unlimited set of SQL statements.

SQL statements may be as simple or as complex as

necessary. The restrictions are only centered on the

implemented Business Interface. Particularly the

interface IExecute, execute(args), may eventually

convey a significant weakness on the Business

Entity adaptability. This weakness is felt at the level

of the SQL statements where and having clauses.

Anyway, if required, this weakness may be avoided

by using the following signature void execute().

From now on, the SQL statement parameters, if

required, must be set by the client application as

shown in the following example:

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

Select *

From User

Where Grade>10 and Grade<16 and

Substrin

(FName,1,1) like ‘A’

This strategy may improve Business Entities’

flexibility but forbids the use of parameterized

queries as pre-parsed queries (prepared statements in

JDBC) provoking this way decrease in performance.

Another important drawback of this approach is the

decrease of ABC usability: IExecute may no longer

be used to help programmers on setting up the

parameters of SQL statements.

5.3 Business Manager

The Business Manager is the entry point of all ABC

components. ABC’s administrators and

programmers of client applications access ABC

components functionalities through their entry static

methods. Business Manager has a static method for

each Business Entity to create a singleton instance

of its factory class, as shown in Figure 15. Business

Entities factories implement two interfaces, see

Figure 16: one is only at administrator’s disposal to

update the pool of SQL statements and is known as

IAdm. The other interface is at common

programmers’ disposal to create Business Workers

and is known as IUser. Each SQL statement to be

used by Business Workers is uniquely identified by

a token defined by administrators in the add method.

The class diagrams for the interfaces is shown in

Figure 17.

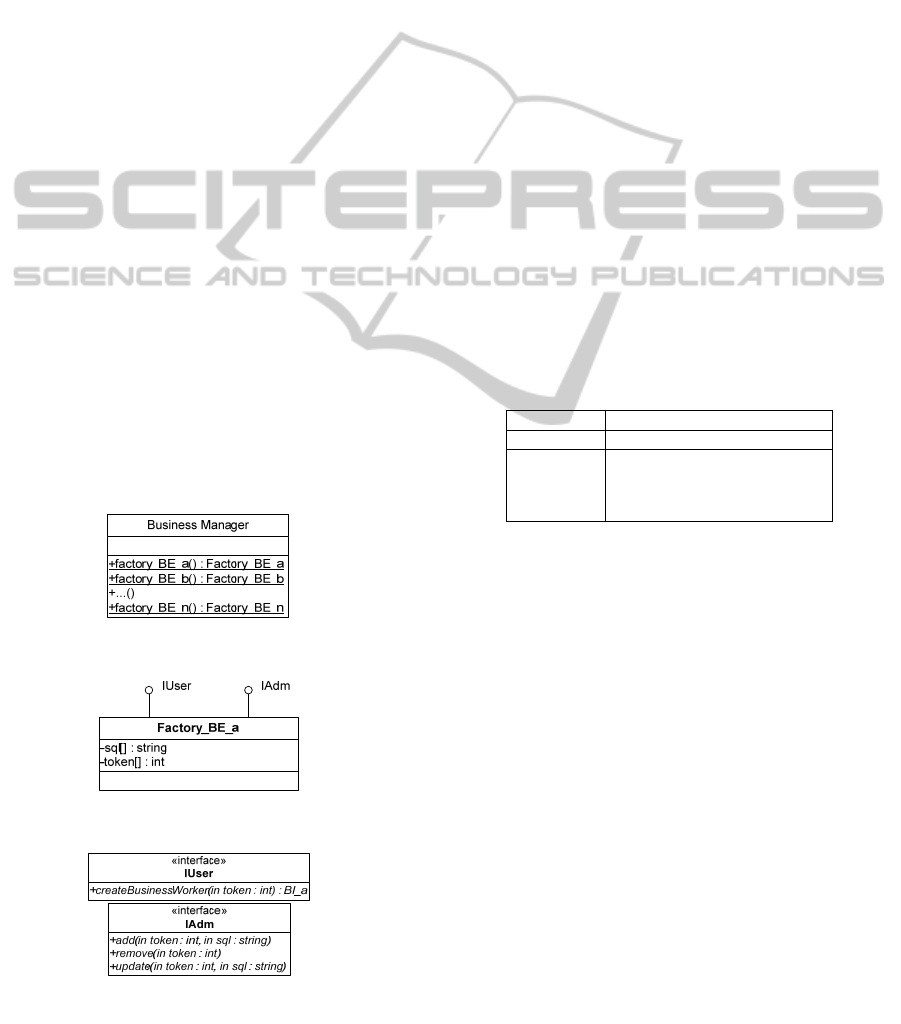

Figure 15: Business Manager.

Figure 16: Business Entity Factory.

Figure 17: Interfaces of Business Entities Factories.

The next blocks of code depicts examples of

source code to create SQL statements in the pool

and source code to create a Business Worker.

// add SQL statement

IAdm a=Manager.factory_BE_a();

a.add(tk_a1,sql_a1);

a.add(tk_a2,sql_a2);

// create Business Worker

IUser u=Manager.factory_BE_a();

BI_ai a=u.createBusinessWorker(tk_a1);

6 ABC LIFE CYCLE

ABC components comprise two types of software

sources: outsource (software from other suppliers)

and insource (software developed to ABC

components). Table 1 presents the main sub-systems

by software source used in our examples. The

catalog of ABC components is defined within the

context of idealized component life cycle (Kung-

Kiu and Zheng, 2007). The life cycle is based on the

development for reuse and development with re-use

processes in accordance to CBSE principles and

considers three phases: design, deployment and

runtime.

Table 1: ABC sub-systems/source.

Source Sub-system

outsource DB driver

insource

Manager

Business Entities

Business Interfaces

6.1 Design Phase

The design phase is focused on the development of

ABC components. Developers of ABC components

may follow three distinct approaches: global

approach, the activity approach or the entity

approach. The entity approach is based on the

development of ABC components with only one

business entity. The activity approach is based on

the development of ABC components by each

activity such as accounting, clients, suppliers,

warehouse, data warehouse and OLAP. The global

approach is based on the development of a single

ABC component for all activities.

It is also possible to follow any combination of

the three approaches. The decision is up to the

system administrator. Independently of the chosen

approach, each ABC component may deal with

several actors where each one plays a specific role

conditioned by the queries he may execute.

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES

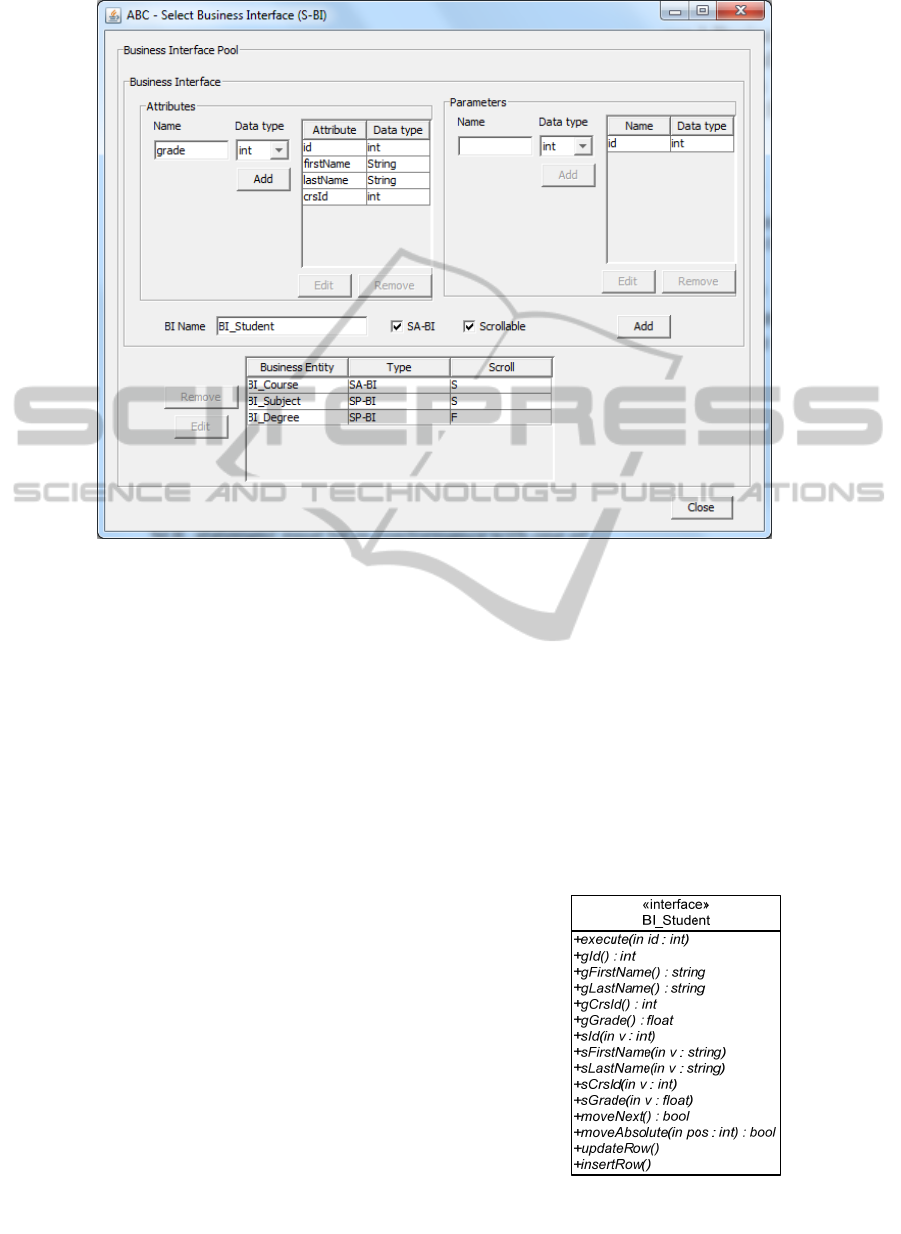

Figure 18: Widget to create S-BI.

Different instances of the same ABC component

may run different sets of SQL statements for each

Business Entity this way promoting its reuse by

different actors. Moreover, every software

subsystem (SS), such as warehouse management,

gathers several activities such as clients, suppliers

and orders this way promoting the component

reutilization. There is a wide range of possibilities

for component reuse: by activity, by actor or any

other combination. Business Interfaces cannot be

modified, added or removed after the design phase.

They materialize the contract between each

individual ABC component and client

applications. Client applications trust ABC

components to manage SQL statements since each

SQL statement is in conformance with one of the

implemented Business Interfaces. Any change in

the contract after the design phase of ABC

components compels the re-opening of the design

phase. After the design phase SQL statements may

be created as needed (this is the degree of freedom

they have) but each SQL statement must be in

conformance with one of the available Business

Interfaces (this is the restriction they must obey).

The insource code for each ABC component

may be generated by a tool as the one shown in

Figure 18. Only the GUI used to create Select

Business Interfaces is shown. We may see 3

Business Interfaces in the pool (BI_Course,

BI_Subject, BI_Degree) and a new one is being

edited (BI_Student) and ready to be inserted in the

pool. This Business Interface supports, for

example, the following SQL statement:

Select id,firstName,lastName,

crsId,grade

From Student

Where id=@id

Figure 19 shows a partial view of the

correspondent BI_Student.

Figure 19: Partial view of BI_Student.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

100

The next code concisely shows the Java source

code for the methods gId() and sId(int v).

ResultSet rs=...

...

public int gId() {

return rs.getInt(1);

}

public void sId(int v)

{

rs.updateInt(1,v);

}

Alternatively, the insource source may be derived

from a general model herein known as the

Business Component Model (BCM). In order to

automatically generate the insource code the

Busuiness Component Model requires the

following information:

 For each Business Entity: 1) Its type: alter,

select passive or select active; 2) the Business

Interface schema; 3) the scrollability policy.

 The source code programming language.

 The host database management system.

 The DB Driver to be used

These two approaches, a tool or the BCM, relieves

programmers from writing any source code and

therefore to avoid the deployment of ABC

components with undesirable errors.

The final stage of the design stage is attained

when ABC components are compiled and packed

as components ready to be deployed.

As summary, the design phase embodies the

process of development for reuse and is mostly

focused on the definition of Business Interfaces to

be implemented by reusable ABC components.

The concrete SQL statements to be deployed in

each instance of an ABC component are not

defined in the design phase but in a later phase.

6.2 Deployment Phase

In the deployment phase, developers use ABC bi-

nary components to develop each subsystem of

their database applications. Developers may play

the role of an administrator developer or the role of

a common developer. The former role is used to

write source code to update the pool of SQL

statements. The latter role is used to write source

code for subsystems. Database applications may

incorporate one or more subsystems, each

subsystem may incorporate one or more activities

and each activity may support one or more actors.

System administrators may define the strategy for

the ABC components reutilization in the

deployment phase. Common developers may not

know anything about the SQL statements to be

made available in each ABC component. All they

need to know is the location of the required SQL

statement in terms of ABC component instance

and Business Entity.

As summary, the deployment phase embodies

the process of development with reuse.

6.3 Runtime Phase

In this phase all components are running. Figure

20 concisely presents a possible running phase of

two subsystems, SS_a and SS_b. Figure 20 a)

shows two instances of SS_a (SS_a1, SS_a2).

Both share the same business components, ABC_y

and ABC_w. If SS_a1 and SS_a2 correspond to

two different actors, the SQL statements available

to each one may be different. Figure 20 b) shows

one instance of SS_b (SS_b1). It embodies two

shared ABC components with ABC_a (probably

with its own sets of SQL statements) and also the

ABC_z component.

Remind that the SQL statements are created

and updated in run-time through the IAdm

interface which is not shown. The administrator

role may or may not be protected by some security

policy such as authentication and/or authorization

to grant access to the configuration process. This

topic is out of scope of this work.

6.4 Seamless Operation

SQL statements updating process is executed in a

seamless way. This means that the process to

insert, update or delete SQL statements from the

pool of ABC components may be executed without

any restrictions. Actually, ABC components

assume a passive attitude. They do not provide any

service to inform client applications from any

relevant or critical occurrences.

These occurrences should be coordinated

between client applications and the component that

plays the administrator role.

Inserting new SQL statements does not raise

any critical question. Subsystems are not allowed

to use what still do not exist. The identification

token should only be available after inserting the

SQL statement into the pool. Updating and

removing SQL statements that are being used by

one or more Business Workers are the critical

situations. When a SQL statement is being used

and it is updated or removed, Business Workers

keep their states unchanged.

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES

101

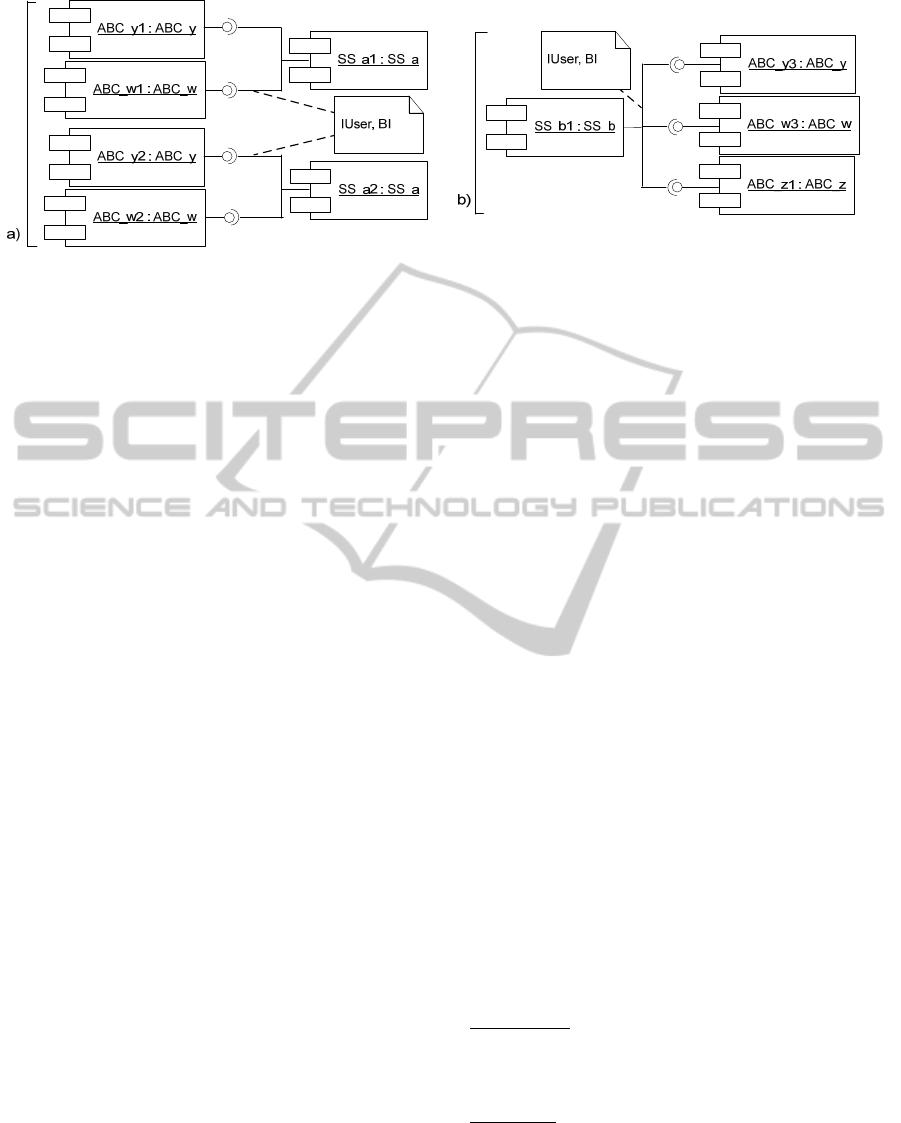

Figure 20: Client application and ABC components deployment.

This assures that client applications may continue

their work. Business Workers’ state will only be

updated when the client application re-invokes the

execute method. Then, Business Workers will re-

execute the most recent SQL statement. The

execute() method should not be invoked if the SQL

statement has been removed from the pool. To

prevent any undesirable situation, it is advisable

that client applications become aware of the

actions taken by the administrator in order to

proceed with the most convenient measures.

Business Manager does not interfere or change the

state of any Business Worker. The states of

Business Workers are always under sub-systems’

control. Therefore, each application should define

its own protocol between administrator and

application components.

7 CONCLUSIONS

In this paper we have presented an adaptable

business component to bridge object-oriented

applications and relational databases. ABC

components are in line with the context of CBSE

supporting the process of development for reuse

and development with reuse. The reutilization

intensity is determined by the chosen approach for

the development of ABC components (global,

activity, entity or mixed) and also by the intensity

of reuse of computation. The ABC component

main architecture relies on Business Entities

created before the deployment of ABC

components. Business Entities define the contracts,

based on Business Interfaces, between ABC

components and client applications. Each Business

Entity is able to manage any set of SQL statements

that conform to its associated Business Interface.

Moreover, SQL statements may be deployed to

each running instance of ABC component in an

unbalanced way. This means that the same

Business Entity may have different sets of SQL

statements in two different running instances of the

same ABC component. The SQL statements

update process is accomplished in run-time, in any

moment and as often as necessary.

All Business Interfaces were designed to

improve, from programmers’ point of view, the

usability of ABC components. The signatures of

their methods are type-safe and syntactically based

on the schema of their SQL statements.

The development of ABC components is

completely decoupled from the development of

client applications. Moreover, the process of

definition and deployment of SQL statements on

each running instance of ABC components may be

completely controlled by authorized entities. These

two issues allow the separation of concerns

through the definition of two main actors:

administrators and common programmers.

Despite its complexity, source code of ABC

components may be automatically generated by a

tool or through a Model Driven Engineering

process relieving programmers from the manual

development and maintenance processes.

As an outcome of this work, it is expected that

this work may open new approaches to the

development of business components for database

applications. Future work may be divided in two

stages: short term and long term.

Short term

: 1) Assess and compare ABC

performance with a solution based on a standard

JDBC. 2) Evolve Business Interfaces in order to

support a client-server architecture

Long term

: 1) Create a Wide Business Entity able

to manage any SQL statement. Its Wide Business

Interface supports all known Business Interfaces

and, in run-time, by analyzing the metadata

returned by queries and by reflection uses the

correct interface to communicate with the client

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

102

application. 2) Assess and compare the Wide

Business Entity performance with the standard

Business Entities.

REFERENCES

2011. Oracle TopLink [Online]. Oracle. Available:

http://www.oracle.com/technetwork/middleware/top

link/overview/index.html [Accessed 2011 Feb].

Bauer, C. & King, G. 2007. Java Persistence with

Hibernate, Manning.

Bracciali, A., Brogi, A. & Canal, C. 2005. A formal

approach to component adaptation. Journal of

Systems and Software, 74, 45-54.

Clements, P. & Northrop, L. 2001. Software Product

Lines: Practices and Patterns, Addison-Wesley.

Cook, W. & Ibrahim, A. 2006. Integrating programming

languages and databases: what is the problem?

Available: http://www.odbms.org/experts.aspx#

article10 [Accessed 2006].

Costa, C., Pérez, J. & Carsí, J. 2007. Dynamic

Adaptation of Aspect-Oriented Components. In:

Schmidt, H., Crnkovic, I., Heineman, G. & Stafford,

J. (eds.) Component-Based Software Engineering.

Springer Berlin / Heidelberg.

David, M. 1990. Representing database programs as

objects. Advances in Database Programming

Languages. N.Y.: ACM.

Elizondo, P. V. & Lau, K.-K. 2010. A catalogue of

component connectors to support development with

reuse. Journal of Systems and Software, 83, 1165-

1178.

Erik, M., Brian, B. & Gavin, B. 2006. LINQ: reconciling

object, relations and XML in the .NET framework.

In: ACM SIGMOD International Conference on

Management of Data, Chicago,IL,USA. ACM, 706-

706.

Flower, M. 2002. Patterns of Enterprise Application

Architecture, Addison-Wesley.

Griss, M. L. 2000. Implementing product-line features

by composing aspects. Proceedings of the first

conference on Software product lines : experience

and research directions. Denver, Colorado, United

States: Kluwer Academic Publishers.

Heineman, G. T. & Councill, W. T. 2001. Component-

Based Software Engineering:Putting the Pieces

Together, Addison-Wesley.

Hetrick, W. A., Krueger, C. W. & Moore, J. G. 2006.

Incremental return on incremental investment:

Engenio's transition to software product line

practice. Companion to the 21st ACM SIGPLAN

symposium on Object-oriented programming

systems, languages, and applications. Portland,

Oregon, USA: ACM.

ISO 2003. ISO/IEC 9075-3:2003. In: STANDARDS, I.

(ed.). ISO.

Keene, C. 2004. Data Services for Next-Generation

SOAs. WebServices Journal [Online], 4. Available:

http://soa.sys-con.com/read/47283.htm [Accessed

2011 Jan].

Kung-Kiu, L. & Zheng, W. 2007. Software Component

Models. Software Engineering, IEEE Transactions

on, 33, 709-724.

Microsoft. 2010.

Microsoft Open Database Connectivity

[Online]. Microsoft. Available: http://msdn.micro

soft.com/en-us/library/ms710252(VS.85).aspx [Acce

ssed 2010 Mar 18].

Microsystems, S. 2008. JDBC Overview [Online]. Sun

Microsystems. Available: http://java.sun.com/pro

ducts/jdbc/overview.html [Accessed 2010 Feb 27].

Microsystems, S. 2010a. Interface ResultSet [Online].

Sun Microsystems. Available: http://java.sun.com/

javase/6/docs/api/java/sql/ResultSet.html [Accessed

2010 Jul].

Microsystems, S. 2010b. Interface Statement [Online].

Sun Microsystems. Available: http://java.sun.com/

javase/6/docs/api/java/sql/Statement.html [Accessed

2010 Jul 2010].

Pohl, K., Bockle, G. & Linden, F. J. V. D. 2005.

Software Product Line Engineering, Springer.

Schmoelzer, G., Teiniker, E., Kreiner, C. & Thonhauser,

M. 2006. Model-typed Component Interfaces. In:

Software Engineering and Advanced Applications,

2006. SEAA '06. 32nd EUROMICRO Conference

on, Aug. 29 2006-Sept. 1 2006. 54-63.

AN ADAPTABLE BUSINESS COMPONENT BASED ON PRE-DEFINED BUSINESS INTERFACES

103
