CLOSING THE GAP BETWEEN WEB APPLICATIONS

AND WEB SERVICES

Marc Jansen

Ruhr West University of Applied Sciences, Computer Science Institute, Tannenstr. 43, 46240 Bottrop, Germany

Keywords: Web Service, Web Application.

Abstract: The WWW is the killerapp of the internet. In recent years an enormously increasing number of Web

Applications, as a means of human-to-computer interaction, showed up, that allows a visitor of a certain

website to interact with the website. Additionally the approach of Web Services was introduced in order to

allow computer-to-computer interaction on the basis of standardized protocols. This paper shows how the

gap between Web Applications and Web Services can be closed by making Web Applications available to

computer-to-computer interaction by a systematic approach.

1 INTRODUCTION

From the very early days of the internet, the Word

Wide Web (WWW) was one of the most frequently

used developments. According to (Hammerschall,

2005) Web Applications can be categorized at

different levels. At the lowest level, simple static

websites provide information to a visitor. The next

step are interactive Web Applications that allow to

receive data from a visitor and use this data in order

to perform certain calculations with the result

presented to the visitor. The last step of web

technologies are Web Services. The major difference

between a usual Web Application, that is a mean for

human-to-computer interaction, is that Web Services

are built to foster computer-to-computer interaction.

From an architectural point of view, formulars of

a Web Application can be seen as interfaces to

services in a service-oriented architecture (SOA).

The major goal of this work, is to close the gap

between Web Applications and Web Services by

making Web Applications available for computer-to-

computer interaction.

The developed prototype that is presented here

achieves this goal by implementing a Web Service

façade to Web Applications. This approach is

explained in more detail in the following sections.

2 THE ARCHITECTURAL

APPROACH

From an architectural point of view, the gap between

a Web Application and a Web Service can be closed

by providing a façade to the Web Application,

according to the façade design pattern (Gamma,

1994). This façade allows to call the formular of a

Web Application via a Web Service. The major goal

of the façade design pattern is to provide an interface

to a subsystem that allows to use the subsystem in an

easier way. In this example the façade eases the use

of Web Applications in different ways:

- The usage of a Web Service, as an interface to

a Web Application allows to use standardized

methods (like WSDL, SOAP and UDDI) in

order to consume the service provided by the

Web Application.

- The façade can decrease the number of

parameters that need to be passed to the Web

Application. This is described in more detail in

section 4.

- Last but not least, the façade does not need to

provide an external interface to all services of a

Web Application but can be limited to certain

services of interest.

To be able to provide a certain façade to a Web

Application three major steps need to be performed.

First of all the website, that provides access to the

Web Application, needs to be parsed and the

services (in their representation as forms) need to be

627

Jansen M..

CLOSING THE GAP BETWEEN WEB APPLICATIONS AND WEB SERVICES.

DOI: 10.5220/0003464806270630

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WSPA-2011), pages 627-630

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

extracted. In a second step the parameters of each of

the forms need to be extracted and it needs to be

determined which parameters are necessarily

provided within the Web Service interface. Last but

not least, the Web Service itself needs to be

implemented, including all the descriptions that are

necessary to deploy the Web Service to a usual

application server. This step also includes the

packaging of the Web Service itself and the

necessary descriptions in a deployable package, e.g.

a WAR archive.

Here, the first two steps (extracting the forms and

extracting the necessary parameters for each form)

can be done with the help of the pipes and filters

design pattern (Buschmann and Rohnert, 1996). The

approach presented here uses the results of these two

filters to provide an XML description of the services

provided by the Web Application that later-on

allows to easily implement the Web Service

(including its necessary descriptions) via an

eXtended Stylesheet Language Transformation

(XSL/T). An overview of the suggested architecture

is provided in Figure 1:

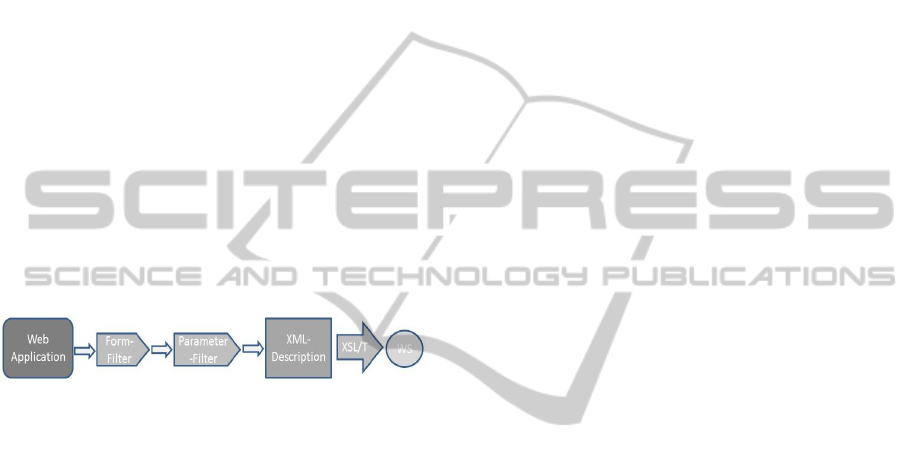

Figure 1: Proposed architecture for the creation of a Web

Service facade to a Web Application.

The following provides a closer look to the

solutions of the presented approach.

3 PARAMETER HANDLING

As described before, the parameters for the methods

provided by the Web Service façade are basically

the parameters provided by the form that represents

the service of the Web Application. Basically, two

types of parameters need to be distinguished to

answer the question which parameters the Web

Service façade needs. Parameters that need to be

passed to a Web Application might be of two

different types. On the one hand there are parameters

that usually need to be provided directly by the user

of a certain Web Application, e.g. the security

identification number of a certain stock in a Web

Application that provides stock values. On the other

hand there are certain parameters that are provided

by the Web Application itself, e.g. parameters used

for session identification. The type of the parameter

can easily be determined by an attribute of an input

parameter of an HTML-Form: each input parameter

might have an attribute called type. In case of the

parameters that are provided by the Web Application

itself, this attribute has the value hidden. All other

parameters of an HTML-Form are usually

parameters that need to be provided by the user of

the Web Application in question. The Web Service

façade to a certain Web Application obviously only

needs to have these kind of parameters in its

signature that usually need to be provided by the

user of the Web Application and usually not the

parameters that are provided by the Web Application

itself.

In the developed prototype, for convenience

purposes, all parameters that the Web Service

provides are of type String. Of course it would not

be much more difficult to provide different types of

parameters, but this doesn’t seem to be necessary for

the development of a prototype.

4 RETURN VALUES

Beside the parameter handling of the provided Web

Services, the handling of the return value is another

topic of interest. The following two sections provide

an overview about how the developed prototype

deals with the return value.

4.1 Different Types of Return Values

Basically a Web Application might have different

types of return values. At the first abstraction three

different types of return values might be of interest:

- single – The Web Application might return a

single value that is of interest. This is e.g. the

case for a Web Application that provides stock

values.

- list – Alternatively, the Web Application might

provide more than one result. This type of

return value is represented as a list. A popular

example for this kind of return value might be

the answer of a request to a search engine, that

provides a list of URLs with information on a

certain topic.

- void – Last but not least, a Web Application

might not return data that is of interest to the

user. This might e.g. be the case if the Web

Application just starts a particular package of

work. This kind of return value is quite unusual

for Web Applications but might still be of

interest to some Web Application, therefore it

is also concerned in the developed prototype.

Again, just for the sake of lower complexity, the

return value within the Web Service façade is of

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

628

type String (respectively String[]) for the first two

kinds of return values, and of type void for the last

one.

4.2 Determing the Return Value

One major challenge during the implementation of

the prototype was the determination of the actual

return value. Usually Web Applications provide

their result within a webpage. Therefore it is

necessary to parse the webpage and determine the

result of interest. In order to be able to do so, the

position where the information of interest is located,

has to be described. Usually an absolute description

of the position, e.g. the information is placed

between the n-th and m-th character doesn’t work,

since Web applications usually provide the

information of interest in specially designed

websites where the absolute position of the

information changes dramatically. Here another

approach was necessary. Within the developed

prototype we found that a contextual representation

of the position of the information worked very well.

Therefore we designed regular expressions to

describe what kind of information is of interest to us

on the webpage that the Web Application returns.

For example, in the case of a certain search engine,

the regular expression for the return type looks like

this:

Here, the . represents any character. Therefore in

this example the return value is an array of type

String with all character sequences that are within

the left border (<span class=”url”>) and the right

border (</span>).

5 XML REPRESENTATION

As already shown in the architectural overview in

Figure 1, the implemented approach produces an

intermediate XML representation of the service of

interest on its way to the final Web Service. The

following two sections provide an overview first on

the XML representation and the structure itself.

Afterwards we provide a solution how this XML

representation is used in order to implement the Web

Service, including its necessary descriptions, with

the help of XSL/T.

5.1 An XML Datastructure for the

Definition of Web Applications

The here described XML representation of the

methods finally implemented in the resulting Web

Service is a minimal set of information necessary in

order to be able to implement the Web Service later

on. The Document Type Definition (DTD) that

defines the grammar of the XML representation

looks like this:

<!ELEMENT forms (form*)>

<!ATTLIST forms name CDATA #REQUIRED>

<!ELEMENT form (parameter*)>

<!ATTLIST form action CDATA #REQUIRED

leftBorder CDATA #REQUIRED

rightBorder CDATA #REQUIRED

method (get|post) #REQUIRED

result (single|list|void) #REQUIRED

methodName CDATA #REQUIRED>

<!ELEMENT parameter EMPTY>

<!ATTLIST parameter name CDATA #REQUIRED

value CDATA #IMPLIED

hidden (true|false) #REQUIRED>

The root element of a certain XML representation is

a forms element. This one is basically necessary in

order to encapsulate the different services that a

Web Application provides. As an attribute, the forms

element provides the possibility of a name that

might be interpreted as an acronym for the provided

service.

On the next level the XML representation

consists of a number of form elements. Each form

element describes a single service of the Web

Application on a syntactical level. Therefore it

provides attributes that represent the URL under

which the service is available (action), the left and

the right border for the determination of the return

values (leftBorder, rightBorder), the HTTP method

used to invoke the service (method), the result type

as explained in section 5.1 (result) and the name that

the method of the Web Service façade

(methodName) should have.

At the lowest level, each of the forms elements

consists of potentially several parameter elements.

Each parameter element consists of potentially three

attributes that describe the parameter: first of all,

each parameter can be identified (name), potentially

parameters might have a value (value) that can be

interpreted as the default value of this parameter

and, last but not least, as already described in section

4 some parameters might not be visible to the end-

user of the service (hidden).

This XML representation of a certain service is

enough to implement the corresponding Web

Service façade automatically, as describe in the next

section.

CLOSING THE GAP BETWEEN WEB APPLICATIONS AND WEB SERVICES

629

5.2 Transforming Web Applications to

Web Services Via XSL/T

The XML datastructure described in the last section

is used to automatically implement the Web Service

façade including the related descriptions. Therefore

we developed a eXtended Stylesheet Language

Transformation (XSL/T) script that on the one hand

implements a Java class with the necessary

annotations to expose the methods as Web Services

according to Java Specifiction Request 181 (JSR

181) (Mullendore, 2009). The following represents

an extract of this XSL script:

<xsl:stylesheet version="1.0"

xmlns:xsl="http://www.w3.org/1999/XSL/Transform">

<xsl:template match="/forms">

import …;

@WebService

public class <xsl:value-of select="@name" />Service {

<xsl:for-each select="form">

@WebMethod

public String <xsl:value-of select="@methodName"/>

/>(<xsl:copy-of select="$parameters" />) {

…

}

</xsl:for-each>

</xsl:template>

</xsl:stylesheet>

On the other hand to deploy the Web Service later-

on to a usual application server like JBoss or

Glassfish the deployment description for the Web

Service needs to be implemented in form of a

web.xml file. This web.xml file is also automatically

generated from the described XML representation

with a similar XSL script as mentioned above for the

creation of the Web Service source code.

Last but not least, the developed prototype

compiles the created Web Service classes and

packages these classes, together with the created

web.xml file, into a deployable web archive (.war)

file. This .war file is now ready for deployment in a

standardized application server like JBoss or

Glassfish.

6 CONCLUSIONS

AND OUTLOOK

As shown in this paper, the gap between Web

Applications and Web Services can be closed at

least semi automatically. Especially the

determination of the position of the Web

Applications return value, as describe in section 5.2,

needs to be defined manually. In the next research

step, a completely automatically determination also

of the return value of the Web Application can be

concerned.

Another interesting idea would be to deploy the

presented prototype in a Cloud Computing

environment. This would allow to flexibly deploy

and scale the resulting Web Service façade

according to the demands of a certain customer.

REFERENCES

Hammerschall. Verteilte Systeme und Anwendungen,

2005, Pearson Studium

Gamma, Helm, Johnson. Elements of Reusable Object-

Oriented Software. 1994, Addison-Wesley

Buschmann, Meunier, Rohnert, Sommerland. A System of

Patterns: Pattern-Oriented Software Architecture,

1996, John Wiley & Sons

Mullendore. JSR 181: Web Service Metadata for the Java

Platform, 2009, Java Community Process

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

630
