TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR

SOA IMPLEMENTATIONS

Zheng Li

School of Computer Science, ANU and NICTA, Canberra, Australia

He Zhang

School of Computer Science and Engineering, UNSW and NICTA, Sydney, Australia

Liam O’Brien

School of Computer Science, ANU and CSIRO, Canberra, Australia

Keywords: Service-Oriented Architecture (SOA), SOA implementation, Organization theory, Organization design,

Strategy.

Abstract: Benefiting from the technology based strategies, Service-Oriented Architecture (SOA) has been able to

achieve the general goals such as agility, flexibility, reusability and efficiency. Nevertheless, technical

conditions alone cannot guarantee successful SOA implementations. As a valuable and necessary

supplement, the space of technology independent strategies should also be explored. Through treating SOA

system as an instance of organization and identifying the common ground on the similar process of SOA

implementation and organization design, this paper uses existing work in organization theory area to inspire

the research into technology independent strategies of SOA implementation. As a result, four preliminary

strategies that can be applied to organizational area we identify to support SOA implementations.

Furthermore, the novel methodology of investigating technology independent strategies for implementing

SOA is revealed, which encourages interdisciplinary research across service-oriented computing and

organization theory.

1 INTRODUCTION

Service-Oriented Architecture (SOA) emerges with

the requirements of quick response to the rapid and

often unpredictable changes in business environment

for modern enterprises. Motivated by the

expectations of the people who are engaged in SOA

activities, SOA has goals such as reusability of

software assets across multiple platforms and

applications, agility of support to business processes,

efficiency in terms of development time and cost,

and flexible integration of existing and legacy

information systems. Considering goals define

where we want to go while strategies define how we

will get there (Daft, 2009), SOA implementation

strategies should be investigated to facilitate

achieving SOA’s goals. In fact, numerous strategies

have been proposed and developed over the past

decade. For example, Newcomer and Lomow (2004)

use Web services to concrete the conceptual SOA;

Krafzig, Banke and Slama (2004) focus on the

practical application of SOA in enterprises with

discussion of the roadmap of relevant technologies;

Erl (2007; 2009) summarizes a full scope of

implementation strategies through eight principles of

service design and 17 SOA design patterns. To the

best of our knowledge, however, most of existing

strategies for SOA implementation only pay

attention on the technology aspect, particularly

relying on the current state of the art of Web

technology. As we know, technology is a necessary

but not a sufficient condition for successful SOA

implementations (Rosen, Lublinsky, Smith and

Balcer, 2008). In other words, technology cannot

guarantee the success of an SOA system. Therefore,

the technology independent strategies for

143

Li Z., Zhang H. and O’Brien L..

TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR SOA IMPLEMENTATIONS.

DOI: 10.5220/0003467801430154

In Proceedings of the 6th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2011), pages 143-154

ISBN: 978-989-8425-57-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

implementing SOA should also be identified and

examined.

To achieve technology independent strategies of

SOA implementation, it would be necessary to

investigate every aspect of SOA system. In general,

“SOA is a concept for large distributed systems”

(Josuttis, 2007), which supposes services are

decentralized and may be under the control of

different owners. When unfolding research into

distributed systems, we can generally adopt two

different approaches (Fox, 1981): one is learning by

doing (building real distributed systems), while the

other is learning by analogy (drawing upon ideas

from other research areas). Considering the

limitations to empirically implementing various

SOA projects by ourselves, we have employed

learning by analogy with organization theory as an

efficient way to inspire the research into SOA

domain. In fact, the use of organizational theory to

guide technology research has proven significantly

beneficial particularly in the multi-agent system

community. For example:

 Well-known human organizational structures

are used for the deployment of multi-agent

systems (Argente, Julian and Botti, 2006);

 Social laws are chosen to simplify multi-agent

systems (Fitoussi and Tennenholtz, 2000);

 Dependency theory of social interaction is used

to explain how to achieve social goals of

multi-agent systems (Sichman and Demazeau,

2001).

Therefore, this paper also presents an

organization-based view to comprehend SOA, and

treats SOA implementations as organizational

activities. Based on the traditional consensus of the

organization concept, thinking of SOA

organizationally could be reasonable. Moreover, the

parallels are identified between organization design

and SOA implementation in general, which follows

a pentagonal process with five steps focusing on the

Goal and Strategy, Environment and Scope,

Structure, Process and Coordination and Control.

Note that the “SOA implementation” we discuss

here refers to common SOA implementation

practices rather than any particular case. Enlightened

by existing work of organization design in the

organization theory domain, we have initially

identified four strategies as a demonstration to meet

four predetermined research topics of service-

oriented software engineering (Kontogiannis, Lewis

and Smith, 2008): (1) to use Total Quality

Management (TQM) to accommodate the Quality

Assurance challenge in the Engineering topic, (2) to

keep the structure as flat as possible meet the

Adoption challenge in the Operations topic, (3) to

take measurements at interim steps in process to

satisfy the Governance challenge in the Cross-

Cutting topic, and (4) to build business process

teams to facilitate mapping between business

structure and service-oriented environment in the

Business topic. These four strategies are independent

and each can improve SOA implementations

depending on real circumstances. In other words, the

strategies can be employed both individually and all

together for an SOA implementation instance.

Overall, this paper makes three contributions.

Firstly, new interdisciplinary research opportunities

are suggested between service-oriented computing

and organization theory. Secondly, the methodology

of investigating technology independent strategies

for SOA implementation is outlined. Thirdly, four

preliminary strategies enlightened by organization

design are identified within four predetermined

research topics of SOA.

The remainder of the paper is organized as

follows. Section 2 justifies thinking of SOA from an

organizational perspective. Section 3 analogizes the

procedure of SOA implementation with that of

organization design. Section 4 introduces four

technology independent strategies enlightened by

organization design for SOA implementation.

Section 5 uses an example to demonstrate how these

four strategies are applied to improve SOA

implementation. Conclusions are drawn and some

future work is proposed in Section 6.

2 SOA: AN ORGANIZATIONAL

PERSPECTIVE

Organizations emerged as early as ancient

civilizations appeared. Today, organizations have

become indispensable and pervasive components of

human beings’ society, for example, from schools to

hospitals and from armies to governments. When it

comes to the SOA area, we can similarly regard

service-oriented systems as virtual organizations that

are composed of services. There are two ways of

thinking of SOA from the organizational

perspective. One is to view an SOA system as an

organization; the other is to treat SOA system as a

mirror of its corresponding organization.

2.1 Viewing an SOA System as an

Organization

Viewing SOA systems as organizations is to use the

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

144

organization concept to cover SOA systems, as

shown in Figure 1. Under the same umbrella of

organization concept, both traditional organizations

and SOA systems consist of organizational units.

Organizational units in an SOA system are services,

while that in a traditional organization are

individuals. Furthermore, different organizational

units have different skills and play different roles in

an organization. For example, composite services

play integrative roles in an SOA system, which

parallels the responsibilities of managers in a

traditional organization. Unfortunately, there is no

single agreement on definition of an organization.

Fierce debates about the organization concept are

still underway, though theorists have traditionally

consented that organizations are collectivities of

people who are socially arranged to pursue specific

purposes and achieve explicit goals (McAuley,

Duberley and Johnson, 2007). This classical

consensus makes it possible to think of SOA from

the organizational perspective due to two reasons.

First, it is suitable to think of SOA representing

organization architecture. The Organization for the

Advancement of Structured Information Standards

(OASIS) (2006) defines SOA as “a paradigm for

organizing and utilizing distributed capabilities that

may be under the control of different ownership

domains. It provides a uniform means to offer,

discover, interact with and use capabilities to

produce desired effects consistent with measurable

preconditions and expectations.” When it comes to

implementation, SOA is used to build up a collection

of independent services that can be quickly and

easily integrated into different, high-level business

services and business processes to create business

value and achieve business strategies (Rosen et al.,

2008). To summarize, SOA both in theory and in

practice is proposed for organizing services to attain

some particular goals. Therefore, SOA can be set

under the umbrella of organization theory in terms

of the suggestion of traditional organization concept:

if the organizing process is about goal attainment,

the organization theory could be followed to

conceptualize, explain and ultimately guide

individuals’ activities that should be united together

to achieve desirable, common organizational goals

(McAuley et al., 2007).

On the other hand, it is reassuring to think of

SOA from the organizational perspective. In fact,

conceptual challenge might appear when talking of

organizations based on having a goal, because the

agreement about an organization’s purpose amongst

members may not exist. In the SOA area, however,

this disagreement issue can be ignored. Within SOA

systems, a service is a well-defined unit of

functionality realized by a service interface and a

service implementation (Papazoglou and Heuvel,

2007). A service interface identifies a service and

exposes the semantic description of the service’s

invocation. A service implementation realizes the

work that the service is designed to perform. Unlike

people in social organizations, services in SOA do

not have mental or psychological attributes.

Consequently, services will always obey the control

from the “senior management” of the whole SOA

system, and may even not be aware of the

“organizational goal”. When thinking about SOA

organizationally, the blind obedience characteristic

of services can naturally avoid the challenge of

defining organizations in terms of having a goal

while not all members freely agree to that goal

(Bakan, 2005).

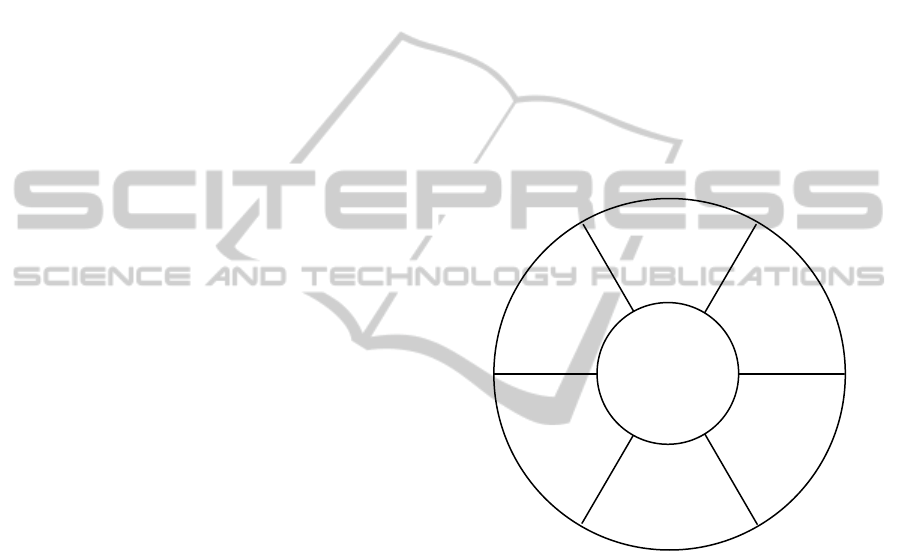

Figure 1: View SOA system as an instance of

organization.

Moreover, according to a set of general

characteristics of the organizations identified by

Campbell and Craig (2005), we can find more

similar features between SOA system and

organization. For example:

 Both human organization and SOA system

contain organizational units (people/services);

 These organizational units perform different

roles/functionalities and their employment

depends on such performance;

 Any human organization or SOA system has a

collective goal to which all units subscribe;

 All of the roles/functionalities, taken together,

help the human organization / SOA system

achieve its collective goal;

 Difference tasks are distributed to different

individual units according to their expertise,

Organization

SOA

System

Hospital

Government

Company

University

Other human

organizations

TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR SOA IMPLEMENTATIONS

145

interest or specialism (human) /

functional

capability and non-functional performance

(service)

;

 There is a clearly defined hierarchy of authority

so that each member of the organization is

aware of where he or she ‘fits in’. / This

scenario depends on Orchestration or

Choreography when composing services in

SOA system;

 The limits or borders of a human organization /

SOA system are usually clearly defined.

2.2 Treating an SOA System as a

Mirror of Real Organization

Unlike Conway’s Law (Conway, 1968), treating

SOA systems as copies of real organizations herein

implies that an SOA system reflects the features of

an organization for which the system is

implemented. Conway’s Law emphasizes the

organization who designs a system, which states that

“any organization that designs a system will

inevitably produce a design whose structure is a

copy of the organization's communication structure”

(Conway, 1968). However, here we emphasize the

organization for which a system is designed and

implemented. Figure 2 illustrates such a sample that

a departmentalized company and its SOA based

information infrastructure have the same functional

structures.

In fact, current information infrastructures for

organizations are normally realized by third-party

software companies, but the organizations

themselves are also closely involved in the activities

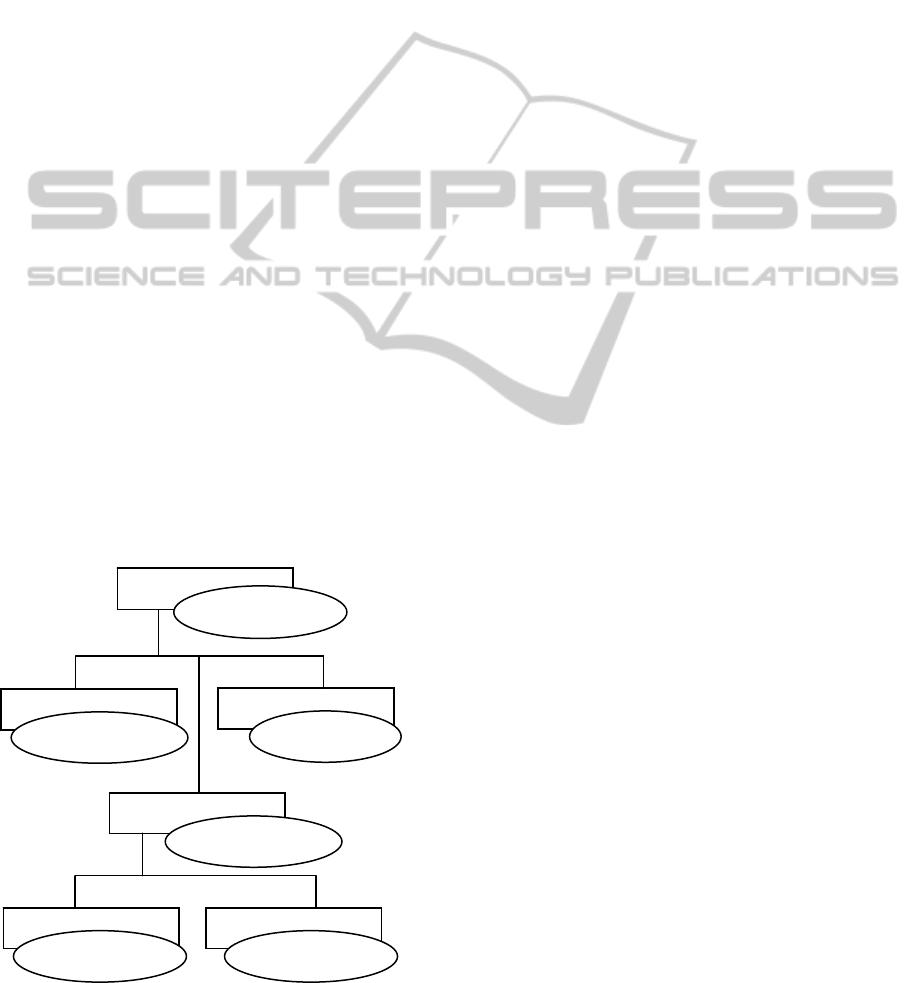

Figure 2: A Company and its infrastructural SOA system.

from requirements analyses to system

implementations. Considering the information

technology (IT) must be aligned with business when

establishing information infrastructure for an

organization, any SOA based information system

will inevitably copy the features of the organization

for which the SOA system is designed and built. For

example, services will be grouped functionally to

support different departments in a functional

structure based organization, while services should

be grouped separately according to different product

lines in an organization that employs product-based

structure; businesses with narrow span of control

will result in tall-hierarchy control flows among

services, while businesses adopting broad span of

control will bring flat-hierarchy control flows among

services.

Benefitting from thinking of SOA from the

organizational perspective, no matter treating SOA

system as a mirror of real organization or viewing

SOA system as an organization, we can use

organization concept to comprehend SOA systems,

and further use organization theory to inspire SOA

implementations.

3 ANALOGIES BETWEEN SOA

IMPLEMENTATION AND

ORGANIZATION DESIGN

The similarity between SOA systems and

organizations is not a coincidence. We can find

common ground on a pentagonal process of SOA

implementation (Josuttis, 2007; Krafzig, 2004;

Lawler and Howell-Barber, 2007; Rosen et al.,

2008) and organization design (Burton, DeSanctis

and Obel, 2006; Daft, 2009; Davis and Weckler

1996; Kates and Galbraith, 2007), which is

identified through refining the waterfall process of

organization design (Burton et al., 2006). In the

pentagonal process, five steps focusing on the Goal

and Strategy, Environment and Scope, Structure,

Process and Coordination and Control are executed

generally along the clockwise sequence arrowed in

Figure 3. Meanwhile, each step has influence on as

well as is under influence of the other four steps. For

example, the goal and strategy together determine

the whole process of organization design or SOA

implementation, while they will be refined gradually

as the process is unfolded.

CEO Office

Decision Making

ort Process

Financial Office

Financial

Mana

ement

Product Department

Product Line

Mana

ement

HR Department

Mana

ement

Market Department

Market Analysis

Process

Other Departments

Other

Processes

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

146

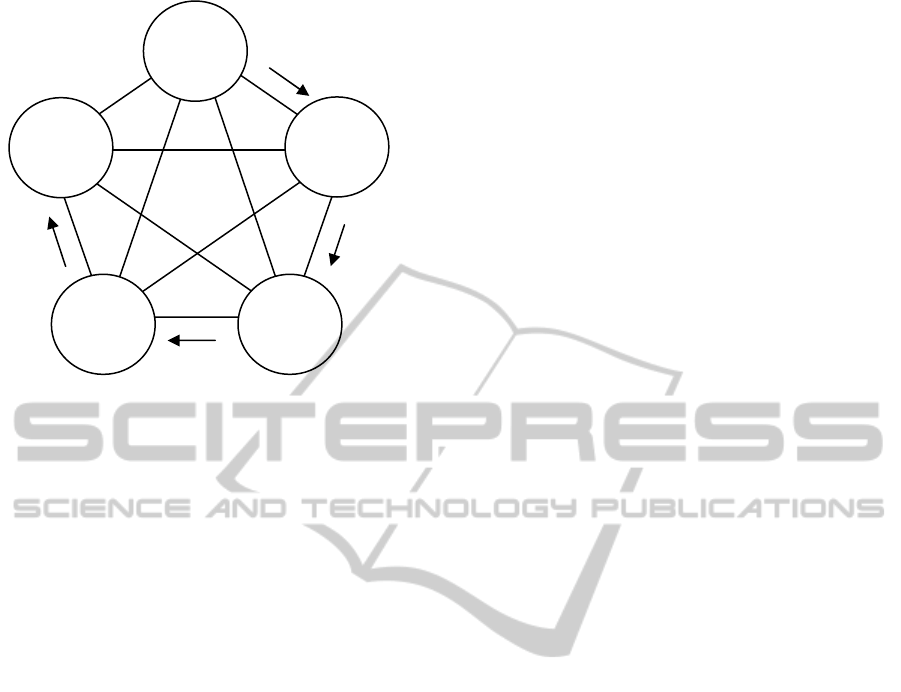

Figure 3: The pentagonal process of SOA implementation

/ organization design.

3.1 Goal and Strategy

As mentioned previously, an organization must have

a collective goal according to the traditional

consensus of organization concept. Although

different parts of the organization may have their

own objectives, an overall collective goal can be

established by aggregating all the separated

objectives together. The overall goal is a desired

direction that the organization will head. In practice,

an organization’s overall goal embodies a set of

specified goals, each of which focuses on different

aspect of the organization. Daft (2009) distinguishes

organization’s goals into official goals and operative

goals. The official goals formally define the

business, values and outcomes that the organization

attempts to achieve, while the operative goals are

more explicit and scattered in different facets such

as performance, efficiency, innovation and profit.

Goals of an organization introduce the target that

the organization wants to pursue, while strategies

define how the organization can pursue its target.

Therefore, strategies can be treated as the

operationalization of organization’s goals (Burton et

al., 2006). Following the analysis of organization’s

goals, we can also distinguish organization’s

strategies into official strategies and operative

strategies. The official strategies are essential plans

of actions that can realize the corresponding official

goals, for example the cost-leadership strategy or

differentiation strategy. On the other hand, the

operative strategies will aim at different detailed

tasks like how to improve working efficiency or

increase product profits. As different tasks may have

resource conflict with each other, the strategy set

should be carefully balanced.

Goals and strategies are in the first phase of

organization design and essentially influence how an

organization should be designed. Similarly, the first

step of SOA implementation is to identify the

business strategies and goals, and we can adopt the

technique, namely business value chain, to help

identify the specific goals and strategies for certain

SOA projects (Rosen et al. 2008). Since service-

oriented computing emerged from the requirement

of addressing the rapid and usually unpredictable

changes that modern enterprises are confronting,

SOA systems contribute more promises than the

traditional software infrastructures. Therefore,

common goals and strategies can be extracted

among the general SOA implementations, which are

emphasized in Section 4.

3.2 Environment and Scope

The environment is the surroundings of a system,

and the system influences and is influenced by its

environment. Meanwhile, the environment is not

static but can be changing continuously and

dynamically. Generally, there are five environment

patterns interacting with any system, including

asymptotic variation, interfering variation, periodic

variation, phase-transition variation, and random

variation (Peng, Liu and Tao, 2009).

Both SOA systems and organizations cannot be

isolated from their external environments. The

environment surrounding an SOA system or

organization has a set of factors relating to resources

or vulnerabilities. For example, the suppliers,

customers, competitors, culture and government are

organizations’ environmental factors, while the

developers, users, legacy system, existing service

pool and state of current technology are SOA

systems’. Building organization and implementing

SOA are highly dependent on the environmental

factors. In practice, the number of factors that

constitute environment might be considerable. All

these factors together reflect the boundary that an

organization or SOA system, and then outline a

scope, which determines the capability,

applicability, competitive advantages and business

range for the organization or SOA system.

For organization design, environment restricts

organizations within certain scopes, and further

influences their processes, structures and controls.

For SOA implementation, analyzing the external

environment and determining the applicable scope

are particularly significant. SOA-based software

Coordin-

ation and

Control

Goal

and

Strategy

Environ-

ment and

Sco

Structure Process

TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR SOA IMPLEMENTATIONS

147

infrastructure is supposed to be adaptive within an

increasingly changing and complex environment.

However, the loosely coupled asynchronous SOA

systems are inherently more complex than the

traditional architecture based systems. Josuttis

(2007) has pointed out that distributed processing

would be inevitably more complicated than non-

distributed processing, and any form of loose

coupling increases complexity. In practice, building

a true heterogeneous SOA for a wide range of

operating environments may take years of

development time if the company does not have

sufficient SOA experience and expertise (Jamil,

2009). Since the more complexity involved in a

system, the more difficulty the designers or

engineers have to understand the implementation

process and thus the system itself (Cardoso, 2005),

SOA should be adopted only in the suitable

environment and only when its benefits outweigh

any extra costs due to the increased complexity.

3.3 Structure

Structures of both organizations and SOA systems

are established to divide up the work into

manageable and measureable units with clear

responsibility boundaries. Organization’s structure is

normally a hierarchy that allocates roles, power,

authorities and responsibilities, and determines

working relationships and communication channels.

Generally, organizational units are arranged around

functions, products/services, customers/geographies,

or business processes. Therefore, the organization

structures can be typically divided in five basic

styles: functional, product- or service-based,

customer- or geographical area based, business

process based, and matrix structure (Davis and

Weckler, 1996). Each kind of structure has specific

advantages and disadvantages. Unsuitable

organization structure will result in formidable

obstacle to align the other design elements with the

organization’s strategy (Kates and Galbraith, 2007).

Consequently, large organizations always build

hybrid structures to achieve the combination of the

advantages.

SOA systems normally adopt matrix structure,

which simultaneously groups services in two

directions: functional direction and business process

based direction, as shown in Figure 4. The

functional direction is to classify services according

to the type of logic they encapsulate. Although there

are quite a few service classifications we can

identify from literature, most of the existing

classifications can be unified and layered as Basic

Services, Business Entity Services, Process-centric

Services, and Enterprise Services. The Basic

Services, settled at the bottom layer of SOA

systems, provide reusable, technical, and

foundational functionalities. The Business Entity

Services represent the entities in business activities,

such as employee, customer, contract, and product.

Through composing relevant Business Entity

Services, a Process-centric Service encapsulates a

sequence of activities to complete a specific business

task. The Enterprise Services provide endpoints to

access the corresponding SOA systems, which could

have less reuse potential but enable cross-enterprise

integrations.

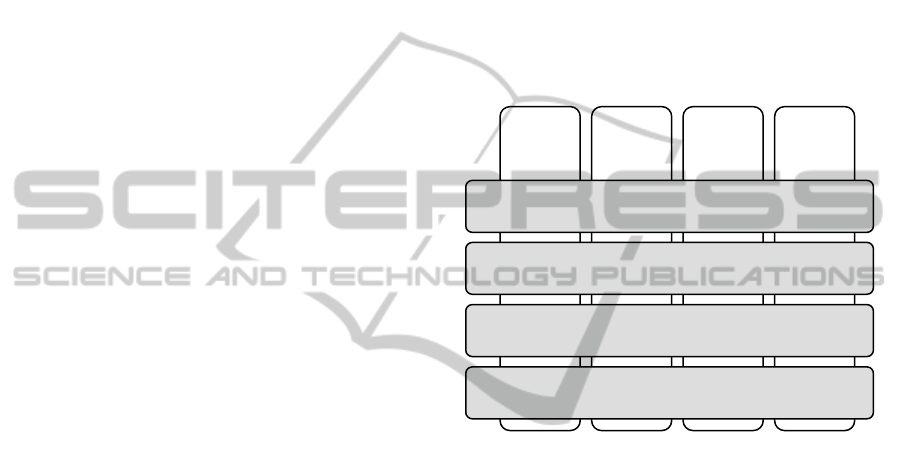

Figure 4: The matrix structure of SOA systems.

On the other hand, to obtain the reuse of services

in multiple business processes, the landscape of

different services within different business process

contexts should be described to show how the

services work together (Rosen et al., 2008). The

business process based direction of SOA systems’

structure can then be outlined. Along the business

process based direction, the overall services are

grouped according to different roles and

responsibilities within the real business. Each group

may contain single service or multiple services.

Moreover, the relationships to each other among the

groups and the places of these groups in the business

processes are also described.

3.4 Process

The organization design has been viewed from an

information processing perspective (Galbraith,

1974). The term process herein means not only

business processes that produce products or services

for customers, but also non-profit routines that

constitute organizational actions. Generally, a

… … …

Business

process

context n

Business

process

context 2

Business

process

context 1

Enterprise Services layer

Process-centric Services layer

Business Entity Services layer

Basic Services layer

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

148

process in an organization is a series of connected

activities that transfer and transform information and

resources through the organization (Kates and

Galbraith, 2007), for example approving an

application, submitting a report, and managing work

progress. From the mid-1990s, many modern

enterprises began to evolve into process-focused

organizations in order to achieve higher performance

and survive the market competition (Seltsikas,

2001). Currently, process-focused organization has

become the new organizational form with business

process as the core concern. As a result, the design

of processes significantly impacts on how well the

organizational goals can be achieved.

Moreover, processes in an organization have

close relationships with the organization’s structure

and coordination. All kinds of organization’s

structures inevitably create barriers to collaboration,

because boundaries will appear as soon as

organizational units are grouped under the structure.

To fulfil the effective collaboration targets in

organization, however, processes are required to

flow cross the boundaries. Therefore, processes can

glue the related organizational units to work

together.

Like process-focused organizations, SOA

systems can also be regarded as process-focused

systems comprising such as management process,

coordination process, and traditional work process.

Among all kinds of processes, SOA inherently

concentrates on business process. Essentially, SOA

is aligned with business process management (BPM)

in business firms in which the criticality of business

processes is concerned (Lawler and Howell-Barber,

2007). The emphasis of SOA is the functional

infrastructure and the business services instead of

the technical infrastructure and technical services. A

business service encapsulates a piece or an entity of

a business process. When implementing SOA, it is

crucial to analyze business processes before

identifying and developing services (Rosen et al.,

2008). Following the analysis of business process,

those potentially and even partially suitable services

should be identified first. These existing services

provide constraints that frame the future SOA

system. The business processes are then broken

down into business pieces that can be implemented

by developing new services.

3.5 Coordination and Control

The coordination problem is one of the central topics

in organizational studies (Heath and Staudenmayer,

2000). As mentioned previously, individual actions

of large numbers of interdependent roles and

specialists must be coordinated to constitute

processes to fulfill global tasks in an organization.

On the other hand, the coordination will increase

organizations’ information processing capabilities

when encountering increasing amount of uncertainty

(Galbraith, 1974). In practice, the activity of

coordinating overlaps the activity of controlling,

because the appearance of coordination usually

implies the occurrence of some control (Davis and

Weckler, 1996). To coordinate and control

organizational work, organizations should adopt

suitable techniques and mechanisms. Unfortunately,

there is not a fixed prescription of methods for

coordinating and controlling work. The coordination

and control, for example, can be simply related to

the structures (Kates and Galbraith, 2007), be

utilized by goal setting, hierarchy, and rules

(Galbraith, 1974), or be executed by using four basic

techniques: Supervision, Standardization, Building

employee commitment, and Teams (Davis and

Weckler, 1996). However, the principle of these

techniques and mechanisms is uniform: to make sure

organizational units work appropriately and find out

to what extent they are reaching the goals and

targets.

When implementing SOA, services must be

composed to fully realize the benefits of SOA

(Sarang, Jennings, Juric and Loganathan, 2007),

which also relies on the coordinating and controlling

activities. According to the cooperation fashions

among component services, the mechanism of

coordination and control can be distinguished

between Orchestration and Choreography.

Orchestration describes and executes a centralized

process flow that normally acts as an intermediary to

the involved services. Choreography describes

multi-party collaboration and focuses on the peer-to-

peer message exchange.

If comparing Orchestration and Choreography

with the two classical organization types –

Mechanical and Organic organizations, we can find

that the fundamental ideas and notions behind these

different concepts in two disciplines are nearly the

same. In particular, we can even explain

Orchestration and Choreography by using the

descriptions of those two types of organizations

4 TECHNOLOGY INDEPENDENT

STRATEGIES FOR SOA

IMPLEMENTATION

When it comes to information system architecture,

TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR SOA IMPLEMENTATIONS

149

service-orientation establishes a universal model in

which functionalities and business logics are cleanly

partitioned and consistently represented. Therefore,

in addition to the various targets that satisfy the

business requirements of respective SOA projects,

SOA implementation possesses general promises

and goals. The motivations and expectations of the

people who are engaged in SOA activities can be

used to empirically and efficiently assess the

universal goals of SOA. With reference to the survey

in 2006 conducted by the Cutter Consortium (Rosen

et al., 2008), we can identify the most common and

general goals of SOA are agility, flexibility, reuse,

data rationalization, integration, and reduced costs.

In fact, plenty of technical strategies have been

developed to help realize SOA’s goals. Examples of

technology based strategies are standard service

contract that facilitates integration, loosely coupling

that supports flexibility, and service autonomy that

provides reliable and predictable performance. As

supplementary, here we focus on the technology

independent strategies of SOA implementation that

are inspired by existing research into organization

design. Following four research topics of service-

oriented software engineering (Kontogiannis et al.,

2008), we have initially identified four strategies

respectively (S1~S4).

4.1 S1: Applying TQM to SOA

Implementation

Under the Engineering research topic of service-

oriented computing, we propose to use Total Quality

Management (TQM) to accommodate to the quality

assurance of SOA implementation. Just as the name

implies, TQM is a holistic level management for

quality, because it can be achieved only if the total

quality concept is utilized from the acquisition of

resources to the customer satisfaction (Kaynak,

2003). When it comes to SOA, the quality

management has been emphasized to satisfy the

unique characteristics of service-oriented computing.

Nevertheless, to the best of our knowledge, existing

research into quality management in SOA area is

mainly at the service level, which is limited around

the Quality of Service (QoS). The overall QoS of an

SOA system is determined by all the QoS of

component services who compose the SOA system

(Yau, Ye, Sarjoughian and Huang, 2008). Based on

the QoS management, SOA systems generally

replace component services with higher quality

services to realize adaptations. Hence, the focus of

QoS management is on individual services in an

SOA environment.

When applying TQM to SOA domain, Deming’s

14 points (Walton, 1988) can be used as a

framework to guide SOA implementations. For

example, service suppliers and SOA system users

should be taken into account when measuring the

total quality of an SOA implementation. Here we

focus on the quality of interaction and cooperation

process among services. With reference to the

explanation of TQM by Deming, in any

circumstance, processes should be constantly

analyzed to determine what changes can be made to

bring improvement. Therefore, TQM introduces a

new angle of view to SOA systems when adapting

environment. However, employing TQM does not

indicate abandoning QoS management. There is no

conflict between TQM and QoS management. On

the contrary, they are two complementary

approaches for SOA to accommodate the changing

environment: (1) TQM can be used to adjust the

process of interaction and cooperation among

services. (2) QoS management can be used to switch

services based on the latest quality requirement.

4.2 S2: Flattening the Structure of

SOA Systems

Under the Operations research topic of service-

oriented computing, we propose to flatten the

structure of SOA systems when considering service

composition. In human organizations, every level in

a hierarchy will inevitably involve more operating

costs (George and Jones, 2007). An organization

with a higher hierarchy may come with longer

decision making chains and slower responsiveness

to customers. Therefore, organizations can increase

efficiency by keeping their structures as flat as

possible. Furthermore, flat structure can decentralize

responsibility and control to lower-level employees

to take greater advantage of the skills and experience

of organization members.

In an SOA system’s hierarchy, the number of

levels can increase along with the growing cascade

of service composition. In general, a composite

service is recursively defined as an aggregation of

elementary and composite services. When thinking

of SOA from the organizational perspective,

composite services play integrative roles in an SOA

system. In organizations, an integrative role is a full-

time manager who is in charge of orchestrating work

across units (Kates and Galbraith, 2007). These

managers have accountability for results but are not

directly responsible for the resource achieving and

specific work that should be accomplished by staff.

A flat organizational structure can help reduce the

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

150

number of integrative roles. The similar scenario of

SOA implementation can be simply illustrated in

Figure 5.

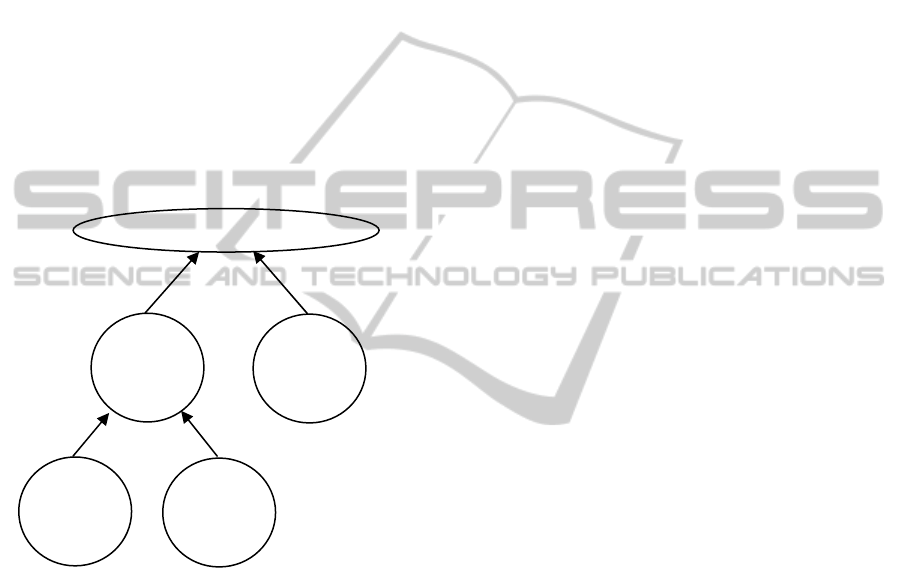

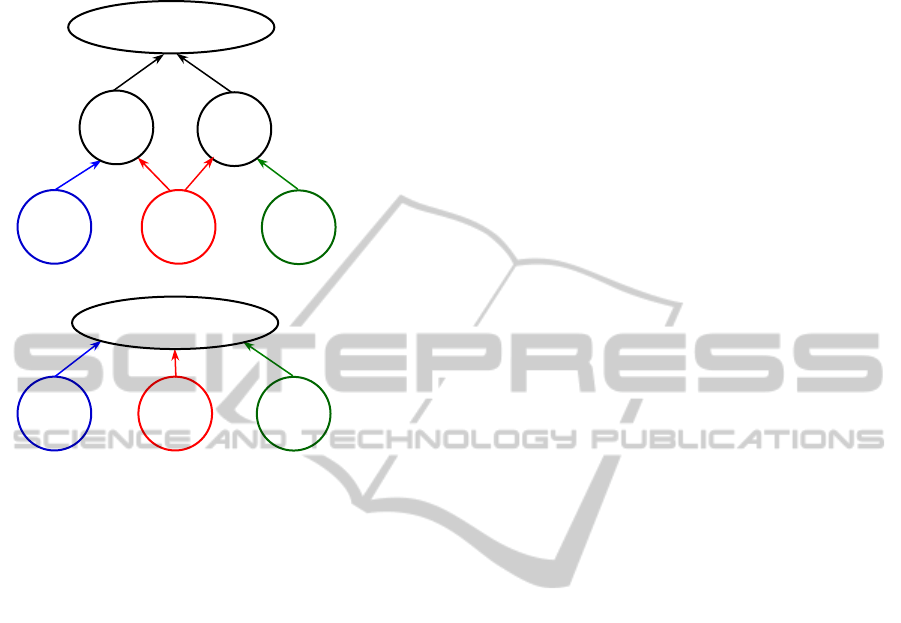

(a) Tall structure with composite service playing integrative role.

(b) Flattened structure

Figure 5: Tall structure vs. flat structure for implementing

the same business process.

Figure 5(a) shows a tall structure example of

some business process implementation by inserting

two composite services that respectively compose

two of the elementary services. Suppose only the

three elementary services are available at the

bottom, we can flatten the structure and move the

additional functionality of original composite

services upward, as shown in Figure 5(b), to reduce

the composition cost and lower the complexity of

the business process implementation. However, we

should keep the tall structure if the composite

service already exists or its reusability is to be

achieved. Therefore, when applying this strategy, the

value and cost should be well balanced to determine

the extent of flattening structure.

4.3 S3: Taking Measurements at

Interim Steps in Process

Under the Cross-Cutting research topic of service-

oriented computing, we propose to take

measurements at interim steps in process to govern

SOA implementation. When generating products

following certain working processes or designing the

working processes in an organization, it has been

proven valuable to take measurements at interim

steps in processes. The research and practice in

organizations during the past decades reveal that it is

increasingly important to ensure the work finishes

properly the first time instead of having to be redone

(Davis and Weckler, 1996). The inspections and

measurements can be applied to different steps in

processes to save the cost of rework and avoid flaws

in the end product.

When applying this strategy to SOA

implementation, the inspiration is to confirm the

individual work of each service in processes. The

idea behind this strategy is to clearly define

connected subtasks in a process, and specify and

measure the result of each subtask. It should be

noted that measuring interim task mainly concerns

the result rather than how the task is performed.

Considering a service is such an entity that performs

some task while hiding technical details, we can use

the interim task measurement to help identify the

most suitable services. Once all the services are

determined, the relevant business process can then

be correctly implemented.

4.4 S4: Building Virtual Business

Process Teams

Under the Business research topic of service-

oriented computing, we propose to build business

process teams to facilitate mapping between

business structure and service-oriented environment.

In human organizations, teams are cross-functional

structures that bring people outside the scope of

traditional departments to work together and share

collective responsibility for special and complex

assignments. A business process team is established

around one business process and includes people

who can collectively perform all the major activities

to carry out the business process from beginning to

end. Business process teams exist as a characteristic

of “horizontal organizations” (Davis and Weckler,

1996). Horizontal organizations instinctively tend to

flatten their structures by focusing on all the units

involved in completing certain work, rather than the

coordinate activities relying on a vertical hierarchy.

As analyzed in Section 4.1, horizontally established

business process teams then have advantages of

reduced management costs and less need for

coordination.

Building business process teams in an SOA

system should be a virtual division without many

real actions. All the services involved in a business

process logically constitute a team without changing

the existing structure of the SOA system. Through

virtual business process teams, the focus of

coordination and control can be balanced between

Service 1

Service

Comp-

osite

Service

Business Process

Comp-

osite

Service

Business Process

TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR SOA IMPLEMENTATIONS

151

inward IT and outward business during SOA

implementations. Furthermore, considering one

service can be involved in different business process

teams like the same scenario of organizational

teams, we can identify and scale services’

dependency of business processes in an SOA

system. The more dependency a service has, the

more carefully it should be controlled especially

when planning to modify or adapt this service.

5 AN EXAMPLE CASE

Here we use a simplified case to demonstrate how

the technology independent strategies can be applied

to improve an SOA implementation. The example

case is an SOA-based application in a travel agency,

as illustrated in Figure 6.

Figure 6: An SOA-based application of hotel booking in a

travel agency.

The travel agency books hotel through BPay on

behalf of a group of tourists, and will rent a car by

money transfer if the number of the tourists is more

than ten. Suppose there are three online banking

services, two hotel booking services and one car

rental service. Each service can fulfill its

corresponding business function, while Online

Banking Service B1 and Hotel Booking Service H1

are selected according to their reliability and

response time. Moreover, the business rule “rent a

car by money transfer if the number of the tourists is

more than ten” is encapsulated in a composite

service composed by Hotel Booking Service H1 and

Car Renting Service. The composite service is

implemented as a Reinforced Hotel Booking Service

following the technology based strategy of using

service composition to “fulfill a large extent of

future business automation requirements” (Erl,

2007). After applying the four proposed strategies,

this travel agency application will evolve as shown

in Figure 7.

5.1 Applying TQM (S1)

After a period of operation, the travel agency

receives many complaints from small groups of

tourists about inconvenience without cars. Hence,

the travel agency decides to change the business rule

into “rent a car by money transfer if the number of

the tourists is more than five”. When applying TQM

to the SOA system to check the cooperation among

services, we can find that the invocation of Car

Rental Service is inflexible because old business rule

is hardcoded in the Reinforced Hotel Booking

Service. Therefore, the number of tourists should be

set as a variable and exposed as an input parameter

of the composite service. The operation of this

composite service is then adjusted by accepting one

threshold parameter to improve the flexibility of the

SOA system.

5.2 Flattening the Structure (S2)

When analyzing the structure of the travel agency’s

SOA system, we find that the Reinforced Hotel

Booking Service does not have any reuse

opportunity. Furthermore, the encapsulated business

rule can be easily transformed into control flow

logic of invoking two component services, and

moving the control flow logic into upper business

logic will have little increase complexity for the

latter. Therefore, we can flatten the structure as

Figure 5(b) by removing the Reinforced Hotel

Booking Service to reduce the service maintenance

effort.

5.3 Measuring Interim Steps in Process

(S3)

Suppose both BPay and money transfer will result in

commission charges, and the charges vary

depending on different bank and transaction time.

We can then use the criterion “choose bank with the

lowest commission charges” to constantly and

simultaneously measure the three candidate online

banking services. The service of the bank that

charges the lowest fee will be dynamically employed

by the SOA system to help the travel agency save

money.

Reinforced

Hotel

Booking

Service

Travel Agency Application

Hotel

Booking

Service H1

Car Rental

Service

Online

Banking

Service B1

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

152

5.4 Building Virtual Teams (S4)

Based on the business logic behind the travel agency

application, we can identify there are two atomic

business processes: one is hotel booking through

BPay, and another is car rental through money

transfer. Consequently, the selected Online Banking

Service, Hotel Booking Service and Car Rental

Service can be logically grouped into two business

process teams. The coordination and control among

services in the hotel booking business process team

follows the BPay rules, while in the car rental

business process team obeys the money transfer

rules. Through the team building, we can naturally

arrange different cooperation for services in

different teams, and in this case we may further

identify the Online Banking Service is the key

service when implementing the SOA system.

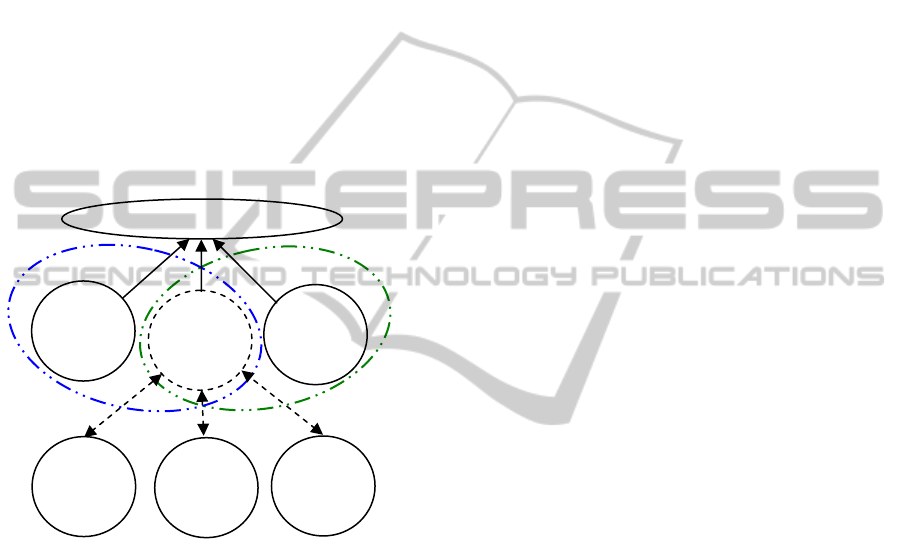

Figure 7: The travel agency application after applying four

proposed strategies.

6 CONCLUSIONS

The emergence of SOA has been considered a

feasible opportunity for modern enterprises to

leverage the capabilities of quickly adapting to

competitive and changing environment. Compared

with systems based on traditional architecture,

however, SOA systems are inherently more

complicated. Since the more complexity involved in

a system, the more difficulty the designers or

engineers have to understand the implementation

process and thus the system itself (Cardoso, 2005), it

is vital to find a set of implementation strategies to

help achieve the promises of SOA. Based on the

review of the relevant literature, we can identify a

suite of technical strategies based on the current

state of the art of Web technology. For example, to

hide the technical details to abstract services, to

standardize the contract of communication between

services, to decouple the logic as well as the

implementation of services, and to use service bus to

facilitate service integration. Whereas, technology

based strategies cannot guarantee the success of

SOA implementations (Rosen et al., 2008). We

therefore notice that the technology independent

strategies should also be emphasized as the

supplements in implementing SOA.

By presenting an organization-based view to

comprehend SOA, and treating SOA

implementations as organizational activities, this

paper delivers three main contributions. First,

interdisciplinary research opportunities are

suggested across SOA area and organization theory

area. Second, the methodology of investigating

strategies for implementing SOA is proposed by

analogizing organization design with SOA

implementation. Last, benefiting from existing work

of organization design in the organization theory

domain, four preliminary strategies conforming to

the general goals of SOA are identified and

suggested at this stage.

The four technology independent strategies

highlighted in this paper can be applied to different

steps in the process of organizational design. When

applying them in an SOA environment, one

simplified example case is elaborated to show their

applicability for SOA implementations. However,

their value and effectiveness still need to be further

investigated and evaluated in practice. Therefore, the

future work of this research is to explore other

technology independent strategies for SOA

implementation, as well as to apply these strategies

in real scenarios and report the empirical results.

REFERENCES

Moore, R., Lopes, J., (1999. Paper templates. In

TEMPLATE’06, 1st International Conference on

Template Production. SciTePress.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

Argente, E., Julian, V. and Botti, V. (2006). Multi-agent

system development based on organizations.

Electronic Notes in Theoretical Computer Science,

150(3), 55-71.

Bakan, J. (2005). The Corporation: The Pathological

Pursuit of Profit and Power. New York: Free Press.

Burton, R. M., DeSanctis, G. and Obel, B. (2006).

Organizational Design: A Step-by-Step Approach.

Cambridge, UK: Cambridge University Press.

Selected

Online

Banking

Service

Travel Agency Application

Hotel

Booking

Service H1

Car Rental

Service

Online

Banking

Service B2

Online

Banking

Service B1

Online

Banking

Service B3

Hotel Booking

Tea

Rental

Measure and Replace

TOWARDS TECHNOLOGY INDEPENDENT STRATEGIES FOR SOA IMPLEMENTATIONS

153

Campbell, D. and Craig, T. (2005). Organisations and the

Business Environment (2nd ed.). Burlington, MA:

Butter-worth-Heinemann.

Cardoso, J. (2005). How to measure the control-flow

complexity of Web processes and work-flows.

Workflow Handbook 2005 (pp. 199-212). Layna

Fischer.

Conway, M. E. (1968). How do committees invent?

Datamation, 14(4), 28-31.

Daft, R. L. (2009). Organization Theory and Design (10th

ed.). Mason, OH: South-Western College Pub.

Davis, M. R. and Weckler, D. A. (1996). A Practical

Guide to Organization Design. Menlo Park,

California: Crisp Publications, Inc..

Erl, T. (2007). SOA Principles of Service Design. Boston,

MA: Prentice Hall PTR.

Erl, T. (2009). SOA Design Patterns. Boston, MA:

Prentice Hall PTR.

Fitoussi, D. and Tennenholtz, M. (2000). Choosing social

laws for multi-agent systems: Minimality and

simplicity. Artificial Intelligence, 119(1-2), 61-101.

Fox, M. S. (1981). An organizational view of distributed

systems. IEEE Transactions on Systems, Man, and

Cybernetics, SMC-11(1), 70–80.

Galbraith, J. R. (1974). Organization design: An

information processing view. Interfaces, 4(3), 28-36.

George, J. and Jones, G. (2007). Understanding and

Managing Organizational Behavior (5th ed.). Boston,

MA: Prentice Hall.

Heath, C. and Staudenmayer, N. (2000). Coordination

neglect: How lay theories of organizing complicate

coordination in organizations. Research in

Organizational Behaviour, 22, 153-191.

Jamil, E. (2009). SOA in asynchronous many-to-one

heterogeneous bi-directional data synchronization for

mission critical applications. WeDoWebSphere.

Retrieved January 14, 2011 from

http://wedowebsphere.de/node/30604

Josuttis, N. M. (2007). SOA in Practice: The Art of

Distributed System Design. Sebastopol: O'Reilly

Media, Inc..

Kates, A. and Galbraith, J. R. (2007). Designing Your

Organization: Using the STAR Model to Solve 5

Critical Design Challenges. San Francisco, CA:

Jossey-Bass.

Kaynak, H. (2003). The relationship between total quality

management practices and their effects on firm

performance. Journal of Operations Management,

21(4), 405-435.

Kontogiannis, K., Lewis, G. A. and Smith, D. B. (2008). A

research agenda for service-oriented architecture. In

SDSOA’08, 2nd International Workshop on Systems

Development in SOA Environments (pp. 1-6). ACM

Press.

Krafzig, D., Banke, K. and Slama, D. (2004). Enterprise

SOA: Service-Oriented Architecture Best Practices.

Upper Saddle River, NJ: Prentice Hall.

Lawler, J. P. and Howell-Barber, H. (2007). Service-

Oriented Architecture: SOA Strategy, Methodology,

and Technology. Boca Raton, FL: Auerbach

Publications.

McAuley, J., Duberley, J. and Johnson, P. (2007).

Organization Theory: Challenges and Perspectives

(1st ed.). England: Prentice Hall.

Newcomer, E. and Lomow, G. (2004). Understanding

SOA with Web Services. Upper Saddle River, NJ:

Addison-Wesley Professional.

OASIS. (2006). A reference model for service-oriented

architecture. White Paper. Billerica, MA.

Papazoglou, M. P. and Heuvel, W. -J. (2007). Service

oriented architectures: Approaches, technologies and

research issues. The VLDB Journal, 16(3), 389-415.

Peng, Y., Liu, H. and Tao, H. (2009). Analyzing the

pathway of organizational change based on the

environmental complexity. In ECBI ’09, 2009

International Conference on Electronic Commerce

and Business Intelligence (pp. 463-466). IEEE

Computer Society.

Rosen, M., Lublinsky, B., Smith, K. T. and Balcer, M. J.

(2008). Applied SOA: Service-Oriented Architecture

and Design Strategies. Indianapolis, Indiana: Wiley.

Sarang, P., Jennings, F., Juric, M. and Loganathan, R.

(2007). SOA Approach to Integration: XML, Web

Services, ESB, and BPEL in Real-World SOA

Projects. Birmingham: Packt Publishing.

Seltsikas, P. (2001). Organizing the information

management process in process-based organizations.

In HICSS 34, 34th Hawaii International Conference

on System Sciences (pp. 8066), IEEE Computer

Society.

Sichman, J. and Demazeau, Y. (2001). On social

reasoning in multi-agent systems. Revista Ibero-

Americana de Inteligncia Artificial, 13, 68-84.

Walton, M. (1988). The Deming Management Method.

New York, NY: Perigee Books.

Yau, S. S., Ye, N., Sarjoughian, H. and Huang, D. (2008).

Developing service-based software systems with QoS

monitoring and adaptation. In FTDCS 2008, 12th

IEEE International Workshop on Future Trends of

Distributed Computing Systems (pp. 74-80), IEEE

Computer Society.

ENASE 2011 - 6th International Conference on Evaluation of Novel Software Approaches to Software Engineering

154
