BPEL-TIME

WS-BPEL Time Management Extension

Amirreza Tahamtan, Christian Oesterle, A Min Tjoa

Institute of Software Technology & Interactive Systems, Information & Software Engineering Group

Vienna University of Technology, Favoritenstrasse 9-11/188, A-1040 Vienna, Austria

Abdelkader Hameurlain

Institut de Recherche en Informatique de Toulouse, University Paul Sabatier

Route de Narbonne, 31062 Toulouse Cedex, France

Keywords:

WS-BPEL, Extension, Time, Temporal management, Business process, Design, Execution, Monitoring.

Abstract:

Temporal management and assurance of temporal compatibility is an important quality criteria for processes

within and across organizations. Temporal conformance increases QoS and reduces process execution costs.

WS-BPEL as the accpetd industry standard lacks sufﬁcient temporal management capabilities. In this paper

we introduce BPEL-TIME, a WS-BPEL extension for time management purposes. It allows the deﬁnition,

execution and monitoring of business processes with time management capabilities. This extension makes

a ﬁxed, variable and probabilistic representation of temporal constraints possible and checks if the model is

temporally compliant. Our approach avoids temporal failures by the prediction of the future temporal behavior

of business processes.

1 INTRODUCTION

Temporal conformance and compliance are important

quality criteria for business processes and interorga-

nizational workﬂows. Processes may have deadlines.

The assigned deadlines may be part of the service

level agreement between partners or enforced by law

or organizational policies. It must be ensured that the

right information is delivered to the right activity at

the right time and the process executes in a timely

manner in order to be able to hold the deadlines. Tem-

poral conformance on the one hand increases the QoS

and on the other hand reduces the cost of process ex-

ecution as costly exception handling mechanisms can

be avoided. Temporal management can be used for

three different purposes (Tahamtan, 2009):

• Predictive time management: to predict the pos-

sible temporal behavior of the system and pre-

calculate future possible violations of temporal

constraints.

• Pro-active time management: to detect potential

future violations and raise alarm in these cases

such that counter-measure mechanisms can be tri-

ggered early enough.

• Reactive time management: to react and trigger

exception handling mechanisms if a temporal fail-

ure has already occurred.

Web Services and SOA offer several advantages

for implementation of business processes such as

interoperability, loosely coupling and composition.

WS-BPEL has become the accepted standard for de-

scription end execution of business processes based

on Web Services. In the realm of web services we

mainly talk about two concepts: choreographies and

orchestrations or in the WS-BPEL notation, abstract

and executable processes.

A WS-BPEL executable process or orchestration

is controlled and run by one partner. A partner’s inter-

nal logic and business know-how are contained in his

executable process. Other tasks such as data transfor-

mations, data handling, arithmetic operations and the

actual performed work are as well contained in this

process. An executable process is solely visible to its

ownerand other external partners have no viewon and

knowledge about it. An executable process is a pro-

cess viewed only from the perspective of its owner.

Tahamtan A., Oesterle C., Min Tjoa A. and Hameurlain A..

BPEL-TIME - WS-BPEL Time Management Extension.

DOI: 10.5220/0003471000340045

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 34-45

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

On the other hand, a choreography,which is called

abstract process in WS-BPEL, describes business pro-

tocols. An Abstract Process may be used to describe

observable message exchange behavior of each of the

parties involved, without revealing their internal im-

plementation (Alves et al., 2007). An abstract pro-

cess can use all the construct of an executable process

and have the same expressive power but it is not in-

tended to be executed. It has merely a descriptiverole.

An abstract process deﬁnes a collaboration among in-

volved partners to reach an overall business goal. It

contains only visible exchanged messages between

partners in course of a business process. An abstract

process has no owner or a super user in charge of con-

trol and all involved partners are treated equally. It is

a process deﬁnition from a global perspective shared

among all involved partners (Peltz, 2003).

In order to ensure that cooperating business pro-

cesses are temporally compliant, it must be guaran-

teed that both the tasks performed in executable pro-

cesses and the protocols described in abstract pro-

cesses have a compliant temporal behavior. The Con-

tribution of this paper is an extension of WS-BPEL

called BPEL-TIME (WS-BPEL Time Management

Extension) to ensure temporal compatibility of busi-

ness processes. BPEL-TIME consists of two compo-

nents, a design time component and a run time com-

ponent. The design time component allows the def-

inition of temporal constraints. At design time it is

checked if the model is temporally feasible, i.e. if

there is a solution that satisﬁes all the temporal con-

straints. If the system is temporally not feasible, it

can be detected at design time and necessary mod-

iﬁcations performed. We calculate a valid temporal

window for each activity in this phase. If an activity

executes within its valid temporal window it is guar-

anteed that the whole process terminates successfully.

The run time component monitors the execution of

the process and informs the process manager if any

deviation from valid temporal windows is detected.

Based on the calculations at design time, the run time

component predicts the future temporal behavior of

the ﬂow and informs the process manager about its

status. Our approach is based on prevention of er-

rors rather than repairing them after their occurrence.

By predicting the behavior of a ﬂow appropriate mea-

sures can be triggered in order to guarantee its suc-

cessful execution. BPEL-TIME offers two different

possibilities: an interval-based and a probabilistic ap-

proach The interval-based approach allows the def-

inition of ﬁxed and/or variable temporal constraints

such as deadlines and durations. The probabilistic ap-

proach enables a probabilistic representation of tem-

poral constraints and takes also branching probabili-

ties into account.

2 MODEL DESCRIPTION

For modeling and calculation of temporal plans of

WS-BPEL executable and abstract processes three

types of constraints have to be considered:

• Implicit Constraints are derived implicitly from

the structure of a process, e.g. an activity can start

execution if and only if all of its predecessors have

ﬁnished execution. This kind of constraints also

can be referred to as structural constraints.

• Explicit Constraints, e.g. assigned deadlines,

can be set explicitly by the process designer or

enforced by law, regulations or business rules.

• Dependencies with other Processes may impose

a temporal restriction on a process. It is not

enough to perform a temporal analysis in isola-

tion. The dependencies with other abstract and

executable processes must also be taken into ac-

count.

The ﬁrst two constraints are needed to calcu-

late the temporal plan of one single process. The

third constraint must be considered in order to check

the temporal conformance and calculate the temporal

plans of a set cooperating processes. We model the

ﬁrst two constraints using two different modeling ap-

proaches: the interval-based and the probabilistic ap-

proach. Both models are described in subsections 2.1

and 2.2 respectively.

2.1 Interval-based Approach

The interval-based approach allows modeling of ﬁxed

and variable durations of activities. The duration

of an activity can take any value within an interval

bounded by minimum and maximum durations, e.g.

a.d = [a.d

min

, a.d

max

], where a.d refers to duration of

an activity a. We use upper-bound and lower-bound

constraints (Eder and Panagos, 2001) to model the in-

terval within which the duration of an activity lies.

Lower-bound Constraint identiﬁes the minimum

temporal distance between two events. Let a

be the source event and b the destination event.

lbc(a, b, δ) denotes that between the event a and

the event b at least δ time points must pass.

Upper-bound Constraint identiﬁes the maximum

temporal distance between two events. Let a

be the source event and b the destination event.

ubc(a, b, δ) denotes that between the event a and

the event b at most δ time points can pass.

BPEL-TIME - WS-BPEL Time Management Extension

a.d

min

and a.d

max

can be modeled by deﬁning the

minimum and maximum allowed time points between

start event and end event of an activity respectively.

This scenario as depicted in ﬁg. 1, where a.d = [2, 7],

and a

refer to the start event and end event of the

activity a. Obviously an activity can also be assigned

a ﬁxed value, if a.d

min

= a.d

max

. Note that in the rest

of this paper, for the sake of brevity, we do not illus-

trate lbc and ubc as well as start and end events in

the graphs. lbc and ubc are not only used for mod-

eling d

min

and d

max

of activities. They can also be

used for modeling temporal constraints between dif-

ferent activities. For example ubc and lbc can be used

for modeling requirements such as approval or rejec-

tion of an application may take at most one week after

its receipt and sending a notiﬁcation to the applicant

takes at least three days.

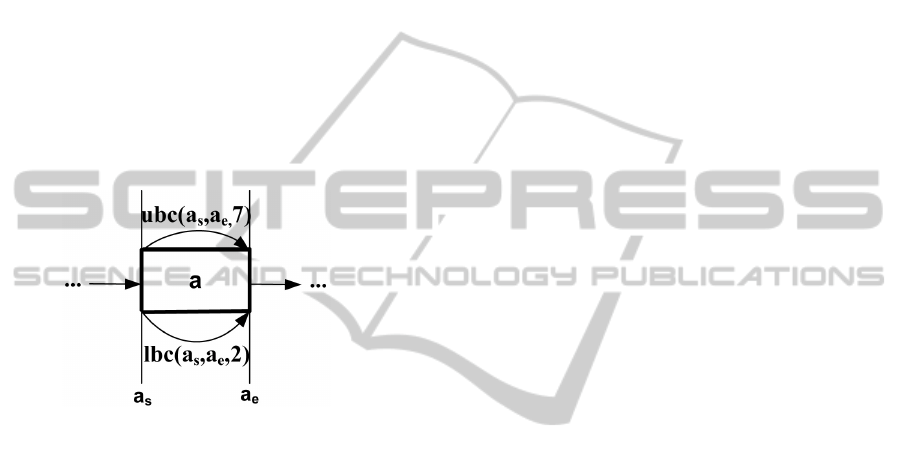

Figure 1: Modeling d

min

and d

max

by lbc and ubc.

As the basic modeling language, we adapt the

model presented in (Tahamtan, 2009). It is a timed ac-

tivity graph or timed graph (Panagos and Rabinovich,

1997) augmented with start and end events for ac-

tivities. Timed graphs are familiar workﬂow graphs

where nodes correspond to activities and edges to the

dependencies between activities, enriched with tem-

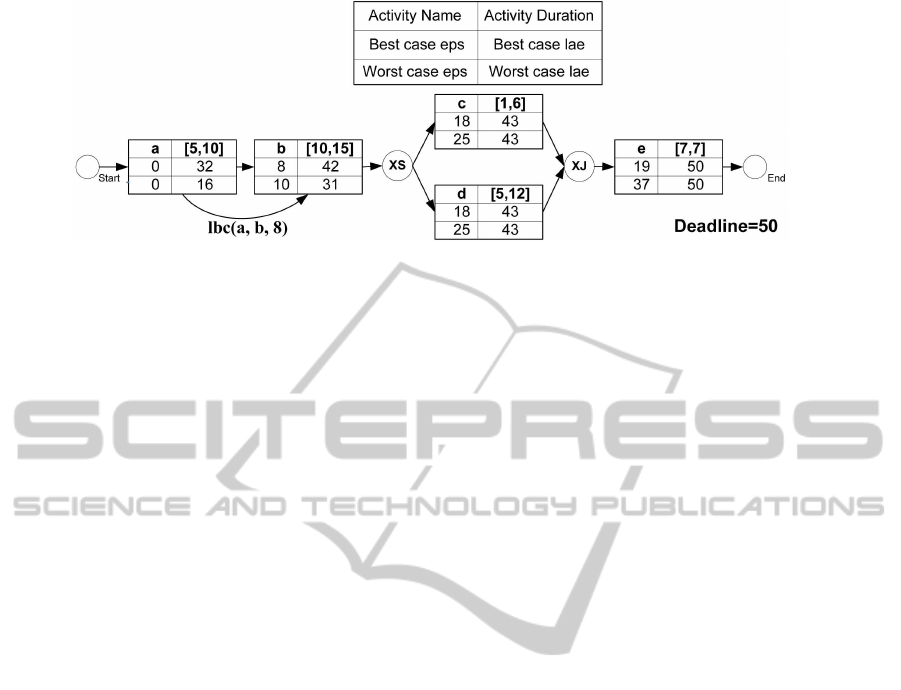

poral information. Fig. 2 shows an example of the

model. All activities have a unique name and two cor-

responding events (start and end events). The other

notions used in the ﬁg. 2 are described in subsec-

tion 2.1.1. Because BPEL-processes are full-blocked

(WMC, 2002), in this work we restrict the graphs to

full-blocked ones, i.e. each split node has a counter-

part join node and vice versa.

2.1.1 Calculation of Temporal Values

For calculation of temporal values, we extend the al-

gorithms developed in our previous works (Eder and

Tahamtan, 2008; Eder et al., 2008). All activities have

durations. a.d denotes the duration of an activity a.

The duration is an interval bounded by minimum and

maximum durations. At the ﬁrst use of a model an es-

timation of the activity durations, e.g. expert opin-

ion, may be used. Later, workﬂow logs can be mined

for actual activity durations. An interval in which an

activity may execute is calculated. This interval is de-

limited by earliest possible start (eps-value) and lat-

est allowed end (lae-value). a.eps denotes the eps-

value of an activity a and is the earliest point in time

in which the activity a can start execution. eps-values

reﬂect the implicit constraints of a ﬂow. a.lae rep-

resents the latest point in time in which an activity

a can ﬁnish execution in order to hold the assigned

deadline. lae-values reﬂect the explicit constraints of

a ﬂow. Both eps and lae values are calculated for best

case and worst case. Best case and worst case identi-

ﬁes the execution of the shortest and longest path of a

ﬂow respectively. a.bc.eps refers to best case eps and

a.wc.eps refers to worst case eps of an activity a. The

same applies to lae-values. eps-values are calculated

in a forward pass by adding the eps-value of the pre-

decessor to its duration. Minimum duration for best

case and maximum durationfor worst case are consid-

ered. For example b.bc.eps = a.bc.eps+ a.d

min

and

b.wc.eps = a.wc.eps+ a.d

max

if an activity a is a pre-

decessor of an activity b. If an activity a has multiple

predecessors, e.g. if activity a is an immediate suc-

cessor of an AND-join or the target node of an lbc,

the maximum of eps-values of predecessors of a and

the lbc is taken into account. The eps-value of the

ﬁrst activity or the set of ﬁrst activities are set to 0.

In contrast to the eps-values, lae-values are calcu-

lated in a backward pass by subtracting the lae-value

of the successor from its duration, e.g. a.bc.lae =

b.bc.lae − b.d

min

and a.wc.lae = b.wc.lae− b.d

max

an activity b is a successor of an activity a. If an ac-

tivity a has multiple successors, e.g. if activity a is

source of an lbc, the minimum of lae-values of prede-

cessors of a and the lbc is taken into account.

Temporal values of a simple graph are depicted in

ﬁg. 2. Given known activity durations, in addition we

can calculate earliest possible end (epe-values) and

latest allowed start (las-values) for an activity, us-

ing the following formulas: a.epe = a.eps + a.d and

a.las = a.lae− a.d. We refer to eps-values and epe-

values as e-values and to lae-values and las-values as

l-values. In this approach we handle loops as com-

plex activities. For calculation of the temporal plan

at design time we consider only one iteration. Be-

cause the actual iterations of a loop is not known at

design time, its execution is monitored at run time

and process manager receives notiﬁcations about the

temporal status of the process. For a more detailed

discussion on calculation of interval-based values and

their algorithms, refer to (Tahamtan, 2009; Eder and

Tahamtan, 2008).

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Figure 2: An example of a timed graph with deadline= 50.

2.2 Probabilistic Approach

Fixed or variable duration of activities can be mod-

eled using the interval-based approach. However, in

some use cases one may need to consider branching

probabilities. The probabilistic approach described in

the following subsections caters for probabilistic rep-

resentation of temporal constraints.

2.2.1 Probabilistic Model Description

In order to express variable duration of activities, the

notion of time histograms (Pichler, 2006; Eder and

Pichler, 2002) is used. A duration histogram is a

data structure for representation of the (probabilistic

and variable) duration of basic activities, complex ac-

tivities, subworkﬂows and workﬂow itself. A dura-

tion histogram is a tuple (p, d), where p is a prob-

ability and d a duration. For example the proba-

bilistic duration of an activity can be represented as

{(0.1, 10), (0.25, 12), (0.32, 15), (0.33, 20)}. This dura-

tion can be interpreted as follows: the duration of this

activity is with the probability 10%, 10 time points,

with the probability 25%, 12 time points, with the

probability 32%, 15 time points and with the proba-

bility 33%, 20 time points. If a duration histogram

contains any tuples whose time values are the same,

these tuples must be merged by adding the probabil-

ities of tuples with the same duration. A workﬂow

graph augmented with probabilistic temporal infor-

mation for activities and nodes is referred to as proba-

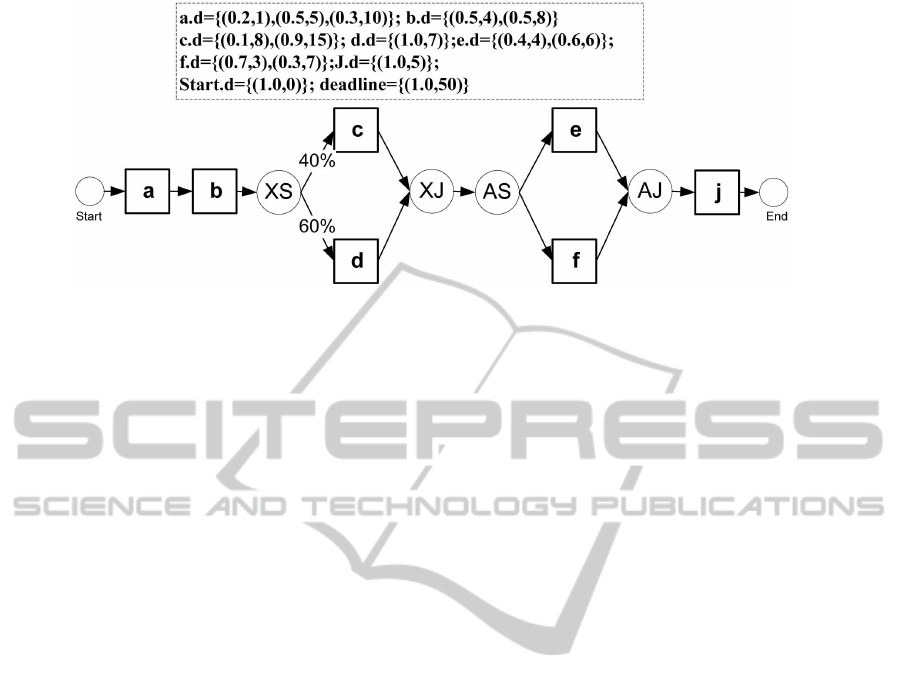

bilistic timed graph (PTG). Fig. 3 illustrates an exam-

ple of such a probabilistic timed graph. The duration

of activities are given in the table above the graph.

All control nodes have the duration 0. The dead-

line of the workﬂow is also given in form of a (proba-

bility, duration) tuple. Further, it is assumed that there

is no delay between end of an activity and start of its

successor or the set of its successors. Analogous to

duration histograms (d-histograms), (Pichler, 2006)

deﬁnes e-histograms for presentation of e-values and

l-histograms for presentation of l-values. Note that

for probabilistic calculations we do not consider best

and worst case or lbc and ubc.

2.2.2 Histogram Operations

In order to calculate the temporal values, operations

on histograms are necessary. Theses histograms oper-

ations are brieﬂy introduced in this subsection.

The histogram addition generates the carte-

sian product of the tuples of two histograms,

where probabilities are multiplied and time values

are added: {(0.25, 3), (0.75, 5)} + {(0.5, 3), (0.5, 5)} =

{(0.125,6), (0.125, 8), (0.375, 8), (0.375, 10)}. Resulting

tuples with equal time values are aggregated, which

means they are merged by summing up their proba-

bilities: {(0.125, 6), (0.5, 8), (0.375, 10)}.

The histogram subtraction h

−h2 is a variation of

the addition, with the only difference that time values

for the resulting tuples are subtracted.

The histogram conjunction also generates

a cartesian product. Again probabilities are

multiplied, but this time the maximum time

value of each tuple-combination determines

the time value of the resulting tuple. There-

fore it is also called the max-conjunction:

{(0.25, 3), (0.75, 5)}

max

{(0.5, 3), (0.5, 5)} = {(0.125, 3),

(0.125, 5), (0.375, 5), (0.375, 5)}. Again the ﬁnal

resulting histogram has to be aggregated, which

results in {(0.125, 3), (0.875, 5)}. A variation of this

operation is the min-conjunction which determines

the time value of the resulting tuple by applying a

minimum-operation.

The weight-operation multiplies all proba-

bilities of a histogram with a given probability:

{(0.25, 3), (0.75, 5)} ∗ 0.25 = {(0.0625, 3), (0.1875, 5)}.

Please note that the weight operation produces an

invalid histogram, as the sum of probabilities is less

than 1.0. Therefore it always appears in combination

with the histogram disjunction, which merges two

weighted histograms:

{(0.0625,3), (0.1875, 5)}

{(0.375,3), (0.375, 5)} =

BPEL-TIME - WS-BPEL Time Management Extension

Figure 3: A sample probabilistic timed graph (PTG).

{(0.0.625,3), (0.1875, 5), (0.375, 3), (0.375, 5)}; and the

aggregation which yields to {(0.4375, 3), (0.5625, 5)}.

Both, conjunction and disjunction, are commuta-

tive and associative, therefore they can be extended

to k histograms, e.g.: h = h

∨ . . . ∨ h

, where

1 ≤ i ≤ k.

The histogram comparison is applied for compar-

ing two histograms with each other. Unlike discrete

values, two histograms h

and h

may partially over-

lap. Thus an expression like h

< h

can be true and

false at the same time, each at least up to a certain

degree. The comparison of two histograms h

and

with the comparison-operator⊲⊳ ∈ {≤, <, =, >, ≥}

for a given degree 0 ≤ deg ≤ 1 is deﬁned as follows:

⊲⊳

deg







true : Σp

∗ p

≥ deg∧ t

⊲⊳ t

∀(p

) ∈ h

, ∀ (p

) ∈ h

false : otherwise

Based on the histograms h

and h

, depicted in ﬁg. 4,

we can make the following statements: up to a degree

of 0.545, h

is greater than h

and up to a degree of

0.35, h

is equal to h

. For instance, the following ex-

pressions are true: h

0.05

, h

0.25

, h

0.545

, and the following are false: h

0.7

, h

≥

0.9

In order to check the total histogram equality the cer-

tainty degree must be set to 1.0: h

1.0

. To ensure

that two histograms have no overlapping regions at

all, they must be compared with the certainty degree

of 1.0: h

1.0

or h

1.0

A relaxed certainty allows for overlapping re-

gions, which might prove useful especially if there

are (extreme) outliers in histograms. For example

imagine that the mean of a histogram h

is 5 and it

contains one extreme outlier, the tuple (0.005,1000).

Even with a histograms h

that contains much higher

time values, a <-comparison with 100%-certainty al-

ways yields false. Relaxing the certainty-value just by

0.01% will avoid most conformance-conﬂicts (still,

one day this highly improbable case might occur).

2.2.3 Calculation of Probabilistic Timed Graphs

e-histograms (eps-histograms, epe-histograms) of

nodes of a workﬂow can be calculated by apply-

ing the forward calculation rules in a topological or-

der. These rules are speciﬁed in table 1 according

to the node types. In table 1, node.eps denotes the

eps-histogram of the current node, node.epe its epe-

histogram, node.d the duration histogram of the cur-

rent node, pred.epe identiﬁes the epe-histogram of

the predecessor node, node.Pred the set of predeces-

sor nodes of the current node and p

pred⇒node

identi-

ﬁes the execution probability of the edge connecting

the predecessor node to the current node.

Except for nodes with multiple incoming paths,

i.e. AND-join and XOR-join, the duration-histograms

are summed up to calculate the according e-

histograms. For AND-joins the max-conjunction is

applied because the longest path (or histogram-tuple)

determines the resulting tuple. For XOR-joins, the

histograms of predecessors are weighted with the ac-

cording branching probability and subsequently they

are merged applying the conjunction.

Analogously, for calculation of l-histograms (las-

histograms and lae-histograms) the backward calcu-

lation rules, as speciﬁed in table 2, have to be ap-

plied in a backward topological order. In table 2

node.lae refers to the lae-histogram of the current

node, node.las the las-histogram of the current node,

{(1.0, δ)} denotes the assigned deadline, node.d the

duration histogram of the current node, succ.las

identiﬁes the las-histogram of the successor node,

node.Succ the set of successor nodes of the current

node and p

node⇐succ

the execution probability of the

edge connecting the current node with the successor

node.

When reversing the direction of calculation, be-

ginning from the end-node to the start-node, his-

togram subtraction is applied instead of histogram ad-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

0.15

0.50

0.35

0.30

0.70

0.045 10

0.350

0.105

0.150

0.245

> t

: 54.5 %

* p

Histogram h

= t

: 35.0 %

< t

: 10.5 %

<= t

: 45.5 %

=> t

: 89.5 %

Figure 4: Calculating the values for histogram comparison.

Table 1: Calculation of e-histograms.

type of node node.eps = node.epe =

Start {(1.0, 0)} node.eps+ node.d

End pred.epe node.eps+ node.d

Activity pred.epe node.eps+ node.d

AND-split pred.epe node.eps+ node.d

XOR-split pred.epe node.eps+ node.d

AND-join ∀pred ∈ node.Pred :

max

(pred.epe) node.eps+ node.d

XOR-join ∀pred ∈ node.Pred :

(pred.epe∗ p

pred⇒node

) node.eps+ node.d

dition. lae-histogram of the end node is initialized

with the assigned deadline. Special rules must be ap-

plied when calculating the l-histograms of the nodes

with multiple outgoing paths: AND-split and XOR-

split. lae-histogram of an AND-split is calculated by a

min-conjunction over its outgoing paths. XOR-splits

are calculated by a weighted disjunction of the outgo-

ing paths. The probabilistic approach provides better

means for handling loops. Again here, loops are han-

dled as complex activities. The number of iterations

can be reﬂected in durations of the complex activity

with different probabilities. At run time the execu-

tion is monitored. For a more detailed discussion of

the probabilistic approach and some examples, refer

to (Eder et al., 2008).

3 TEMPORAL MANAGEMENT

OF WS-BPEL EXECUTABLE

AND ABSTRACT PROCESSES

The interval-based and the probabilistic approach pre-

sented above can be used to calculate the temporal

plan of one single executable or abstract process in

isolation. However, in order to calculate the tem-

poral plans of a set of cooperating executable and

abstract processes and check their temporal confor-

mance, it is necessary to consider the dependencies

between them. Executable and abstract processes

may be linked in several ways. A typical scenario

(Barros et al., 2005; Decker et al., 2006; Dijkman and

Dumas, 2004) of web service composition assumes

one abstract process shared among several partners

where each partner realizes its parts of the abstract

process in its executable process. The shared abstract

process deﬁnes the communication among executable

processes. This scenario is depicted in ﬁg. 5. An exe-

cutable process does not solely contain (a subset of) of

activities of an abstract process rather it may contain

other internal tasks of its owner. (Eder et al., 2007)

provides a technique for checking if the ordering of

the activities in executable and abstract processes is

structurally compliant.

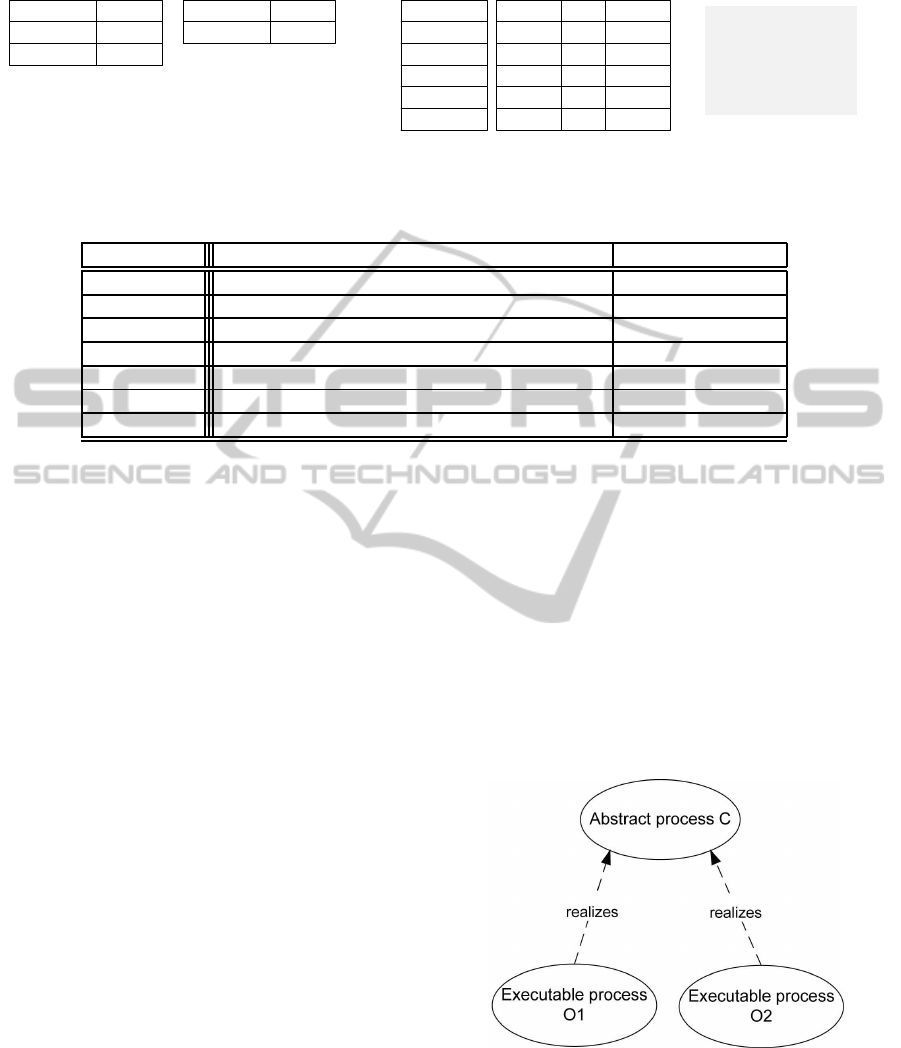

Figure 5: A typical scenario of Web Service composition.

(Eder et al., 2006; Tahamtan and Eder, 2011) in-

troduce other architectures for web service composi-

tion. This architecture is a two layered model where

an abstract or executable process can be an extended

subset of another abstract process. The most im-

BPEL-TIME - WS-BPEL Time Management Extension

Table 2: Calculation of l-histograms.

type of node node.lae = node.las =

End {(1.0, δ)} node.lae− node.d

Start succ.las node.lae− node.d

Activity succ.las node.lae− node.d

AND-join succ.las node.lae− node.d

XOR-join succ.las node.lae− node.d

AND-split ∀succ ∈ node.Succ :

min

(succ.las) node.lae − node.d

XOR-split ∀succ ∈ node.Succ :

(succ.las∗ p

node⇐succ

) node.lae − node.d

portant issue to consider regarding the dependency

between two nodes (abstract and/or executable pro-

cesses) is the greatest common divisor (GCD) of their

activities. GCD identiﬁes the set of common activities

in two nodes. A dependency between two nodes im-

plies that GCD of activities of two nodes is not empty,

i.e. these two nodes have at least one activity in com-

mon. Dependencies between activities are depicted

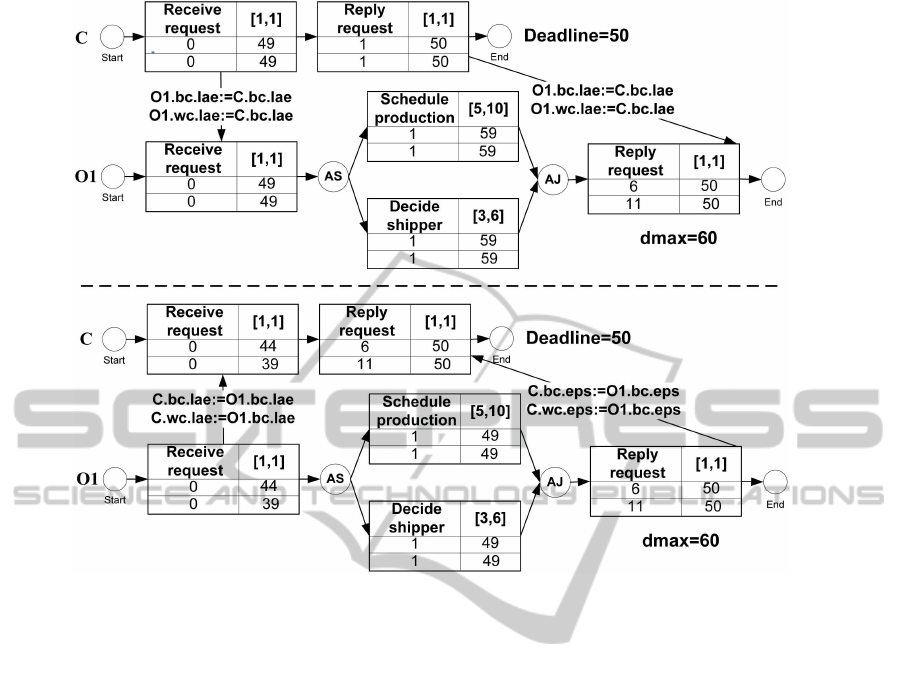

using links between them as in ﬁg. 5. Fig. 6 depicts

the abstract process C and the executable process O1

in ﬁg. 5. The GCD of two graphs include the activi-

ties Receive request and Reply request. For the sake

of brevity the the executable process O2 is omitted.

If two nodes have no common activities, these two

nodes are temporally independent from each other

and their temporal plans can be calculated in isola-

tion. If GCD of two nodes is not empty these two

nodes affect each other through the common activi-

ties. In this case a cycle of calculation-assignment-

recalculation beginning with the abstract process and

along the all links in the model must be repeated. In

the assignment phase, temporal values of the activi-

ties of GCD are assigned from the source node to the

target node. The assignment is only performed if e-

values of the source node are greater than e-values of

the target node. l-values are assigned if l-values of

the source node are smaller than those of the target

node. In other words an assignment is only allowed

if the current valid execution interval of an activity in

the target node becomes tighter. The concept of as-

signment is depicted in ﬁg. 6. If any temporal value

changes after the assignment, the temporal plan of the

graph must be recalculated as described above. Again

here, current values can be overwritten if newly cal-

culated e-values are greater than current values and

newly calculated l-values are smaller than current l-

values. This cycle is repeated until a stable state is

reached or the conformance condition is violated. A

stable state is reached if no changes is made after as-

signment of values from one node to another. Confor-

mance condition is violated if e-value of an activity

becomes greater than its corresponding l-value. The

top part of the Fig. 6 illustrates the graphs after calcu-

lation of C and O1 and assignment of values from C

to O1. The bottom part of the ﬁgure illustrates the val-

ues after recalculation at O1, assignment of the values

from O1 to C. A recalculation at C does not change

the values at C and hence these values are ﬁnal values.

As you can see the same activities in different graphs

have the same ﬁnal temporal values. The arrows only

shows the assigned values. For example in the top part

of the ﬁgure the e-values of the activity Receive re-

quest in the abstract process C are equal to those in the

executable process O1 and hence not assigned. The

probabilistic approach, as well, uses the same con-

cept for assignment and calculation of temporal plans.

The histogram comparison as described above can be

used for comparing histograms and assignment of val-

ues from one graph to another. The same technique

(calculation-assignment-recalculation) also applies if

there are more than one abstract process present in

the model. In ﬁg. 6 please also note the difference

between deadline and maximum duration (dmax). A

deadline is a point in time whereas maximum dura-

tion is a time period. For example deadline of a pro-

cess may be 15th of July, 12:00 but maximum dura-

tion says that a process can execute for 10 hours after

starting execution.

4 PROTOTYPICAL

IMPLEMENTATION

Our prototype has been implemented based on the

open source softwares Eclipse BPEL designer and

Apache ODE (Orchestration Director Engine). The

prototype consists of two components: A design time

component that allows the deﬁnition of cooperat-

ing processes, their dependencies and temporal con-

straints (deadline, activity durations, lower and up-

per bound constraints between activities). The de-

sign time component also checks the temporal sat-

isﬁability of the model. It checks if there exists a

solution that satisﬁes temporal constraints of all pro-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Figure 6: Propagation of values for the same activity in different graphs.

cesses. If such a solution does not exist the user will

be informed which part of the process has temporal

conﬂicts. In this case process structure or temporal

constraints should be redeﬁned such that the tempo-

ral constraints can be satisﬁed. Design time compo-

nent calculates a valid temporal window for each ac-

tivity. If activities execute within their valid temporal

window it can be guaranteed that all cooperating pro-

cesses execute and terminate in a temporally compli-

ant way. The run time component monitors the exe-

cution of each activity and checks if it executes within

its valid temporal window. If any deviation is found

the user receives an alarm about the process status.

We use the trafﬁc light model presented in (Eder and

Panagos, 2001). If all activities executes within their

valid temporal window the trafﬁc light is green and

everything is ok. If some activities deviate from their

precalculated valid temporal window but it is still pos-

sible to hold the deadline and satisfy the temporal

constraints (e.g. by executing the shortest path of a

conditional structure) the trafﬁc light turns to yellow.

If some activitiestook longer than expected and in any

case, even in best case scenario, temporal constraints

will be violated, the trafﬁc light turns to red. In this

case the process manager can decide to cancel the

execution prematurely or skip some activities. The

prototype, an installation and troubleshooting guide

and an introduction how to perform basic tasks such

as deﬁning BPEL-process, preparing wsdl-ﬁles and

setting up variables can be found on our homepage

(VUT, 2011).

4.1 Design Time Component

The design time component is prototyped under

Eclipse Helios. The required functionalities are im-

plemented under properties as depicted in ﬁg. 7. Af-

ter deﬁnition of the structure of the processes, the de-

pendencies between processes can be deﬁned using

the property choreography. A supported process can

be chosen using Select Process. A supported process

identiﬁes processes that have a link to this process,

i.e. their GCD is not empty. This can be an executable

process or another abstract process. The combo box

beneath allows for choosing processes that support

this process. Dependencies can be added or removed.

The result is written in an XML-ﬁle called dependen-

cies.xml.

Temporal constraints can be set under Constraints

(see ﬁg. 8). It is possible to set minimum and max-

imum duration of activities and the deadline for the

process. Further it is possible to add and remove op-

BPEL-TIME - WS-BPEL Time Management Extension

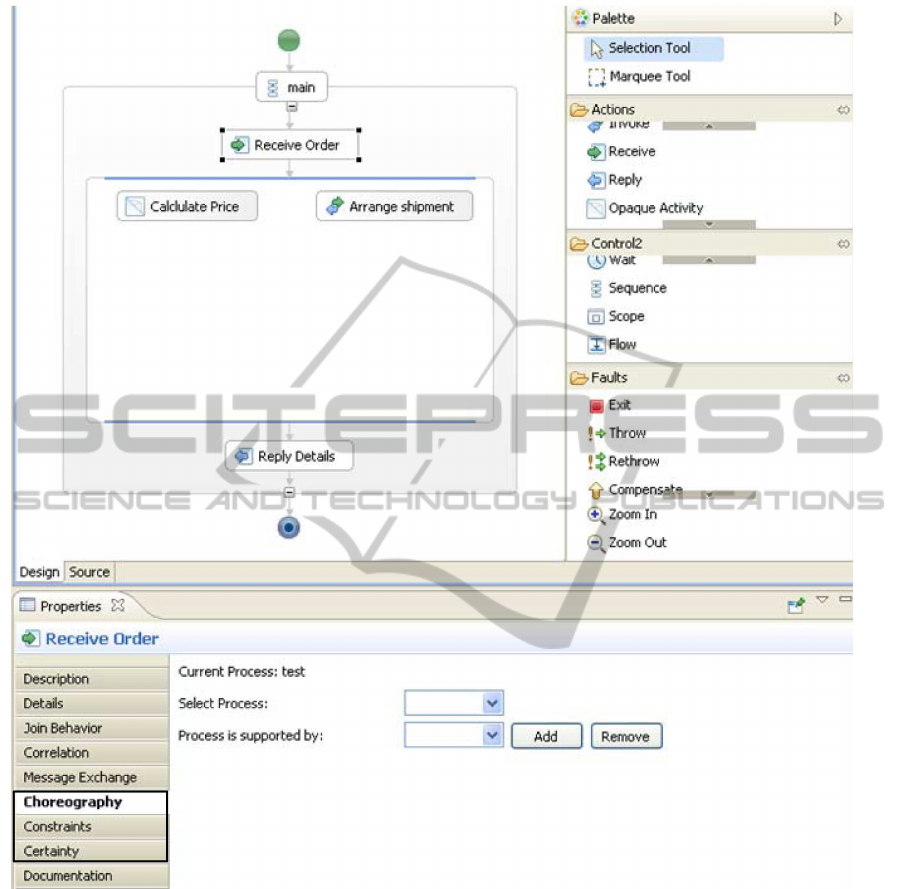

Figure 7: Deﬁnition of dependencies between processes.

tional lower and upper bound constraints between ac-

tivities. The right part of the ﬁg. 8 shows the temporal

values of each activity after calculation.

Certainty allows the deﬁnition of probabilistic

values: durations of activities and their probabilities

as well as the deadline of the whole process. The

probabilistic temporal values can be calculated by the

Calculate button.

4.2 Run Time Component

The run time component is implemented in Apache

ODE 1.3.4. It monitors the process execution and

checks if activities are executed within their valid

temporal interval. At process instantiation time, an

actual calendar is used in order to transform all time

information which was computed relative to the start

of the ﬂow to absolute time points (Eder et al., 1999).

For every instantiated activity, the calendar e-value is

compared with the start date of the instantiated activ-

ity. In the same way, the mapped calendar l-value is

also compared with the end date of the instantiated

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

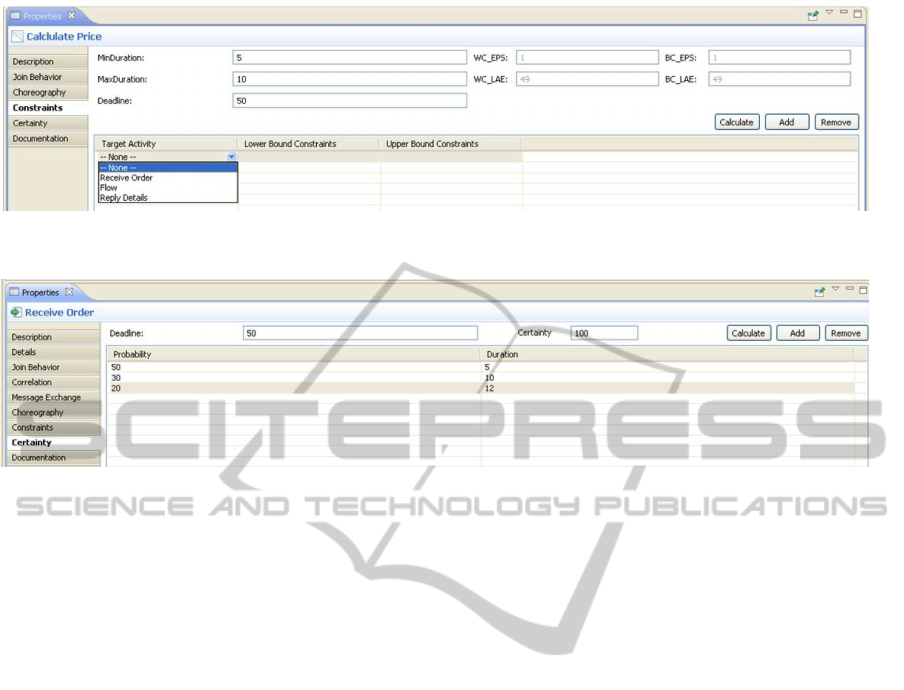

Figure 8: Deﬁnition and calculation of interval-based temporal values.

Figure 9: Deﬁnition and calculation of probabilistic temporal values.

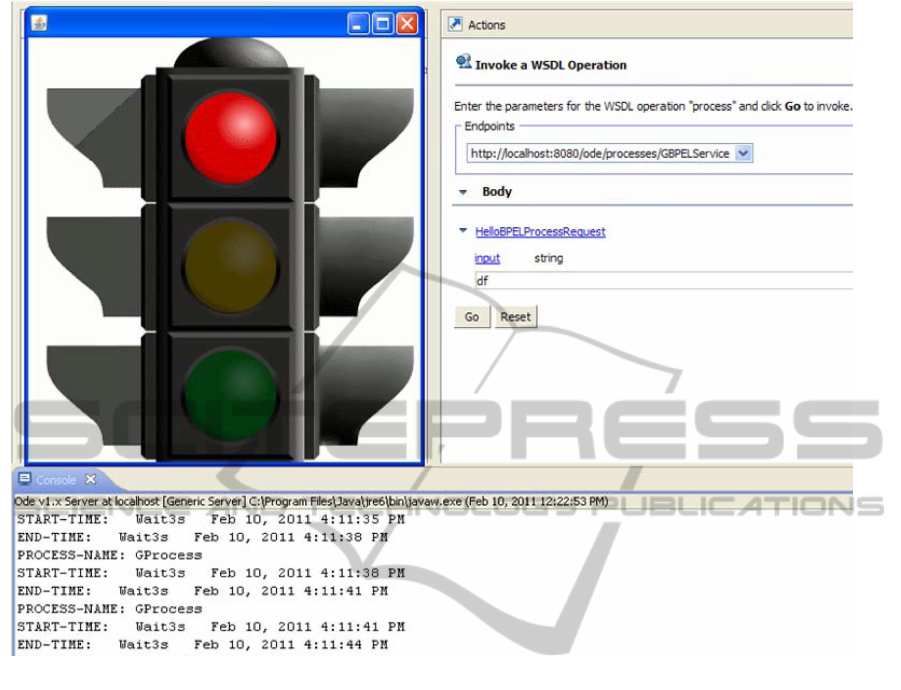

activity. The trafﬁc light model (Eder and Panagos,

2001) provides an overview for process manager. If

activities execute within their calculated interval at

design time it is guaranteed that all processes remain

temporally compliant. If some activities are delayed

and deviate from their valid temporal window, it is

possible that a deadline be violated. In this case the

trafﬁc light turns to yellow indicating that some ac-

tivities are delayed but it is still possible to ﬁnish the

execution in time. The process manager may decide

to force the process to execute the shortest path in or-

der to guarantee the temporal compliance. If activities

are delayed to the extent that future execution in any

case leads to temporal violation, the trafﬁc light turns

to red. In this case, the process manager may want

to cancel execution prematurely in order to reduce the

process execution costs. Fig. 10 shows a screen shot

of the run time component.

5 RELATED WORKS

One of the earliest works on time properties is (Allen,

1983). Allen describes a temporal representation us-

ing the concept of temporal intervals and introduces

a hierarchical representation of relationships between

temporal intervals applying constraints propagation

techniques. This work describes thirteen ways in

which an ordered pair of intervals can be related. Au-

thors in (Eder et al., 1999) present a model for calcu-

lation of temporal plans and propose some algorithms

for calculation and incorporation of time constraints.

(Eder and Panagos, 2001) provides a methodology

for calculating temporal plans of workﬂows at de-

sign time, instantiation time and run time. It consid-

ers several temporal constraints such as lower-bound,

upper-bound and ﬁxed-date constraints and explains

how these constraints can be incorporated. More-

over, a model for monitoring the satisfaction of tem-

poral constraints at run time is provided. (Eder et al.,

2000) provides a technique for modeling and check-

ing time constraints whilst conditional and parallel

branches are discriminated. In addition, an unfolding-

method for detection of scheduling conﬂicts is pro-

vided. Marjanovic in (Marjanovic, 2000) represents

the notions of duration space and instantiation space

and describes a technique for veriﬁcation of temporal

constraints in production workﬂows. The approach

presented in this paper is complementary to that in-

troduced in (Marjanovic, 2000) in the way that a

temporal plan for execution of all activities is cal-

culated. (Benatallah et al., 2005) uses temporal ab-

stractions of business protocols for their compatibil-

ity and replaceability analysis based on a ﬁnite state

machine formalism. Kazhamiakin, Pandya and Pi-

store in (Kazhamiakin et al., 2006b), as well as in

(Kazhamiakin et al., 2006a), exploit an extension of

timed automata formalism called web service time

transition system (WSTTS) for modeling time prop-

erties of web services. The approach presented in

this work can cover cases which can be modeled in

these works and additionally allows the deﬁnition of

BPEL-TIME - WS-BPEL Time Management Extension

Figure 10: The run time component monitors the execution.

explicit deadlines. This work extends previous works

by addressing the conformance and veriﬁcation prob-

lem and provides an a priori execution plan at design

time consisting of valid execution intervals for all ac-

tivities of participating abstract and executable pro-

cesses with consideration of the overall structure and

temporal restrictions. The calculated execution plans

can be monitored at run time. (Bettini et al., 2002)

proposes a formalism for representation of quantita-

tive temporal constraints. A consistency service en-

sures the satisﬁability of temporal constraints. Au-

thors in (Kallel et al., 2009) propose an approach for

speciﬁcation and monitoring of relative and absolute

temporal constraints based on XTUS-automata and

Ao4BPEL. In this approach temporal constraints can

be translated into modular aspect code that listens to

activities during the execution of a process. An activ-

ity will be only executed if the temporal constraints

are satisﬁed. Guermouche et al. in (Guermouche

et al., 2008) study temporal aspects of Web Services.

They differentiate between internal and external tem-

poral constraints. Internal constraints specify a rel-

ative and absolute time period and can be used for

expression of activation and dependency conditions.

External constraints are exposed by the client and the

provider service. They have to be checked before in-

teraction initialization. They infer from internal con-

straints and allow for detection of incompatibilities

of services. Song et al. in (Song et al., 2009) use

petri nets for description and modeling of behavior

and temporal aspects of BPEL processes. The short-

coming of this approach is that only analysis is con-

sidered. Our approach is complementary in the sense

that it allows for analysis and temporal reasoning and

further a BPEL-extension for execution is provided.

6 CONCLUSIONS

Temporal management and consistency are important

quality criteria for business processes. They improve

QoS and reduce costs. WS-BPEL lacks sufﬁcient

time management capabilities. In this work we intro-

duced an extension of WS-BPEL that makes business

processes time aware and overcomes this shortcom-

ing. The user can deﬁne different temporal constrain-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

ts, check temporal feasibility and monitor the execu-

tion. The two considered techniques, interval-based

and probabilistic, caters for different needs of the

users in different scenarios.

REFERENCES

Allen, J. (1983). Maintaining knowledge about temporal

intervals. Communications of the ACM, 26(11):832–

843.

Alves, A., Arkin, A., Askary, S., Barreto, C., Bloch, B.,

Curbera, F., Ford, M., Goland, Y., Guzar, A., Kartha,

N., Liu, C., Khalaf, R., Koenig, D., Marin, M., Mehta,

V., Thatte, S., Rijn, D., Yendluri, P., and Yiu., A.

(2007). Web services business process execution lan-

guage version 2.0. Technical report, OASIS.

Barros, A., Dumas, M., and Oaks, P. (2005). A criti-

cal overview of the web services choreography de-

scription language(ws-cdl). Technical report, Busi-

ness Process Trends.

Benatallah, B., Casati, F., Ponge, J., and Toumani, F.

(2005). On temporal abstractions of web service pro-

tocols. In Proc. of CAiSE Forum.

Bettini, C., Wang, X. S., and Jajodia, S. (2002). Tempo-

ral reasoning in workﬂow systems. Distrib. Parallel

Databases, 11:269–306.

Decker, G., Overdick, H., and Zaha, J. (2006). On the suit-

ability of ws-cdl for choreography modeling. In Proc.

of EMISA’06.

Dijkman, R. and Dumas, M. (2004). Service-oriented de-

sign: A multi-viewpoint approach. Int. J. Cooperative

Inf. Syst., 13(4):337–368.

Eder, J., Gruber, W., and Panagos, E. (2000). Tempo-

ral modeling of workﬂows with conditional execution

paths. In Proc. of the 11th International Conference

on Database and Expert Systems Applications.

Eder, J., Lehmann, M., and Tahamtan, A. (2006). Chore-

ographies as federations of choreographies and or-

chestrations. In Proc. of CoSS’06.

Eder, J., Lehmann, M., and Tahamtan, A. (2007). Confor-

mance test of federated choreographies. In Proc. of

I-ESA’07.

Eder, J. and Panagos, E. (2001). WfMC WorkFlow Hand-

book 2001, chapter Managing Time in Workﬂow Sys-

tems. J. Wiley & Sons.

Eder, J., Panagos, E., and Rabinovich, M. (1999). Time con-

straints in workﬂow systems. In Proc. of the 11th In-

ternational Conference on Advanced Information Sys-

tems Engineering (CAiSE).

Eder, J. and Pichler, H. (2002). Duration histograms for

workﬂow systems. In Proc. of the IFIP TC8 / WG8.1

Working Conference on Engineering Information Sys-

tems in the Internet Context.

Eder, J., Pichler, H., and Tahamtan, A. (2008). Probabilis-

tic time management of choreographies. In Proc. of

QSWS-08.

Eder, J. and Tahamtan, A. (2008). Temporal conformance

of federated choreographies. In Proc. of DEXA’08.

Guermouche, N., Perrin, O., and Ringeissen, C. (2008).

Timed speciﬁcation for web services compatibility

analysis. Electron. Notes Theor. Comput. Sci., 3:155–

170.

Kallel, S., Charﬁ, A., Dinkelaker, T., Mezini, M., and

Jmaiel, M. (2009). Specifying and monitoring tempo-

ral properties in web services compositions. In Proc.

of the Seventh IEEE European Conference on Web

Services.

Kazhamiakin, R., Pandya, P., and Pistore, M. (2006a). Rep-

resentation, veriﬁcation, and computation of timed

properties in web service compositions. In Proc. of

ICWS 06.

Kazhamiakin, R., Pandya, P., and Pistore, M. (2006b).

Timed modelling and analysis in web service compo-

sitions. In Proc. of ARES06.

Marjanovic, O. (2000). Dynamic veriﬁcation of temporal

constraints in production workﬂows. In Proc. of the

Australasian Database Conference.

Panagos, E. and Rabinovich, M. (1997). Predictive work-

ﬂow management. In Proc. of the 3rd Int. Work-

shop on Next Generation Information Technologies

and Systems.

Peltz, C. (2003). Web services orchestration and choreog-

raphy. IEEE Computer, 36(10):4653.

Pichler, H. (2006). Time Management for Workﬂow

Systems. A probabilistic Approach for Basic and

Advanced Control Flow Structures. PhD thesis,

Alpen-Adria-Universitaet Klagenfurt. Fakultaet fuer

Wirtschaftswissenschaften und Informatik.

Song, W., Ma, X., Ye, C., Dou, W., and Lu, J. (2009). Timed

modeling and veriﬁcation of bpel processes using time

petri nets. In Proc. of the International Conference on

Quality Software.

Tahamtan, A. (2009). Modeling and Veriﬁcation of Web

Service Composition Based Interorganizational Work-

ﬂows. PhD thesis, University of Vienna.

Tahamtan, A. and Eder, J. (2011). View driven interorgani-

zational workﬂows. Int. J. Intelligent Information and

Database Systems, To Appear.

VUT (2011). Vienna university of technology, insti-

tute of software technology and interactive sys-

tems, information & software engineering group.

http://www.ifs.tuwien.ac.at/.

WMC (2002). Workﬂow process deﬁnition interface -

xml process deﬁnition language. Technical Report

WFMC-TC-1025, The Workﬂow Management Coali-

tion.

BPEL-TIME - WS-BPEL Time Management Extension
