AUGMENTING ACCESSIBILITY IN SOCIAL NETWORKS

A Virtual Presenter

Leonelo D. A. Almeida

, Elaine C. S. Hayashi

, Júlio C. Reis

1,3

, Paula D. P. Costa,

M. Cecília C. Baranauskas

and José Mario De Martino

Department of Information Systems, Institute of Computing, University of Campinas

Av. Albert Einstein, 1251, 13083-970, Campinas, SP, Brazil

Department of Computer Engineering and Industrial Automation, School of Electrical and Computer Engineering

University of Campinas, Av. Albert Einstein, 400, 13083-852, Campinas, SP, Brazil

Center for Information Technology Renato Archer. Rodovia Dom Pedro I, km 143,6, 13069-901, Campinas, SP, Brazil

Keywords: Inclusive social networks, Talking heads, Facial animation.

Abstract: Vila na Rede is an Inclusive Social Network (ISN) system developed as a product of e-Cidadania's Project,

with the objective of being accessible to a broad variety of users, including those less familiar with

technology or with low literacy skills. Different features were incorporated into Vila na Rede in order to

provide its users with scaffolding learning support that helps them profit more from the system. One of

these features is the Virtual Presenter, a speech synchronized facial animation system integrated to a text-to-

speech synthesizer (TTS) that allows users to have textual information alternatively presented by a talking

head. This paper investigates the integration of the Virtual Presenter into Vila na Rede system, and discusses

results of activities conducted with the target audience to evaluate this new feature at the ISN.

1 INTRODUCTION

E-Cidadania (2011) is a Brazilian research project

that has taken the challenge of developing systems

that allow the access to the Information Society,

contributing to the constitution of a digital culture

and respecting the diversity of the population. As a

result, the project has launched Vila na Rede (2011),

an Inclusive Social Network (ISN) system, designed

with, by and for Brazilian people. Vila na Rede is

being used by citizens all over Brazil and has even

been accessed from abroad, announcing ideas, goods

and other initiatives from different communities.

The design of systems that make sense and that

are accessible to citizens requires a rather socio-

technical view of the problem. Because of that, the

research has adopted as a methodological reference,

the principles and concepts of both Participatory

Design (Mumford, 1964; Schuler and Namioka,

1993) and Organizational Semiotics (Stamper et al.,

1988). E-Cidadania’s researchers have been

successfully involving end users and developers in

Semio-Participatory Workshops (Neris et al., 2009,

Hayashi and Baranauskas, 2009) in order to design

and construct the ISN.

In developing countries such as Brazil, India and

China the access to knowledge is still restricted to a

small portion of the population. Creating Web

applications that can aid people better and easily

understand and access information is necessary and

a challenge to be faced. To mention a few statistics,

as stated by the Brazilian Internet Steering

Committee (2009), 47% of the population has never

used the computer and 55% have never accessed the

Internet. It points out that most of the considered

target population for ISN is inexperienced with

computers.

Moreover, regarding literacy skills, the Indicator

of Functional Literacy in Brazil (Institute Paulo

Montenegro, 2009) (INAF in its Portuguese

acronym) points out that in 2009, 27% of the

Brazilian population between 15 and 64 years old

were considered functionally illiterate, defined as the

population with less than 4 years of schooling that

are not able to perform simple tasks involving words

and phrases. Using a broader concept of functional

illiteracy, according to the same Indicator, the

majority (52%) of the Brazilians in the same

described situation reaches no more than the degree

of rudimentary literacy, i.e., they only have the

225

D. A. Almeida L., C. S. Hayashi E., C. Reis J., D. P. Costa P., Cecilia C. Baranauskas M. and De Martino J..

AUGMENTING ACCESSIBILITY IN SOCIAL NETWORKS - A Virtual Presenter.

DOI: 10.5220/0003471502250234

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 225-234

ISBN: 978-989-8425-56-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

ability to locate explicit information in short texts or

make simple math. Thus, they are not able to

understand longer texts, and even worst, 9% of these

individuals can be considered absolutely illiterates.

These statistics can illustrate the social reality of the

target community aimed to be included.

Nevertheless, designing systems for the inclusion of

these people requires multidisciplinary expertise,

and adequate technology solutions that can provide

barriers-free access to information to every citizen.

In workshops involving our target users, we have

understood how the figure of an avatar in the system

would be beneficial (Hayashi and Baranauskas,

2008) to support the less experienced users. Those

workshops had the objective of analyzing how users

make sense of different multimedia outputs to

retrieve information. Users were grouped to perform

a task in a role play situation in which they had to

find the answer for a question. Each group was

exposed to a different way of finding the answer.

One group had access to the information in written

format. Another group was able to listen to the

information, as if they were facing an Automated

Response Unit (ARU), like those found in call

centers. The third group had the same information

available in images. The last group consulted the

information from a real person, like in an

information desk. The group with best results was

the last group. During the discussion with all groups,

they reported their wish to have similar attendants in

the systems – i.e., the figure of a person to support

them in their online tasks.

In another activity, we found that computer

synthesized voices would probably be well accepted

by our target users. In that experiment, which was

in fact related to another project and scope, users

thought that the synthesized voice was the recording

of the voice of a foreign researcher (speaking in

Portuguese the users’ mother language, but with

accent). They enjoyed the voice and had fun with it,

and most important, they were able to understand it.

During yet another encounter, users accidentally had

access to a feature that was being built at Vila na

Rede’s test environment, and that was not ready for

use. This feature – as it was implemented at that

time – was able to synthesize text extracts into

speech. Even though the final objective of this

feature was different, since users were excited about

the possibility of having the text read for them, we

decided to implement the feature as it was. Such

new feature can be referred in the literature as a

“talking head” (TH).

For an ISN context, considering the target users

mentioned, a TH that could read the digital contents

(e.g. long announcements) and that could be easily

available for people use would be appreciated. The

main advantages of a TH are that it facilitates the

access to information, is ready to use in the same

environment where the information is found, and it

delivers the information via synthesized speech in a

more friendly way, through the avatar. Even

knowing that an implementation of a TH in an ISN

may not look exactly as a real person, we consider

such approach an import attempt to augmenting

accessibility in ISN. TH seems relevant for an ISN

since it can have an important role in helping

functional illiterate people to understand contents.

Such investigation is also relevant since there is a

restricted and limited TH offering for Portuguese

language. This language brings a complexity to

synthesized speech as to have it as close as possible

to the human voice.

This paper is organized as follows: Section 2

presents a brief review on TH systems; Section 3

describes the process of implementing the existing

system at Vila na Rede; Section 4 presents the

Semio-participatory workshop in which the feature

was tested and discuss the results from this

experiment. Finally, Section 5 concludes the paper.

2 TALKING HEAD

Facial animation systems synchronized with speech,

or THs, constitute an enabling technology for the

development of human-computer interfaces capable

of reproducing the natural and intuitive face-to-face

communication mechanisms that we are well

familiar with. These systems can be designed as an

alternative to WIMP (Windows, Icons, Menus and

Pointing devices) interfaces, simplifying human-

computer interaction and increasing the accessibility

to users without specialized training.

Convincing THs are able to turn applications

more human, involving and attractive. Synthetic

human faces can be used, for example, to implement

virtual characters in the role of lecturers, tutors,

assistants, newscasters, avatars, salespeople and

customer care or user support attendants (Cosatto

and Östermann, 2003; Johnson et al., 2000;

Östermann and Millen, 2000; Pandzic, 2002). In

some studies virtual characters act in activities with

children in emergent literacy and as a technological

intervention tool for children with autism (Ryokai et

al., 2003; Tartaro and Cassell, 2006). Additionally,

flexible face models can be adapted to build avatars

for an individual. Finally, although broadband data

access is being popularized, computer facial

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

226

animation is a model-based video-coding approach

and can be an alternative to video transmission in

severe situations of limited data traffic capacity.

Typically, there exist two main approaches for

face modelling on TH systems: the image based, or

2D, approach and the geometric face modelling, or

3D, approach. Image-based, or 2D, facial animation

manipulates photographic pictures from an image

database that are captured from a real face,

synthesizing the ﬁnal animation through their

appropriate processing, sequencing, concatenation

and presentation. This approach inherently generates

photorealistic animations due to photographic nature

of manipulated images. On the other hand, advanced

and modern 3D face modelling techniques are

successful in synthesizing natural looking faces and

high quality images of rigid movements of the head.

However, the use of polygonal meshes or other

geometric models to reproduce plastic deformations,

like the mouth dynamics during speech or the details

of human face visual appearance, requires

sophisticated models and animation control

strategies, implemented at high computational costs.

The TH system adopted at Vila na Rede is

AnimaFace2D, a 2D facial animation system

capable of being integrated to a text-to-speech

synthesizer (TTS) for Brazilian Portuguese (Costa

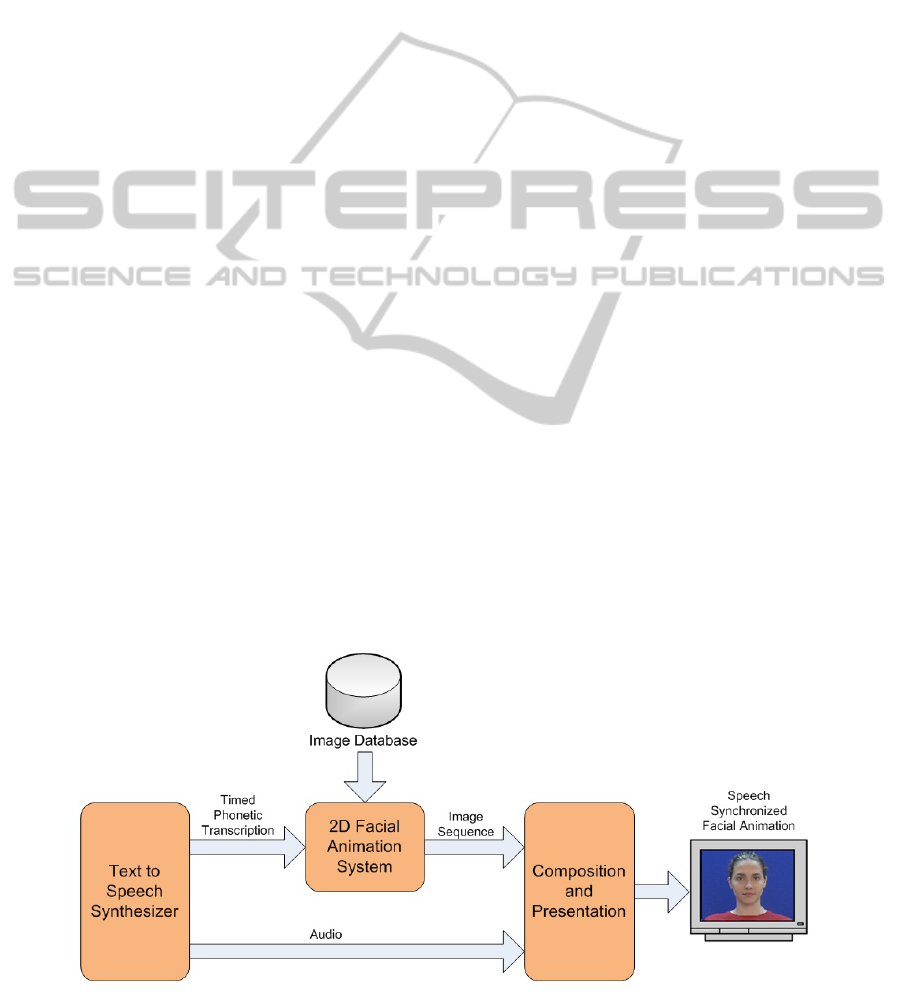

and De Martino, 2010). Figure 1 summarizes the

expected inputs and outputs of AnimaFace2D

synthesis process. The following characteristics

make this system well suited for integration with

Vila na Rede:

– AnimaFace2D is a 2D facial animation system

designed for Brazilian Portuguese language, the

same language of Vila na Rede users;

– The system provides realistic modelling of

speech articulatory movements (Costa and De

Martino, 2010);

– AnimaFace2D visually animates any speech

content from a reduced image database of just 34

photographs visemes (the visual counterpart of a

language phoneme);

– The system can be adapted to any available TTS

system that provides timed phonetic transcription

of synthesized speech;

The underlying principles of the facial animation

synthesis methodology proposed in (Costa and De

Martino, 2010) can be adapted to other languages

and to different face models.

The integration of this system to Vila na Rede

constituted the Virtual Presenter Core (VPC) of the

proposed architecture of our ISN.

3 THE VIRTUAL PRESENTER AT

VILA NA REDE

The architecture built to support the integration of

VPC into our ISN is based on making virtual

presentation videos as services for the ISN Vila na

Rede. Figure 2 illustrates the architecture using two

servers, the first hosting the ISN and the other

performing the processing of VPC and hosting the

resulting videos. When new or updated data is

posted from the user interface to the ISN the text

content is submitted to a text-to-speech server in

this case Festival (University of Edinburgh, 2010).

The text-to-speech server provides the synthesized

speech and its corresponding timed phonetic

transcription file. After the synthesis process, the

ISN makes a request to the Virtual Presenter Service

(VPS).

Figure 1: Synthesis process.

AUGMENTING ACCESSIBILITY IN SOCIAL NETWORKS - A Virtual Presenter

227

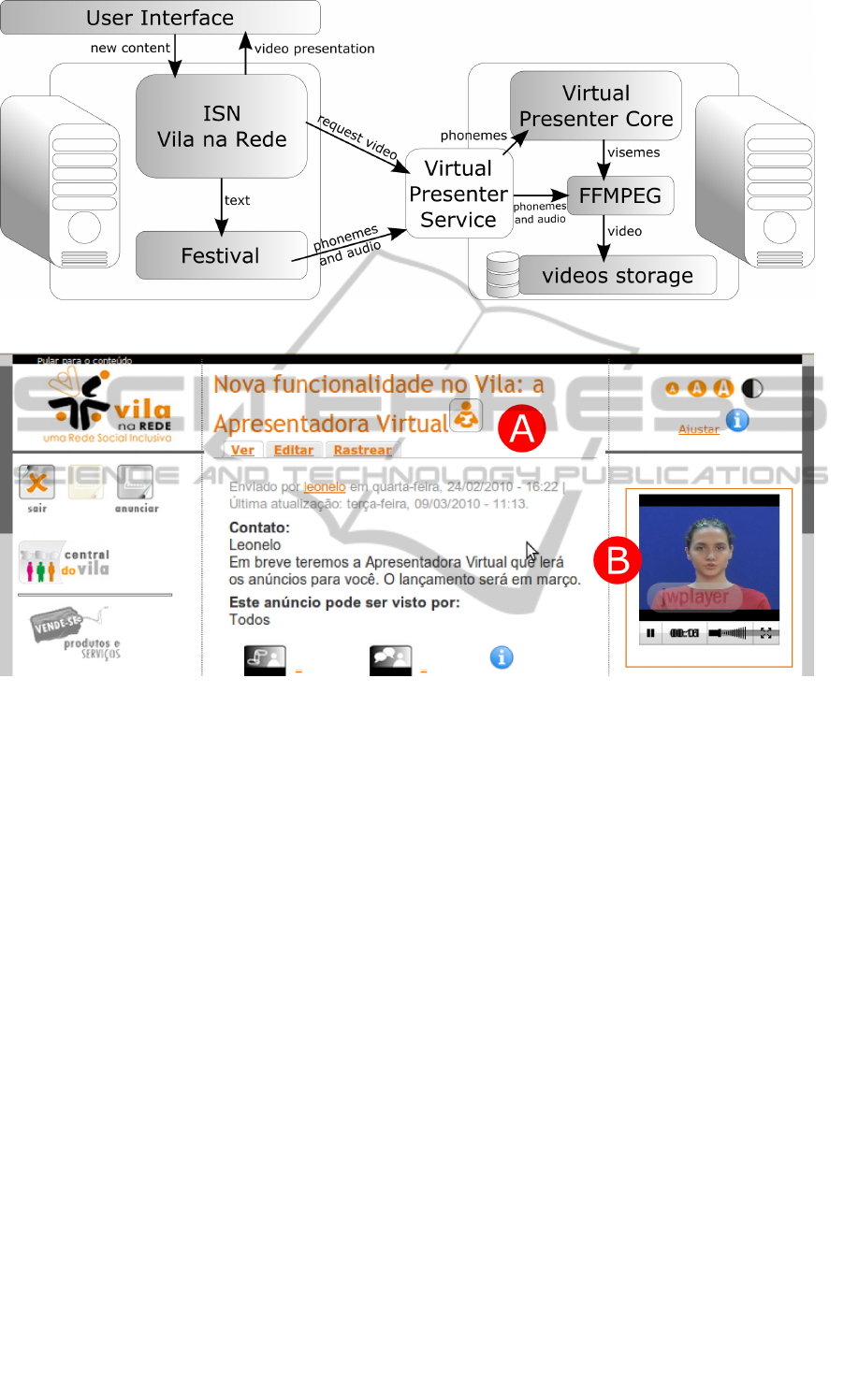

Figure 2: Virtual Presenter architecture integrated to the Vila na Rede ISN.

Figure 3: Virtual Presenter in the ISN Vila na Rede.

So VPS starts by getting the phoneme and audio

files from the ISN server and calling the VPC. VPC

is a C++ application that uses OpenCV (Open

Computer Vision Library (2010). It uses a database

of 34 images and a timed phonetic transcription file

to synthesize a facial animation. Currently the VPC

generate animations considering approximately 30

frames per second. Each frame is an image of 320 x

240 pixels. At end of the VPC execution, VPS calls

FFmpeg (2010) audio and video library to mix facial

animation and speech audio files, resulting in the

final talking head video. Finally, VPS informs the

ISN that the virtual presentation is available for the

posted content.

In the user interface layer the process for

generating video presentations is asynchronous to

the users’ interaction, so that users do not have to

wait the end of the generation process to continue

interacting with the ISN. When a person posts some

content it is not necessary to explicitly request the

video creation or wait until it is generated. The

content types processed by the Virtual Presenter

involve announcements of ideas, products, services

and events. After the system finishes the video

generation, an icon indicating the video availability

is displayed along with the content, as presented in

Figure 3A. By clicking on the icon the ISN loads the

video and presents it at the right region of the

website (see Figure 3B). To present the video the

ISN uses the JWPlayer (Long Tail Ad Solutions,

2010).

By the time this research was developed there

was not a free Festival extension for Brazilian

Portuguese language that offered a female voice. To

overcome this issue, we changed the pitch of the

male voice to obtain a neutral tone. This was

necessary due to the fact that the AnimaFace2D

visemes database is composed of photos of a

woman’s face. This modification did not affect the

length of the video nor the phonemes pronunciation

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

228

but made the voice sound more artificial than the

original configuration.

4 A SEMIO-PARTICIPATORY

EVALUATION OF THE

VIRTUAL PRESENTER IN VILA

NA REDE

In this section we describe the activities that were

carried out in order to evaluate the new functionality

regarding the virtual presenter at Vila na Rede. The

three main aspects to be evaluated were: 1) The use

of Festival, considering the quality of the voice, its

timbre and speed of the speech; 2) The Virtual

Presenter and the video image x speech audio

synchronism, how close to reality the videos are, and

the role of the video in helping to understand the

audio; 3) How both (image and audio) were

implemented at Vila na Rede, considering the size of

the video, speed and the work done to incorporate it

into the website.

The activity was conducted in a laboratory

facility, at the University. Eleven members of the

target community were invited to participate in the

experiment. They all have residence in Campinas

city, but they came from different regions of Brazil

(namely north, northeast, south and southeast). Their

ages ranged from 22 to over 60 years old.

Considering the schooling level, 40% of the

participants have university degree, 30% have high

school degree while 10% have incomplete high

school; 10% have just the elementary school

education and 10% have not completed even the

elementary school level. The experiment included

people of different social profiles such as:

housewife, cook, handicraftsman, hairdresser,

seamstress, retired people, teacher, student and

others. Concerning their experience with ICT or

other electronic devices, all of them have at least one

TV set at home; two have never used ATMs and

other three do not like to use them. Only one person

does not have a cell phone, all the others use the cell

phone on a daily basis. Six of them use Short

Message Service (SMS). None of them have Internet

access in their mobiles. Two out of the eleven

participants do not have a computer at home. Two of

those who do have a computer at home do not use it.

Those who do have a computer at home also have

Internet access, being three of them dial up access.

Only two participants were familiar with online

social networks and part of at least one (Orkut).

In the activity for the evaluation of the virtual

presenter, each participant was assigned either to

one desktop computer or to one laptop; they all

received head phones to listen to the audio and they

were all able to see the videos. Each two participants

were assigned to one researcher who had the role of

observing their behaviour. The observers were in

charge of playing the announcements in the order

that was specified for the task.

Table 1: Announcements used in the activity and its form

and content.

Id Media Content (in Portuguese)

Shorter announcements:

SA audio

“Ribbon embroidery, cross stitch and

more. Negotiable prices” (in Brazilian

Portuguese: “bordados fita, ponto cruz

e outros. Preços combinar”).

audio

video

“’Fuxico’ doll. This is a doll made of

‘fuxico’” (in Brazilian Portuguese:

“boneca de fuxico. Essa é uma boneca

feita de fuxico”). Fuxico is a craft

technique that uses pieces of fabric to

decorate clothing, pillows and other

utensils.

Longer announcements:

LA audio

“New functionality in the Vila: The

Virtual Presenter. Soon we will have

the Virtual Presenter that will read the

announcements for you. The launch

will be in March” (in Brazilian

Portuguese: “Nova funcionalidade no

Vila: a Apresentadora Virtual. Em

breve teremos a Apresentadora Virtual

que lerá os anúncios para você. O

lançamento será em março”).

audio

video

“June Festival at SAMUCA.

SAMUCA - 301 Antonio Provatti

street - Jd. Triunfo. Come to

participate of the SAMUCA’s great

festival, we will have typical booths

and many gifts for everyone. Do not

loose it” (in Brazilian Portuguese:

“Festa Junina SAMUCA. SAMUCA

Rua Antonio Provatti 301 Jd .Triunfo.

Venham Prestigiar e Participar da

Grande Festança do Arraia do

SAMUCA, teremos barracas típicas e

muito brindes para todos, não

percam”).

The announcements that were shown to

participants were previously chosen by the

researchers. The announcements were chosen

according to the following criteria: number of words

and phrases similar between the two announcements

AUGMENTING ACCESSIBILITY IN SOCIAL NETWORKS - A Virtual Presenter

229

of each type (i.e. short and long), avoiding texts that

contain abbreviations or orthographic problems, and

texts produced in the participant’s context.

In total, participants saw and/or listened to four

Vila na Rede announcements. Two were shown with

video and sound and other two announcements had

only the audio. This control was made in order to

provide us with means to compare the level of

comprehension to deduce the influence of the media.

From the four announcements presented to the

users, two were rather short ones, intended to be

reproduced word by word by the participants. The

other two were longer announcements and

participants were supposed to simply inform the

overall idea, and not the literal transcription.

Table 1

shows the announcements that were chosen and

shown to the participants, as well as announcements

with only the audio and with video and audio. Each

announcement has one Id as “SA” that stands for

“short announcement A” or “LB” for “long

announcement B”. The announcements’ contents

were originally written in Brazilian Portuguese

(orthographic errors were omitted in the English

version in

Table 1).

Right after the task regarding the announcement,

participants completed a form with the information

asked. As mentioned before, for the first two

announcements, participants were asked to write in

this form the actual content heard; and for the last

two, the general idea understood.

5 RESULTS

The results obtained from the forms were analyzed

considering two metrics. First, considering the two

shorter announcements, we counted the substantives

and verbs from them i.e., in the SA announcement

there are 7 words and, for the SB announcement

there are 5.

Second, as the participants were supposed to

write what they had understood about the longer

announcements we identified the topics in each of

them. For the LA announcement there are 3 topics

i.e., it is a new functionality, it reads

announcements, and it will be launched in March.

For the LB announcement there are 4 topics i.e., it is

a festival, it will happen at SAMUCA, it is an

invitation, and there will be food and gifts. Figure 4

presents the correct answers average by media

Figure 4: Correct answers average by media.

Considering that the objective for the longer

announcements was to check the correct

understanding of the media presentation instead of

the exact words, we considered the number of topics

mentioned in the responses provided by the

participants. We only listed the correct data;

participants were not supposed to write exact words

but their understanding.

In order to evaluate the results, we considered

the relative coverage of the correct responses for

each announcement, using the set of individual

responses, the mean, mode and standard deviation

(see Table 2). Based on the mean we verified that,

for the shorter announcements, participants were

more precise using the audio version of the

announcement. For the longer announcements the

opposite occurred.

Further analysis and conclusions can be driven

from the analysis of variance (ANOVA) between the

groups which results can be graphically illustrated

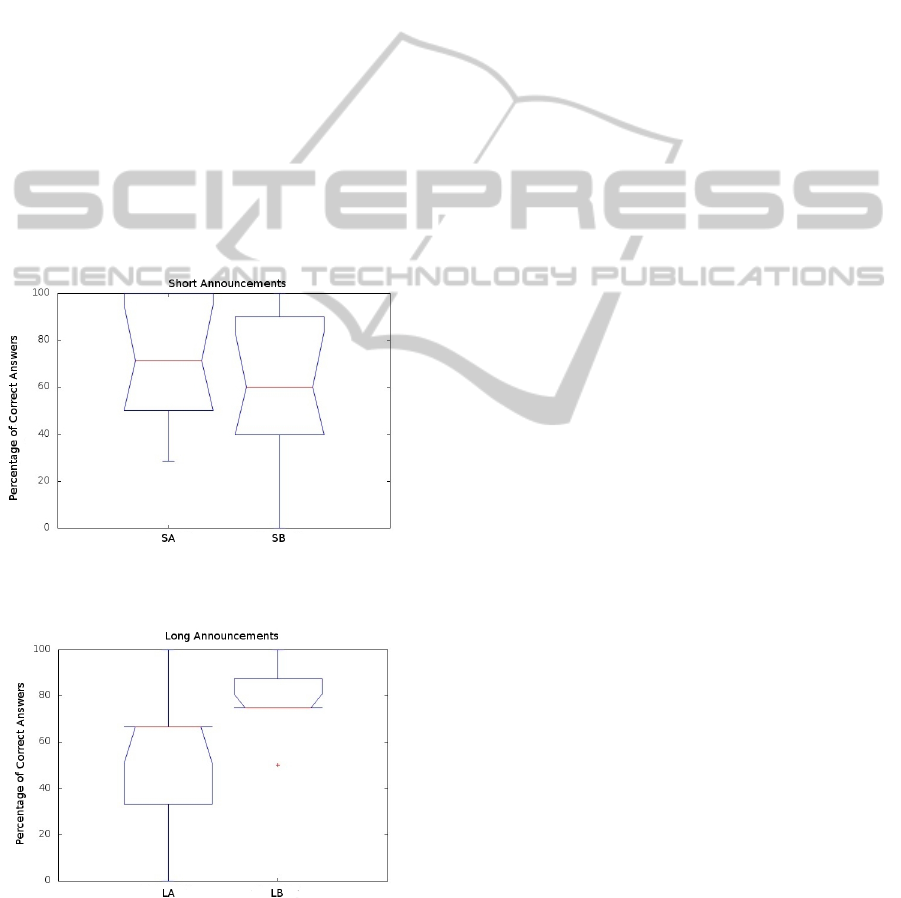

by the boxplots of correct responses shown in

Figure 5 and Figure 6, corresponding to the shorter

announcements and longer announcements

respectively. On the boxplots, each box has lines at

the lower quartile, median and upper quartile values.

The whiskers are lines extending from each end of

Table 2: Analysis of the responses from the activity of hearing and seeing and only hearing announcements.

Announcement SA Announcement SB Announcement LA Announcement LB

Total #

words (%)

Correct

words (%)

Total #

words (%)

Correct

words (%)

Correct

topics (%)

Correct

topics (%)

Mean 81.82 71.43 72.73 63.64 54.55 77.27

Mode 100 100 and 71.43 60 100 and 40 100 and 33.33 75

Std. Dev. 23.12 26.34 24.12 32.02 30.81 17.52

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

230

the box to show the extent of the rest of the data. In

the first case, for shorter announcements, Figure 5,

the ANOVA shows that the audio and animation

results cannot be considered statistically

distinguishable since their statistical fluctuations can

be confused. For longer announcements

however,results from audio and facial animation can

be considered statistically discernible with a statistic

significance p < 0.005.

Other results were obtained from a 5-points Likert

Scale questionnaire regarding technical aspects of

the Virtual Presenter as speech and video quality.

Moreover, before the end of the workshop, a

quick and informal final discussion reviewed their

impressions on the activity.

The questions were either related to the voice

that read the announcement (Festival), the video

with a human face (Virtual Presenter), or related to

the integration of both voice and video instantiated

at Vila na Rede. These results are discussed in the

next section.

Figure 5: Boxplot of correct words for shorter

announcements.

Figure 6: Boxplot of correct answers for longer

announcements.

6 DISCUSSION

This Section presents a discussion regarding the

results of the case study. Also, we expose some

considerations involving the contribution of the

approach to accessibility in ISN, technical and

performance capabilities and limitations of using

multimedia in context of socio-technical diversity,

and other foreseen usage for the approach.

Analysis of Results. Based on the data from the

responses of the activity of hearing and/or seeing

announcements content we observed that: 1) the

more precise transcriptions came from the audio-

only media, for shorter announcements; 2) the more

complete understandings came from using Virtual

Presenter media, for longer announcements; 3) and

there was a significant difference among the

participants’ individual results. In the transcription

of the media content for shorter announcements,

participants were slightly better when using audio-

only content (71.43%) than using the Virtual

Presenter (63.64%). We believe that the objective of

the task contributed to this result; as the participants

were really concerned about repeating the text they

just heard, they might not pay attention to the video.

Analyzing the statistical mode of the correct

responses we observe that the virtual presenter

obtained almost the same scores as the audio-only

(i.e. 100% and 71.43% for audio-only, and 100%

and 40% for Virtual Presenter).

When the activity consisted of writing down

their understanding of the media content of the

longer announcements, we observed a difference in

the types of media. The Virtual Presenter obtained a

rate of 77.27% of correctness while audio-only

reached 54.55%. By analyzing the statistical mode

we reinforce the difference i.e. a draw between

33.33% and 66.77% for audio-only, and 75% for

Virtual Presenter. Additionally, the standard

deviation of the Virtual Presenter is about a half

(17.52%) of the audio-only, which indicates an

actual improvement in the understanding of the

media.

A comparative analysis between audio-only and

Virtual Presenter for each participant results reveals

that: results vary significantly among the

participants (e.g. ranging from 19.64% to 95%).

When considering the participants that obtained the

best results, we identify that one got better results

from the audio-only media and the other from the

Virtual Presenter. However, when computing the

results of the rate of correctness of the audio-only in

relation to Virtual Presenter media for each

AUGMENTING ACCESSIBILITY IN SOCIAL NETWORKS - A Virtual Presenter

231

participant, we verified that 9 (out of 11) of them got

better results using the Virtual Presenter.

In general, the acceptance of the voice alone was

good. The results from the questionnaire confirmed

our initial hypothesis that the participants enjoyed

synthesized voices. Most of the participants reported

to be able to clearly understand the voice and the

opinion about its quality ranged from fair to good.

But, as accounted by the questionnaire’s results, the

voice was perceived as mismatched with the video.

The characteristics resulted from the combination of

voice+video was reported to be unnatural and voice

and video did not match (not in the sense that

mouthing and speech were not encompassed, but

that the voice did not seem to come from the person

represented in the video). One factor that might also

have impacted in the rating of the video is that most

participants, as they were making intensive effort in

the task of hearing and taking notes, did not pay

much attention to the video. This was observed by

researchers and also, it was added as a side note in

the questionnaire, by one of the participants.

The data obtained from the observations and

analysis of the forms (level of comprehension)

matches the impressions they orally reported to have

about the feature; i.e. that the video had a positive

influence in the understanding of the spoken

announcements.

Influence of Text Length. The contrast of the

results in short and long announcements deserves

some reflexion. For short announcements (5 to 7

words) it seems to be easier to keep all the

announcement content in the short-term memory. So

that a message using only audio was potentially

better since participants were supposed to write the

words, while a message using audio+video could

request too much attention from the participant. On

the other hand, for longer announcements, the focus

was on understanding the information topics instead

of only words. In that case, the message length was

too big to be memorized, consequently, participants

obtained better results paying more attention to the

Virtual Presenter. Another aspect that could

influence is the participants’ literacy level. Despite

of the fact that the activities consisted only of

hearing and watching the messages in a controlled

environment, it is necessary to have an investigation

of literacy influence in the comprehension of spoken

messages when using Virtual Presenter in the whole

ISN, involving different subjects, contexts and

writing formalisms.

Technical Performance. The preliminary evalua-

-tion conducted with the proposed TH during the

experiment behaved as expected (i.e. without any

technical problem). However, considering the social

level of the target public, other important point to

take into account regards the technical performance

of the proposed solution. Since target users probably

would not have Internet connection with large

bandwidth in their house, it is important to try to

predict the behaviour of the solution being used in

such situations of restricted connection bandwidth. It

is also relevant to note how much extra bandwidth

the video consumes and the speed at which the

information is delivered to users. Such technical

performance details also would be useful in

analyzing the benefits of the Virtual Presenter's

usage (e.g., in increasing understanding of the

announcements using the solution in their home

environment).

Accessibility. The concern with bandwidth and

technical requirements is important, especially when

aiming at more accessible applications. People

should be able to profit from the feature, in despite

of the technology or Internet connections available.

This approach is in tune with the concept of ISNs,

allowing users to access the information, regardless

of the computer configuration available. The

accessibility provided by the use of the Virtual

Presenter goes further, making it possible for the

functionally illiterate people, younger children, the

elderly or anyone else who might have trouble with

reading or seeing the letters to access to written

information. Even some deaf communities should

also be able to benefit from the resource, as the

mouthing from the Virtual Presenter allows lip

readers to understand the words (there are some

communities of deaf people who are not taught how

to read).

Foreseen Usage. The use of the Virtual Presenter is

expected to contribute to the accessibility of ISN by

reading its content, but without suppressing the users

from the opportunity of having contact with the

written information. Actually, it is expected that the

reading of the text should contribute – even if in the

smallest proportions – to alphabetization processes.

The following of the text while read by someone

else can be very useful also in other contexts, like

learning another language. Other uses of the Virtual

Presenter that could be foreseen include its use in e-

books, e-mails, other web pages, information booths

and ATM. Among the adaptations and developments

needed for those uses, one of the most important

would be to let the face express feelings and

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

232

intonation. Emotions in TH systems are already

being studied (e.g. Cassell, 2001). In this sense,

further investigation is needed to include emotion

aspects in AnimaFace2D aiming at leveraging the

Virtual Presenter's acceptance.

Other aspects to be considered in future

investigations are: to check for results in more

natural settings, i.e. situations where users are not

demanded to provide written and accurate account

from the audio, and to analyse the influence of

individual skills regarding their educational and

technological skills on the results obtained.

7 CONCLUSIONS

The Virtual Presenter a talking head that has been

adjusted for our context has been incorporated into

the Inclusive Social Network Vila na Rede, aiming

at helping users to make better use of the

information available in the system. A 2D facial

animation that realistically reproduces speech

articulatory movements was implemented at Vila na

Rede, together with a female-converted voice from

the Festival text-to-speech tool.

This paper described the process in which the

Virtual Presenter was incorporated into our system

and presents results of the activities that evaluated

this mechanism. The results indicate that the video

with a human presenter moving her lips accordingly

might help users in the understanding of longer

audio extracts. Nevertheless, it is important to have

voice and face in harmony, providing a more natural

aspect to the presenter.

The experiment contributed to clarify our target

users preferences and use of this particular solution

regarding a virtual presenter in the system; the

results also suggest further studies and development

regarding: tuning the solution towards more

effective uses of a Virtual Presenter in inclusive

systems scenarios, investigation of how people get

appropriate of it in non controlled situations, and

tests comparing the use of text-only and Virtual

Presenter supported content.

ACKNOWLEDGEMENTS

This work is funded by Microsoft Research –

FAPESP Institute for IT Research (#2007/54564-1),

and partially by FAPESP (#2007/02161-0), CNPq

(#383334/2008-0), and CAPES (#2001-8503/2008).

The authors also thank colleagues from

IC/UNICAMP, NIED/UNICAMP, InterHAD for

insightful discussion.

REFERENCES

Brazilian Internet Steering Committee. 2009. Survey on

the use of Information And Communication

Technologies in Brazil. [online] Available at:

www.cgi.br/english/index.htm [Accessed 21 January

2011].

Cassell, J., 2001. Nudge nudge wink wink: elements of

face-to-face conversation for embodied conversational

agents. In: Embodied conversational agents.

Cambridge: MIT Press, pp. 1–27.

Cosatto, E., Östermann, J., Graf, H. P., Shroeter, J., 2003.

Lifelike talking faces for interactive services. In:

Proceedings of the IEEE, v. 91, n. 9, pp. 1406–1429.

IEEE.

Costa, P. D. P., De Martino, J. M., 2010. Context-

dependent visemes: a new approach to obtain realistic

2D facial animation from a reduced image database.

In: 23

SIBGRAPI Conference on Graphics, Patterns

and Images - Workshop of Theses and Dissertations.

E-Cidadania, 2011. [online] Available at: http://www.

nied.unicamp.br/ecidadania [Accessed 18 January

2011].

FFmpeg, 2010. [online] Available at: http://www.

ffmpeg.org/ [Accessed 15 November 2010].

Hayashi, E. C. S., Baranauskas, M. C. C., 2009.

Communication and expression in social networks:

Getting the “making common” from people. In:

Proceedings of the 2009 Latin American Web

Congress, Joint LA-WEB/CLIHC Conference, Mérida,

Mexico. IEEE Computer Society (2009), pp. 131137.

Hayashi, E. C. S., Baranauskas, M. C. C., 2008. Facing the

digital divide in a participatory way – an exploratory

study. In: Proceedings of the HCIS 2008, IFIP World

Computer Congress (WCC 2008), v. 272, pp. 143-154.

Springer.

Institute Paulo Montenegro. 2009. Indicator of Functional

Literacy. [online] Available at: <www.ipm.org.br>

[Accessed 10 October 2010].

Johnson, L. W., Rickel, J. W., Lester, J. C., 2000.

Animated pedagogical agents: face-to-face interaction

in interactive learning environments. International

Journal of Artificial Intelligence in Education, v. 11,

pp. 47–78.

Long Tail Ad Solutions, 2010. JW Player. [online]

Available at: http://www.longtailvideo.com/

players/jw-flv-player [Accessed 15 November 2010].

Mumford, E., 1964. Living with a computer. London,

England: Institute of Personnel Management.

Neris, V. P. de A., Almeida, L. D. A., De Miranda, L. C.,

Hayashi, E. C. S., Baranauskas, M. C. C., 2009.

Towards a Socially-constructed Meaning for Inclusive

Social Network Systems. In: 11

International

Conference on Informatics and Semiotics in

Organisations, IFIP WG8.1, pp. 247-254.

AUGMENTING ACCESSIBILITY IN SOCIAL NETWORKS - A Virtual Presenter

233

Open Computer Vision Library, 2010. [online] Available

at: http://sourceforge.net/projects/opencvlibrary/

[Accessed 15 November 2010].

Östermann, J., Millen, D., 2000. Talking heads and

synthetic speech: an architecture for supporting

electronic commerce. In: Multimedia and Expo, 2000.

ICME 2000. IEEE International Conference, v. 1, pp.

71–74. IEEE.

Pandzic, I. S., 2002. Facial animation framework for the

web and mobile platforms. In: Proceedings of the.

Seventh international Conference on 3D Web

Technology (Web3D '02), pp. 2734. ACM.

Ryokai, K., Vaucelle, C., Cassell, J., 2003. Virtual Peers

as Partners in Storytelling and Literacy Learning.

Journal of Computer Assisted Learning v. 19, n. 2, pp.

195–208.

Schuler, D., Namioka, A., 1993. Participatory design:

principles and practices. Hillsdale, USA: Lawrence

Erlbaum Assoc. Inc.

Stamper, R. K., Althans, K., and Backhouse, J., 1988.

Measur: Method For Eliciting, Analysing and

Specifying User Requirements. In: Computerized

Assistance During the Information Systems Life Cycle.

North-Holland: Elsevier Science Ltd., pp. 67-115.

Tartaro, A., Cassell, J., 2006. Using Virtual Peer

Technology as an Intervention for Children with

Autism. Universal Usability: Designing Computer

Interfaces for Diverse User Populations. New York:

John Wiley & Sons, Ltd., pp. 231–262.

University of Edinburgh, 2010. The Centre for Speech

Technology Research - The Festival Speech Synthesis

System. [online] Available at: http://www.cstr.

ed.ac.uk/projects/festival/ [Accessed 15 November

2010].

Vila na Rede, 2011. [online] Available at´: http://www.

vilanarede.org.br [Accessed 18 January 2011].

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

234
