STEREO VISION MATCHING OVER SINGLE-CHANNEL

COLOR-BASED SEGMENTATION

Pablo Revuelta Sanz

, Belén Ruiz Mezcua

, José M. Sánchez Pena

and Jean-Phillippe Thiran

Carlos III University of Madrid, Spanish Center for Captioning and Audiodescription (CESyA)

Av. Peces Barba, 1, 28918 Leganés, Madrid, Spain

Signal Processing Laboratory (LTS5), École Polytechnique Fédéral de Lausanne (EPFL)

Station 11, CH1015 Lausanne, Switzerland

Keywords: Segmentation, Single-channel, Depth map, Stereovision.

Abstract: Stereo vision is one of the most important passive methods to extract depth maps. Among them, there are

several approaches with advantages and disadvantages. Computational load is especially important in both

the block matching and graphical cues approaches. In a previous work, we proposed a region growing

segmentation solution to the matching process. In that work, matching was carried out over statistical

descriptors of the image regions, commonly referred to as characteristic vectors, whose number is, by

definition, lower than the possible block matching possibilities. This first version was defined for gray scale

images. Although efficient, the gray scale algorithm presented some important disadvantages, mostly related

to the segmentation process. In this article, we present a pre-processing tool to compute gray scale images

that maintains the relevant color information, preserving both the advantages of gray scale segmentation and

those of color image processing. The results of this improved algorithm are shown and compared to those

obtained by the gray scale segmentation and matching algorithm, demonstrating a significant improvement

of the computed depth maps.

1 INTRODUCTION

Stereo vision is a common procedure used to obtain

a 3D representation of a scene where the information

is provided from two different image projections of

the same scene. This particular process is carried out

automatically by human vision. However,

implementing this technique in a computer vision

system presents many diverse problems which will

be discussed throughout this study.

All multi and stereo view vision based

approaches must take into consideration a process

known as Matching. This consists in identifying the

same physical points in different images (Pons and

Keriven, 2007). The difference between these

images is referred to as the disparity, from which the

depth information can be recovered.

We propose in this paper an improvement of a

previous work (Revuelta Sanz et al., 2010b). In this

previous work, stereo vision has been achieved by

matching the region descriptors instead of matching

blocks or edges located in both images. Regarding

color images matching, algorithms found in the

literature show to have important computational

load, whichever is the color space chosen to process

the image (see (Kuan et al., 2008; Mushrif and Ray,

2008; Ozden and Polat, 2007) for examples). The

segmentation and the descriptors extraction of each

region were obtained by means of a region growing

and indexing algorithm (Revuelta Sanz et al.,

2010a), gray scale based. The contribution to this

algorithm is the inclusion of color information in the

region growing process, and our results will only be

compared to those obtained with the gray scale

version. The goal of this complementary

functionality is to take advantage of the color

information in image segmentation, improving the

depth maps accuracy, while preserving the

simplicity of the gray scale approach.

This paper is organized as follows. After this

introduction, section 2 explains the details of the

proposed pre-processing tool. In the same section

the effects of this pre-processing are shown. In

section 3, the segmentation and matching process of

pairs of images is described. Results of the

application of the described algorithm are shown in

section 4, and discussed in section 5, comparing

126

Revuelta Sanz P., Ruiz Mezcua B., M. Sánchez Pena J. and Thiran J..

STEREO VISION MATCHING OVER SINGLE-CHANNEL COLOR-BASED SEGMENTATION.

DOI: 10.5220/0003473201260130

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 126-130

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

these results with those obtained by the gray scale

version of the algorithm.

2 COLOR IMAGE PROCESSING

The field of research referred to as color image

processing has been widely studied over the past few

decades, this is partly due to the fact that it is closely

related to the process of human vision (Millán and

Valencia, 2006). However, several different

parameters must be considered when this

segmentation is to be performed on gray scale

(Zhang et al., 2007) and color images (Kuan, Kuo, &

Yang, 2008).

The color is commonly presented as the

combination of three components, Red-Green-Blue

(RGB). Other possibilities come from transpositions

of this space into three other coordinates, such as

YIQ or YUV, HSL, HSV, etc. The basic principles

of the improved and novel algorithm proposed in

this paper are listed as follows:

• Not every bit of a pixel carries the same

information: most relevant bits have more

information than the least bits.

• During the process of image segmentation it is

only important to compare relevant

information.

• A pseudo-color image (PCI from hereinafter)

can be built from a color image and maintains

the majority of the advantages associated with

both color and gray scale segmentation.

(a) (b)

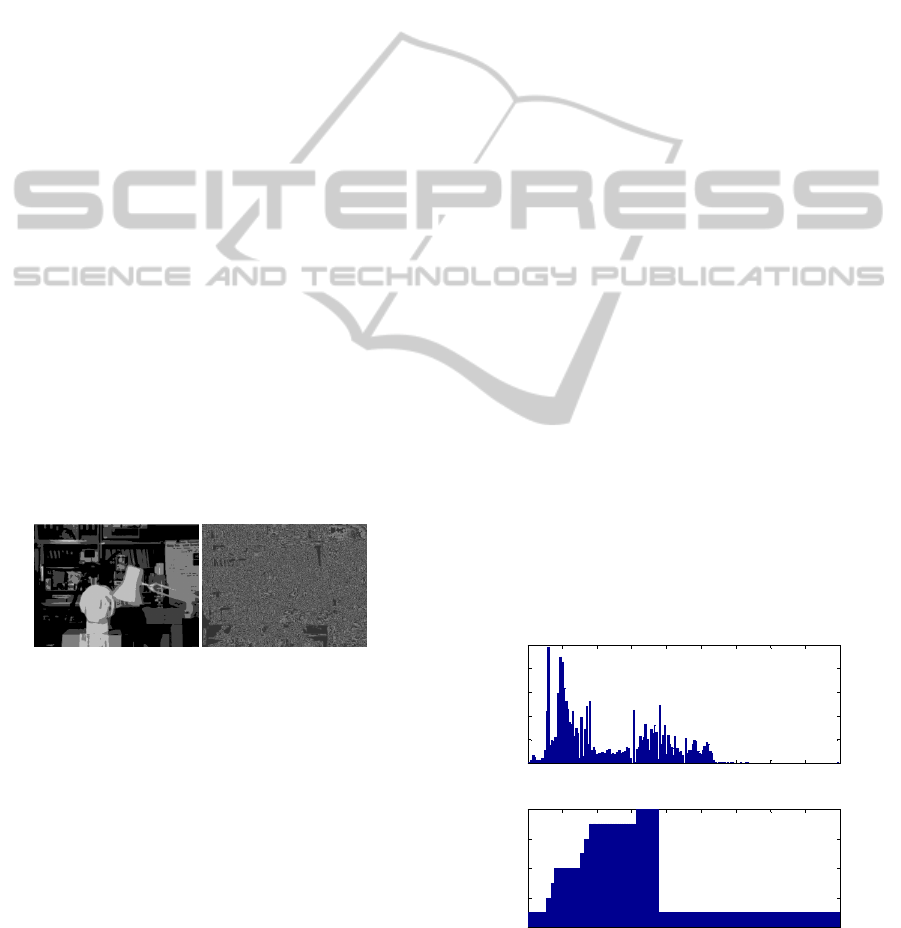

Figure 1: Two most (a) and least (b) significant bits of the

red channel acquired from the Tsukuba right image.

These facts allow reducing the complexity of the

segmentation process, while at the same time

maintains the most relevant color features. For that

purpose, we identify the dominant colors in an

image, and set the rest of the bits with information

regarding relevant color levels. This process can be

carried out using the following steps: RGB

conversion to Hue, Saturation and Value (HSV)

color space, color clustering with the hue component

(assigning homogeneous values to pixels when their

color is close enough) and calculation of the pseudo-

color gray scale image. These images will be

segmented and matched as explained in (Revuelta

Sanz, Ruiz Mezcua, Sánchez Pena, & Thiran,

2010b). This is done with the following instructions:

counts=INF;

while(counts > MAX_NUM_OF_COLORS)

counts=0;

Variation_Threshold++;

for 0 < i < 360, do:

newHistogram[i] = counts;

if histogram[i] is local minima [i] with

variation > Variation_Threshold, do:

counts++;

else

if histogram[i] is isolated color

component with level > Level_Threshold, do:

counts++;

end if;

end for;

end while;

The maximum number of colors

(MAX_NUM_OF_COLORS) is a constant that

forces the threshold increase of the local minima

variation to fit the palette of colors to the desired

one. The Variation_Threshold variable is originally

set to 100, and incremented in steps of 100.

Although, this is not a crucial data since it will be

adjusted in the iterative loop.

The newHistogram array stores the same H value

until the algorithm finds a local minima or an

isolated group of colors above another threshold,

when counts increases its value representing a new

color. Figure 2 presents both the hue component of

and histogram (ranged in 180º) and the

corresponding LUT after the transformation. As

presented in figure 2, the array obtained may not be

considered as a proper histogram, but as a 1D-LUT

where a value (ranging between 1 and 8) is assigned

to every Hue value of each pixel in the original

image. Originally gray pixels will be processed in a

gray scale format.

Figure 2: (up) Original histogram of Tsukuba right image

(ranged [1:180], horizontal axis) and (down) Clustered

Look-Up-Table to 8 colors (ranged [1,8], vertical axis).

0 20 40 60 80 100 120 140 160 180

1000

2000

3000

4000

5000

Original hue histogram

hue value

num. pixels

0 20 40 60 80 100 120 140 160 180

Clustered hue LUT

original hue value

final hue value

STEREO VISION MATCHING OVER SINGLE-CHANNEL COLOR-BASED SEGMENTATION

127

The complete transformation for each pixel is as

follows:

if O(Si,j) > SAT_THRESHOLD & O(Vi,j) >

VAL_THRESHOLD, do:

F(Hi,j) = O(Hi,j);

F(Si,j) = 255;

F(Vi,j) = O(Vi,j)&MASK;

else

F(Hi,j) = O(Hi,j);

F(Si,j) = 0;

F(Vi,j)

= O(Vi,j)&MASK;

end if;

In this pseudo code, the terms O(…) and F(…)

are the original and final images, respectively. H

i,j

and V

i,j

are the Hue, Saturation and Value

component , respectively, of the (i-th,j-th) pixel and

MASK is the constant that maintains the two MSBs

rejecting the rest ones. The result of the

aforementioned process is the conversion of the

original image to a scalar image. Figure 3 illustrates

two representations of the final PCI image (false

colors have been introduced to aid visual

perception). Since the level of Saturation has been

reduced to one bit (whether or not it is completely

saturated), the color palette is forced to be

represented by 8 colors. As effect of the minimum

saturation constraint, some pixels are left in gray

scale. The Value of every pixel is truncated to its

two MSBs, the complete pixel information can thus

be stored in 6 bits, which maintain the most relevant

information of each pixel. As a result, a gray-scale

image can be built, which is then segmented as a non

ambiguous gray scale image, as shown in figure 3.b.

(a) (b)

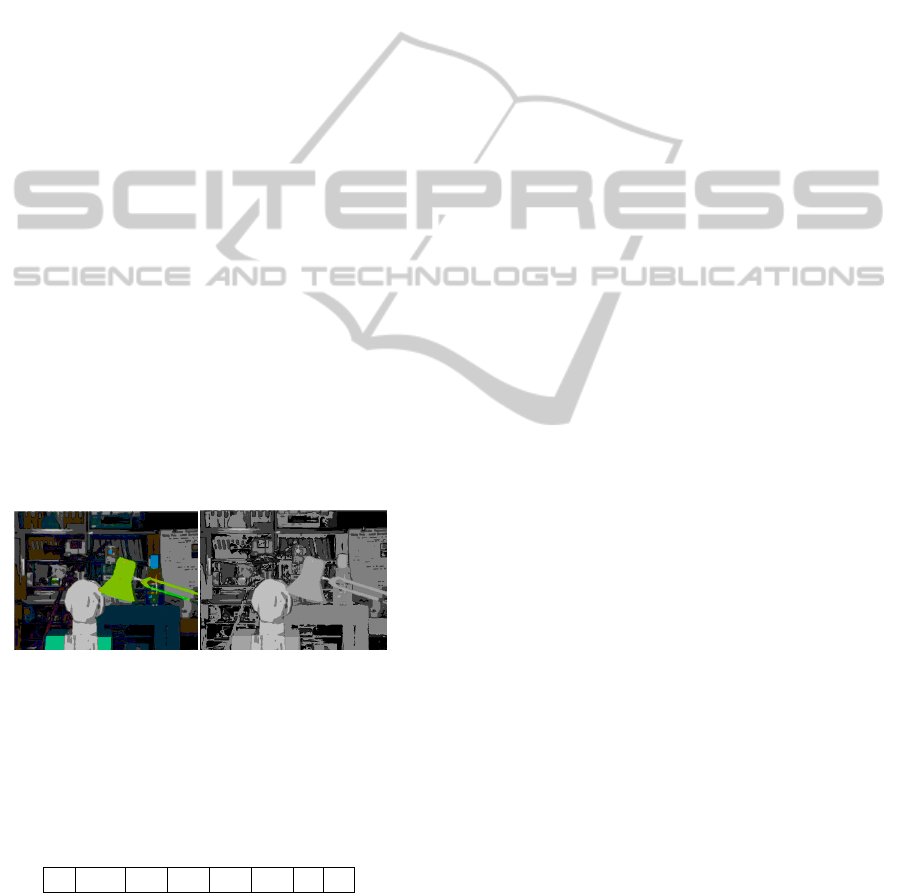

Figure 3: (a) Tsukuba right image after color clustering (1

byte/pixel). False color representation. (b) PCI shown in a

gray scale image.

In these images, each byte has the following

structure:

Table 1: Clustered pseudo color byte structure.

S C

0 0

In this table, S is the saturation bit, C

the

descriptor of the dominant color (allowing 8

different colors) and V

and V

the two MSB of the

Value component. It is important to notice that this

transform is not equivalent to a Euclidean distance

measurement in any color space. Moreover, its non-

linear transform allows an important save of

memory and computational load, maintaining

important information.

3 PCI SEGMENTATION AND

MATCHING

We present herein an analysis of the segmentation

process required in computer vision. This task has

been used to separate different regions or areas

located within the same image of support Ω (Pham

et al., 2000):

∑

=Ω

(1)

In this equation, S

represents the k-th region and

∩ S

=Ø for k≠j. When applied to binary images

the process of segmenting demonstrates no

interpretation uncertainties. However, several

different parameters must be considered when this

segmentation is to be performed on gray scale

(Zhang, Xiong, Zhou, & Wong, 2007) and color

images (Kuan, Kuo, & Yang, 2008).

The segmentation and matching is done with the

algorithm presented in (Revuelta Sanz, Ruiz

Mezcua, Sánchez Pena, & Thiran, 2010b). The main

advantage of the segmentation process is that it

allows statistical descriptors to be extracted from

every region on the fly thus reducing the

computational cost as each pixel is only processed

once. A detailed description of the extraction

features may be found in (Revuelta Sanz, Ruiz

Mezcua, & Sánchez Pena, 2010a).

4 RESULTS

The pre-processing and segmentation procedures

have been implemented using an OpenCV library

along with a specific C program designed for this

particular application. To verify the reliability of this

procedure, it has been applied to the Tsukuba pair of

color images, which have a resolution of 384x288

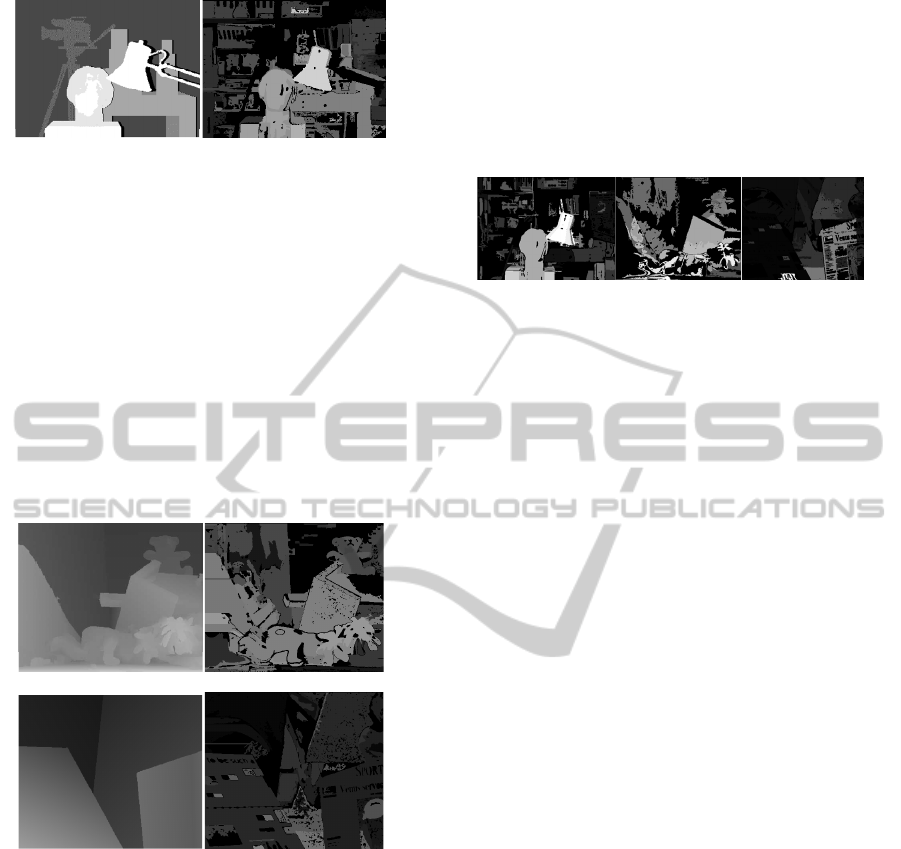

pixels. Figure 4 shows the real depth map and the

computed one.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

128

(a) (b)

Figure 4: (a) Real depth of Tsukuba images. In black, the

occluded parts. (b) The computed depth map. In black,

unmatched regions and occluded parts.

The time required by the algorithm to obtain this

result is 77.4 ms (12 fps), achieving a real-time

performance. The quantitative results, obtained by

means of the Middlebury web page (Middlebury,

2010), show that the error in non-occluded pixels

achieves the 46.9% of pixels for a threshold of 2.

Further tests on different color standard image

pairs have also been carried out, using the same

database. Image processing results on each image of

the Teddy and Venus pairs are presented in the

following figure, close to the true depth maps.

(a) (b)

Figure 5: (a) Teddy true and (b) computed depth map. (c)

Venus true and (d) computed depth map.

In these cases, the time required to compute the

depth maps is 114.2 ms (8 fps) for the Teddy image,

and 111.8 ms (8 fps) for the Venus image. In these

cases, the error in non-occluded pixels (“nonocc” in

the database notation) for the Teddy and Venus

image pairs is 60 and 77.2%. These results are

discussed in the following section.

5 DISCUSSION

The main goal of the pre-processing and color

clustering algorithm has been achieved. We propose

now a qualitative comparative analysis between the

proposed algorithm for color images and the

previously developed algorithms applied to gray

scale images (Revuelta Sanz, Ruiz Mezcua, Sánchez

Pena, & Thiran, 2010b). The depth map computed

using truncated gray scale images on the same set of

image pairs are presented in the following figure 6.

(a) (b) (c)

Figure 6: Segmentation based on gray scale version of (a)

Tsukuba, (b) Teddy and (c) Venus images pairs (Revuelta

Sanz, Ruiz Mezcua, Sánchez Pena, & Thiran, 2010b).

The errors appreciated in this figure are a result

of the lack of information of the gray scale image.

By using the color based algorithm presented in

this paper most of these errors have been corrected.

All remaining results are seen to improve when

using the novel color-based algorithm, where more

detailed depth maps have been obtained. However

several errors are still present which are related to

the segmentation process. An example of such errors

may be observed and measured in the different areas

of the left panel of the Venus pair, which provoke

errors shown in figure 5.d. These can be explained

by the nature of the segmentation algorithm. As the

areas with the same value (regardless of the image

being in gray or color scales) are processed as being

the same region, any depth differences within the

same region have not been computed, and only a

mean value is provided. This particular effect may

also be appreciated when observing the floor of

figure 5.b. Additionally, some differentiated areas

inside this panel (color blocks, for example) have

been processed as different regions thus, the depth

has been computed separately. Finally, the high rate

of errors measured in images 5.b and 5.d are also

due to the following reason: the depth is computed

from the difference of the centroids horizontal

coordinate in both images. This centroid can be

displaced if the segmentation in one image includes

some parts that are not included in the corresponding

image and region segmentation. Hence, the centroid

different appears to be different of the exact value

and, finally, all pixels segmented and labelled as

belonging to that region will have a depth value

slightly distorted but big enough to compute as

errors.

To conclude, the additional information provided

by color images is advantageous when an improved

STEREO VISION MATCHING OVER SINGLE-CHANNEL COLOR-BASED SEGMENTATION

129

segmentation algorithm is to be implemented. The

main problems associated with such color-based

segmentation, i.e. three-channel processing, has been

solved by the composition of a pseudo-color image

which preserves the critical information within a

single channel, where no additional computational

load is required for the segmentation process.

ACKNOWLEDGEMENTS

This work has been partially supported by

Comunidad de Madrid (grant no. S2009/ESP-1781).

Additionally, we would like to acknowledge the

student grant offered by the Universidad Carlos III

de Madrid and the CESyA, which has also

contributed to this research work to be performed.

REFERENCES

Middlebury Database. 2010. http://vision.middlebury.edu/

stereo/data/

Kuan, Y.-H., Kuo, C.-M., & Yang, N.-C., 2008. Color-

based image salient region segmentation using novel

region merging strategy. IEEE transactions on

multimedia 10[5], 832-845.

Millán, M. S. & Valencia, E., 2006. Color image

sharpening inspired by human vision models. Applied

Optics 45[29], 7684-7697.

Mushrif, M. M. & Ray, A. K., 2008. Color image

segmentation: Rough-set theoretic approach. Pattern

recognition letters 29[4], 483-493.

Ozden, M. & Polat, E., 2007. A color image segmentation

approach for content-based image retrieval. Pattern

recognition 40[4], 1318-1325.

Pham, D. L., Xu, C., & Prince, J. L., 2000. Current

Methods in Medical Image Segmentation. Annual

Review of Biomedical Engineering 2, 315-337. Annual

Reviews Inc.

Pons, J.-P. & Keriven, R., 2007. Multi-View Stereo

Reconstruction and Scene Flow Estimation with a

Global Image-Based Matching Score. International

Journal of Computer Vision 72[2], 179-193.

Revuelta Sanz, P., Ruiz Mezcua, B., & Sánchez Pena, J.,

2010a. M. Efficient Characteristics Vector Extraction

Algorithm using Auto-seeded Region-Growing.

Proceedings of the 9th IEEE/ACIS International

Conference on Computer and Information Science

ICIS 2010, 215-221.

Revuelta Sanz, P., Ruiz Mezcua, B., Sánchez Pena, J. M.,

& Thiran, J.-P. 2010b, Stereo Vision Matching using

Characteristics Vectors EPFL-REPORT-150511.

Zhang, K., Xiong, H., Zhou, X., & Wong, S., 2007. A 3D

Self-Adjust Region Growing Method for Axon

Extraction. Image Processing, 2007. ICIP 2007. IEEE

International Conference on 2[II], 433-436. San

Diego, California, IEEE Signal Processing Society.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

130
