A CONTEXT-AWARE SERVICE CENTRIC APPROACH FOR

SERVICE ORIENTED ARCHITECTURES

Hatim Hafiddi, Mahmoud Nassar, Hicham Baidouri, Bouchra El Asri and Abdelaziz Kriouile

IMS Team, SIME Laboratory, ENSIAS, Rabat, Morocco

Keywords: Context, Ubiquitous computing, Context-Aware Service Oriented Architectures, Model Driven Engineering,

Aspect paradigm.

Abstract: Evolution in the fields of telecommunication and software engineering has promoted the birth of a new

generation of software architectures known as Context-Aware Service Oriented Architectures (CASOA)

which are articulated on a new design and development paradigm called Context-Aware Service (CAS).

However, the ambiguity of the context concept and the multiplicity of services execution contexts make

CAS hard to build and show why a generic approach, in accordance with best practices of software

engineering for designing such services, is necessary. This paper focuses on a CAS design approach for

building CASOA. To deal with such architectures development, challenges such as context management and

dynamic service adaptation have to be faced. We propose in this article a design process that exploits both

of our context and CAS specifications and metamodels in order to fulfil the passage from a core service in

Service Oriented Architecture (SOA) to a CAS in CASOA. This passage is satisfied across a mechanism

that, inspired by the Aspect Paradigm concepts, considers the service adaptations as aspects.

1 INTRODUCTION

Evolution in the fields of telecommunication (e.g.,

fast networking protocols), of mobile infrastructures

(e.g., new generation of mobile devices) and

software engineering in terms of architectures (i.e.,

emergence of new architectures like Service

Oriented Architectures) and in terms of development

paradigms (i.e., from the functional to the service

while passing by the object and component

paradigms) has promoted the birth of a new

generation of software architectures known as

Context-Aware Service Oriented Architectures

(CASOA) which are articulated on a new design and

development paradigm called Context-Aware

Service (CAS). A CAS provides users with a

customized and personalized behaviour depending

on their contexts. For example, a Restaurants

Searching service gives users suggestions depending

on their locations, preferences and even the used

device capabilities. Generally, this kind of

information is called context.

The ambiguity of the context concept and the

multiplicity of context situations to be considered

make CAS hard to build and highlight the need of

universally accepted basic design principles that can

lead to a generic approach for efficient CAS

development as an underlying mechanism for

building CASOA. The traditional approaches for

CAS development produce services which are able

to function only in preset situations and whose

business logic is tightly coupled with both of context

management and adaptation logics. Thus, the result

of such approaches is complex services whose rate

of evolution and reuse is much reduced.

Nowadays, designing systems based on CAS

enables them to sense and react to changes observed

in their environment. This capability is particularly

critical in ubiquitous environments, where context is

the central element of mobile systems (Sheng, Yu

and Dustdar, 2009). Though we base our remarks in

this article on a specific application domain (i.e. The

E-tourism), we follow a Model Driven Engineering

(MDE) approach for CASOA artefacts development

independently of the technical platforms and the

application domains (Platform & Domain

Independent Development Approach: PDIDA).

Model-Driven Engineering (MDE) is a model

centric approach for software development in which

models are used to drive the development of all

software artefacts. It provides great benefits in terms

of cost reduction and quality improvement. Our

176

Haﬁddi H., Nassar M., Baidouri H., El Asri B. and Kriouile A..

A CONTEXT-AWARE SERVICE CENTRIC APPROACH FOR SERVICE ORIENTED ARCHITECTURES.

DOI: 10.5220/0003473501760183

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 176-183

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

approach consists on providing CASOA artefacts

metamodels which will serve for constructing

models, then implementations can be generated

automatically by performing a series of model to

model transformations. Thereby, in addition of

profits in terms of reuse, evolution, integration and

maintenance, our approach can be easily transposed

to various domains and target various technical

platforms.

In the rest of this paper, we first present a

scenario that concerns an E-tourism system which

will be used in subsequent sections as an illustrating

example. In Sect. 3, we present and describe our

context specification and metamodel and focus, in

the fourth section, on giving a CAS specification and

metamodel. Sect. 5 introduces how aspect paradigm

can be applied to fulfil service adaptation to its

execution contexts while in Sect. 6 we present our

CASOA design process. Sect.7 briefly compares

related work. Finally, we conclude the paper in Sect.

8 with plans for future work.

2 e-TOURISM SCENARIO

Let’s imagine that a Swedish tourist wants to taste

the local gastronomy of a Moroccan city which he’s

visiting, so he connects himself via his mobile

device (e.g., PDA, iPhone, BlackBerry, etc.) to a

traditional E-tourism system in order to obtain a list

of suitable restaurants. He subscribes to the system,

launches his request (i.e. concerning a restaurants

searching service) and obtains one of the two

following answers:

 Service failure (i.e. the system blocks and the

application closes) because of its inadequacy

for a mobile use (i.e. the memory overloads

considering the great number of returned

records);

 In the contrary case (i.e. limited number of

returned records), the service returns an

inadequate response for tourist’s expectations

(i.e. inadequate display and inappropriate

restaurants because the system doesn’t take

into account parameters like tourist’s device

type, his localization, his language, his

preferences, etc.).

In purpose to use user’s context and face its

changes, this E-tourism system needs to be context-

aware. Indeed, if such system was conceived to be

context-aware, the tourist once connected to the

system will receive automatically (time is taken into

account: it’s midday for example) a list of

restaurants well presented (device type is taken into

account for display adaptation), close to his site

(taken into consideration the localization), described

in his language (the system will consider the user’s

language) and taking account his preferences (food

preferences for instance). Also, let’s note that such

system will resort to a results pagination mechanism

(considering the device capacities, the RAM in this

case) to avoid its blocking and if ever it detects any

change in tourist’s context (e.g., weak battery or

change of the connection type), it will automatically

adapt his behaviour (e.g., passage to a reduced view)

in purpose of optimization.

The development of this E-tourism system, in

particular, and context-aware systems, in general,

imply several challenges. First, Context definition

(i.e. which context information are relevant for the

adaptation of the system), structure (i.e. the

properties and the connections between the

information) and acquisition is not an easy process.

Second, the adaptation process must be based on

mechanisms in accordance with best practices (e.g.,

easy reuse and maintenance) of software engineering

in order to produce well designed CASOA.

3 CONTEXT

Context is the information that characterizes the

interactions between humans, applications, and the

environment (Brezillon, 2003). Context information

is dependent on system domain, as a type of

information might be considered as context

information in one domain but not in another one.

So, several context definitions were proposed in the

literature, (Chen and Kotz, 2000) and (Schmidt,

Beigl and Gellersen, 1999) for example, serving

various domains, however the context definition

given by Dey and Abowd remains the most generic.

Indeed, these authors have defined context as “any

information that can be used to characterize the

situation of an entity. An entity is a person, place or

object that is considered relevant to the interaction

between a user and an application, including the user

and applications themselves” (Dey and Abowd,

1999, para. 2.2). As given in (Truong and Dustdar,

2009), we consider context parameters as any

additional information that can be used to improve

the behaviour of a service in a situation. Without

such information, the service should be operable as

normal but with context information, it is arguable

that the service can operate better or more

appropriately (Truong and Dustdar, 2010).

Rather than giving context formalization, case of

A CONTEXT-AWARE SERVICE CENTRIC APPROACH FOR SERVICE ORIENTED ARCHITECTURES

177

Figure 1: Core context metamodel.

figure for several researches on this topic,

sometimes domain specific and sometimes generic

but not very extensible, we choose to propose a

metamodel which is, at the same time, generic and

abstract (see Fig. 1). This metamodel is based on the

following specification:

 A context decomposes into sub contexts;

 A sub context can be, recursively, decomposed

into categories for its structuring;

 A context, a sub context and a category are

constituted of parameters;

 A parameter is simple, derived or complex;

 A derived parameter is obtained by derivation

from a set of parameters;

 A complex parameter can have many

representations;

 A context view (i.e. a set of parameters) can

have a semantic;

 An entity (e.g., service, user, device, etc.) is

described by a set of parameters.

To illustrate our metamodel, let’s project it on

the case of figure of the E-tourism system presented

in the second section. The context for this system, in

particular, and context-aware computing, in general,

is composed mainly of the following sub contexts

(see Fig.3):

 DeviceSubContext: it contains the parameters

which describe the entity device. It breaks up

into two categories which are the software

category (e.g., operating system, navigator

type, supported type of data, etc.) and the

hardware one (e.g., processor type, screen size,

battery level, memory size, etc.);

 UserSubContext: it’s a sub context which

contains the parameters describing the entity

user (e.g., preferences, localization, profile,

etc.);

 EnvironmentSubContext: this sub context

contains the environment parameters (e.g.,

time, weather, etc.);

 ServiceSubContext: in its turn, this sub context

contains the parameters which characterize a

service (e.g., price, availability, response rate,

response time, etc.).

Figure 2: Ubiquitous context packages.

For organization and context management facility

reasons, we structure our context model in packages

as illustrated in Fig. 2. Some parameters (e.g., device

type, service price, etc.) are common to any

ubiquitous system. Thus, they are defined in non-

domain specific sub context (i.e.,

ServiceSubContext, EnvironmentSubContext,

UserSubContext and DeviceSubContext), while

others are specific to the application domain (E-

tourism in our case), so they are placed in

DomainSpecificSubContext.

DeviceSubContext

ServiceSubContext EnvironmentSubContext

UserSubContext

DomainSpecificSubContext

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

178

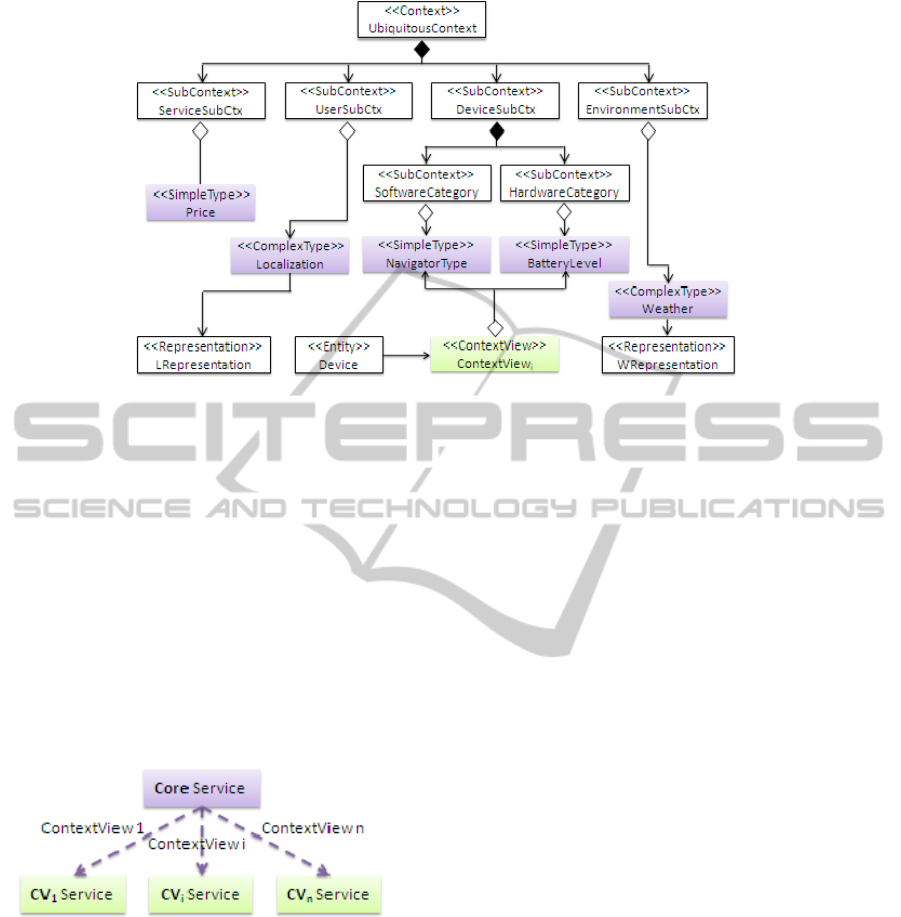

Figure 3: Succinct context model for the E-tourism scenario.

4 CONTEXT-AWARE SERVICE

One of the first uses of the term context-aware

appeared in 1994 (Schilit and Theimer, 1994). A

service is context-aware if it provides customized

and personalized behaviour to users depending on

their contexts (Dey and Abowd, 1999). In Service

Oriented Computing (SOC), a service is defined as

self-describing and platform-agnostic computational

element that supports rapid, low-cost and easy

composition of loosely coupled and distributed

software applications (Papazoglou, 2003).

Figure 4: Core service adaptation to its various

ContextViews.

To be context-aware, a service must be able to adapt

dynamically its behaviour to its several execution

context and adapt dynamically its behaviour.

Henceforth, these appropriate context information

relative to a specific execution situation form what

we call the ContextView of the service and the result

of service adaptation to this ContextView forms the

ContextViewService (see Fig .4).

(i.e. use) contexts. In other words, the service (i.e.

core service) must possess mechanisms in purpose to

exploit only relevant information of the execution

Fig. 5 illustrates our CAS metamodel. This

metamodel is based on the following specification:

 Both context-aware service and context-view

service are specific services;

 A context-aware service (respectively context-

view service) possesses a CAS adaptation

strategy (respectively CVS adaptation

strategy) which concerns a set of context

views (respectively a given context view);

 A CAS adaptation strategy aggregates a set of

CVS adaptation strategies;

 For a given CVS adaptation strategy and

context view, a set of adaptation conditions is

deduced;

 An adaptation condition can involve the

execution of an ordered set of adaptations;

 For a given CVS adaptation strategy and

adaptation, an adaptation rule is associated;

 A CVS adaptation strategy aggregates a set of

adaptation conditions, ordered adaptations and

adaptation rules.

Thus, CAS is seen as a specific service with a

number of ContextViews. For each one, we associate

an adaptation strategy (i.e. CVSAdaptationStrategy)

which indicates when (i.e. AdaptationCondition:

classical conditions expressed on ContextView

parameters) and how (i.e. AdaptationRule: defines

the places in the service where the dynamic ordered

adaptations will be realized) a set of ordered

adaptations (i.e. Adaptation) must be applied on the

core service in order to provide the expected

behaviour regarding the current execution context.

The adaptation result forms the ContextViewService.

So, for a given service, the set of its

A CONTEXT-AWARE SERVICE CENTRIC APPROACH FOR SERVICE ORIENTED ARCHITECTURES

179

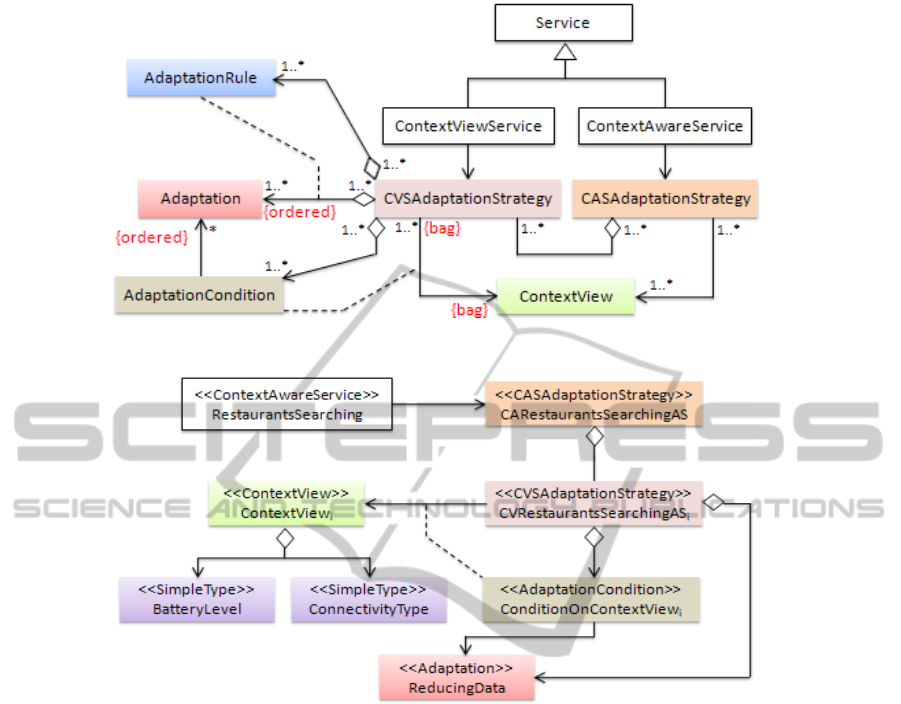

Figure 5: Core CAS metamodel.

Figure 6: Succinct CAS model for the e-tourism scenario.

ContextViewServices (respectively

CVSAdaptationStrategies) forms the CAS

(respectively CASAdaptationStrategy).

For instance, in the E-tourism motivating

scenario (c.f. Sect. 2), battery level and connectivity

type represent one of the Restaurants Searching

service ContextViews which can provoke service

adaptation by reducing the amount of data returned

(i.e. Adaptation) whenever this level is lower than

20% or the connectivity is changed from a high

connectivity to a low one (i.e. AdaptationCondition).

Fig. 6 presents a succinct CAS model in the case of

Restaurants Searching service.

5 CONTEXT AWARE SERVICE

ADAPTATION MECHANISM

Traditional approaches used for CAS design and

development present several problems. In fact,

simple core service duplication for each

ContextView is a software engineering anti-pattern

(e.g., high-cost of maintenance) as far as integrating

adaptations logic into core service makes it complex

and decreases his ability to be reused and

maintained. So, in order to rationalize the

development and maintenance of CAS, we have to

resort to new mechanisms and strategies that allow

core service extension without any duplication or

regression risks. These mechanisms will favourite

loosely coupling between the core service and its

adaptations seen as crosscutting concerns.

Inspired by Separation of Concerns (Hürsch and

Lopes, 1995) and Aspect Paradigm concepts

(Kiczales, Lamping, Mendhekar, Maeda, Lopes,

Loingtier and Irwin, 1997), our CAS design and

development approach consists of considering the

Adaptation as an aspect. So, the core service focuses

only on the business logic and all of its Adaptations

relatives to its ContextViews will be defined

separately as aspects called Adaptation Aspects.

These Adaptation Aspects will be dynamically

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

180

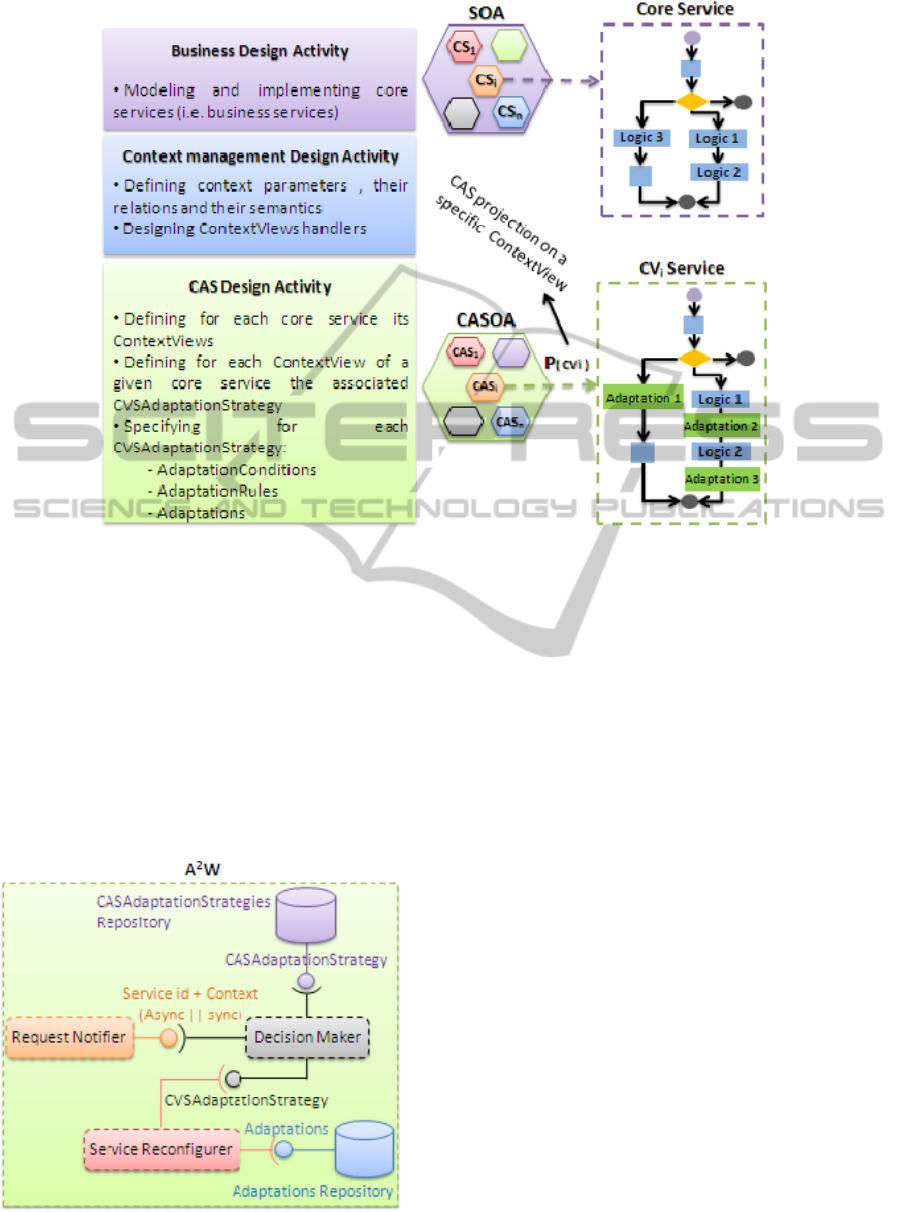

Figure 8: CAS design process.

weaved at runtime into core service by our tool

named Adaptation Aspects Weaver (A

W), in order

to produce the expected ContextViewService.

The Fig. 7 illustrates the mechanism behind our

W tool. The Request Notifier notifies the Decision

Maker with the executed service id and the

execution context in order to recuperate the

CASAdaptationStrategy. Then, the Decision Maker

inspects it in order to retrieve and interpret only the

CVSAdaptationStrategy corresponding to the

pertinent current ContextView.

Figure 7: Adaptation Aspects Weaver architecture.

The interpretation mechanism, operated by the

Service Reconfigurator,

consists in checking the AdaptationConditions in

order to weave only the required Adaptation

Aspects, following a set of AdaptationRules, into

core service to produce the corresponding

ContextViewService.~

Let’s mention that our CAS development

approach combined to the A

W tool provide, in

addition to dynamic service adaptation to the

context, the ability to evolve service behaviour

during the CAS life cycle.

6 CONTEXT AWARE SERVICE

DESIGN PROCESS

The Fig. 8 illustrates our CAS design process to

build CASOA. The whole process contains three

main activities: the business design, the context

management design and the CAS design.

The business design activity consists of specifying

and implementing all core services that fulfil the

system business requirements, resulting in an artifact

of the design process: the system model. The two

other activities deal with the context-awareness of

the core services obtained in business design

activity. Thereby, the context management design

A CONTEXT-AWARE SERVICE CENTRIC APPROACH FOR SERVICE ORIENTED ARCHITECTURES

181

activity consists on modelling context information

that has an impact on the system and specifies the

collection process (i.e. parameters handlers) while

the CAS design activity aims at specifying the

services variability according to its ContextViews.

7 RELATED WORK

Several context models have been defined (e.g.,

Key-value pairs (Schilit, Theimer and Welch, 1993),

databases (e.g., CML (Henricksen and Indulska,

2006)), ontologies (e.g., CMF (Korpipää and

Mäntyjärvi, 2003)), profiling (e.g., CC/PP (Klyne,

Reynolds, Woodrow, Ohto, Hjelm, Butler and Tran,

2007), etc.) and various context-aware middleware

and frameworks have been developed (e.g., context

Toolkit (Salber, Dey and Abowd, 1999), CoBrA

(Chen, 2004), K-Components (Dowling and Cahill,

2001), CORTEX (Sorensen, Wu, Sivaharan, Blair,

Okanda, Friday and Duran-Limon, 2004), etc.) to

deal with context- aware systems development. The

main objective of context modelling researches is to

provide an abstraction of context information to

permit easy context management and they do not

deal, in general, with application variability and

adaptation to the context, whereas researches that

focus on frameworks and middleware development

try to simplify context-aware systems development

by decoupling context management from adaptation

logic but they suffer from a lack of well designed

approach and introduce several technical details

reducing systems portability.

Some other projects focus on context-awareness

metamodeling. An important effort is the work

conducted by the Taconet and Kazi-Aoul team in

(Taconet and Kazi-Aoul, 2010). Authors define

metamodels, following a MDE approach, for

modelling context-aware applications by planning

several model views that model system context

sensitivity but they do not deal with adaptability. In

our approach the system variability and adaptability

to the context is realized through the notion of

CASAdaptationStrategy and the A

W tool. Ayed,

Delanote and Berbers (2007) specify a MDD (Model

Driven Development) approach and an UML profile

to design context-aware applications independently

of the platform. They propose a design process that

models the contexts that impact an application and

its variability but does not specify the mechanism to

fulfil application adaptation to the context. In

ContextUML project, Sheng and Benatallah (2005)

define an approach for modelling context-aware

Web Services. The approach is platform dependent

and the context is specialized into AtomicContext

and CompositeContext, so the semantic expressed in

this metamodel is limited. Also, authors don’t

specify the mechanism used to fulfil CAS

adaptation. Keidl and Kemper (2004) propose a

context framework for the development and

deployment of context-aware adaptable Web

Services. In the framework, context is limited to the

information of service requesters and the approach is

platform dependent.

Another important domain concerns Product

Line Engineering (PLE) which has a great potential

in modelling service variability. An important work

is the one conducted in CAPPUCINE project (Parra,

Blanc and Duchien, 2009). Authors focus on

context-aware adaptation in Dynamic Service-

Oriented Product Line (DSOPL) rather than context

modelling and propose two different processes for

the initial and iterative phases of product derivation.

The main challenge to be faced in this work is to

reduce non-deterministic behaviours when non-

deterministic context-aware assets are introduced. In

our work, this challenge is faced by the execution of

an ordered set of adaptations.

8 CONCLUSIONS

In this article, we followed a MDE approach to

realize CASOA artefacts independently of the

technical platforms and the application domains

(PDIDA). Thus, we presented, firstly, our context

specification as a base for the context metamodel.

Secondly, we proposed a CAS specification and

metamodel and an approach that, based on the

separation of concerns (e.g., Aspect Paradigm),

considers the adaptations to a current execution

context as Adaptation Aspects dynamically woven

by the A

W tool at runtime. Finally, we proposed a

CAS design process that allows designers to model

the context that impacts the system and its

variability to its execution contexts independently of

system model.

We focused in this article on context and CAS

specifications and metamodels and proposed an

adaptation approach those lead to a CASOA design

process. In our future work, we project to provide, in

the short term, an applicative layer of context

handling which will allow the collection and the

transmission of pertinent ContextViews to A

W. In

the long term, our objective is to propose a

framework allowing the CAS development. We

target mainly the Web Services as a technical

platform for implementing CASOA.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

182

REFERENCES

Ayed, D., Delanote, D. and Berbers, Y. (2007). MDD

Approach for the Development of Context-Aware

Applications. In CONTEXT’07, the 6

International

and Interdisciplinary Conference on Modeling and

Using Context, Roskilde University, Denmark.

Brezillon, P. (2003). Focusing on context in human-

centered computing. IEEE Intelligent Systems, 18(3),

62-66.

Chen, G. and Kotz, D. (2000). A Survey of Context-Aware

Mobile Computing Research. Technical Report, Issue:

TR2000-381, Dartmouth College.

Chen, H. (2004). An Intelligent Broker Architecture for

Pervasive Context-Aware Systems. PhD thesis,

University of Maryland, Baltimore County.

Dey, A., K. and Abowd, G., D. (1999). Towards a Better

Understanding of Context and Context-Awareness. In

Technical Report GIT-GVU-99-22, GVU Center,

Georgia Institute of Technology.

Dowling, J. and Cahill, V. (2001). The K-Component

Architecture Meta-model for Self-Adaptive Software.

In REFLECTION’01, the 3

International Conference

on Metalevel Architectures and Separation of

Crosscutting Concerns. Kyoto, Japan.

Henricksen, H. and Indulska, J. (2006). Developing

context-aware pervasive computing applications:

Models and approach. Pervasive and Mobile

Computing, 2(1), 37–64.

Hürsch, W. and Lopes, C., V. (1995). Separation of

concerns. In Technical Report NUCCS-95-03,

Northeastern University. Boston, Massachusetts.

Keidl, M. and Kemper, A. (2004). Towards Context-

Aware Adaptable Web Services. In WWW’04, the 13

International World Wide Web Conference. New

York, USA.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., V., Loingtier, J., M. and Irwin, J. (1997).

Aspect-Oriented Programming. In ECOOP’97, the

European Conference on Object-Oriented

Programming, vol. 1241 of LNCS, Springer-Verlag.

Klyne, G., Reynolds, F., Woodrow, C., Ohto, H., Hjelm,

J., Butler, M., H. and Tran, L. (2007). Composite

Capability/Preference Profile (CC/PP): Structure and

vocabularies 2.0. Technical report, W3C

recommendation.

Korpipää, P. and Mäntyjärvi, J. (2003). An ontology for

Mobile Device Sensor-Based Context Awareness. In

CONTEXT’03, the 4

International and

Interdisciplinary Conference on Modeling and Using

Context. Stanford, USA.

Papazoglou, M., P. (2003). Service Oriented Computing:

Concepts, Characteristics and Directions. In

WISE'03, the 4

International Conference on Web

Information Systems Engineering. IEEE Computer

Society, 3-12.

Parra, C., Blanc, X. and Duchien, L. (2009). Context

Awareness for Dynamic Service-Oriented Product

Lines. In SPLC'09, the 13

International Software

Product Line Conference. San Francisco, USA.

Salber, D., Dey, A., K. and Abowd, G., D. (1999). The

Context Toolkit: Aiding the Development of Context-

Enabled Applications. In CHI’99 Conference on

Human Factors in Computing Systems. Pittsburgh,

Pennsylvania, USA.

Schilit, B., N., Theimer, M., M. and Welch, B., B. (1993).

Customizing mobile applications. In Proc. USENIX

Symposium on Mobile and Location-Independent

Computing. Cambridge, Massachusetts, USA.

Schilit, B. and Theimer, M. (1994). Disseminating Active

Map Information to Mobile Hosts. IEEE Network,

8(5), 22–32.

Schmidt, A., Beigl, M. and Gellersen, H., W. (1999).

There is more to context than location. Computers and

Graphics Journal, 23(6), 893–902.

Sheng, Q., Z. and Benatallah, B. (2005). ContextUML: A

UML-based modelling language for model-driven

development of context-aware web services. In

ICMB’05, the 4

International Conference on Mobile

Business. Sydney, Australia.

Sheng, Q., Z., Yu, J. and Dustdar, S. (2009). Enabling

Context-Aware Web Services: Methods, Architectures

and Technologies (Ed. 2009). London: Chapman and

Hall/CRC.

Sorensen, C., F., Wu, M., Sivaharan, T., Blair, G., S.,

Okanda, P., Friday, A. and Duran-Limon, H. (2004).

Context-aware Middleware for Applications in Mobile

Ad Hoc Environments. In the 2

workshop on

Middleware for pervasive and ad-hoc computing.

Toronto, Canada.

Taconet, C. and Kazi-Aoul, Z. (2010). Building context-

awareness models for mobile applications. Journal of

Digital Information Management, 8(2), 78-87.

Truong, H., L. and Dustdar, S. (2009). A survey on

context-aware web service systems. International

Journal of Web Information Systems, 5(1), 5–31.

Truong, H., L. and Dustdar, S. (2010). Context Coupling

Techniques for Context-aware Web Service Systems:

An Overview. In Sheng, Q., Z., Yu, J. and Dustdar, S.

(Eds.), Enabling Context-Aware Web Services:

Methods, Architectures and Technologies (pp. 337-

364). London: Chapman and Hall/CRC.

A CONTEXT-AWARE SERVICE CENTRIC APPROACH FOR SERVICE ORIENTED ARCHITECTURES

183
