CONCEPT-BASED CLUSTERING FOR OPEN-SOURCED

SOFTWARE(OSS) DEVELOPMENT FORUM THREADS

Jonathan Jason C. King Li

Ateneo de Manila University, Katipunan Avenue, Loyola Heights, Quezon City 1108, Philippines

Masanori Akiyoshi, Masaki Samejima, Norihisa Komoda

Osaka University, Yamadaoka 2-1, Suita, 565-0871, Osaka, Japan

Keywords:

Clustering, Forum threads, Concept-based similarity.

Abstract:

Open-Sourced Software Development depends on the Internet Forum for communication among its develop-

ers. However, a typical program would have related modules which are hard to express in the forum. Though

human effort of reporting related modules is already being used, this technique is impractical due to human

inaccuracy. Our approach uses the Concept-Based Document Similarity for its thorough analysis on the se-

mantic value of a word or phrase on the sentence, document and corpus level for the purpose of measuring

similarities between documents. Then we created a novel Clustering Algorithm that does not need any thresh-

old values and it is able to stop clustering when the clusters are already correctly formed. This was ﬁrst used

on newspapers to test its effectiveness and then was used on a cluster of Bugzilla threads. The results from the

newspapers proved the clustering process works but the results for the Bugzilla threads, where the comment

content do not evidently reveal thread topic, reveals that other elements, aside from thread content, is needed

to establish similarity. Future work will utilize other thread elements for clustering similar threads.

1 INTRODUCTION

Open-Sourced Software Development demands com-

munication between its developers around the world

to ensure the longevity and the usefulness of the prod-

uct. To achieve such logistical feat, developers use In-

ternet Forums to communicate with each other. How-

ever, given the complexities of any typical software

design, developers would have to manually report re-

lated threads, which represent program modules, thus

having these unreported related threads lost within

the forum. However, developers may tend to forget

to report some related threads or even report unre-

lated threads thus putting the trustworthiness of this

technique into question. The aim of this research is

to create an algorithm to ﬁnd related threads so that

the threads that are not reported by developers can

be found and not lost within the forum. Our sum-

marized approach employs text mining to analyze the

comment content of each thread to ﬁnd patterns and

similarities between each thread. Then similar threads

are clustered together, which would contain the re-

lated threads that the developers are looking for.

2 METHODOLOGY OVERVIEW

After data extraction from HTML format or from

any format, the whole process can be summarized

into two phases namely the Concept-Based Docu-

ment Similarity and Document Clustering. After data

cleansing, such as word stemming and stopword re-

moval, the incoming document collection or corpus

enters the Concept-Based Document Similarity phase

where it will encounter three sub-phases namely Con-

cept Extraction, Concept Counting and Similarity

Calculation (Shehata et al., 2010). The following out-

put will be a Similarity Matrix which will enter the

Document Clustering phase where the similar docu-

ments are clustered together iteratively. Then the ﬁ-

nal output is clusters of similar documents. The whole

process can be seen in Figure 1

2.1 Concept-based Document Similarity

The goal of this phase is to produce a similarity ma-

trix where it contains all the similarity values between

each document. As it was mentioned, the Concept-

690

Jason C. King Li J., Akiyoshi M., Samejima M. and Komoda N..

CONCEPT-BASED CLUSTERING FOR OPEN-SOURCED SOFTWARE(OSS) DEVELOPMENT FORUM THREADS.

DOI: 10.5220/0003478206900695

In Proceedings of the 7th International Conference on Web Information Systems and Technologies (WTM-2011), pages 690-695

ISBN: 978-989-8425-51-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

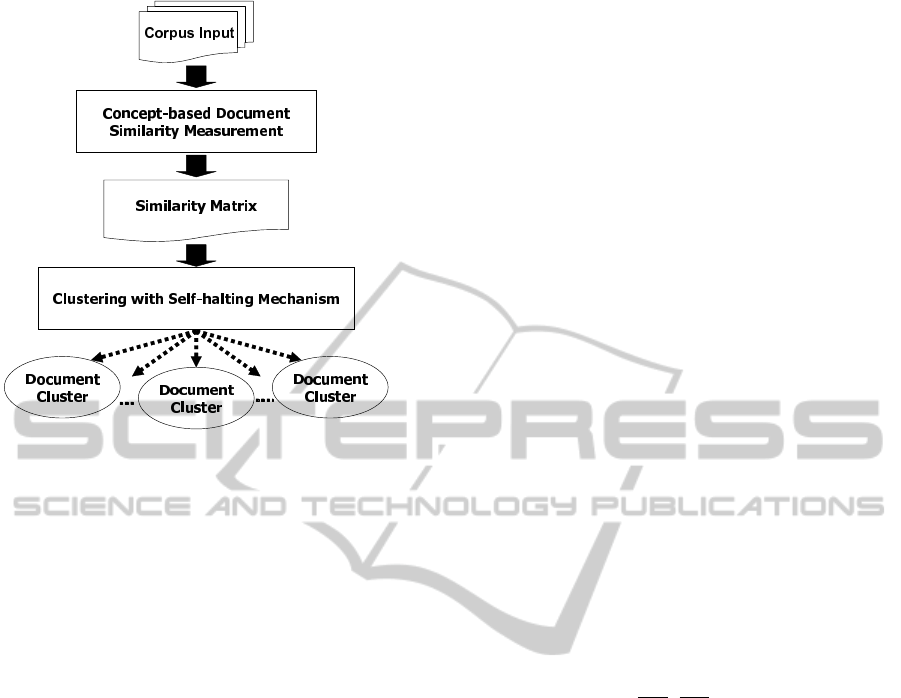

Figure 1: Concept-based clustering process.

Based Document Similarity is composed of three sub-

phases namely Concept Extraction, Concept Count-

ing and Similarity Calculation. First, a document en-

ters the Concept-Based Document Similarity phase

and then during Concept Extraction, each sentence

is extracted for verb-arguments. For every verb in a

sentence, there is one verb-argument structure. The

verb-argument structure contains the verb itself, the

subject and the object of the verb. Using the Stan-

ford parser (Dan and Christopher, 2003), made by the

Stanford Natural Language Processing Group, it can

distinguish the role of every word or group of words

in a sentence. The noun phrase directly before the

verb is the subject of the verb, and heuristically, the

rest of the sentence after the verb is the object of the

verb. Overlapping verb arguments are intended for

Concept Counting. Once the subject, verb and ob-

ject are extracted they are all considered as concepts

and are added to the Concept List of the document.

Also as a standard procedure, concepts are cleaned of

stop words and are stemmed using the famous Porter

Stemmer (Porter, 1980)

The second sub-phase is Concept Counting. Fol-

lowing the algorithm presented by Shehata et al.,

three measurements are introduced namely the Con-

cept Term Frequency (CTF), Term Frequency (TF)

and the Document Frequency (DF). The CTF counts

how many times a concept repeats itself per verb-

argument. The TF counts how many times a con-

cept repeats itself per sentence. DF counts how many

times a concept repeats itself per document so at this

point, DF is always 1. This kind of counting is done

for each concept registered in the Concept List of the

current document. Afterwards, another document en-

ters the Concept-Based Document Similarity phase

and the ﬁrst two sub-phases are executed. This pro-

cess iterates until all documents in the corpus is ex-

hausted and only then all documents enter the Simi-

larity Calculation sub-phase.

In the Similarity Calculation sub-phase, we cre-

ate a Union Concept List from the Concept Lists cre-

ated. The Union Concept List is the Concept List of

the corpus itself where it contains all concepts. First,

all unique concepts are copied to the Union Concept

List. Then if a duplicate is found, the CTF becomes

the average between the current CTF value and the

CTF value of the duplicate. Then, the current DF

value is incremented. Afterwards, we calculate the

similarities between documents using their Concept

Lists. First a matched Concept List is created between

two Concept Lists. A pair of concepts are considered

a match if either an exact match or a partial match

occurs (ex. w

, w

and w3 are distinct words and

Concept A contains w

and w

, Concept B contains

and w

, and Concept C contains w

, w

and w

Concept A and Concept B have an exact match while

Concept A and C have a partial match). Finally, the

following equations found in (Shehata et al., 2010)

are used to measure the similarity between two docu-

ments.

sim

, d

) =

∑

i=1

max

(

)

× weight

The following explains the variables used in the

formula:

• d

and d

are two documents.

• m is the number of matching concept pairs there-

fore i is the counter for the matching concept

pairs.

• l is the length of the concept itself so l

is the

length of the matching concept i in d

• L

is the length of the verb-argument where con-

cept i belongs to.

• weight is the weight of the matching concept

pairs.

The values that result from the similarity equation

are recorded in the similarity matrix where each value

can be traced to the two documents that were used.

The matrix will be the input for our document clus-

tering.

CONCEPT-BASED CLUSTERING FOR OPEN-SOURCED SOFTWARE(OSS) DEVELOPMENT FORUM THREADS

691

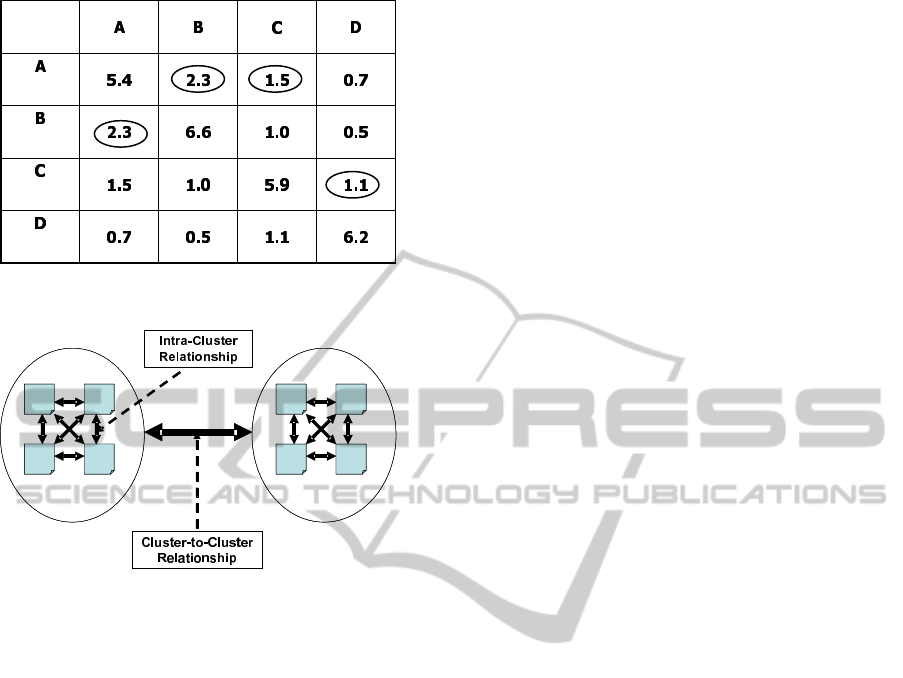

Figure 2: Mutually relatedness with similarity matrix.

Figure 3: Intra-Cluster relationships and Cluster-to-Cluster

relationships.

2.2 Document Clustering

When a similarity matrix enters the Document Clus-

tering phase, the matrix is ﬁrst saved. Aside from the

values along the diagonal, we take the highest value

per column, also known as the Top One of the col-

umn, and then we check for document pairs that has

each other as their Top One. We call this kind of re-

lationship as the “Top One Mutuality Relationship”.

Figure 2 clearly shows the deﬁnition of a Top One

Mutuality (A and B have a Mutual Top One relation-

ship while A and C, and C and D do not since the Top

One of C is A, but A does not have C as its Top One.

The same reason applies for C and D.).

Document pairs with a Top One Mutuality Rela-

tionship will be merged together where unique con-

cepts will be added to one of the Concept Lists, thus

the remaining one will be discarded. Duplicate con-

cepts will update its CTF and TF by adding their val-

ues together but the DF will remain as 1. This merged

cluster is now considered as one cluster. After this it-

eration is ﬁnished, a new Union Concept List is recre-

ated and a new similarity matrix, which will not be

saved, is created. The following iterations will have a

different procedure. Before we continue, we need to

introduce some deﬁnitions. All relationships based on

new similarity matrices are “Cluster-to-Cluster rela-

tionships” regardless if there is only one document in

a cluster and all relationships based on the initial sim-

ilarity matrix are “Document-to-Document relation-

ships”. Furthermore, the Intra-Cluster Document-to-

Document relationship is the similarity value between

two documents within the same cluster based on the

initial similarity matrix. Figure 3 shows the differ-

ence between Intra-Cluster relationships and Cluster-

to-Cluster relationships. Going back to the process,

we again look for Top One Mutuality Relationships

based on the new similarity matrix. Document pairs

with Top One Mutuality Relationships based on this

new similarity matrix will be merged but with an addi-

tional condition. If the current Cluster-to-Cluster re-

lationship is greater than half the average of all Intra-

Cluster Document-to-Document relationships of the

two clusters involved, then the two clusters should be

merged, otherwise they should not be merged.

This algorithm closely matches our intuitive way

of clustering documents together. After reading the

documents, we try to cluster the closest documents

together based on what we read from each document.

However, our own clustering system stops on its own

without clustering all the documents into one cluster.

This is because when try to decide to merge two clus-

ters, we actually compare the relationship between the

two clusters itself against the relationship of docu-

ments within the involved clusters. Thus we came up

with our clustering algorithm that tries to match this

intuitive process. The advantage of this process is that

it no longer needs threshold values and the clustering

process stops on its own.

3 EXPERIMENTAL RESULTS

We ﬁrst applied the algorithm to newspaper articles.

The newspapers were taken from the Manila Bulletin,

the Philippine Daily Inquirer, BBC, the Associated

Press and the ABC News for a variety of writers and

issues. The articles are assigned a number from 1 to

16 and then we manually created the clusters from

the 16 newspaper articles that we gathered. Then we

let the algorithm create the clusters. The results are

found in Table 1.

The algorithm generated clusters are equal to the

manually generated clusters. This same algorithm is

also applied to 31 Bugzilla threads and results are in

Table 2. Furthermore, the algorithm was applied to

25 threads in Bugzilla concerning Firefox, an open

sourced web browser, and 40 threads in Bugzilla con-

cerning Thunderbird, an open sourced email client,

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

692

Table 1: Applied result to Newspapers.

Manually generated clusters Concept-based algorithm clusters

Truth commission topic cluster: 01, 02, 03, 08, 09 Cluster 1: 01, 02, 08, 09, 03

Trafﬁc topic cluster: 04, 11, 12, 13 Cluster 2: 04, 11, 12, 13

Wikileaks topic cluster: 05, 06, 07, 14, 15, 16 Cluster 3: 05, 15, 06, 16, 07, 14

Christmas topic cluster: 10 Cluster 4: 10

and the results are in Table 3 and in Table 4 respec-

tively.

Simply put, the clusters that were generated by the

algorithm for both Table 2, 3 and 4 are not equal. Ap-

parently the content of the comments do not capture

the very topic of the thread itself. However, it is pos-

sible to regard the single thread clusters found in the

results as insigniﬁcant. To actually recreate the results

of the manually created clusters, other elements found

in the forums should be found and utilized to measure

similarity.

4 RELATED WORKS

Text mining is generally used in the ﬁeld of infor-

mation retrieval especially in this age of the Internet

(Arimura et al., 2000). Because of the vast amount

of information that we receive in this era, many re-

searches have been geared for “teaching” computers

how to read. This technology has been applied to

marketing strategies to create proﬁles for retail items

which may contain irregular words thus needing to

measure the semantic value of the words that are

found in their transactions (Ghani and Fano, 2002).

This has also been applied to ﬁnd patterns and trends

among documents to discern the popularity of a doc-

ument (Terachi et al., 2006). Some are also used to

ﬁnd patterns in error reports to ameliorate their stan-

dard procedures (Malin et al., 2009).

Traditional procedures usually include the use of

Term Frequency and Inverse Document Frequency

or Recency/Frequency/Monetary Analysis (Terachi

et al., 2006) (Clifton et al., 2004) or other data min-

ing techniques such as Naive Bayes or Expectation-

Maximization (Ghani and Fano, 2002). These proce-

dures are often used to measure the semantic value

of a word in their given domain. However, this makes

the algorithm too specialized and not reusable to other

ﬁelds not to mention that they still depend on one-

word statistics.

Semantic determination for a word is a growing

research area and has many applications in computa-

tional linguistics, such as data clustering, and artiﬁ-

cial intelligence. Many approaches have been made

by many research works over the past decade. One

method involves using WordNet to create a hierarchy

of words to depict semantic relatedness (Shen and An-

gryk, 2007). Another extends this idea to use multiple

sources such as WordNet and the Brown Corpus (Li

et al., 2003). These approaches would help in min-

ing small bodies of text such as sentences (Li et al.,

2006) or short documents (Jing et al., 2007) where

the meaning of each word needs through analysis due

to the size of the text. However, application of this

method in large bodies of texts would become too te-

dious.

A few recent development of text mining shows

a paradigm shift from one-word statistics to phrasal

statistics, a precursor to concept-based mining. Such

a movement started with Hammouda et al. (Ham-

mouda and Kamel, 2004) with the use of the Docu-

ment Index Graph. Phrasal computation is then fol-

lowed by Hung Chim and Xiaotie Deng (Hung and

Xiaotie, 2008) where they used phrasal computation

with TF-IDF similarity measures. These researches

have proved themselves more superior to single-word

statistics analysis but they still depend on traditional

procedures used for single-word statistics and thus

these procedures are not thorough enough.

The most recent development in text mining is

Concept-Based Mining (Shehata et al., 2010). The

algorithm argues phrasal statistics are still insufﬁcient

in discerning the semantic value of a certain phrase.

Therefore, they introduced concepts which can be

single-words or phrases but they measure similarity

in a different way as it will be explained later. They

propose counting concepts on the sentence level, doc-

ument level and corpus level and then they base sim-

ilarity according to concept matches instead of word

or phrase matches. Furthermore, regardless of the do-

main, this is applicable since there is no storage of

certain words and the importance of words are mea-

sured depending on the corpus input. As we know that

Bugzilla may use technical jargon, using Concept-

Based Mining may be the best choice. However, they

did not present a clustering algorithm to handle the

results from the Concept-Based Mining. Therefore,

we created our own document clustering without a

threshold value and it stops when the correct clusters

are already formed.

CONCEPT-BASED CLUSTERING FOR OPEN-SOURCED SOFTWARE(OSS) DEVELOPMENT FORUM THREADS

693

Table 2: Applied result to Bugzilla threads.

Manually generated clusters Concept-based algorithm clusters

Cluster 1: 302121, 303043, 303105, 303332,

303398, 303115, 303121, 304553, 303065,

303412, 303206, 303335, 303444, 303509,

303684, 303737

Cluster 1: 302121, 303043, 303105, 303332,

304622, 303848, 304962, 304426, 302749,

303398, 303115, 303121, 304553,

304862

Cluster 2: 304622, 303848, 304962,

304426

Cluster 2: 303065, 303412, 303644, 303647

302749, 304862, 303644, 304436, 304457, 304597

Cluster 3: 303647 Cluster 3: 303195

Cluster 4: 303195 Cluster 4: 303206

Cluster 5: 304705, 305928, 306019

Cluster 5: 303335, 304436

Cluster 6: 303444

Cluster 7: 303509

Cluster 8: 303684

Cluster 9: 303737

Cluster 10: 304457, 304597

Cluster 11: 304705, 305928, 306019

Table 3: Applied result to Firefox threads.

Manually generated clusters Concept-based algorithm clusters

Cluster 1: 300412, 305216, 304861,

304558

Cluster 1: 300001 304748, 304405, 305955,

306132

Cluster 2: 300001, 300074 Cluster 2: 300074

Cluster 3: 300565, 300814, 300794,

300740

Cluster 3: 300412, 300706, 300696, 300651,

300615

Cluster 4: 305267, 308398, 318168,

307877

Cluster 4: 300565, 300706, 300814, 300651

300696, 300740

Cluster 5: 305998, 319861, 306409

Cluster 5: 300615

Cluster 6: 300794, 305995, 306132, 304748, 318168

Cluster 7: 304405

Cluster 8: 304558

Cluster 9: 304861

Cluster 10: 305216

Cluster 11: 305267

Cluster 12: 305998, 306409

Cluster 13: 307877

Cluster 14: 308396

Cluster 15: 319861

5 FUTURE WORK

The algorithm works for clustering documents with

cohesive content. However, for media such as the

Bugzilla Forums, other elements may be needed to

match implicit relationships between threads. It is

possible to insert the idea by (Hammouda and Kamel,

2004) where they processed different parts of a Web

document into HIGH, MEDIUM and LOW portions.

Then it is also possible to use in-depth word analysis

introduced by (Shen and Angryk, 2007) (Jing et al.,

2007) (Li et al., 2003) to process small bodies of text

such as titles. Furthermore, the manually created clus-

ters may already help in trying to ﬁnd patterns be-

tween each thread within each cluster or comparative

experiments with other competing text clustering al-

gorithms maybe used to clearly measure the efﬁcacy

of this algorithm.

6 CONCLUSIONS

This paper proposed a novel document clustering

based on concept-based similarity, with automatic

clustering stopping process and without creating one

WEBIST 2011 - 7th International Conference on Web Information Systems and Technologies

694

Table 4: Applied result to Thunderbird threads.

Manually generated clusters Concept-based algorithm clusters

Cluster 1: 216223, 216225,

227883

Cluster 1: 216223, 216225, 227883, 232432,

259951, 259959, 259331, 229879

Cluster 2: 218774, 240476, 240138, 243631 Cluster 2: 218774

Cluster 3: 232967, 289375, 284030 Cluster 3: 220173, 232967, 284030, 289375

Cluster 4: 229179, 229740, 230241 Cluster 4: 227841

Cluster 5: 220173, 231959, 234811,

234707

Cluster 5: 228300, 233944, 232433, 232432,

231960, 230925

Cluster 6: 227841, 230700, 232699, 231552,

229879, 228300

Cluster 6: 229179, 230241, 259289,

243631, 234707, 240476, 240138

Cluster 7: 257378, 259227, 273422, 259958,

259951, 259331, 259321, 259317, 259959,

259289, 258897, 258447

Cluster 7: 229740

Cluster 8: 230700

Cluster 9: 230925, 231552, 231960, 233944, 257378

Cluster 10: 231959, 234811

Cluster 11: 232433, 258897, 259317, 259321, 273422

Cluster 12: 232699, 258447

Cluster 13: 259227

Cluster 14: 259958

huge cluster containing all the documents in a corpus.

However, further testing of this clustering procedure

is probably needed to test its trustworthiness.

REFERENCES

Arimura, H., Abe, J., Fujino, R., Sakamoto, H., Shimozono,

S., and Arikawa, S. (2000). Text data mining: Discov-

ery of important keywords in the cyberspace. In Inter-

national Conference on Digital Libraries: Research

and Practice, pp.220-226.

Clifton, C., Cooley, R., and Rennie, J. (2004). Topcat: Data

mining for topic identiﬁcation in a text corpus. IEEE

Transactions on Knowledge and Data Engineering,

Vol.16, No.8, pp.949-964.

Dan, K. and Christopher, D. M. (2003). Accurate unlexical-

ized parsing. In the 41st Meeting of the Association for

Computational Linguistics, pp. 423-430.

Ghani, R. and Fano, A. (2002). Using text mining to

infer semantic attributes for retail data mining. In

2002 IEEE International Conference on Data Min-

ing(ICDM 2002), pp.195-202.

Hammouda, K. and Kamel, M. (2004). Efﬁcient phrase-

based document indexing for web document cluster-

ing. IEEE Transactions on Knowledge and Data En-

gineering, Vol.16, No.10, pp.1279-1296.

Hung, C. and Xiaotie, D. (2008). Efﬁcient phrase-based

document similarity for clustering. IEEE Transactions

on Knowledge and Data Engineering, Vol.20, No.9,

pp.1217-1229.

Jing, P., Dong-qing, Y., Jian-wei, W., Meng-qing, W., and

Jun-gang, W. (2007). A clustering algorithm for short

documents based on concept similarity. In IEEE Pa-

ciﬁc Rim Conference on Communications, Computers

and Signal Processing, pp.42-45.

Li, Y., Bandar, Z., and Mclean, D. (2003). An approach

for measuring semantic similarity between words us-

ing multiple information sources. IEEE Transactions

on Knowledge and Data Engineering, Vol.15, No.4,

pp.871-882.

Li, Y., McLean, D., Bandar, Z., O’Shea, J., and Crockett,

K. (2006). Sentence similarity based on semantic nets

and corpus statistics. IEEE Transactions on Knowl-

edge and Data Engineering, Vol.18, No.8, pp.1138-

1150.

Malin, J., Millward, C., Schwarz, H., Gomez, F., Throop,

D., and Thronesbery, C. (2009). Linguistic text

mining for problem reports. In IEEE International

Conference on Systems, Man and Cybernetics(SMC

2009), pp.1578-1583.

Porter, M. (1980). An algorithm for sufﬁx stripping. Pro-

gram, Vol.14, No.3, pp.130-137.

Shehata, S., Karray, F., and Kamel, M. (2010). An efﬁcient

concept-based mining model for enhancing text clus-

tering. IEEE Transactions on Knowledge and Data

Engineering, Vol.22, No.10, pp.1360-1370.

Shen, W. and Angryk, R. (2007). Measuring semantic simi-

larity using wordnet-based context vectors. In IEEE

International Conference on Systems, Man and Cy-

bernetics(SMC 2007), pp.908-913.

Terachi, M., Saga, R., and Tsuji, H. (2006). Trends recogni-

tion in journal papers by text mining. In IEEE Interna-

tional Conference on Systems, Man and Cybernetics

2006(SMC2006), pp.4784-4789.

CONCEPT-BASED CLUSTERING FOR OPEN-SOURCED SOFTWARE(OSS) DEVELOPMENT FORUM THREADS

695
