ACCURATE PACKET TIMESTAMPING ON LINUX PLATFORMS

FOR PRECISE CAPACITY ESTIMATION

An Implementation of a Highly Accurate Timestamping System Embedded in the

Linux Kernel and its Application to Capacity Estimation

David Montoro-Mouzo, Josemaria Malgosa-Sahanuja,

Pedro Pi˜nero-Escuer, Juan Pedro Mu˜noz-Gea and Pilar Manzanares-Lopez

Dept. of Information Technologies and Communications, Polytechnic University of Cartagena, Cartagena, Spain

Keywords:

Capacity Measurement, Packet-Dispersion Techniques, Timestamping, Linux Kernel Networking.

Abstract:

In this work, a tool based on packet-dispersion techniques for remotely measuring link capacities is presented.

For implementing these techniques, a highly accurate packet timestamping system is presented. This system

is fully integrated in the Linux kernel which makes possible to measure extremely exact packet-arrival times.

The logic of the measurement system is integrated into a GUI, which reduces the comlexity of using the tool.

Finally, the results of a measurement experiment for testing the developed tool are shown, and the lines of

future work are exposed.

1 INTRODUCTION

Although a lot of research has been done in the ﬁeld

of capacity measurement, a reliable and versatile tool

for remotely measuring high capacities is still needed.

The recent increase in the links capacities and its

implications in the new designs of the networkings

systems origins the necesity of performing an anal-

ysis on the current situation of the packet dispersion

techniques. The mayor contribution of this paper is

analysing the main implications of the modern net-

working and communication systems to the packet

dispersion techniques. As result of these solutions,

a new tool for remote capacity measuring have been

developed.

Measuring the interarrival-times in the packets

very accurately is the main achievement that is nec-

essary to fulﬁll for a successful implementation of the

packet-dispersion techniques. For links with capacity

values in the order of gigabit per second, using this

techniques implies measuring interarrival-times in the

order of hundred of microseconds (in the best case) or

in the order of a few hundred of picoseconds (in the

worst case). For this reason, the developments pro-

posed in this paper include a Linux based accurate

timestamping system.

2 PACKET-DISPERSION

The basics of the packet-dispersion techniques were

originally proposed in (Jacobson and Karels, 1988),

where it is demonstrated that it is possible to con-

trol the congestion on one link using the interarrival-

times of the packets sent through it. A good revi-

sion of these techniques can be seen in (Prasad et al.,

2003). The capacity measurement tool that makes

use of the developed timestamp system is based in

packet-dispersion techniques. The techniques used in

this work are a simpliﬁcation of the ones proposed in

(Harfoush et al., 2003). Basically, in this paper it is

proposed an iterative method for estimating remotely

the capacity of one link in the path of two hosts. It de-

ﬁnes three kinds of individual measures and a sequen-

tial process for obtaining the intended link-capacity

estimation by using them.

Each one of thesef three individual measures is

designed for estimating the capacity of one kind of

path. In this manner, the packet-pair technique is

used to estimate the capacity of a complete path. The

padding-packets technique estimates the capacity of

a preﬁx of the path (i.e., the capacity of the slowest

link of a sub-path at the beginning of the whole path).

Finally, the variable packet-sizes technique estimates

the capacity of a path sufﬁx (i.e., the capacity of the

slowest link of a sub-path at the end of the whole

137

Montoro-Mouzo D., Malgosa-sanahuja J., Piñero-Escuer P., Muñoz-Gea J. and Manzanares-Lopez P..

ACCURATE PACKET TIMESTAMPING ON LINUX PLATFORMS FOR PRECISE CAPACITY ESTIMATION - An Implementation of a Highly Accurate

Timestamping System Embedded in the Linux Kernel and its Application to Capacity Estimation.

DOI: 10.5220/0003478701370142

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 137-142

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

path). It is possible to estimate the capacity of any

link in a path by combining this three techniques.

2.1 Measurement Methodology using

the Three Individual Measures

With the three individual measurement techniques it

is possible to know the smallest capacity of an end-to-

end path, or each preﬁx capacity or each sufﬁx capac-

ity. Therefore, it is possible to implement a procedure

for measuring every single link-capacity in a path.

The general process used in this work for measur-

ing the capacity of the i−th link of a path (namely c

)

is as follows:

1. Use the packet-pair technique for measuring the

capacity of the whole path (i.e., the bottleneck

link). This value will be used for dimensioning

the padding-packets measurement in the next step

(i.e., determining the required number of padding-

packets).

2. The second step includes performing two mea-

sures. The ﬁrst one (namely c

0,i−1

) is the measure

of the capacity of the preﬁx until link i-1 (i.e. just

one link before the link under measurement). The

second one (namely c

0,i

) is the measure of the ca-

pacity of the preﬁx including the link under mea-

surement. Both measures are obtained using the

padding-packets technique, determining the num-

ber of padding-packets from the measure of point

one. At this time, taking into account that with

this two measures the smallest capacity of each

one of the two preﬁxes is known, there are two

possibilities:

· If c

0,i−1

> c

0,i

then the estimation of the link-

capacity is c

= c

0,i

and the measurement pro-

cess ends here.

· If c

0,i−1

6 c

0,i

then proceed to point three.

3. Since it is not possible to measure the capacity

using packet-pairs and padding-packets, the ca-

pacity is estimated using the variable packet-size

technique. This is done in the last place because

this technique is more inaccurate than the other

two.

However, the measure of the capacity of the ﬁrst

link of a path (namely c

) constitutes a special case.

Here the procedure above is not applicable, and it is

necessary to perform the next steps:

1. Use the packet-pair technique for measuring the

capacity of the whole path. This value will be

used for dimensioning the padding-packets mea-

surement in the next step.

2. Using the padding-packetstechnique, measure the

capacity of the preﬁx from the beginning of the

path composed of the ﬁrst link (namely c

0,1

In this manner, the ﬁnal estimation of the link-

capacity is c

= c

0,1

3 ACCURATE TIMESTAMPING

The manner in which Linux solves networking ques-

tions determines both the implementation and the ac-

curacy of the capacity estimation tool.

3.1 Kernel Space and User Space

First, it is necessary to consider that in Linux the sys-

tem memory is divided into two distinct regions: ker-

nel space and user space (Bovet and Cesati, 2005).

Two of the most important services provided by

the kernel are networking functions and accessing to

hardware devices. These services are provided to the

user space in the form of system calls. However, us-

ing a system call implies data copy between the two

spaces. This is called context switching and implies a

variable time delay.

3.2 Packet Reception in Linux Kernel

A summary of the whole packet reception process can

be found in (Benvenuti, 2005). Here the most relevant

questions relative to accurate timestamping packets

will be shown.

3.2.1 Top Halves and Bottom-halves

Linux kernel packet reception facility is based in

the bottom-half/top-half approximation (Love, 2004);

which solves the question of receiving packets from

the NIC driver at high rate without losses.

The top-half is executed as soon as an interrupt is

ﬁred for performing the most critical tasks. This is

done in interruption context and with interrupts dis-

abled. In the case of packet reception, the top-half

is implemented in two parts: one part written in the

device driver (the speciﬁc interrupt handler), and an-

other part written in the ﬁle /net/core/dev.c (the gen-

eral functions for introducing packets in the kernel).

On the other hand, the bottom-half is scheduled

by the top-half for delaying the rest of the packet pro-

cessing to run at a more convenient time. Since the

bottom-half executes with interrupts enabled, it can

be preempted (Love, 2004) by the top-half. By do-

ing this, no packet loss due to the intensive part of

the packet processing is guaranteed. In the case of

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

138

packet reception, the bottom-half is implemented us-

ing a technique called soft irqs (Love, 2004).

3.2.2 NAPI and NOT NAPI Top-halves

The top-half part can be implemented in two styles:

the classic style and the NAPI (New API) style (Ben-

venuti, 2005). This has deep implications for accurate

timestamping arriving packets.

In the classic implementation, the arriving packets

are processed by the top-half one by one; therefore,

every time a packet is received, the interrupt context

is accessed. The main kernel function implementing

the classic top-half is the

netif rx()

function that is

invoked every time an interrupt is ﬁred. The problem

with this implementation is that in high speed inter-

faces, under heavy trafﬁc conditions, entering the in-

terrupt context for every packet could imply that the

packets are processed slower than received. This can

cause NIC buffer overload and packet losing.

For solving these issues, NAPI was introduced

in the 2.4.20 kernel version. It implements the

top-half with a combination of polling and inter-

rupts for minimizing the time spent in interrupt con-

text. The main functions implementing the NAPI

top-half in the kernel are

netif rx schedule()

and

napi schedule()

It is not in the scope of this paper deeply explain

NAPI, but it is important to note that in this context,

the real arrival-time of the packets is lost. According

to this, it is necessary to use the classic top-half style

to obtain precise and real packet arrival-times.

4 IMPLEMENTATION

4.1 General Scheme

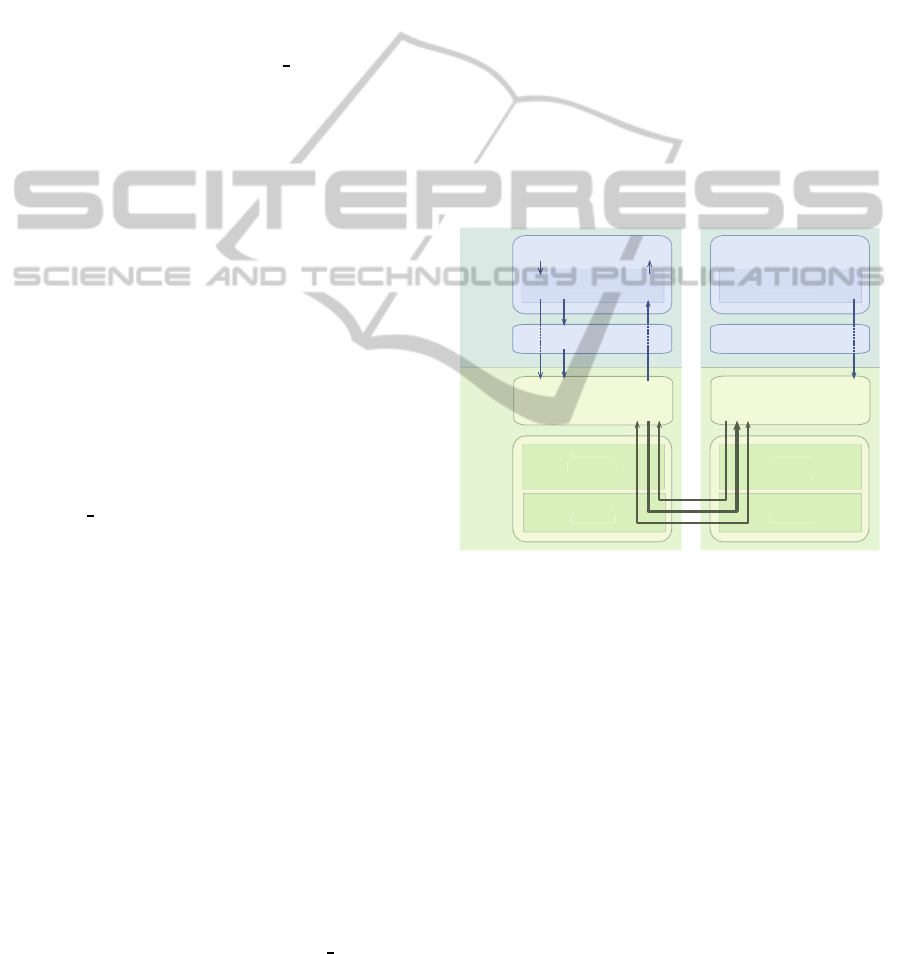

An schematic representation of the developed tool can

be seen in Figure 1, showing its different blocks.

The logic of the measurement system is integrated

into a Graphical User Interface (Logic Module in the

scheme). This logic module performs the measuring

procedure using the services of an external user-space

application (Support Application in the scheme). This

application acts as a middleware between the logic

module and the kernel part of the tool, making the

execution of the individual measures possible. In this

manner, the real control of the kernel functionality is

done by this application.

The timestamping and packet sending functionali-

ties are implemented in the kernel, which are the core

of the tool. For this, a new socket family was devel-

oped from the Linux Raw Socket family (module la-

beled as Modiﬁed Raw Socket in Figure 1). This new

kind of socket sends and receives the prove packets

with no intervention from the user space (i.e., without

context switching), in order to fulﬁll the back-to-back

trafﬁc generation requirement.

The highly accurate packet timestamping system

is composed of both the socket family and the Linux

kernel top-half functions (the modiﬁed version). In

the top-half reception functions, the arrival-times of

the packets of the speciﬁc protocol are measured and

introduced in the data ﬁeld of the packets. By doing

this, the goal of taking accurate arrival-times is ful-

ﬁlled. These times are later extracted from the pack-

ets at socket level, making possible a high accurate

capacity estimation.

Furthermore, as it has been explained in previous

sections, the drivers of the NICs were also modiﬁed

for obtaining real packet arrival-times.

4.2 Logic Module and Support App

As it has been said, the term Logic Module refers

to an user application developed for controlling the

measurement process and retrieving the results. It is

written in Java and includes a graphical user interface

written using SWT (Standard Widget Toolkit).

Using this interface, the user of the tool deﬁnes

the remote host for performing the capacity measure

(which, of course, has also to be using the tool). Af-

ter this, the Logic Module performs a traceroute for

obtaining the different hopes in the path between lo-

cal host and remote host, and displays the obtained

path in the interface. Then, the user selects the link

which capacity is intended to be measured and indi-

cates the Logic Module starting the measure proce-

dure. At this moment, the Logic Module coordinates

the execution of the different individual measures (via

the Support Application) and stores all the individual

results. Once all this process is done, the Logic Mod-

ule computes the ﬁnal result and shows it in the inter-

face.

The Support Application is written in C language

and provides services to the Logic Module, connect-

ing it with the in-kernel implementation. In this man-

ner, it sends the requests from the Logic Module to

the Modiﬁed Socket using a set of IOCTL calls (Ben-

venuti, 2005) written for that purpose.

4.3 Modiﬁed RAW Socket

It has been developed using the Linux Raw Socket

Family (written in the /net/packet/af packet.c ﬁle),

adding to this kind of sockets capabilities for perform-

ing the individual measures with no intervention from

ACCURATE PACKET TIMESTAMPING ON LINUX PLATFORMS FOR PRECISE CAPACITY ESTIMATION - An

Implementation of a Highly Accurate Timestamping System Embedded in the Linux Kernel and its Application to

Capacity Estimation

139

user space. Like the rest of the Linux kernel, it is

written in C.

It performs the individual measures by coordinat-

ing itself with its homologue in the remote host. For

doing this, this module has two working modes: one

when it acts as the host who initiates the measure and

send the packets (Sending Mode), and other when it

acts as the host who receives the packets and collects

the times (Receiving Mode).

On the one hand, when working in Sending Mode

it injects back-to-back trafﬁc in the path and waits for

receiving the interarrival-time results from the socket

in the other side of the path. The

get cpu()

function

is used before packet sending with the objective of

avoiding that the Linux Scheduler could preempt or

balance our task (Bovet and Cesati, 2005). By doing

this, it is ensured that packets are sent back-to-back.

On the other hand, when the Modiﬁed RAW

Socket works in Receiving Mode, it reads the arrival-

times from the packets and stores them. When all the

packets have arrived, it sends all the collected times

to the host who injected the trafﬁc using the Socket

communication.

4.4 Modiﬁed Networking Kernel and

NICs Drivers

As it has been said, the top-half code has been modi-

ﬁed for making possible highly accurate arrival-times

measurement. Since the drivers were also modiﬁed

for not using NAPI, the packets timestamping is done

in the

netif rx()

function of the /net/core/dev.c ﬁle.

With this approximation the timestamping system ob-

tains the more precise times possible at kernel level.

For measuring very little times like the ones that

it is intended to measure, it is necessary a high reso-

lution clock. For solving this question, there is a vari-

ety of possibilities (Bovet and Cesati, 2005) on Linux

environments. After testing most of them, using the

Time Stamp Counter (TSC) was chosen. The TSC is

a 64-bit register present in most nowadays Intel ma-

chines which is increased by one for every clock cy-

cle. It starts from zero after every reboot.

In our implementation, the Intel NICs models

were using the 82566 Gigabit Ethernet and 82559

Fast Ethernet controllers. These models use the

e1000e and the e100 Linux drivers respectively. It

was necessary to modify the current drivers for dis-

abling NAPI receiving scheme. After modifying both

drivers, the packets are now introduced one-by-one in

the kernel ﬂow of processing via the netif rx() func-

tion.

The next question to solve was the interrupt mod-

eration mechanism. In this speciﬁc case, it is neces-

sary to disable the interruption moderation procedure

for the two Intel’s NIC models used. The e1000e

driver offers the possibility of disabling this proce-

dure at the time that the Linux module is loaded, but

the e100 driver requires to tune some parameters in its

code and to recompile it.

4.5 Measurement Procedure

As shown in Figure 1, the procedure for performing a

capacity measure between two hosts can be explained

like a sequence of consecutive steps. In this ﬁgure,

the host which wants to measure the capacity (i.e., the

host which sends the packets) is labeled as Local host,

whereas the host receiving the packets (i.e., the host

measuring the times) is labeled as Remote host. In this

manner, the sequential steps for performing a measure

are:

Modified

RAW Socket

User

space

Kernel

space

Graphical User Interface

Logic Module

Modified

RAW Socket

Graphical User Interface

Logic Module

LOCAL HOST REMOTE HOST

Support Application

Modified

NIC driver

Modified

Networking

Functions

Modified

NIC driver

Modified

Networking

Functions

Support Application

2.1

2.3

2.4

2.2

2.5

2.6

Figure 1: Sequential steps of the measurement procedure.

1. When the user starts the GUI application, it ex-

ecutes an instance of the Support Application

which opens a Modiﬁed Raw Socket. This step

takes place both in the local and the remote hosts.

2. When a capacity estimation is requested by the

user, the Logic Module performs the different

individual measures required for estimating that

capacity. Therefore, it executes the process de-

scribed in the Section 2.1. Each one of the indi-

vidual measures are obtained as follow:

2.1. The Logic Module sends the information

of the individual measurement experiment to the

Support Application.

2.2. The Support Application module informs

the Modiﬁed Raw Socket about the individual

measurement taking place.

2.3. Then, the Modiﬁed Raw Socket in the local

host establish a connection with its homologue

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

140

in the remote host. In this connection process,

the remote host is informed about the number of

packets in the individual measurement. There-

fore, it knows when the individual experiment is

ﬁnished.

2.4. If the connection has been successfully es-

tablished, the local Modiﬁed Raw Socket starts

sending the packets of the individual measure-

ment to the remote host. In the top-half (Modi-

ﬁed Networking Functions) of the remote host,

the arrival-time of every packet of the experi-

ment is measured and introduced in their pay-

load. In the Modiﬁed Raw Socket of the remote

host these times are extracted and stored.

2.5. After all the packets have been received,

these times are sent back to the Modiﬁed Raw

Socket in the local host using the socket com-

munication.

2.6. The times are then sent to the Support Ap-

plication using the natural socket raw process in

Linux. Then, the Support Application estimate

the capacity of the individual measure. This

value is ﬁnally sent to the Logic Module.

3. After obtaining all the necessary individual mea-

sures, the logic module calculates the ﬁnal estima-

tion of the link-capacity requested by the user and

the GUI displayes it.

5 RESULTS

For testing the tool, a test-bed consisting in a three

link path connecting two hosts was implemented. The

ﬁrst and the third links had a 1Gbps capacity, whereas

the second had 100Mbps capacity.

Using the developed tool and the timestamping

system, the capacity of each one of the three links was

measured. These results were compared with the re-

sults obtained measuring at socket level (i.e., after the

bottom-half is executed) and without using any of the

modiﬁcations explained before excepting the ones for

disabling NAPI.

For obtaining the results shown in the sections be-

low, each one of the interarrival-time measures were

repeated consecutively ﬁfty times in order to obtain

a landscape picture of the behavior of both measure

systems.

5.1 Measuring the First Link

For measuring the ﬁrst link capacity, the second pro-

cedure described in the Section 2.1 is used. Thus, the

ﬁrst thing to do is to measure the end-to-end capacity

of the path using a packet-pair to set r. Two pack-

ets of size s(p) = 1500B were used for the packet-

pair measure; therefore it was intended to measure an

interarrival-time of ∆t =

1500B·8

100·10

= 120µs.

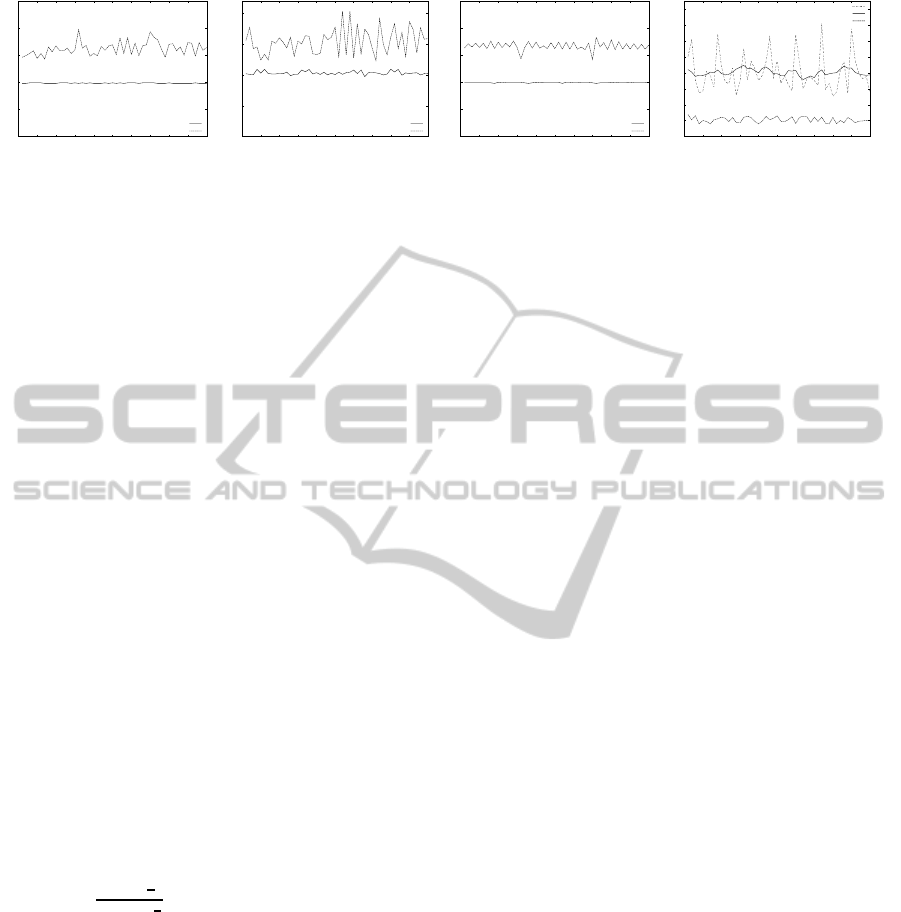

The result of this experiment are shown in the

ﬁrst graph of Figure 2, where can be seen that us-

ing the improved timestamping system the measure is

near 100Mbps in every repetition of the experiment.

However, the traditional receiving scheme causes a

very inaccurate and oscillatory measure which always

overestimate the capacity.

Apart from that overestimation, the estimations

obtained using interarrival-times measured at socket

level show more variability that those obtained from

times measured using the new timestamping system.

This is caused by the variable time spent for executing

the bottom halves and for switching context, and for

the variable arrival-times caused by the NIC interrupt

moderation system.

Once it is known that the capacity of the whole

path is around 100Mbps, the next step is to use a car-

touche with r >

1000Mbps

100Mbps

= 10 for measuring the ﬁrst

link (step 2 in the second procedure of Section 2.1).

The padding-packets will leave the path after the ﬁrst

link; this is done by setting their TTL to one.

In this manner, packets of size s(p) = 1500B and

a r = 15 were used to measure this capacity; resulting

in the necessity of measuring at the remote host a time

of ∆t =

1500B·(15+1)·8

1000·10

= 192µs.

As can be seen in the second graph of Figure 2,

the values obtained using the developed tool are very

accurate; whereas the estimations obtained measuring

at socket level are worse than the obtained in the ﬁrst

measure, despite both times are quite comparable.

5.2 Measuring the Second Link

For measuring the second link, the ﬁrst procedure of

the Section 2.1 is used. In order to do that, the ﬁrst

thing to do is to measure the preﬁx composed of the

ﬁrst link. This is already been done in the Section 5.1,

where it is shown to have a value of 1Gbps.

Once this has been done, it is necessary to mea-

sure the capacity of the path composed of the ﬁrst two

links. This was done by using the padding-packets

techniques with r = 15 and TTLs of two. This implies

that it is necessary to measure at the remote host the

time of ∆t =

1500B·(15+1)·8

100·10

= 1920µs. Note this time

is much bigger than the time in the last two measures;

therefore it would be expected that the measures in

this case had less oscillations.

The results of this measures are shown in the third

ACCURATE PACKET TIMESTAMPING ON LINUX PLATFORMS FOR PRECISE CAPACITY ESTIMATION - An

Implementation of a Highly Accurate Timestamping System Embedded in the Linux Kernel and its Application to

Capacity Estimation

141

100

150

200

250

0 5 10 15 20 25 30 35 40 45 50

Capacity estimation (Mbps)

Iteration

Using the tool proposed in this work

Measuring at socket level

500

1000

1500

2000

0 5 10 15 20 25 30 35 40 45 50

Capacity estimation (Mbps)

Iteration

Using the tool proposed in this work

Measuring at socket level

100

150

200

250

0 5 10 15 20 25 30 35 40 45 50

Capacity estimation (Mbps)

Iteration

Using the tool proposed in this work

Measuring at socket level

200

400

600

800

1000

1200

1400

1600

0 5 10 15 20 25 30 35 40 45 50

Capacity estimation (Mbps)

Iteration

Using the tool proposed in this work

Using the tool proposed in this work, avg. of ten measures

Measuring at socket level

Figure 2: From left to right: capacity estimation of the whole path, capacity estimation of the ﬁrst link, capacity estimation of

the ﬁrst two links, and capacity estimation of the last link.

graph of Figure 2. As can be seen, using the devel-

opments proposed in this work the results are more

accurate. However, measuring at socket level causes

the usual overestimation for the reasons already ex-

plained. As it was expected, the capacity estimations

using the times measured at socket level has less os-

cillations than in the last two cases.

Like this capacity (about 100Mbps) is smaller

than the capacity of the preﬁx composed of the ﬁrst

link (around 1Gbps), the ﬁrst condition in step 2 of

the ﬁrst procedure in Section 2.1 is fulﬁlled and the

ﬁnal capacity estimation is the obtained in the second

measure (100Mbps).

5.3 Measuring the Third Link

For measuring the last link, the ﬁrst thing to do is to

measure the capacity of the preﬁx composed by the

ﬁrst two links and compare it with the capacity of the

whole path. In this case, the two measures has al-

ready been done, and they have been shown to have

the same value.

Because of this, it is necessary to use the vari-

able packet-size technique (step 3 of the procedure

of Section 2.1), despite it requires measuring much

smaller times. In this case, two packets with sizes

s(p) = 1500B and s(m) = 100B were used. In this

manner, it is necessary to measure at remote host a

time of ∆t =

100B·8

1000·10

= 0.8µs which is a very small

time. Due to its low value it would be expected less

accurate and more variable measures.

The capacity estimations obtained from this last

measure are shown in the fourth graph of the Figure

2. As shown in this ﬁgure, in this case the small time

to measure cause a big variance and less accuracy in

the capacity estimations obtained using the proposed

method.

A simple method for removing the oscillation in

the capacity estimation obtained using the proposed

tool is to compute the average of a certain number

of measures. In 2 the average of ten consecutive

values of the capacity estimation is shown. Taking

this average as ﬁnal estimation, the last link-capacity

is around 800Mbps. This implies an error of 20%.

However, despite the lack of accuracy, the proposed

system makes this kind of measures possible.

ACKNOWLEDGEMENTS

This research has been supported by project grant

TEC2010-21405-C02-02/TCM (CALM) and is also

promoted by the Aid Programme for Groups of Ex-

cellence run by Fundacion Seneca, an organ of the

Murcia Region Science and Technology Agency (Re-

gional Science and Technology Plan 2007/2010). Pe-

dro J. Pi˜nero-Escuer also thanks Fundacion Seneca

for a Seneca Program FPI pre-doctoral fellowship

(Exp. 16503/FPI/10). David Montoro-Mouzo also

thanks the Fundacion Seneca for a pre-doctoral fel-

lowship associated to the project ”FORMA” (Exp.

17541/BSCF/11).

REFERENCES

Benvenuti, C. (2005). Understanding Linux Network Inter-

nals. O’Reilly Media.

Bovet, D. and Cesati, M. (2005). Understanding the Linux

Kernel, chapter 2. O’Reilly Media, 3rd edition.

Harfoush, K., Bestavros, A., and Byers, J. (2003). Measur-

ing bottleneck bandwidth of targeted path segments.

In Proceedings of IEEE INFOCOM.

Jacobson, V. and Karels, M. (1988). Congestion avoidance

and control. In Proceedings of SIGCOMM 88.

Love, R. (2004). Linux Kernel Development. Sams Publish-

ing.

Prasad, R. S., Murray, M., Dovrolis, C., and Claffy, K.

(2003). Bandwidth estimation: metrics, measurement

techniques, and tools. IEEE Network, 17:27–35.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

142
