MINING OF AD-HOC BUSINESS PROCESSES USING

MICROSOFT SHAREPOINT, NITRO & PROM 6.0

An Industrial Practice

Farhad Naderipour

Islamic Azad University, Naragh Branch, Naragh, Iran

Keywords: Process mining, Business process management, Business process analysis, Microsoft SharePoint, Nitro,

Prom.

Abstract: The improvement and re-engineering of business processes is challenging task especially when ad-hoc

processes are take into account. Process mining techniques allow identification of process knowledge and

characteristics based on so called event logs. Many information systems today provide such log i.e.

Microsoft SharePoint which is one of the pioneers of collaborative portals. Although it supports either

structured and ad-hoc process orchestration, managing dynamic processes in SharePoint is open to accept

new ideas. Since SharePoint registers all change events on its content databases, it can serve as valuable

source to mining process context. This paper introduce process mining concepts and techniques and

demonstrates the application of Nitro to constructing event logs based on XES standard and finally apply

process mining techniques using Prom 6.0 which is newly developed framework for process mining.

1 INTRODUCTION

SMEs (Small and Medium Sized enterprises) need to

identify, manage and improve their processes to

minimize their costs and stay competitive in their

market. This effort requires knowledge of the

business processes and gathering such knowledge

takes long time and cost. Moreover, the process

models revealed using traditional top-down process

discovery methods often turn out to be based on

what process owners and managers think that what

should be done rather than what actually is done.

Process mining analyzes the organization in a

bottom-up manner. It uses historical data in IT

Systems to discover the process model and other

process information automatically.

Structured processes and ad-hoc processes (also

called dynamic processes) are two ends of the

business process spectrum in organizations.

Structured processes have defined scope and known

scenarios and can be easily identified and managed

by most of traditional and modern workflow

management systems. Ad-hoc processes however

are those where the execution order of activities

cannot be determined upfront and are led by end-

user at run-time with no underlying process

definition. Email systems traditionally have been

played a great role to manage this kind of processes.

The essence of dynamic processes makes process

model discovery harder and also disclose critical

process figures like resource usage, elapse time, and

average queue time. Therefore, concepts and tools

aiming at ad-hoc business processes are of the high

importance.

This paper demonstrates that this is actually

possible to extract information about business

processes using the collaboration portal system,

Microsoft SharePoint, and process mining tools such

as Prom. The result is a generic approach for mining

ad-hoc business processes and a concrete tool

linking Microsoft SharePoint, Nitro and Prom.

2 PROCESS MINING

Process mining is the name of a new technology and

research area to discovering process knowledge and

pattern from event logs. It is mostly used to

discover the real process scenarios and activity

paths, conformance auditing, process performance

analysis, process instance or case prediction, process

improvement and social network analysis.

413

Naderipour F..

MINING OF AD-HOC BUSINESS PROCESSES USING MICROSOFT SHAREPOINT, NITRO & PROM 6.0 - An Industrial Practice.

DOI: 10.5220/0003487304130418

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 413-418

ISBN: 978-989-8425-56-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Event log example.

Case ID Task Name Event Type Resource Date Time

R153-23-20-8 Search for potential vendors Completed Clark 2009/05/10 11:33

R153-23-20-9 Search for potential vendors Completed Clark 2009/05/10 11:33

R153-23-20-9 Quote price Completed Barbara 2009/05/12 11:44

R153-23-20-9 Get approval Completed Barbara 2009/05/12 12:22

R153-23-20-8 Quote price Completed Barbara 2009/05/12 12:23

R153-23-20-9 Search for potential vendors Completed Clark 2009/05/13 08:39

R153-23-20-8 Get approval Completed Clark 2009/05/13 08:39

R153-23-20-9 Quote price Completed Barbara 2009/05/24 07:12

R153-23-20-8 Cancelled Completed Barbara 2009/05/24 07:12

R153-23-20-9 Get approval Completed Barbara 2009/06/13 08:16

R153-23-20-9 Purchased Completed Christian 2009/06/27 08:32

<log>

<trace>

<event>

</event>

</trace>

</log>

Listing 1: XES log example.

Nowadays, ERP systems, CRM systems,

workflow management systems and collaborative

portals like Microsoft SharePoint are widely used to

support business process in organizations. Majority

of them log events based on process instances and

user actions for auditing or other purposes. This

event logs and audit trails are data sources for

process mining.

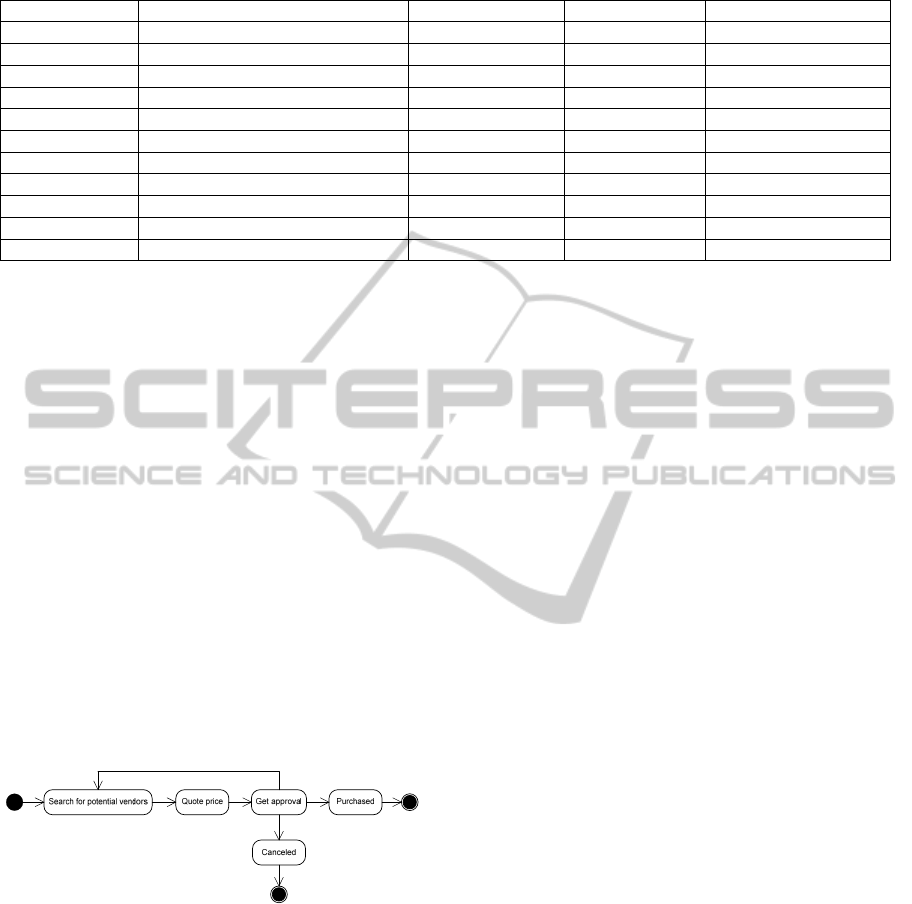

Figure 1: Mined process from Table1.

Table 1 shows a sample log which is fetched

from Microsoft SharePoint databases. This log

shows task and event transition in purchase order

processing systems for two sample purchase orders.

Each order considered as case which its activity

transitions are logged in SharePoint Database and,

has its own scenario and activity path. For instance,

though “Get approval” state has been done twice for

“R153-23-20-9” purchase order, it is only performed

once for the other order. Applying process mining

algorithms and techniques on Table 1 data, actual

process model is mined in Figure 1 and can be used

to understand the process domain and support the

compliance.

3 EXTENSIBLE EVENT STREAM

(XES)

XES (pronounces as excess), which stands for

eXtensible Event Stream, is an open standard for

storing and managing event log data and audit trails

provided by any kind of systems. Since every system

provides log entries based on its own architecture

and logging mechanism which is lead to isolated

solutions for logging, XES introduces an extensible

schema to shape a generally acknowledged format

for the event logs. As a result, audit trails can be

exchanged simply among different tools and

application domains. The UML diagram shown

below, describes the Meta model of XES standard

(Gunther, 2009). Log object at the root of the

schema represents the process related information

like purchase order processing, using a XBOX, etc.

Each log contains arbitrary number of process

instances, called trace, which has identical

information about the process. Table 1 shows two

traces, R153-23-20-8 and R153-23-20-8 of a

purchase order process. Events are every single

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

414

activity that has been executed during the run of a

process (Gunther, 2009). Each event associates to a

trace object. Quote price, Get approval and

purchased are sample events from Table 1.

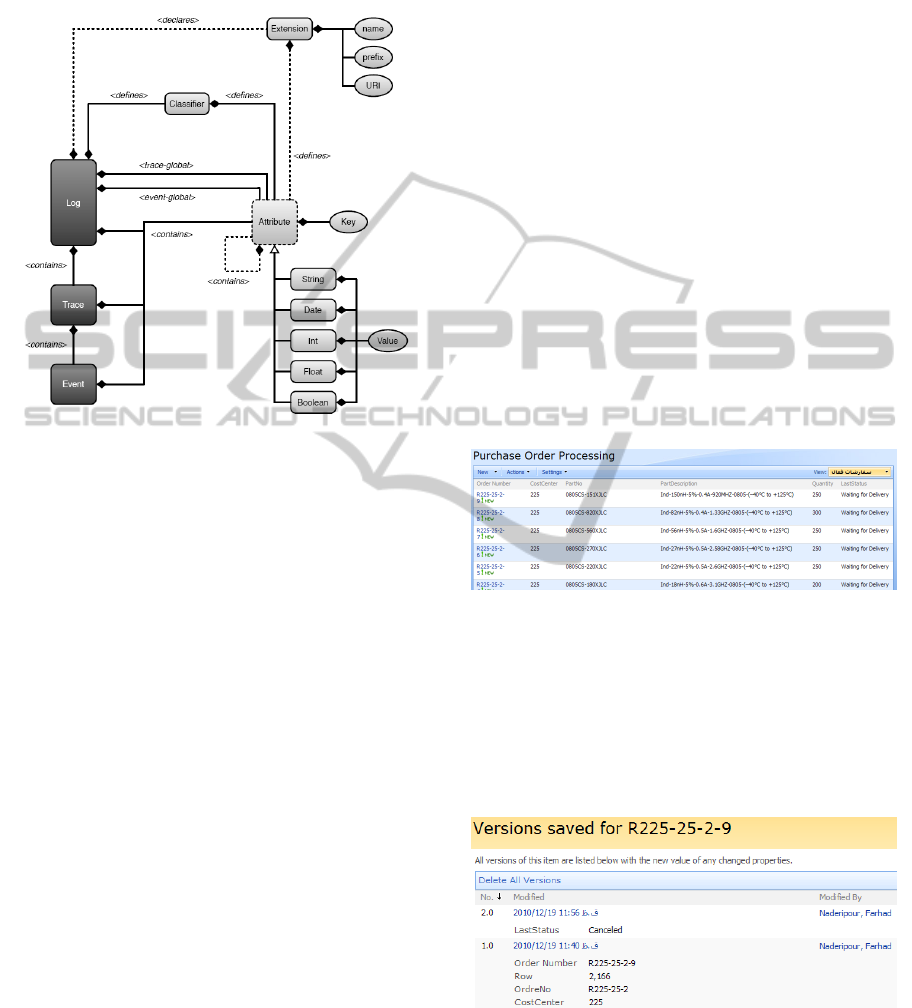

Figure 2: XES Meta model.

By now, the structure of an XES document is

defined. However the log, trace and event objects

have no information themselves. To store

information, String, Date, Float, Integer and Boolean

attributes can be define for each object. Listing 1

shows an example XES log.

4 MICROSOFT SHAREPOINT

AND AD-HOC PROCESSES

Microsoft SharePoint offers an easy to use workflow

engine and designer to streamline business processes

in a collaborative environment. Although the

workflow patterns are highly customizable in Visual

Studio IDE, handling of dynamic processes is far

from being truly feasible in such environment.

While managing structured business processes in

a practical user-friendly environment is one of the

striking features of Microsoft SharePoint,

Approaches toward managing unstructured process

especially are slightly experimental as well as open

to accept new best practices.

As mentioned earlier, if the business model

prescribes the activities and their execution

constraints in a complete fashion, then the process is

structured. Extra budget request, for instance, might

check a threshold amount, say 5000 USD, to decide

whether a complex or simple approval routine is

required (Weske, 2007). Decision options for this

kind of process have been define at design time.

To increase process efficiency and flexibility,

processes are designed in less rigid manner. As

result, dynamic or ad-hoc processes have been

emerged. Activities or steps in such processes can be

executed in any order and even may be repeatable

either. Number of iteration in process steps is

unpredictable and highly dependent on scenario at

hand. Involved users and communication path

between them is not formally defined. New process

steps also can be defined during the execution.

SharePoint lists and libraries contain list forms

that allow users to display, edit, and add items with

user-defined fields to a list or library. To handle a

purchase order process as example of dynamic

process in SharePoint environment it is possible to

use custom lists to store order information along

with status field of type lookup to enable users to

change order status by their own free will. By

changing Order Status, users forward and backward

each order freely up to finalizing each order

instance.

Figure 3: SharePoint custom list to handle purchase order

process.

In addition to custom fields with different data

types, lists support version tracking. It logs each

change in list data as a separate record in database.

When a field value is changed in a list item, the

system logs the new value, modifier, date and time

of the change for future tracings.

Figure 4: SharePoint version tracking feature.

Although Microsoft enables user to track all

change histories through SharePoint interface, these

trails can be found in WSS content database of a

SharePoint site which is heart of the system either.

MINING OF AD-HOC BUSINESS PROCESSES USING MICROSOFT SHAREPOINT, NITRO & PROM 6.0 - An

Industrial Practice

415

In view of the fact that for process mining purpose a

specific format of event log would be used, having

direct access to change histories would be helpful.

Unfortunately, reaching these logs needs digging

into data tables of WSS content database. Although

WSS content database contains many tables, this

section focuses on only AllUserData, AllLists and

UserInfo which hold necessary data for process

mining tools. Table 2 shows brief information about

tables used in this paper (Ethan, 2007).

Table 2: Inspecting the SharePoint content database.

AllUserD

ata

Holds information about all the list items

for each list.

AllLists Holds information about lists for each site.

UserInfo Holds information about all the users for

each site collection.

Table 3: AllUserData table.

tp_Id

Identifier for the list item, uniquely

identifying it within the AllUserData

table.

tp_ListId

List Identifier of the list or document

library containing the list item.

tp_SiteId

Identifier of the site collection containing

the list item.

tp_Version

A counter incremented any time a change

is made to the list item, used for internal

conflict detection. Due to the mapping of

application properties to the generic

columns schema in this table, changes to

application schema as well as property

values can affect a version increment.

tp_Author

Identifier for the user who created the list

item.

tp_Editor

Identifier for the user who last edited the

list item.

tp_Modified

A date and time value specifying when

this list item was last modified.

tp_Created

A date and time value specifying when

this list item was created.

nvarchar#

Columns for application-defined fields

that hold values of type nvarchar. The 64

columns are named nvarchar1 to

nvarchar64. If the column does not

contain data, this value MUST be NULL.

int#

Columns for application-defined fields

that hold values of type int. The 16

columns are named int1 to int16. If the

column does not contain data, this value

MUST be NULL.

float#

Columns for application-defined fields

that hold values of type float. The 12

columns are named float1 to float12. If

the column does not contain data, this

value MUST be NULL.

The detail description of whole content database

is beyond the scope of this article. Instead, let’s

focus on the AllUserData table as a place where all

list item data is stored. This important table has 192

columns and all list items including their history are

stored in this single table. Table3 describes the more

important columns. For a complete list of columns in

the AllUserData table, see MSDN documentations

at: http://msdn.microsoft.com/en-us/library/

dd358229(v=prot.13).aspx.

As can be seen, there are group of columns,

including nvarchar#, ntext#, int#, in which the

values of SharePoint lists are stored. Every time you

create a new column in a list, it is automatically

mapped to a “free” column of the desired type in the

AllUserData table. If you add column “Order No” of

type single line to your list for instance, an unused

database column in the range from nvarchar1 to

nvarchar 64 will be assigned to store this field data

(Krause et al., 2010).

The first thing to do is to identify the relevant

data in AllUserData table by query the table for ID

of the list needed. Since lists information are stored

in AllLists table, as shown in listing 2, filtering this

table could return the GUID of the lists.

SELECT tp_ID

FROM AllLists

WHERE tp_Title = 'You lists title'

Listing 2: Query AllLists to get list GUID.

Then, using returned tp_Id from the AllLists

table in query criterion of AllUserData can fetch the

list item data (See listing 3).

SELECT tp_ID AS [Item ID], tp_ListId AS

[List ID], tp_Version AS [Version],

tp_Author AS [CreatedBy], tp_Editor AS

[Modified By], tp_Modified AS

[Modified], tp_Created AS [Created],

nvarchar1 AS [Order No], nvarchar9 AS

[Description], nvarchar23 AS [Status]

FROM AllUserData

WHERE (tp_ListId = '39158042-39dc-4951-

9400-03f8f45893b3')

Listing 3: Query list item data.

The only remaining challenge is to get the name

of the mapped database columns from SharePoint

list. To overcome this issue, you need to filter

AllUserData for a List ID and then find related

columns. For example, Status filed data of Purchase

Order Processing list is mapped to nvarchar23.

After applying Listing 3 commands, the results

may not be completely satisfactory. Because, this

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

416

article looks for only status change trails through the

whole historical data but SharePoint preserves and

shows any changes occurred on list items. To

eliminate rows with repetitive status data, the prior

query must be trimmed like Listing 4, to reach a neat

status changes for each list item or case.

SELECT

UDMain.tp_ID AS [Item ID],

UDMain.tp_ListId AS [List ID],

Count(UDMain.tp_Version) AS [Version],

UDMain.tp_Editor AS [Modified By],

Min(UDMain.tp_Modified) AS [Modified],

UDMain.nvarchar1 AS [Order No],

UDMain.nvarchar9 AS [Description],

UDMain.nvarchar23 AS [Status]

FROM AllUserData AS UDMain

WHERE

(UDMain.tp_ListId = '39158042-39dc-

4951-9400-03f8f45893b3')

And (UDMain.tp_RowOrdinal = 0)

GROUP BY

UDMain.tp_ID,

UDMain.tp_ListId,

UDMain.tp_Editor,

UDMain.nvarchar1,

UDMain.nvarchar9,

UDMain.nvarchar23

ORDER BY UDMain.tp_ID

Listing 4: Pure status change data.

As mentioned earlier, UserInfo table contains

information about all portal users including their full

name. To replace user ID data in Modified By

column with user full name, the table user info have

to be joined with AllUserData.

5 CONVERTING SHAREPOINT

DATA TO XES USING NITRO

In previous sections, the important role of

constructed event log, XES, and fundamental

approach for querying content database to reach raw

material for building the event stream have been

elaborated. Now, it is time to serialize SharePoint

list item histories according to XES data model (See

figure 2).

This conversion involves programming activities

which could be usually time-taking. Instead, using

Fluxicon’s tool, Nitro, can seed-up the process.

Nitro maps and converts variety of event-based data

to generally acknowledged XES or MXML event

logs. For further information about Nitro visit

http://fluxicon.com/nitro/.

The query results of SharePoint content database

saved in Microsoft Excel or exported as CSV file

serves as input for Nitro. Load the excel file data in

Nitro and map the columns as follow:

Table 4: Nitro column mapping.

Column

Name

Map to Description

Order No Case ID

Process instances are

introduced with Case

ID.

Modified

Resource

The resource that

performed an activity

in each process

instance is making

known here.

Modified

Timestamp

(Completion

of activity)

The finish time of the

activity is mapped

here.

Status Activity -

The Start of activity column which is second

option of Timestamp can be set to Ignored Column

in this case. Now it is time to start conversion and

export data as either XES (for Prom 6.0) or MXML

(for Prom 5.0) format.

6 MINING THE PROCESS USING

PROM 6.0

ProM 6.0 is an open source framework for

implementing process mining algorithms and

techniques in a standard environment. By importing

event logs, practitioners can examine the process

using various ready to use plug-ins provided by the

ProM. New functionalities also can be added to the

framework. Detailed information on ProM 6.0 can

be obtained from http://www.processmining.org.

Many business process improvement and re-

engineering projects spend considerable time on

discovering running processes in organizations. It is

sometimes hard to verify that running business

processes comply with regulations and procedures as

they were originally governed by top management.

Prom 6.0 makes it possible to visualize process

using running information systems in organizations.

Based on purchase order processing system log

converted by Nitro, “Mine SPD (Simple Precedence

Diagram) Model” plug-in shapes the process

diagram.

MINING OF AD-HOC BUSINESS PROCESSES USING MICROSOFT SHAREPOINT, NITRO & PROM 6.0 - An

Industrial Practice

417

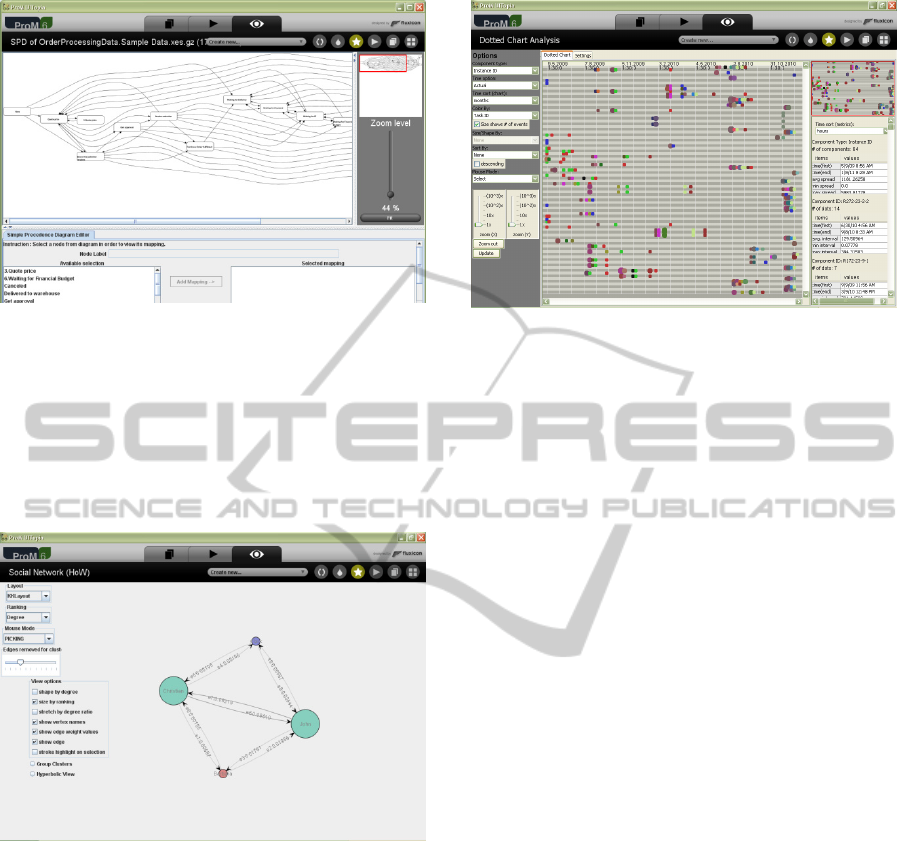

Figure 5: SPD model minned from sample event log.

Social Network Analysis is another analytical

data that can be fetched from ProM. Social Network

Analysis answers which employee receives more

work, who sends more workload to others and who

is isolated in organization or process boundaries.

Figure 6 illustrates simple SNA report derived from

order processing example.

Figure 6: Social network diagram mined from sample

event log.

There are still much more information, like work

load analysis and dotted chat analysis, related to

each process that can be obtained from event trails.

To see the distribution of events over time for

instance, Dotted chart analysis add-in plots and

spreads event occurrences over time line (see Figure

7). It shows density of events, performance metrics,

gives an overall insight into a process and reveals

interesting process patterns.

Figure 7: Dotted chart representing event distribution.

7 CONCLUSIONS

To sum up, process mining is very helpful in

situations where process steps are logged in IT

systems. Using Microsoft SharePoint, a process-

aware collaborative portal, gathering and logging

process steps could be surviving fast practice in case

where no information is available in IT systems. The

resulting data stored in SharePoint content databases

formed in XES XML format by Nitro that can be

read by process mining tools such as Prom 6.0

which is introduced in this paper.

REFERENCES

H. M. W. Verbeek, J. C. A. M. Buijs, B. F. van Dongen,

and W. M. P. van der Aalst, XES Tools. Technische

Universiteit Eindhoven, Department of Mathematics

and Computer Science.

H. M. W. (Eric) Verbeek, R. P. Jagadeesh Chandra Bose,

ProM 6 Tutorial. August 2010.

C. W. Gunther, 2009. XES Standard Definition. Fluxicon

Process Laboratories.

Mathias Weske, 2007. Business Process Management:

Concepts, Languages, Architectures. Springer.

Ethan, 2007. Inspecting the SharePoint Content Database.

http://vspug.com/ethan/2007/09/16/inspecting-the-

sharepoint-content-database/

Joerg Krause, Christian Langhirt, Martin Döring,

Alexander Sterff, Bernd Pehlk, 2010. SharePoint 2010

as a Development Platform. Apress.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

418
