FORMAL MODELING OF BEHAVIORAL PROPERTIES TO

SUPPORT CORRECT BY DESIGN PUBLISH/SUBSCRIBE

ARCHITECTURAL STYLES

Ikbel Krichen, Imen Loulou and Ahmed Hadj Kacem

University of Sfax, ENIS, Research Unit ReDCAD, B.P.W., 3038 Sfax, Tunisia

Keywords:

Software architecture, Publish/subscribe style, Correct by design, Formal speciﬁcation, Behavioral properties.

Abstract:

We propose in this paper a formal modeling approach of behavioral properties of publish/subscribe architec-

tural styles. We extend P/S-CoM formal approach that concentrates only on correctly design the structures of

publish/subscribe styles and deals with dynamic views. We put the emphasis on the state notion for component

types. Moreover, we focus on behavioral properties including lossless of exchanged events, delivery semantics

and ordering of notiﬁcations. These properties are coded in Z notation.

1 INTRODUCTION

Publish/subscribe architectural styles (PSAS) are in-

creasingly used in the large-scale distributed and co-

operative applications. This is due to its dynamic na-

ture, scalability and interaction model based on three-

dimensional decoupling (Eugster et al., 2003). The

interaction among the component types of this style

(producer, consumer, prod/cons and event-service)

depends on its structure and its behavior. The cor-

rect by design of PSAS is important in order to en-

sure that the architectures with which they are compli-

ant, operate reliably. This design requires the use of

formal methods as they provide exact semantics and

eliminate ambiguities. Using the construction method

is interesting since it promotes reuse by composing

reusable modules and guides the designers to easily

conceive correct architectural styles.

P/S-CoM formal approach (Loulou et al., 2010)

helps designers build the structures of SPAS by com-

posing reusable communication schemas but does not

propose the modeling of behavioral properties. The

obtaining of only correct structures is not sufﬁcient

for modeling PSAS and generating correct implemen-

tations. In this paper, we extend P/S-CoM approach

by integrating the behavioral view. This extension in-

cludes the deﬁnition of the state of component types

and behavioral properties: lossless of events, delivery

semantics and ordering of notiﬁcations. Establishing

a correct PSAS at design level will be done by com-

posing the extended and new schemas.

The rest of this paper is structured as follows: Sec-

tion 2 provides a general overview of the P/S-CoM

formal approach. Section 3 describes our P/S-CoM

extension approach. Section 4 presents the related

work. Section 5 concludes this paper and presents fu-

ture work directions.

2 P/S-COM APPROACH

P/S-CoM (Loulou et al., 2010) is a formal approach

that provides the correct modeling of PSAS struc-

tures. It consists in composing reusable communica-

tion schemas and respecting a set of composition rules

coded in Z notation and proved with the Z-Eves theo-

rem prover. Z is a standard and formal language. It is

based on the set of theory and the ﬁrst-order predicate

logic. It describes states and operations with schemas.

A schema has a name, a declarative part which de-

ﬁnes data, and a predicative part which enumerates

constraints.

Among the provided communication schemas,

C1 represents an example of communication be-

tween a distributed event-service and consumers

where one link of communication push is considered.

Its formal speciﬁcation is described with the follow-

ing generic schema D

C1[Consumer, EvDispatcher].

The declarative part contains a set (F) of consumers

and dispatchers, PushD and PushDD links as rela-

tions. In the predicativepart, [Pred−1] and [Pred−2]

describe inclusions of sets using domain (dom) and

286

Krichen I., Loulou I. and Hadj Kacem A..

FORMAL MODELING OF BEHAVIORAL PROPERTIES TO SUPPORT CORRECT BY DESIGN PUBLISH/SUBSCRIBE ARCHITECTURAL STYLES.

DOI: 10.5220/0003495402860289

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 286-289

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

range (ran) operators. [Pred − 3] expresses the in-

verse relationship (∼). [Pred − 4] states that all the

dispatchers have to be connected. [Pred− 5] requires

that every consumer has a single access point in the

network of dispatchers.

D C1[Consumer, EvDispatcher]

C : FConsumer

D : F EvDispatcher

PushD : EvDispatcher ↔ Consumer

PushDD : EvDispatcher ↔ EvDispatcher

domPushD ⊆ D ∧ ranPushD ⊆ C [Pred-1]

domPushDD ⊆ D ∧ ranPushDD ⊆ D [Pred-2]

PushDD = PushDD

∼

[Pred-3]

∀x, y : D | x 6= y

• ∃T : seqEvDispatcher

| ranT ⊆ D ∧ x ∈ ranT ∧ y ∈ ranT

• ∀i : N | 1 ≤ i ∧ i+ 1 ≤ #T

• (Ti, T(i+ 1)) ∈ PushDD [Pred-4]

∀c : C • (∃

d : D

• d ∈ dom(PushD⊲ {c})) [Pred-5]

3 P/S-COM EXTENSION

In this section, we describe the extension that we

made on the P/S-CoM communication schemas and

the behavioral properties. Obtained communication

schemas (new ones and extended ones) can be com-

posed in order to get PSAS considering structural and

behavioral views.

3.1 Event Types and Matching

Functions

Various events are exchanged between publishers

(producer or prod/cons), subscribers (consumer or

prod/cons) and event dispatchers (EvDispatcher) en-

tities. We distinguish three types of events: EVENT

for notiﬁcation, SUB EVENT for subscription and

ADV EVENT for advertisement (Figure 1). Ev-

ery EVENT can be marked by a stamp. Every

SUB EVENT can be assigned with a priority by its

subscriber. Since we are not interested, here, in the

speciﬁcation details of these event types, we introduce

them as basic types.

Figure 1: Event Types.

We represent Advertising and Filtering matching

functions as relations. The ﬁrst one is used to verify

that a produced event corresponds to an advertisement

[R1]. The second one is used to verify if an event

notiﬁcation matches a given subscription [R2].

Advertising : EVENT ↔ ADV EVENT [R1]

Filtering : EVENT ↔ SUB EVENT [R2]

3.2 State of the Component Types

We characterize here the state of each pub-

lish/susbcribe component type. The state can be

changed whenever an event is generated or received.

The state of the subscribers (resp. publishers) de-

pends on the subscriptions (resp. advertisements and

notiﬁcations) that he generated and the notiﬁcations

that he received. He stores these event types. He can-

not generate twice the same subscription (resp. no-

tiﬁcation and advertisement) but he can receive or

not the notiﬁcations which match his subscriptions.

In this paper, we are interested in modeling pub-

lish/subscribe architectures where notiﬁcations are

not persistent. Thus, every event dispatcher stores

only the exchanged advertisements and subscriptions

in routing tables. It also maintains the source of each

subscription. Given the lack of space, we present only

the formal speciﬁcation of the consumers state:

State Cons[Consumer]

Sub EventsC : Consumer ↔ SUB EVENT

Notif EventsC : Consumer ↔ seqEVENT

∀c : Consumer | c ∈ domNotif EventsC

• ∀ T, H : seqEVENT

• (c, T) ∈ Notif EventsC

∧ (c, H) ∈ Notif EventsC ⇒ T = H [Pred-1]

∀c : Consumer; J : seqEVENT

| (c, J) ∈ Notif EventsC

• ∀e : EVENT | e ∈ ranJ • ∃ s : SUB EVENT

• s ∈ ran({e}⊳ Filtering)

∧ s ∈ ran({c} ⊳ Sub EventsC) [Pred-2]

In the declarative part, Sub EventsC relation rep-

resents the subscriptions retained at corresponding

consumer. Notif EventsC relation states the se-

quences of notiﬁcations received by consumers. With

seq, a consumer has a sequence of ordered notiﬁca-

tions which their duplication is allowed. In the pred-

icative part, we indicate that every consumer has a

unique sequence of notiﬁcations [Pred − 1] and ev-

ery notiﬁcation received by a given consumer, corre-

sponds to at least one of his subscriptions [Pred− 2].

3.3 Reﬁnement of P/S-CoM

Communication Schemas

In order to consider behavioral properties, we reﬁne

FORMAL MODELING OF BEHAVIORAL PROPERTIES TO SUPPORT CORRECT BY DESIGN

PUBLISH/SUBSCRIBE ARCHITECTURAL STYLES

287

P/S-CoM communication schemas and we get new

reusable schemas as it is described in Figure 2. We put

the name of the concerned communication schema

and the state of the component types in the declara-

tive part, and some constraints in the predicative part.

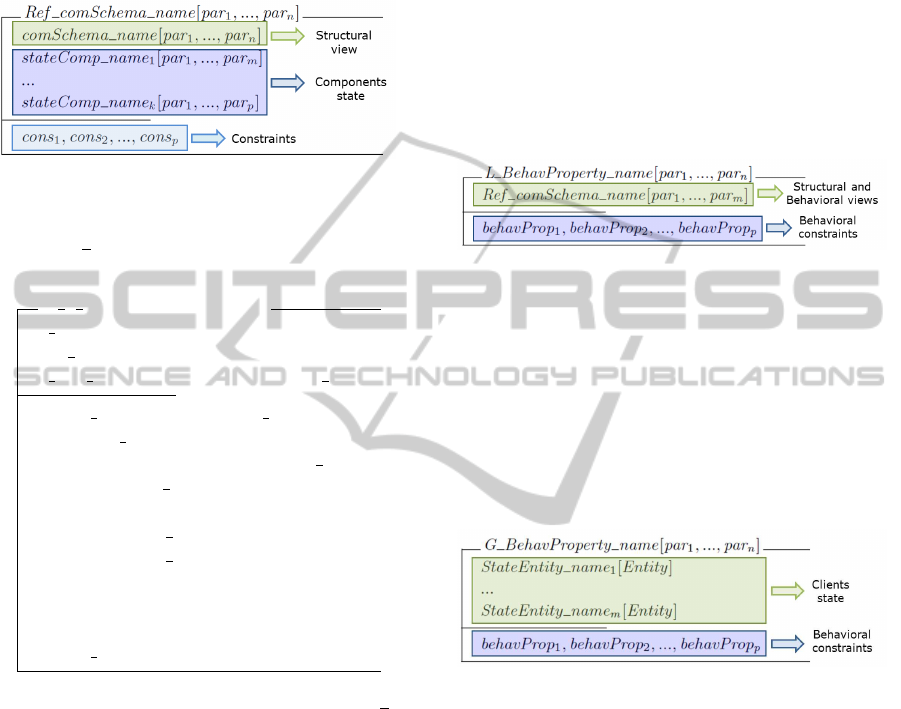

Figure 2: Reﬁnement method of P/S-CoM schemas.

Among the P/S-CoM communication schemas,

we reﬁne D C1 (section 2) and obtain the following

Z speciﬁcation:

ref D C1[Consumer, EvDispatcher]

D C1[Consumer, EvDispatcher]

State Cons[Consumer]

D State EvD[EvDispatcher, Consumer, Prod Cons]

domSub EventsC ⊆ C ∧ domNotif EventsC ⊆ C

∧ domSubC EventsD ⊆ D [Pred-1]

{c : Consumer | ∀ d : EvDispatcher; s : SUB EVENT

• (d, (c, s)) ∈ SubC EventsD} ⊆ ranPushD

[Pred-2]

∀d1, d2 : D; s : SUB EVENT

| (d1, (d2, s)) ∈ Sub EventsDD

• (d1, d2) ∈ PushDD [Pred-3]

∀d : EvDispatcher

| d ∈ domPushDD ∧ d 6∈ domPushD

• SubC EventsD = ∅ [Pred-4]

In the declarative part, we invoke the D C1

schema, the state of the consumers and the distributed

event-service speciﬁcation. In the predicative part,

[Pred − 2] stipulates that the consumers from which

an event dispatcher received their subscriptions are

connected to this event dispatcher. [Pred − 3] states

that every two dispatchers which exchange subscrip-

tions are directly connected. [Pred − 4] deﬁnes that

every event dispatcher that is not directly connected

to a consumer, can receive only subscriptions issued

by the neighbor dispatchers.

3.4 A Formal Approach for Designing

Behavioral Properties

In this section, we present the adopted approach for

specifying behavioral properties in Z notation. We

distinguish local and global properties.

3.4.1 Local Properties

We aim at ensuring the lossless of exchanged adver-

tisements (resp. subscriptions) among the publishers

(resp. subscribers) and the event-service. Since these

properties represent interactions between the event-

service and the clients (publishers and subscribers),

they can be integrated in the reﬁned communication

schemas. We extended them as it is described in Fig-

ure 3. We declare in the declarative part the name of

the reﬁned schema, and we deﬁne constraints in the

predicative part.

Figure 3: The local properties speciﬁcation.

3.4.2 Global Properties

We model the delivery semantics and the ordering

of notiﬁcations as global properties. They repre-

sent interactions between publishers and subscribers.

We propose new communication schemas as it is de-

scribed in Figure 4. We invoke the state of the con-

cerned clients in the declarative part, and behavioral

constraints in the predicative part.

Figure 4: The global properties speciﬁcation.

The delivery process of notiﬁcations is ensured by

the event-service following some semantics such as at

most once, at least once, exactly once and best effort

(Mahambre et al., 2007). These policies are used for

setting the number of notiﬁcation’s instances received

per interested subscriber. Concerning the ordering of

notiﬁcations, it is interesting to establish a relation-

ship between the order according to which event no-

tiﬁcations are sent and the order in which they are re-

ceived. We adopt three techniques: pair-wise FIFO,

priority and total ordering (Mahambre et al., 2007).

Given the lack of space, we reveal the Z speciﬁca-

tion of the pair-wise FIFO ordering, among the local

and global properties. Following this ordering, the

notiﬁcations should be received in the same order of

their generation. In the case of a style containing pro-

ducers and consumers, we can ensure the pair-wise

FIFO ordering by the use of the following schema:

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

288

FifoPairWiseOrder P C[Producer, Consumer]

State Prod[Producer]

State Cons[Consumer]

∀p : Producer | p ∈ domProd EventsP

• ∃S : iseqEVENT | {S} = Prod EventsP(| {p} |)

• #S = 1 ⇒ (S1).stamp = 1 [Pred-1]

∀p : Producer; F : iseqEVENT

| p ∈ domProd EventsP

∧ {F} = Prod EventsP(| {p} |) ∧ #F > 1

• ∀i,j : domF | j = i+ 1

• (Fj).stamp = 1+ (Fi).stamp [Pred-2]

∀c : Consumer; R : seqEVENT

| c ∈ domNotif EventsC

∧ {R} = Notif EventsC(| {c} |) ∧ #R > 1

• ∀i,j : domR | j = i+ 1

• (Ri).stamp ≤ (Rj).stamp [Pred-3]

The declarative part contains the state of produc-

ers and consumers. In the predicative part, [Pred − 1]

states that the ﬁrst notiﬁcation issued by every pro-

ducer has a stamp equal to one. [Pred − 2] expresses

that the stamp is used to incrementally mark the notiﬁ-

cations originating from a single producer. [Pred − 3]

describes that the marked stamps will be used for or-

dering notiﬁcations on the consumer side.

3.5 Proving Consistency

We proved the consistency of the extended P/S-CoM

schemas (state of components and behavioral prop-

erties). We instantiated the “initialization theorem”

(Woodcock and Davies, 1996) for all the speciﬁca-

tions and we implemented the proofs under the Z-

EVES theorem prover.

4 RELATED WORK

In the literature, only the P/S-CoM formal approach

focuses on the generic modeling of correct PSAS

and uses the construction method. However, this ap-

proach is interested only in modeling the structural

view. Concerning the formal modeling of the be-

havioral properties of the publish/subscribe systems,

Mahambre et al. (Mahambre et al., 2007) and Bal-

doni et al. (Baldoni et al., 2003) propose the for-

mal modeling of service guarantees with mathemat-

ical equations. The ﬁrst work includes delivery se-

mantics and message ordering whereas the second

work stresses minimality and completeness proper-

ties considered as delivery semantics, too. However,

these works do not promote the correct by design of

PSAS and the use of the construction method. Some

publish/subscribe middlewares support to behavioral

properties as QoS guarantees. Jedi and Ready (Ma-

hambre et al., 2007) provide mechanisms for the

ordering of notiﬁcations and ensure the lossless of

events. In addition, Ready adopt some delivery se-

mantics for notiﬁcations. As standardized speciﬁ-

cation, we mention DDS (Data-Distribution Service)

(OMG, 2007) that deﬁnes conﬁgurable QoS (priority,

order of notiﬁcations, ...) and programming model for

distributed systems. Though these works and speciﬁ-

cation provide behavioral properties as QoS, they are

handled at runtime level. At design level, our work

leverages on the P/S-CoM approach by augmenting it

with behavioral view including the state of the com-

ponent types and some behavioral properties.

5 CONCLUSIONS

In this paper, we proposed the integration of behav-

ioral view into P/S-CoM approach. We formally

model the state of publish/subscribe component types

and behavioral properties (lossless of events, delivery

semantics and ordering of notiﬁcations) in Z notation.

For future work, we currently design a methodology

for composing the new communication schemas and

develop a GUI as an eclipse plugin. Several other is-

sues require further investigations. First, we project to

incorporate other behavioral properties and the tem-

poral aspect. Second, we plan to integrate a process

algebra language in order to check and validate these

behavioral properties. Third, it is interesting to in-

spect the presented approach with applications.

REFERENCES

Baldoni, R., Contenti, M., Piergiovanni, S. T., and Vir-

gillito, A. (2003). Modelling publish/subscribe

communication systems: Towards a formal ap-

proach. Object-Oriented Real-Time Dependable Sys-

tems, IEEE International Workshop on, 0:304.

Eugster, P. T., Felber, P. A., Guerraoui, R., and Kermarrec,

A.-M. (2003). The many faces of publish/subscribe.

ACM Computing Surveys, 35(2):114–131.

Loulou, I., Jmaiel, M., Drira, K., and Kacem, A. H. (2010).

P/S-CoM: Building correct by design publish/ sub-

scribe architectural styles with safe reconﬁguration.

Journal of Systems and Software, 83(3):412–428.

Mahambre, S. P., Kumar S.D., M., and Bellur, U. (2007). A

taxonomy of qos-aware, adaptive event-dissemination

middleware. IEEE Internet Computing, 11(4):35–44.

OMG (2007). Data distribution service for real-time sys-

tems, version 1.2, 2007. http://www.omg.org/spec/

DDS/1.2/PDF/.

Woodcock, J. and Davies, J. (1996). Using Z: speciﬁca-

tion, reﬁnement, and proof. Prentice-Hall, Inc., Upper

Saddle River, NJ, USA.

FORMAL MODELING OF BEHAVIORAL PROPERTIES TO SUPPORT CORRECT BY DESIGN

PUBLISH/SUBSCRIBE ARCHITECTURAL STYLES

289
