CRL DISTRIBUTION USING AN ALTERNATIVE

COMMUNICATION MEDIA FOR

VEHICULAR NETWORKS

HyunGon Kim

Department of Information Security, Mokpo National University

560 Muanno Cheonggye-Mueon, Muan-Gun, 534-729, Jeonnam, Korea

Keywords: VANET security, CRL, Overlay zone, T-DMB, TPEG application.

Abstract: Efforts on vehicular network security have been undertaken, with consensus on utilizing public key

cryptography to secure communications. However, how to efficiently revoke node’s certificates represents a

major challenge in vehicular networks. Certificate revocation lists (CRLs) should be distributed quickly to

every vehicle within the networks to protect them from malicious users and malfunctioning equipment as

well as to increase the overall security and safety of the vehicular networks. In this paper, we propose a

Terrestrial-Digital Multimedia Broadcasting (T-DMB) aided distribution method for CRL distribution. The

method can broaden breadth of network coverage and can get real-time delivery and enhanced transmission

reliability using an alternative communication media thus, T-DMB data broadcasting channels. Even if road

side units are sparsely deployed or, even not deployed, vehicles can obtain recent CRLs from T-DMB

infrastructure. In addition, to broadcast CRLs over T-DMB infrastructure, we design a new Transport

Protocol Expert Group (TPEG) CRL application followed by TPEG standards.

1 INTRODUCTION

Vehicular ad hoc networks are emerging research

area and promising approach to facilitating road

safety, traffic management, and infotainment

dissemination of drivers and passengers. However,

without the integration of strong and practical

security and privacy enhancing mechanisms,

vehicular communication system can be disrupted or

disabled, even by relatively unsophisticated

attackers.

Security is an issue that needs to be carefully

assessed and addressed in the design of the vehicular

communication system, especially because of the

life-critical nature of the vehicular network

operation. The IEEE 1609.2 standard (IEEE Std

1609.2, 2006) and the European PRE-DRIVE C2X

standard (Bechler et al., 2009) define security

services for vehicular ad hoc networks. They define

secure message formats and techniques for

processing these secure messages using the public

key infrastructure (PKI).

In traditional PKI architecture, the most

commonly adopted certification revocation scheme

is through CRLs which is a list of revoked

certificates stored in repositories prepared in

certificate authorities (CAs). In vehicular networks,

the CA adds the identification of the revoked

certificate(s) to a CRL. The CA then publishes the

updated CRL to all vehicular network participants,

instructing them not to trust the revoked certificate.

Timely access to revocation information is important

for the robustness of its operation: message faulty,

compromised, or otherwise illegitimate, and overall

potentially dangerous, vehicles can be ignored.

The CA employs a set of road side units (RSUs)

to broadcast CRLs to all vehicles as they pass.

However, this RSU-based revocation may be

challenging in certain areas (e.g., rural regions)

where not enough RSUs are deployed or maintained.

It is likely that RSUs will be sparsely placed in real

environments, and thus, vehicles may spend

significant time outside radio range of an RSU

(Resendes, 2008). In this area a vehicle may rarely

encounter an RSU and thus, there may be a long

delay until the vehicle receives recent CRLs, which

may cause a potential threat to the security of

vehicular networks. Even if RSUs are eventually

217

Kim H..

CRL DISTRIBUTION USING AN ALTERNATIVE COMMUNICATION MEDIA FOR VEHICULAR NETWORKS.

DOI: 10.5220/0003497702170222

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 217-222

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

deployed with sufficient density, vehicular networks

must be able to operate during stages of incremental

deployment, that is, before sufficient densities of

RSUs come online. Therefore, CRL distribution

should spread quickly to every vehicle within the

networks.

On the other hand, for vehicular networks

several broadcasting techniques are taken into

account. That includes some narrow bandwidth

solution like FM radio, but also wider bandwidth

digital services such as DAB, DVB, DVB-H, T-

DMB etc (Bechler et al., 2009). Broadcasting

appears to be an attractive solution due to its low

cost, large coverage range, and large potential

volumes of data. There is already some service

available that based on T-DMB broadcasting and

TPEG protocol, offer real-time traffic information.

T-DMB service is already commercialized for free

and infrastructures are widely deployed in Korea. T-

DMB data broadcasting service provides mobile

users with various data such as web sites, picture

files, and traffic reports through its data channels.

To the best of our knowledge all the solutions in

the stat of the art, RSU-based distribution methods

as well as vehicle-to-vehicle distribution methods

are non-effective solutions in terms of delays,

availability, liability, limited transmission ranges,

and real-time delivery. Under these conditions, the

problem at hand is how to design a system that can

distribute revocation information effectively.

Our proposal has been concerned with the

fundamental problem of how to distribute CRLs in a

real-time manner across wide regions including rural

regions. The basic idea is that if a subnet of

vehicular network nodes can receive CRLs via an

alternative communication media effectively, the

epidemic distribution method can be used to

broadcast them. In this paper, we propose a T-DMB

aided distribution method for CRL distribution. The

method can broaden breadth of network coverage

and can get real-time delivery and enhanced

transmission reliability using an alternative

communication media thus, T-DMB data

broadcasting channels. In addition, to broadcast

CRLs using T-DMB data broadcasting service, we

design a new TPEG CRL application followed by

TPEG standards.

The reminder of the paper is organized as

follows. In section II, we present the related work. In

section III, we introduce the proposed CRL

distribution method. In section IV, to utilize T-DMB

data broadcasting service, a new TPEG CRL

application is designed and we finalize with some

conclusions.

2 RELATED WORK

2.1 CRL Distribution Methods

The problem of revocation in vehicular networks has

hardly attracted any attention in the literature.

Papadimitratos et al. (Papadimitratos et al., 2008)

aim at achieving scalable and efficient mechanism

for the distribution of large CRLs across wide

regions by utilizing a very low bandwidth at each

RSU. CRLs are encoded into numerous self-

verifiable pieces, so vehicles only get from the RSUs

those pieces of the CRLs.

Laberteaux et al. (Laberteaux, 2008) proposed

that revocation information is distributed in the form

of a CRL in an epidemic mechanism through

vehicle-to-vehicle communications. The mechanism

provides significant advantages compare to the

RSU-based distribution mechanism in terms of

speed and breadth of network coverage.

Lin et al. (Lin et al., 2008) proposed the use of

RSU-aided certificate revocation. Each RSU has the

complete and updated base-CRL and it is

continuously checking the status of the certificates

contained in all the messages broadcasted by passing

vehicles. If a certificate has been revoked, the RSU

broadcasts a warning message such that approaching

vehicles can update their CRLs and avoiding

communicating with the compromised vehicle.

To reduce size and computational costs of

processing the CRLs, extensive research efforts have

been made in vehicular networks. Bellur (Bellur,

2008) proposed segmentation of an administrative

area into a number of geographic regions and the

assignment of region-specific certificates to an OBU

resident on a vehicle, which could significantly

reduce the size of CRLs.

Raya et al. (Raya et al 2007) propose the

combination of two protocols specially tailored to

the vehicular networks, the revocation of the trusted

component (RTC) and revocation using compressed

certificate revocation lists (RC

RL). The RTC is

intended to reduce the number of certificates that

need to be inserted in the CRL. It requires the CA,

however, to be able to geographically localize any

vehicle in the system. The RC

RL is a CRL that is

compressed using Bloom filter compression to limit

the size of the CRL. Because of the false positive

characteristic of Bloom filter compression, some

legitimate certificates can get revoke as well.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

218

2.2 CRL Distribution using an

Alternative Communication Media

To distribute CRLs, while most of running projects

are mainly based on the IEEE 802.11p and ITS-

G5A, other mobile access technologies like UMTS,

WiMax and DMB can be utilized (Bechler et al.,

2009). Lequerica et al, (Lequerica et al., 2010)

propose a use of the existing multimedia broadcast

multicast service over UMTS, which improves the

efficiency of the distribution of the CRL. Sommer et

al, (Sommer, 2008) present simulation results of a

UMTS-based vehicle-to-infrastructure traffic

information system. However, even if the usage of

the cellular channel is low in above two methods,

there is need to use UMTS bearer service.

2.3 ITS Network Reference Model

The network reference model of European ITS

communication architecture is depicted in Figure 1

(Bechler et al., 2009). The ITS Vehicle Station

compromise a number of ITS-specific functions. The

ITS Roadside Station such as RSU can act as

gateway between the ITS ad-hoc network domain

and the ITS roadside infrastructure network domain.

The Border Router offers IP connectivity to ITS

Vehicle Station and Core Network Switch in the

Internet domain.

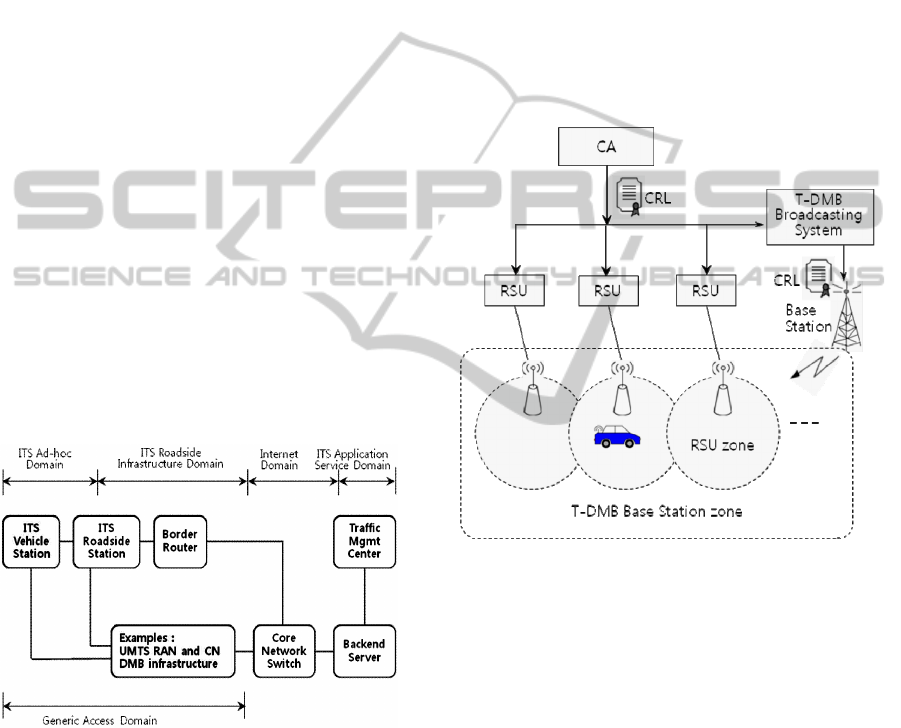

Figure 1: European ITS network reference model.

The main components for the generic access

network domain can be UMTS system, DMB

infrastructure etc. IP packet transport is assured

either by means of encapsulation and tunnelling over

the ad-hoc network for vehicle-to-vehicle and

vehicle-to-infrastructure communication, or by using

the generic IP access network. The ITS Application

Service Domain contains Backend Server and

Traffic Management Center.

3 NEW CRL DISTRIBUTION

METHOD

In this section, we describe the proposed T-DMB

aided distribution method. Every vehicle will want

the most recent CRL to protect them from malicious

users and malfunctioning equipment, as well as to

increase the overall security and safety of the

vehicular networks. We utilize the advantage of T-

DMB data broadcasting service in terms of low cost,

real-time delivery, wide network coverage, and

enhanced transmission reliability.

3.1 T-DMB aided Distribution Method

Figure 2: T-DMB aided distribution method.

Some design principles and assumptions are:

 In addition to the usual ETSI ITS-G5A module

interface, basically vehicles have a T-DMB

terminal and a module interface.

 T-DMB terminal has also an interface with on

board unit (OBU) within a vehicle.

 RSUs can be deployed with sufficient density or,

sparsely placed in certain areas or, even not

placed. Therefore, in some areas, vehicles often

cannot receive recent CRLs from RSU and even

neighbouring vehicles.

 CA sends recent CRLs to the T-DMB base

station periodically to broadcast CRLs over T-

DMB data broadcasting channels.

The schematic diagram of the proposed method is

depicted in Fig. 2. In addition to the RSU-based

distribution, CA utilizes T-DMB data broadcasting

channels to distribute duplicated CRLs additionally.

CRL DISTRIBUTION USING AN ALTERNATIVE COMMUNICATION MEDIA FOR VEHICULAR NETWORKS

219

The CA sends recent CRLs to the RSU and T-DMB

base station periodically over fixed wireline as the

same fashion. Then, the same CRLs would be

doubly distributed to the vehicles through a RSU

and a T-DMB base station at any given time. In an

area where RSU density is high enough, a vehicle

can connect to the RSU directly. In contrast, in an

area where RSU density is low, a vehicle can switch

over to the T-DMB base station directly. To do this,

vehicles has to change from IT-G5A module

interface to T-DMB module interface or, in the

opposite direction.

3.2 Overlay Zone

The proposed method is based on the concept of

overlay zone, which is duplicated zone by RSU

transmission coverage and T-DMB base station

transmission coverage. Therefore, in that zone,

vehicles can be able to obtain CRLs from a RSU as

well as T-DMB base station directly. According to

the standard (Bechler et al., 2009), maximum cell

coverage of ITS-G5A based RSU, Dedicated Short

Range Communication (DSRC) based RSU, T-DMB

base station are approximately 500m, 1Km, and

35Km respectively. Therefore, as shown in Fig. 3,

one base station's zone (T-DMB

zone

) would be

composed of several RSU's zones (RSUs

zone

), which

can be expressed as following:

T-DMB

zone

-A ⊇ RSU

zone

-A + RSU

zone

-B +

RSU

zone

-C +

(1)

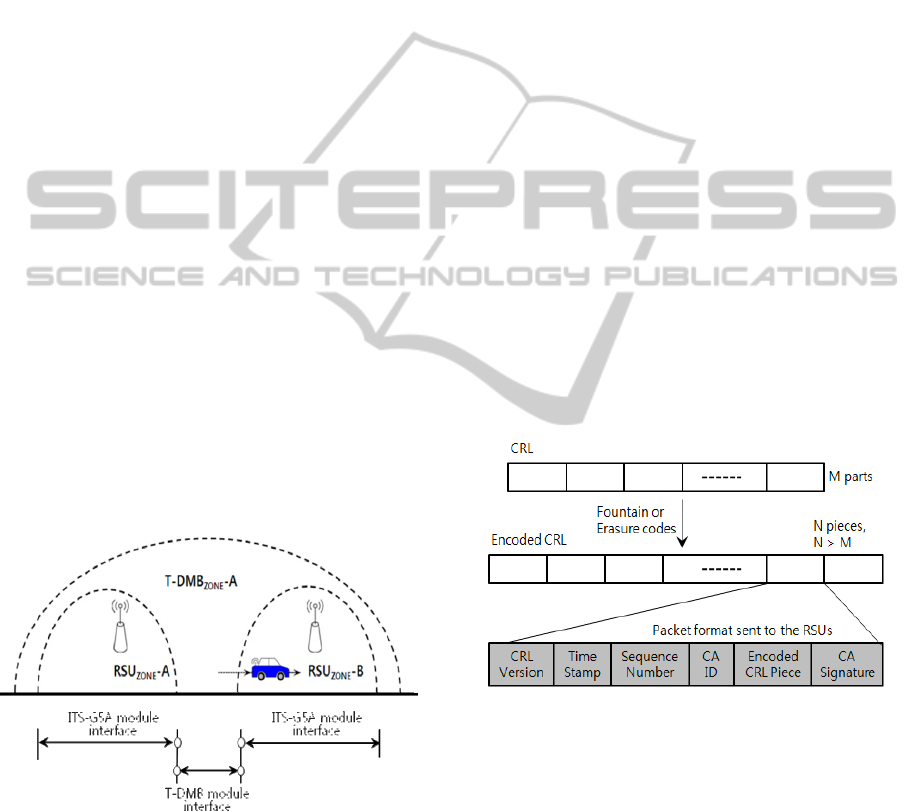

Figure 3: Overlay zone.

In our example of Fig. 3, when a vehicle enters

the RSU

zone

-A, it can receive CRLs from its ITS-

G5A module interface (e.g., from the RSU-A). If the

vehicle are beyond RSU-A’s transmission range as

well as RSU-B transmission range, then, it can also

receive CRLs from its T-DMB module interface

(e.g., T-DMB base station). Thus, as soon as the

vehicle knows outside the range of its RSU

transmission range, then the vehicle may change

from the ITS-G5A module interface (or, WAVE

module interface) to the T-DMB module interface.

CA is responsible for the provision and

maintenance of T-DMB

zone

to manage CRL

distribution zones based on the T-DMB base station

cell coverage. We assume that logically designed

RSU-based zones are mapped into T-DMB

zone

. CA

also has to collaborate with T-DMB broadcasting

system to present T-DMB

zone

information and to

distribute CRLs through T-DMB infrastructure.

3.3 CRL Encoding Rule

Original CRLs should be encoded to get

transmission efficiency and credential (Ardelean,

2009). A schematic description of encoding the CRL

is depicted in Fig. 4. First, the CA generates the

CRL and divides into M equal length pieces. These

pieces are encoded using an erasure code, into N

redundant pieces. Each piece has a header added

then, it is signed by the CA. The header contains the

CRL version, time stamp for avoiding replay attack,

the sequence number of the encoded piece, and the

CA's ID. After this step the new pieces are sent to

the RSUs and then, they are broadcasted to the

vehicles.

Figure 4: CRL encoding rule.

When receiving one of these signed packets, a

vehicle first verifies the time stamp of the message,

then the signature. The signature verification is done

by searching in its database the public key

associated to the CA ID extracted from the message.

If the signature is valid then the vehicle verifies if it

has already this piece stored, if not it store the piece

with the associated sequence number. When it has

enough pieces it will decode them and obtain the

original CRL.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

220

4 DESIGN OF TPEG CRL

APPLICATION

To realize the proposed method using T-DMB data

broadcasting service, standard TPEG protocol could

be utilized. TPEG is a bearer and language

independent protocol that can be used for many data

broadcasting channels like DAB, DMB, DVB and

others (ISO/TS 18234-1, 2006). TPEG applications

are kinds of data services and its message structure

is followed by TPEG standards. Since the proposed

CRL application also uses TPEG technology, it

could be formalized as a new TPEG application that

is called the CRL application in this paper. The CRL

application can distribute CRLs using T-DMB data

broadcasting service as a real-time manner. It could

allow T-DMB base station to distribute CRLs and

allows vehicles to receive CRLs effectively.

4.1 Frame Structure of CRL

Application

The hierarchical transport frame structure including

CRL application message is shown Fig. 5. Transport

Frame, Service Frame, Service Component Frame

are commonly used like as other TPEG applications.

Details of them are described in TPEG standards

(ISO/TS 18234-1, 2006).

The Service Component Frame comprises the

service component identifier, the length of the

component data, the component header CRC, and

component data. The service component identifier

with the value 0 is reserved. The field length

consists of 2 bytes and represents the number of

bytes of the component data. The component header

CRC is calculated from the service component

identifier, the field length, and the first 13 bytes of

the component data.

The CRL application message is what we

defined. The CRL application is designed to deliver

CRL application message; thus, CRLs issued by

CAs, using three containers, which are the message

management container, the event container for

transmitting CRLs, and TPEG location container

having the geographical location information.

To manage CRLs in the receiving side, the

message management container includes

information such as the date and time references,

generation time, expiry time, the effect and

reliability, the cross reference information etc. The

effect and reliability information provide severity

factor and unverified information to make a

judgements about the effect on travel for a vehicle.

The cross reference information would allow each

message to be cross-referenced to other messages,

either within the CRL application or, in other TPEG

applications.

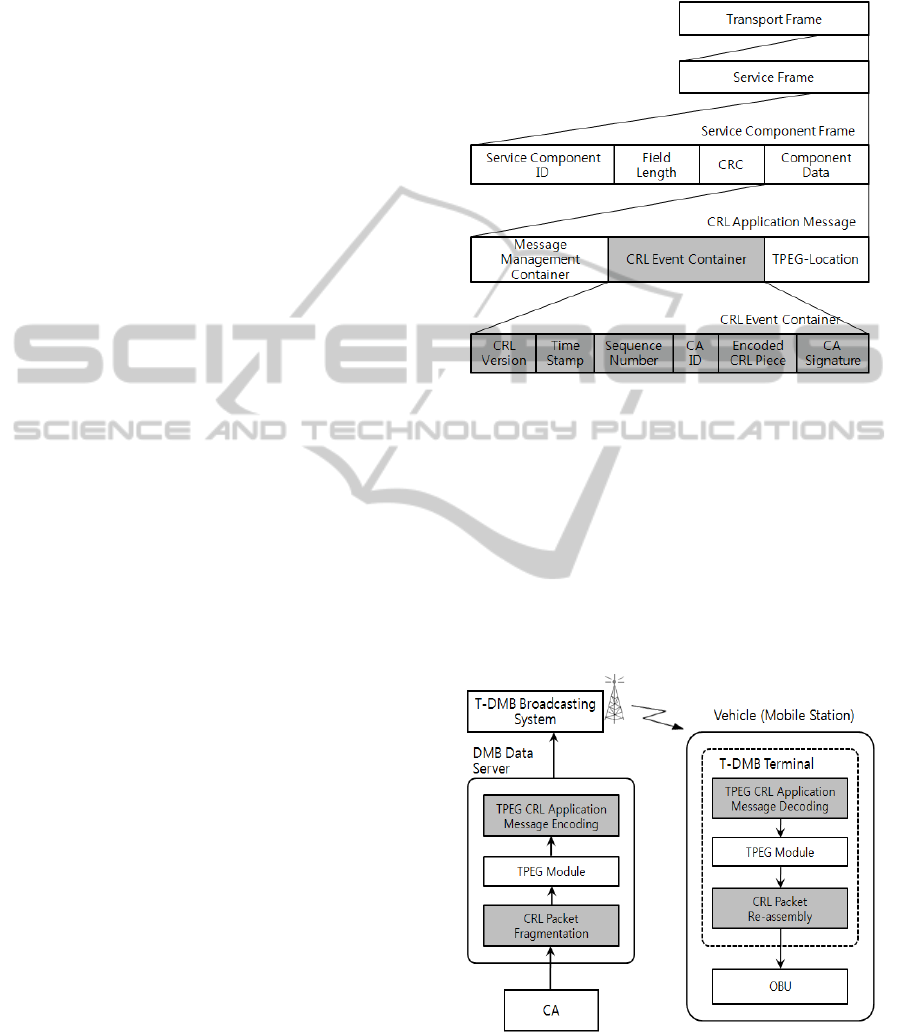

Figure 5: Transport frame structure for CRL application.

4.2 Architecture for CRL Application

To implement the proposed method, architecture and

additional functionalities should be identified from a

point of T-DMB system views. As shown in Fig. 6,

T-DMB data server has capable of processing a new

CRL application. It collects large size CRL packets

through CA interface and then, converts into TPEG

packet formats. And it also encodes TPEG packet to

CRL application message formats.

Figure 6: Implementation architecture for CRL application.

Basically a vehicle has a T-DMB terminal that

may be interfaced with OBU within vehicle. Upon

receiving CRL application messages, T-DMB

terminal has to process decoding and re-assemble.

CRL DISTRIBUTION USING AN ALTERNATIVE COMMUNICATION MEDIA FOR VEHICULAR NETWORKS

221

Finally extracted CRLs are delivered to the OBU

within vehicle.

5 CONCLUSIONS

We present the basic ideas of a CRL distribution

method for vehicular networks, with the focus on

use of an alternative communication media. The

basic objectives of the proposed method are

concerned with the fundamental problem of how to

distribute CRLs in a real-time manner across wide

regions including rural regions. Our design approach

seeks to use a T-DMB aided distribution method that

can broaden breadth of network coverage and can

get real-time delivery and enhanced transmission

reliability using T-DMB data broadcasting channels.

Even if road side units are sparsely deployed or,

even not deployed, vehicles can obtain recent CRLs

from T-DMB infrastructure. In addition, to

broadcast CRLs over T-DMB data broadcasting

channels, we design a new TPEG CRL application

followed by TPEG standards.

ACKNOWLEDGEMENTS

This research was supported by Basic Science

Research Program through the National Research

Foundation of Korea (NRF) funded by the Ministry

of Education, Science and Technology (NRF-2010-

0024531).

REFERENCES

IEEE Std 1609.2. (2006). Trial-Use Standard for Wireless

Access in Vehicular Environments - Security Services

for Applications and Management Message. IEEE Std

1609.2, 2006.

M. Bechler et al. (2009). PRE-DRIVE Implementation and

Evaluation of C2X Communication Technology,

Deliverable D1.4, PRE-DRIVE Std., March 2009.

R. Resendes. (2008). The New 'Grand Challenge' -

Deploying Vehicle Communications, Keynote

Address, The Fifth ACM International Workshop on

VehiculAr InterNETworing(VANET 2008), Sept. 2008.

P. Papadimitratos et al. (2008). Certificate Revocation List

Distribution in Vehicular Communication Systems,

The Fifth ACM International Workshop on VehiculAr

InterNETworing(VANET), Sept. 2008.

Kenneth P. Laberteaux et al. (2008). Security Certificate

Revocation List Distribution for VANET, The Fifth

ACM International Workshop on VehiculAr

InterNETworing(VANET), pp.88-89, Sept. 2008.

Xiaodong Lin et al. (2008). Security in Vehicular Ad Hoc

Networks, IEEE Communications Magazine, Vol. 46,

No. 4, pp.88-95, April 2008.

Bhargav Bellur. (2008). Certificate Assignment Strategies

for a PKI-based Security Architecture in a Vehicular

Network, Proc. IEEE GLOBECOM, pp.1-6, Nov.

2008.

M. Raya et al. (2007). Eviction of Misbehaving and Faulty

Nodes in Vehicular Networks, IEEE Journal on

Selected Areas in Communications, pp.1557-1568, Oct.

2007.

M. Raya et al. (2006). Certificate Revocation in Vehicular

Networks, Technical Report LCA-Report-2006-006,

2006.

E. Uhlemann et al. (2009). Cooperative Systems for

Traffic Safety: Will Existing Wireless Access

Technologies Meet the Communication

Requirements?, ITS World Congress, Sept. 2009.

Ivan Lequerica et al. (2010). Efficient Certificate

Revocation in Vehicular Networks using NGN

Capabilities. Vehicular Technology Conference 2010,

pp.1-5, Sept. 2010.

Christoph Sommer et al. (2008). Simulative Evaluation of

a UMTS-based Car-to-Infrastructure Traffic

Information System. Proc. IEEE Global

Telecommunications Conference (GLOBECOM), Dec.

2008.

Petra Ardelean. (2009). Implementation and Evaluation of

Certificate Revocation List Distribution for Vehicular

Ad-hoc Networks, 2009.

ISO/TS 18234-1 (2006). Traffic and Travel Information

(TTI) – TTI via Transport Protocol Expert Group

(TPEG) data-streams – Part 1: Introduction,

numbering and versions. 2006.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

222
