APPROACH FOR VERIFYING WORKFLOW VALIDITY

Yuan Lin, Th

ese Libourel, Isabelle Mougenot

LIRMM, 161 rue Ada - Espace DEV, 500 rue JF Breton - University of Montpellier 2, Montpellier, France

Runtong Zhang, Rongqian Ni

Institute of Information Management, Beijing Jiaotong University, #3 Shangyuancun, Haidian District, Beijing, China

Keywords:

Scientiﬁc workﬂow, Workﬂow validation, Process composition, Resource hierarchy.

Abstract:

This article presents the solution adopted for tackling the problem of incompatibility inherent in process com-

positions during a workﬂow’s construction. The proposed approach is based on a context of pre-constructed

resource hierarchies (data and processes) and consists of ﬁnding possible composition “paths” between pro-

cesses within GRSYN and GRSEM resource graphs constructed from the context. We explain the stage of

constructing the context from a simple formal description of resources. The stage for resolving the incom-

patibility is then covered in detail. We brieﬂy present the implemented prototype before highlighting future

avenues of research.

1 INTRODUCTION

Scientiﬁc domains dealing with topics such as biodi-

versity, ecology, and agronomy require the drawing

up of experimentation plans using various resources

(data and processes). These resources, while available

in ever-increasing quantities, remain, for the most

part, expensive – and thus their reuse becomes almost

a necessity.

To design these complex experiments, scientists

often need to locate suitable resources and then to or-

ganize or reorganize them. In addition, each experi-

mentation plan deserves to be saved so that it can be

re-executed several times, either in various different

conﬁgurations or with diverse test data. In such a con-

text, the use of a scientiﬁc workﬂow proves to be an

invaluable help. Several dedicated software applica-

tions for this purpose now exist and research in the

ﬁeld is relatively advanced. A ﬁrst study (Libourel

et al., 2010) presented the concept of the workﬂow

environment. Our approach aims to help the user:

• design experimentation plans (in as abstract a

manner as possible),

• better organize resources (data and processes)

which will be elements in the concretization of

these plans,

• capitalize on the existing by constructing new pro-

cesses from previously devised plans.

This article develops our research advances in

terms of resource organization and semi-automatic

veriﬁcation of validity of workﬂows designed within

a prototype.

Section 2 lists the problem to be addressed, the

work context and the deﬁnitions we will rely on for

our validation approach. Section 3 presents a state of

the art on process composition. Section 4 explains

the validation process in terms of algorithms. Sec-

tion 5 presents the prototype. Section 6 concludes our

proposal by listing planned perspectives.

2 PROBLEM AND CONTEXT

Referring again to the idea (Libourel et al., 2010) that

experimentation requires a stage of abstract planning

followed by a concretisation stage in which the user

selects the most suitable data and processes, we aim

to address the basic problem of the validation of the

concrete experimental chain.

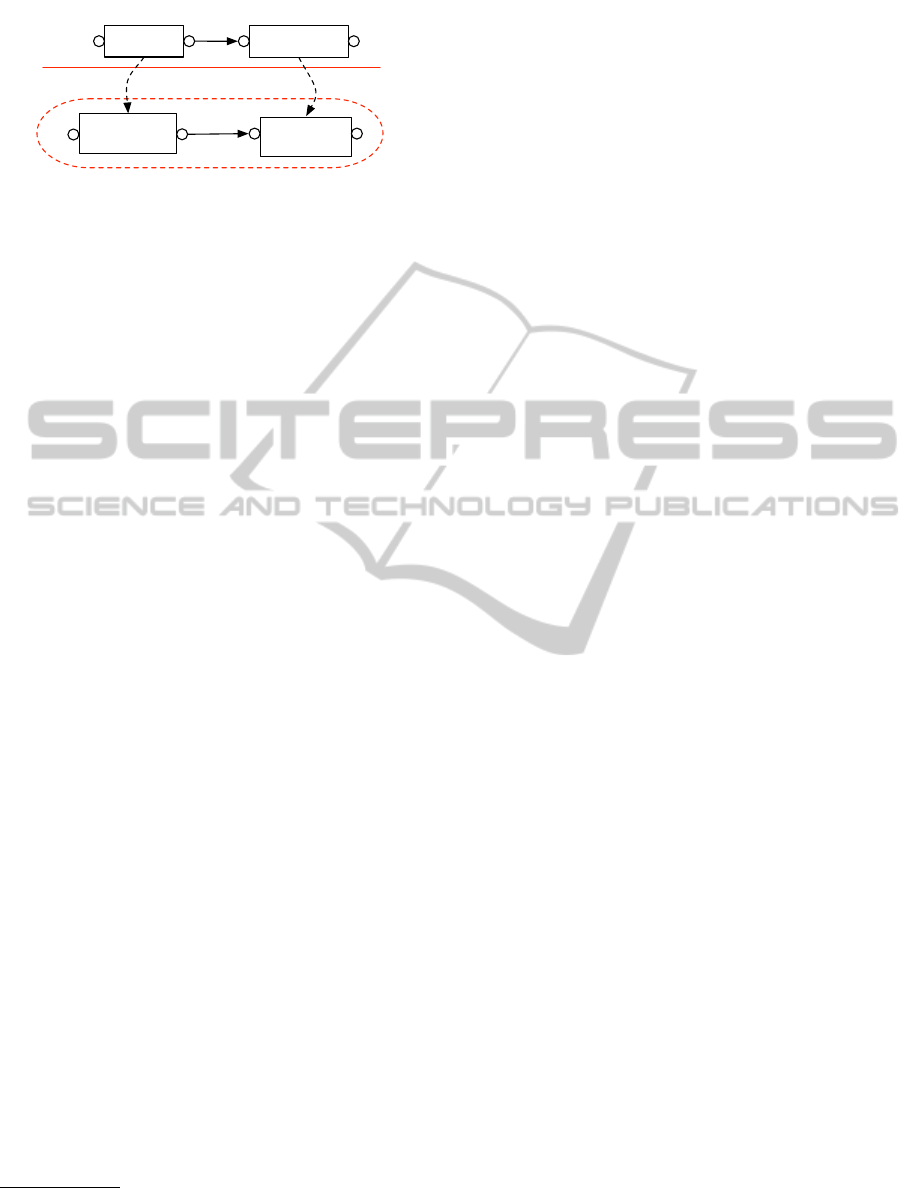

In ﬁgure 1, the user designs, in a biological con-

text, an experiment in which he aligns sequences fol-

lowed by a tree reconstruction based on the alignment

results. To do so, he uses two concrete processes,

Blastx and PhyML

In the adopted graphic formalism, “abstract” and “con-

Lin Y., Libourel T., Mougenot I., Zhang R. and Ni R..

APPROACH FOR VERIFYING WORKFLOW VALIDITY.

DOI: 10.5220/0003498900660075

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 66-75

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Alignment

Tree

reconstruction

Blastx

PhyML

...

Abstract

model

Instantiated

model Valid ?

Figure 1: Problem.

Validation of a workﬂow consists of verifying the

compatibility of each of its composition based on the

concept of work context (which we will deﬁne in

greater detail in section 4).

A composition between two processes corre-

sponds to a link between the input parameter and out-

put parameter of these processes.

The veriﬁcation of a composition’s compatibility

ensures its later executability. Various approaches can

be considered, for example, that of analyzing pro-

cess signatures or one based on the analysis of differ-

ences between communication protocols or on meth-

ods governing exchanges between heterogeneous and

distributed systems, etc.

As far as we are concerned, we will mainly focus

on the veriﬁcation of signatures of two linked pro-

cesses. The signature of a process encompasses, in

our opinion, two important aspects:

• The syntactic aspect, which deﬁnes the data for-

mats used by each parameter.

• The semantic aspect, which determines a pro-

cess’s functionality. This not only concerns the

process’s name (which has to make sense) but also

the signiﬁcance of each input and output parame-

ter.

The veriﬁcation of a composition’s compatibility

will therefore relate to these two levels: the syntactic

and the semantic. However, before presenting the ver-

iﬁcation algorithms for workﬂow validation, we ﬁrst

survey the existing approaches from which we have

drawn inspiration.

3 PROCESS COMPOSITION: A

STATE OF THE ART

Our survey consists of two parts: one concerning var-

ious representative projects, the other discussing dif-

ferent existing research efforts concentrating on the

problem of compatibility.

crete” processes are represented by rectangles, and input

and output parameters by circles. Data ﬂow is represented

by arrows.

3.1 Workﬂow Environments

All the environments we list use graphical inter-

faces. These permit scientists to construct experimen-

tal plans using distinct formalisms. Nevertheless, all

of these environments are located at a level that we

call “concrete”.

Kepler (Lud

ascher et al., 2006; Altintas et al.,

2006) is a complete scientiﬁc workﬂow environment

based on the Ptolemy II platform of the University

of Berkeley. In this environment, actors correspond

to different possible processes and operations, and

they are equipped with ports representing their in-

put/output parameters. The compositions between

processes are made interactively by scientists by link-

ing actor ports with channels. The control and or-

chestration of the workﬂow model is the responsibil-

ity of directors. Necessary adaptations are made via

intermediary programs (senders and receivers), thus

ensuring compatibility of data transferred via a chan-

nel.

Taverna (Hull et al., 2006; Oinn et al., 2006) is a

workﬂow project created by the

Grid team in Eng-

land and used mainly in the biological domains. Pro-

cesses in this environment are essentially web ser-

vices (which can be supplemented by local libraries,

manuscript scripts, etc.). During process composi-

tion, the user manually couples input/output param-

eters of web services or invokes shim services, spe-

ciﬁc adaptors designed earlier from couplings made

for already constructed and tested experiments.

NetBeans is a general-purpose IDE environment.

One of its modules allows the construction, via the use

of the BPEL (Business Process Execution Language)

(Andrews et al., 2003), language of workﬂows by the

composition of web services. A thorough knowledge

of the BPEL standard is however required. The com-

position is done by manual coupling or transforma-

tion between XML elements of exchanged messages.

These coupling rules are then translated with the help

of the XSLT language (eXtensible Stylesheet Lan-

guage Transformations) (Kay, 2007).

Weka (Cunningham and Denize, 1993) is an ap-

plication from the machine learning and data mining

domains, created by the University of Waikato, New

Zealand. It includes one component, Weka Knowl-

edgeFlow, which allows chaining of processes re-

lating to data mining experimentation. The general

model of KnowledgeFlow follows the sequence Se-

lecting data → Filtering → Classifying → Evaluat-

ing → Visualizing. Thanks to Weka’s graphical inter-

face, scientists can interactively concretize their ex-

periments, and choose pre-existing converters to en-

sure their workﬂows’ compatibility. The environment

APPROACH FOR VERIFYING WORKFLOW VALIDITY

is based on data categories and algorithms relating to

various processes constructed beforehand.

3.2 Existing Approaches

The approaches we list below are essentially those re-

lating to the semantics of processes. They originate

from the domain of artiﬁcial intelligence.

Ontological Approach. The ontological approach

assumes the pre-existence of domain ontolo-

gies, constructed beforehand for the resources

(data/processes), by using standards such as OWL

(Group, 2004). During the design of the workﬂow,

the user locates resources and composes processes

guided by these ontologies. For example, in the

METEOR-S project of the University of Georgia,

USA, the workﬂow system controls the compati-

bility of the chaining of web services by using the

SAWSDL extension (Joel Farrell, 2007) for estab-

lishing relationships between WDSL descriptions

(Christensen et al., 2001) of these web services with

the concepts of an OWL ontology. In (Liu et al.,

2007), web-service messages are expressed in the

form of RDF graphs (W3C, 2004). Compatibility

is veriﬁed by pairing between these graphs and the

ontology concepts.

Planner Approach. In the ﬁeld of artiﬁcial intelli-

gence, planners are used when, to attain a ﬁxed ob-

jective, an action plan is considered. In a workﬂow

context, planner algorithms can help ﬁnd all possi-

ble process compositions so as to obtain, given a de-

scription of an initial state, the ﬁnal desired state.

The authors of the article (Beauche and Poizat, 2008)

use two speciﬁc structures: CSS (Capacity Semantic

Structure), which represents the workﬂow in the form

of a tree, with nodes being either abstract processes

or control operators (sequence, choice or parallelism);

and DSS (Data Semantic Structure), which represents

the structure of data allowable for each process. The

planner calculates all the possibilities of constructing

the workﬂow using the services chosen by the users.

Several plans can be proposed that take the adapta-

tion of the concerned DSS’s into account. The plan

selected by the user is transformed into YAWL or-

chestrators (van der Aalst and ter Hofstede, 2005).

A prototype based on this approach has been im-

plemented (GraphAdaptor). The article (Klusch and

Gerber, 2005) uses a set of web service descriptions in

OWL-S (Martin et al., 2004) and an associated OWL

ontology. They are converted into the PDDL language

(Planning Domain Deﬁnition Language). The Xplan

planner can, using these translations, calculate vari-

ous possible plans that will allow the predetermined

objective to be attained. Similarly, the article (Sirin

et al., 2004) shows how to use the SHOP2 planner

(Nau et al., 2003) for arriving at plans of web ser-

vices compositions (described in OWL-S). The article

(Julien Bourdon and Fiorino, 2007) uses a multi-agent

architecture for the planning of web services using

an interaction between agents (services) for achiev-

ing the predetermined goal. The article (Claro et al.,

2008) uses the SPOC system planner (CLARO, 2006)

for determining and putting in sequence the web ser-

vices discovered in the initial localization stage. It

offers an optimization of the planning process based

on the user’s proﬁle.

Other Approaches. The articles (Limthanmaphon

and Zhang, 2003) use case-based reasoning ap-

proaches. The process chain is created after learning

from analogous cases (composition) and adaptation to

the target context.

3.3 Summary

The work surveyed focuses, for the most part, on the

composition of web services. Ontological descrip-

tions prove to be essential in detecting semantic in-

compatibilities. The adaptations require transforma-

tions between incompatible message structures. The

planner approach is not necessarily natural and can

prove complex and demanding for users who are not

experts in informatics. Therefore, we have retained

essentially the “ontological” approaches but we wish

to provide an environment in which process chains

can reach beyond web services to invoke libraries and

speciﬁc processes.

4 OUR APPROACH

Given the problem stated in section 2, we thus pro-

pose an approach based on the analysis of a work-

ﬂow’s compositions and guided by the concept of

work context (cf. sub-section 4.1). We deﬁne dif-

ferent types of composition compatibilities in sub-

section 4.2. From this categorization, we identify

three compatibility situations, which we then put

through a semi-automatic repair algorithm (cf. sub-

section 4.3).

4.1 Work Context

The veriﬁcation of a workﬂow’s validity consists of

verifying the compatibility of each of its compositions

in terms of the work context. This work context con-

sists of three major organizations or arrangements of

resource descriptions, namely:

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

User rights

User roles

Organization of

human resources

Users

can

play

possesses

Work context

Organization

of data

Data

categories

Data

formats

Biological

processes

Alignment

Tree

reconstruction

Hierarchy of processes

Process

categoriess

Concrete

processes

Blastx BioNJ

* In our work context, only the descriptions are saved.

Visualization

Alignment

by pair

Multiple

alignment

By neighbour

joining

By distance

matrix

Blastn Clustalw

NJ PhyML

Maximum

likelihood

TreeDyn

NewickTgf

page

Data 7

page

Data 6

page

Data 5

ref.DC

ref

ref.DC

ref

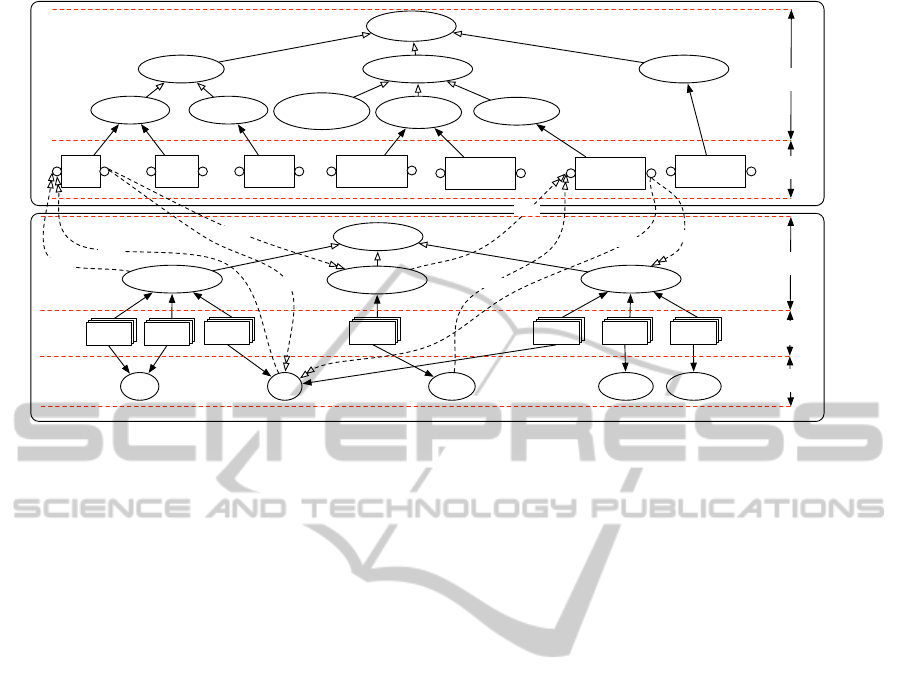

Figure 4: An example of a work context.

T1(dc1:fo1) : (dc2:fo2, dc3:fo3)

T2(dc4:fo4) : (dc5:fo5)

Supposing a link connecting T1’s output parame-

ter p1 (dc3:fo3) to T2’s input parameter p2 (dc4:fo4).

This composition p1 → p2 allows us to deﬁne two

types of compatibilities:

• Syntactic Compatibility. p1 → p2 is syntacti-

cally compatible if (fo3 = fo4) ∨ (fo3 is a sub-

format of fo4), denoted p1

Syn

→ p2. Two parameters

are syntactically compatible if they use the same

data format or if they use an output format which

is a sub-format of the input format. In the same

way, p1 → p2 is not compatible at the syntactical

level if (fo3 6= fo4) ∧ (fo3 is not a sub-format fo4),

denoted p1

Syn

9 p2.

• Semantic Compatibility. p1 → p2 is semanti-

cally compatible if (dc3 = dc4) ∨ (dc3 is a sub-

category of dc4), denoted p1

Sem

→ p2. Two param-

eters are semantically compatible if they use the

same category, or if they use an output category

which is a sub-category of the input category. In

the same way, p1 → p2 is not compatible at the

semantic level if (dc3 6= dc4) ∧ (dc3 is not a sub-

category of dc4), denoted p1

Sem

9 p2.

From these two deﬁnitions, we identify three com-

patibility situations for the composition p1 → p2:

• Situation 1 (p1

Sem

→ p2) ∧ (p1

Syn

→ p2). p1 and p2

are compatible at the semantic and syntactic lev-

els. This is the ideal situation in our context, we

designate it as valid.

• Situation 2 (p1

Sem

→ p2) ∧ (p1

Syn

9 p2). p1 and p2

are compatible at the semantic level but not at the

syntactic level. The composition is syntactically

adaptable. An adaptation between the two data

formats will be necessary (cf. converters).

• Situation 3 p1

Sem

9 p2. The two parameters are

not semantically compatible. In such a case, it is

pointless to proceed to verify their syntactic com-

patibility (in fact, for us, two parameters with dif-

ferent signiﬁcations cannot be paired). The com-

position is semantically adaptable.

From these deﬁnitions, we develop our proposed

approach for resolving the incompatibilities.

4.3 Repairing an Incompatible

Composition

Of the three situations we have arrived at, the latter

two require additional adaptations before moving on

to the execution stage.

The general procedure that is used to verify the

validity of a workﬂow’s composition corresponds to

the following algorithm 1 Repair(p1, p2). This pro-

cedure can trigger two types of adaptations: semantic

adaptation to overcome semantic incompatibility and

syntactic adaptation to do the same with syntactic in-

compatibility.

To illustrate our approach, a sample dataset has

been created. It consists of deﬁnitions of 10 data cat-

egories and 4 integrated data formats, as well as of 14

descriptions of processes, of which 3 are converters

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Algorithm 1: Repair(p1, p2).

Input: Parameter p1, Parameter p2

begin

Situation =

DetermineCompatibleSituation(p1, p2);

if Situation == 1 then

ok;

end

else if Situation == 2 then

SyntacticAdaptation(p1, p2);

//select one of the proposed solutions

UpdateComposition();

end

else if Situation == 3 then

SemanticAdaptation(p1, p2);

// select one of the proposed solutions

UpdateComposition();

for All sub-compositions px→py added

between p1→p2 do

SyntacticAdaptation(px, py);

// select one of the proposed

solutions

UpdateComposition();

end

TD111, TD121 and TD131. Their signatures are:

TD1(DC1:FO1) : (DC2:FO2),

TD2(DC2:FO1) : (DC3:FO2, DC4:FO1),

TD3(DC3:FO3) : (DC5:FO1),

TD4(DC3:FO2) : (DC6:FO4),

TD5(DC4:FO3) : (DC8:FO2),

TD6(DC5:FO1, DC6:FO2) : (DC7:FO3),

TD7(DC1:FO1) : (DC3:FO2, DC4:FO4),

TD8(DC1:FO1) : (DC1:FO3),

TD9(DC8:FO2) : (DC7:FO4, DC9:FO2),

TD10(DC4:FO1) : (DC4:FO2, DC7:FO3),

TD11(DC7:FO4) : (DC3:FO2),

TD12(DC10:FO2) : (DC7:FO4),

TD111(DC2:FO2) : (DC2:FO3),

TD121(DC4:FO1) : (DC4:FO3),

TD131(DC2:FO3) : (DC2:FO1)

Taking the composition between T1 and T11,

(DC2:FO2) → (DC7:FO4) (cf. ﬁg.5), we see that it

corresponds to Situation 3. To validate this compo-

sition, we have to ﬁnd a solution to, ﬁrst, ensure se-

mantic compatibility, then, as a second step, ensure

syntactic compatibility.

DC1:FO1 DC2:FO2

T11

DC7:FO4 DC3:FO2

Figure 5: Initial composition.

These two successive adaptations will require the

deﬁnition and construction of two types of resource

graphs (GRSEM and GRSYN), constructed from the

work context.

4.3.1 Semantic Adaptation

For a semantically incompatible composition, the pro-

posed solution consists of ﬁnding processes or pro-

cess compositions which permit the conversion of the

source data category into that of the destination. To

achieve this ﬁrst goal, we construct the resource graph

(GRSEM).

GRSEM is an oriented graph GRSEM = (N, A),

with:

• A set of nodes N = N

∪ N

, with N

being the

set of process description nodes and N

being

the set of data category nodes.

• A set of arcs A. If an arc a=(n1, n2) ∈ A

, then

(n1 ∈ N) ∧ (n2 ∈ N) ∧ (n1 6= n2).

Two types of arcs are present in the GRSEM,

A = A

∪ A

1. A

is the set of reference arcs going to the

data categories used by a process parameter. If

=(n1, n2) ∈ A

, then (n1∈N

∧ n2∈N

) ∨

(n1∈N

∧ n2∈N

2. A

is a set of specialization arcs between data

categories. If a

=(n1, n2) ∈ A

, then (n1∈N

∧ n2∈N

) ∧ (n1 represents a direct sub-

category of that represented by n2).

The GRSEM of ﬁgure 6 was generated from the

sample dataset: circular nodes represent data cate-

gories, rectangular ones correspond to process de-

scriptions. The reference and specialization arcs are

then added between the nodes.

Semantic adaptation can be considered as a path-

ﬁnding problem between two data category nodes in

the GRSEM resource graph.

A recursive algorithm is used. It takes as input

the nodes of the two data categories concerned and

generates all the possible paths between them in the

GRSEM. Each path found includes a set of interme-

diary nodes and represents a potential semantic adap-

tation (sequence of intermediary processes). For the

composition (DC2:FO2) → (DC7:FO4), and the con-

structed GRSEM graph, we obtain the following po-

tential adaptations:

From n1 to n2.

APPROACH FOR VERIFYING WORKFLOW VALIDITY

DC1

DC2 DC3

DC10

DC9DC8

DC7

DC6

DC5

DC4

TD1

TD2

TD3

TD4

TD5

TD6

TD7

TD8

TD9

TD10

TD12

TD11TD111TD131

TD121

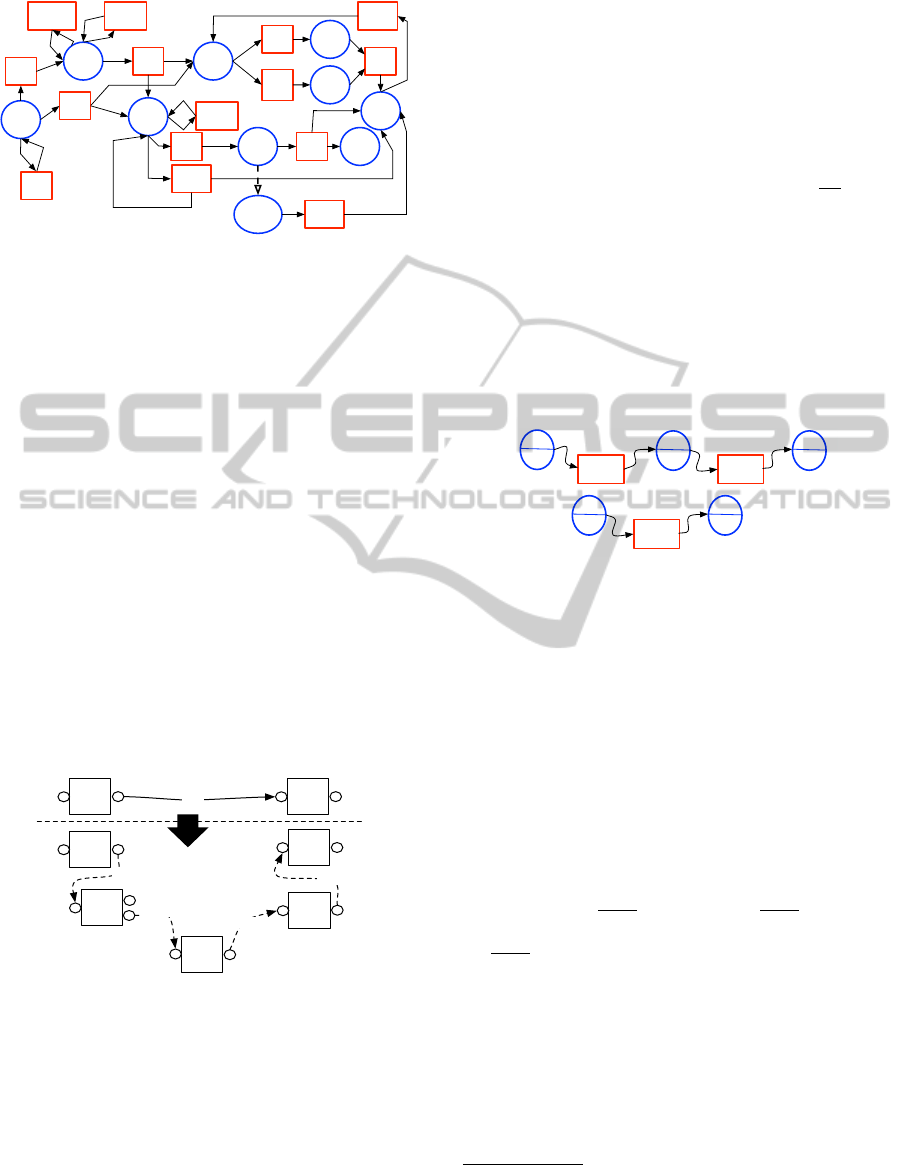

Figure 6: A GRSEM resource graph.

• DC2 7→ TD2 7→ DC3 7→ TD3 7→ DC5 7→ TD6 7→ DC7

• DC2 7→ TD2 7→ DC3 7→ TD4 7→ DC6 7→ TD6 7→ DC7

• DC2 7→ TD2 7→ DC4 7→ TD10 7→ DC7

• DC2 7→ TD2 7→ DC4 7→ TD5 7→ DC8 7→ DC10 7→

TD12 7→ DC7

• DC2 7→ TD2 7→ DC4 7→ TD5 7→ DC8 7→ TD9 7→ DC7

The user selects one of these paths, and all its

intermediary processes are added to the instantiated

workﬂow. Supposing the user chooses the itinerary

DC2 7→ TD2 7→ DC4 7→ TD5 7→ DC8 7→ DC10

7→ TD12 7→ DC7, the intermediary processes TD2,

TD5 and TD12 are added to the workﬂow (cf. ﬁg-

ure 7). The input signature of TD12 is modiﬁed to

(DC8:FO2) because DC8 is more specialized than

DC10 (as shown in ﬁgure 6).

Moreover, a set of links “tmpCategoryLink” indi-

cating the semantic compatibilities of this composi-

tion is added to the workﬂow. The following stage

consists of verifying the syntactic compatibility.

DC1:FO1 DC2:FO2

T11

DC7:FO4 DC3:FO2

DC4:FO3

DC8:FO2

DC2:FO1

DC3:FO2

DC4:FO1

T12

DC8:FO2

DC7:FO4

DC1:FO1 DC2:FO2

T11

DC7:FO4 DC3:FO2

tmpCategoryLink

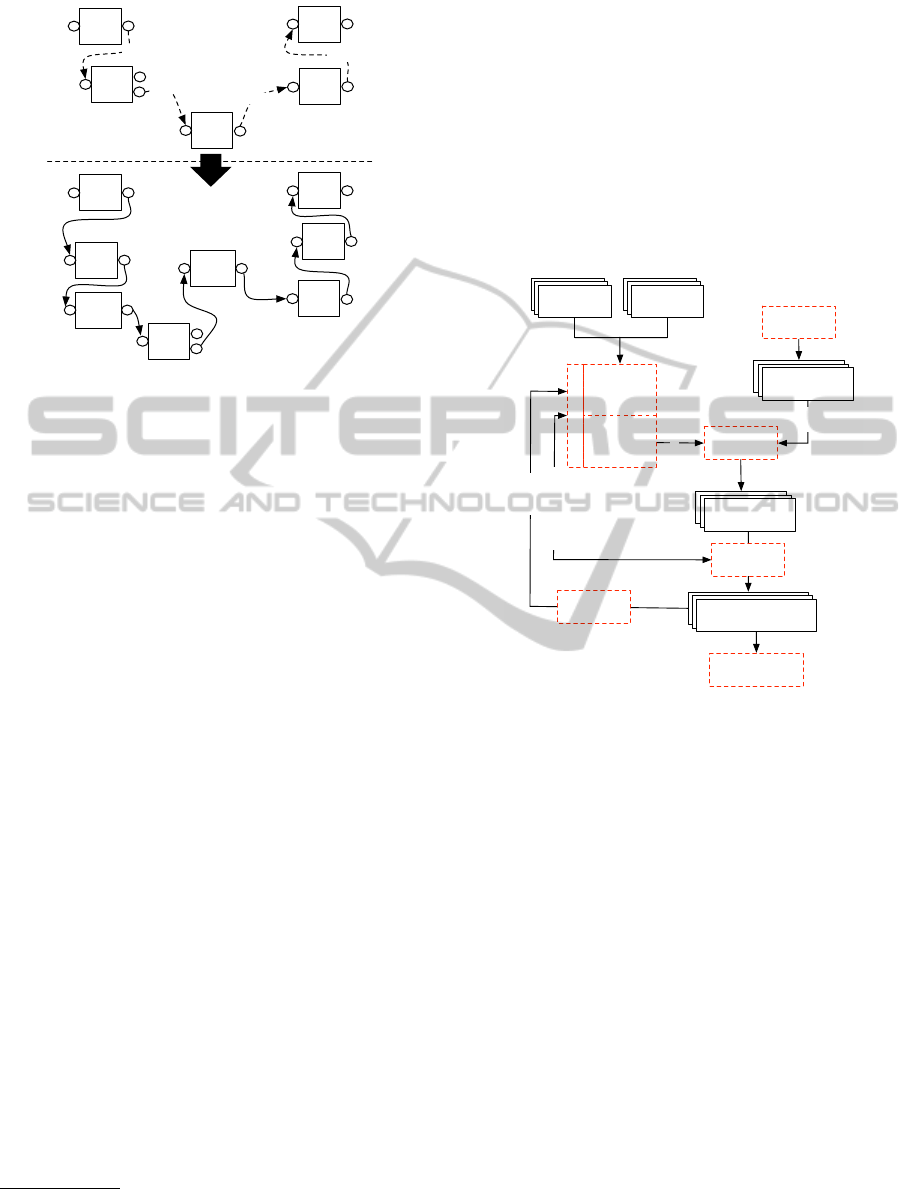

Figure 7: Modiﬁed composition 1.

4.3.2 Syntactic Adaptation

As already mentioned, syntactic adaptation consists

of resolving syntactic incompatibility between two

parameters of a composition. It is a matter of ﬁnding

adaptations between different data formats present in

the parameters. Note that this adaptation has a pre-

requisite: the composition concerned should already

be semantically compatible.

To undertake this stage, a second, speciﬁc resource

graph (GRSYN) is constructed using converters

GRSYN is an oriented graph GRSYN = (N, A),

with:

• a set of nodes N = N

Comb

∪ N

Convert

, with N

Comb

the combined nodes, which designate the data cat-

egory and the associated data format used by the

converter (we will represent the node by

f o

), and

by N

Convert

the converter nodes.

• a set of arcs A. An arc a=(n1, n2) ∈ A im-

plies (n1∈N

Convert

∧ n2∈N

Comb

) ∨ (n1∈N

Comb

∧

n2∈N

Convert

). This set corresponds to the refer-

ence links between a converter node and a com-

bined node.

The GRSYN generated using the sample dataset

is shown in ﬁgure 8.

TD111 TD131

DC2

FO2

DC2

FO3

DC2

FO1

TD121

DC4

FO1

DC4

FO3

Figure 8: The GRSYN resource graph.

As is the case for the semantic adaptation, the

syntactic adaptation can be considered as a path-

ﬁnding problem in the GRSYN. Let us consider again

the composition between T1 and T11: after the ﬁrst

stage of semantic adaptation, we have obtained a new

model (cf. ﬁg.7) which is semantically compatible for

all its compositions. Only the syntactic compatibil-

ity of each “tmpCategoryLink” needs to be veriﬁed.

Considering the link between T1 and T2, the two con-

nected parameters are (DC2:FO2) and (DC2:FO1).

Therefore, a syntactic adaptation has be found be-

tween FO2 and FO1. A single itinerary was found

in our GRSYN:

DC2

FO2

7→ TD111 7→

DC2

FO3

7→ TD131

7→

DC2

FO1

. If we retain this solution, the two convert-

ers TD111 are TD131 are substituted for the “tmp-

CategoryLink” link between T1 and T2. In the same

way, we can also establish syntactic adaptations for

the composition (DC4:FO1) → (DC4:FO3) between

TD2 and TD5. The ﬁnal updating of the instantiated

workﬂow (cf. ﬁg.9) corresponds to the replacing of

the “tmpCategoryLink” links by the concerned con-

verter(s).

Note that to us, as previously deﬁned, a converter is a

speciﬁc process which converts data between different for-

mats of the same data category. We thus assume that these

converters exist.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

DC4:FO3

DC8:FO2

DC2:FO1

DC3:FO2

DC4:FO1

T12

DC8:FO2

DC7:FO4

DC1:FO1 DC2:FO2

T11

DC7:FO4 DC3:FO2

tmpCategoryLink

DC4:FO3

DC8:FO2

DC2:FO1

DC3:FO2

DC4:FO1

T12

DC8:FO2

DC7:FO4

DC1:FO1 DC2:FO2

T11

DC7:FO4 DC3:FO2

T111

DC2:FO2

DC2:FO3

T131

DC2:FO3

DC2:FO1

T121

DC4:FO1

DC4:FO3

Figure 9: Modiﬁed composition 2.

According to this approach, the example in ﬁg-

ure 1 will require only a syntactical adaptation of the

composition (ProteinSeq:txt) → (ProteinSeq:Fasta)

which can be achieved using a converter between the

txt and Fasta formats.

5 PROTOTYPE

The formal approach was tested via a prototype im-

plemented in Java. This prototype consists of ﬁve

main modules:

1 : Resource centre: component responsible for man-

aging resources, itself consisting of two sub-

components:

(a) Resource manager which offers a graphical ed-

itor to help enter resource descriptions (these

descriptions are then stored locally in XML

ﬁles).

(b) Search engine which accommodates requests to

search for resources necessary to construct con-

crete workﬂows

2, 3 : Workﬂow editor for editing abstract and instanti-

ated workﬂows. This is a graphical editor which

allows workﬂow models to be constructed. The

simple workﬂow language that we proposed in the

article (Lin et al., 2009) is used.

4 : Validation module is the component that veriﬁes

and validates an instantiated model. It provides

adaptation solutions to overcome the incompati-

bility situations encountered.

For the time being, requests are constructed by taking

into account the elements associated with each description

of a resource.

5 : Learning module, as yet un-implemented, should

allow the enriching of the work context using

analyses of models already constructed.

Figure 10 shows the prototype’s functioning in a

schematic form. The user ﬁrst creates an abstract

model of the desired experimentation plan. He then

proceeds to its instantiation by using the search en-

gine which provides him with the description of con-

crete resources. The instantiated workﬂow is then

analysed by the validation module before execution

takes place.

Entité

Local

resource

Entité

Distributed

resource

Entité

Abstract

workﬂow model

Workﬂow

editor 1

Entité

Instantiated

workﬂow model

Resource center

Resource

management

engine

Workﬂow

editor 2

Entité

Validated Instantiated

workﬂow model

Validation

module

Workﬂow

Execution engine

Learning

module

Search & Check

Take into

account

Update

Search resources

Figure 10: Functional presentation of the prototype.

A demonstration of the prototype is online at

http://www.lirmm.fr/ lin/project.

6 CONCLUSIONS AND

PERSPECTIVES

The incompatibility problem discussed in this article

is one of the major issues in process composition.

The approach we have presented proposes the data

ﬂow checking based on the work context, i.e., on a

set of pre-constructed resource hierarchies. The al-

gorithms for constructing different types of resource

graphs (GRSEM and GRSYN) and for validating a

concrete workﬂow’s compositions are operational in

a working prototype.

Planned future research will explore:

• Extension of resource descriptions:

– Use of formalisms such as richer WSDL or

OWL-S for improving resource descriptions.

The formalism currently proposed is simple.

APPROACH FOR VERIFYING WORKFLOW VALIDITY

The semantic aspect of resource descriptions

could be thus complemented. The construction

of the work context could beneﬁt from the use

of ontologies originating from the target exper-

imental domains.

– The semantic level of process is currently only

covered by the name and the parameters’ data

categories. They could be extended by using

terminological relationships (synonymy, etc.),

as well as by adding complementary informa-

tion to the descriptions relating to the process’s

behaviour (state machine, for example).

• The development of the learning module. It could,

on the basis of analyses of constructed models,

lead to the enriching of the resource centre and

the work context (trace analysis, model statistics,

etc.).

• The connection of the validated workﬂow to an

execution engine.

Other approaches like type or composition con-

tract checking (Comerio et al., 2009; Milanovic,

2005), behaviour checking based on the Petri-net

(Kiepuszewski et al., 2003; Hamadi and Benatallah,

2003) have also been found in lecture. These research

results will be taken into account in our futur works.

REFERENCES

Altintas, I., Lud

ascher, B., Klasky, S., and Vouk, M. A.

(2006). S04 - introduction to scientiﬁc workﬂow man-

agement and the kepler system. In SC, page 205.

Andrews, T., Curbera, F., Dholakia, H., Goland, Y.,

Klein, J., Leymann, F., Liu, K., Roller, D.,

Smith, D., Thatte, S., Trickovic, I., and Weer-

awarana, S. (5 May 2003). Business process ex-

ecution language for web services, version 1.1.

http://www.ibm.com/developerworks/library/speciﬁc

ation/ws-bpel/.

Beauche, S. and Poizat, P. (2008). Automated service

composition with adaptive planning. In ICSOC ’08:

Proceedings of the 6th International Conference on

Service-Oriented Computing, pages 530–537, Berlin,

Heidelberg. Springer-Verlag.

Christensen, E., Curbera, F., Meredith, G., and Weer-

awarana, S. (2001). Web Services Description Lan-

guage (WSDL) 1.1. W3C, 1.1 edition.

CLARO, D. B. (2006). SPOC - Un canevas pour la com-

position automatique de services web de

edie

a la

ealisation de devis. PhD thesis, Universit

e d’Angers.

Claro, D. B., Licchelli, O., Albers, P., and Macedo, J. D. A.

(2008). Personalized reliable web service composi-

tions. In WONTO.

Comerio, M., Truong, H.-L., Paoli, F., and Dustdar, S.

(2009). Evaluating contract compatibility for service

composition in the seco2 framework. In Proceedings

of the 7th International Joint Conference on Service-

Oriented Computing, ICSOC-ServiceWave ’09, pages

221–236, Berlin, Heidelberg. Springer-Verlag.

Cunningham, S. and Denize, P. (1993). A tool for model

generation and knowledge acquisition. In Proc In-

ternational Workshop on Artiﬁcial Intelligence and

Statistics, pages 213–222, Fort Lauderdale, Florida,

USA.

Group, W. O. W. (2004). OWL 2 : Web Ontology Language.

W3C.

Hamadi, R. and Benatallah, B. (2003). A petri net-based

model for web service composition. In Proceedings

of the 14th Australasian database conference - Volume

17, ADC ’03, pages 191–200, Darlinghurst, Australia,

Australia. Australian Computer Society, Inc.

Hull, D., Wolstencroft, K., Stevens, R., Goble, C., Pocock,

M., Li, P., and Oinn, T. (2006). Taverna: a tool for

building and running workﬂows of services. Nucleic

Acids Research, 34(Web-Server-Issue):729–732.

Joel Farrell, IBM Holger Lausen, D. I. (2007). Semantic

Annotations for WSDL and XML Schema. W3C.

Julien Bourdon, P. B. and Fiorino, H. (2007). Architecture

multi-agents pour la composition automatique de web

services.

Kay, M. (23 January 2007). Xsl transformations (xslt) ver-

sion 2.0. http://www.w3.org/TR/xslt.

Kiepuszewski, B., ter Hofstede, A., and van der Aalst, W.

(2003). Fundamentals of control ﬂow in workﬂows.

Acta Informatica, 39:143–209.

Klusch, M. and Gerber, A. (2005). Semantic web service

composition planning with owls-xplan. In In Proceed-

ings of the 1st Int. AAAI Fall Symposium on Agents

and the Semantic Web, pages 55–62.

Libourel, T., Lin, Y., Mougenot, I., Pierkot, C., and Descon-

nets, J.-C. (2010). A platform dedicated to share and

mutualize environmental applications. In ICEIS (1),

pages 50–57.

Limthanmaphon, B. and Zhang, Y. (2003). Web service

composition with case-based reasoning.

Lin, Y., Libourel, T., and Mougenot, I. (2009). A workﬂow

language for the experimental sciences. In ICEIS (3),

pages 372–375.

Liu, Z., Ranganathan, A., and Riabov, A. (2007). Model-

ingweb services using semantic graph transformations

to aid automatic composition. Web Services, IEEE In-

ternational Conference on, 0:78–85.

Lud

ascher, B., Altintas, I., Berkley, C., Higgins, D., Jaeger,

E., Jones, M. B., Lee, E. A., Tao, J., and Zhao, Y.

(2006). Scientiﬁc workﬂow management and the ke-

pler system. Concurrency and Computation: Practice

and Experience, 18(10):1039–1065.

Martin, D., Burstein, M., Hobbs, J., Lassila, O., McDer-

mott, D., McIlraith, S., Narayanan, S., Paolucci, M.,

Parsia, B., Payne, T., Sirin, E., Srinivasan, N., and

Sycara, K. (2004). OWL-S: Semantic Markup for Web

Services. W3C.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Milanovic, N. (2005). Contract-based web service com-

position framework with correctness guarantees. In

Malek, M., Nett, E., and Suri, N., editors, Service

Availability, volume 3694 of Lecture Notes in Com-

puter Science, pages 52–67. Springer Berlin / Heidel-

berg.

Nau, D. S., Au, T.-C., Ilghami, O., Kuter, U., Murdock,

J. W., Wu, D., and Yaman, F. (2003). Shop2: An htn

planning system. J. Artif. Intell. Res. (JAIR), 20:379–

404.

Oinn, T., Greenwood, M., Addis, M., Alpdemir, N., Fer-

ris, J., Glover, K., Goble, C., Goderis, A., Hull, D.,

Marvin, D., Li, P., Lord, P., Pocock, M., Senger, M.,

Stevens, R., Wipat, A., and Wroe, C. (2006). Taverna:

lessons in creating a workﬂow environment for the life

sciences. Concurrency and Computation: Practice &

Experience - Workﬂow in Grid Systems.

Sirin, E., Parsia, B., Wu, D., Hendler, J. A., and Nau, D. S.

(2004). Htn planning for web service composition us-

ing shop2. J. Web Sem., 1(4):377–396.

van der Aalst, W. M. P. and ter Hofstede, A. H. M. (2005).

Yawl: yet another workﬂow language. Inf. Syst.,

30(4):245–275.

W3C (2004). RDF Primer. W3C.

APPROACH FOR VERIFYING WORKFLOW VALIDITY
