MULTI-PLATFORM MODEL-DRIVEN SOFTWARE

DEVELOPMENT OF WEB APPLICATIONS

Ulrich Wolffgang

Department of Information Systems, University of Muenster, Leonardo-Campus 3, Muenster, Germany

Keywords:

Model-driven web engineering, MDA, MDSD, CIM, PIM, PSM, WASL.

Abstract:

We present the generator framework WASL, which supports model-driven development of web applications. It

enables the modeling of data, navigation, business logic, and presentation logic. WASL supports the MDA by

providing transformation deﬁnitions from a computation-independent model (CIM) to a platform-independent

model (PIM) and then to a platform-speciﬁc model (PSM). An important aspect of our approach is that we

provide a separate DSL for each target platform in order to separate concerns between PIM and PSM and to

be able to address platform-speciﬁc aspects. Currently, the frequently used platforms Java, PHP, and Python

are supported.

1 INTRODUCTION

With the rise of the World Wide Web (WWW) in the

past ﬁfteen years the environment for software ap-

plications as well as for software development has

changed fundamentally. Along with the WWW, new

forms of feature-rich web applications have emerged

becoming a ubiquitous part of business and everyday

life. But the continuous usage of increasingly com-

plex and widespread web applications induces de-

mands for security, reliability and availability. Recent

analysis has shown that often those goals are unreal-

ized. In the last years a large portion of cybercrime at-

tacks on computer systems could be conducted even

by basic SQL injection attacks (Maple et al., 2010),

taking advantage of poor coding practice in applica-

tions and leading to substantial losses of sensitive data

(O’Dell, 2009).

As a result of the continuing software crisis in

the web context, the discipline of web engineering

has emerged from traditional software engineering.

Web engineering is intended to provide web develop-

ers with a sound methodology, a disciplined and re-

peatable process, better development tools, and a set

of good guidelines for developing web applications

(Ginige and Murugesan, 2001).

In the ﬁeld of web engineering the model-driven

software development (MDSD) is gaining ground.

Roughly, the idea of MDSD is to develop software on

a raised level of abstraction by automatically trans-

forming models of software systems in one or more

steps to source code. Therefore technologies such

as domain-speciﬁc modeling languages (DSL), code

generators, and model-to-model transformation def-

initions are used (Stahl et al., 2006). The Ob-

ject Management Group (OMG) envisioned with the

model-driven architecture (MDA) a standardization

of MDSD in which models are distinguished to be

computation independent (CIM), platform indepen-

dent (PIM) or platform-speciﬁc (PSM) (Miller and

Mukerji, 2003). The Uniﬁed Modeling Language

(UML), the meta-object facility (MOF) and transfor-

mation languages such as QVT are centerpieces for

the MDA approach. As with MDSD source code is

mostly created automatically, the mentioned typical

security vulnerabilities can be avoided by using high

quality code generators.

This paper introduces an MDSD generator frame-

work that enables the automatic generation of typical

data-oriented web applications (Figure 1). The gen-

erator framework realizes the MDA vision by sup-

porting CIM, PIM and PSM modeling and by pro-

viding modeling languages and transformation deﬁ-

nitions for the target web platforms Java EE, PHP,

and Python. Thereby it is shown that multiple web

platforms with heterogeneous characteristics can be

covered by one single MDSD generator framework.

Part of the framework is a family of domain-speciﬁc

modeling languages consisting of the ﬁve languages

WASL Data, WASL Abstract, WASL JavaEE, WASL

Php and WASL Python covering the different abstrac-

tion layers and target platforms.

162

Wolffgang U..

MULTI-PLATFORM MODEL-DRIVEN SOFTWARE DEVELOPMENT OF WEB APPLICATIONS.

DOI: 10.5220/0003500501620171

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 162-171

ISBN: 978-989-8425-77-5

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

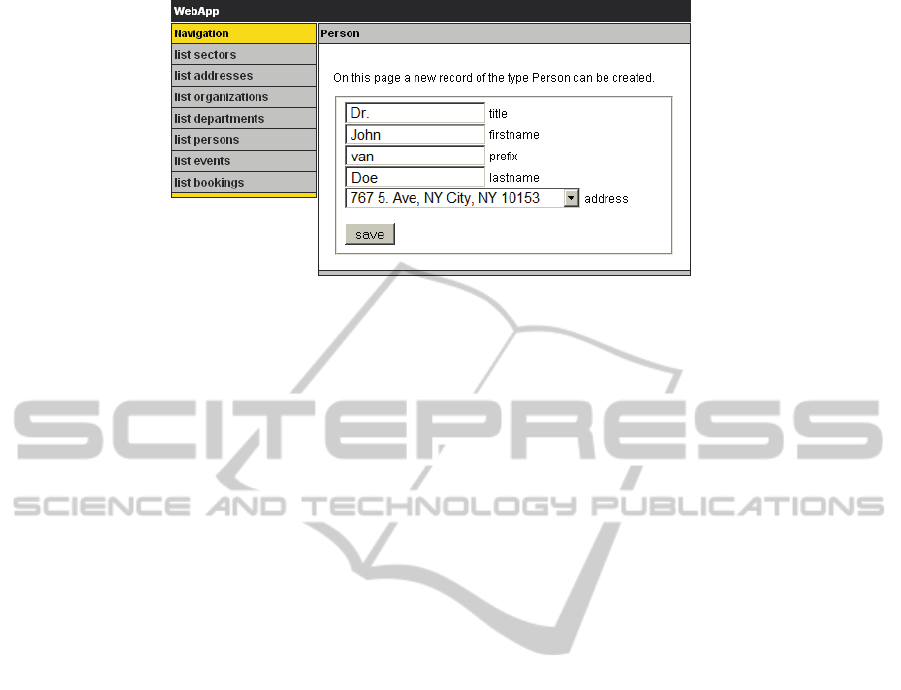

Figure 1: Representative GUI of a generated web application.

The rest of the paper is structured as follows. In

Section 2 related work in the ﬁeld of model-driven

web engineering is discussed. Then in Section 3,

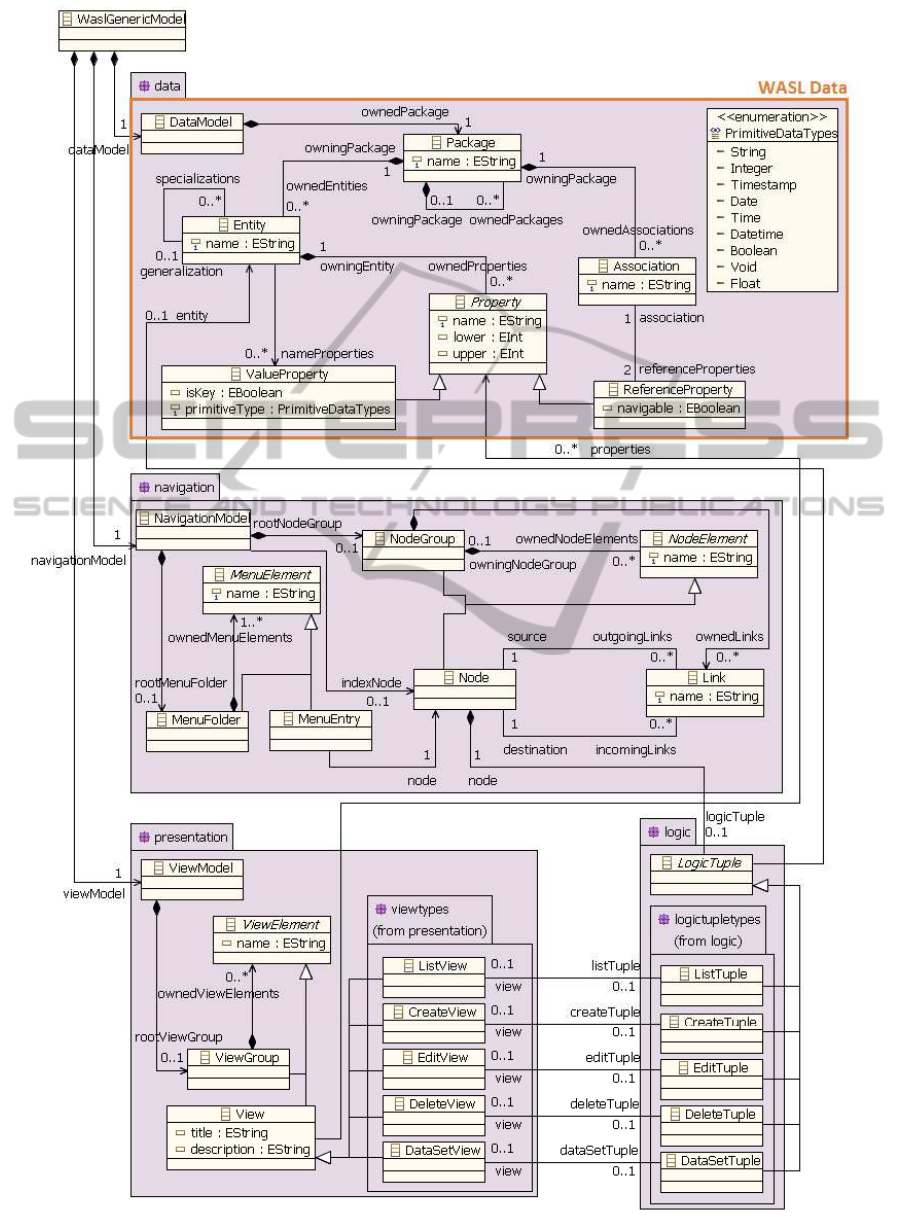

metamodels of the modeling languages WASL Data,

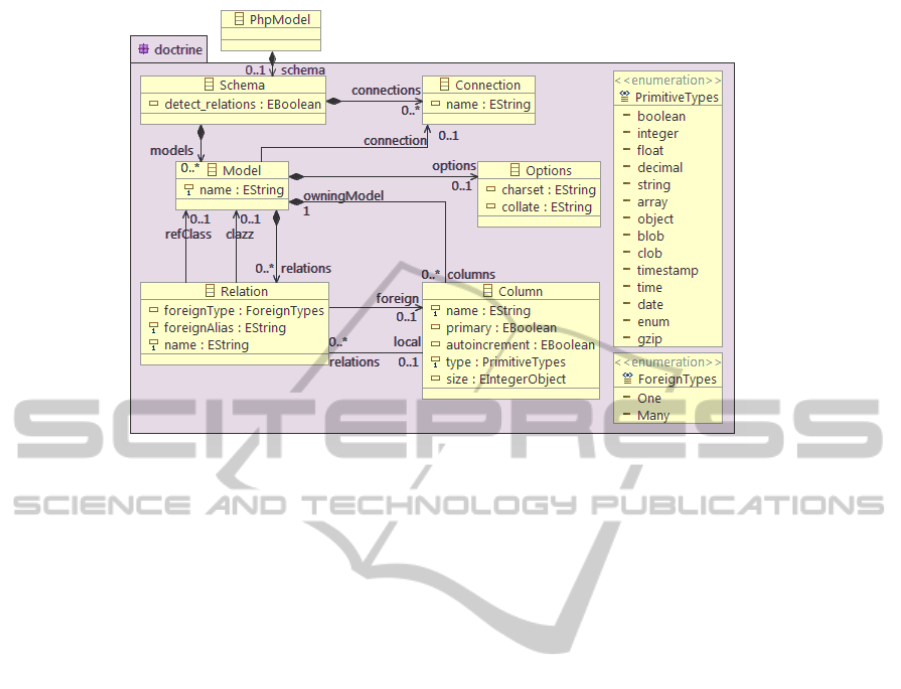

WASL Generic and partly WASL Php are introduced.

Section 4 describes an exemplary transformation def-

inition for model-to-model transformations. In Sec-

tion 5, we conclude and point out future work.

2 RELATED WORK

There exist several methods and languages for web

engineering, which differ w.r.t. the level of abstrac-

tion and notation. These approaches have in com-

mon, that they capture the hypertextual character of

web applications. According to the separation of con-

cerns, web applications are commonly represented

and structured by data, navigation, and presentation

models (Schwinger and Koch, 2006). Some of the

approaches offer a modeling language, others a lan-

guage based metamodel plus a process model forming

a complete method. Most of them provide a code gen-

erator for generating source code from models, thus

implementing the idea of model-driven web engineer-

ing.

The Object Oriented Web Solutions (OOWS)

method is a modiﬁcation of the OO-method (Pastor

et al., 2001) and provides language elements for mod-

eling data, navigation and presentation aspects of web

applications (Fons et al., 2003). It follows the MDSD

approach by generating source code from conceptual

models through intermediate models and transforma-

tion deﬁnitions.

UML-based Web Engineering (UWE) is a method

for the development of web applications that covers a

process model and a modeling language in the form

of UML proﬁles. UWE supports data, navigation and

presentation models of web applications as well as

models describing user interaction (Koch, 2001; Koch

et al., 2008). Further development of the method cov-

ers modeling rich internet applications (RIA) (Koch

et al., 2009) and the application of UWE for MDSD

(Kraus et al., 2007; Kroiss and Koch, 2009).

The Web Modeling Language (WebML) is a

domain-speciﬁc modeling language suited for data-

oriented web applications that provides language el-

ements for data, navigation, presentation and user

modeling (Ceri et al., 2002). In WebML data-oriented

functionality is represented on a high level of ab-

straction by so-called units. In addition to a CASE

tool for creating WebML models further efforts have

been made for supporting MDSD with the speciﬁ-

cation of an UML-based metamodel (Moreno et al.,

2007; Moreno et al., 2006) as well as by a domain-

speciﬁc MOF-compatible metamodel (Schauerhuber

et al., 2007).

The Web Application Extension (WAE) is a

platform-near modeling language based on UML,

whose metamodel is speciﬁed as an UML proﬁle

(Conallen, 2002; Conallen, 1999). WAE provides lan-

guage elements for modeling content and presentation

models in which navigation structures are speciﬁed

implicitly in the form of pages and links in the pre-

sentation model.

3 WASL LANGUAGE FAMILY

Despite conjoint commitment (Vallecillo et al., 2007),

MDSD and generally web engineering is not estab-

lished in the different web development communities

widely, yet. From the authors’ experience this is due

to following factors.

Recent approaches for modeling web applications

are typically using the proﬁle mechanism of UML or

a single DSL. However in contrast to classical soft-

ware engineering, using UML for web engineering

MULTI-PLATFORM MODEL-DRIVEN SOFTWARE DEVELOPMENT OF WEB APPLICATIONS

163

leads to mapping defects. UML is not suited well

for representing concepts such as conﬁguration ﬁles,

relational schemata, web service deﬁnitions, GUI en-

gine templates, and notation format such as YAML

(Ben-Kik et al., 2009). Programming languages and

frameworks provided for web development are so di-

verse that one single modeling language just can-

not cover all of them. Object-oriented programming

(OOP) languages (e.g. Java) differ fundamentally

from script languages such as PHP that are widely

used in web development, allowing procedural pro-

gramming without object-orientation at all. In con-

trast others are utilizing high-level frameworks (e.g.

Ruby on Rails) that use conﬁguration ﬁles exten-

sively. This leads to modeling defects when pursu-

ing the goal of PSMs that are intended to represent

the implementation as close as possible. The ab-

straction from target platform concepts leads to a ﬂat

learning curve for new users of those generators as

they have to understand which source code fragments

are generated from which model elements. Further-

more the missing concepts hardly can be added to

UML through the lightweight extension mechanism

of UML by proﬁles, stereotypes and tagged values be-

cause UML does not offer elements whose semantic

is generic enough to justify a specialization. Heavy-

weight UML extensions are not considered to be ap-

plicable because of missing tool support.

Besides appropriate modeling languages another

requirement for an establishment of model-driven

web engineering is that implementations of MDSD

generators can be downloaded on the internet and in-

tegrated into current web development frameworks.

However until now this is not the case with the de-

scribed prominent web engineering tools and genera-

tors.

The MDSD generator presented in this paper con-

tributes to the ﬁeld of model-driven web engineer-

ing as it (1) targets multiple relevant and widely used

web platforms by one generator framework, (2) pro-

vides a close representation of those platforms by

multiple platform-speciﬁc DSLs, (3) supports CIM,

PIM, and PSM modeling, and (4) uses standardized

meta metamodels, transformation languages and code

generator frameworks. Additionally (5) all platform-

speciﬁc modeling languages are derived from their

corresponding target platforms and are themselves

used as the source for deriving higher-level platform-

independent modeling languages. This guarantees

that CIM and PIM models always can be transformed

to source code through underlying PSM models.

3.1 WASL Framework

The Web Application Speciﬁcation Language

(WASL) family is a set of semi formal modeling

languages for the model-driven development of

data-oriented web applications. All languages are

interconnected by transformation deﬁnitions, which

support the transformation of platform-independent

WASL models to platform-speciﬁc WASL models

and from platform-speciﬁc WASL models to source

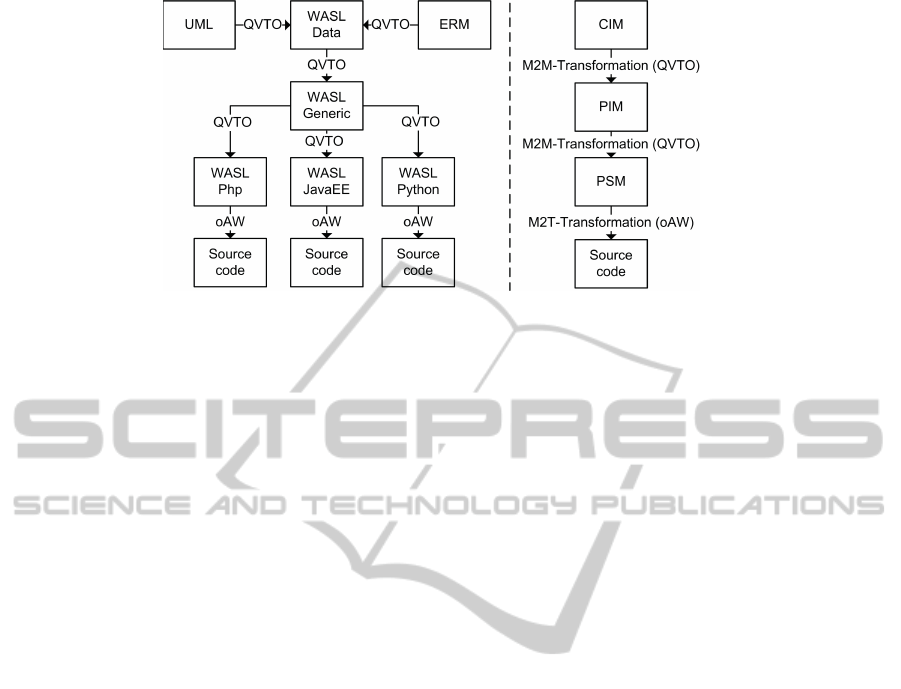

code (Figure 2).

The WASL language family is an implementation

of the MDA envisioned by the OMG, which classi-

ﬁes models as CIM, PIM and PSM (Miller and Muk-

erji, 2003). As a common metamodeling language

the OMG proposes the meta-object facility (MOF),

for which an implementation exists with the Eclipse

Modeling Framework (EMF) and its meta metamodel

Ecore that slightly differs from MOF in some de-

tails (Gerber and Raymond, 2003). All WASL lan-

guages are based on the Ecore meta metamodel

because it provides large tool support through the

Eclipse Modeling Framework (EMF), several model-

to-model transformation languages, code generators

and standardized ﬁle formats such as XMI. In the fol-

lowing we assume some familiarity with those promi-

nent MDSD technologies, particularly with Ecore.

In WASL, the web application development pro-

cess starts by creating a conceptual data model, which

represents the structure of the domain as a CIM. For

this step the modeling languages ERM, UML, or

WASL Data can be used. As WASL Data (Sec. 3.2) is

the source language for further transformations, mod-

els written in ERM or UML have to be transformed

to WASL Data models ﬁrst. This is achieved with a

transformation deﬁnition written in the standardized

transformation language QVT Operational (QVTO).

A redundant implementation based on QVT Rela-

tional (QVTR) has not proved to be applicable be-

cause of performance problems.

PIM layer models are speciﬁed with the semi for-

mal modeling language WASL Generic (Sec. 3.3),

which offers language elements for modeling the data

structure, navigation structure, business logic, and

presentation structure of a web application. WASL

Generic models can be generated from WASL Data

models based on a QVTO transformation deﬁnition.

In the transformation step, the data model is copied

from the WASL Data model to the WASL Generic

model as both languages represent data models in the

same way. Additionally the contents of the naviga-

tion, business logic, and presentation models are gen-

erated from the contents of the WASL Data model au-

tomatically. The generated business logic and presen-

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

164

Figure 2: WASL MDSD framework.

tation aspects represent the functionality of the

web application for create, read, update and delete

(CRUD) operations on the entities described in the

data model. The generated WASL Generic model

serves as an initial point for modiﬁcations on the gen-

erated model elements and for enrichments by adding

new model elements for additional functionality.

In contrast to the PIM language WASL Generic,

platform-speciﬁc implementation details are mod-

eled with the three semi-formal modeling languages

WASL Php (Sec. 3.4), WASL Python and WASL

JavaEE, covering the three widely established target

platforms PHP, Python and Java EE. WASL Generic

models can be transformed to models written in these

three languages by three QVTO transformation deﬁ-

nitions, which map the WASL Generic PIM concepts

to detailed technical PSM realizations. Finally the

transformation from the PSM level to the source code

level is implemented with three individual code gen-

erators based on the openArchitectureWare (oAW)

code generator framework and its transformation lan-

guages Xpand and Xtend.

As mentioned, because there is only a small over-

lap between domain concepts covered by UML and

those within the target web platforms, custom DSLs

are favored instead of cutting UML down into needed

parts. However a transformation deﬁnition exists be-

tween UML and WASL Data providing a bridge be-

tween both worlds. The use of intermediate WASL

languages for modeling platform-speciﬁc details of-

fers multiple advantages:

1. The complexity of bridging the gap between the

PIM and the ﬁnal source code is shifted from the

source code generator to the model transforma-

tion engine. The advantage is that QVTO offers

type safety on the source model as well as target

model in contrast to code generator frameworks

such as openArchitectureWare, which only ensure

type safety on the source model. Also precon-

ditions can be checked as part of the model-to-

model transformation such that the code generator

can focus on creating source code exclusively.

2. Due to the extraction of condition checks, the

code generator engine needs only a minimal fea-

ture set. This allows the generator engine to be

exchanged against most other Ecore-based code

generator frameworks.

3. It is considered reasonable to represent the imple-

mentation directly as a model on the lowest level

of the MDSD stack. By using intermediate WASL

languages these PSM aspects do not pollute the

more abstract language WASL Generic, which is

intended to conceal those platform-speciﬁc de-

tails.

4. PSM languages have proven to be a good foun-

dation for developing the PIM language WASL

Generic as they offer a structured reference the

PIM can be built against. This allows a bottom-

up research process developing WASL Generic as

an abstraction from the platform-speciﬁc WASL

languages which by that are a co-product on the

search for an optimal PIM language for web ap-

plications.

5. The consistency of a PSM can be checked more

easily than the consistency of generated source

code with standard check frameworks such as

OCL or oAW Check. This is due to the fact, that a

consistency check on the source code level intro-

duces the need for a adaptable parser which is not

available for every target programming language.

In the following, the metamodels of WASL Data

and WASL Generic are detailed. Subsequently a rep-

resentative subset of the metamodel of WASL Php is

described for illustrating the platform-speciﬁc char-

acter of the PSM modeling languages WASL JavaEE,

WASL Php and WASL Python. As the metamodels

of WASL PSM languages are substantially larger and

MULTI-PLATFORM MODEL-DRIVEN SOFTWARE DEVELOPMENT OF WEB APPLICATIONS

165

more complex than WASL Data and WASL Generic

only a subset is covered in this paper.

3.2 WASL Data

WASL Data is a semiformal modeling language for

CIM modeling in the WASL generator framework and

offers language elements for representing the struc-

tural domain aspects of a web application in the form

of a data model.

The metamodel of WASL Data (Figure 3) resem-

bles the UML metamodel for class diagrams and gen-

erally offers language elements for specifying pack-

aged entity types, typed properties and associations

between these properties. The central language ele-

ment Entity represents an entity type of the concep-

tual domain. A type hierarchy can be built with the

EReference generalization for deﬁning the super type

of an entity and with the EReference specializations

for multiple opposite subtypes. An entity can possess

properties, which are subdivided into ValueProperties

and ReferenceProperties. The super type Property al-

lows mergingcollections of both Property types into a

single collection. This is important for specifying an

ordered set of properties mixed of ReferenceProper-

ties and ValueProperties, which for instance is repre-

sented in the resulting web application as an ordered

list of input ﬁelds and selection boxes contained in a

HTML form.

Each ValueProperty is typed with a value

from the EEnum PrimitiveDataTypes, which is a

list of all provided platform-independent primi-

tive data types. For example the type Primitive-

DataType::UnsignedInteger can be assigned to a Val-

ueProperty instance named age for modeling the age

of a person. Using an enumeration of ﬁxed primi-

tive types offers the advantage of type-speciﬁc and

type-safe mappings in subsequent model-to-model-

transformations. E. g. it can be speciﬁed that both

the primitive PIM types Integer and UnsignedInteger

should be transformed to the PSM primitive SQL type

BIGINT.

In WASL Data in contrast to ERM entities can be

packaged and properties are typed with a preset prim-

itive type system. In contrast to the UML metamodel,

the WASL Data metamodel is reduced to a minimal

feature set and provides special EAttributes for some

metamodel elements such as the Entity’s nameProp-

erties. Additionally in UML the primitive types are

not preset by the metamodel but are speciﬁed on the

model layer with instances of the metamodel element

PrimitiveType (OMG, 2007). With this approach a

ValueProperty instance would be typed by assigning

one of those PrimitiveType instances to the Value-

Property instance. The UML approach has the ad-

vantage of higher ﬂexibility as the language can be

conﬁgured while modeling by modifying the primi-

tive type system. The downside of the approach is the

ambiguity of primitive types that leads to the prob-

lem that primitivetypes can only be identiﬁed through

textual comparison by their name. Thus they can-

not not be transformed type-safely in a type-to-type-

mapping. Because of this issue the approach of using

an enumeration of ﬁxed primitive types is chosen for

WASL Data.

Each Entity is contained in a Package which it-

self can be nested into a super package. This allows

structuring Entities in a hierarchy grouped by domain

concepts. Associations between ReferenceProperties

are modeled by the metamodel element Association,

which provides bidirectional navigable relationships

between Properties. An association can reference the

same Entity or two different Entities, such that the

question arises where to store the association instance

in the model. Similarly to UML an Association in-

stance can be contained in any Package instance with-

out any restriction regarding the packages, which are

containing the Entity instances referenced by the As-

sociation.

3.3 WASL Generic

WASL Generic is a platform-independent semi-

formal modeling language, which offers language

elements for modeling data structures, navigational

structures, presentation structures, and business logic

inducing a separation of concerns following the

Model-View-Controller (MVC) pattern (Reenskaug,

1979). The language elements for the data model

comply with WASL Data such that WASL Generic

can be interpreted as an extension of WASL Data.

The language elements for the navigational model

are contained in the EPackage navigation (Figure 3)

and represent the web application’s navigation struc-

ture in the form of a directed graph. Web applications

consist of pages or respectively views between which

the user interactively can navigate with the browser

e.g. by clicking links and buttons. In WASL Generic,

the term Node is deﬁned as a part of a web appli-

cation covering delimited speciﬁc functionality, ad-

dressed by a unique URL and navigable by the user

with the browser’s controls such as back and forth

buttons as well as bookmarks. Normally a Node cor-

responds to a single web page; however other imple-

mentations with multiple pages are possible as long as

only one URL is presented to the user for these pages.

Also platform-speciﬁc technologies such as AJAX al-

low the content of a web page to be replaced after

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

166

Figure 3: Metamodel of WASL Data and WASL Generic.

MULTI-PLATFORM MODEL-DRIVEN SOFTWARE DEVELOPMENT OF WEB APPLICATIONS

167

initially rendering it within the browser, leading to a

multi-page approach based on a single page and URL.

The navigation path between two Nodes is ex-

pressed by a Link, which corresponds to a directed

edge of the page graph and is implemented platform-

speciﬁcally e.g. by a hypertext anchor or a HTML

form’s action attribute. Each Node is contained in

a NodeGroup, which itself can be nested in a super

NodeGroup thus forming a hierarchy of NodeGroups.

Usually the structure of the hierarchy is structured

along the functional areas of the modeled web appli-

cation.

The menu structure of the web application is mod-

eled without using Links with the purpose to reduce

the number of links in the navigation model and thus

to reduce the complexity. Modeling the menu struc-

ture in the navigation model by links with a number

of n nodes would lead to a number of n

links as for

each node a link to all nodes would have to be added.

This does not comply with the requirement of clar-

ity a model should satisfy. Also typically the menu

of a web application is visualized and implemented

separately from the rest of the page contents (Figure

1), such that a separated representation in the model

simpliﬁes the implementation of transformation deﬁ-

nitions. Corresponding to NodeGroups, the menu can

be structured hierarchically by MenuFolders.

In WASL Generic, standard business logic pat-

terns are represented separately from the Node con-

cept as specializations of the metamodel element Log-

icTuple. A LogicTuple is assigned to a Node and

aggregates the information, which Node operates on

which Entity and should be visualized by which View.

The approach is ﬂexible as additional business logic

types can be appended to the metamodel of WASL

Generic as additional specializations of the element

LogicTuple.

The business logic is represented to the user by

one or more Views allowing to model simple CRUD

operations as well as for example more complex

multi-page wizards. In contrast to Nodes, multiple

Views owned by one LogicTuple must not be distin-

guishable for the user by individual URLs and as

described thus do not have to be navigable by the

browser’s back and forward buttons or bookmarks.

As navigation and presentation structure are sepa-

rated from each other and AJAX functionality is rep-

resented only in the views of the presentation model,

the page-drivenparadigm typical for web applications

is ensured. AJAX introduces the problem that the

functionality of the browser’s page-driven URL ad-

dressing mechanism is broken due to the fact, that

with AJAX the page content is just replaced and no

transition between two web pages distinguishable by

two URLs is made (Zucker, 2007). The separation of

navigation and (AJAX-based) presentation in WASL

Generic assures that web applications derived from

WASL Generic do not suffer typical AJAX symptoms

such as a missing browser history, broken back and

forward buttons and indistinguishable URLs prohibit-

ing the bookmarking of speciﬁc parts of the web ap-

plication.

Current web engineering research addresses is-

sues of modeling process-oriented web applications

(Brambilla et al., 2006). An advantage of WASL

Generic in separating Nodes from LogicTuples orig-

inates from the fact, that complex process-oriented

logic can be modeled by LogicTuples separately from

the node-based navigation model. Thereby process-

oriented web applications can be modeled based on a

chain of LogicTuples, which for example can rely on

web service calls and interacting with each other. The

user can interact with the process by respective Log-

icTuples, addressed by Nodes and presented by Views.

3.4 WASL Php

The metamodel of WASL Php for the scripting lan-

guage PHP is organized according to the speciﬁc lan-

guage features of PHP and provides language ele-

ments for modeling entity classes and data access ob-

jects (DAO) for a object-relational mapping (ORM)

framework such as Doctrine. For describing the

platform-speciﬁc character of WASL Php a subset of

the metamodel of WASL Php is detailed in this sec-

tion. The full metamodel as well as all other WASL

metamodels can be found in (Wolffgang, 2009).

The main container of a WASL Php model is the

EClass PhpModel that contains the class model, a

page model and a relational schema (Figure 4). With

the Doctrine ORM framework a relational schema is

represented by a set of PHP classes, which map the

schema metadata for the database tables managed by

Doctrine. These classes and database tables can be

generated by Doctrine automatically from an YAML

schema ﬁle. Metamodel elements for describing such

a schema are provided with the EPackage doctrine

and its EClass Schema. An YAML Schema contains

Models that represent database tables and Connec-

tions that can be associated to Models to specify, how

Doctrine should access the database. With the option

detect relations Doctrine can be instructed to guess

relationships between Models based on Models’ col-

umn names.

As described a Model is implemented by a PHP

entity class as well as a database table and can con-

tain multiple Columns for representing value prop-

erties, multiple Relations for referencing other Mod-

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

168

Figure 4: Subset of the metamodel of WASL Php.

els, a database Connection and multiple Options for

charset and collate settings. A value attribute is ex-

pressed as a single Column correspondingly to the

element ValueProperty of WASL Generic. In con-

trast, corresponding to a ReferenceProperty an associ-

ation between a Model A and a Model B is expressed

through a Column owned by A plus a Relation owned

by B referencing the Column in A. Each Column can

be marked as a primary key, whose value can be gen-

erated automatically when inserting a new row. The

column’s type has to be selected from the EEnum

PrimitiveTypes. Corresponding to the Doctrine docu-

mentation each relation references its local column as

well as a key column of the referenced model. With

the EAttribute foreigntype the cardinality of the rela-

tion is speciﬁed, allowing the combinations One:One,

Many:One, One:Many and Many:Many. In the case

of a relation with a cardinality of Many:Many a cross

table Model has to be added, which is referenced by

the two associated Models through the EReference re-

fClass.

For each Model the corresponding DoctrineClass

can be speciﬁed additionally. WASL Php offers an

explicit approach of modeling and generating both

the low-level database YAML schema ﬁle as well as

the high-level Doctrine model classes for reasons of

(1) complete explication, (2) integration into the build

process and (3) controlling how the generated source

code should look. Another approach not chosen in

WASL would be to model just the YAML schema ﬁle,

to generate it with the MDA generator workﬂow and

separately to generate the Doctrine PHP classes based

on the YAML ﬁle with the generator script provided

by Doctrine. Such an approach has the problem, that

(1) in the model other PHP classes cannot reference

methods of the model classes as they do not exist in

the model, (2) the build process is split into two gener-

ator steps and (3) the external generator process can-

not be customized.

4 TRANSFORMATION

As described the transformation deﬁnitions of the

WASL generator framework are implemented in

QVTO and Xpand (Figure 2). The following ex-

ample is intended to illustrate how the plattform-

independent language element Entity from WASL

Generic can be transformed with QVTO to the low-

level WASL Php language element Model represent-

ing a Doctrine ORM model element. The generated

elements conform to the typical doctrine YAML ﬁle

format and represent the low-level concepts of doc-

trine in the MDSD modeling environment.

mapping GENERIC::data::Entity::toModel

(in model : GENERIC::WaslGenericModel)

: PHP::doctrine::Model{

name := self.name.firstToUpper();

columns := self.getValueProperties()

->select(upper = 1).map toColumn()

->asSequence()

->union(self.getReferenceProperties()

->select(navigable)->select(upper = 1).map

toColumn())->asOrderedSet();

relations := self.getReferenceProperties()

->select(p | p.upper = 1).map

toRelation(model)->asOrderedSet();

MULTI-PLATFORM MODEL-DRIVEN SOFTWARE DEVELOPMENT OF WEB APPLICATIONS

169

options := object PHP::doctrine::Options{

charset := ’utf8’;

collate := ’utf8_general_ci’;

}

When running the generator, for each element

with the type Entity in a WASL Generic source model

the mapping creates an element with the type Model

in the WASL Php target model. Additionally the

attributes name, columns, relations and options are

ﬁlled with values. In the transformation the Entity’s

name is copied to the Model’s name with the ﬁrst

character as upper-case, following the conventions of

Doctrine. The ERefernce columns is ﬁlled with Col-

umn elements that are generated for all of the En-

tity’s ValueProperties and navigable ReferenceProp-

erties with a cardinality of 1. Additionally for each

ReferenceProperty with a cardinality of 1 a relation is

created that similarly to a foreign key points to the ref-

erenced Model. Additional platform-speciﬁc details

such as the default encoding of the database table and

selected charset are set by the transformation deﬁni-

tion by default to UTF8 such that the developer does

not have to add those settings to the target model after

each transformation.

5 CONCLUSIONS

We have presented the WASL MDSD generator that

allows fully automatic generation of web applications

based on typical web platforms such as Java EE, PHP,

and Python. The proposed approach contributes to

the ﬁeld of model-driven web engineering as it (1)

realizes the MDA vision by platform-speciﬁc and

platform-independent modeling, (2) supports multi-

ple web platforms, (3) utilizes established MDA stan-

dards, and (4) represents platform concepts directly

through platform-speciﬁc DSLs.

Future work includes efforts for extending the

metamodel of WASL Generic with additional lan-

guage elements for specifying additional presentation

and logic concepts, e.g. for tethering the web ap-

plication to service-oriented architectures by speciﬁc

LogicTuples. Also a metamodel for the Google Web

Toolkit (GWT) promises interesting possibilities in

RIA modeling. Furthermore it is intended to decom-

pose the platform-speciﬁc WASL languages to sub-

metamodels with each of them representing exactly

one web development framework such as Doctrine.

This would allow composing project-speciﬁc model-

ing languages suited to the set of frameworks used in

speciﬁc software development projects.

REFERENCES

Ben-Kik, O., Evans, C., and dt Net, I. (2009). YAML Ain’t

Markup Language (YAML) Version 1.2.

Brambilla, M., Ceri, S., Fraternali, P., and Manolescu, I.

(2006). Process modeling in web applications. ACM

Transactions on Software Engineering and Methodol-

ogy, 15(4):360–409.

Ceri, S., Fraternali, P., Bongio, A., Brambilla, M., Comai,

S., and Matera, M. (2002). Designing Data-Intensive

Web Applications. Morgan Kaufmann, San Francisco.

Conallen, J. (1999). Modeling web application archi-

tectures with uml. Communications of the ACM,

42(10):63–70.

Conallen, J. (2002). Building Web Applications With Uml.

Addison-Wesley, Reading, USA, 2 edition.

Fons, J., Pelechano, V., Albert, M., and Pastor, O. (2003).

Development of web applications from web enhanced

conceptual schemas. In Workshop on Conceptual

Modeling and the Web, ER’03, volume 2813 of LNCS,

pages 232–245, Chicago, USA. Springer.

Gerber, A. and Raymond, K. (2003). Mof to emf: There

and back again. In Burke, M. G., editor, OOPSLA

Workshop on Eclipse Technology eXchange (OOP-

SLA2003), pages 60–64, Anaheim, California. ACM-

Press.

Ginige, A. and Murugesan, S. (2001). Web engineering - an

introduction. IEEE MultiMedia, 8(1):14–18.

Koch, N. (2001). Software Engineering for Adaptive Hy-

permedia Systems. PhD thesis, LMU Mnchen.

Koch, N., Knapp, A., Zhang, G., and Baumeister, H. (2008).

Web Engineering: Modelling and Implementing Web

Applications, volume 12, chapter 7, pages 157–191.

Springer, Heidelberg.

Koch, N., Pigerl, M., Zhang, G., and Morozova, T. (2009).

Patterns for the model-based development of rias.

In Proc. 9th Int. Conf. Web Engineering (ICWE’09),

volume 5648, pages 283–291, San Sebastian, Spain.

Springer.

Kraus, A., Knapp, A., and Koch, N. (2007). Model-

driven generation of web applications in uwe. In Proc.

MDWE 2007 - 3rd International Workshop on Model-

Driven Web Engineering, CEUR-WS, volume 261.

Kroiss, C. and Koch, N. (2009). Uwe4jsf: A model-driven

generation approach for web applications. In Proc.

9th Int. Conf. Web Engineering (ICWE’09), volume

5648 of LNCS, pages 493–496, San Sebastian, Spain.

Springer.

Maple, C., Phillips, A., and Morris, B. (2010). Uk secu-

rity breach investigations report - an analysis of data

compromise cases 2010. Technical report, 7Safe.

Miller, J. and Mukerji, J. (2003). Mda guide. Technical

report, Object Management Group.

Moreno, N., Fraternali, P., and Vallecillo, A. (2006). A

uml 2.0 proﬁle for webml modeling. In Workshop on

Model-Driven Web Engineering (MDWE2006), Palo

Alto, USA.

Moreno, N., Fraternali, P., and Vallecillo, A. (2007). Webml

modeling in uml. IET Software, 1(3):67 – 80.

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

170

O’Dell, J. (2009). Rockyou hacker - 30% of sites store plain

text passwords. The New York Times.

OMG (2007). Uml 2.1.2 infrastructure. Technical report,

Object Management Group.

Pastor, O., Gmez, J., Insfrn, E., and Pelechano, V. (2001).

The oo-method approach for information systems

modeling: from object-oriented conceptual model-

ing to automated programming. Information Systems,

26(7):507–534.

Reenskaug, T. (1979). Models - views - controllers. Tech-

nical report, Xerox Parc.

Schauerhuber, A., Wimmer, M., Kapsammer, E.,

Schwinger, W., and Retschitzegger, W. (2007).

Bridging webml to model-driven engineering: From

dtds to mof. IET Software, 1(3):81–97.

Schwinger, W. and Koch, N. (2006). Web Engineering: The

Discipline of Systematic Development of Web Applica-

tions, pages 39–64. John Wiley and Sons.

Stahl, T., Voelter, M., and Czarnecki, K. (2006). Model-

Driven Software Development: Technology, Engineer-

ing, Management. John Wiley and Sons, Chichester,

England.

Vallecillo, A., Koch, N., Cachero, C., Comai, S., Frater-

nali, P., Garrigs, I., Gmez, J., Kappel, G., Knapp, A.,

Matera, M., Meli, S., Moreno, N., Prll, B., Reiter, T.,

Retschitzegger, W., Rivera, J. E., Schauerhuber, A.,

Schwinger, W., Wimmer, M., and Zhang, G. (2007).

Mdwenet: A practical approach to achieving interop-

erability of model-driven web engineering methods.

In Koch, N., Vallecillo, A., and Houben, G.-J., edi-

tors, Proc. 7th Int. Conf. Web Engineering (ICWE’07),

volume 261 of CEUR Workshop Proceedings. CEUR-

WS.org.

Wolffgang, U. (2009). Web application speciﬁcation lan-

guage (wasl). Technical report, ERCIS.

Zucker, D. F. (2007). What does ajax mean for you? inter-

actions, 14(5):10–12.

MULTI-PLATFORM MODEL-DRIVEN SOFTWARE DEVELOPMENT OF WEB APPLICATIONS

171
