DOMAIN-SPECIFIC MODELLING APPLIED TO INTEGRATION

OF SMART SENSORS INTO AN INFORMATION SYSTEM

Jean-Philippe Schneider, Jo¨el Champeau, Dominique Kerjean

ENSTA Bretagne Pˆole STIC, 2 rue Franois Verny, 29200 Brest, France

Oussama Zein

Computer Science Department, Arts, Sciences & Technology University in Lebanon (AUL)

Beirut Campus-Commodore Street, Hamra, Lebanon

Keywords:

Smart sensor metamodel, Software architecture, Embedded real-time software, Code generation.

Abstract:

(Kopetz, 1997) stated that a trend in the sensor technology is the development of intelligent sensors also called

smart sensors. The development of such sensors do not only rely on the hardware development but also on

the software. The later should so meet the requirements on low costs and of quality. This paper presents

our approach to model the software of a smart sensor and to generate the code for the embedded real-time

application. It will also describe how the use of a domain-speciﬁc modelling methodology enabled us to

achieve a high level of modularity which will permit to save costs and development time.

1 INTRODUCTION

(European Commission, 2008) states that the ma-

rine environment should be preserved. It enforces a

new legislation on the state members of the European

Union to protect their marine waters by developing

a preservation strategy. This strategy should include

surveillance aspects. According to (Favali and Be-

ranzoli, 2006) only long term study provided by a

seaﬂoor observatory can fulﬁl the needs expressed by

the European Commission. As a matter of fact a long

term study provides data on occurring events, eases

the correlation of multiple kinds of data for a particu-

lar area and enables studies on different time scales. It

also meets the requirements ofthe EuropeanCommis-

sion for coastal area. (Spencer et al., 2004) stresses

that a technology called smart sensors brings the abil-

ity to tackle the issue of scalability. That is why the

use of smart sensors in a seaﬂoor observatory can be

interesting.

The different data acquired by the sensors must

be sent to a ground station to be analysed. So the sen-

sors are linked to an information system. However the

sensing domain and the information system domain

are very different in their basic requirements. So the

design of a sensor does not take into account the nee-

ds of the information system. Both a conceptual and

a functional gap exists between the sensors and their

associated information system. In order to ﬁll this

gap a possible approach is to use Model Driven En-

gineering (MDE). The design phase of the sensor is

left unchanged but through a code generation process

it is possible to integrate easily the sensor into the

information system. Our approach enables to gener-

ate both the functional code of a sensor and the code

that links the sensor to its information system with the

same model.

Section 2 delves into the issue of the use of so

called smart sensors in the ﬁeld of seaﬂoor observato-

ries and how it is possible to model them. Then sec-

tion 3 dwells on the proposed architecture for the real-

time embedded software of the smart sensors. After

that section 4 expands on the code generation strat-

egy. Finally section 5 concludes on our approach for

modelling and generating operating embedded code

for smart sensors and provides clues on the next steps

of our work.

253

Schneider J., Champeau J., Kerjean D. and Zein O..

DOMAIN-SPECIFIC MODELLING APPLIED TO INTEGRATION OF SMART SENSORS INTO AN INFORMATION SYSTEM.

DOI: 10.5220/0003500602530259

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 253-259

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 SMART SENSORS FOR SEA

FLOOR OBSERVATORIES

This section intends to provide an overview of smart

sensing and of the speciﬁc needs for seaﬂoor obser-

vatories. Then we would like to expand on the Smart

Sensor metamodel introduced in (Zein et al., 2009).

2.1 Deﬁnition

(Spencer et al., 2004) introduces the main concepts

which enable to differentiate smart sensors. Their

main characteristics are the presence of an embed-

ded Central Processing Unit, their small size, their use

of wireless communications and their promise of be-

ing low cost. The use of a microprocessor enables

to do digital processing, to ease self-diagnostics, self-

adaptation or self-identiﬁcation by the use of interfac-

ing functions and to do some calculations. In (Brooks,

1999) Brooks describes the basic functions a smart

sensor must provide. Among them are bi-directional

command and data transmission, user-deﬁned algo-

rithms, internal self-veriﬁcation/analysis and com-

pensation algorithms.

2.2 Speciﬁcities in the Context of

Seaﬂoor Observatories

Seaﬂoor observatories are an excellent proving

ground for the use of smart sensors in a stringent

environment. We are currently working on a cabled

coastal seaﬂoor observatory network called MeDON

(Marine eData Observatory Network, 2011). The re-

quirements for the MeDON seaﬂoor observatory net-

work are described in (MeDON, 2010).

Although the smart sensors are described to have

wireless communications with the rest of the world,

the speciﬁcities of the marine environment force to

use a cabled communication between the physical

sensor and a relay point that concentrates the data

coming from the different smart sensors. Even with

a cabled network we have to face some design chal-

lenges. The ﬁrst challenge is to obtain a robust soft-

ware. The coastal environment may be considered as

hostile for the hardware which have to be designed to

resist to strong underwater current. It means also that

it will not be easy to replace a faulting component.

Along with the need of robustness comes the need

of remote logging. So the sensor network must have

the ability to provide full state information for the dif-

ferent sensors and more precisely their failure state

and the events causing them. It implies the need for

the software to have logging facilities both networked

and on-board. It also requires the different software

units to be capable of handling the occurring excep-

tions.

Besides due to the environmental conditions and

the low costs requirements the cabled links between

the sensors and the ground station will be made of

Ethernet links. However, we have to transfer high

quantities of raw data. So we are facing some chal-

lenges in the design of the data transmission facilities

which can lead to the deﬁnition of an internal transfer

protocol.

A last but not the least requirement on the sys-

tem is the need of modularity in the software part.

The smart sensors developed for the MeDON project

must have the ability to be connected to various hard-

ware sensors with various interface protocols. Due to

the low cost requirement it is not possible to design

a smart sensor for each physical sensor. The devel-

oped smart sensor infrastructure both hardware and

software must support the different physical sensor.

So we have to achieve a high level of modularity. We

also need to be able to create clean communication

means between the sensor vendors and the ﬁnal user

of the smart sensors. A ﬁrst step to fulﬁl this require-

ment is to use a modular design methodology such as

MDE.

2.3 A Metamodel for Smart Sensors

One of the approaches described in model driven en-

gineering is the use of domain speciﬁc languages

(DSLs) to cope with issues speciﬁc to a particular do-

main. In (Zein et al., 2009) Zein and al. introduced

a metamodel to deﬁne a DSL for the design of smart

sensors.

This metamodel describes the three main aspects

of a smart sensor, its interface with the environment,

its attributes and its behaviour. From a high level

point of view it can be seen as a regular UML ob-

ject with public and private attributes and methods

and which implements different interfaces. This co-

herence between the metamodel for smart sensors and

the object oriented design eases the system design of

the whole system in which the sensors will be in-

cluded.

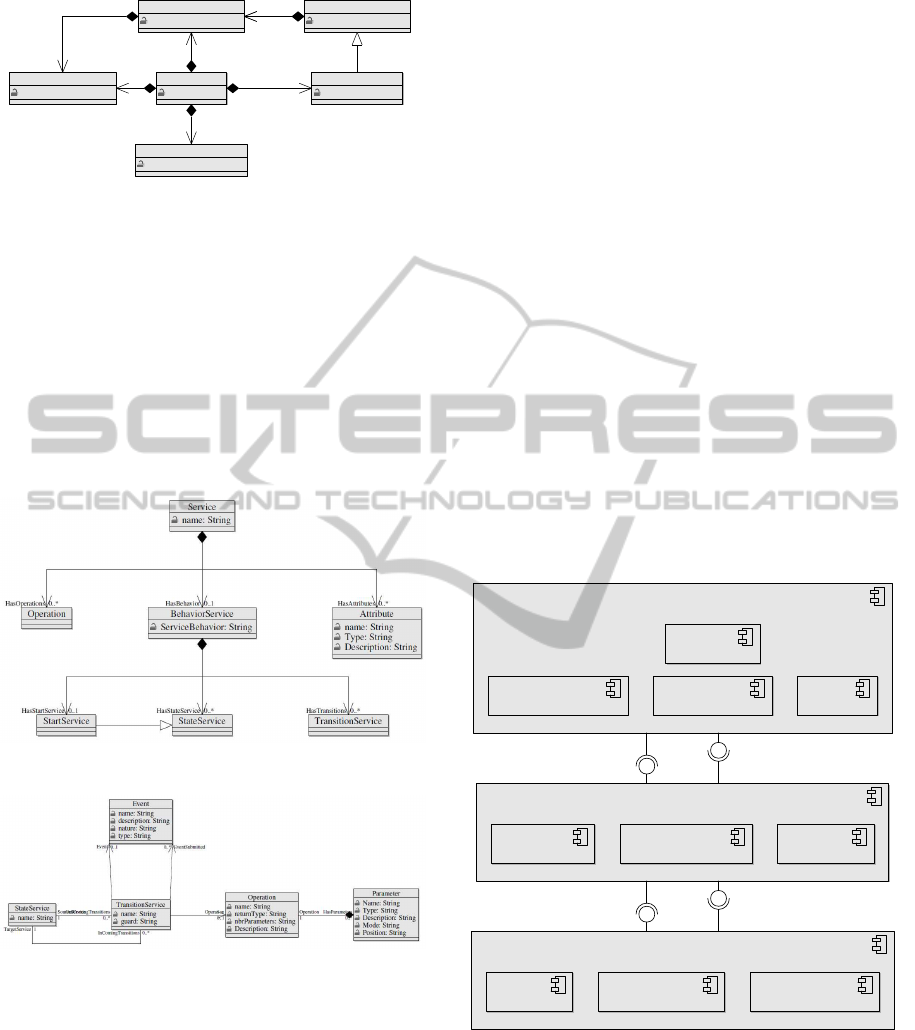

Figure 1 page 3 shows the description of the in-

ternal structure of a sensor. It may have two differ-

ent interfaces. The ﬁrst one deﬁnes the sensor global

features that are available for the environment. The

second one is type speciﬁc. It determines all the fea-

tures that are associated to the type of sensor. Each of

these interface is linked to the global behaviour of the

sensor which determines the way the sensor interacts

with its environment. Among the static properties of a

sensor its latitude, longitude and depth can be found.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

254

Interface

InterfaceName: String

Sensor

Name: String

ProprieteStatique

StaticPropName: String

SensorInterface

InterfaceName: String

SensorType

TypeName: String

BehaviorSensor

BehaviorName: String

HasInterf ace 0..1

HasSensorInterface

0..1

HasBehavior

0..1

HasBehavior 1

HasProprieteStatique 0..1

HasSensorInterface

0..1

HasType

Figure 1: Description of the structure of a sensor in the

smart sensor metamodel.

Each interface is made of a set of services. A ser-

vice is the functional element of the sensor as it is de-

scribed in Figure 2 page 3. The behaviour of a service

is described as a ﬁnite state machine as shown in Fig-

ure 3 page 3. The transition are event triggered. Dur-

ing the transition the associated operation are called.

These operations are able to emit events. So the inter-

nal communication within the sensor is made of the

event based communication between the different ser-

vices.

Figure 2: Description of the services provided by the sensor.

Figure 3: Description of the behaviour of a service.

This metamodel enables to model the functioning

of a smart sensor at a high abstraction level. As this

description is platform independent it can be reuse for

the deﬁnition of other smart sensors. This is eased

by the fact that the metamodel makes a clear separa-

tion between the behavioural and the structural fea-

tures and between the type speciﬁc elements and the

global ones. HoweverPohjonen and Kelly pointed out

in (Pohjonen and Kelly, 2002) that the use of Domain-

Speciﬁc Modelling cannot only rely on the domain

metamodel. It must be linked with a well-deﬁned ar-

chitecture of the targeted software and platform. The

use of the combination of metamodelling and soft-

ware architecture provides the separation of concerns

needed to easily integrate a smart sensor in a complex

information system. In order to complement Zein’s

work we suggest a platform independent software ar-

chitecture.

3 INTEGRATION IN THE

INFORMATION SYSTEM

3.1 Software Architecture

A smart sensor is made of two levels of services

which can be distinguished according to their level

of abstraction from the hardware part of the sensor.

This view of the composition of a smart sensor en-

ables to build a software architecture based on lay-

ers. According to (Krakowiak, 2009) it is a conve-

nient way to deal with multilevel application. Figure

4 page 3 shows the layered structure of the software

and the internal components of each layer.

HardwareLayer

LwIp

DriverSensor DriverStoring

ControlLayer

Network SensorControl Storing

ServiceLayer

MeasureResults DataAccess

Log

Config

Figure 4: Layered view of the software architecture.

The lowest layer deals with the hardware part of

the sensor. So it is made of the different drivers

needed to the functioning of the sensor. The mid-

dle layer which is called Control Layer is made of

the low level services of the smart sensor. They are

the control services of the smart sensor which pro-

vide the needed control and overview of the hardware

DOMAIN-SPECIFIC MODELLING APPLIED TO INTEGRATION OF SMART SENSORS INTO AN INFORMATION

SYSTEM

255

of the sensor. The highest layer which is called Ser-

vice Layer is made of the high level services. Those

services are deﬁned by the user and provide the em-

bedded intelligence of the smart sensor. Each layer is

able to communicate with its neighbours through in-

terfaces. Table 1 page 5 describes the services which

are involved in the integration of the smart sensor in

the information system.

According to the description of the different ser-

vices we can distinguish two kind of integration into

the information system. The ﬁrst one is a logical in-

tegration. The high level services and the SensorCon-

trol service provide their functions to the information

system. So the other elements of the information sys-

tem can logically access to their function. However

the physical way to access to those services is not de-

ﬁned. It is the Network service which provide the

physical integration of the smart sensor into the in-

formation system infrastructure. It deﬁnes the way

to address the smart sensor in the information system

which also deﬁnes the way to access to the proposed

logical services.

3.2 Logical Integration

The ﬁrst level of integration of a sensor into an infor-

mation system can be called logical integration. This

level consists in making a description of the sensor

available for the different actors in the information

system. As the description is an abstraction of the

actual sensor it can be considered as a logical view of

the sensor. Such a description can be obtain by the use

of metadata as stated in (Joshi, 2007). In the sensing

ﬁeld a format for the metadata is the SensorML lan-

guage from the Open Geospatial Consortium (Open

Geospatial Consortium Inc., 2007). It enables to de-

scribe the data which are provided by the sensor. It

especially describes the measures which are done by

the sensor, their type and their format. So any applica-

tion in the information system is aware of the kind of

data provided by the sensor without being physically

linked to it.

3.3 Physical Integration

Through the logical integration the information sys-

tem is aware of the abilities of the smart sensor. But

it has no way to really access to those functionalities.

In order to make them available we decide to organise

the smart sensor according to the REST architecture

principles described in (Fielding, 2000). REST re-

lies on the use of the HTTP protocol. All the actions

of the sensor are commanded by HTTP packets. A

HTTP packet begins with the name of a method and a

targeted URL. The REST architecture only uses four

of the methods deﬁned by HTTP:

• GET: retrieves the resource from the targeted

URL.

• POST: creates the resource at the targeted URL.

• PUT: updates the resource at the targeted URL.

• DELETE: removes the resource at the targeted

URL.

The HTTP packets are parsed. According to the re-

sults of the parsing predeﬁned functions are called.

So the REST architecture provides a standardised way

for the stakeholders of the information system to com-

municate with the sensors. In our case a URL is a

service provided by the sensor. We derived the mean-

ing of the HTTP methods used in REST to ﬁt to our

speciﬁc needs:

• GET: retrieves the value of the attributes of the

service.

• POST: starts a service.

• PUT: changes the value of the attributes of the ser-

vice.

• DELETE: stops a service.

The use of a REST infrastructure for the command

and control of the sensor provides a lightweight

mechanism which can be easily extended and reused

among the information system. The distinction be-

tween the logical and the physical integration of the

smart sensor in the information system provides the

needed ﬂexibility in the information system. It en-

sures that any change in one integration mode will not

affect the other one which provide a more efﬁcient

way to maintain the smart sensor in the information

system.

4 CODE GENERATION

4.1 Description of the Modelling

Method

The metamodel for smart sensors seems to be able to

handle different modelling levels. In order to test this

ability we have completely modelled a smart sensor

for an hydrophone.

The ﬁrst step in the modelling of a smart sensor

is to deﬁne its global behaviour and its interfaces.

We choose to command the smart sensor using HTTP

commands as deﬁned by REST. So the global be-

haviour describes the reaction of the sensor toward the

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

256

Table 1: Relevant services for the integration in the information system.

Services Description

Network Enables to receive command

through the network and sends data

back.

SensorControl Performs the actual measure by

controlling the hardware sensor.

Conﬁg Enables the conﬁguration of the

sensor. It includes among others

the frequency of acquisition and the

number of bits.

Log Enables to log the exceptions occur-

ring in the system.

DataAccess Enables to get the data stored within

a time interval or to ﬂush the mem-

ory.

MeasureResults Enables to access to the last mea-

sure from the sensor.

arrival of a network message and its call of an imple-

mentation speciﬁc service which deﬁnes which high

level service should be triggered. The behaviour also

deﬁnes that the smart sensor is able to send data back

to the control station.

There are two interfaces. The global interface

which contains the Log, the NetworkManager, the

Dispatching, the DataAccess, the Storing and the

TimerStoring services. The SensorControl, the Con-

ﬁg, the MeasureResults and the TimerMeasureResults

are deﬁned in the type speciﬁc interface for SoundDe-

vice.

The different services have been mapped to the

concept of Service deﬁned in the metamodel. The

high-level services distinguish themselves from the

low-level ones as they are purely functional. So they

do not need to have an associated behaviour. When

needed the behaviour of a service has been described

as a state machine. Figure 5 page 5 depicts the be-

haviour of the SensorControl service as a ﬁnite state

machine.

IdleMeasure

tmFreqSensor/doMeasure()

Figure 5: Description of the behaviour of the SensorControl

service.

The state is deﬁned a a StartService state which

is a concept deﬁned in the metamodel. Table 2 page

6 describes how the depicted transition is modelled

according to the smart sensor metamodel.

The high level services are only described as a set

of Attributes and of Operations. The functional code

associated with an operation is added in C language

in the description ﬁeld of the Operation.

4.2 Projection on the Platform

The previously deﬁned model can now be used to

generate code for the embedded target. The target

is made of a Luminary LM3S9B96 central process-

ing unit with an already ROM-loaded operating sys-

tem. The operating system is SafeRTOS (High In-

tegrity Systems, 2011). This operating system deﬁnes

a dynamical preemptivescheduler. The different tasks

can have the same priority. The interprocess commu-

nication mechanism is only made of message queues.

There is also no mutual exclusion mechanism. These

kind of facilities should be emulated by the use of

message queues.

The low-level services are translated into tasks.

Each task will have a message queue associated to it.

Their behaviour is described with switch-case state-

ments. The wait for the reception of an event is im-

plemented as the wait for the reception of a message

in the message queue associated to the task. However

SafeRTOS does not provide a blocking wait mech-

anism that is why a test should be implemented in

order to ensure that the expected event has been re-

ceived. Table 3 page 6 deﬁnes the rules associated to

the implementation of the state machine of the low-

level services.

The high-level services are translated into C struc-

tures. Those structures are made of ﬁelds representing

the attributes of the service and of pointer of functions

that describes the operation associated to the service.

DOMAIN-SPECIFIC MODELLING APPLIED TO INTEGRATION OF SMART SENSORS INTO AN INFORMATION

SYSTEM

257

Table 2: Description of a transition of a ﬁnite state machine according to the smart sensor metamodel.

Metamodel concept Value

Name IdleMeasureTmFreqTransition

event tmFreqSensor

eventSubmitted

outServiceState IdleMeasure

inServiceState IdleMeasure

Operation doMeasure

Table 3: Implementation rules of a ﬁnite state machine.

Metamodel concept Translation

BehaviorService switch-case statement

StateService Integer value

TransitionService wait operation

guard if statement

event if statement

We also deﬁned rules to create the SensorML descrip-

tion of the smart sensor. This description can be em-

bedded in the software as a constant.

We have obtained a mapping between the con-

cepts deﬁned in the SMS metamodel and the code

that can be written in C language or the SensorML de-

scription of the sensor. This mapping deﬁnes the rules

used to automatically generate code from a model

compliant to the smart sensor metamodel into the em-

bedded software for the physical smart sensor. We

used the Kermeta workbench (Triskell team, 2011) in

order to implement the code generation.

4.3 Results

As we may have two different platform in the near fu-

ture we were forced to separate the architectural fea-

tures of the system and its platform features. A ﬁrst

transformation is obtained by the mapping between

the metamodel concepts and the concepts deﬁned in

the proposed architecture. A second one is speciﬁc to

the code generation. These process enables to do ﬁne

tuning of the model obtained after the ﬁrst transfor-

mation in order to be compliant with high constrain-

ing requirements. The second step of the process en-

hances the reusability of the model as the platform

speciﬁc implementation details are contained within

the code generator and not in the architecture.

The use of the smart sensor metamodel enables to

obtain a high level description of a smart sensor. It ef-

ﬁciently describes its structural and behavioural fea-

tures. This includes the description of the interaction

with the environment but also the internal exchanges

of information. As a consequence it enables to obtain

a well deﬁned breakdown of a smart sensor. It also

helps in deﬁning the different interfaces of the smart

sensor both external and internal. However it lacks of

facilities to describe the operational behaviour from a

domain point of view.

The use of a deﬁned architecture enabled us to ob-

tain a generated code which corresponds to our basic

needs. Besides we have obtained a clearer separation

between concerns in the sensor domain and concerns

in the real-time systems domain. This architecture is

described using a general modelling language.

We have deﬁned a methodology which uses a do-

main speciﬁc modelling languages and a general pur-

pose language in order to be able to generate code.

Each modelling language compensate for the lack of

expressiveness of the other one. The domain spe-

ciﬁc language enables to model the system according

to the domain requirements independently of the ﬁ-

nal implementation. The general purpose modelling

language includes the domain speciﬁc deﬁnition of

the system and adds the different implementation spe-

ciﬁc mechanisms. As a result the generated code ful-

ﬁls the domain needs and the real-time requirements.

We are also able to analyse the sensor in such a way

the integration process in the information system is

eased. The sensor can interoperate physically through

a HTTP server which can be automatically generated.

The REST architecture provides the logical integra-

tion of the sensor. The logical deﬁnition of the smart

sensor can be easily embedded in the generated code.

5 CONCLUSIONS

The use of domain speciﬁc modelling enables us to

develop quickly the software of a complex smart sen-

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

258

sor. As we were able to identify quickly the needs for

real-time software mechanism and to separate them

from the design of the sensing part of the smart sen-

sor we made also gain in design time. The designer

only has to focus on the deﬁnition of the smart sen-

sor the rest would be generated automatically. We

have also made signiﬁcant gain during the deﬁnition

of the generator as the target elements of the map-

ping between the high level model of the smart sen-

sor and the architecture are well described. It implies

that a smart sensor can be easily and more quickly de-

ployed according to its deﬁnition. The smart sensor is

also easier to maintain. Any change of its deﬁnition

or of the architecture only requires a regeneration of

the code which could then be implanted again in the

smart sensor. The latency between the notiﬁcation of

the change and the deployment of the modiﬁed smart

sensor is reduced. This is a great beneﬁt in the con-

text of seaﬂoor observatory in which the loss of data

during a long period is not allowed.

We were also able to deﬁne the different pieces of

software which are likely to change very often. They

are grouped according to the changes they force in the

code of the sensor. We have made signiﬁcant gain into

the modularity of our application and in our develop-

ment process. The proposed architecture enables to

be independent of the platform. It especially identi-

ﬁes the operating system speciﬁc mechanisms such

as threads, semaphores or message queues. The mod-

iﬁcation of the code generator is easier as those point

of variations are clearly identiﬁed.

Following these ﬁrst results we will extend the

smart sensor metamodel by creating domain speciﬁc

instruction blocks. Those blocks will not contain any

implementation code. The associated code will be au-

tomatically generated from by the code generator ac-

cording to high level parametrisation contained in the

block.

We will also deﬁne a model transformation be-

tween the smart sensor metamodel and the UML

metamodel along with the code generation. It will

enable us to annotate the obtained model with the

MARTE proﬁle annotation and to describe the target

platform. So we will be able to use standard tools

based on the MARTE proﬁle to perform for example

schedulability analysis.

ACKNOWLEDGEMENTS

This work is ﬁnancially supported by the project ”Ma-

rine eData Observatory Network” funded by the IN-

TERREG program.

REFERENCES

Brooks, T. (1999). Using smart accelerometers and wireless

interfaces for condition monitoring. Machine Plant

and Systems Monitor.

European Commission (2008). Directive 2008/56/ec of the

european parliament and of the council.

Favali, P. and Beranzoli, L. (2006). Seaﬂoor observatory

science: a review. In Annals of Geophysics, 49 (2/3),

pages 515–567.

Fielding, R. T. (2000). Architectural styles and the design

of network-based software architectures. PhD thesis,

University of California, Irvine. AAI9980887.

High Integrity Systems (2011). Safertos.

http://www.highintegritysystems.com/.

Joshi, R. (2007). Data oriented architecture: A loosely-

coupled real-time soa. Whitepaper Real-Time Inno-

vations, Inc.

Kopetz, H. (1997). Real-Time Systems: Design Principles

for Distributed Embedded Applications. Kluwer Aca-

demic Publishers.

Krakowiak, S. (2009). Middleware Architec-

ture with Patterns and Frameworks. On-line

book http://sardes.inrialpes.fr/

krakowia/MW-

Book/Chapters/Preface/preface.html.

Marine eData Observatory Network (2011).

http://www.medon.info/.

MeDON (2010). Deliverable 2.3 monitoring strategy draft

v 0.3.

Open Geospatial Consortium Inc. (2007). Opengis sensor

model language (sensorml) implementation speciﬁca-

tion.

Pohjonen, R. and Kelly, S. (2002). Domain-speciﬁc mod-

eling: Improving productivity and time to market. Dr.

Dobbs Journal.

Spencer, B. F., Ruiz-s, M. E., and Kurata, N. (2004). Smart

sensing technology: Opportunities and challenges. In

Journal of Structural Control and Health Monitoring,

in press, pages 349–368.

Triskell team (2011). Kermeta. http://www.kermeta.org/.

Zein, O. K., Champeau, J., Kerjean, D., and Auffret, Y.

(2009). Smart sensor metamodel for deep sea obser-

vatory. In OCEANS 2009 - Europe, pages 1–6.

DOMAIN-SPECIFIC MODELLING APPLIED TO INTEGRATION OF SMART SENSORS INTO AN INFORMATION

SYSTEM

259
