IMPROVING THE CONSISTENCY OF SPEM-BASED

SOFTWARE PROCESSES

Eliana B. Pereira, Ricardo M. Bastos, Michael da C. Móra

Faculty of Informatics, Pontifical University Catholic of Rio Grande do Sul, Porto Alegre, Brazil

Toacy C. Oliveira

COPPE Department, Federal University of Rio de Janeiro, Rio de Janeiro, Brazil

Keywords: Software process metamodel, Process checking, SPEM, Well-formedness rule.

Abstract: The main purpose of this paper is to improve the consistency of Spem-Based Software Processes through a

set of well-formedness rules that check for errors in a software process. The well-formedness rules are based

on the SPEM 2.0 metamodel and described using the Unified Modeling Language - UML multiplicity and

First-Order Predicate Logic - FOLP. In this paper, the use of the well-formedness rules is exemplified

using a part of the OpenUP process and the evaluation of the one of the proposed rules is shown.

1 INTRODUCTION

Software development is ultimately a procedure to

convert informal specifications, typically gathered

from real world scenarios, into formal pieces of code

that can be executed by machines. Such a procedure

is mainly enacted by developers that follow an

orchestrated path from analysis, through coding and

testing. Orchestration emerges from a software

process specification that details how process

elements such as roles, tasks and work products, are

interconnected in an organized manner (Jacobson et

al., 2001). Although developers can find off-the-

shelf software process specifications such as

Rational Unified Process - RUP (Kruchten, 2000)

and Object-Oriented Process, Environment and

Notation - OPEN (Open, 2006), there is no “one size

fits all” process, which means a process must be

defined to meet each project’s needs (Xu and

Ramesh, 2003).

To define a software process it is necessary to

consider project’s constraints such as team,

resources, technology and time-to-market, to create

the fabric of interconnected process elements that

will guide software development (Jacobson et al.,

2001). Typically, software process engineers

combine elements from “off-the-shelf” processes,

since they represent best practices in the software

engineering discipline. Software process engineers

are also assisted by Situational Method Engineering

- SME. SME recommends creating a set of method

fragments or method chunks (pieces of processes)

where each one of these fragments or chunks

describes one part of the overall method (in this

paper called software process). Each software

project starts with a process definition phase where

the method fragments or chunks are selected and

organized to attend the specific needs related to the

project (Henderson-Sellers et al., 2008).

Regardless the strategy used to define a software

process specification, it is important to understand

the associated complexity of interconnecting the

process elements that will be used to maximize the

outcome of a software project. Typically a process

specification interconnects dozens, sometimes

hundreds, of process elements and any inconsistency

in the process will negatively impact on how

developers perform. Inconsistent processes have

several forms. For example, inconsistency may

appear when a task requires information that is not

produced by any other task; when two or more work

products duplicate information; or even when tasks

are sequenced in cycles. These problems are hard to

identify if no automated approach is adopted.

According to (Hug et al., 2009), as software

processes are based on process models, which are

directed by concepts, rules and relationships, a

metamodel becomes necessary for instantiating these

Pereira E., Bastos R., da C. Móra M. and Oliveira T..

IMPROVING THE CONSISTENCY OF SPEM-BASED SOFTWARE PROCESSES .

DOI: 10.5220/0003501100760086

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 76-86

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

process models. Meta-modeling is a practice in

software engineering where a general model

(metamodel) organizes a set of concepts that will be

later instantiated and preserved by specific models

(instances). In this scenario, a software process

metamodel could represent basic interconnection

constraints that should hold after the metamodel is

instantiated (Henderson-Sellers and Gonzalez-Perez,

2007), thus minimizing inconsistencies. An evidence

of the importance of metamodels for software

processes is the existence of metamodels such as

Software & Systems Process Engineering Meta-

Model Specification - SPEM 1.1 (OMG, 2002),

OPEN Process Framework - OPF (Open, 2006),

among others. Recently the Object Managements

Group – OMG issued a new version of its standard

for Process Modeling, namely SPEM 2.0, which

offers the minimal elements necessary to define any

software process (OMG, 2007).

Although the SPEM 2.0 metamodel represents a

great advance in software process specification and

consistency, its use is not straightforward. SPEM 2.0

defines several concepts using the UML class

diagram notation and represents several constraints

with natural language. For example, SPEM 2.0

allows the specification of a Task that does not

consume, produce and/or modify any Work Product.

This is clearly an inconsistency once a Task has a

purpose, expressed in terms of creating or updating

Artifacts (Work Products) (Kruchten, 2000).

In order to improve the consistency of the

software processes instantiated from SPEM 2.0 this

paper proposes a set of well-formedness rules to

check for the software processes consistency. The

focus of this paper is only the consistency of the

roles, work products, tasks and their relationships.

Each well-formedness rule expresses a condition

that must be true in all software process instances.

To create the well-formedness rules we have started

our work by redefining some relationships in the

SPEM 2.0. For those more elaborated well-

formedness rules we have used FOLP.

The paper is organized as follows: Section 2

presents the related works. Section 3 describes the

SPEM 2.0. Section 4 presents some packages of

SPEM 2.0. In Section 5, the consistency well-

formedness rules are shown. Section 6 evaluates

some well-formedness followed by the conclusions.

2 RELATED WORK

Several papers have focused on defining software

process from a process metamodel. Some

approaches (Puviani, 2009), (Habli and Kelly,

2008), (Serour and Henderson-Sellers, 2004),

(Bendraou et al., 2007) propose solutions using well

known metamodels such as OPF or SPEM, while

others define their own process metamodels

(Wistrand and Karlsson, 2004), (Gnatz et al., 2003),

(Ralyte et al., 2006).

In (Puviani, 2009), (Serour and Henderson-

Sellers, 2004), (Wistrand and Karlsson, 2004) and

(Ralyte et al., 2006) the authors consider

metamodels to define method fragments, method

chunks or method components. Although they differ

in terminology, fragments, chunks or components,

represent small elements of a software process. This

approach is known as Situational Method

Engineering - SME, which is a subset of the Method

Engineering - ME discipline. According to

(Henderson-Sellers et al., 2008), SME provides a

solid basis for creating software process. Chunks,

fragments or components are typically gleaned from

best practice, theory and/or abstracted from other

processes. Once identified and documented, they are

stored in a repository, usually called method base

(Henderson-Sellers and Gonzalez-Perez, 2007).

In (Bendraou et al., 2007) the authors propose an

extension to SPEM 2.0 to address the lack of the

“executability” of this metamodel. The objective of

the extended metamodel is to include a set of

concepts and behavioural semantics. In (Habli and

Kelly, 2008) the authors present a process

metamodel that embodies attributes to facilitate the

automated analysis of the process, revealing possible

failures and associated risks. The metamodel allows

associating risks to the activities and mitigates them

before they are propagated into software product.

Gnatz et al. (2003) also propose a metamodel to

define software process. The authors are mainly

interested in performing process improvement

together with static and dynamic tailoring

(adjustment) of process models.

Though process metamodels are used by many

research groups, the software process consistency

issue is not widely explored. Most works lack rules

to check the consistency of the created software

processes. Specifically related to the software

process consistency some few works might be found

in the literature. Bajec et al. (2007), which describe

an approach to process configuration, present some

constraint rules in their work to constrain some

aspects of the software process construction. The

authors decompose their rules in four subgroups:

process flow rules, structure rules, completeness

rules and consistency rules. The completeness rules

and consistency rules are related to this work since

IMPROVING THE CONSISTENCY OF SPEM-BASED SOFTWARE PROCESSES

these rules are derived from a process metamodel.

According to (Bajec et al., 2007), the completeness

rules help to check whether a software process

includes all required components. To the authors

these rules can be specified in a simple manner using

attributes in the metalink class, which is equivalent

to multiplicities in the association relation in UML.

An example of the completeness rule in (Bajec et al.,

2007) is that each activity must be linked with

exactly one role. The consistency rules are

considered by the authors similar to completeness

rules. Their goal is to assure that the selection of the

elements to a process is consistent. While

completeness rules only apply to elements that are

linked together, consistency rules deal with

interdependency between any two elements. An

example of the consistency rule is each artifact

depends on at least one production activity.

Hsueh et al. (2008) propose an UML-based

approach to define, verify and validate software

processes. The authors consider UML as the

modeling language to define the processes and work

with class diagram to model the process static

structure, the state diagram to model the process

element’s behavior and the activity diagram to

model the process sequence. For the process

structure they describe a process metamodel based

on UML 2.0 and present some rules in Object

Constraint Language - OCL. Conceptually, that

work is related to this one as it considers a process

metamodel and some formalized rules to help model

verification. However, there are some important

differences. In (Hsueh et al., 2008), the correctness,

completeness and consistency of a process are

verified by only checking the class multiplicities. All

their OCL rules are CMMI-related rules and are

used to verify if the software process meet the

requirements of CMMI.

Atkinson et al. (2007) propose using an existing

Process Modeling Language - PML to define

process. Although the authors do not consider a

metamodel they present a set of rules related to the

process consistency. They also present a tool,

pmlcheck, used to check a process before performing

it. Basically, the consistency rules implemented in

pmlcheck are related to the actions (the tasks of

SPEM 2.0) and resources (the work products of

SPEM 2.0). Rules to check errors related to action

requirements are implemented. These types of rules

check four errors: actions consuming and producing

no resources, actions only consuming resources,

actions only producing resources and actions

modifying a resource that they were not consuming.

There are also rules to trace dependencies through a

process. These rules are: checking if resources

required by an action are produced in an earlier

action and checking if produced resources are

consumed by at least one action.

Besides the studies above, we consider our work

similar to the works about UML model consistency.

Although, usually, these works are interested in

consistency issues between the various diagrams of

an UML specification they also consider the UML

language and the consistency aspect. Additionally,

in their majority, they describe formal approach

(Lucas et al., 2009), what we have also been done.

3 SPEM 2.0

The SPEM 2.0 metamodel is structured into seven

packages. The structure divides the model into

logical units. Each unit extends the units it depends

upon, providing additional structures and

capabilities to the elements defined below. The first

package is Core that introduces classes and

abstractions that build the foundation for all others

metamodel packages. The second package, the

Process Structure, defines the base for all process

models. Its core data structure is a breakdown or

decomposition of nested Activities that maintain

lists of references to perform Role classes as well as

input and output Work Product classes for each

Activity. The Managed Content package introduces

concepts for managing the textual content of a

software process. The Process Behaviour package

allows extending the structures defined in the

Process Structure package with behavioural models.

However, SPEM 2.0 does not define its own

behaviour modelling approach. The Method Content

package provides the concepts to build up a

development knowledge base that is independent of

any specific processes. The Process with Methods

package specifies the needed concepts to integrate

the Process Structure package and Method Content

package. Finally, the Method Plugin package allows

managing libraries and processes.

SPEM 2.0 is expressed using MetaObject

Facility - MOF 2.0 meta-modeling language. Figure

1 shows the use of MOF 2.0 and UML 2.0 for

modelling and defining SPEM 2.0. The Figure

shows different instantiation layers of the formalism

used for the SPEM 2.0 specification. MOF is the

universal language that can be used on any layer, but

in our case MOF is instantiated from the M3 layer

by SPEM 2.0 on the M2 layer. The UML 2 meta-

model itself, as depicted on the right-hand side of

the M2 layer, instantiates MOF defined on M3 layer

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

in the same way. Finally, process models can be

instantiated using the M1 layer. In Figure 1,

“Method Library” is shown as an example of a

concrete instance of SPEM 2.0. In that sense, SPEM

2.0 defines process elements such as Tasks and

WorkProducts as well as relationships among them

whereas Method Library provides the concrete

instance to these elements.

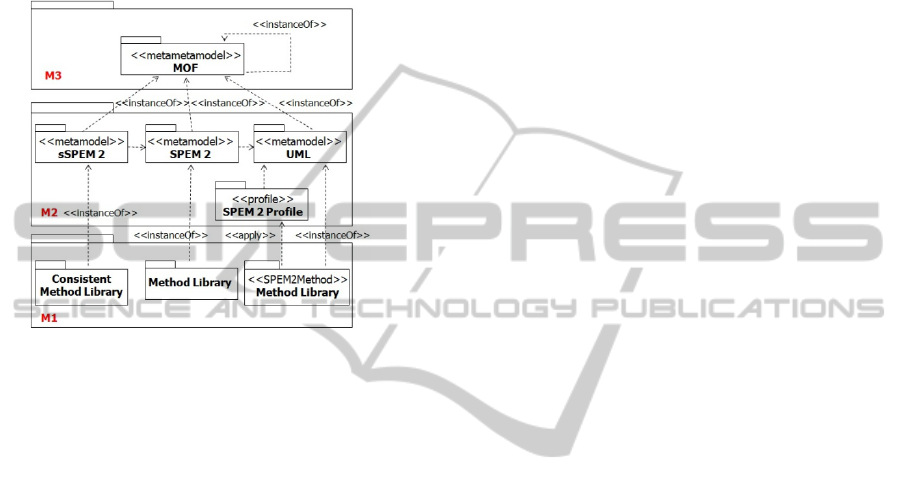

Figure 1: Specification Levels.

The consistency well-formedness rules proposed

were defined in the M2 layer. They are based on the

elements and relationships of the Process Structure

and Process with Methods packages. In Figure 1 we

have also represented how our proposal is located in

the instantiation layers. In the left-hand side of the

M2 layer, the sSPEM 2.0, which stands for

conSistent SPEM 2.0, has all content of SPEM 2.0

more our consistency well-formedness rules. The

sSPEM 2.0 is also an instance of MOF and it may be

instantiated using the M1 layer. In Figure 1 the

“Consistent Method Library” is shown as an

instance of the sSPEM 2.0. It means that the

“Consistent Method Library” has concrete instances

of the elements and relationships of the SPEM 2.0

which were checked using the consistency well-

formedness rules of the sSPEM 2.0.

4 PROCESS DEFINITION

This section explores the main SPEM 2.0 packages

and introduces our proposal for process checking.

4.1 Process Structure in the SPEM 2.0

In SPEM 2.0 the main structural elements for

defining software processes are in the Process

Structure package. In this package, processes are

represented with a breakdown structure mechanism

that defines a breakdown of Activities, which are

comprised of other Activities or leaf Breakdown

Elements such as WorkProductUses or RoleUses.

Figure 2 presents the Process Structure metamodel.

The ProcessPerformer, ProcessParameter.

ProcessResponsabilityAssignment and

WorkProductUseRelationship classes are used to

express relationships among the elements in a

software process. The WorkSequence class also

represents a relationship class. It is used to

represents a relationship between two

WorkBreakdownElements in which one

WorkBreakdownElement depends on the start or

finish of another WorkBreakdownElement in order

to begin or end. Another important process element

which is not defined in the Process Structure

package is the Task. This element is defined in the

Process with Methods package which merges the

Process Structure package. A task describes an

assignable unit of work. In the Process with Methods

package the class that represents the task element is

the TaskUse class which is a subclass of the

WorkBreakdownElement class of the Process

Structure package. Figure 3 shows the relationships

for the TaskUse class which are defined in the

Process with Methods package.

Basically, the TaskUse class has relationships

with the same elements as the Activity class. Figure

3 also shows that both the TaskUse class as well the

RoleUse and WorkProductUse classes have,

respectively, relationships with TaskDefinition,

RoleDefinition and WorkProductDefinition classes.

These classes are defined in the Method Content

package and are used in the Process with Method

Package by the merge mechanism.

All software process may use the concepts

defined in the Method Content by creating a

subclass of Method Content Use class and reference

it with a subclass of Method Content Element class.

The Method Content Element and Method Content

Use classes are defined, respectively, in the Method

Content package and Process with Methods package.

All software process may use the concepts defined

in the Method Content by creating a subclass of

Method Content Use class and reference it with a

subclass of Method Content Element class. RoleUse,

WorkProductUse and TaskUse are subclasses to the

Method Content Use class and RoleDefinition,

WorkProductDefinition and TaskDefinition are

subclasses to the Method Content Element class.

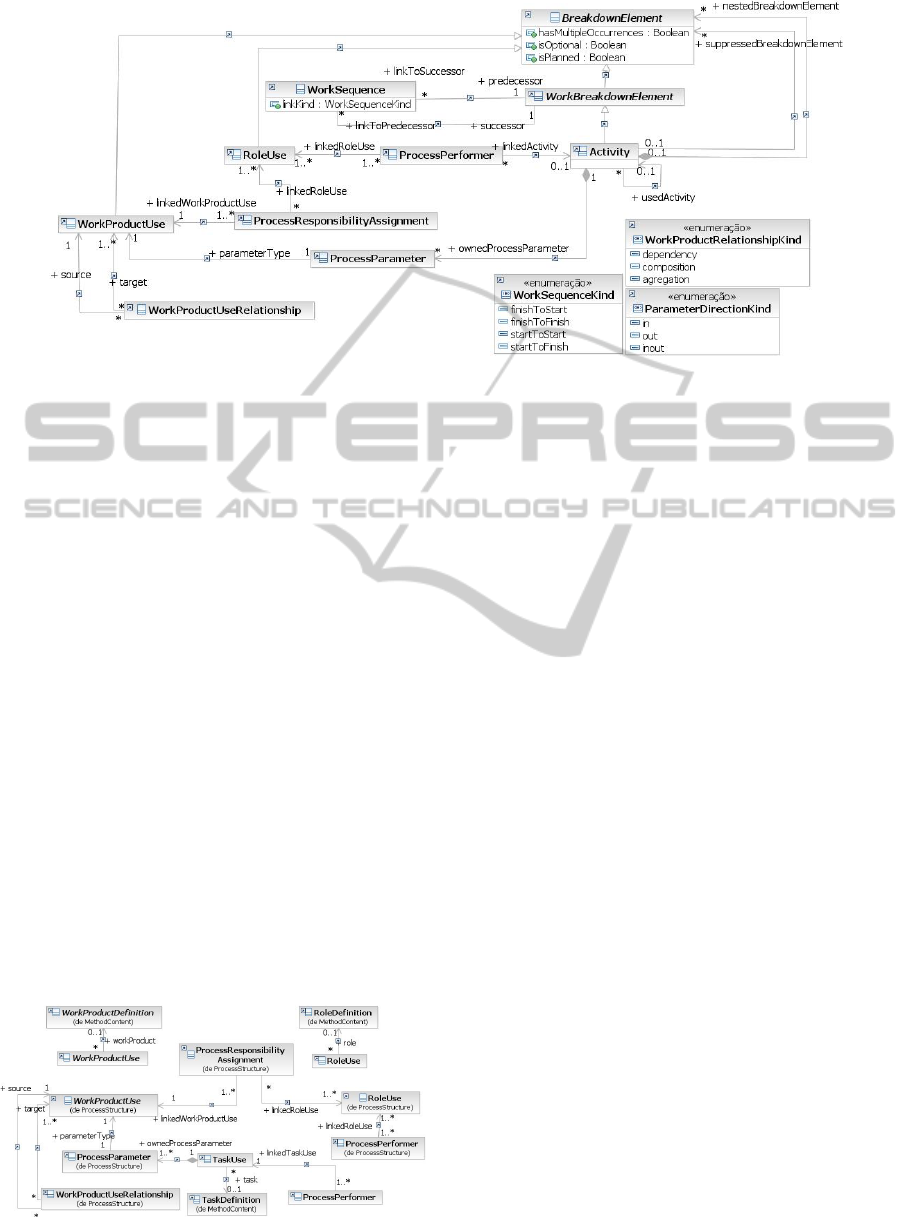

IMPROVING THE CONSISTENCY OF SPEM-BASED SOFTWARE PROCESSES

Figure 2: Process Structure Metamodel.

It is important to consider that both models

presented in Figure 2 and Figure 3 had some

multiplicities modified from the SPEM original

metamodel. This is so because these models already

represent models of sSPEM 2.0 and include some

well-formedness rules proposed in this paper (which

will be explained in Section 5).

4.2 Errors in a Software Process

We consider that errors in a process are motivated

mainly by the following two reasons: (1) process

metamodels are typically specified with UML class

diagrams, which are only capable of representing

simple multiplicity constraints. As a result they need

an external language such OCL or Natural Language

to represent complex restrictions. As with SPEM

2.0, most constraints are represented in Natural

Language, which can lead to interpretation errors;

and (2) software process metamodels are usually

composed by several elements as they must

represent activity workflows, information flows and

role allocations. As a result, using a process

metamodel can be cumbersome as the user must deal

with several concepts to represent a process.

Figure 3: Relationships of the TaskUse Class.

According to (Atkinson et al., 2007), the errors

in a software process are most often introduced by a

modeller and related to syntax or typographical

mistakes that affect the process consistency. A

modeller might, for example, make a simple error by

connecting a work product that still was not

produced in the software process as an input in a

task. It would break a dependency because the task

was expecting an unavailable work product.

To avoid errors in a process we propose checking

it before enactment. Process checking is the activity

of verifying the correctness and the consistency of a

process. In this paper, process checking is made

from a set of well-formedness rules specified from

the SPEM 2.0 metamodel. The well-formedness

rules are associated with the metamodel classes and

relationships which represent the process elements

and their relations. Every instance of process

elements and relationships that have one or more

associated well-formedness rules is checked. If

violated, error messages appear. In the next section,

we explain our well-formedness rules. Some rules

are expressed using UML multiplicity and others,

which involve more elements and/or express more

elaborated rules, are described in FOLP.

5 PROCESS CHECKING

In this section we describe a set of well-formedness

rules related to software process correctness and

consistency. We propose using these rules for

process checking. The well-formedness rules from

this research were defined considering the concepts

defined in the Process Structure and Process with

Methods packages of SPEM 2.0 metamodel.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

Although the Method Content package has also

important concepts for software process it only

defines reusable content which is used through the

classes of the Process with Methods package.

5.1 Well-formedness Rules

As the SPEM metamodel is represented by UML

class diagrams we consider that many constraints

already exist in this metamodel through the

multiplicity used between the classes. The following

rule is one that is already defined in the SPEM 2.0

metamodel and constraints process multiplicity: a

Process Performer must be associated to exactly one

TaskUse. There is a “linkedTaskUse” relationship

between TaskUse and Process Performer classes.

The multiplicity is constrained to have only one

relationship.

Considering all multiplicities defined between

the classes of the Process Structure and Process with

Methods packages we have noted that

inconsistencies may be introduced into a software

process. For example, it is possible create tasks that

are not performed by anybody because a TaskUse

can be associated to 0..* ProcessPerformers. This

type of error could be introduced by an oversight

that may hinder enactment since every task must be

performed by at least one agent (human or

automated agent).

To solve the problem above and others similar to

it, we have started our work by redefining some

relationships in the SPEM 2.0 metamodel. The

modified relationships define the rules shown in

Table 1. In this Table, each rule contains a

numeration to ease its identification.

Table 1: Relationships modified in SPEM 2.0.

A TaskUse must be associated to at least one

ProcessPerformer. (Rule #1)

A ProcessParameter must be associated to exactly one

WorkProductUse. (Rule #2)

A RoleUse must be associated to at least one

ProcessPerformer. (Rule #3)

A WorkProductUse must be associated to at least one

ProcessResponsabilityAssignment. (Rule #4)

A TaskUse must have at least one ProcessParameter.

(Rule #5 )

The classes and relationships that represent the

rules above are depicted in Figure 2 and Figure 3.

Basically, the rules presented define: 1) Work

products need to have roles assigned to it in a

software process. (Rule #4); 2) Tasks must have

input and/or outputs in terms of work products and

must be performed by roles. (Rules #1, #2 and #5);

and 3) Roles need perform tasks. (Rule #3).

Since not all well-formedness rules could be

expressed through UML diagrammatic notation we

introduced first-order predicate logic (FOLP). To

write the rules, we first translate the classes,

relationships and attributes of SPEM 2.0 metamodel

into predicates and logical axioms. Due to space

constraints, the translation is not detailed here. We

assume that each class and attribute of the

metamodel represents a predicate. For example, the

ProcessPerformer class and its attributes

linkedRoleUse and linkedTaskUse are expressed

using the following predicates:

processPerformer(x) where x is a instance of a

ProcessPerformer.

(P1)

linkedRoleUse(x, y) where x is a instance of a

ProcessPerformer and y is a instance of

RoleUse.

(P2)

linkedTaskUse(x, y) where x is a instance of a

ProcessPerformer and y is a instance of

TaskUse.

(P3)

The composition relationship which is a special type

of UML association used to model a "whole to its

parts" relationship is represented in FOLP with the

predicate part-of(x,y). In this predicate, x is an

instance of part and y represents its whole.

Considering the properties defined in UML for this

type of association the following logic axioms are

defined:

∀

part-of(x,x)

(A1)

∀

x,y (part-of(x,y) →

part-of(y,x))

(A2)

∀

x,y,z (part-of(x,y)

∧

part-of(y,z)

→

part-

of(x,z))

(A3)

∀

x,y,z (part-of(x,y)

→

part-of(x,z))

(A4)

Some additional predicates that express usual

relations in a software process were also created.

Such predicates are needed as they are reused for

many different well-formedness rules. For example,

the following predicates represent, respectively, a

work product that is produced by a task and the

dependency relationship between two work

products. Dependency relationships are used to

express that one work product depends on another

work product to be produced in a software process.

∀

x,y,z((taskUse(x)

∧

workProductUse(z)

∧

processP

arameter(y)

∧

direction(y,‘out’)

∧

parameterType(y,z)

∧

part-

of(y,x))

→

taskProduce(x, z))

(P4)

∀

z,x,y((workProductUse(x)

∧

workProductUse(y)

∧

(workProductUseRelationship(z)

∧

kind(z,‘dependency’)

∧

source(z, x)

∧

target(z, y)))

→

dependency(x, y)))

(P5)

IMPROVING THE CONSISTENCY OF SPEM-BASED SOFTWARE PROCESSES

Similar predicates also exist for the modification

and consumption relations of the work products by

the tasks in a software process. Such relations are

obtained just replacing the value of the constant

‘out’ of the direction predicate by ‘in’ or ‘inout’.

When the ‘in’ value is used we have the predicate

taskConsume(x, z) (P6) and when the ‘inout’ value is

used we have the predicate taskModify(x, z) (P7).

Activities have the same relations of input and

output (production, consumption and modification)

with work products, so we have considered similar

predicates to these elements (P8, P9 and P10).

Work products also may assume other types of

relationships, in addition to the dependency

relationship. In the SPEM 2.0 metamodel these types

of relationships are ‘composition’ and ‘aggregation’.

Both relationships express that a work product

instance is part of another work product instance.

However, in the composition relationship the parts

lifecycle (child work products) are dependent on the

parent lifecycle (parent work product). The

composition and aggregation predicates just replace

the value of the constant ‘dependency’ of the kind

predicate by ‘composition’ or ‘aggregation’ (P11,

P12 and P13).

The composition, aggregation and dependency

relationships between work products are transitive

relations. The logical axioms bellow formalizing this

property:

∀

x,y,z(composition(x,y)

∧

composition(y,z)

→

composition(x,z))

(A5)

∀

x,y,z(aggretation(x,y)

∧

aggretation(y,z)

→

aggretation(x,z))

(A6)

∀

x,y,z(dependency(x,y)

∧

dependency(y,z)

→

dependency(x,z))

(A7)

Considering the predicate and logical axioms above

the first consistency well-formedness rules to

WorkProductUse were expressed in FOLP. They are

presented in the Table 2 and define: 1) A work

product may not be the whole in a relationship

(composition, aggregation or dependency) if one of

its parts represent its whole in another relationship

or represent its whole by the relation transitivity.

(Rule #6, #7 and #8); 2) A work product may not

represent the whole and the part in the same

relationship (composition, aggregation or

dependency). (Rules #9, #10 and #11); and 3) A

work product that represents the part in a

composition relationship may not represent part in

another relationship of this type. (Rule #12)

Note that the well-formedness rules above define

the same properties that logical axioms of the part-of

predicate. However, the well-formedness rules are

necessary once the relationships between the work

products are not expressed using the UML

association represented by the part-of predicate.

These relationships are expressed using UML

classes and attributes and consequently, need to be

represented by other predicates and constrained by

new rules.

Table 2: First Well-Formedness Rules to WorkProducts.

∀

x,y (composition(x,y)

→

composition(y,x))

(Rule # 6)

∀

x,y (aggretation(x,y)

→

aggretation(y,x))

(Rule # 7)

∀

x,y (dependency(x,y)

→

dependency(y,x))

(Rule # 8)

∀

composition(x,x)

(Rule # 9)

∀

aggretation(x,x)

(Rule # 10)

∀

dependency(x,x)

(Rule # 11)

∀

x,y,z (composition(x,y)

→

composition(x,z))

(Rule # 12)

A second important group of consistency well-

formedness rules to the WorkProductUse written in

FOLP are shown in Table 3.

Table 3: Second Group of Well-Formedness Rules to

WorkProducts.

∀

x (workProductUse(x)

→

∃

(processParameter(y)

∧

direction(y, ‘out’)

∧

parameterType(y, x)))

(Rule #13)

∀

x,y(taskProduce(x,y)

→

∃

r,w,z(roleUse(r)

∧ (

processPerfomer(z)

∧

linkedTaskUse(z,

∧

linkedRoleUse(z,r))

∧ (

processRespons

abilityAssignment(w)

∧

linkedRoleUse(w,r

)

∧

linkedWorkProductUse(w,y))))

(Rule #14 )

∀

x,y,t (workProductUse(x)

∧

dependency(x,y)

∧

taskProduce(t,x)

→

taskConsume(t,y))

(Rule #15)

The well-formedness rules above establish: 1)

Work products must be produced by at least one task

in a software process. (Rule #13); 2) At least one

responsible role by the work product must be

associated in its production tasks. (Rule #14); and 3)

If a work product has dependencies in terms of other

work products these dependencies must be input in

its production tasks. (Rule #15)

The last group of well-formedness rules are

related to TaskUses sequencing. To establish the

tasks sequence from SPEM 2.0 metamodel the

WorkSequence class and its linkKind attribute are

used. It is possible using the following values in

sequencing between TaskUses: finishToStart,

finishToFinish, startToStart and startToFinish.

Some predicates and logical axioms related to

precedence between the tasks were created. Initially,

to capture the concept of successor and predecessor

task we have defined the predicates pre-task(t

, t

)

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

and pos-task(t

, t

), where t

and t

are TaskUse

instances and indicate, respectively, t

as predecessor

task of t

, or, inversely, t

as successor task of t

. The

predicates pre and pos-task are transitive and

asymmetric relations. The following logical axioms

establish these properties to these relations:

∀

, t

) (pre-task(t

, t

)

↔

pos-task(t

, t

))

(A8)

∀

, t

) (pre-task(t

, t

)

∧

pre-task(t

, t

)

→

pre-task(t

, t

))

(A9)

∀

, t

) (pre-task(t

, t

)

→ ¬

pre-task(t

, t

))

(A10)

∀

pre-task(t

)

(A11)

Based on the predicates and logical axioms related

to precedence between tasks we have defined new

consistency well-formedness rules. These rules,

shown in Table 4, define: 1) The tasks sequencing

must not have duplicated sequences. (Rule #16) 2)

Work Products must be produced before they are

consumed. (Rule #17) and 3) The dependencies of a

work product must be produced before it in a

software process. (Rule #18)

The well-formedness rule #16 shown in the

Table 4 is only to startToFinish transition. Consider

the same rule to the following transitions:

startToStart, finishToFinish and startToFinish.

Table 4: Well-Formedness Rules to Process Sequence.

∀

x,x1,x2((taskUse(x1)

∧

taskUse(x2)

∧

(workSequence(x)

∧

predecessor(x, x1)

∧

sucessor(x, x2)

∧

linkKind(x,

‘startToFinish’)))

→¬∃

y(workSequence(y)

∧

predecessor(x,x1)

∧

sucessor(x,x2)

∧

linkKind(x, ‘startToFinish’)))

(Rule #16)

∀

x, y (taskConsume(x, y)

→

∃

(taskProduce(x2, y)

∧

pre-task(x2, x)))

(Rule #17)

∀

x,y (dependency(x,y)

→

∃

t1, t2

(taskProduce(t1, x)

∧

taskProduce(t2, y)

∧

pre-task(t2,t1)))

(Rule #18)

6 EVALUATION OF THE

WELL-FORMEDNESS RULES

This section presents a process checking example

using a part of the OpenUP process. The section also

evaluates one of the well-formedness rules proposed

in this paper. The main goal is demonstrate that the

predicates and logical axioms used in the well-

formedness rules really express the intended

meaning.

6.1 Process Checking Example

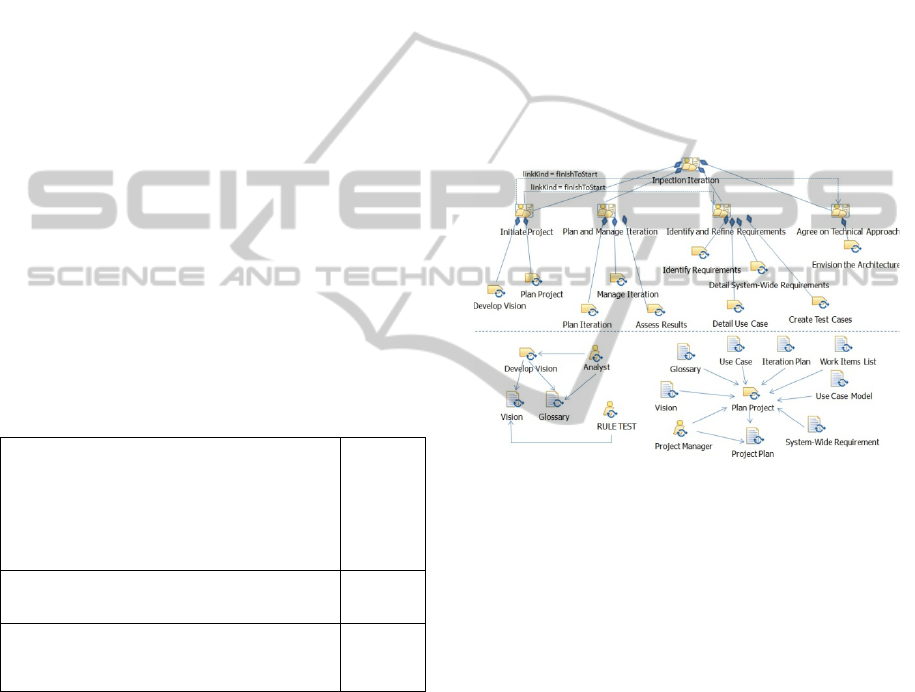

To present a process checking example we have

considered the Inception Iteration of the OpenUP

process, which is shown in Figure 4. In this Figure,

above the dash line, the activities and tasks of the

iteration are represented. Additionally, some

information about activities sequence is also shown.

Below the dash line, the tasks of the Initiate Project

activity are detailed in terms of roles and work

products (inputs and outputs). All information

shown in the Figure 4 is based on the OpenUP

process except the Rule Test which was introduced

by us only for this evaluation. Originally, in

OpenUP, the Analyst is also responsible for the

Vision work product.

Figure 4: Inception Iteration of the OpenUp.

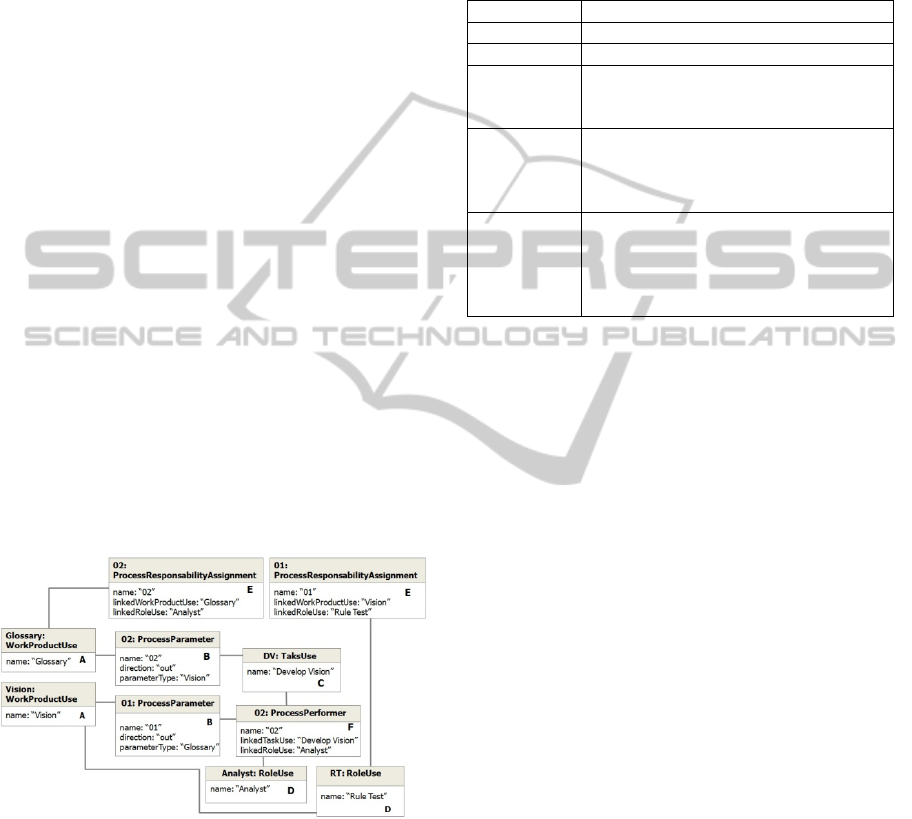

One of the tasks of Figure 4 (Develop Vision) is also

represented with a UML object diagram, which is

shown in Figure 5. The object diagram show the

class instances of the SPEM 2.0 used to create tasks,

work products, roles and their relationships in a

software process. In Figure 5 letters are used to

facilitate its understanding. The letter A indicates the

WorkProductUse classes used to create the objects

Vision and Glossary. The letter B represents the

objects 01 and 02, which are instances of the

ProcessParameter class. These kinds of objects

represent the inputs and outputs to the task objects.

In Figure 5, the object that represents a task is

represented by the DV (Develop Vision) identifier.

This object is an instance of TaskUse class and is

indicated in the Figure 5 by the letter C. The objects

representing instances of the RoleUse class are

indicated in Figure 5 by the letter D. Finally, the

letters E and F represent, respectively, objects of the

ProcessResponsabilityAssignment (object 01 and 02)

and ProcessPerformer classes (object 02). The

instances of the ProcessResponsabilityAssignment

IMPROVING THE CONSISTENCY OF SPEM-BASED SOFTWARE PROCESSES

are used to define roles as responsible for work

products and the instances of the ProcessPerformer

are used to link roles as performer to the tasks.

As seen, all process information of this example

may be represented using classes and relationships

of the SPEM 2.0. It means that the used process is

compliance with the SPEM 2.0 metamodel. Another

fact that shows the consistency of the used process is

the validation result of the object diagram found in

the case tools like Rational Software Modeler. This

validation result is error free.

However, as mentioned in Section 4, not all need

information in a software process can be expressed

using only the UML language. Thus, when we carry

out the checking in the same process using our well-

formedness rules it presented errors indicating some

inconsistencies. The first inconsistency of the

software process used in this example is in the task

Develop Vision. As seen in Figure 4, the task

Develop Vision produces the work product Vision

which has as responsible role the role Rule Test.

This role does not perform the task Develop Vision

and this fact violates the Rule #14 which defines that

at least on responsible role of a work product must

participate of their production tasks. Another

problem can be seen in the task Plan Project. Note

that this task has as mandatory inputs the work

products Use Case, Use Case Model and System-

Wide Requirements which are not yet produced in

the software process when this task is performed.

This inconsistency violates the Rule #17.

Figure 5: Object Diagram to the Develop Vision Task.

6.2 Evaluation of the Well-formedness

Rules

We have evaluated our well-formedness rules

expressed in FOLP to check their correctness. Since

the amount of rules presented in this paper is vast

and due the space constraints, we present only the

evaluation of rule Rule #14.

To start the evaluation we have created some

variables and assigned values for them. Each

variable represents an object of the object diagrams

shown in Figure 5. Table 5 lists the variables and

values used to this evaluation.

Table 5: Variables used in the First Evaluation.

x::= ‘DV’ x is the TaskUse ‘Develop Vision’

y::= ‘Vision’ y is the WorkProductUse ‘Vision’

r::= ‘Analyst’ r is the RoleUse ‘Analyst’

t::= ‘02’

t is the Process Parameter ‘02’ with

direction equal to ‘out’ and

parameterType equal to ‘Vision’

z::= ‘02’

z is the ProcessPerformer ‘02’ with

linkedRoleUse equal to ‘Analyst’ and

linkedTaskUse equal to ‘Develop

Vision’

w::= ‘01’

w is the ProcessResponsability

Assignment ‘01’ with linkedRoleUse

equal to ‘Rule Test’ and

linkedWorkProductUse equal to

‘Vision’

We have evaluated the task Develop Vision

which presents an error in the software process. The

formalization of the Rule #14 is the following:

∀

x,y(taskProduce(x, y)

→

∃

r, w, z (roleUse(r)

∧ (

processPerfomer(z)

∧

linkedTaskUse(z,x)

∧

linkedRo

leUse(z,r))

∧ (

processResponsabilityAssignment(w)

∧

inkedRoleUse(w,r)

∧

linkedWorkProductUse(w,y))))

This rule uses the taskProduce(x, y) that is

represented by the following sentence in FOLP:

∀

x,y,t((taskUse(x)

∧

workProductUse(y)

∧ (

processPar

ameter(t)

∧

direction(t, ‘out’)

∧

parameterType(t, y))

∧

part-of(t, x))

→

taskProduce(x, y))

Initially we have evaluated the taskProduce(x,y).

Considering the variables of Table 5 we have:

taskUse(DV)::= T

workProductUse(Vision)::= T

ProcessParameter(02)::= T

direction(02, ‘out’)::= T

parameterType(02, Vision)::= T

part-of(02, DV)::= T

taskProduce(Criar DV, Vision)::= T

Then:

∀

x,y,t ((T

∧

∧ (

∧

→

∀

x,y,t (T

→

T)::= T

Predicate taskProduce(DV, Vision) evaluates to

True. Once the task Develop Vision produces the

work product Vision the expected value was True.

Considering Rule #14 we have:

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

roleUse(Analyst)::= T

processPerformer(02)::=T

linkedRoleUse(02, Analyst)::= T

linkedTaskUse(02, DV)::= T

processResponsabilityAssignment(01)::=T

linkedWorkProductUse(01, Vision)::= T

linkedRoleUse(01, Analyst)::= F

Then:

∀

x, y ( T

→

∃

r, w, z (T

∧ (

∧

∧ (

∧

T)))

∀

x, y ( T

→

∃

r, w, z (F))

∀

x, y ( T

→

F)::= F

The value to the Rule #14 is False. This value was

expected once the values assigned to the variables

generate one inconsistency in the software process

as already shown in the Subsection 6.1. It suggests

that the theory of the Rule #14 is valid.

Although we have not detailed the evaluation of

the Rule #17, the value returned to this evaluation is

False. It also indicates that the theory of this rule is

valid.

7 CONCLUSIONS

In this paper, we have proposed well-formedness

rules that allow finding errors in a software process

before it is enacted. By noting inconsistencies in the

process, we believe it is possible for modellers to

refine a process model until it is free of

inconsistencies.

The proposed well-formedness rules were based

on SPEM 2.0 metamodel. To define them we have

modified multiplicity constraints and for the more

elaborated rules which could not be expressed only

with UML, we have used FOLP.

Several research directions, which we are

working on, have been left open during this paper,

and here we emphasize two of them. First, more

well-formedness rules considering others process

elements and consistency aspects need to be

provided. Related to this, preliminary studies

suggest two important facts: (1) other process

elements and relationships must be included in the

SPEM 2.0 metamodel and (2) the OCL language

does not support the definition of all well-

formedness rules needed to guarantee consistency.

For example, the well-formedness rules to check

cycles in a software process, which involve

temporary aspects, may not be expressed using

OCL. This fact has been the motivation to use FOLP

in this paper. Secondly, with regard to automatic

support, the prototype of a tool prototype is being

developed. This will support the definition and

tailoring of SPEM-based software processes.

Furthermore, a process checking, which implements

the well-formedness rules, will be provided.

ACKNOWLEDGEMENTS

Study financed by Dell Computers of Brazil Ltd.

with resources of Law 8.248/91.

REFERENCES

Atkinson, D. C., Weeks, D. C. and Noll, J. Tool Support

for Iterative Software Process Modeling. Information

and Software Technology, 493-514, 2007.

Bajec, M., Vavpotic, D. and Krisper, M. Practice-Driven

Approach for Creating Project-Specific Software

Development Methods. Information and Software

Technology, 345-365, 2007.

Bendraou, R., Combemale, B., Cregut, X. and Gervais, M.

P.Definition of an Executable SPEM 2.0.In: 14

Asia-

Pacific Software Engineering Conference, 2007.

Gnatz, M., Marschall, F., Popp G., Rausch A. and

Schwerin W. The Living Software Development

Process. Available from: http://citeseerx.ist.psu.edu/

viewdoc/summary?doi=10.1.1.60.3371, 2003.

Habli, I. and Kelly, T. A Model-Driven Approach to

Assuring Process Reliability. In: 19

International

Symposium on Software Reliability Engineering,

2008.

Henderson-Sellers, B. and Gonzalez-Perez, C. A Work

Product Pool Approach to Methodology Specification

and Enactment. Journal of Systems and Software,

2007.

Henderson-Sellers, B., Gonzalez-Perez, C. and Ralyté, J.

Comparison of Method Chunks and Method

Fragments for Situational Method Engineering.In:

19th Australian Conference on Software Engineering,

2008.

Hsueh, N. L., Shen, W. H., Yang, Z. W and Yang, D. L.

Applying UML and Software Simulation for Process

Definition, Verification and Validation. Information

and Software Technology, 897-911, 2008.

Hug, C., Front, A., Rieu, D. and Henderson-Sellers, B. A

Method to Build Information Systems Engineering

Process Metamodels. The Journal of Systems and

Software, 1730-1742, 2009.

Jacobson, I., Booch G., Rumbaugh J. The Unified

Software Development Process, Addison Wesley,

2001.

Kruchten, P. The Rational Unified Process: An

Introduction. NJ: Addison Wesley, 2000.

Lucas, F. J., Molina, F. and Toval, A. A Systematic Review

of UML Model Consistency Management. Information

and Software Technology, 1631-1645, 2009.

IMPROVING THE CONSISTENCY OF SPEM-BASED SOFTWARE PROCESSES

OMG, Sofware Process Engineering Metamodel - SPEM

1.1. Available from: http://www.omg.org/, 2002.

OMG, Sofware Process Engineering Metamodel - SPEM

2.0. Available from: http://www.omg.org/, 2007.

Open. Available from: http://www.open.org.au, 2006.

Puviani, M., Serugendo, G. D. M., Frei, R. and Cabri G.

Methodologies for Self-organising Systems: a SPEM

Approach. In: International Conference on Web

Intelligence and Intelligent Agent Technology, 2009.

Ralyté, J., Backlund, P., Kuhn, H. and Jeusfeld M. A.

Method Chunks for Interoperability. In: 25th Int.

Conference on Conceptual Modelling, 2006.

Serour, M. K. and Henderson-Sellers, B. Introducing

Agility – A Case Study of SME Using the OPEN. In:

Computer Sof. and Applications Conf., 2004.

Wistrand, K. and Karlsson, F. Method Components

Rationale Revealed. In: Lecture Notes in Computer

Science, Vol. 3084/2004, 2004.

Xu, P., Ramesh, B. A Tool for the Capture and Use of

Process Knowledge in Process Tailoring, In: Proc. of

Hawaii Int. Conference on System Sciences, 2003.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems
