SEMANTIC-LITE RETRIEVAL ON IMPRECISE AND

INCOMPLETE NATURAL QUERIES USING CONCEPTUAL

GRAPHS

Thinh Nhat Phan

, Tho Thanh Quan

, Thien Cong Pham

and Nguyen Tuong Huynh

University of Nguyen Tat Thanh, Hochiminh City, Vietnam

Faculty of Computer Science and Engineering, Hochiminh City University of Technology, Hochiminh City, Vietnam

Keywords: Natural query processing, Ontology, Conceptual graphs.

Abstract: Many attempts have been made on processing natural queries on relational databases, because this feature

should render users virtually no boundary on expression search requests. Recently, research trends on this

field have moved from compositional semantics into SQL-oriented processing on natural queries. However,

this approach still suffers the problem of imprecise and incomplete information which often occurs when

users submit their queries casually in practical situations. In this paper, we show an approach on translating

the natural queries into conceptual graphs using semantic information captured by a domain ontology. Due

to the well-structured representation of conceptual graph, we can resolve the impreciseness and retrieve the

incompleteness when occurring. Experimental results have shown that our approach is quite promising.

1 INTRODUCTION

Relational databases have been used popularly in

information systems due to the capability of

precisely representing concepts and relations on

certain domains. Moreover, due to their solid

mathematical foundation, relational databases also

allow user to query virtually all of desired

information, commonly based on the well-defined

Structured Query Language (SQL). However, for

non-technical users, who happened to be the

majority of actors interacting with most information

systems, SQL is still hard-to-use due to its strict

formal syntax and complicated structures needed to

express the query goals.

Naturally, many attempts have been made to

support users to query over relational databases by

natural language forms. Early works have focused

on compositional semantics (Androutsopoulos,

Ritchie and Thanisch, 1995). However, this

approach failed to deal with quantified queries.

More recent works investigated translating natural

queries into SQL (Frost and Fortier, 2007). Even

though this approach can handle deep semantics in

some queries, it required users to submit the queries

in the forms whose syntaxes should be “similar” to

that of the SQL. Nevertheless, if the query is

rephrased as another form, this approach suffered

much difficulty to process. We consider this

problem as imprecise information.

With the recent advancement of the Semantic

Web (Berners-Lee, Hendler and Lassila, 2001),

ontology is considered highly useful to extract

semantics from natural queries (Storey, Sugumaran

and Burton-Jones, 2004). Remarkably, a work on

ontology-based lightweight natural processing is

reported (Kang, Na, Lee and Yang, 2004), whose

method is able to process semantic-enriched queries.

However, in practical situations, users are likely to

submit queries in casually shorterned forms. Due to

the missing of some important “anchor words”, such

shortened forms are hard to be processed efficiently.

We consider this problem as incomplete information.

Recently, to process natural queries, conceptual

graph (CG) (Sowa, 1997) is regarded as an effective

technique to capture and represent the semantics in

linguistic structures. An effort on supporting

retrieval using natural query over CG-represented

documents was reported by Shady, Karray and

Kamel (2007), in which the authors adopted some

manual methods. However, automatic translation of

natural queries into the corresponding CGs is still a

complex and challenging problem. In this paper, we

propose a new approach on natural query retrieval

based on CG using domain ontology, which can

263

Nhat Phan T., Thanh Quan T., Cong Pham T. and Tuong Huynh N..

SEMANTIC-LITE RETRIEVAL ON IMPRECISE AND INCOMPLETE NATURAL QUERIES USING CONCEPTUAL GRAPHS.

DOI: 10.5220/0003501202630268

In Proceedings of the 6th International Conference on Software and Database Technologies (ICSOFT-2011), pages 263-268

ISBN: 978-989-8425-76-8

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

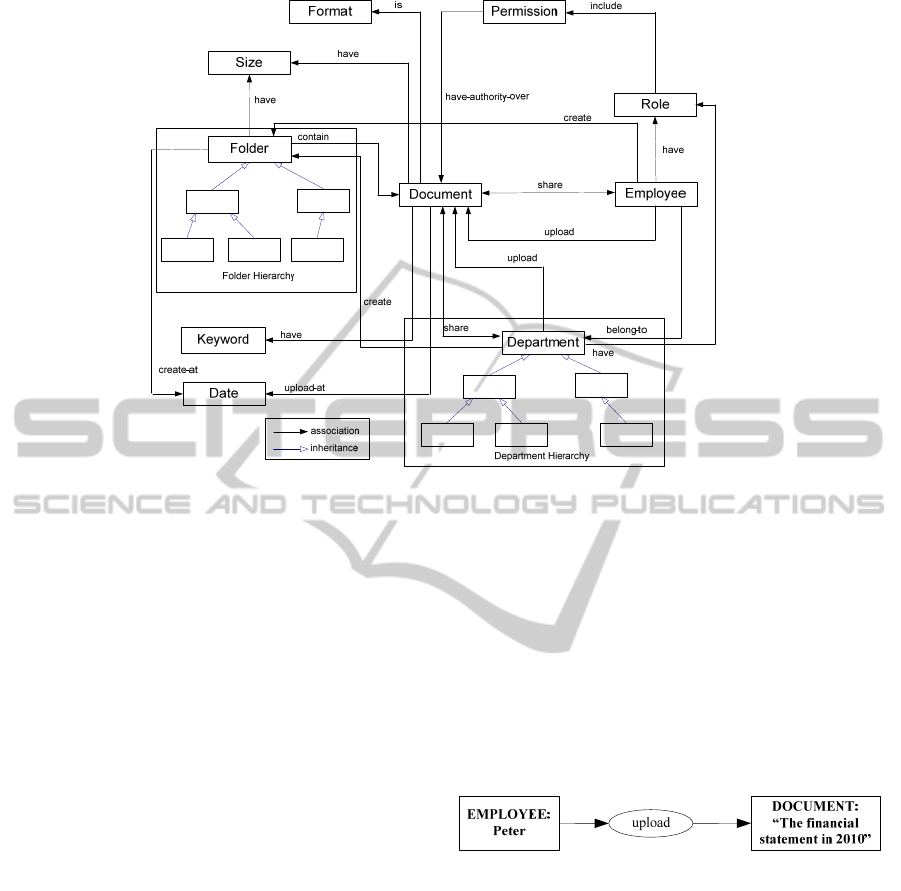

Figure 1: Conceptual Schema of the Document Management Ontology.

handle flexibly natural languages in freely casual

forms.

Figure 1 gives the conceptual schema of the

Document Management Ontology, which will be

used througout the paper. The Document

Management Ontology has three concepts (or

classes): Document, Employee and Department. The

attributes of the class Document are major properties

to identify the documents such as keyword, format,

size, etc. The Employee class represents a set of staff

that is granted to access to some resources according

to their roles. The Department concept refers to the

offices of the company, which are organized to

manage each other.

The rest of this paper is organized as follows.

Section 2 discusses the basic concept of CG and its

represention for natural query. Section 3 presents

our proposed approach for generating conceptual

graph from natural query using domain ontology,

which can be constructed automatically from an

enhanced relational database. Section 4 gives some

initial experimental results. Finally, Section 5

concludes the paper and discusses the direction for

our future research.

2 QUERY REPRESENTATION

USING CONCEPTUAL GRAPH

A conceptual graph (CG) is a notation for logic

based on existential graphs. A CG can be displayed

as a directed graph whose nodes can be a concept

node or relation node. A concept node implies an

individual of a concept, while a relation node

indicates the relationships between individuals.

Figure 2 shows an example of a CG, whose concept

nodes are presented in boxes and relation nodes in

ovals. The fact conveyed by this CG is that the

author Peter has uploaded the report entitled “The

financial statement in 2010”. In this CG, the

individuals Peter and “The financial statement in

2010” are called individual referents of the concepts

Employee and Document respectively.

Figure 2: An example conceptual graph.

Figure 3 shows a CG representing the query

“Find the documents were uploaded by the

employees of sales department of pdf format” Notice

that the “?” symbol indicates a query referent of the

CG, which specifies the object that will be searched.

The “*” symbol indicates a generic referent, which

means that no specific individual of the concept

Employee is mentioned explicitly in the query.

3 AUTOMATIC GENERATION

OF CG-BASED QUERIES

In this section, we present an approach for automatic

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

264

generation of CG-based query from natural query

using the knowledge captured from domain

ontology.

The automatic generation process consists of the

following two steps Concept Generation and

Relation Construction.

3.1 Concept Generation

This step aims to parse the submitted query in order

to identify the ontological concepts and individuals.

For example, let us consider the following query:

(Q1):”Find all the documents

were uploaded by

employee named David.”

Using the Document Management Ontology

given in Figure 1, we can recognize the ontological

concepts Document, Employee and the ontological

individual “David” of the ontological class

Employee from the query.

After recognizing ontological concepts and

individuals in a query, we will map them into the

corresponding concept nodes in the final CG. To do

this, the following heuristic rules are used:

 An ontological individual will be mapped as an

individual referent.

 An ontological concept will be mapped as a

query referent if there is no individual of this

concept recognized in the query.

Therefore, for the query (Q1), the individual of

“David” will be mapped as an individual referent.

Between the two ontological concepts Document

and Employee, we only preserve the concept

Document as a query referent since the concept

Employee has the corresponding individual (i.e.

“David”) found in the query.

Handling Imprecise Information. Note that when

constructing domain ontology, the ontology engineer

can define an ontology vocabulary that helps to

recognize different keywords that may be relevant to

certain ontological concepts and individuals. For

example, the ontology engineer may define that the

concept Document may be referred to by some

linguistic terms such as document, announcement,

article, report, file, etc. Thus, if the natural query is

changed to another form like “Which the files David

was uploaded?” the same ontological concepts and

individuals will be recognized.

3.2 Relation Construction

In this step, we construct the relations between these

concept nodes. First, for each pair of query referent

and individual referent identified, we find a path

between the corresponding ontological concepts in

the conceptual schema of the domain ontology.

Then, we unify all the paths to form the final CG-

based query.

For example, in query (Q1), there is one query

referent of Document and one individual referent of

Employee identified. The corresponding path

between these concepts in the Document

Management Ontology is given in Figure 4, which is

also the final CG-based query generated.

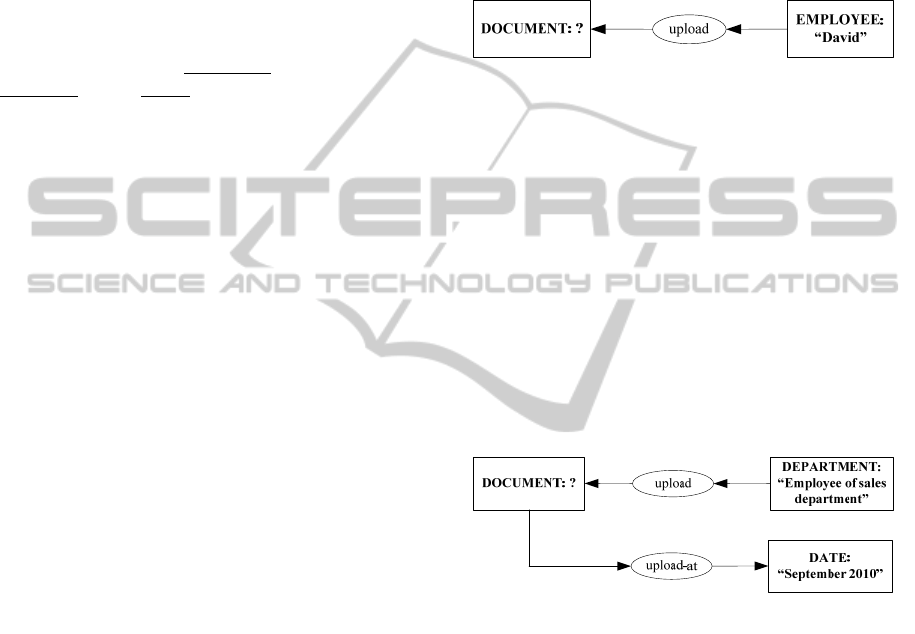

Figure 4: CG-based query generated from query (Q1).

Handling Incomplete Information. Consider the

following query:

(Q3):”What did the employees of sales

department upload at the month September 2010?”

There are two individual referents Department

and Date identified. Figure 5 shows the path

between these concepts in the Document

Management Ontology, and the corresponding CG-

based query. Note that in the identified path, an

additional concept Document, which is mapped as a

query referent in the CG, is also created. In other

words, incomplete information of “Document”

concept is automatic detected and retrieved when the

CG is constructed.

Figure 5: CG-based query generated from query (Q3).

3.3 Uncertainty Resolution

When parsing natural query, it is sometimes difficult

to be certain about the concepts and individuals

associated with a keyword, even when the ontology

vocabulary is used. Here, we discuss some strategies

that can be used to handle such uncertainties.

Multiple Individuals of the Same Ontological

Concept. In such case, we can just simply generate a

single node corresponding to these individuals. For

example, in the following query:

(Q4):“Find documents are doc or docx format.”

There are two individuals doc and docx of the

same concept format identified. Figure 6 shows the

final CG-based query.

SEMANTIC-LITE RETRIEVAL ON IMPRECISE AND INCOMPLETE NATURAL QUERIES USING CONCEPTUAL

GRAPHS

265

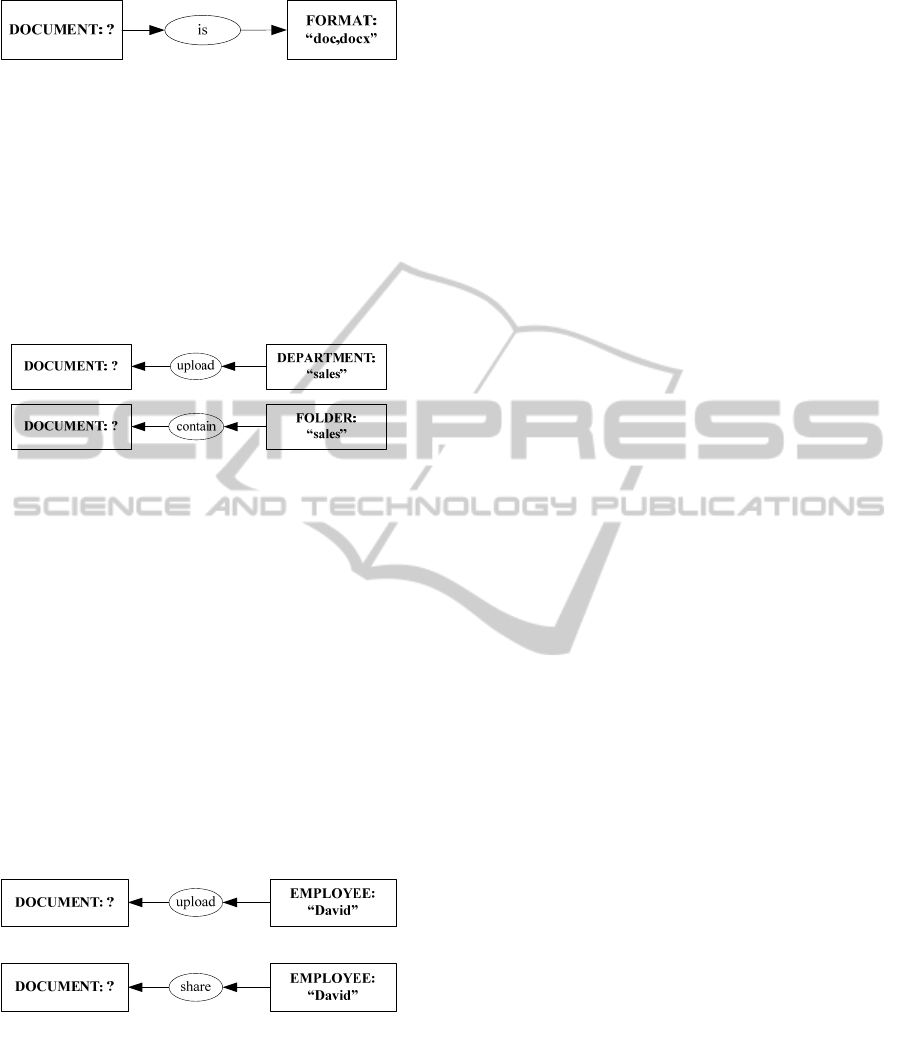

Figure 6: The CG-based query for query (Q4).

Multiple Concepts of the Same Keyword/Phrase.

Our solution to this problem is to consider all the

generated CG-based queries. For example, in the

following query:

(Q4):“Find documents were stored in sales.”

There are two CG-based queries generated as

shown in Figure 7. Obviously, the results obtained

when processing these queries should be relevant to

the request from users.

Figure 7: The CG-based queries for query (Q4).

Multiple Paths of the Same Pair of Query/Individual

Referents. In such case, we will select the most

reasonable path whose relation nodes are most

similar to the query keywords. For example, in the

following query:

(Q5):“Find reports of employee David.”

In the Document Management Ontology, there

are two possible paths between the concepts

Document and Employee, as depicted in Figure 8a

and Figure 8b. However, the term of in the query

should be relevant to the ontology vocabulary

defined for the ontological relation upload in the

Document Management Ontology. Thus, the first

path, i.e. the path depicted in Figure 8a, should

prevail and be selected as the appropriate CG-based

query for the given query.

(a) First path

(b) Second path

Figure 8: Two paths identified for query (Q5).

4 EXPERIMENTAL RESULTS

In this section, we present an initial experiment to

evaluate the effectiveness of the proposed ontology-

based approach for natural query retrieval. In the

experiment, we construct a simple Document

Management System from the working information

system of the EVietSoft company, a professional

software development company (http://

www.evietsoft.net/GCMS.aspx).

The company has some the departments follows

director’s office, business department, technical

department, accounting department, etc. The director

department has the most powerful and controls all

the others of company. Similarly, the senior

departments will manage the junior department base

on roles and permissions. We developed a plug-in

into the current system allowing users to submit

natural queries according to their working

requirement. Table 1 gives the most common natural

queries submitted by the company staff.

We have also compared the performance of our

approach with other typical information retrieval

(IR) techniques in terms of typical IR measures like

recall, precision and F-measure, using the same

query set as depicted in Table 1. Two techniques are

used for comparison. The first technique applies the

typical tfidf vector-space-model (VSM) to retrieve

information from the input queries. In the second

technique, we first cluster the data before applying

the VSM for retrieval. Since the data are multi-

dimensional and the queries are multi-objective, the

multi-clustering technique (Quan, Hui and Fong,

2003) is adopted here. Table 2 presents the

performance comparison of the different techniques

based on recall, precision and F-measure.

As can be seen in Table 2, when combined with

the multi-clustering technique, the performance of

the VSM-based retrieval technique has been

improved significantly in terms of both recall and

precision. It is because when data are clustered using

the multi-clustering technique, information can be

represented better in clusters, thereby enhancing the

retrieval performance. As compared to the VSM-

based multi-clustering technique, the precision

obtained by the CG-based query processing method

is slightly lower. However, the recall is better since

if the CG-based queries are generated precisely, the

retrieval performance can achieve with almost

absolute accuracy. As a result, the CG-based query

processing technique has achieved the best

performance in terms of the F-measure.

5 CONCLUSIONS

This paper has proposed an ontology-based

approach for natural query retrieval using conceptual

graphs. We have applied the proposed approach for

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

266

Table 1: Examples of common natural queries.

1. Find all documents of Peter employee

2. Find all documents are pdf format

3. Show me some reports of sales department contain

the keywords "financial statement"

4. Documents of accounting department were uploaded

in 2010

5. Search any documents of sales department are "excel

2003" and pdf format

6. I want to find any documents that I can download

7. Look up the documents are "word 2007" format in

my Announcements folder

8. Look up all of documents that people has staff role

can download

9. I want to read the software instruction manuals of

technical department

10. Find the folders were created on 06-18-2010

11. Search all documents are less than "1 Mb" and are

word or pdf format

12. Which the documents were created in "February

2010" that the employees of financial department can

be deleted and viewed?

13. Which the documents are pdf format that Peter

shares with me in Public folder?

14. The employees have the manageable role can

download or delete the documents

15. List all of the documents were uploaded from 01-

20-2010 to 09-20-2010 and are excel format

16. Search any documents in Report folders have the

size from "500 Kb" to "1.5 Mb"

17. James was sent the announcements to sales

department in October?

18. I want to download the documents of sales,

accounting and financial department

19. List the folders I have created after "Jan 2010"

20. Show me the documents that contain the keywords

"computer science" belong to "Plans" folder

21. Find all of the folders have the size are less than "5

Mb" and are created in September 2010

22. Find the documents of technological department

were uploaded at 11-16-2010 contain the keyword

"ontology"

23. The head of sales department shares the documents

between everyone works for accounting department

24. Which the documents technological department can

be download from "May 2009" to "May 2010"

25. Which the documents employees of financial

department can be view or share in "Financial

Department's Public Documents" folder

26. Find any documents are .doc or .docx format and its

sizes are more than "1.2 Mb"

27. Which the folders sales department was created

from "January 2010" to "December 2010" and more

than "8 Mb"

28. David employee uploaded the documents contains

the keywords "conceptual graph"

29. Which the documents of sales department that the

head of financial department can be view?

30. The documents are docx format, upload from 01-

10-2010 to 10-10-2010 and Peter share it with me

Table 2: Performance comparison on retrieval.

Techniques Recall Precision F-measure

Vector-space-

model (VSM)

78% 87% 82%

VSM + Multi-

clustering

92% 94% 93%

CG-based

Queries

98% 93% 95%

the retrieval of information in document

management system. The initial experimental results

have shown that our proposed approach is capable of

handling effectively most of the typical search

requests in natural language. By avoiding using a

fixed grammar and making use of a domain

ontology, our approach can handle the problem of

imprecise and incomplete information. In addition,

minor grammatical errors, which may probably

occur in queries submitted casually by users in many

practical situations, can also be tolerated reasonably.

ACKNOWLEDGEMENTS

This research project is funded by University of

Nguyen Tat Thanh, Ho Chi Minh City, Vietnam We

are also grateful for the technical helps of the EViet

software company in terms of hosting services and

experimental data provided.

REFERENCES

Androutsopoulos, I., Ritchie, G. D. and Thanisch, P.

(1995). Natural Language Interfaces to Databases: An

Introduction. Journal of Natural Language

Engineering, 1(1), 29-81.

Berners-Lee, T., Hendler, J. and Lassila, O. (2001).

The Semantic Web. Scientific American. Retrieved

May 17, 2001 from

http://www.scientificamerican.com/article.cfm?id=the-

semantic-web

Cimiano, P., Haase, P., Sure, Y., Völker, J. and Wang, Y.

(2006). Question answering on top of the BT digital

library. ACM Publisher, In Proceedings of the 15th

International Conference on World Wide Web,

861-862. doi:10.1145/1135777.1135915

Frost, A. R. and Fortier R. J. (2007). An Efficient

Denotational Semantics for Natural Language

Database Queries. Springer-Verlag, In Proceedings of

the 12th International Conference on Applications of

Natural Language to Information, 4592, 12-24.

doi:10.1007/978-3-540-73351-5_2

Guarino, N. and Giaretta, P. (1995). Ontologies and

Knowledge Bases - Towards a Terminological

Clarification. IOS Press, Toward Very Large

SEMANTIC-LITE RETRIEVAL ON IMPRECISE AND INCOMPLETE NATURAL QUERIES USING CONCEPTUAL

GRAPHS

267

Knowledge Bases: Knowledge Building and

Knowledge Sharing, 25-32.

IntraText Digital Library, Available at:

http://www.intratext.com/CERCA/Aiuto.htm.

Kang, I. S., Na, S. H., Lee, J. H. and Yang, G. (2004).

Lightweight Natural Language Database Interfaces.

Springer-Verlag, In Proceedings of the 9th

International Conference on Applications of Natural

Language to Information, 3136, 167-187.

doi:10.1007/978-3-540-27779-8_7

Kim, S. S., Myaeng, S. H. and Yoo, J. M. (2005). A

Hybrid Information Retrieval Model Using Metadata

and Text. Springer-Verlag, In Proceedings of the 8th

International Asian Digital Libraries Conference.

3815, 232-241. doi:10.1007/11599517_27

Lim, E. P. and Sun, A. (2006). Web Mining - The

Ontology Approach. In Proceedings of the

International Advanced Digital Library Conference.

Pham, T. D. (2000). Computing with Words in Formal

Methods. John Wiley & Sons, International Journal of

Intelligent Systems, 15(8), 801-810. doi:10.1002/1098-

111X(200008)15:8<801::AID-INT7>3.0.CO;2-Z

Quan, T. T., Hui, S. C., Fong, A. C. M. and Cao, T. H.

(2006). Automatic fuzzy ontology generation for

Semantic Web. IEEE Transactions on Knowledge and

Data Engineering, 18(6), 842-856.

doi:10.1109/TKDE.2006.87

Quan, T. T., Hui, S. C. and Fong, A. C. M. (2003). Mining

multiple clustering data for knowledge discovery.

Springer-Verlag, In Proceedings of the Discovery

Science Conference, 2843, 452-459. doi:10.1007/978-

3-540-39644-4_45

Saracevic, T. and Dalbello, M. (2001). A Survey of Digital

Library Education. In Proceedings of the American

Society for Information Science and Technology, 38,

209-223.

Shady, S., Karray, F. and Kamel, M. (2007). Enhancing

text retrieval performance using conceptual

ontological graph. In Proceedings of the 6th IEEE

International Conference on Data Mining, 39-44.

doi:10.1109/ICDMW.2006.71

Sowa, J. F. (1997). Matching logical structure to linguistic

structure. Houser N., Roberts D.D. and Van EvraJ.

(Eds): Studies in the Logic of Charles Sanders Peirce,

Indiana University Press, 418-444.

Storey, V. C., Sugumaran V. and Burton-Jones A. (2004).

The Role of User Profiles in Context-Aware Query

Processing for the Semantic Web. Springer-Verlag, In

Proceedings of the 9th International Conference on

Applications of Natural Language to Information,

3136, 45-62. doi:10.1007/978-3-540-27779-8_5

Varadarajan, R. and Hristidis, V. (2006). A system for

query-specific document summarization. ACM

Publisher, In Proceedings of the 15th ACM

international conference on Information and

knowledge management, 622-631.

doi:10.1145/1183614.1183703

ICSOFT 2011 - 6th International Conference on Software and Data Technologies

268
