RIGHT MOUSE BUTTON SURROGATE ON TOUCH SCREENS

Jan Vanek and Bruno Jezek

Faculty of Military Health Sciences, University of Defence, Trebesska 1575, 50002 Hradec Kralove, Czech Republic

Keywords: Right mouse button, Touch screen, Gesture, Statistics.

Abstract: The pervasiveness of computer systems is largely determined by their ease of use. Touch screens have

proven to be a natural interface with a strong sensorimotor feedback. Although multi-touch technologies are

ever more popular, single-touch screens are still often preferred. They are cheaper and they map directly to

pointing devices such as computer mice, thus requiring no software modifications. Therefore, they can

easily be integrated into existing systems with WIMP interfaces, e.g. MS Windows based systems.

Applications in such systems often rely on user pressing the right mouse button to open context menus etc.

Since single-touch screens register only one touch at a time, different methods are being used to allow a user

to determine the outcome of the touch. The paper proposes a new interaction scheme for this purpose and an

algorithm to detect it.

1 INTRODUCTION

A significant performance increase and new

discoveries in the field of computer technologies and

electronics bring great advancements also in the area

of human-computer interaction (HCI). New and old

user interface modalities, which complement the

long established and widespread WIMP interface

(Windows, Icons, Menus, Pointing device) (Anthes,

2008) (Taylor, 1997), are being employed in real

life. If implemented correctly, multimodal

interaction can improve user interface efficiency and

lead to greater work effectivity (Raisamo, 1999).

Devices that combine a display unit with a touch

sensor are a rediscovered input modality, which,

thanks also to its commercial availability, is gaining

momentum in the field of HCI. All such devices will

be referred to as touch screens in the following text.

Touch screens convey a direct bond between

displayed information and haptic interaction and

thus are very intuitive and close to lowest level

sensorimotor processes, which has manifested not

only in human psychology research (for example

(McGuire et al., 2000), (Weber et al., 2003) and

others), but also in animal behaviour experiments

(for example (Conway & Christiansen, 2001),

(Hashiya & Kojima, 1997) and many others). The

popularity of touch screens is also due to their

hardware, software and functional compatibility

with computer mice, which significantly simplifies

their application to areas, where information

technology with typical user interfaces is already

being extensively used.

Today, common WIMP user interfaces depend in

much functionality (context menu, extended object

manipulation) on input from an at least two button

mouse. However, most of the touch screen

technologies allow only one touch to be registered.

This article proposes a new method of right mouse

button press emulation on touch screens for some

touch screen technologies and its implementation.

2 TOUCH SCREENS

Although touch screens got major commercial

attention in past several years their history is rather

long. The first touch screen was developed by Sam

Hurst in Elographics in 1971 (Ellis, 2007), the first

personal computer equipped with a touch screen was

launched to market by Hewlet Packard in 1983

(Knight, 2007). Since that time touch screens have

found a wide range of application including

information kiosks, register desk systems,

educational presentation boards and a large class of

mobile digital devices.

Several technologies and physical principles are

used to detect touch. Resistive and capacitive touch

screens are the most widespread, as they are robust,

adequately sensitive and have low production costs.

304

Vanek J. and Jezek B..

RIGHT MOUSE BUTTON SURROGATE ON TOUCH SCREENS.

DOI: 10.5220/0003504803040309

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 304-309

ISBN: 978-989-8425-56-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Other technologies include strain gauging, surface

acoustic wave, optical imaging and frustrated total

internal reflection.

In many touch screen usage cases individual

applications have their user interface tailored to the

given task and touch interaction. Especially

technologies that register multiple simultaneous

touches and thus cannot have their output mapped to

a pointing device require user interfaces to be

designed with respect to that (Buxton, 2011)

(Nichols, 2007). However, touch screens are often

employed as a mouse compatible complement to a

personal computer with general, unspecified use.

This includes already widespread presentation and

education screens such as SmartBoard, but also

special industrial solutions, such as the Interactive

Mural touch wall (Guimbretière, Stone, &

Winograd, 2001). Such kind of a setup then runs a

variety of applications in a WIMP user interface of

some operating system, usually MS Windows.

As mentioned in the introduction, many user

activities in a WIMP interface involve a right mouse

button press. The most prevalent touch screen

technologies, however, interpret touch only as a

single left mouse button press. Therefore, different

methods are being used to emulate the missing right

mouse button on touch screens in general

applications.

3 RIGHT MOUSE BUTTON

SURROGATE

Basically two methods are being used to surrogate

the right mouse button on touch screens. Following

the first method, usually called tap&hold, a user

maintains touch for at least the set time period, after

which the touch is interpreted as a right mouse

button pressed and released event. A short time

period can cause frequent false alarms, i.e. incorrect

touch interpretation as a right mouse button press

user did not intend. On the other hand, a longer time

period increases the delay before following activities

and also amplifies motoric strain, especially on large

touch boards.

Second class of methods requires the user to

notify the system before the intended right mouse

button press. Individual implementations can differ;

some manufacturers solve the problem at the

software level – user touches some object displayed

on screen; other solutions include physical button

placed near the touch screen. This method, even

more than tap&hold, hinders users in their work and

causes grater strain from repetitive movements. This

is prominent especially on large touch boards in

combination with a physical button.

From the construction of resistive touch screens

it is possible to infer that multiple simultaneous

touches will be interpreted as a single touch in the

centre of pressure. This assumption was empirically

verified on several resistive and capacitive

technology devices from different manufacturers.

The assumption leads to the new right mouse

button substitution method proposed in the paper.

The intended right mouse button press is indicated

by sequentially simultaneous touch of two fingers.

The user touches the desired point with her index

finger, maintains the touch and simultaneously

presses and releases her middle finger in adequate

distance and, finally, releases her index finger. The

first touch sets coordinates to the desired point. The

increasing pressure from the second finger causes

the coordinates to move towards the point of the

second touch. The movement stops when the

pressure is maximal and after that coordinates move

back to the desired point. See figure 1. After the first

finger is released, respectively after coordinates

reach the desired point, the touch is interpreted as a

right mouse button click, respectively as a right

mouse button press.

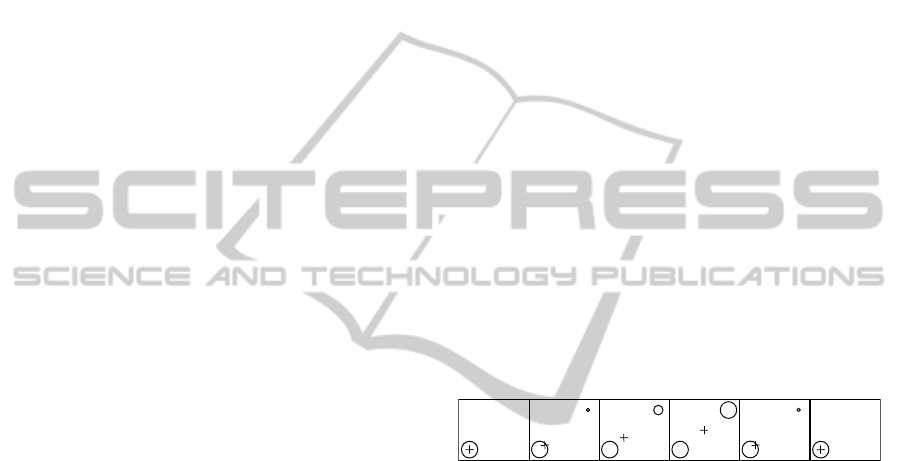

Figure 1: Coordinates movement caused by second touch,

pressure illustrated by circle diameters.

The described semantic assignment of the index

and middle finger is natural and intuitive (the fingers

usually operate left and right mouse button), but the

proposed method does not depend on it; any two

fingers of one or both hands in any order can be

used. The important thing is the sequence press first

– press second – release second – release first.

The proposed interaction scheme may be

detected directly in hardware based on the used

technology, but it can also be done based solely on

the inferred coordinates.

3.1 Implementation

Since the proposed interaction scheme can be

evaluated from coordinates, the method can be

implemented in software independently of the touch

screen hardware. The captured coordinates,

interpreted by the operating system as mouse

coordinates, change in time when second touch

occurs. The resulting path, which is sampled into

RIGHT MOUSE BUTTON SURROGATE ON TOUCH SCREENS

305

linear segments, can be considered a single-stroke

gesture and as such it can be processed and

evaluated.

There are a number of different approaches to

gesture recognition. Some authors use purely

geometrical algorithms (Hammond & Davis, 2006)

(Wobbrock, A. D. Wilson, & Li, 2007), some

construct ad-hoc algorithms (Notowidigdo & Miller,

2004) (A. Wilson & Shafer, 2003), sometimes based

on very simple principles (Lank, Thorley, & Chen,

2000); other approaches employ image analysis

(Kara, 2004) or neural networks (Pittman, 1991).

Rather complicated methods use dynamic

programming (Myers & Rabiner, 1981) (Tappert,

1982) or hidden Markov models (Anderson, Bailey,

& Skubic, 2004) (Cao & Balakrishnan, 2005)

(Sezgin & Davis, 2005). Probably the most cited

works are based on statistical feature classification

(Cho, Oh, & Lee, 2004) (Cho, 2006), with the best

known being (Rubine, 1991).

The gesture resulting from the second touch can

certainly be detected using some of the existing

gesture recognition algorithms. However, the

general algorithms are not optimal for this specific

task. They are used mostly in environments, where

gestures are initiated modally with a predefined

indication. Therefore, the algorithms are built on the

premise that the input path is a gesture and thus only

solve the task of differentiation between known

gestures. The problem of gesture recognition within

a set of movements with varying user intentions is in

most of the algorithms considered only marginally,

if at all. The proposed method, however, requires

evaluation of movements for which it is not known

whether the user is attempting to perform the gesture

or not. The implementation of the method must

facilitate this detection.

Because the gesture attempt is indicated in

advance, most of the algorithms work with the

complete gesture. That does not allow for right

mouse button drag&drop operation using the

proposed interaction scheme. In order to facilitate

on-the-fly movement processing the proposed

method implementation must allow for sequential

mouse coordinates path evaluation with constant

computational complexity per segment.

For these reasons we have designed an algorithm

optimized for the described gesture, which is

computationally efficient and can be applied on-the-

fly with constant time with respect to the number of

already processed segments.

3.2 The Algorithm

The algorithm was designed based on data acquired

on a for-wire resistive touch screen ADI V-Touch

1710. The driver of the display maps touch to

system mouse coordinates. To record the data we

created software that with frequency of 64Hz using

DirectInput interface in non-exclusive background

mode captures mouse coordinates. The data was

recorded per individual complete gestures derived

from touch press, movement and release. Each

gesture vertex is described by absolute screen

coordinates in pixels and time in milliseconds that

passed since the previous vertex was recorded.

400 reference gestures were recorded by several

users. The gestures were performed to follow the

proposed interaction scheme. The gestures

originated at randomly selected locations distributed

across the whole screen so that the influence of

eventual local touch screen irregularities was

eliminated. The same set of locations was used by

all the users.

Figure 2 shows the first and third reference

gesture plotted in absolute pixel coordinates.

Segment vertices are complemented with time in

milliseconds that passed since the start of the

gesture. It is clear that the algorithms that use vertex

data directly are not suitable for the task. Gestures

do not correspond in either number of segments,

screen-space location, size, rotation or even in

topology.

A new variable, which is invariant to rigid affine

transformations, can be derived from the screen

coordinates. Let us denote the variable by C. Let us

set c

= c

= 1. For i = 3,…, n let us set

(

)

(

)

(

)( )

()( )

211211

−−−−−−

−+−−+−

−−

−

iiiiiiii

yyxxyyxx

yyyyxxxx

(1)

In other words, C = cos(Φ), where φ

is the angle

between direction vectors of i-1 and i-2 segments

(see figure 3) and n is the number of gesture

segment vertices.

In order to compare a gesture to the reference

ones, gestures have to be described by a fixed set of

attributes. The reference gestures exhibit several

characteristic features, as figure 2 suggests. That can

be taken advantage of and each gesture can be

described by a vector of the characteristic features.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

306

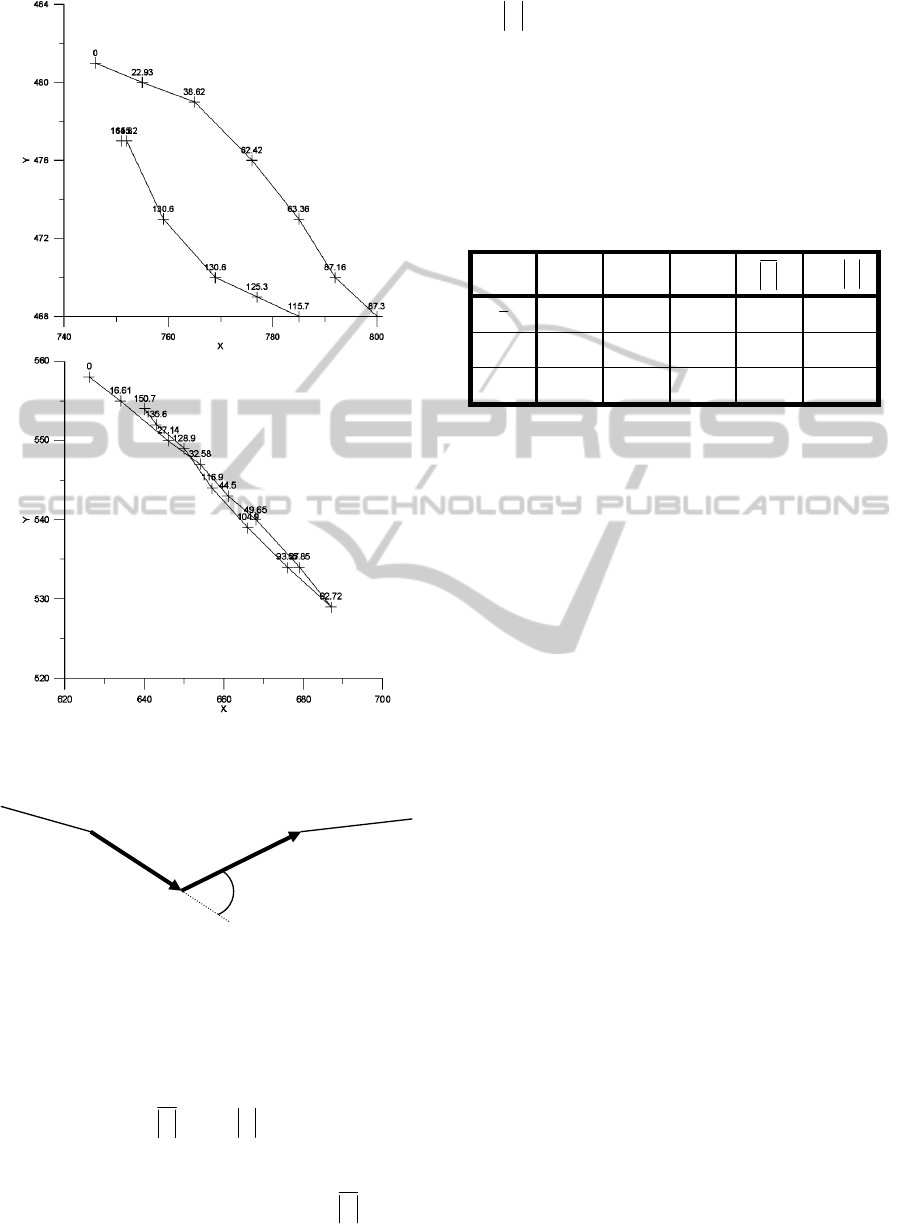

Figure 2: Example of reference gesture plots at absolute

pixel coordinates.

Figure 3: Angle between two segments.

The most prominent feature of the reference

gestures is exactly one occurrence of point of return,

i.e. exactly one negative value of variable C. Each

gesture with exactly one point of return is then

described by selected characteristic features in the

vector (N, T

, L

, min(

)), where N is the

number of vertices of gesture segments, T

is the

normalized time of point of return, L

is the

normalized length at the point of return,

is the

average of absolute values of variable C and

min(

) is the minimum of absolute values of

variable C. Table 1 shows vectors of sample means,

standard deviations and coefficients of variation of

the selected features of the reference gestures. The

coefficients of variation suggest that the selected

features describe the reference gestures tightly

enough.

Table 1: Sample statistics of the selected features of the

reference gestures.

Statistic N T

min(

)

12.306 0.731 0.647 0.986 0.907

s 3.244 0.119 0.088 0.019 0.151

CV 0.264 0.162 0.135 0.020 0.166

The main output of the proposed algorithm is the

decision whether the input gesture should be

interpreted as a result of the proposed touch scheme

or not, i.e. as user’s indication of an intended right

mouse button press. The vector of sample means of

the reference gestures will serve as an etalon, to

which input gestures are compared using a suitable

distance metric. Mahalanobis distance was used, as

it takes into account the differences in feature

variances and the correlations of features.

To determine a suitable distance threshold all

mouse movements with the left mouse button

pressed were recorded on several users’ computers

within the course of one working day. These

gestures are equivalent to gestures that do not result

from the proposed interaction scheme, i.e. all the

touches that are not intended as a right mouse button

press following the proposed method. These

movements will be referenced as random gestures in

the following text. 4052 gestures were recorded in

total.

The distance threshold is selected so that both

the probability of intended gesture rejection and the

probability of random gesture acceptance are

reasonably low. Table 2 shows an example of

distance thresholds, out of which the threshold of 6

gives the best results for the recorded data. This way

the numbers of incorrectly evaluated gestures reach

circa 2% of the recorded gestures in each category.

The optimal threshold can be calculated by

minimizing the disparity between the percentages of

incorrectly classified reference and random gestures,

but such precision would be superfluous considering

the fact that each user may prefer different

recognition sensitivity.



i-2

; y

i-2

]

i-1

; y

i-1

]

; y

]

RIGHT MOUSE BUTTON SURROGATE ON TOUCH SCREENS

307

Table 2: The numbers of reference gestures with distances

from etalon exceeding example thresholds and random

gestures with exactly one point of return and with

distances below the thresholds.

Threshold

Ref

> threshold D

Rand

≤ threshold

2 175 1

4 36 22

6 8 101

8 2 190

10 1 258

12 0 326

4 RESULTS AND CONCLUSIONS

The algorithm was implemented as a prototype using

DirectInput API to read coordinates in background.

The resulting application was tested on a resistive

touch display ADI V-Touch 1710, capacitive touch

display NEC V-Touch 1921 CU and resistive touch

wall SmartBoard 540. Computational load was

immeasurable on all the computer setups. Gesture

detection error rate and its dependence on the

distance threshold corresponded to expectations. The

touch wall produced high noise in the recorded data,

which caused frequent points of return and gesture

rejection with segment lengths close to one or two

pixels. To remove the noise a segment was recorded

only after it reached a defined minimal length. The

minimal length of four pixels yielded results

equivalent to those on the displays.

To assess the efficiency of the proposed method

of right mouse button surrogate and its comparison

to the tap&hold method, software button method and

hardware button method an experiment was

designed, in which users react to a series of

graphical symbols with either left or right virtual

mouse button press in dependence on the currently

displayed symbol. Expected type of reaction,

reaction time and the number of corrections are

recorded in the course of the task.

For technical, organizational and economic

reasons the experiment is yet to be performed on a

statistically significant sample of users. Thorough

analysis of the method impact on user performance

thus remains future work. However, preliminary

tests taken by a limited number of users suggest the

potential of the method especially in comparison

with the button methods. The tests also show that the

method requires some dexterity and practice, but

that the touch interaction scheme is intuitive.

The proposed method of right mouse button

surrogate on touch screens is a sound alternative to

other existing methods in use, but it is not intended

as a complete replacement. The described detection

algorithm of the proposed touch interaction scheme

is computationally efficient and easy to implement

and therefore it can be integrated both into the

software driver and the firmware of the underlying

touch screen hardware.

ACKNOWLEDGEMENTS

This work was supported by the Ministry of Defence

research project MO0 FVZ0000604.

REFERENCES

Anderson, D., Bailey, C., & Skubic, M. (2004). Markov

Model Symbol Recognition for Sketch-Based

Interfaces. Proceedings of AAAI Fall Symposium (pp.

15-21). Presented at the AAAI Fall Symposium,

Menlo Park, CA: AAAI Press.

Anthes, G. (2008). Give your computer the finger: Touch-

screen tech comes of age - Computerworld. Retrieved

February 16, 2011, from http://www.computerworld.

com/s/article/9058841/Give_your_computer_the_finge

r_Touch_screen_tech_comes_of_age

Buxton, B. (2011). Multi-Touch Systems that I Have

Known and Loved. Multi-Touch Systems that I Have

Known and Loved. Retrieved February 16, 2011, from

http://www.billbuxton.com/multitouchOverview.html

Cao, X., & Balakrishnan, R. (2005). Evaluation of an on-

line adaptive gesture interface with command

prediction. Proceedings of Graphics Interface 2005

(pp. 187-194). Victoria, British Columbia: Canadian

Human-Computer Communications Society.

Conway, C. M., & Christiansen, M. H. (2001). Sequential

learning in non-human primates. Trends in Cognitive

Sciences, 5(12), 539-546.

Ellis, N. (2007). Sam Hurst Touches on a Few Great Ideas.

Berea College Magazine, 77(4), 22-27.

Guimbretière, F., Stone, M., & Winograd, T. (2001). Fluid

interaction with high-resolution wall-size displays.

Proceedings of the 14th annual ACM symposium on

User interface software and technology, UIST ’01 (p.

21–30). New York, NY, USA: ACM.

Hammond, T., & Davis, R. (2006). Tahuti: a geometrical

sketch recognition system for UML class diagrams.

ACM SIGGRAPH 2006 Courses, SIGGRAPH ’06.

New York, NY, USA: ACM.

Hashiya, K., & Kojima, S. (1997). Auditory-visual

Intermodel Matching by a Chimpanzee (Pan

troglodytes). Japanese Psychological Research, 39(3),

182-190.

Cho, M. G. (2006). A new gesture recognition algorithm

and segmentation method of Korean scripts for

gesture-allowed ink editor. Information Sciences,

176(9), 1290-1303.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

308

Cho, M. G., Oh, A. S., & Lee, B. K. (2004). A Feature-

Based Algorithm for Recognizing Gestures on

Portable Computers. Computational Science and Its

Applications – ICCSA 2004, Lecture Notes in

Computer Science (Vol. 3043, pp. 33-40). Springer

Berlin / Heidelberg.

Kara, L. B. (2004). An Image-Based Trainable Symbol

Recognizer for Sketch-Based Interfaces. Proceedings

of AAAI Fall Symposium (Vol. 2, pp. 99-105).

Presented at the AAAI Fall Symposium, Menlo Park,

CA: AAAI Press.

Knight, M. (2007). In touch with the digital age. Retrieved

February 16, 2011, from http://edition.cnn.com/2007/

TECH/07/27/fs.touchscreen/index.html

Lank, E., Thorley, J. S., & Chen, S. J.-S. (2000). An

interactive system for recognizing hand drawn UML

diagrams. Proceedings of the 2000 conference of the

Centre for Advanced Studies on Collaborative

research (p. 7). Mississauga, Ontario, Canada: IBM

Press.

McGuire, M., Bakst, K., Fairbanks, L., McGuire, M.,

Sachinvala, N., von Scotti, H., & Brown, N. (2000).

Cognitive, mood, and functional evaluations using

touchscreen technology. The Journal of Nervous and

Mental Disease, 188(12), 813-817.

Myers, C. S., & Rabiner, L. R. (1981). A Comparative

Study Of Several Dynamic Time-Warping Algorithms

For Connected Word Recognition. The Bell System

Technical Journal, 60(7), 1389-1409.

Nichols, S. J. V. (2007). New Interfaces at the Touch of a

Fingertip. Computer, 40, 12–15.

Notowidigdo, M., & Miller, R. C. (2004). Off-Line Sketch

Interpretation. Proceedings of AAAI Fall Symposium

(Vol. 2, pp. 120-126). Presented at the AAAI Fall

Symposium, Menlo Park, CA: AAAI Press.

Pittman, J. A. (1991). Recognizing handwritten text.

Proceedings of the SIGCHI conference on Human

factors in computing systems: Reaching through

technology, CHI ’91 (p. 271–275). New York, NY,

USA: ACM.

Raisamo, R. (1999). Multimodal Human-Computer

Interaction: a Constructive and Empirical Study

(Dissertation). University of Tampere, Tampere.

Rubine, D. (1991). Specifying gestures by example. ACM

SIGGRAPH Computer Graphics (Vol. 25, p. 329–

337). New York, NY, USA: ACM.

Sezgin, T. M., & Davis, R. (2005). HMM-based efficient

sketch recognition. Proceedings of the 10th

international conference on Intelligent user interfaces,

IUI ’05 (p. 281–283). New York, NY, USA: ACM.

Tappert, C. C. (1982). Cursive script recognition by elastic

matching. IBM Journal of Research and Development,

26, 765–771.

Taylor, A. G. (1997). WIMP Interfaces (Topic Report No.

CS6751). Winter ’97. Atlanta, GA: Georgia Tech.

Retrieved from http://www.cc.gatech.edu/classes

/cs6751_97_winter/Topics/dialog-wimp/

Weber, B., Schneider, B., Fritze, J., Gille, B., Hornung, S.,

Kühner, T., & Maurer, K. (2003). Acceptance of

computerized compared to paper-and-pencil

assessment in psychiatric inpatients. Computers in

Human Behavior, 19(1), 81-93.

Wilson, A., & Shafer, S. (2003). XWand: UI for

intelligent spaces. Proceedings of the SIGCHI

conference on Human factors in computing systems,

CHI ’03 (p. 545–552). New York, NY, USA: ACM.

Wobbrock, J. O., Wilson, A. D., & Li, Y. (2007). Gestures

without libraries, toolkits or training: a $1 recognizer

for user interface prototypes. Proceedings of the 20th

annual ACM symposium on User interface software

and technology, UIST ’07 (p. 159–168). New York,

NY, USA: ACM.

RIGHT MOUSE BUTTON SURROGATE ON TOUCH SCREENS

309
