A CONTROLLED NATURAL LANGUAGE INTERFACE

TO CLASS MODELS

Imran Sarwar Bajwa

School of Computer Science, The University of Birmingham, Edgbaston, Birmingham, U.K.

M. Asif Naeem

Department of Computer Science,University of Auckland, Auckland, New Zealand

Ahsan Ali Chaudhri

Director of Academic Programs, Queens Academic Group, Auckland, New Zealand

Shahzad Ali

Department of Computer Science and Engineering, University of Electronic Science & Technology, Chengdu, China

Keywords: Natural Language Interface, Controlled Natural Language, Natural Language Processing, Class Model,

Automated Object Oriented Analysis, SBVR.

Abstract: The available approaches for automatically generating class models from natural language (NL) software

requirements specifications (SRS) exhibit less accuracy due to informal nature of NL such as English. In the

automated class model generation, a higher accuracy can be achieved by overcoming the inherent syntactic

ambiguities and semantic inconsistencies in English. In this paper, we propose a SBVR based approach to

generate an unambiguous representation of NL software requirements. The presented approach works as the

user inputs the English specification of software requirements and the approach processes input English to

extract SBVR vocabulary and generate a SBVR representation in the form of SBVR rules. Then, SBVR

rules are semantically analyzed to extract OO information and finally OO information is mapped to a class

model. The presented approach is also presented in a prototype tool NL2SBVRviaSBVR that is an Eclipse

plugin and a proof of concept. A case study has also been solved to show that the use of SBVR in automated

generation of class models from NL software requirements improves accuracy and consistency.

1 INTRODUCTION

In natural language (NL) based automated software

engineering, the NL (such as English) software

requirements specifications are automatically

transformed to the formal software representations

such as UML (Bryant, 2008) models. The automated

analysis of the NL software requirements is a key

phase in NL based automated software modelling

such as UML (OMG, 2007) modelling. In last two

decades, a few attempts have been made to

automatically analyze the NL requirement

specification and generate the software models such

as UML class models e.g. NL-OOPS (Mich, 196),

D-H (Delisle, 1998), RCR (Börstler, 1999), LIDA

(Overmyer, 2001), GOOAL (Perez-Gonzalez, 2002),

CM-Builder (Harmain, 2003), Re-Builder (Oliveira,

2004), NL-OOML (Anandha, 2006), UML-

Generator (Bajwa, 2009), etc. However, the accurate

object oriented (OO) analysis is still a challenge for

NL community (Denger, 2003), (Ormandjieva,

2007), (Berry, 2008). The main hurdle in addressing

this challenge is ambiguous and inconsistent nature

of NLs such as English. English is ambiguous

because English sentence structure is informal.

(Bajwa, 2007) Similarly, English is inconsistent as

majority of English words have multiple senses and

102

Bajwa I., Naeem M., Chaudhri A. and Ali S..

A CONTROLLED NATURAL LANGUAGE INTERFACE TO CLASS MODELS.

DOI: 10.5220/0003509801020110

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 102-110

ISBN: 978-989-8425-54-6

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

a single sense can be reflected by multiple words in

English.

In this paper, the major contribution is three

folds. Firstly, a Semantic Business vocabulary and

Rule (SBVR) (OMG, 2008) based approach is

presented to generate a controlled (unambiguous and

consistent) representation of natural language

software requirements specification. Secondly, we

report the structure of the implemented tool

NL2UMLviaSBVR that is able to automatically

perform object-oriented analysis of SBVR software

requirements specifications. Thirdly, a case study is

solved that was originally solved with CM-Builder

(Harmain, 2003) and the results of the case study are

compared with available tools (used for automated

OOA) to evaluate the NL2UMLviaSBVR tool.

Our approach works as the user inputs a piece of

English specification of software requirements and

the NL to SBVR approach generates SBVR (an

adopted standard of the OMG) (OMG, 2008) based

controlled representation of English software

requirement specification. To generate a SBVR

representation such as SBVR rule, first the input

English text is lexically, syntactically and

semantically parsed and SBVR vocabulary is

extracted. Then, the SBVR vocabulary is further

processed to construct a SBVR rule by applying

SBVR’s Conceptual Formalization (OMG, 2008)

and Semantic Formulation (OMG, 2008). The last

phase is extraction of the OO information (such as

classes, methods, attributes, associations,

generalizations, etc) from the SBVR’s rule based

representation.

The remaining paper is structured into the

following sections: Section 2 explains that how

SBVR provides a controlled representation to

English. Section 3 illustrates the architecture of

NL2UMLviaSBVR. Section 4 presents a case study.

The evaluation of our approach is presented in

section 5. Finally, the paper is concluded to discuss

the future work.

2 SBVR BASED CONTROLLED

NATURAL LANGUAGE

SBVR was originally presented for business people

to provide a clear and unambiguous way of defining

business policies and rules in their native language

(OMG, 2008). The SBVR based controlled

representation is useful in multiple ways such as due

to its natural language syntax, it is easy to

understand for developers and users. Similarly,

SBVR is easy to machine process as SBVR is based

on higher order logic (first order logic). We have

identified a set of characteristics of SBVR those can

be used to generate a controlled natural language

representation of English.

2.1 Conceptual Formalization

SBVR provides rule-based conceptual formalization

that can be used to generate a syntactically formal

representation of English. Our approach can

formalize two types of requirements: The structural

requirements can be represented using SBVR

structural business rules, based on two alethic modal

operators (OMG, 2008): “it is necessary that…” and

“it is possible that…” for example, It is possible that

a customer

is a member. Similarly, the behavioural

requirements can be represented using SBVR

operative business rule, based on two deontic modal

operators (OMG, 2008): “it is obligatory that …”

and “it is permitted that …” for example, It is

obligatory that a customer

can borrow at most two

books

2.2 Semantic Formulation

SBVR is typically proposed for business modeling

in NL. However, we are using the formal logic based

nature of SBVR to semantically formulate the

English software requirements statements. A set of

logic structures called semantic formulations are

provided in SBVR to make English statements

controlled such as atomic formulation, instantiate

formulation, logical formulation, quantification, and

modal formulation. For more details, we recommend

user SBVR 1.0 document (OMG, 2008).

2.3 Textual Notations

SBVR provides couple of textual notations.

Structured English is one of the possible SBVR

notations, given in SBVR 1.0 document, Annex C

(OMG, 2008), is applied by prefixing rule keywords

in a SBVR rules. The other possible SBVR notation

is Rulespeak, given in SBVR 1.0 document, Annex

F (OMG, 2008), uses mixfixing keywords in

propositions. Both SBVR formal notations typically

help in expressing the natural language propositions

with equivalent semantics that can be captured

and

formally represented as logical formulations.

A CONTROLLED NATURAL LANGUAGE INTERFACE TO CLASS MODELS

103

3 THE NL2UMLviaSBVR

This section explains how English text is mapped to

SBVR representation, object oriented analysis and

finally generation of a class model. The used

approach works in five phases (see figure 1):

• Processing natural language specification

• Extracting Business Vocabulary from NL text

• Generating Business Rules from business

vocabulary

• Performing object oriented analysis

• Generating UML Class models

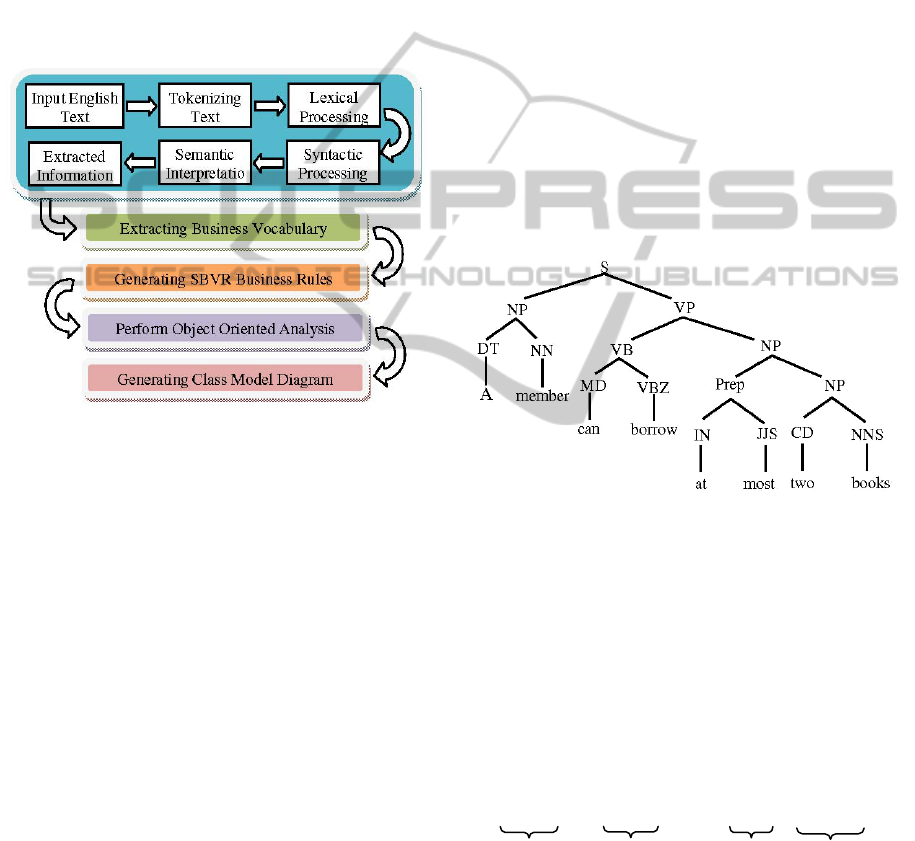

Figure 1: The NL2SBVR Approach.

3.1 Parsing NL Software Requirements

The first phase of NL2UMLviaSBVR is NL parsing

that involves a number of sub-processing units

(organized in a pipelined architecture) to process

complex English statements. The NL parsing phase

tokenizes English text and lexically, syntactically

and semantically processes the English text.

3.1.1 Lexical Processing

The NL parsing starts with the lexical processing of

a plain text file containing English software

requirements specification. The lexical processing

phase comprises following four sub-phases:

1. The input is processed to identify the margins of

a sentence and each sentence is stored in an

arraylist.

2. After sentence splitting, each sentence goes

through the tokenization. Tokenization works as

a sentence “A member can borrow at most two

books.” is tokenized as [A] [member] [can]

[borrow] [at] [most] [two] [books] [.]

3. The tokenized text is further passed to Stanford

parts-of- speech (POS) (Toutanova, 2000) tagger

v3.0 to identify the basic POS tags e.g. A/DT

member/NN can/MD borrow/VB at/IN most/JJS

two/CD books/NNS ./. The Stanford POS tagger

v3.0 can identify 44 POS tags.

4. The POS tagged text is further processed to

extract various morphemes. In morphological

analysis, the suffixes attached to the nouns and

verbs are segregated e.g. a verb “applies” is

analyzed as “apply+s” and similarly a noun

“students” is analyzed as “student+s”.

3.1.2 Syntactic Processing

We have used an enhanced version of a rule-based

bottom-up parser for the syntactic analyze of the

input text used in (Bajwa, 2009). English grammar

rules are base of used parser. The text is

syntactically analyzed and a parse tree is generated

for further semantic processing, shown in Figure 2.

Figure 2: Parsing English text.

3.1.3 Semantic Interpretation

In this semantic interpretation phase, role labelling

(Bajwa, 2006) is performed. The desired role labels

are actors (nouns used in subject part), co-actor

(additional actors conjuncted with ‘and’), action

(action verb), thematic object (nouns used in object

part), and a beneficiary (nouns used in adverb part)

if exists, (see figure 3). These roles assist in

identifying SBVR vocabulary and exported as an

xml file.

A member can borrow at most two books .

Actor Action Quantity Them. Object

Figure 3: Semantic interpretation of English text.

3.2 SBVR Vocabulary Extraction

The similar rules to extract SBVR vocabulary from

English text, we used in (Bajwa, 2011). We have

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

104

extended the rules to use in NL to UML translation

via SBVR. In NL to SBVR translation phase, the

basic SBVR vocabulary e.g. noun concept,

individual concept, object type, verb concepts, fact

type, etc are identified from the English input that is

preprocess in the previous phase. The extraction of

various SBVR elements is described below:

1. Extracting Object Types: All common nouns

(actors, co-actors, thematic objects, or

beneficiaries) are represented as the object types

or general concept (see figure 4) e.g. belt, user,

cup, etc. In conceptual modelling, the object

types are mapped to classes.

2. Extracting Individual Concepts: All proper

nouns (actors, co-actors, thematic objects, or

beneficiaries) are represented as the individual

concepts.

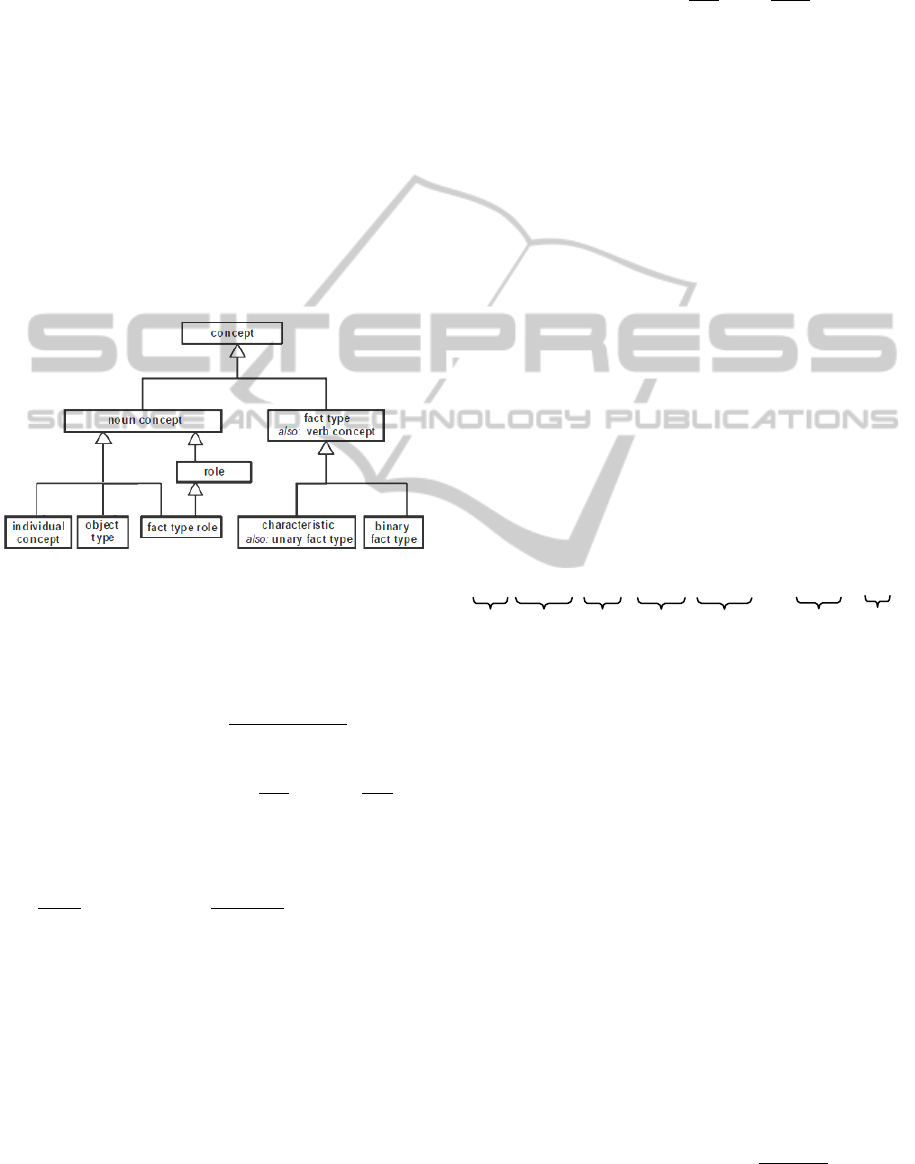

Figure 4: An extract of the SBVR metamodel: concepts.

3. Extracting Fact Types: The auxiliary and action

verbs are represented as verb concepts. To

constructing a fact types, the combination of an

object type/individual concept + verb forms a

unary fact type e.g. “vision system

senses”.

Similarly, the combination of an object

type/individual concept + verb + object type

forms a binary fact type e.g. belt

conveys part is a

binary fact type.

4. Extracting Characteristics: In English, the

characteristic or attributes are typically

represented using is-property-of fact type e.g.

“name

is-property-of customer”. Moreover, the

use of possessed nouns (i.e. pre-fixed by’s or

post-fixed by of) e.g. student’s age or age of

student is also characteristic.

5. Extracting Quantifications: All indefinite articles

(a and an), plural nouns (prefixed with s) and

cardinal numbers (2 or two) represent

quantifications.

6. Extracting Associative Fact Types: The

associative fact types (OMG, 2008) (section

11.1.5.1) (see figure 4) are identified by

associative or pragmatic relations in English text.

In English, the binary fact types are typical

examples of associative fact types e.g. “The belt

conveys the parts”. In this example, there is a

binary association in belt

and parts concepts.

This association is one-to-many as ‘parts’

concept is plural. In conceptual modeling of

SBVR, associative fact types are mapped to

associations.

7. Extracting Partitive Fact Type: The partitive fact

types (OMG, 2008) (section 11.1.5.1) (see

figure 4) are identified by extracting structures

such as “is-part-of”, “included-in” or “belong-to”

e.g. “The user puts two-kinds-of parts, dish and

cup”. Here ‘parts’ is generalized form of ‘dish’

and ‘cup’. In conceptual modeling of SBVR,

categorization fact types are mapped to

aggregations.

8. Extracting Categorization Fact Types: The

categorization fact types (OMG, 2008) (section

11.1.5.2) (see figure 4) are identified by

extracting structures such as “is-category-of” or

“is-type-of”, “is-kind-of” e.g. “The user puts two-

kinds-of parts, dish and cup”. Here ‘parts’ is

generalized form of ‘dish’ and ‘cup’. In

conceptual modeling of SBVR, categorization

fact types are mapped to generalizations. All the

extracted information shown in figure 5 is stored

in an arraylist for further analysis.

A member can borrow at most two book s

Quant. Noun Modal Verb Quant. Object Quant

Concept Verb Concept Type

Figure 5: Semantic interpretation of English text.

3.3 SBVR Rules Generation

In this phase, a SBVR representation such as SBVR

rule is generated from the SBVR vocabulary in

previous phase. SBVR rule is generated in two

phases as following:

3.3.1 Applying Semantic Formulation

A set of semantic formulations are applied to each

fact type to construct a SBVR rule. There are five

basic semantic formulations proposed in SBVR

version 1.0 (OMG, 2008) but we are using following

three with respect to the context of the scope of

proposed research:

1. Logical Formulation: A SBVR rule can be

composed of multiple fact types using logical

operators e.g. AND, OR, NOT, implies, etc. For

logical formulation (OMG, 2008), the tokens

‘not’ or ‘no’ are mapped to negation

(⌐ a).

A CONTROLLED NATURAL LANGUAGE INTERFACE TO CLASS MODELS

105

Similarly, the tokens ‘that’ & ‘and’ are mapped

to conjunction

(a ˄ b). The token ‘or’ is

mapped to disjunction

(a ˅ b) and the tokens

‘imply’, ‘suggest’, ‘indicate’, ‘infer’ are mapped

to implication

(a ⟹ b).

2. Quantification: Quantification (OMG, 2008) is

used to specify the scope of a concept.

Quantifications are applied by mapping tokes

like “more than” or “greater than” to at least n

quantification; token “less than” is mapped to at

most n quantification and token “equal to” or a

positive statement is mapped to exactly n

quantification.

3. Modal Formulation: In SBVR, the modal

formulation (OMG, 2008) specifies seriousness

of a constraint. Modal verbs such as ‘can’ , ‘’ or

‘may’ are mapped to possibility formulation

represent a structural requirement and the modal

verbs ‘should’, ‘must’ or verb concept “have to”

are mapped to obligation formulation

represent a behavioural requirement.

3.3.2 Applying Structured English Notation

The last step in generation of a SBVR is application

of the Structured English notation in SBVR 1.0

document, Annex C (OMG, 2008). Following

formatting rules were used: The noun concepts are

underlined e.g. student

; the verb concepts are

italicized e.g. should be; the SBVR keywords are

bolded e.g. at most; the individual concepts are

double underlined e.g. Ahmad

, England. Attributes

are also italicized but with different colour: e.g.

name. RuleSpeak (OMG, 2008) is the other

available notation in SBVR. The NL2UMLviaSBVR

tool supports both notations.

3.4 Object-oriented Analysis

In this phase, finally the SBVR rule is further

processed to extract the OO information. The

extraction of each OO element from SBVR

representation is described below:

1. Extracting Classes: All SBVR object types are

mapped to classes e.g. library, book, etc.

2. Extracting Instances: The SBVR individual

concepts are mapped to instances.

1. Extracting Class Attributes: All the SBVR

characteristics or unary fact types (without action

verbs) associated to an object type are mapped to

attributes of a class.

2. Extracting Class Methods: All the SBVR verb

concepts (action verbs) associated to a noun

concept are mapped to methods for a particular

class e.g. issue() is method of library class.

3. Extracting Associations: A unary fact type with

action verb is mapped to a unary relationship and

all associative fact types are mapped to binary

relationships. The use of quantifications with the

respective noun concept is employed to identify

multiplicity e.g. library and book(s) will have one

to many association. The associated verb concept

is used as caption of association as shown in

figure 6.

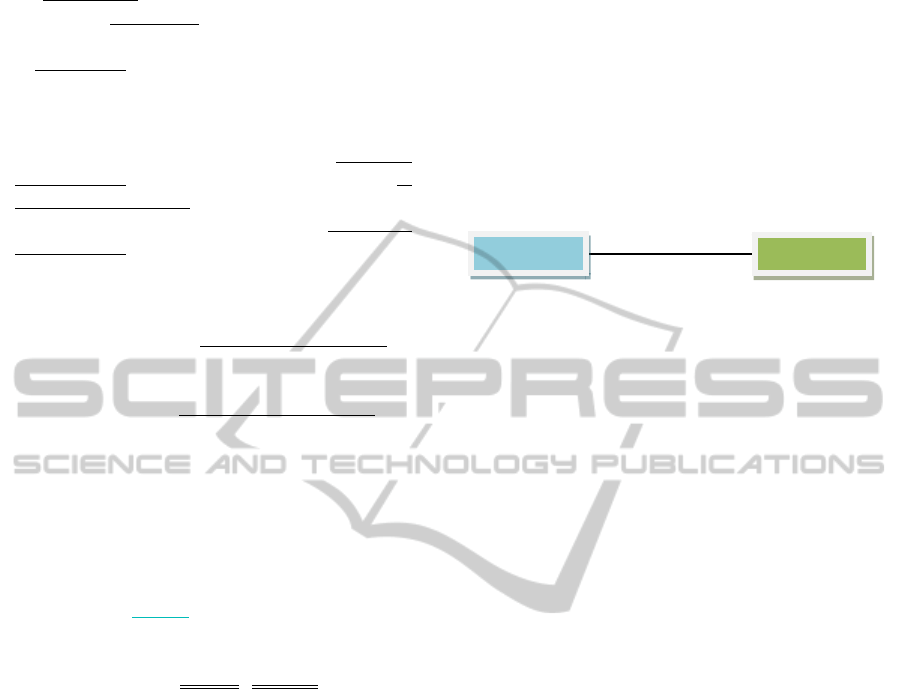

Figure 6: Extracting class associations.

4. Extracting Generalization: The partitive fact

types are specified as generalizations. The

subject-part of the fact type is considered the

main class in generalization and object-part of

the fact types is considered as the sub class.

5. Extracting Aggregations: The categorization fact

types are mapped to aggregations. The subject-

part of the fact type is considered the main class

in aggregation and object-part of the fact types is

considered as the sub class.

3.5 Drawing UML Class Model

This phase draws a UML class model by combining

class diagram symbols with respect to the

information extracted of the previous phase. In this

phase, the java graphics functions (drawline(),

drawrect(), etc) are used to draw the class diagram

symbols.

4 A CASE STUDY

A case study is discussed from the domain of library

information systems that was originally presented by

Callan (1994) and later on solved by Harmain

(2003). The problem statement for the case study is

as follows:

A library issues loan items to customers. Each

customer is known as a member and is issued a

membership card that shows a unique member

number. Along with the membership number

other details on a customer must be kept such as

a name, address, and date of birth. The library is

made

up of a number of subject sections. Each

section is denoted by a classification mark. A

loan item is uniquely identified by a bar code.

There are

two types of loan items, language

tapes, and books. A language tape has a title

library

book

issues

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

106

language (e.g. French), and level (e.g. beginner).

A book has a title, and author(s). A customer may

borrow up to a maximum of 8 items. An item can

be borrowed, reserved or renewed

to extend a

current loan. When an item is issued the

customer's membership number is scanned via a

bar code reader or entered manually.

If the

membership is still valid and the number of items

on loan less than 8, the book bar code is read,

either via the bar code reader or entered

manually.

If the item can be issued (e.g. not

reserved) the item is stamped and then issued.

The library must support the facility for an item

to be searched and for a daily update of records.

The problem statement of the case study was

given as input to the NL2UMLviaSBVR tool that is

an Eclipse plugin implemented in java as a proof of

concept. The generated SBVR representation is:

A library issues loan items to each customer.

Each customer is known as a member and is

issued a membership card

that shows a unique

member number

. It is necessary that the

membership number

and other details on a

customer must be kept such as a name, address,

and date-of-birth. The library

is made up of a

number of subject sections

. Each section is

denoted by a classification-mark. A loan item

identified by a bar-code. There are exactly two

types of loan items

, language tapes, and books. A

language tape

has a title-language, and level. A

book

has a title, and author(s). It is possibility

that each customer

may borrow up to at most 8

items. It is possibility that each item can be

borrowed, reserved or renewed to extend a

current loan

. When an item is issued the

customer

’s membership-number is scanned via a

bar code reader or entered manually. If the

membership

is valid and the number of items on

loan

at most 8, the book’s bar-code is read, either

via the bar code reader

or entered manually. It is

possibility that if the item can be issued the item

is stamped and then issued. It is necessary that

the library

must support the facility for an item to

be searched and for a daily update of records

After generating the SBVR representation, OOA

was performed to extract following information:

There were some synonyms for the used classes

such as Item and Loan_Item, Section and

Subject_Section. Our system keeps only one of the

similar classes. Here, customer and member are also

synonyms, but our system is not able to handle such

similarities. There is only one wrong class that is

Member_Number as it is an attribute. There are two

incorrect associations: “Library support facility” is

not an association and “Library made up of

Subject_sections” is an aggregation but classified as

an association.

Table 1: Object Oriented Analysis results.

Type Count Details

Classes

Library, Loan_Items,

Member_Number,

Customer, Book,

Language_Tape Member,

Bar_Code_Reader,

Subject_Section,

Membership_Card

Attributes

name, address, date-of-

irth,

bar_code,

classification_mark, title,

author, Level, membership-

number, valid

Methods

issue(), show(), denote(),

identify(), extend(), scan(),

enter(), read_barcode(),

stamp(), search(). update()

Associations

Library issues Loan_Items;

Member_Card issued to

Member; Library made up

of Subject_sections;

Customer borrow

Loan_items; customer renew

Loan_item; customer

reserve_Loan_item; Library

support facility

Generalizations

Loan Items is type-of

Language_tapes, Loan Items

is type-of Books

Aggregations 00 -

Instances 00 -

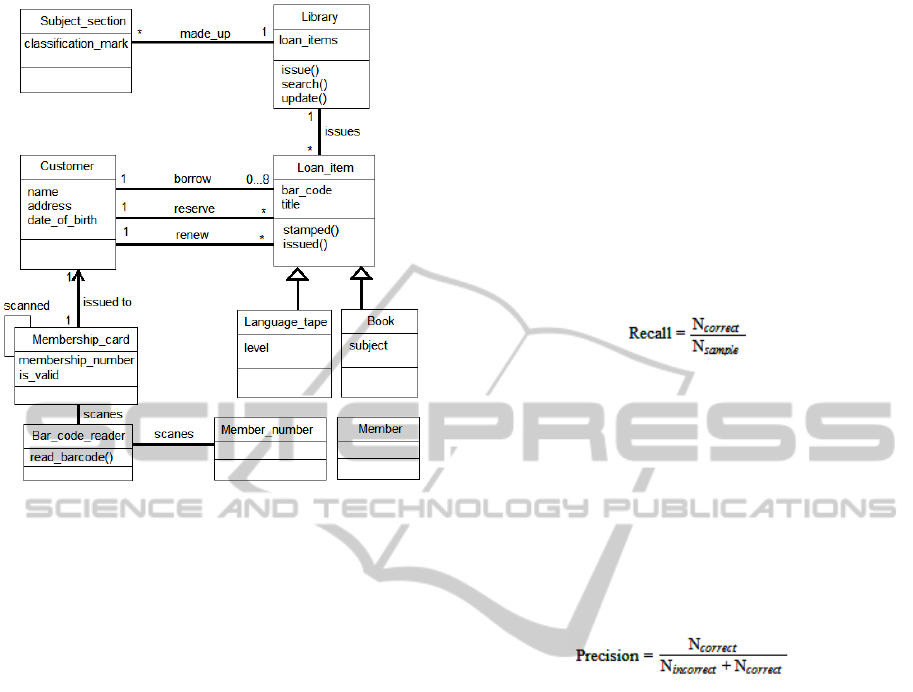

A screen shot of a class model generated for the

case study shown in figure 7.

5 EVALUATION

We have done performance evaluation to evaluate

the accuracy of NL2UMLviaSBVR tool. An

evaluation methodology, for the performance

evaluation of NLP tools, proposed by Hirschman

and Thompson (1995) is based on three aspects:

• Criterion specifies the interest of evaluation e.g.

precision, error rate, etc.

A CONTROLLED NATURAL LANGUAGE INTERFACE TO CLASS MODELS

107

Figure 7: A class model of case study generated by

NL2UMLviaSBVR.

• Measure specifies the particular property of

system performance someone intends to get at

the selected criterion e.g. percent correct or

incorrect.

• Evaluation method determines the appropriate

value for a given measure and a given system.

As we want to compare the results of

performance evaluation with other tools such as

CM-Builder (Harmain, 2003), we have a used a

similar evaluation methodology used for CM-

Builder. Following is the evaluation methodology

used to evaluate the performance of

NL2UMLviaSBVR.

5.1 Evaluation Methodology

Our evaluation methodology is based on three items,

described in (Harmain, 2003):

a. Criterion

For evaluation of the designed system, a criterion

was defined that how close are the

NL2UMLviaSBVR output to the opinion of the

human expert (named sample results). Different

human experts produce different representations and

can be good or bad analysis. However, we gained a

human expert’s opinion for the target input and used

it as a sample result.

b. Measure

We have used two evaluation metrics: recall and

precision. These metrics are extensively employed to

evaluate NL based knowledge extraction systems.

We can define these metrics as following:

1. Recall: The completeness of the results produced

by system is called recall. Recall can be

calculated by comparing the correct results

produced by the system’s with the human

expert’s opinion (sample results). Recall can be

calculated by using the following formula also

used in (Harmain, 2003):

Where N

correct

is the number of correct results

generated by the tool and N

sample

is the number of

sample results (opinion of human expert).

2. Precision: The second metrics precision

expresses accuracy of the designed system where

system accuracy means the correct number of

results produced by the system. Precision is

measured by comparing designed system’s

number of correct results by all (incorrect and

correct) results produced by the system.

Precision is calculated as:

Where N

incorrect

is the number of incorrect results

and N

correct

is the number of correct results.

c. Method

To evaluate the results of NL2UMLviaSBVR, each

outcome (class names, attributes names, method

names, associations, multiplicity generalizations,

aggregations, and instance names) of the

NL2UMLviaSBVR’s output was matched with the

expert’s opinion (N

sample

) (sample solution). The

outcome that accurately classified into respective

category was declared correct (N

correct

) otherwise

incorrect (N

incorrect

). Additionally, the information

that was not extracted (or missed) by the NL2SBVR

tool but it was given in the human expert’s opinion

sample

) was categorized as the missing information

missing

5.2 Evaluation Results

The results of the case studies were used to calculate

recall and precision values as shown in table 2.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

108

Table 2: NL2UMLviaSBVR Evaluation results.

xample N

sample

correct

incorrect

missing

Rec% Prec%

Results 40 35 3 2 87.50 92.10

Average recall for English requirement

specification is calculated 87.5% while average

precision is calculated 92.1%. These results are very

encouraging for the future enhancements.

We have also compared the results of

NL2UMLviaSBVR with other available tools that

can perform automated analysis of the NL

requirement specifications. Recall value was not

available for some of the tools. We have used the

available recall and precision values of the tools for

comparison as shown in table 3:

Table 3: A comparison of performance evaluation -

NL2UMLviaSBVR vs other tools.

NL Tools for Class Modelling Recall Precision

CM-Builder (Harmain, 2003) 73.00% 66.00%

GOOAL (Perez-Gonzalez, 2002) - 78.00%

UML-Generator (Bajwa, 2009) 81.29% 87.17%

NL-OOML (Anandha, 2006) - 82.00%

LIDA (Overmyer, 2001) 71.32% 63.17%

NL2UMLviaSBVR 87.50% 92.10%

Here, we can note that the accuracy of other NL

tools used for information extraction and object

oriented analysis is well below than

NL2UMLviaSBVR.

Moreover, the various tools’ functionalities (if

available, is automated or user involved) are also

compared with NL2UMLviaSBVR as shown in

Table 4:

Table 4 shows that besides NL2UMLviaSBVR,

there are very few tools those can extract

information such as multiplicity, aggregations,

generalizations, and instances from NL requirement.

Thus, the results of this initial performance

evaluation are very encouraging and support both

the approach adopted in this paper and the potential

of this technology in general.

6 CONCLUSIONS

The primary objective of the paper was to address

the challenge of addressing ambiguous nature of

natural languages (such as English) and generate a

controlled representation of English so that the

accuracy of machine processing can be improved.

Table 4: Comparison of NL2UMLviaSBVR with other

tools.

Support

Builder

LIDA GOOAL NL

OOML

NL2UML

viaSBVR

Classes Yes User Yes Yes Yes

Attributes Yes User Yes Yes Yes

Methods No User Yes Yes Yes

Associations Yes User Semi-NL No Yes

Multiplicity Yes User No No Yes

Aggregation No No No No Yes

Generalization No No No No Yes

Instances No No No No Yes

To address this challenge we have presented a NL

based automated approach to parse English software

requirements specifications and generated a

controlled representation using SBVR. Automated

object oriented analysis of SBVR specifications of

software requirements using the NL2UMLviaSBVR

provides a higher accuracy as compared to other

available NL-based tools. Besides better accuracy,

SBVR has also enabled to extract OO information

such as association multiplicity, aggregations,

generalizations, and instances as other NL-based

tools can’t process and extract this information.

Some non-functional requirements in the case

study such as “

If the membership is still valid and the

number of items

on loan less than 8, the book bar code is

read” and “If the item can be issued (e.g. not reserved)

the item is stamped and then issued.” are not part of the

output class model. These are basically constraints

and it is our future work to also generate Object

Constraint language (OCL) for these natural

language constraints.

REFERENCES

Bryant B. R, Lee, B. S., et al. 2008. From Natural

Language Requirements to Executable Models of

Software Components. In Workshop on S. E. for

Embedded Systems:51-58.

OMG. (2007). Unified Modelling Language (UML)

Standard version 2.1.2. Object Management Group,

Available at: http://www.omg.org/mda/

Mich, L. 1996. NL-OOPS: from natural language to object

oriented requirements using the natural language

processing system LOLITA. Natural Language

Engineering. 2(2):167-181

Delisle, S. Barker, K. Biskri, I. 1998. Object-Oriented

Analysis: Getting Help from Robust Computational

Linguistic Tools. 4th International Conference on

Applications of Natural Language to Information

Systems, Klagenfurt, Austria:167-172.

A CONTROLLED NATURAL LANGUAGE INTERFACE TO CLASS MODELS

109

Bajwa, Imran Sarwar, Lee, Mark G., Bordbar, Behzad.

2011. SBVR Business Rules Generation from Natural

Language Specification. AAAI Spring Symposium

2011, San Francisco, USA. pp.2-8

Börstler, J. 1999. User - Centered Requirements

Engineering in RECORD - An Overview. Nordic

Workshop on Programming Environment Research

NWPER'96, Aalborg, Denmark:149-156.

Overmyer, S. V., Rambow, O. 2001. Conceptual Modeling

through Linguistics Analysis Using LIDA. 23rd

International Conference on Software engineering,

July 2001

Perez-Gonzalez, H. G., Kalita, J. K. 2002. GOOAL: A

Graphic Object Oriented Analysis Laboratory. 17th

annual ACM SIGPLAN conference on Object-

oriented programming, systems, languages, and

applications (OOPSLA '02), NY, USA: 38-39.

Harmain, H. M., Gaizauskas R. 2003. CM-Builder: A

Natural Language-Based CASE Tool for Object-

Oriented Analysis. Automated Software Engineering.

10(2):157-181

Oliveira, A., Seco N. and Gomes P. 2006. A CBR

Approach to Text to Class Diagram Translation.

TCBR Workshop at the 8th European Conference on

Case-Based Reasoning, Turkey, September 2006.

Anandha G. S., Uma G.V. 2006. Automatic Construction

of Object Oriented Design Models [UML Diagrams]

from Natural Language Requirements Specification.

PRICAI 2006: Trends in Artificial Intelligence, LNCS

4099/2006: 1155-1159

Bajwa I. S., Samad A., Mumtaz S. 2009. Object Oriented

Software modeling Using NLP based Knowledge

Extraction. European Journal of Scientific Research,

35(01):22-33

OMG. 2008. Semantics of Business vocabulary and Rules.

(SBVR) Standard v.1.0. Object Management Group,

Available: http://www.omg.org/spec/SBVR/1.0/

Toutanova. K., Manning, C. D. 2000. Enriching the

Knowledge Sources Used in a Maximum Entropy

Part-of-Speech Tagger. In Joint SIGDAT Conference

on Empirical Methods in Natural Language Processing

and Very Large Corpora: 63-70.

Li, K., Dewar, R. G., Pooley, R. J. 2005. Object-Oriented

Analysis Using Natural Language Processing,

Linguistic Analysis (2005)

Bajwa I. S., Hyder, I. S. 2007. UCD-generator - A LESSA

application for use case design, International

Conference on Information and Emerging

Technologies, 2007. ICIET 2007.

Callan. R. E. 1994. Building Object-Oriented Systems: An

introduction from concepts to implementation in C++.

In Computational Mechanics Publications, 1994.

Hirschman L., and Thompson, H. S. 1995. Chapter 13

evaluation: Overview of evaluation in speech and

natural language processing. In Survey of the State of

the Art in Human Language Technology.

Berry M. D., 2008. Ambiguity in Natural Language

Requirements Documents. In Innovations for

Requirement Analysis. From Stakeholders’ Needs to

Formal Designs, LNCS-5320/2008:1-7

Ormandjieva O., Hussain, I., Kosseim, L. 2007. Toward A

Text Classification System for the Quality Assessment

of Software Requirements written in Natural

Language. in 4th International Workshop on Software

Quality Assurance (SOQUA '07):39-45.

Bajwa, I. S., Choudhary, M. A. (2006) “A Rule Based

System for Speech Language Context Understanding”

Journal of Donghua University, (English Edition) 23

(6), pp. 39-42.

Denger, C., Berry, D. M. Kamsties, E. 2003. Higher

Quality Requirements Specifications through Natural

Language Patterns. In Proceedings of IEEE

International Conference on Software-Science,

Technology \& Engineering (SWSTE '03):80-85

Ilieva, M. G., Ormandjieva, O. 2005. Automatic

Transition of Natural Language Software

Requirements Specification into Formal Presentation.

in proc. of Natural Language Processing and

Information Systems LNCS- 3513/2005:427-434

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

110
