SEGMENTATION OF TOUCHING LANNA CHARACTERS

Sakkayaphop Pravesjit and Arit Thammano

Computational Intelligence Laboratory, Faculty of Information Technology, King Mongkut’s Institute of Technology

Ladkrabang, 10520, Bangkok, Thailand

Keywords: Character segmentation, Touching character, Dissection method.

Abstract: Character segmentation is an important preprocessing step for character recognition. Incorrectly segmented

characters are not likely to be correctly recognized. Touching characters is one of the most difficult

segmentation cases which arise when handwritten characters are being segmented. Therefore, this paper

emphasizes the interest to the segmentation of touching and overlapping characters. In the proposed

character segmentation process, the bounding box analysis is initially employed to segment the document

image into images of isolated characters and images of touching characters. The thinning algorithm is

applied to extract the skeleton of the touching characters. Next, the skeleton of the touching characters is

separated into several pieces. Finally, the separated pieces of the touching characters are put back to

reconstruct two isolated characters. The proposed algorithm achieves an accuracy of 75.3%.

1 INTRODUCTION

Lanna language was used in the 13

to 18

centuries

in the Kingdom of Lanna. However, after the

kingdom had been annexed by Siam (as Thailand

was called until 1939) in 1774, Lanna script became

obsolete and was replaced with Thai script. Few

people nowadays know how to read or write this

language. Lanna manuscripts were typically written

about the people’s ways of life, believes, laws,

folklore, herbal medicine ingredients, history,

astrological knowledge, and other general

knowledge. Lanna manuscripts were generally

inscribed on palm leaves (Figure 1), or on the

surface of stones. As time goes by, these ancient

documents have been decayed, damaged, destroyed,

or lost. Termites, insects, and general decay have left

these old manuscripts in poor condition (Figure 2).

In order to preserve valuable historical information

inscribed on these documents, computerized systems

must be put to use in order to translate the inscribed

script into the current Thai script.

Touching and overlapping of characters is the

first problem encountered when attempting to

recognize the handwritten Lanna characters.

Touching of characters can emerge when two or

more adjacent characters are written too close;

therefore, some parts of characters are connected

(Saba, Sulong, and Rehman, 2010).

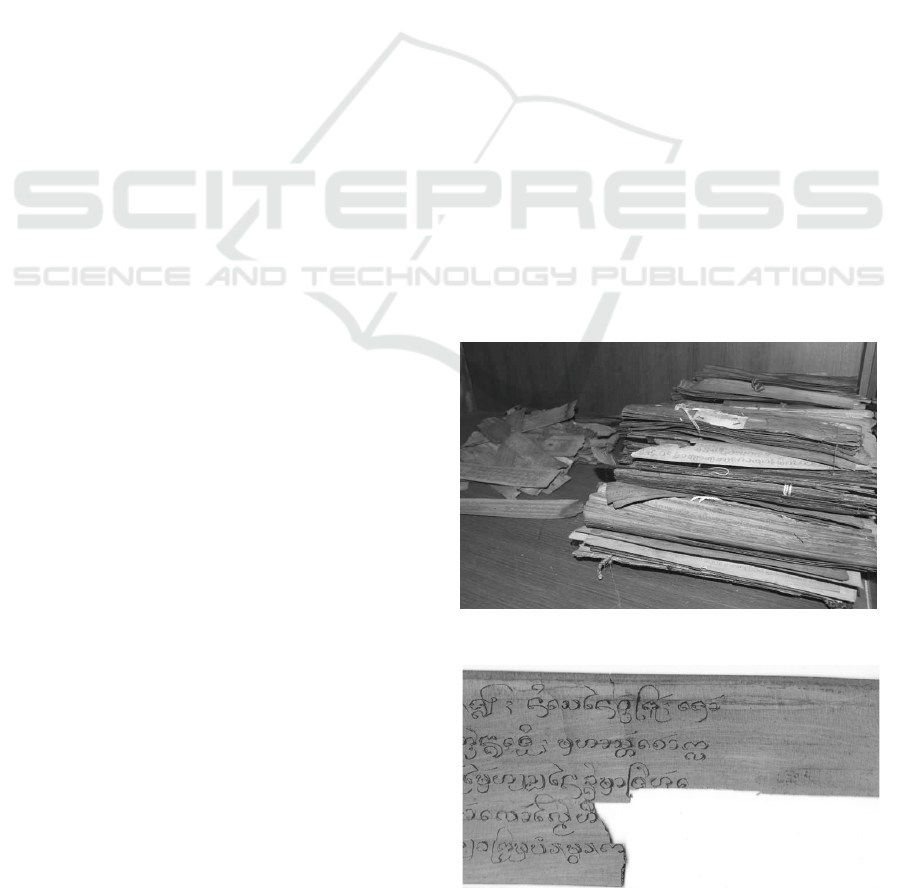

Figure 1: Palm leaf manuscripts.

Figure 2: Example of Lanna script.

There are many kinds of touching characters

commonly found in the written documents (Figure

3). This is because characters of each language have

Pravesjit S. and Thammano A..

SEGMENTATION OF TOUCHING LANNA CHARACTERS.

DOI: 10.5220/0003511300470051

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 47-51

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

different styles and characteristics. Therefore, the

types of touching characters vary from language to

language, which in turn require different methods

for segmenting the touching characters in each

language. For example, the handwritten cursive

characters shown in Figure 3(a) are a type of

touching characters typically found in English

handwritten manuscripts but not in Lanna

manuscripts. Only the types shown in Figures 3(b),

3(c), and 3(d) can be found in Lanna manuscripts.

The purpose of this research is to separate the

touching or overlapping Lanna characters, which

have not been effectively solved using any other

character segmentation methods.

(a) (b)

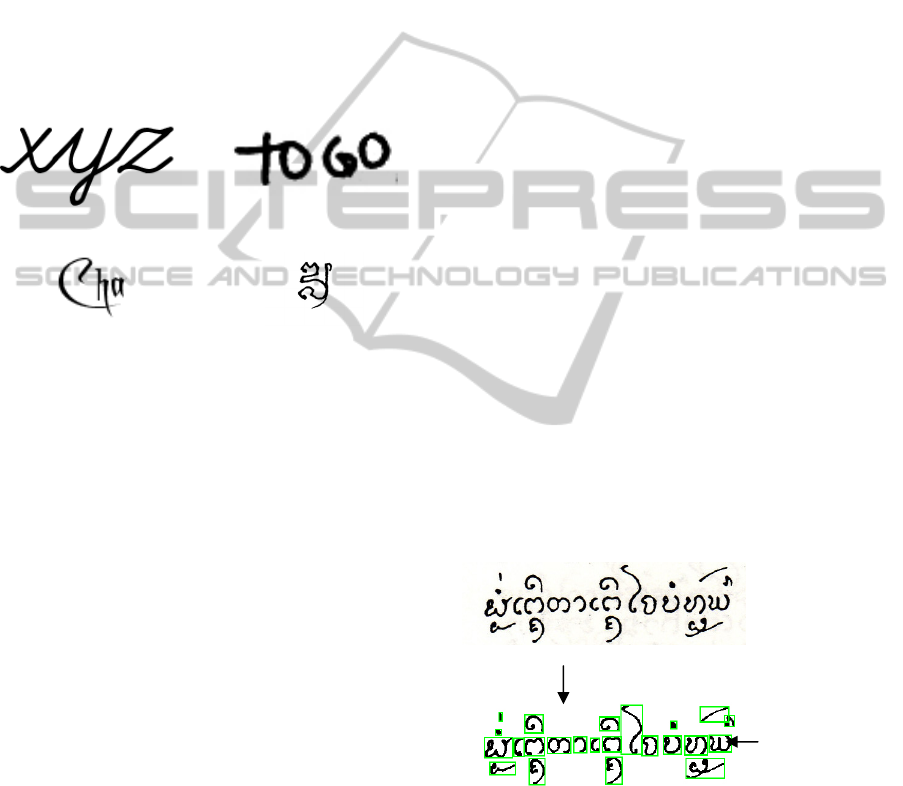

Figure 3: Four types of touching characters.

Character segmentation is a process that seeks to

decompose a sequence of characters into individual

symbols. There have been substantial researches

undertaken to solve character segmentation problem,

mostly for numerals, English script, Chinese script,

Arabic script, and Bangla script. Segmentation

strategies can be divided into three main categories

(Casey and Lecolinet, 1996; Marinai, Gori, and

Soda, 2005): dissection methods, recognition-based

methods, and holistic methods. Dissection methods

decompose the image into a sequence of sub-images

using general features, e.g., character height and

width (Hoang, Tabbone, and Pham, 2009).

Recognition-based methods search the image for

components that match classes in its alphabet.

Holistic methods seek to recognize entire words as a

whole, thus avoiding the need to segment the image

into characters. Among the methods proposed for

character segmentation, Tseng and Chen (1998)

proposed a three-stage Chinese character

segmentation algorithm. Firstly, a bounding box is

created around each stroke of a Chinese character.

Secondly, the knowledge-based merging operations

are used to merge the stroke bounding boxes

together. Finally, a dynamic programming is used to

find the optimal segmentation boundaries. The

experimental results show that the proposed

algorithm is a very effective segmentation algorithm.

It works well even with touching and/or overlapping

characters. Xiao and Leedham (2000) proposed a

novel approach to English cursive script

segmentation. In the proposed approach, connected

components are split into sub-components based on

their face-up or face-down background regions.

Then the over-segmented sub-components are

merged into characters according to the knowledge

of character structures are their joining

characteristics. Bhowmik, Roy, and Roy (2005)

proposed a segmentation scheme for handwritten

Bangla words. The authors use the analysis of

directional chaincode and the positional information

to extract the features from the image, then employ

multilayer perceptron neural network to determine

the segmentation points. The authors also point out

that their segmentation result can be significantly

improved if their proposed technique is combined

with the recognition process in a holistic system.

This study focuses mainly on the dissection

methods. Projection analysis, connected component

processing, and bounding box analysis are three

widely used dissection methods (Chen, Wu, and

Lee, 1998). While projection analysis is very

effective for segmenting good quality machine

printed manuscripts (Casey and Lecolinet, 1996), it

has limited success when segmenting handwritten

manuscripts. Connected component processing and

bounding box analysis usually offer an efficient way

to segment handwritten manuscripts. However, they

might lead to incorrect segmentation when dealing

with touching characters as shown in Figure 4.

Figure 4: Segmentation results by bounding box analysis.

In this paper, the new dissection algorithm is

proposed to segment touching Lanna characters. The

performance of the proposed algorithm is measured

by the ability of the proposed algorithm to correctly

segment 6 different handwritten Lanna manuscripts.

Following this introduction, section 2 briefly

describes the general process of the proposed

character segmentation process. Section 3 explains

Touching

Characters

Bounding Box Analysis

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

the proposed character segmentation algorithm. In

section 4, the experimental results are presented and

discussed. Finally, section 5 is the conclusion.

2 METHODOLOGY

The process of this Lanna character segmentation

has been divided into five steps:

(1) Scan a manuscript and convert it into a binary

image.

(2) Use the bounding box analysis to segment the

entire manuscript image into subimages. Since

the bounding box analysis is only effective in

segmenting nontouching characters, the

obtained subimages therefore consist of both

images of isolated characters and images of

touching characters.

(3) Detect touching characters by looking at the

aspect ratio (width/height) of each subimage.

From the facts that (1) touching characters

commonly have an aspect ratio larger than

single isolated characters and (2) the aspect ratio

of Lanna isolated characters is typically smaller

than 3/2, therefore, if the aspect ratio of the

subimage is larger than 3/2, it will be identified

as the touching characters.

(4) Use the thinning algorithm to reduce the

thickness of the character image to its skeleton,

which is then sent to the segmentation engine.

(5) Employ the proposed character segmentation

algorithm to decompose the touching characters

into individual characters.

3 THE PROPOSED CHARACTER

SEGMENTATION

ALGORITHM

A description of the proposed segmentation

algorithm is given below.

A. Search the touching characters image for end

points and junction points. Then, adopting the

junction points as the partition points, break up

the touching characters into several pieces. From

each end point, start tracing the contour of

touching characters until the nearest junction

point is reached. Then, extract such contour from

the touching characters. For example, in Figure

5, four end points and two junction points are

found. By using the above mentioned technique,

the touching characters are broken into 5

contours as shown in Figure 6. Out of the five

contours, four contains both a junction point and

an end point while one contains two junction

points (with no end point on the contour). The

contour which contains no end point is a part of

the touching characters where two characters

touch each other.

B. For each extracted contour, translate the contour

so that the junction point coincides with the

origin (where x and y axes intersect).

⎥

⎦

⎤

⎢

⎣

⎡

−

⎥

⎦

⎤

⎢

⎣

⎡

⎥

⎦

⎤

⎢

⎣

⎡

(1)

where T is the translation operator.

and C

are x and y coordinate of the i

contour

and J

are the x and y coordinate of the

junction point of the i

contour.

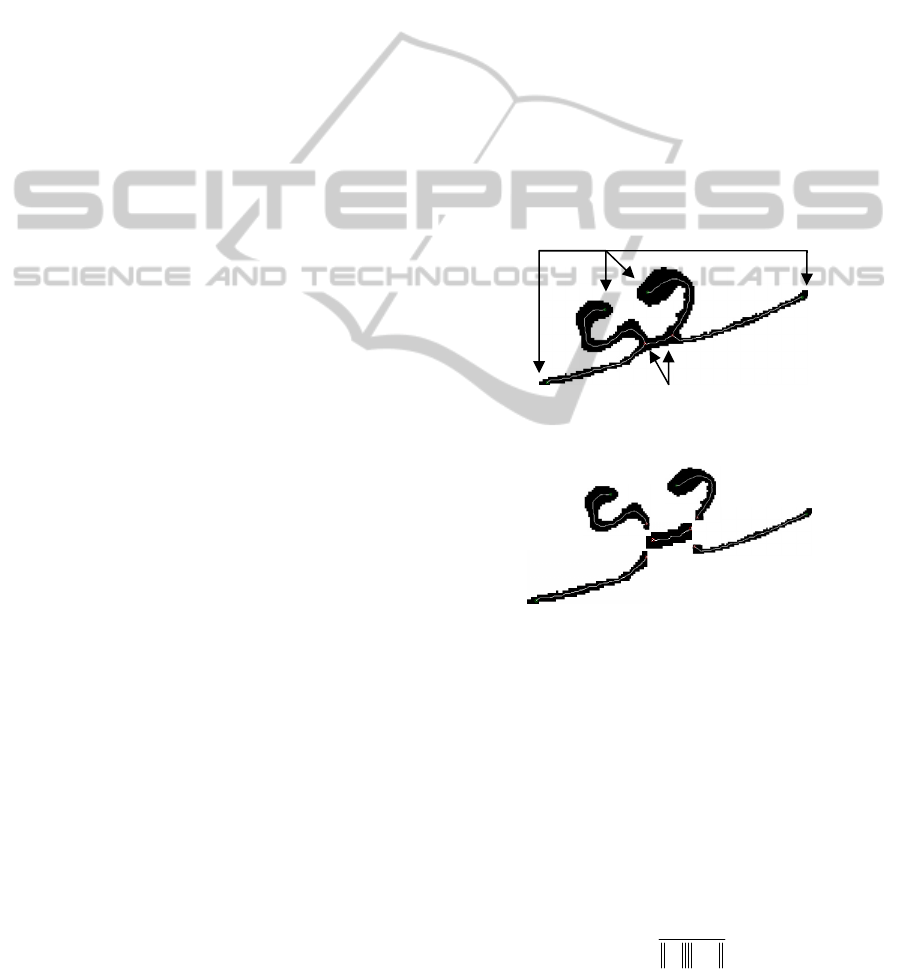

Figure 5: Example of touching characters.

Figure 6: Five contours of the example touching

characters.

C. At the origin, create the reference unit vectors

along the x axis ((1, 0) and (-1, 0)) and along the

y axis ((0, 1) and (0, -1)).

D. For each translated contour, create a vector V

that starts at the origin and ends one pixel away

from the starting point. Then, determine an angle

between the vector V

and the x axis in a

clockwise direction by using the following

equation:

cos

⋅

=θ

−

(2)

end poin

junction

oin

SEGMENTATION OF TOUCHING LANNA CHARACTERS

where U is a unit vector along the x axis. V

the n

vector along the translated contour i.

Next, sequentially create the vectors V

, V

…, V

, …, V

. However this time instead of

starting the vector at the origin, start the vector

at the point where the vector V

n-1

ends. For

example, the starting point of the vector V

is the

ending point of the vector V

. After each vector

is created, determine the clockwise angle of

the vector V

relative to the x axis. If the angle of

three consecutive vectors is the same, stop the

creation of further vectors.

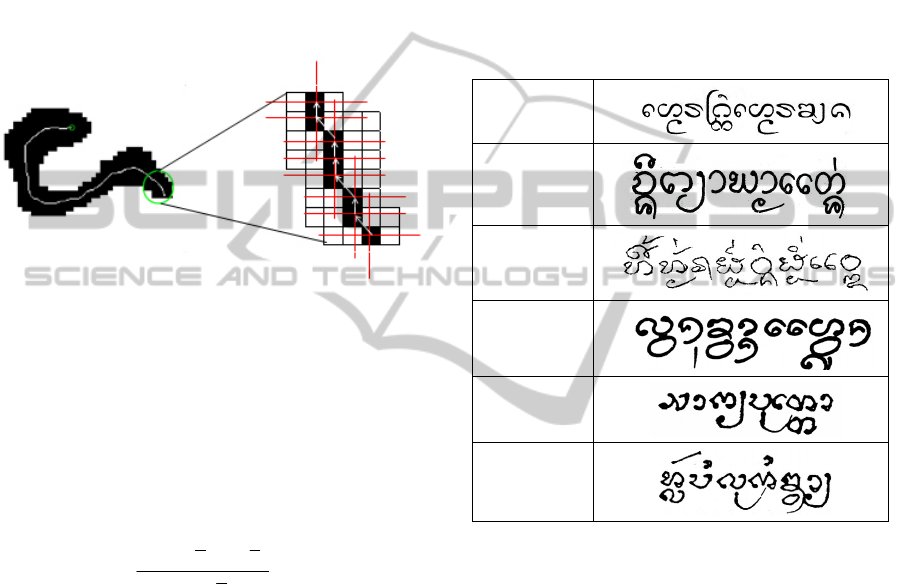

Figure 7: Illustration of step D.

E. Use the linear regression method to calculate the

equation of the best-fit line for a series of points,

starting at the origin and ending at the ending

point of the third consecutive vector. Calculate

the angle of the line from the overlapping

contour line and assign it to represent the angle

of the whole contour.

bxay +=

(3)

∑

−

−−

)xx(

)yy)(xx(

(4)

bxya −=

(5)

F. After obtaining the angles of all contours,

compare the angle of each contour to that of

other contours. According to the characteristic of

Lanna characters whose trajectories typically do

not abruptly change the direction, group the

closest match, angle wise, together. Finally, the

contours within the same group are combined to

form each isolated character.

4 EXPERIMENTAL RESULTS

In this study, the images of Lanna characters used in

testing the performance of the proposed algorithm

were obtained from 6 manuscripts. Samples of the

tested manuscripts are shown in Figure 8. Each

manuscript is written by a different handwriting

script. Four pages from each manuscript were

scanned and processed using steps 1 through 5

outlined in section 2. In the scanned pages, a total of

85 touching characters were found. All of them only

consist of two characters. Similar to other languages,

touching characters of three or more components are

very uncommon in Lanna manuscripts.

Of the 85 touching character images, 75.3%

were correctly segmented with the proposed

algorithm. Figure 9 shows some of correctly and

incorrectly segmented Lanna characters.

Manuscript 1

Manuscript 2

Manuscript 3

Manuscript 4

Manuscript 5

Manuscript 6

Figure 8: Samples of the tested manuscripts.

5 CONCLUSIONS

A new segmentation algorithm for the off-line

handwritten Lanna characters is proposed in this

paper. To segment real world documents,

segmentation of touching characters is a major

problem we have to deal with. With the use of the

characteristic of Lanna characters, the touching

characters is separated into several pieces, then the

separated pieces of the touching characters are put

back to reconstruct two isolated characters. From the

experimental results, it is clear that the proposed

algorithm is quite capable of segmenting touching

Lanna characters.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

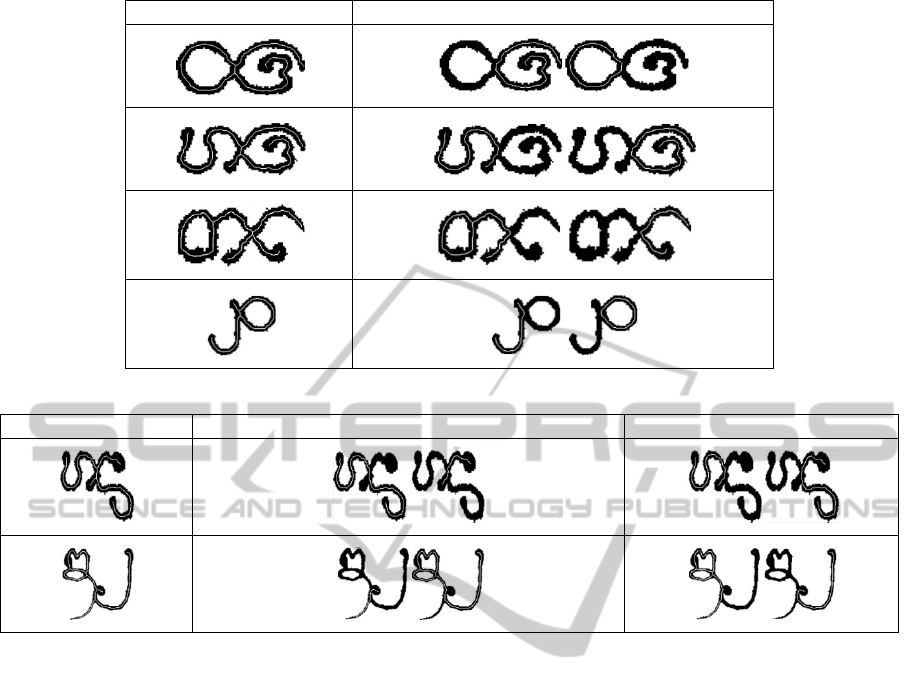

Touching Characters Correctly Segmented by the Proposed Algorithm

(a)

Touching Characters Incorrectly Segmented by the Proposed Algorithm Expected Segmentation Results

(b)

Figure 9: Some segmentation results, where (a) is correctly segmented and (b) is incorrectly segmented.

REFERENCES

Bhowmik, T. K., Roy, A., Roy, U., 2005. Character

Segmentation for Handwritten Bangla Words Using

Artificial Neural Network. In: Proceedings of the

International Workshop on Neural Networks and

Learning in Document Analysis and Recognition.

Casey, R. G., Lecolinet, E., 1996. A Survey of Methods

and Strategies in Character Segmentation. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, vol. 18, no. 7, pp. 690-706.

Chen, J. L., Wu, C. H., Lee, H. J., 1998. Chinese

Handwritten Character Segmentation in Form

Documents. Document Analysis Systems: Theory and

Practice, LNCS 1655, pp. 348-362.

Hoang, T. V., Tabbone, S., Pham, N., 2009. Recognition-

based Segmentation of Nom Characters from Body

Text Regions of Stele Images Using Area Voronoi

Diagram. In: Proceedings of the 13

International

Conference on Computer Analysis of Images and

Patterns.

Marinai, S., Gori, M., Soda, G., 2005. Artificial Neural

Networks for Document Analysis and Recognition.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, vol. 27, no. 1, pp. 23-35.

Soba, T., Sulong, G., Rehman, A., 2010. A Survey on

Methods and Strategies on Touched Characters

Segmentation. International Journal of Research and

Reviews in Computer Science, vol. 1, no. 2, pp. 103-

114.

Tseng, L. Y., Chen, R. C., 1998. Segmenting Handwritten

Chinese Characters Based on Heuristic Merging of

Stroke Bounding Boxes and Dynamic Programming.

Pattern Recognition Letter, vol. 19, pp. 963-973.

Xiao, X., Leedham, G., 2000. Knowledge-based English

Cursive Script Segmentation. Pattern Recognition

Letters, vol. 21, pp. 945-954.

SEGMENTATION OF TOUCHING LANNA CHARACTERS
