OPBUS: RISK-AWARE FRAMEWORK FOR THE
CONFORMANCE OF SECURITY-QUALITY
REQUIREMENTS IN BUSINESS PROCESSES
A. J. Varela-Vaca, Rafael M. Gasca and Sergio Pozo
Computer Languages and Systems Department (Quivir Research Group), ETS. Ingeniería Informática, University of Seville
Avd. Reina Mercedes S/N, Seville, Spain
Keywords: Business process management, Risk assessment, Security.
Abstract: Several reports indicate that one of the most important business priorities is the improvement of business
and IT management. Nowadays, business processes and in general service-based ones use other external
services which are not under their jurisdiction. Organizations do not usually consider their exposition to
security risks when business processes cross organizational boundaries. In this paper, we propose a risk-
aware framework for security-quality requirements in business processes management. This framework is
focused on the inclusion of security issues from design to execution. The framework provides innovative
mechanisms based on model-based diagnosis and constraint programming in order to carry out the risk
assessment of business processes and the automatic check of the conformance of security requirements.
1 INTRODUCTION
In the recent years, a new paradigm has receviced
considebrable attention in the scope of business IT:
Business Process Management (BPM). BPM is
defined as a set of concepts, methods and techniques
to support the modelling, design, administration,
configuration, enactment and analysis of business
processes (Weske, 2007).
Gartner's CIO report (Gartner, 2010) indicates
that the security is included in the most important
business priorities. Security and risk management is
gaining importance even in the governmental
statements, where there exists some regulations and
laws which impose the inclusion of risk and security
management inside of business management, like
OECD Guidelines (ENISE, 2010).
Companies may deploy Business Process
Management Systems (BPMS) to automate their
business processes, but they must ensure that those
are as dependable as possible. Since the cost and
consequences of security failures in these systems
range from mildly annoying to catastrophic,
dependability is a significant requirement for many
kinds of companies: electronic banking and
commerce, automated manufacturing, etc.
This paper intends to introduce a proposal risk-
aware BPM framework, entitled OPBUS. At
modelling level, OPBUS adopts an extension of
business process models with security risk
assessment capabilities, and also includes
mechanisms to check automaticaly the conformance
of risks of business processes. Moreover, OPBUS
provides mechanisms to transform the business
process models to deployable processes considering
the security issues identified at design.
This paper is structured as follows: in Section 2,
OPBUS architecture is described; in Section 3, the
application of model-based diagnosis for risk
assessment of business processes is introduced; in
Section 4, a review of the most relevant works
related with this paper is done; in the last section,
conclusions are given.
2 OPBUS: ARCHITECTURE
OVERVIEW
Our proposal is structured in various layers:
• Modelling Layer, where business processes are
designed, validated and transformed.
• Application Layer, a set of technologies to
support the deployment, diagnosis and deployment
of business processes.
370
J. Varela-Vaca A., M. Gasca R. and Pozo S..
OPBUS: RISK-AWARE FRAMEWORK FOR THE CONFORMANCE OF SECURITY-QUALITY REQUIREMENTS IN BUSINESS PROCESSES.
DOI: 10.5220/0003515503700374
In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 370-374
ISBN: 978-989-8425-71-3
Copyright
c
 2011 SCITEPRESS (Science and Technology Publications, Lda.)

• Fault Tolerance Layer, different solutions have
been adopted for high availability of business
process execution (Varela, 2010).
• Service Layer, service-based business
processes has been selected as implementation
thereby service layer represent to the set of services
used by business processes.
OPBUS framework has been developed based on
the Model-Driven approach proposed by the authors
in (Varela, 2011). The approach is structured in at
least three stages. In the first stage, Platform
Independent Meta-Model (PIM) models are built.
Thus, abstract business process models. Then a first
transformation between a PIM to Platform Specific
Meta-Model (PSM) models is proposed. In this
transformation, extra information is introduced in
terms of information of a more specific nature
information on mechanisms to control or mitigate
security problems. For instance, fault tolerance
mechanisms to avoid security integrity attacks.
Although other intermediate transformations can be
introduced between PSM and other PSM models, as
a first approach, a transformation from PSM models
to final code is proposed. For example, if a
countermeasure is specified at PSM level such a
particular fault tolerance control. This control can be
transformed to a specific configuration of BPEL
business processes. A particular diagnosis stage is
introduced for the validation of models before each
transformation.
Currently, Business Process Management
Notation (BPMN) is the most extended modelling
method in the BPM market. BPMN provides a meta-
model that could be used as a PIM of our framework
since makes possible the definition of complex
business processes, but without considering specific
issues such as execution or security configurations.
Furthermore, they lack of mechanisms for the
evaluation and validation of their security and risks
before to be implemented. In an earlier work
(Varela, 2011), an extension of BPMN with risk
information has been proposed. The extension
permits to assess the risks which the business
processes are exposed to due to security threats and
vulnerabilities. In general, the risk assessment is a
tedious and time-consuming task for several reasons,
one of which is due to the manual feature of the
process, a subjective valuation of the different
elements and the possibility of having to support
different kind of valuations such as interval values.
The utilization of the diagnosis stage is suggested in
order to the automatic risk assessment and check the
conformance of these risks. In OPBUS, this
diagnosis of conformance stage is solved using
constraint programming.
3 MODEL-BASED DIAGNOSIS
OF CONFORMANCE
The risk calculation involves three main parameters:
an asset value, a threat frequency and consequence.
This risk value permits business security experts the
identification of critical tasks based on their values.
A risk can be evaluated with regard to each task,
treatment, and threat identified in the business
process. Therefore, in our case the risk calculation
is, in general, calculated as follows.
This last formula is similar to the one used in
ISO/IEC 27004. The formula calculates the risk
assessment for an individual task of a business
process. However, calculating risk for a business
process (BP) is carried out by means of the
combination (summation) of the risks calculated for
each individual task. In the case business processes
contain divisions of the flow path; the previous
formula cannot be used since risk assessment is
influenced by the structure of the business process.
For this reason, risk has to be calculated for each
path. This problematic has never been considered in
other works. We propose the risk calculation as
shown in Figure 1 which shows how to calculate the
risk of a business process with regard to the structure
of the model. These risk formulas are an adaptation
of the time-efficiency calculation proposed by
(Huang, 2007). In the case of loops, the risk
calculation is not affected since the set of activities
execute in the loop is the same for each iteration.

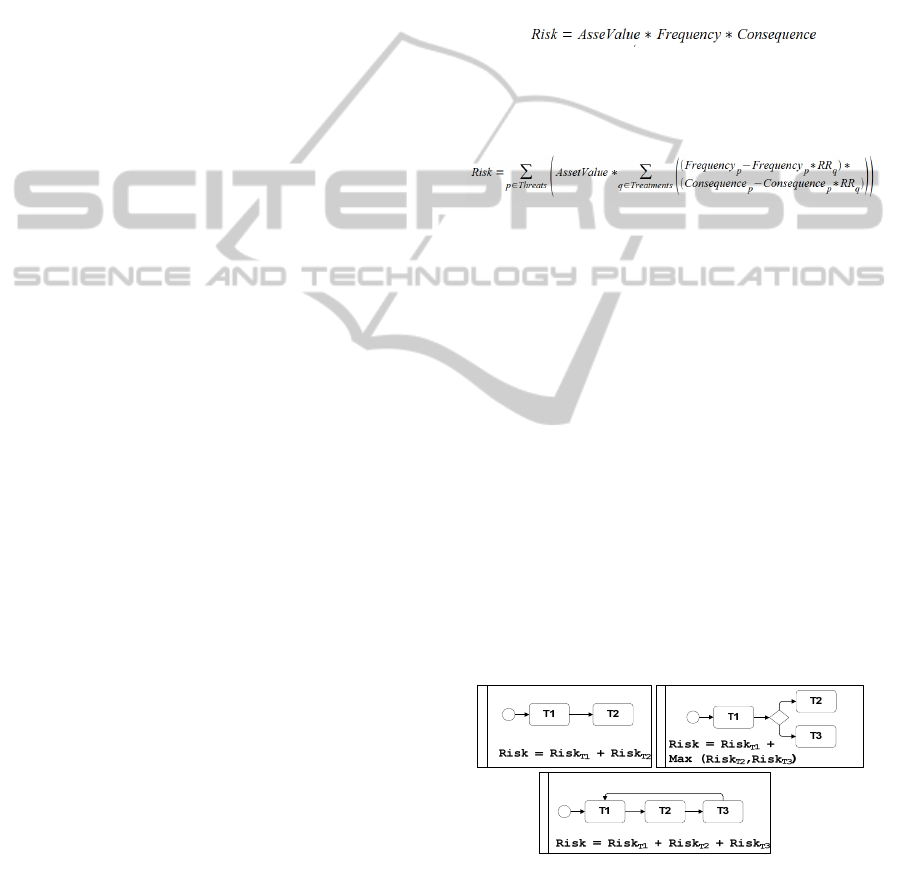

Figure 1: General risk calculation formula.
Once risk values are obtained for each business
process, they have to be evaluated in conformance
with the specified acceptable risk. If a business
process exceeds the specified acceptable risk
(Acceptable Risk) value implies that there exist risks
OPBUS: RISK-AWARE FRAMEWORK FOR THE CONFORMANCE OF SECURITY-QUALITY REQUIREMENTS
IN BUSINESS PROCESSES
371

Buy er
Place Order
Receive
Products
Receive
Invoice
Vul nerabilities:[V1:Insecurecommu nication protocol]
Threat Scenario
DoS (Communication
Fault)
• Freq:1
• Conseq:2
• Vulnerability :V1
Unexpectedtheftor
manipulationpersonaldata
Data Integrity System
(MAC)
• RR:3
• Cost[100,2000]
• F:false
• C:true
Properties:
• ValueIntegrity=5
• ValueConfident iality =3
• ValueAvailability = 1
Properties:
• ValueIntegrity=3
• ValueConfidentiality=4
• ValueAvailability=1
Properties:
• ValueIntegrity=5
• ValueConfidentiality=3
• ValueAvailability =3
Objectives:
•
Pre{‐}
•
Post{TotalCost<=3000€}
• Freq:3
• Conseq:4
• Vulnerability :V1
Store
Settle
Invoice
Properties:
• ValueIntegrity=5
• ValueConfidentiality=4
• ValueAvailability=2
Properties:
•
Acceptablerisk=200
•
FixedCost=2000€
•
Threshold=30%

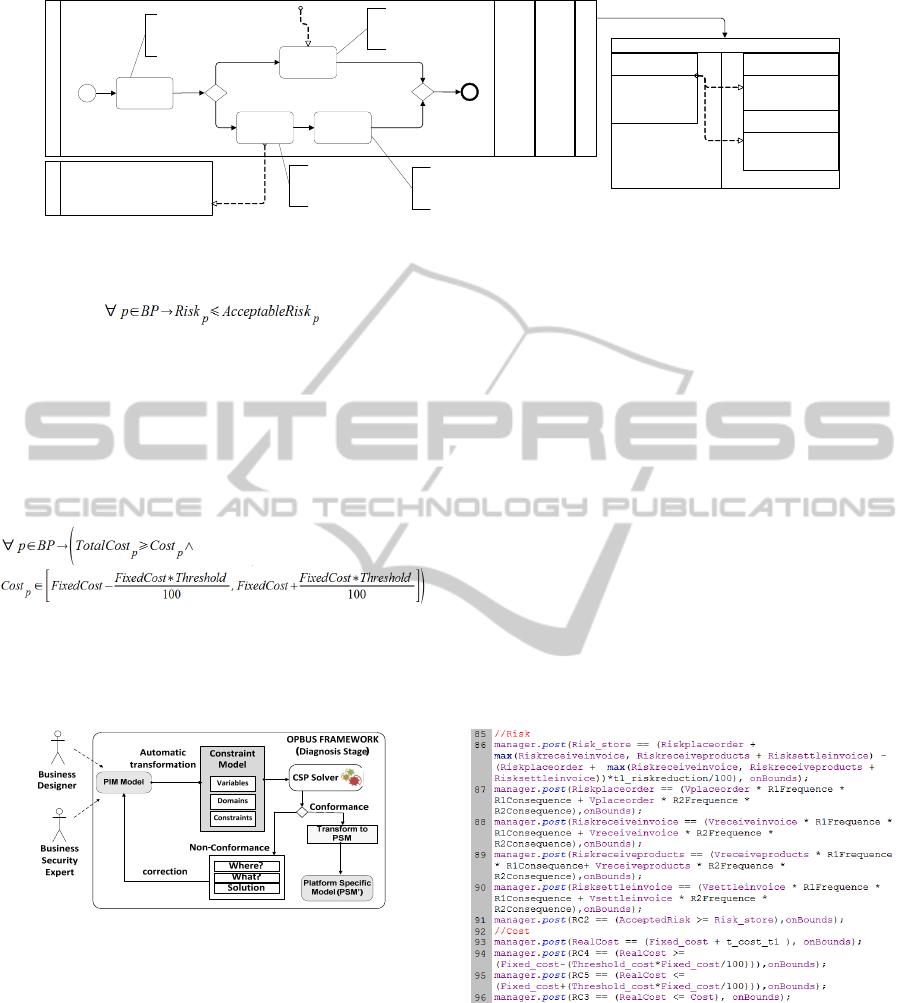

Figure 2: Business process extended with risk information.
that do not comply with the security objectives.
At the same time, a cost assessment is carried out
where the cost of a business process is calculated
with the sum of the fixed cost and the cost of
treatments identified. The main idea is to check the
conformance of costs of the business process do not
exceed to certain limits. In the formula below there
is an initial criterion applied for the cost assessment
but other ones can be adapted.
a. Diagnosis Conformance Stage
OPBUS provides a set of transformation rules which
permits the mapping of risk information to a
constraint model, as shown in Figure 3.
Figure 3: Diagnosis of business processes.
Automatically, the constraint model can be
evaluated and if it shows unsatisfying results, then
this indicates that there exist risks that are not being
mitigated or avoided. It can also be useful to identify
where and what components are unsatisfying the
constraints in order to act providing which business
process elements are involved in the not
satisfactibility.
b. Example of Mapping to Constraint Model
and Diagnosis
An example of mapping to a constraint model and
diagnosis of conformance based on the example of
the Figure 2 is shown. First of all, a set of variables
and domains which compose the constraint model
are defined. Most of parameters included in the
extension are mapped to variables in the constraint
model. Two variables for each task that composes
the business process have to be defined. The first
one defines its value in relation with security
parameters (Integrity, Confidentiality and
Availability). The second one defines the risk value
that is defined with open domain because its value is
unknown when the constraint model is under
construction and it will be assigned values in the
resolution of the constraint model. In next piece of
code, there are statements for the variables of Place
Order activity is shown.
int PO=ValueIntegrity+ValueConfidentialy+ValueAvailability;
var<CP>{int} RiskPO(manager,1..100000);
Similar variables are defined for treatment and threat
parameters.
Figure 4: Set of constraints.
The constraint model is defined by an objective
function. The objective function aims are the
evaluation of the risk assessment and check that the
risks and cost calculated are in conformance with the
objectives of acceptable risk and cost specified.
Therefore, the set of constraints that compose the
model are two: the first for the risk calculation, and
the second for the evaluation of the conformance.
Constraint evaluation could retrieve one solution

SECRYPT 2011 - International Conference on Security and Cryptography
372

with the best results or all possible solutions and
extra information about value of the parameters. In
this case, we have selected a type of search in order
to obtain all possible solutions since it is more
interesting observe different cases with assignation
of variables and values. In the
Table 1, we show two examples of solutions
found by the resolution of the constraint model using
a constraint solver. One with positive results where
all constraints are satisfied and the other with
negative results where at least one constraint is not
satisfied.
Table 1: Results of the evaluation of constraint model.
CASE 1 CASE 2
Constraints
RC1 = false; RC2 = true
RC3 = true; RC4 = true
RC1 = true; RC2 = true
RC3 = true; RC4 = true
Acceptable Risk
Acceptable Risk = 200 Acceptable Risk = 200
Risk Variables
Risk
_
store
=
903
Riskplaceorder=270
Riskreceiveinvoice=240
Riskreceiveproducts=330
Risksettleinvoice=330
Risk_store = (188)[9..196]
Riskplaceorder=270
Riskreceiveinvoice=240
Riskreceiveproducts=330
Risksettleinvoice=330
Treatment Variables
t1_riskreduction = 3 t1_riskreduction=
(21)[79..99]
Cost Variables
Cost=(101)[2100..2200]
Total Cost = 3000
Cost_treatment=(101)
[100..200]
Cost=(101)[2100..2200]
Total Cost = 3000
Cost_treatment=(101)
[100..200]
4 RELATED WORK
There exist different proposals of extensions of business
processes with risk information and non-functional
requirements (Korherr, 2007) (Lambert, 2006), (Jakoubi,
2009), (Menzel, 2009), (Muhelen, 2005), (Cope, 2010).
Most of them only pay attention in the modelling of risk
information or requirements but do not include mechanism
for the automatic evaluation of the risk assessment and the
diagnosis of the conformance of the objectives of the
business process. Moreover these proposals do not
consider the transformation of the requirements to specific
artefacts in the implementation level. Other works
(Menzel, 2009), (Wolter, 2009) consider the introduction
of new elements in order to annotate BPMN diagrams
with parameters which are transformed into a specific
security configuration of a server.
5 CONCLUSIONS
In this work, an overview of the OPBUS architecture
has been presented. OPBUS has been extended with
a MDA approach that provides an extension of
BPMN models with risk information. We propose to
include constraint programming techniques in order
to automate the checking of conformance of the risk
assessment of business processes. For this reason we
have presented a mapping to constraint models.
Once business process are validated the
countermeasures identified in design stage of
business processes can be aligned with specific
control in next layers, for instance with specific fault
tolerance mechanism already included in OPBUS
framework.
ACKNOWLEDGEMENTS
This work has been partially funded by Consejería de
Economía, Innovación y Ciencia of the Regional
Government of Andalusia project under grant P08-TIC-
04095, and by Spanish Ministerio de Ciencia e Innovación
project under grant TIN2009-13714, and by FEDER
(under ERDF Program).
REFERENCES
Cope E. W., Kuster J. M., Etzweiler, D., Deleris , L. A.,
and Ray B., “Incorporating risk into business process
models,” IBM Journal of Research and Development,
vol. 54, no. 3, pp. 4:1 –4:13, 2010.
ENISE, “Integration of Risk Management with Business
processes”. Available at: http://www.enisa.europa.eu/
act/rm/cr/business-process-integration. 2010.
Gartner Inc., “Gartner CIO report,” Available at:
http://www.gartner.com/it/page.jsp?id=1283413, 2010.
Model-Driven Architecture, Available at: http://www.
omg.org/mda/
S. Huang, Y. Chu, Shing-Han Li, D. C. Yen, Enhancing
conflict detecting mechanism for Web Services
composition: A business process flow model
transformation approach, Information and Software
Technology, Vol. 50, pp. 1069-1087, 2008.
Jakoubi, S. and Tjoa, S., “A reference model for risk-
aware business process management,” 4th Internatio-
nal Conference on Risks and Security of Internet and
Systems (CRiSIS), 2009, pp. 82 –89, 2009.
Korherr B. and Beate List, “Extending the EPC and the
BPMN with Business Process Goals and Performance
Measures”, International Conference on Enterprise
Information Systems, 2007.
Lambert, J. H., Jennings, R. K., and Joshi N. N.,
“Integration of risk identification with business
process models,” Syst. Eng., vol. 9, no. 3, pp. 187–
198, 2006.
Menzel, M.; Thomas, I.; Meinel, C., "Security
Requirements Specification in Service-Oriented
Business Process Management," ARES '09, pp.41-48,
16-19 2009.
OPBUS: RISK-AWARE FRAMEWORK FOR THE CONFORMANCE OF SECURITY-QUALITY REQUIREMENTS
IN BUSINESS PROCESSES
373

Muehlen M. and Ho D. T.-Y., “Risk management in the
bpm lifecycle,” in Business Process Management
Workshops, pp. 454–466, 2005.
Van Hentenryck P.,“Constraint programming,” in
Proceedings of the 5
th
International Conference on
Evolutionary Multi-Criterion Optimization, ser. EMO
’09. Berlin, Heidelberg: Springer-Verlag, 2009.
Varela-Vaca A. J., Gasca R.M., Diana Borrego, Pozo S.,
"Towards Dependable Business Processes with Fault-
Tolerance Approach,” 3rd International Conference
on Dependability (DEPEND). Venecia, Italy. ISBN
978-0-7695-4090-0, 2010.
Varela-Vaca A.J., Gasca R. M., Jiminez-Ramirez A. "A
Model-Driven Engineering approach with Diagnosis
of Non-Conformance of Security Objectives in
Business Process Models," 5th IEEE International
Conference on Research Challenges in Information
Science (RCIS 2011) ISBN 978-1-4244-8671-7 to be
published.
Weske, M. “Business Process Management: Concepts,
Languages, Architectures”, Springer, 2007.
Wolter, C., Menzel, M., Schaad A. , Miseldine P., and
Meinel C.,“Model driven business process security
requirement specification,” Journal of Systems
Architecture-Embedded Systems Design, vol.55, no. 4,
pp. 211–223, 2009.
SECRYPT 2011 - International Conference on Security and Cryptography
374
