BYTE SLICING GRØSTL
Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl
Kazumaro Aoki
1∗
, G¨unther Roland
2
, Yu Sasaki
1
and Martin Schl¨affer
2
1
NTT Corporation, Tokyo, Japan
2
IAIK, Graz University of Technology, Graz, Austria
Keywords:
Hash function, SHA-3 competition, Grøstl, Software implementation, Byte slicing, Intel AES new instruc-
tions, 8-bit AVR.
Abstract:
Grøstl is an AES-based hash function and one of the 5 finalists of the SHA-3 competition. In this work we
present high-speed implementations of Grøstl for small 8-bit CPUs and large 64-bit CPUs with the recently
introduced AES instructions set. Since Grøstl does not use the same MDS mixing layer as the AES, a direct
application of the AES instructions seems difficult. In contrast to previous findings, our Grøstl implemen-
tations using the AES instructions are currently by far the fastest known. To achieve optimal performance
we parallelize each round of Grøstl by taking advantage of the whole bit width of the used processor. This
results in implementations running at 12.2 cylces/byte for Grøstl -256 and 18.6 cylces/byte for Grøstl -512.
1 INTRODUCTION
In 2007, NIST has initiated the SHA-3 competi-
tion (National Institute of Standards and Technology,
2007) to find a new cryptographic hash function stan-
dard. 51 interesting hash functions with different de-
sign strategies have been accepted for the first round.
Many of these SHA-3 candidates are AES-based and
might benefit from the Intel AES new instructions set
(AES-NI) (Gueron and Intel Corp., 2010) to speed
up their implementations. In (Benadjila et al., 2009)
those candidates which use the AES round transfor-
mation as a main building block have been analyzed
and implemented using AES-NI. In that work, the au-
thors claim that algorithms which use a very different
MDS mixing matrix (than AES) are too distant from
AES and that there is no easy way to benefit from
AES-NI.
Since December 2010,
Grøstl (Gauravaram et al.,
2011) is one of 5 finalists of the SHA-3 competition
and uses the same S-box as AES but a very differ-
ent MDS mixing matrix. In this work we show that
it is still possible to efficiently implement Grøstl
using AES-NI. Moreover, our AES-NI implementa-
tion of Grøstl is the fastest known implementation
of Grøstl so far. Furthermore, we present a self-byte
sliced implementation strategy which allows to imp-
∗
Parts of this work were done while the author stayed at
TU Graz.
lement
Grøstl very efficiently on both 8-bit and 128-
bit platforms. We achieve very good performance for
larger bit widths by optimizing the MDS mixing ma-
trix computation of Grøstl and by computing mul-
tiple columns in parallel. The parallel computation
of the whole Grøstl round is possible and if parallel
AES S-box table lookups (using AES-NI or the vpaes
implementation of (Hamburg, 2009)) are available.
The paper is organized as follows. In Section 2,
we give a short description of
Grøstl . In Section 3,
we describe requirements and general optimization
techniques of our byte sliced implementations. In
Section 4, we show how to minimize the computa-
tional requirements for MixBytes, the MDS mixing
layer of Grøstl . In Section 5, we present the spe-
cific details of the 8-bit and 128-bit implementations.
Finally, we conclude in Section 6.
2 DESCRIPTION OF GRØSTL
The hash function Grøstl was designed by Gau-
ravaram et al. as a candidate for the SHA-3 compe-
tition (Gauravaram et al., 2011). In January 2011,
Grøstl has been tweaked for the final round of the
competition and we only consider this variant here. It
is an iterated hash function with a compression func-
tion built from two distinct permutations P and Q,
which are based on the same principles as the AES
124
Aoki K., Roland G., Sasaki Y. and Schläffer M..
BYTE SLICING GRØSTL - Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl.
DOI: 10.5220/0003515701240133
In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 124-133
ISBN: 978-989-8425-71-3
Copyright
c
 2011 SCITEPRESS (Science and Technology Publications, Lda.)

round transformation (National Institute of Standards
and Technology, 2001). Grøstl is a wide pipe de-
sign with security proofs for the collision and preim-
age resistance of the compression function (Fouque
et al., 2009). In thefollowing,we describe the Grøstl
hash function and the permutations of Grøstl -256
and Grøstl -512 in more detail.
2.1 The Grøstl Hash Function
The input message M is padded and split into blocks
M
1
,M
2
,. .. , M
t
of ℓ bits with ℓ = 512 for Grøstl -256
and ℓ = 1024 for Grøstl -512. The initial value H
0
,
the intermediate hash values H
i
, and the permutations
P and Q are of size ℓ as well. The message blocks
are processed via the compression function f, which
accepts two inputs of size ℓ bits and outputs an ℓ-bit
value. The compression function f is defined via the
permutations P and Q as follows:
f(H,M) = P(H ⊕ M) ⊕ Q(M)⊕ H.
The compression function is iterated with H
0
= IV
and H
i
← f (H
i−1
,M
i
) for 1 ≤ i ≤ t. The output
H
t
of the last call of the compression function is
processed by an output transformation g defined as
g(x) = trunc
n
(P(x) ⊕ x), where n is the output size of
the hash function and trunc
n
(x) discards all but the
least significant n bits of x. Hence, the digest of the
message M is defined as h(M) = g(H
t
).
2.2 The Grøstl-256 Permutations
As mentioned above, two permutations P and Q are
defined for Grøstl -256. Both permutations operate
on a 512-bit state, which can be viewed as an 8 ×
8 matrix of bytes. Each permutation of Grøstl -256
consists of 10 rounds, where the following four AES-
like round transformations are applied to the state in
the given order:
• AddRoundConstant (AC) XOR s a constant to one
row of the state for P and to the whole state for Q.
The constant changes for every round.
• SubBytes (SB) applies the AES S-box to each
byte of the state.
• ShiftBytes (SH) cyclically rotates the bytes of
rows to the left by {0,1, 2,3, 4, 5,6, 7} positions
in P and by {1, 3,5, 7, 0,2, 4, 6} positions in Q.
• MixBytes (MB) is a linear diffusion layer, which
multiplies each column with a constant 8 × 8 cir-
culant MDS matrix.
2.2.1 MixBytes
As the MixBytes transformation is the most run-time
intensive part of Grøstl in our case, we will describe
this transformation in more detail here. The MixBytes
transformation is a matrix multiplication performed
on the state matrix as follows:
A ← B× A,
where A is the state matrix and B is a
circulant MDS matrix specified as B =
circ(02,02,03, 04,05,03, 05, 07) or by the following
matrix:
B =













02 02 03 04 05 03 05 07
07 02 02 03 04 05 03 05
05 07 02 02 03 04 05 03
03 05 07 02 02 03 04 05
05 03 05 07 02 02 03 04
04 05 03 05 07 02 02 03
03 04 05 03 05 07 02 02
02 03 04 05 03 05 07 02













.
The multiplication is performed in a finite field
F
256
defined by the irreducible polynomial x
8
⊕ x
4
⊕
x
3
⊕ x ⊕ 1 ( 0x11B ). As the multiplication by 2 only
consists of a shift and a conditional XOR in binary
arithmetic, we will calculate all multiplications by
combining multiplications by 2 and additions ( XOR ),
e.g. 7·x = (2· (2 · x)) ⊕ (2· x) ⊕ x.
For more details on the round transformations we
refer to the Grøstl specification (Gauravaram et al.,
2011).
2.3 The Grøstl-512 Permutations
The permutations used in Grøstl -512 are of size ℓ =
1024 bits and the state is viewed as an 8× 16 matrix
of bytes. The permutations use the same round trans-
formations as in Grøstl -256 except for ShiftBytes:
Since the permutations are larger, the rows are shifted
by {0, 1, 2,3, 4,5, 6, 11} positions to the left in P. In Q
the rows are shifted by {1, 3,5, 11, 0,2,4, 6} positions
to the left. The number of rounds is increased to 14.
3 BYTE SLICED
IMPLEMENTATIONS OF
GRØSTL
In this section, we describe some requirements for the
efficient parallel computation of the Grøstl round
transformations. Due to the fact that MixBytes ap-
plies the same algorithm to every column of the state
BYTE SLICING GRØSTL - Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl
125

we can ’byte slice’ Grøstl . In other words, we apply
the same computations for every byte-wise column of
the Grøstl state. On platforms with register sizes
larger than 8-bit we can parallelize every transforma-
tion by placing several bytes of one row (of the state)
inside one register. One column of the state is then
distributed over 8 different registers (see Figure 1).
P
Q
xmm0
xmm1
xmm2
xmm3
xmm4
xmm5
xmm6
xmm7

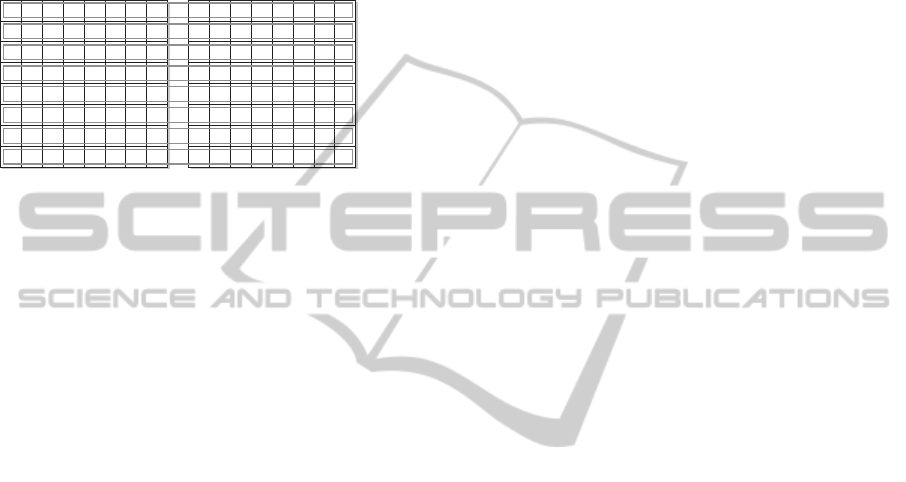

Figure 1: For the AES-NI implementation, the Grøstl -256
state is stored row-wise in xmm registers to compute each
column 16 times in parallel.
3.1 Transposing the State
Unfortunately, the byte mapping in Grøstl is exactly
the opposite of this requirement. The state is mapped
to a byte sequence column-wise. Therefore we have
to transpose each input state to get bytes of the same
row into one register.
Once this realignment is done we can apply the
same operations on each column (or byte) stored in
the row registers at once. Even SubBytes which only
reorders the bytes of one row, is easier to implement
this way, because no data has to be moved between
registers.
3.2 AddRoundConstant
In AddRoundConstant a constant is XOR ed to the
state. This constant is different for P and Q and
changes every round. When using large registers,
these constants can be precomputed and XOR ed row-
by-row and in parallel to each column of the state.
3.3 SubBytes
In order to improve the performance of the SubBytes
layer, we need to compute as many parallel S-box
lookups as possible.
In general, there is no easy way to lookup and re-
place each byte of a register using generic instructions
on large platforms. For this reason the T-table based
implementations are currently still the fastest on most
bigger platforms. However, the AES new instruc-
tions set gives us the possibility of 16 parallel S-box
lookups within only one instruction (see Section 5).
Another approach for parallel AES S-box table
lookups is to use small Log tables to efficiently com-
pute the inverse of the AES S-box using the vpaes
implementation presented in (Hamburg, 2009).
3.4 ShiftBytes
ShiftBytes is generally simple to implement on any
platform if the state is stored in row ordering. Only
byte shufflings, bitshifts and XOR s, or addressing dif-
ferent state bytes (or words) is necessary.
3.5 MixBytes
As stated above, MixBytes is the transformation that
benefits most from byte slicing. MixBytes is com-
puted using a large number of XOR s and multiplica-
tions by two in F
256
. The multiplication in the finite
field F
256
will be simplified to simple multiplications
by two and additions in F
256
( XOR s).
For the multiplication by two we only need to shift
each byte to the left by one bit. To keep the result
in F
256
we have to observe the carry bit ( MSB before
the shift operation). If the carry bit is zero the re-
sult is already correct (still in F
256
), if the carry bit is
one we have to reduce by the irreducible polynomial
(i.e. XOR 0x11B ).
There are many strategies to reduce the number of
XOR computations for MixBytes and we discuss two
optimization strategies in detail in Section 4.
4 OPTIMIZING THE MIXBYTES
COMPUTATION
The MDS matrix multiplication is the most complex
operation of Grøstl . Without optimizations all bytes
of a column have to be multiplied by 2,3,4,5 and 7
and then summed up according to the following ma-
trix multiplication:










b
0
b
1
b
2
b
3
b
4
b
5
b
6
b
7










=










2 2 3 4 5 3 5 7
7 2 2 3 4 5 3 5
5 7 2 2 3 4 5 3
3 5 7 2 2 3 4 5
5 3 5 7 2 2 3 4
4 5 3 5 7 2 2 3
3 4 5 3 5 7 2 2
2 3 4 5 3 5 7 2










·










a
0
a
1
a
2
a
3
a
4
a
5
a
6
a
7










If we use only multiplications by 2 as described
above we can rewrite the same equations with factors
of only 2 and 4. See Listing 1. Without optimization,
the total number of XOR s is 13· 8 = 104 and we need
16 multiplications by 2 (if we can store the results).
SECRYPT 2011 - International Conference on Security and Cryptography
126

Note that a multiplication by 2 is usually about 3-5
times more expensive than an XOR operation.
4.1 Using Temporary Results
In this section, we show a MixBytes computation
which tries to minimize the number of XOR s and the
used registers while keeping the minimum number of
16 multiplications by 2. This strategy is used for the
Intel AES-NI implementation in Section 5.1.
Since many terms (a
i
,2 · a
i
,4 · a
i
) in the computa-
tion are added to more than one result, we can save
XOR s by computing temporary results (see Table 1).
For example, the term
t = 2· a
0
+ 2 · a
2
+ 1 · a
5
+ 4 · a
7
+ 1 · a
7
(1)
needs to be added to b
0
, b
1
and b
3
. This has a total
cost of 3 · 5 = 15 XOR s using the naive approach. If
we first compute the temporary result t and then add t
to each of b
0
, b
1
and b
3
, we can save 15− (4+3) = 8
XOR s.
There are many possibilities to compute tempo-
rary results and we used a greedy approach to find
a good sequence. In each step of this approach, we
try out all possible temporary results and compute the
number of XOR s we can save. In the first step, the
maximum number of XOR s we can save is 8. After
we remove the already added terms, we continue with
b
0
= a
2
⊕ a
4
⊕ a
5
⊕ a
6
⊕ a
7
⊕ 2a
0
⊕ 2a
1
⊕
2a
2
⊕ 2a
5
⊕ 2a
7
⊕ 4a
3
⊕ 4a
4
⊕ 4a
6
⊕ 4a
7
b
1
= a
0
⊕ a
3
⊕ a
5
⊕ a
6
⊕ a
7
⊕ 2a
0
⊕ 2a
1
⊕
2a
2
⊕ 2a
3
⊕ 2a
6
⊕ 4a
0
⊕ 4a
4
⊕ 4a
5
⊕ 4a
7
b
2
= a
0
⊕ a
1
⊕ a
4
⊕ a
6
⊕ a
7
⊕ 2a
1
⊕ 2a
2
⊕
2a
3
⊕ 2a
4
⊕ 2a
7
⊕ 4a
0
⊕ 4a
1
⊕ 4a
5
⊕ 4a
6
b
3
= a
0
⊕ a
1
⊕ a
2
⊕ a
5
⊕ a
7
⊕ 2a
0
⊕ 2a
2
⊕
2a
3
⊕ 2a
4
⊕ 2a
5
⊕ 4a
1
⊕ 4a
2
⊕ 4a
6
⊕ 4a
7
b
4
= a
0
⊕ a
1
⊕ a
2
⊕ a
3
⊕ a
6
⊕ 2a
1
⊕ 2a
3
⊕
2a
4
⊕ 2a
5
⊕ 2a
6
⊕ 4a
0
⊕ 4a
2
⊕ 4a
3
⊕ 4a
7
b
5
= a
1
⊕ a
2
⊕ a
3
⊕ a
4
⊕ a
7
⊕ 2a
2
⊕ 2a
4
⊕
2a
5
⊕ 2a
6
⊕ 2a
7
⊕ 4a
0
⊕ 4a
1
⊕ 4a
3
⊕ 4a
4
b
6
= a
0
⊕ a
2
⊕ a
3
⊕ a
4
⊕ a
5
⊕ 2a
0
⊕ 2a
3
⊕
2a
5
⊕ 2a
6
⊕ 2a
7
⊕ 4a
1
⊕ 4a
2
⊕ 4a
4
⊕ 4a
5
b
7
= a
1
⊕ a
3
⊕ a
4
⊕ a
5
⊕ a
6
⊕ 2a
0
⊕ 2a
1
⊕
2a
4
⊕ 2a
6
⊕ 2a
7
⊕ 4a
2
⊕ 4a
3
⊕ 4a
5
⊕ 4a
6
Listing 1: MixBytes computation for one column with fac-
tors 1, 2 and 4. a
i
are the input bytes and b
i
are the output
bytes.
the greedy approach until only single terms are left.
Using this approach we found a sequence of comput-
ing MixBytes which requires 58 XOR s and 16 multi-
plications by two. This sequence is shown by Table 1
and we use superscript numbers to denote the order of
computing temporary results.
4.2 Reusing Results of ·1
In this section, we show a different MixBytes opti-
mization technique which might be faster if more reg-
isters are available. This technique has been used for
the 8-bit AVR implementation (see Section 5.2).
In Table 2 we have separated the MixBytes com-
putation for each factor a
i
, 2 · a
i
and 4 · a
i
. We use
superscript numbers to denote the order in which we
compute temporary results again. The values marked
with letters are added to the temporary results after
computing the first (intermediate) results to further
optimize the computation, e.g.:
b
1,1
= a
0
⊕ a
3
b
6,1
= b
1,1
(2)
b
1,1
= b
1,1
⊕ a
6
b
4,1
= b
1,1
In this version the values that are multiplied by
2 are not calculated from the original inputs a
i
but
from the results of the first part of the calculation b
i,1
.
While this significantly reduces the number of XOR s
the numberof multiplicationsincreases from 16to 24:
instead of multiplying every byte of the column first
by 2 and then again by 2 to get the values multiplied
by 4, we need to multiply the intermediate values too.
Although the number of multiplications increases to
24 we only need 47 XOR operations. This variant has
been used for the 8-bit implementation of Grøstl in
Section 5.2.
4.3 Minimizing the Number of XORs
The previous technique leads to another method to
minimize the number of instructions in MixBytes.
Using Table 2, we can observe that for each result b
i
,
many a
j
⊕ a
j+1
terms are needed for each factor of
1, 2 and 4. By computing temporary results t
i
, x
i
and
y
i
we get the following optimized MixBytes compu-
tation formulas with i = {0, .. ., 7}:
t
i
= a
i
+ a
i+1
x
i
= t
i
+ t
i+3
(3)
y
i
= t
i
+ t
i+2
+ a
i+6
b
i
= 2· (2 · x
i+3
+ y
i+7
) + y
i+4
BYTE SLICING GRØSTL - Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl
127

Table 1: MixBytes computation with 58 XOR s. A “•” denotes those inputs (a
i
, 2· a
i
, 4· a
i
) which are added to get the results
b
i
. Superscripts denote the order in which the temporary results are computed (1 corresponds to the temporary results of
Equation 1).
a
0
a
1
a
2
a
3
a
4
a
5
a
6
a
7
4 2 1 4 2 1 4 2 1 4 2 1 4 2 1 4 2 1 4 2 1 4 2 1
b
0
− •
1
− − •
2
− − •
1
•
9
•
d
− − •
d
− •
2
− •
9
•
1
•
2
− •
2
•
1
•
2
•
1
b
1
•
5
•
1
•
5
− •
a
− − •
1
− − •
5
•
b
•
d
− − •
5
− •
1
− •
b
•
a
•
1
− •
1
b
2
•
5
− •
5
•
7
•
2
•
7
− •
c
− − •
5
− − •
7
•
2
•
5
− − •
2
− •
2
− •
2
•
c
b
3
− •
1
•
3
•
7
− •
7
•
3
•
1
•
3
− •
3
− − •
7
− − •
3
•
1
•
d
− − •
1
− •
1
b
4
•
d
− •
3
− •
a
•
4
•
3
− •
3
•
4
•
3
•
4
− •
4
− − •
3
− − •
4
•
a
•
d
− −
b
5
•
d
− − •
6
− •
4
•
d
•
c
•
9
•
4
− •
4
•
6
•
4
•
6
− •
9
− − •
4
− − •
6
•
c
b
6
− •
8
•
3
•
6
− − •
3
− •
3
− •
3
•
b
•
6
− •
6
•
8
•
3
•
8
− •
b
− − •
6
−
b
7
− •
8
− − •
2
•
4
− − − •
4
− •
4
− •
4
•
2
•
8
− •
8
•
2
•
4
•
2
− •
2
−
These formulas contain a minimum number of 8·2 =
16 multiplications by 2 and in total, only 8 · 6 = 48
XOR operations. However, it is still an open problemto
find the smallest number of XOR s needed to compute
MixBytes of Grøstl . This strategy is also used for
the Intel AES-NI implementationin Section 5.1. Note
that this variant can also be used to improve Grøstl
on the 8-bit platform.
5 IMPLEMENTATIONS
In the following we will describe specific implemen-
tation details for both the Intel AES-NI and 8-bit AVR
platforms.
5.1 Intel AES-NI
Intel Processors based on the microarchitecture code-
name Westmere come with a new AES instructions
set (AES-NI) (Gueron and Intel Corp., 2010). This
set consists of six new instructions used for AES en-
cryption and decryption. Next to improving the per-
formance of AES they also provide more security due
to their constant-time execution by avoiding cache-
based table lookups. Furthermore, all processors with
AES-NI come with different versions of SSE which
we will also use to improve our implementations. For
more information about the instructions used in this
document we refer to the Intel Manual (Intel Corp.,
2010).
Since Grøstl uses the same S-box as AES we can
use AES-NI to improve the performance of Grøstl
significantly. The implementation requires the pro-
cessor to run in 64-bit mode to have access to the 16
128-bit XMM registers. This helps to avoid unnec-
essary memory accesses that would significantly re-
duce the performance. These 16 128-bit XMM reg-
isters provide enough space for the whole Grøstl
state. Critical parts of the AES-NI implementation of
Grøstl are written in assembler. In the following, we
will discussthe main principles of the implementation
and important observations.
5.1.1 State Alignment in Registers
For optimal performance, the alignment of the state
inside the XMM registers is crucial. We have found
that the best solution for Grøstl -256 is to compute
P and Q simultaneously and put one row (64-bit) of
each state side by side in one 128-bit XMM register.
We then need 8 XMM registers to store both states.
Thanks to MixBytes having the same MDS matrix
for P and Q we can apply an optimized MixBytes al-
gorithm to the whole XMM register and thus, to 16
columns of the state in parallel.
In Grøstl -512 we have 16 columns for each per-
mutation which perfectly fit into 16 XMM registers.
Hence, P and Q are computed separately and after
each other but the same MixBytes algorithm can still
be used 16 times in parallel again.
5.1.2 Transposing the State
To align the column-ordered message to fit the re-
quired row-ordering, the message has to be trans-
posed after being loaded. For this purpose we use the
PUNPCK instructions. The same has to be done with
the IV for the initialization and in reverse order for
the last chaining value before truncation. All the in-
termediate chaining values are kept in the transposed
form.
In more detail, the PUNPCK instruction merges two
XMM registers into one XMM register by interleav-
ing the highor low bytes/words/doublewordsor quad-
words of the two source registers (Intel Corp., 2010).
A simple square matrix can be transposed using only
PUNPCK instructions (Intel Corp., 1996). As we ini-
tially have two 64-bit columns in each register, and
therefore an 8x16 matrix, we also need PSHUFB and
MOV instructions to reorder the data correctly.
SECRYPT 2011 - International Conference on Security and Cryptography
128

Table 2: MixBytes computation separated for factor 1, 2
and 4. a
i
are the input and b
i
the output bytes. A “•” denotes
those inputs (a
i
, 2 · a
i
, 4 · a
i
) which are added to get the
intermediate results b
i, j
. Superscripts denote the order in
which temporary values are computed. Note that the results
for factor 2 can be computed only by multiplying the results
of factor 1 by 2 (e.g. b
0,2
= 2b
3,1
).
1a
0
1a
1
1a
2
1a
3
1a
4
1a
5
1a
6
1a
7
b
0,1
− − •
0
− •
2
•
0
•
2
•
b
1,1
•
1
− − •
1
− • •
a
•
b
2,1
•
b
•
3
− − •
2
− •
2
•
3
b
3,1
•
b
•
3
•
0
− − •
0
− •
3
b
4,1
•
1
• • •
1
− − •
a
−
b
5,1
− •
3
• • • − − •
3
b
6,1
•
1
− •
0
•
1
• •
0
− −
b
7,1
− • − • •
2
• •
2
−
2a
0
2a
1
2a
2
2a
3
2a
4
2a
5
2a
6
2a
7
=
b
0,2
• • • − − • − • 2b
3,1
b
1,2
• • • • − − • − 2b
4,1
b
2,2
− • • • • − − • 2b
5,1
b
3,2
• − • • • • − − 2b
6,1
b
4,2
− • − • • • • − 2b
7,1
b
5,2
− − • − • • • • 2b
0,1
b
6,2
• − − • − • • • 2b
1,1
b
7,2
• • − − • − • • 2b
2,1
4a
0
4a
1
4a
2
4a
3
4a
4
4a
5
4a
6
4a
7
b
0,4
− − − •
0
•
1
− •
0
•
1
b
1,4
•
2
− − − •
1
•
2
− •
1
b
2,4
•
2
•
3
− − − •
2
•
3
−
b
3,4
− •
3
•
4
− − − •
3
•
4
b
4,4
•
5
− •
4
•
5
− − − •
4
b
5,4
•
5
•
6
− •
5
•
6
− − −
b
6,4
− •
6
•
7
− •
6
•
7
− −
b
7,4
− − •
7
•
0
− •
7
•
0
−
The details of the transpositions for each step are
shown in table form in the Appendix.
5.1.3 AddRoundConstant
AC adds a constant to the state matrix. For P a con-
stant is only added to the first row, for Q the constant
is added to all rows. Therefore we need 8 128-bit
XOR s for Grøstl -256 since P and Q share registers.
For Grøstl -512 we need 1 XOR for P and 8 for Q.
5.1.4 SubBytes
The Intel AES instructions provide exactly the func-
tionality required for SubBytes of Grøstl since
the same AES S-box is used. The last round of
the AES encryption applies ShiftRows, SubBytes
and AddRoundKey to the state. This func-
tionality is available by the AESENCLAST instruc-
tion. To isolate SubBytes we can invert the
ShiftRows transformation (using PSHUFB with the
mask 0x0306090c0f0205080b0e0104070a0d00) and
use an empty RoundKey. The following assembler
code shows the S-box implementation using AES-NI:
(Gueron and Intel Corp., 2010)
pshufb xmm0 , 0x0306090c0f ...70a0d00
aesenclast xmm0, 0x0000000000 ...0000000
These instructions combined will take less than 3 cy-
cles to compute with a latency of about 6 cycles (Fog,
2010).
5.1.5 ShiftBytes
We can use the PSHUFB instruction (SSSE3) to quickly
reorder the bytesin the XMM registers forShiftBytes.
This instruction is even faster than a simple shift
instruction. Furthermore the PSHUFB instruction of
ShiftBytes can be combined with the PSHUFB instruc-
tion to correct ShiftRows for AESENCLAST .
Two PSHUFB instructions with constant masks can
be merged by shuffling the first mask using the second
mask:
pshufb xmm0, mask1
pshufb xmm0, mask2
is equal to:
(pshufb mask1, mask2)
pshufb xmm0, mask1
where the shuffled mask is again a constant. The new
mask (mask1) can be precomputed. This way we can
save one PSHUFB instruction and only need to store
one constant.
5.1.6 MixBytes
With the new row ordering we can compute 16
columns in parallel in one pass. We have imple-
mented both variants which need a minimum number
of 16 multiplications by 2. Apart from the multipli-
cations by 2, the first variant of Section 4.1 needs 8
MOV and 32 XOR operations without memory access,
and 25 MOV and 26 XOR operations with memory ac-
cess (33 MOV and 58 XOR operations in total). For the
second variant given in Section 4.3, we need 11 MOV
and 32 XOR operations without memory access, and 8
MOV and 16 XOR operations with memory access (19
MOV and 48 XOR operations in total).
In the following, we show different implementa-
tion variants of the multiplication by 2 which can be
used to implement MixBytes.
Multiplication by 2 in F
256
with SSE or Similar.
If SSE is available, the code shown below can be used
BYTE SLICING GRØSTL - Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl
129

to calculate the multiplication in parallel. In this ex-
ample xmm1 is multiplied by 2 and xmm0 will be lost
( paddb is used instead of psllq because of the shorter
opcode):
movdqa xmm0 , xmm1
psrlw xmm1 , 7
pand xmm1 , 0x0101...01
pmullw xmm1 , 0x1b1b...1b
paddb xmm0 , xmm0
pxor xmm1 , xmm0
Multiplication by 2 in F
256
with PBLENDVB. If
SSE 4.1 is available we can use the PBLENDVB in-
struction to slightly speed up the algorithm described
above. PBLENDVB merges two XMM registers into
one. The source register is selected by the MSB of each
byte in a third register. The MSB is also the bit that de-
cides whether or not it is necessary to reduce the byte
after shifting. Therefore we can use this instruction
to generate a mask to XOR 0x1B where necessary. The
multiplication as implemented is shown below where
xmm2 is multiplied by 2, xmm0 and xmm1 are lost:
movdqa xmm0 , xmm2
pand xmm2 , 0x1b1b...1b
pxor xmm1 , xmm1
paddb xmm2 , xmm2
pblendvb xmm1 , 0x7f7f...7f
pxor xmm2 , xmm1
Multiplication by 2 in F
256
with PCMPGTB. We
get the fastest implementation using the PCMPGTB in-
struction. PCMPGTB compares signed bytes. If the
MSB is set, the comparison with zero results in 0xFF
and in 0x00 otherwise. The multiplication is shown
below where xmm1 will be multiplied by 2, xmm0
will be lost and xmm2 has to be all 0x1B .
pxor xmm0 , xmm0
pcmpgtb xmm0 , xmm1
paddb xmm1 , xmm1
pand xmm0 , xmm2
pxor xmm1 , xmm0
If ALU instructions are the bottleneck in the
MixBytes implementation, we can also replace some
instructions by their memory variant and get for ex-
ample:
movaps xmm0 , 0x0000...00
pcmpgtb xmm0 , xmm1
paddb xmm1 , xmm1
pand xmm0 , 0x1b1b...1b
pxor xmm1 , xmm0
5.1.7 Further Optimizations
For even higher performance we tried different local
optimization techniques. We:
• tried different variants of the MixBytes computa-
tion;
• unrolled loops;
• used precomputed constants for
AddRoundConstant;
• analyzed different instruction orders to improve
parallel executions in different ALUs(micro-ops);
• used equivalent instructions with smaller opcode
where possible;
• tried different variants for the multiplication by 2;
• used different variants of equivalent LOAD/
STORE or ALU; instructions to keep all units
busy.
While unrolling loops works perfectly for Grøstl -
256, we found that unrolling all loops in Grøstl -512
increases the code size to exceed the cache size of
the used CPU. This causes an immense drop in per-
formance. Therefore using loops is necessary in this
implementation.
5.1.8 Log Tables (vpaes)
As presented in (Hamburg, 2009), there is another
way to compute the S-box relatively fast and cache-
timing resistant without the use of AES instructions.
By using Log tables to calculate inverses in F
2
4
it is
possible to compute the inverse in F
2
8
. This way the
S-box can be realized with only 4-bit table lookups.
These lookups can be implemented with PSHUFB in-
structions. Recently, Grøstl has been implemented
this way in (C¸ alik, 2010). We have implemented the
AES S-box computation and improved the previous
results using our optimized MixBytes computations.
Note that the resulting vpaes implementation is now
as fast as the T-table based implementation.
5.1.9 Intel AVX
The next generation of Intel processors feature a 256-
bit extension to SSE called AVX. Using these new
registers the possible bandwidth for parallel compu-
tations can be doubled. Even though PSHUFB and
AESENCLAST will not be available for 256-bit regis-
ters, Grøstl -512 might run up to 50% faster because
MixBytes and AddRoundConstant can be applied to
P and Q at the same time.
SECRYPT 2011 - International Conference on Security and Cryptography
130

Table 3: Speed of the Grøstl AES-NI and vpaes implemen-
tations in cylces/byte on an Intel Core i7-M620 and Intel
Core2 Duo L9400 processor (v1: using MixBytes compu-
tation of Section 4.1; v3: using MixBytes computation of
Section 4.3).
CPU Version Grøstl -256 Grøstl -512
Core i7
aesni v3 12.2 18.6
aesni v1 13.0 18.6
vpaes v1 23.2 32.6
(T-tables) 24.0 35.9
Core2 vpaes 21.2 29.2
Duo (T-tables) 20.4 30.3
5.1.10 Benchmarks
The final round version of Grøstl has been bench-
marked on an Intel Core i7-620LM and Intel Core2
Duo L9400. For comparison, we also show bench-
marks of the T-table implementation and the vpaes
implementation. The results are shown in Table 3.
5.2 8-bit AVR (ATmega163)
The ATmega163 is an 8-bit microcontroller with 32
8-bit multi-purpose registers, 1024 Bytes of SRAM
and 16K of flash memory. The multi-purpose regis-
ters can be used to manipulate data. The controller
needs 2 cycles to read from and write to the SRAM
and 3 cycles to read from flash memory. Six of the
8-bit registers are used as 16-bit address registers X,
Y and Z, thus they can usually not be used for com-
putations. For a list of instructions see (Atmel, 2003).
Because of the limited bit width of the architecture
we can only compute one column at once. Therefore
the most important part of the 8-bit optimization is
minimizing the number of XOR s in MixBytes as de-
scribed above. With 26 available general purpose reg-
isters we have just enough space to keep the interme-
diate values loaded at all times during the computa-
tion of one column. All the other columns have to be
written back to RAM.
The multiplication in F
256
can be implemented
with the code shown in Listing 2, where r0 is multi-
plied by 2, r1 has to be pre-set to 0x1B and r2 will be
lost. These instructions will take 4 cycles to process
LSL r0 # r0 = r0 << 1
IN r2, 0x3F # r2 = status register
SBRC r2, 0 # skip next if no carry
EOR r0, r1 # r0 = r0 + 0x1B
Listing 2: Multiplication by 2 for 8-bit version.
on the selected CPU. As they are executed for every
Table 4: Speed of three different Grøstl -256 8-bit AVR
implementations in cycles/byte on an ATMega163. The last
line shows the RAM usage in bytes (using MixBytes com-
putation of Section 4.2).
HighSpeed Balanced LowMem
Grøstl 469 530 -
Grøstl -0 456 517 738
RAM 994 226 164
byte of the state it is faster to have a lookup table for
the multiplication if enough memory is available.
AddRoundConstant and SubBytes are computed
for each byte separately using XOR s and table lookups.
ShiftBytes is achieved at no cost by simply loading
from shifted positions in RAM. For more details on
the 8-bit implementation we refer to the full descrip-
tion of the implementation (Roland, 2009). Note that
this implementation canprobablybe further improved
using the MixBytes computation of Section 4.3.
5.2.1 Benchmarks
We have implemented two different versions of the
8-bit implementation with the final round tweak
( Grøstl ) and three versions without the final round
tweak ( Grøstl -0) using different amounts of RAM.
The versions are compared in Table 4.
6 CONCLUSIONS
In this work we have proposed two optimized al-
gorithms for MixBytes, the MDS mixing layer of
Grøstl , which allow to speed up Grøstl on vari-
ous platforms. Furthermore, byte slicing provides the
possibility to parallelize the Grøstl computation if
the registers are large enough and parallel AES S-box
table lookups are available. This is the case for Intel
processors including the new AES instructions set or
in general, using the vpaes implementation.
Both implementations show that Grøstl can be
implemented efficiently on very different platforms.
The 8-bit implementation will run at 469 cycles per
byte on this very limited target hardware. The AES-
NI implementation shows that even though Grøstl
is very different from AES it still can take advantage
of these new instructions. More specifically, our In-
tel AES-NI implementation of Grøstl is the fastest
known implementation so far. Grøstl -256 runs at
about 12.2 cycles per byte on an Intel Core i7-M620,
which is about 50%faster than the table-based version
on the same CPU.
We have reduced the number of operation needed
to compute MixBytes to only 48 XOR s with 16 multi-
plications by 2. Future work includesthe optimization
BYTE SLICING GRØSTL - Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl
131

of the MixBytes computation to take more advantage
of the 3 available ALUs in current Intel processors by
minimizing the dependency chains. Also future CPU
features like AVX will provide another opportunity
to increase the performance, especially for the larger
variant Grøstl -512.
ACKNOWLEDGEMENTS
The authors thank Krystian Matusiewicz for useful
discussions and for fine-tuning the AES-NI imple-
mentations. This work was supported in part by the
European Commission through the ICT Programme
under Contract ICT-2007-216646 ECRYPT II, by the
Austrian Science Fund (FWF), project P21936and by
the IAP Programme P6/26 BCRYPT of the Belgian
State (Belgian Science Policy).
REFERENCES
Atmel (2003). 8-bit AVR Microcontroller with 16K
Bytes In-System Programmable Flash. AT-
mega163. Retrieved December 21, 2010, from
http://www.atmel.com/dyn/resources/prod documents/
doc1142.pdf.
Benadjila, R., Billet, O., Gueron, S., and Robshaw, M.
(2009). The Intel AES Instructions Set and the SHA-3
Candidates. Retrieved December 22, 2010, from
http://crypto.rd.francetelecom.com/ECHO/sha3/AES/.
C¸ alik, C¸ . (2010). Multi-stream and Constant-time
SHA-3 Implementations. NIST hash function
mailing list. Retrieved May 03, 2010, from
http://www.metu.edu.tr/∼ccalik/software.html#sha3.
Fog, A. (2010). Instruction tables - Lists of instruction la-
tencies, throughputs and microoperation breakdowns
for Intel, AMD and VIA CPUs. Retrieved December
22, 2010, from http://www.agner.org/optimize/.
Fouque, P.-A., Stern, J., and Zimmer, S. (2009). Cryptanal-
ysis of Tweaked Versions of SMASH and Reparation.
In Avanzi, R., Keliher, L., and Sica, F., editors, Se-
lected Areas in Cryptography 2008, Proceedings, vol-
ume 5381 of LNCS, pages 136–150. Springer.
Gauravaram, P., Knudsen, L. R., Matusiewicz, K., Mendel,
F., Rechberger, C., Schl¨affer, M., and Thomsen, S. S.
(2011). Grøstl – a SHA-3 candidate. Submission
to NIST (Round 3). Retrieved May 03, 2010, from
http://www.groestl.info.
Gueron, S. and Intel Corp. (2010). Intel
R
Advanced
Encryption Standard (AES) Instructions
Set. Retrieved December 21, 2010, from
http://software.intel.com/en-us/articles/intel-
advanced-encryption-standard-aes -instructions-set/.
Hamburg, M. (2009). Accelerating AES with Vector Per-
mute Instructions. In Clavier, C. and Gaj, K., editors,
CHES, volume 5747 of LNCS, pages 18–32. Springer.
Intel Corp. (1996). Using MMX
TM
Instructions to
Transpose a Matrix. Retrieved July 12, 2011, from
ftp://download.intel.com/ids/mmx/MMX App Transp
ose Matrix.pdf.
Intel Corp. (2010). Intel
R
64 and IA-32 Ar-
chitectures Software Developers Man-
ual. Retrieved December 21, 2010, from
http://www.intel.com/products/processor/manuals/.
National Institute of Standards and Technology (2001).
FIPS PUB 197, Advanced Encryption Standard
(AES). Federal Information Processing Standards
Publication 197, U.S. Department of Commerce.
National Institute of Standards and Technology (2007).
Cryptographic Hash Project. Available online at
http://www.nist.gov/hash-competition.
Roland, G. A. (2009). Efficient Implementation of
the Grøstl -256 Hash Function on an ATmega163
Microcontroller. Retrieved May 03, 2010, from
http://groestl.info.
APPENDIX
The following tables show how the message is loaded,
transposed, XORed to the chaining value and stored
in XMM registers for the byte slice implementation
of Grøstl -256. We use a sequence of PUNPCK and
PSHUFB instructions to get the required formats.
First, the message block bytes M
ij
are loaded into
4 XMM registers (see Table 5). Note that in Grøstl
the message is loaded in column ordering format.
Hence, the message needs to get transposed to get two
rows of the M
ij
in one XMM register (see Table 6).
The chaining value is kept in the same format. Then,
the initial XOR is computedto get P
ij
= H
ij
⊕M
ij
(see
Table 7).
To get one row of P and Q in one XMM register,
we need to reorder and transpose both, P
ij
and M
ij
again (see Table 8 and Table 9). This format is used
throughoutall 10 roundsof Grøstl -256 and we trans-
pose back to the chaining value format to compute the
final XOR of P and Q and the feed-forward.
Table 5: Loading the message block into XMM0-XMM3.
XMM3 XMM2 XMM1 XMM0
M48 M32 M16 M0
M49 M33 M17 M1
M50 M34 M18 M2
M51 M35 M19 M3
M52 M36 M20 M4
M53 M37 M21 M5
M54 M38 M22 M6
M55 M39 M23 M7
M56 M40 M24 M8
M57 M41 M25 M9
M58 M42 M26 M10
M59 M43 M27 M11
M60 M44 M28 M12
M61 M45 M29 M13
M62 M46 M30 M14
M63 M47 M31 M15
SECRYPT 2011 - International Conference on Security and Cryptography
132

Table 6: After transposing the message block two rows are
stored in one XMM register. Note that the chaining value is
stored in the same format in registers XMM4-XMM7.
XMM3 XMM2 XMM1 XMM0
M6 M4 M2 M0
M14 M12 M10 M8
M22 M20 M18 M16
M30 M28 M26 M24
M38 M36 M34 M32
M46 M44 M42 M40
M54 M52 M50 M48
M62 M60 M58 M56
M7 M5 M3 M1
M15 M13 M11 M9
M23 M21 M19 M17
M31 M29 M27 M25
M39 M37 M35 M33
M47 M45 M43 M41
M55 M53 M51 M49
M63 M61 M59 M57
Table 7: After computing the initial XOR: P
ij
= H
ij
⊕ M
ij
.
XMM7 XMM6 XMM5 XMM4
P6 P4 P2 P0
P14 P12 P10 P8
P22 P20 P18 P16
P30 P28 P26 P24
P38 P36 P34 P32
P46 P44 P42 P40
P54 P52 P50 P48
P62 P60 P58 P56
P7 P5 P3 P1
P15 P13 P11 P9
P23 P21 P19 P17
P31 P29 P27 P25
P39 P37 P35 P33
P47 P45 P43 P41
P55 P53 P51 P49
P63 P61 P59 P57
Table 8: Reordering and transposing again to get one row
of P
ij
and one row of M
ij
in one XMM register. XMM0-
XMM3 contain row 0-3 of P and Q.
XMM3 XMM2 XMM1 XMM0
P3 P2 P1 P0
P11 P10 P9 P8
P19 P18 P17 P16
P27 P26 P25 P24
P35 P34 P33 P32
P43 P42 P41 P40
P51 P50 P49 P48
P59 P58 P57 P56
M3 M2 M1 M0
M11 M10 M9 M8
M19 M18 M17 M16
M27 M26 M25 M24
M35 M34 M33 M32
M43 M42 M41 M40
M51 M50 M49 M48
M59 M58 M57 M56
Table 9: And XMM4-XMM7 contain row 4-7 of P and Q.
XMM7 XMM6 XMM5 XMM4
P7 P6 P5 P4
P15 P14 P13 P12
P23 P22 P21 P20
P31 P30 P29 P28
P39 P38 P37 P36
P47 P46 P45 P44
P55 P54 P53 P52
P63 P62 P61 P60
M7 M6 M5 M4
M15 M14 M13 M12
M23 M22 M21 M20
M31 M30 M29 M28
M39 M38 M37 M36
M47 M46 M45 M44
M55 M54 M53 M52
M63 M62 M61 M60
BYTE SLICING GRØSTL - Optimized Intel AES-NI and 8-bit Implementations of the SHA-3 Finalist Grøstl
133
