PERFORMANCE OF OPENDPI TO IDENTIFY TRUNCATED

NETWORK TRAFFIC

Jawad Khalife, Amjad Hajjar

Faculty of Engineering, IT Department, Lebanese University, Beirut, Lebanon

Jesús Díaz-Verdejo

Department of Signal Processing, Telematics and Communication, University of Granada, Granada, Spain

Keywords: Network traffic identification, Deep packet inspection, Payload truncation.

Abstract: The identification of the nature of the traffic flowing through a TCP/IP network is a relevant target for

traffic engineering and security related tasks. Traditional methods based on port assignments are no longer

valid due to the use of ephemeral ports and ciphering. Despite the privacy concerns it arises, Deep Packet

Inspection (DPI) is one of the most successful current techniques. Nevertheless, the performance of DPI is

strongly limited by computational issues related to the huge amount of data it needs to handle, both in terms

of number of packets and the length of the packets. This paper addresses the sensitivity of OpenDPI, one of

the most powerful freely available DPI systems, when truncation of the payloads of the monitored traffic is

applied. The results show that it is highly dependent on the protocol being monitored.

1 INTRODUCTION

Network traffic identification aims to classify

packets (packet-based identification) or flows (flow-

based identification) in a given network according to

the associated application protocol. Traditionally,

this task has been considered quite simple as ports

were assigned for many application protocols. In this

scenario a simple inspection of transport layer

header suffices to identify the underlying protocol.

Nevertheless, this situation is changing, thus

becoming traffic identification a hot research topic,

as some Internet applications, such as P2P, are

becoming more and more challenging to

identification techniques by using port obfuscation,

encryption, and/or tunnelling (Nguyen, 2007). One

of the most successful methods currently available to

identify traffic is based on the examination of the

payloads to find known protocol patterns or

signatures. This is the so-called DPI (Deep Packet

Inspection) (Allot Communications, 2007).

However, in today’s networks, performance and

privacy issues are two important factors that are

considered some of the weaknesses of DPI. On the

other hand, DPI is not able to inspect ciphered

payloads. This is what is pushing researchers for

alternate solutions in which P2P identification is still

considered a complex task, especially when DPI is

not involved at all.

As such, one of the current research trends is to

optimize current DPI based identification methods

characterized by their high accuracy, while keeping

at the same time an acceptable level of user privacy

and performance.

One of the means in optimizing DPI is to reduce

the input size through partial payload inspection or

payload truncation. However, what impact would

payload truncation have on DPI accuracy and how

far could DPI based methods be optimized through

payload truncation are important questions that still

need further discussions and experimentation.

In an attempt to answer these questions, we

present in this paper, a study on the effect of payload

truncation on identification accuracy by using one of

the best DPI-based tools: OpenDPI (OpenDPI,

2010). Our conducted identification experiments

were based on full payload dataset traffic as

captured through an institution’s Internet link. We

tested OpenDPI accuracy with different incremental

truncation lengths keeping three goals in mind:

(i) To provide protocol oriented results for

accuracy as a function of truncation length.

Khalife J., Hajjar A. and Díaz-Verdejo J..

PERFORMANCE OF OPENDPI TO IDENTIFY TRUNCATED NETWORK TRAFFIC.

DOI: 10.5220/0003516000510056

In Proceedings of the International Conference on Data Communication Networking and Optical Communication System (DCNET-2011), pages 51-56

ISBN: 978-989-8425-69-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

(ii) To show to what extent payload truncation

could affect OpenDpi accuracy.

(iii) To draw conclusions on how far combined

DPI methods could be optimized through partial

payload truncation.

The remaining of this paper is organized as

follows. Section 2 provides an overview of payload

based identification tools, methods and

optimizations. Section 3 describes OpenDpi tool in

the way it analyzes and labels packets and flows.

Section 4 provides a description of the testbed we

used for the experiments. Section 5 shows our

conducted experiments in running the OpenDpi tool

with different truncation lengths and then highlights

on some obtained results. Finally, Section 6 presents

some conclusions and future work.

2 IDENTIFICATION OF FLOWS

BASED ON PAYLOADS

Deep Packet Inspection” (DPI) is defined in (Allot

Communications, 2007) as being “…a computer

networking term that refers to devices and

technologies that inspect and take action based on

the contents of the packet (commonly called the

“payload”) rather than just the packet header.”

The most important parts of DPI are regular

expression matching and signature based scanning.

In this technique the payload of all the packets is

checked against the set of known protocol signatures

(Erazm, 2007).

Some well-known DPI technology based tools

are OpenDPI (OpenDPI, 2011) —an open source

traffic classification tool —, L7-filter (L7filter,

2011) — an open source application layer classifier

for Linux's Netfilter— and Snort (Snort, 2011) — an

open source network intrusion prevention and

detection system —. In this paper, our choice was to

use the OpenDpi tool since it includes the latest DPI

technology combined with other techniques making

it one of the most accurate classifiers (see Sec. 3).

Many authors attempted to enhance DPI

accuracy by combining it with other methods, such

as behavioural (Zhang, 2010), statistical (Dehghani,

2010), port based (Aceto, 2010) and DFI (Deep

Flow Identification) based methods (Wang, 2008).

On the other hand, many recent works attempted

to optimize DPI performance for high link speeds.

Some of them apply software based optimization

focused on enhancing DPI algorithms — e.g. (Yang,

2010) (Lin, 2008) — while others use hardware

based optimization — e.g. (Rao, 2010) —.

In this paper, we will focus on a software

optimization which consists on reducing the size of

DPI input through partial payload inspection. In this

context, different methods were proposed in the

literature. For instance, ML (Machine Learning)

identification methods (Nguyen, 2007) use the

feature selection algorithm. On the other hand,

sampling techniques are more general and easy to

implement as they just try to reduce the size of the

input data by simply taking samples or parts from

the data according to a given criteria. This later

approach could be jointly applied with DPI. In fact,

this is the scenario considered in this work.

Sampling network traffic is the process of taking

partial observations from the monitored traffic, and

drawing conclusions about the behaviour of the

system from these sampled observations. They are

mainly used for network management and

monitoring (Jurga, 2007) although may also be used

in classification tasks — e.g. (Ficara, 2010) (Aceto,

2010) (Fernandes, 2009) —.

A detailed taxonomy of sampling techniques

according to the used method is provided in (Jurga,

2007). Another way of categorizing sampling

techniques is related to the target considered by the

method. From this point of view, they can be

classified as per-flow packet sampling (Carela,

2010) —i.e. sampling a subset of packets from

within the whole traffic flow—, per-packet payload

sampling (Ficara, 2010) (Aceto, 2010) —i.e.

sampling bytes from within the packet payload— or

a combination of both (Fernandes, 2009).

While sampling obviously provides a significant

impact on the processing times by reducing the size

of the input to process, it is a lossy process which

may have an unexpected impact on the traffic

classification techniques.

Apparently, few works apply sampling to

network traffic classification, and even fewer works

apply per-packet payload sampling to DPI

classification —e.g. (Ficara, 2010) (Fernandes,

2009)—, a topic which is the most relevant to our

work.

Per-packet payload sampling was shown in

(Ficara, 2010), where authors proposed a novel

approach that brings the sampling idea to the regular

expression field. Their approach, called payload

sampling, allows skipping a large portion of the text

in the payload, thus processing less bytes. Their

results show that the sampling approach is faster

than previous advanced solutions. However, the

price to pay is a slight number of false alarms which

require a confirmation stage.

Another example of per-packet byte sampling

was shown in (Aceto, 2010) which also combined

DCNET 2011 - International Conference on Data Communication Networking

the port-based method with the DPI approach. Using

L7-Filter (L7filter, 2011) DPI tool, one of the

paper’s targets was to study the amount of payload

information actually relevant in successful DPI

matches. Their experimental results showed that

72% of the total attempts happen at the first packet

of a flow. Moreover, they computed the offset of

matching regular expression’s first character and last

character from the beginning of the packets

respectively containing them. They showed that

almost all matching strings start (99.98%) and finish

(90.77%) in the first 32 bytes of payload.

The combination of per-flow and per-packet

sampling is addressed in (Fernandes, 2009). In this

work the authors combined both sampling methods

through the so-called LW-DPI. Results showed that

most flows can be classified with only their first 7

packets or a fraction of their payload.

In this paper, payload truncation is used and

explored as a sampling method. It can be thought of

as a particular case of per-packet payload sampling

for DPI methods. We consider it as an eventual

mean of DPI optimization as only part of the

payload (the initial truncated part) is to be inspected

instead of the full payload.

To the best of our knowledge, except for (Aceto,

2010) and (Fernandes, 2009), no papers were found

to be discussing per-packet payload sampling for

DPI based methods. In addition, no results were

found to be protocol oriented.

3 openDPI

As previously stated, the tool of choice for the

classification of traffic is openDPI (Opendpi, 2010),

which is derived from the commercial PACE

product from ipoque. The core of openDPI is a

software library designed to classify internet traffic

according to application protocols. In

(Opendpiwhite) the authors explain that the DPI-

based protocol and application classification is

achieved using pattern matching, behavioural

analysis and statistical analysis.

Therefore, openDPI is not a pure-DPI product as

it is not only signature-based but also incorporates

information from other sources. This way, the

classification accuracy is improved (no false

classification according to ipoque's claims), although

some packets and flows still remains unclassified.

This, together with the availability and quality of the

signatures, made us to select openDPI instead of any

other similar product.

In its current version, up to 101 different

protocols can be identified, including the most

common ones as HTTP and DNS, and some P2P

protocols as eDonkey, DirectConnect, etc.

Nevertheless, and according to its functioning,

the capabilities of OpenDPI are mainly limited by

the need to analyze the whole payload of all the

packets in a flow in search of signatures (DPI

behaviour) and to extract the behavioural and

statistical information from the flows. Therefore, it

is a basically full payload / full flow analysis which

imply a high computational cost. This way, it would

be desirable to reduce the size of the explored data

in order to reduce this computational cost, but

without degrading the performance of the classifier.

In this context, the target of this paper can be

stated as analyzing how sensitive are the mechanism

involved in OpenDPI to the truncation of the

payloads.

4 TESTBED

In order to evaluate the effects of truncating the

payloads in the traffic identification task, we have

developed an experimental setup built from two

main components. These components are a database

of real traffic captured in an academic network, and

a tool to automatically classify packets and flows

according to their payloads by primarily using Deep

Packet Inspection (DPI) which is based in OpenDPI.

Therefore, we have built a tool based on the

openDPI library which is able not only to identify

the application protocols but also to follow and

differentiate the packets in each flow. To be able to

handle UPD packets, we have generalized the

concept of flow through the use of sessions.

Sessions are considered as defined by the exchange

of information associated to a tuple (IP addresses,

ports and transport protocol). Nevertheless,

throughout this paper, we will use the term flow to

refer to a session, unless explicitly stated.

As the output of the tool, two levels of

classifications are provided: flow-based (each flow

is labelled) and packet-based (each packet is also

labelled). The tool operates in batch mode.

On the other hand, the traffic database contains

the data captured during 3 working days at the

access link of a medium size institution. The data

acquisition was carried out at a border router in

order to be able to monitor all incoming and

outcoming traffic. Therefore, apart from the

boundaries of the caption, flows are captured

complete and in both directions. Table 1 highlights

some figures of the database.

PERFORMANCE OF OPENDPI TO IDENTIFY TRUNCATED NETWORK TRAFFIC

Table 1: Figures for the captured traffic database.

Size of the database ~180 GB

Number of IP packets 278 Mpackets

Number of different IPs 822519

Number of flows 6.3 Mflows

Number of identified protocols 42

By using the customized OpenDPI tool over the

whole database we have built the "ground truth",

that is, the set of correctly labelled flows and packets

that will be used as the reference for any further

analysis. This procedure is adopted under the

assumption that DPI is the best currently available

method for traffic classification and that the number

of errors is negligible. This is a common approach in

the traffic identification field, the number of packets

and flows that DPI is not able to classify being its

major limitation.

The results provided by the classification tool

show up to 42 protocols that have been identified in

the database, being HTTP the most frequent one,

while an important part of the flows and packets

remain unclassified. The relative distributions of

flows and packets for most relevant protocols are

shown in Figure 1. A first inspection evidences big

differences among the properties or frequencies at

flow and packet levels. Therefore, the results can be

different depending on whether we focus at flow or

packet levels.

5 TRUNCATION OF THE

PAYLOADS

In this section, we will show the conducted

experiments in running OpenDPI on partially

truncated packet payloads. Our main targets at this

level are, as mentioned in Section 1: (i) To provide

protocol oriented results for accuracy as a function

of truncation length (ii) to show to what extent

payload truncation could affect OpenDpi accuracy

5.1 Methodology for Truncation

Experiments

To achieve our targets, we customized OpenDPI tool

to be able to parse only a specified length of byte

(called truncation length) within each packet’s

payload. In order to obtain granular results, our

choice was to iterate with incremental truncation

length values with step of S Bytes, ranging from 0

Bytes (no payload) to 1500 Bytes (full payload). We

have chosen S=128 Bytes.

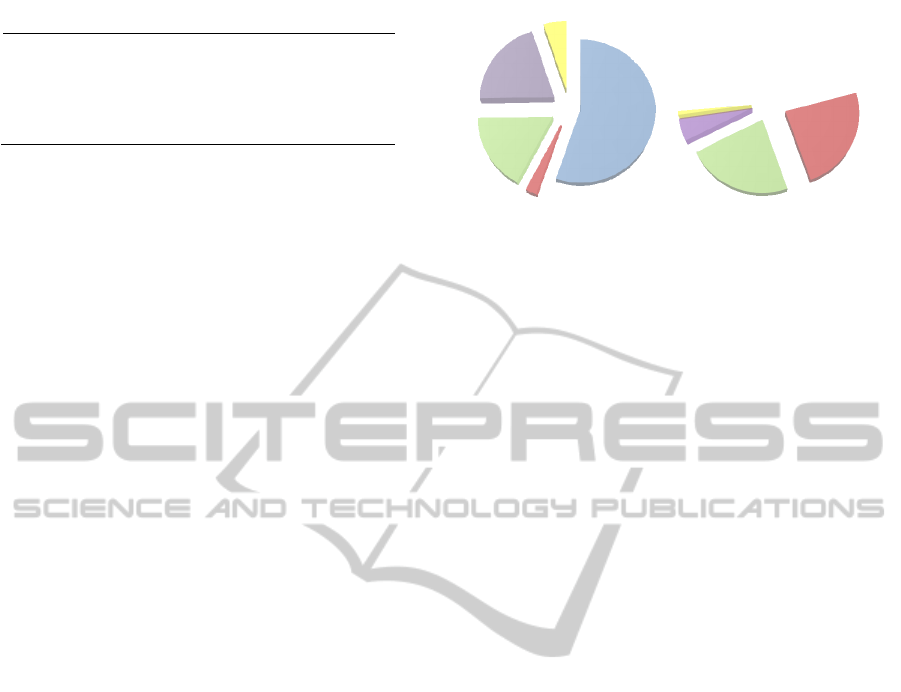

Figure 1: Distribution of packets (left) and flows (right)

for most relevant protocols or groups of protocols.

Since the main dataset is very huge (63 captured

pcap files totalling 177G), the customized OpenDPI

tool was run on a subset of 17 randomly selected

files only (totalling 45G, i.e. 25% of the full dataset).

On the other hand, those packets and flows that were

not classified by OpenDPI when using the whole

payload are dismissed and not considered in the

figures and percentages that will be shown.

The evaluation of the identification provided by

OpenDPI is measured in terms of accuracy

(Nguyen, 2007), that is, the percentage of detected

packets/flows in regard to the full payload case. The

results are shown as a function of the truncation

lengths and grouped according to three different

sets: per protocol, per protocol group, and for all the

protocols. This way, the protocols where categorized

into 12 groups that were defined according to

(Ipoque, 2011).

5.2 Global Results

The results obtained for all the protocols are shown

in Figure 2. At packet level, a sudden drop in the

accuracy for truncation lengths lower than 1280

Bytes is observed. For 1280 Bytes, 47% of the

packets were correctly classified, while for 1408

Bytes, 99% of all the packets were identified. On the

other hand, the results at flow level, show that for

truncation length equals to 512 Bytes, 57% of total

flows were detected, while for 1280 Bytes, 91% all

flows were detected. Therefore, the analysis is more

tolerant to payload truncation at flow levels than at

packet levels.

This way, in order to reach 50% of both flows and

packets accuracy, truncation length must be at least

1280 Bytes. This is not a very encouraging result for

DPI optimization through payload truncation as

reducing only 15% of payload input would lead to a

50% drop in OpenDPI packet accuracy. However,

results are encouraging if only flow accuracy is the

main concern since still 57% of flows can be

detected for 512 bytes of truncation.

HTTP

55%

DNS

unknown

17%

Other

non-p2p

20%

P2P

# PACKETS

HTTP

47%

DNS

24%

unknown

23%

Other

non- p2p

P2P

FLOWS

DCNET 2011 - International Conference on Data Communication Networking

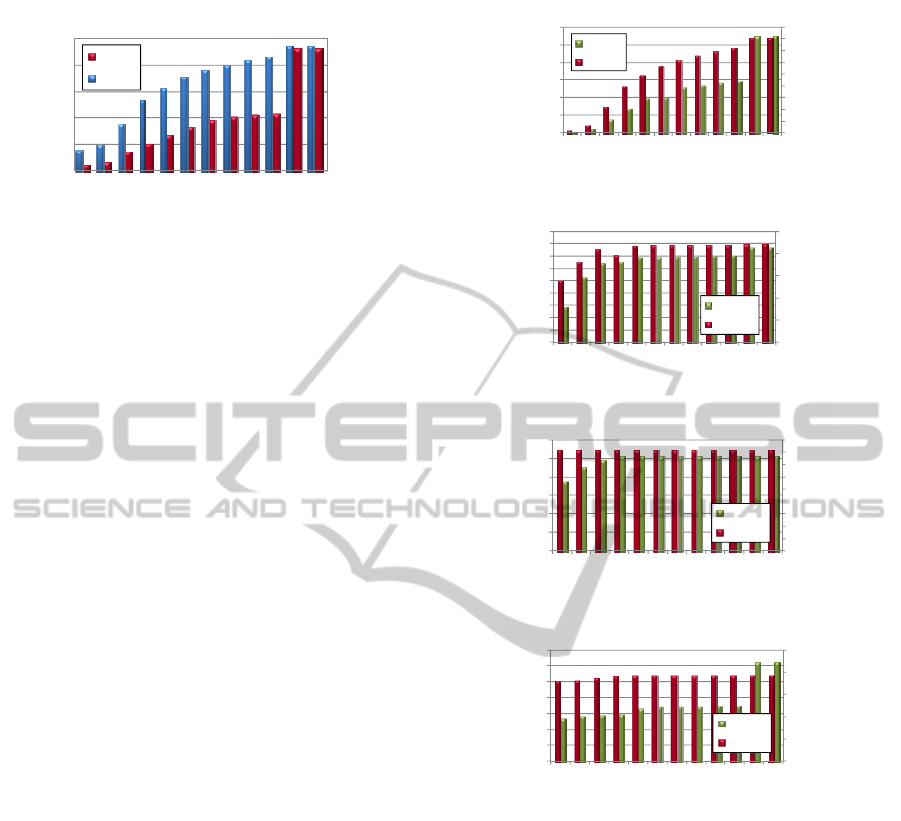

Figure 2: Global results for classification accuracy as a

function of the truncation length of the payloads.

From a macroscopic point of view, OpenDPI

showed a common behaviour for all protocols:

i. The number of detected packets/flows is

increasing as the truncation length increases.

ii. For truncation length equal to 512 Bytes,

57% of flows were detected while only 22%

of packets were detected.

Unless just a few bytes (not more than 128

Bytes) were truncated from the end of the packet

payload, payload truncation with combined DPI/DFI

will lead to many unknown flows and packets. Thus,

optimizing DPI/DFI methods through payload

truncation could not be considered generally

effective for all protocols (especially when the set

includes stateful protocols, which are the more

affected) unless packet accuracy is not considered.

5.3 Results per Protocol Group

When varying the truncation length, OpenDPI shows

different behaviour for different protocol groups.

As an example, results for web group packets

and flows are shown in Figure 3.a. Web group

results show that truncation, though differently, is

affecting both packet and flow accuracy. In addition,

web packet accuracy seems to be more affected by

truncation than flow accuracy. It’s noticeable that

packet classification accuracy drops to around 50%

for 1280 Bytes while for flow accuracy it drops to

50% only if less than 512 Bytes are truncated.

A different behaviour is observed for other

groups. For example, if we consider the IM (Internet

Messaging protocols) group –Figure 3.b– or DNS

group –Figure 3.c– the classification accuracy is

only slightly affected by truncation. In fact, for a

truncation length equal to 256 Bytes, more than 50%

of both packets and flows are detected. The same

applies for DNS packets and flows.

The results for P2P protocols exhibit a mixed

behaviour –Figure 3.d–: they are similar to those

from the web group at packet level and to those from

Figure 3: Results for various protocols/groups as a

function of the truncation length for packets and flows. a)

Web; b) Internet messaging; c) DNS; and d) P2P.

IM and DNS groups at flow level. In fact, packet

accuracy drops to around 50% for 1280 Bytes while

flow accuracy stays above 92% even for 128 Bytes

only.

In summary, at a granular level, the experimental

results showed different behaviour for OpenDPI

with truncation for different protocols. This in fact

could be based on two main factors: the stateful

behaviour of some protocols combined with the

detection algorithm used by OpenDPI which

considers some behavioural and statistical

information for the whole flow.

We can evidence this assert if we examine the

obtained results for the web and DNS protocol

128

256

384

512

640

768

896

1024

1152

1280

1408

1500

x 10000

Millions

All Detected

Packets

Flows

(a)

(b)

(c)

(d)

100

150

200

250

300

128

256

384

512

640

768

896

1024

1152

1280

1408

1500

x 10000

x 100000

Web

Packets

Flows

0,05

0,1

0,15

0,2

0,25

0,5

1,5

2,5

3,5

4,5

128

256

384

512

640

768

896

1024

1152

1280

1408

1500

x 10000

x 100000

Packets

Flows

0,5

1,5

2,5

3,5

4,5

0,2

0,4

0,6

0,8

1,2

128

256

384

512

640

768

896

1024

1152

1280

1408

1500

x 10000

x 100000

DNS

Packets

Flows

0,5

1,5

2,5

128

256

384

512

640

768

896

1024

1152

1280

1408

1500

x 10000

x 100000

P2P

Packets

Flows

PERFORMANCE OF OPENDPI TO IDENTIFY TRUNCATED NETWORK TRAFFIC

groups. Since DNS is a stateless protocol, flows with

truncated packets can still be detected. On the other

side, as web is a stateful protocol, the detection of

web flows drops for truncated packets. Though not

shown, FTP results also were different since FTP

protocol has a special behaviour.

Therefore, we can conclude that stateless

protocols are less sensitive to payload truncation

than stateful ones. Thus, optimizing DPI/DFI

methods through payload truncation could be more

effective for stateless and P2P protocols.

For interpreting the differences between flow and

packet results for the same protocol, flow results are

considered more significant since undetected flows

may contain a huge number of packets thus affecting

packet accuracy. We also noticed that flows detected

at higher truncation length mostly contain a huge

number of packets.

6 CONCLUSIONS AND FUTURE

WORK

The effects of truncating packet payloads when

using OpenDPI are explored in this paper. The

experiments has shown that, unless just few bytes

(not more than 128 Bytes) were truncated from the

end of the packet payload, payload truncation for

this method will lead to many unknown packets and

flows decreasing the accuracy of the classification.

The obvious interpretation is that by combining DPI

with other technologies (such as behavioural and

statistical modeling), the task of DPI optimization

through truncation may render the identification

method itself inefficient since the non parsed part of

the data may still be needed for the other added

technology. The truncation can still be useful as an

optimization if, instead of classifying all the traffic,

the target is to select some of them based on the

application content and depending on the nature of

the associated protocol.

An apparent contradiction emerged between the

combination of identification technologies and the

optimization through partial payload inspection

procedures. Tradeoffs should be most probably one

of the next steps to explore. Additional experiments

have to be carried out to analyze the sensitivity to

flow truncation, that is, to consider just a selected

number of packets per flow.

ACKNOWLEDGEMENTS

This work has been supported by Spanish MICINN

under project TEC2008-06663-C03-02.

REFERENCES

Aceto, G., Dainotti, A., de Donato, W., Pescapé, A., 2010.

PortLoad: taking the best of two worlds in traffic

classification, In Proc. of IEEE INFOCOM 2010.

Allot Communications, 2007. Digging Deeper Into Deep

Packet Inspection (DPI). White paper. Available at

http://www.dpacket.org

Carela-Español, V., Barlet-Ros, P., Cabellos-Aparicio, A.,

Solé-Pareta, J., 2010. Analysis of the impact of

sampling on NetFlow traffic classification, Computer

Network (In press), Elsevier.

Dehghani, F., Movahhedinia, N., Khayyambashi, M. R.,

Kianian, S., 2010. Real-time Traffic Classification

Based on Statistical and Payload Content Features, In

Proc. IWISA 2010, pp. 1-4.

Fernandes, S., Antonello, R., Lacerda, T., Santos, A.,

Sadok, D., Westholm, T., 2009. Slimming Down Deep

Packet Inspection Systems, In Proc. INFOCOM

Workshops 2009, pp. 1-6.

Ficara, D., Antichi, G., Di Pietro, A., Giordano, S.,

Procissi, G., Vitucci, F., 2010. Sampling Techniques

to Accelerate Pattern Matching in Network Intrusion

Detection Systems, In Proc. 2010 ICC2010, pp. 1-5.

Ipoque, 2011. http://www.ipoque.com/

Jurga, R. E., Hulbój, M. M., 2008. Packet Sampling for

Network Monitoring, Technical Report, CERN | HP

Procurve openlab project. Available at http://www.zd

netasia.com/whitepaper/packet-sampling-for-network-

monitoring_wp-1828217.htm

La Mantia, G., Rossi, D., Finamore, A., Mellia, M., Meo,

M., 2010. Stochastic Packet Inspection for TCP

Traffic. In Proc. ICC2010, pp. 1-6.

Lin, P., Lin, Y., Lee, T., Lai, Y., 2008. Using String

Matching for Deep Packet Inspection. IEEE

Computer, vol. 41, pp. 23-28.

L7filter, 2011. http://l7-filter.clearfoundation.com/

Nguyen, T., Armitage, G., 2007. A Survey of Techniques

for Internet Traffic Classification using Machine

Learning, IEEE Communications Surveys & Tutorials,

vol. 10, pp. 56-76.

Opendpi, 2011. http://www.opendpi.org/

Rao, A., Udupa, P., 2010. A Hardware Accelerated

System For Deep Packet Inspection, In Proc.

MEMOCODE’10, pp. 89-92.

Snort, 2011. http://www.snort.org

Yang, Y.-H. E., Hoang Le,Prasanna, V. K., 2010. High

Performance Dictionary-Based String Matching for

Deep Packet Inspection. In Proc. of INFOCOM 2010,

pp. 1-5.

Wang, C., Zhou, X., You, F., Chen, H., 2008. Design of

P2P Traffic Identification Based on DPI and DFI, In

Proc. of CNMT2009, pp. 1-4.

Zhang, L., 2010. P2P-based Weighted Behavioral

Characteristics Of Deep Packet Inspection Algorithm,

In Proc. of CMCE 2010, pp. 468-470.

DCNET 2011 - International Conference on Data Communication Networking
