IMAGE MATCHING ALGORITHMS IN STEREO VISION

USING ADDRESS-EVENT-REPRESENTATION

A Theoretical Study and Evaluation of the Different Algorithms

M. Dominguez-Morales, E. Cerezuela-Escudero, A. Jimenez-Fernandez, R. Paz-Vicente

J. L. Font-Calvo, P. Iñigo-Blasco, A. Linares-Barranco and G. Jimenez-Moreno

Department of Architecture and Computer Technology, University of Seville, Seville, Spain

Keywords: Stereo vision, Epipolar restriction, Image matching, Address-event-representation, Spike, Retina,

Area-based method, Features-based method.

Abstract: Image processing in digital computer systems usually considers the visual information as a sequence of

frames. These frames are from cameras that capture reality for a short period of time. They are renewed and

transmitted at a rate of 25-30 fps (typical real-time scenario). Digital video processing has to process each

frame in order to obtain a filter result or detect a feature on the input. In stereo vision, existing algorithms

use frames from two digital cameras and process them pixel by pixel until it is found a pattern match in a

section of both stereo frames. Spike-based processing is a relatively new approach that implements the

processing by manipulating spikes one by one at the time they are transmitted, like a human brain. The

mammal nervous system is able to solve much more complex problems, such as visual recognition by

manipulating neuron’s spikes. The spike-based philosophy for visual information processing based on the

neuro-inspired Address-Event- Representation (AER) is achieving nowadays very high performances. In

this work we study the existing digital stereo matching algorithms and how do they work. After that, we

propose an AER stereo matching algorithm using some of the principles shown in digital stereo methods.

1 INTRODUCTION

In recent years there have been numerous advances

in the field of vision and image processing, because

they can be applied for scientific and commercial

purposes to numerous fields such as medicine,

industry or entertainment.

As we can easily deduce, the images are two

dimensional while the daily scene is three

dimensional. This means that, between the passage

from the scene (reality) to the image, it has lost what

we call the third dimension.

Nowadays, society has experimented a great

advance in these aspects: 2D vision has given way to

3D viewing. Industry and research groups have

started to study this field in depth, obtaining some

mechanisms for 3D representation using more than

one camera. Trying to resemble the vision of human

beings, researchers have experimented with two-

camera-based systems inspired by human vision.

Following this, it has been developed a new branch

of research, focused on stereoscopic vision (S. T.

Barnard, M. A. Fischler, 1982). In this branch,

researchers try to obtain three-dimensional scenes

using two digital cameras. Thus, we try to get some

information that could not be obtained with a single

camera, i.e. the distance that the objects are.

By using digital cameras, researchers have made

a breakthrough in this field, going up to create

systems able to achieve the above. However, digital

systems have some problems that, even today, have

not been solved. In any process of stereoscopic

vision, image matching is the main problem that has

consumed a large percentage of research resources

in the field of stereoscopic vision, and it is still

completely open to research. The problems related

to evolving image matching are the computational

cost needed to obtain appropriate results. There are

lots of high-level algorithms used in digital stereo

vision that solve the image matching problem, but

this implies a computer intervention into the process

and it is computationally expensive.

The required computational power and speed

make it difficult to develop a real-time autonomous

system. However, brains perform powerful and fast

vision processing using millions of small and slow

Dominguez-Morales M., Cerezuela-Escudero E., Jimenez-Fernandez A., Paz-Vicente R., Font-Calvo J., Iñigo-Blasco P., Linares-Barranco A. and

Jimenez-Moreno G..

IMAGE MATCHING ALGORITHMS IN STEREO VISION USING ADDRESS-EVENT-REPRESENTATION - A Theoretical Study and Evaluation of the

Different Algorithms.

DOI: 10.5220/0003518500790084

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 79-84

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

cells working in parallel in a totally different way.

Primate brains are structured in layers of neurons,

where the neurons of a layer connect to a very large

number (~104) of neurons in the following one (G.

M. Shepherd, 1990). Most times the connectivity

includes paths between non-consecutive layers, and

even feedback connections are present.

Vision sensing and object recognition in brains

are not processed frame by frame; they are

processed in a continuous way, spike by spike, in the

brain-cortex. The visual cortex is composed by a set

of layers (G. M. Shepherd, 1990), starting from the

retina. The processing starts when the retina captures

the information. In recent years significant progress

has been made in the study of the processing by the

visual cortex. Many artificial systems that

implement bio-inspired software models use

biological-like processing that outperform more

conventionally engineered machines (J. Lee, 1981;

T. Crimmins, 1985; A. Linares-Barranco, 2010).

However, these systems generally run at extremely

low speeds because the models are implemented as

software programs. For real-time solutions direct

hardware implementations of these models are

required. A growing number of research groups

around the world are implementing these

computational principles onto real-time spiking

hardware through the development and exploitation

of the so-called AER (Address Event

Representation) technology.

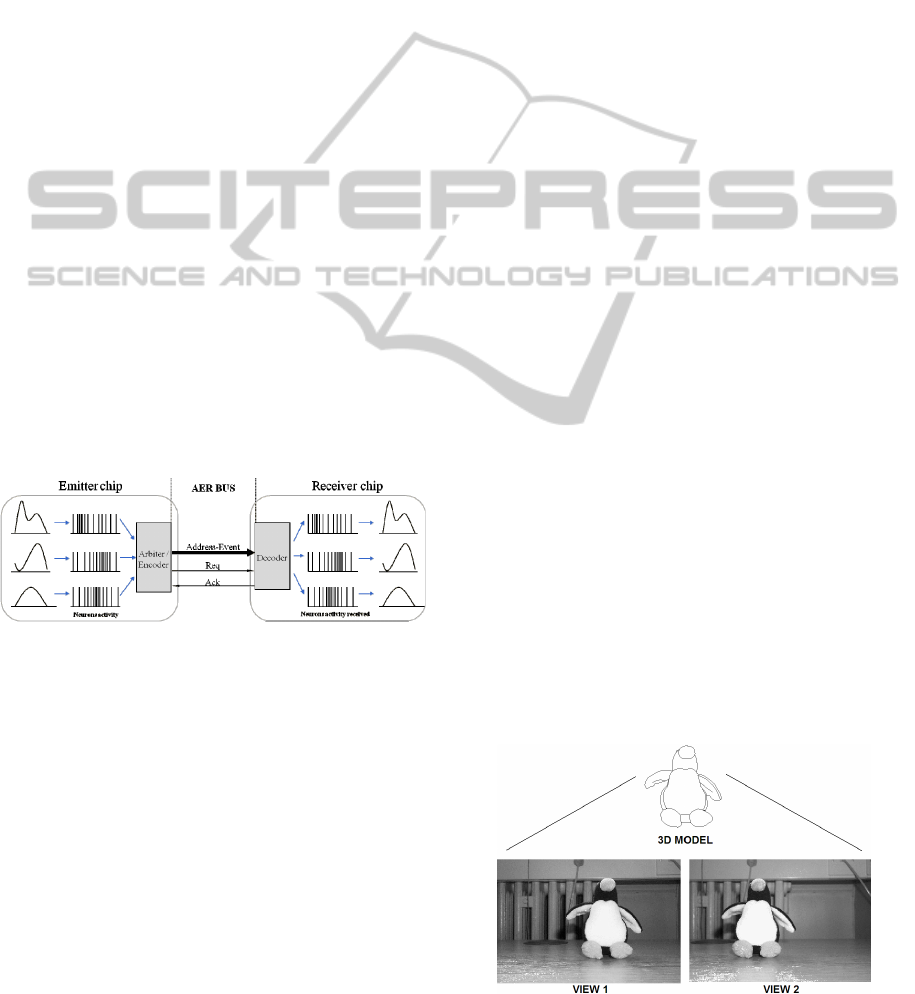

Figure 1: Rate-coded AER inter-chip communication

scheme.

AER was proposed by the Mead lab in 1991 (M.

Sivilotti, 1991) for communicating between

neuromorphic chips with spikes. Every time a cell

on a sender device generates a spike, it transmits a

digital word representing a code or address for that

pixel, using an external inter-chip digital bus (the

AER bus, as shown in figure 1). In the receiver the

spikes are directed to the pixels whose code or

address was on the bus. Thus, cells with the same

address in the emitter and receiver chips are virtually

connected by streams of spikes. Arbitration circuits

ensure that cells do not access the bus

simultaneously. Usually, AER circuits are built with

self-timed asynchronous logic.

Several works are already present in the

literature regarding spike-based visual processing

filters. Serrano et al. presented a chip-processor able

to implement image convolution filters based on

spikes that work at very high performance

parameters (~3GOPS for 32x32 kernel size)

compared to traditional digital frame-based

convolution processors (B. Cope, 2006; B. Cope,

2005; A. Linares-Barranco, 2010).

There is a community of AER protocol users for

bio-inspired applications in vision and audition

systems, as evidenced by the success in the last

years of the AER group at the Neuromorphic

Engineering Workshop series. One of the goals of

this community is to build large multi-chip and

multi-layer hierarchically structured systems capable

of performing complicated array data processing in

real time. The power of these systems can be used in

computer based systems under co-processing.

First, we describe digital stereo matching

algorithms, their pro and cons, and their operation.

Then we propose an AER theoretical algorithm,

based on the digital ones, which can be developed in

AER systems using a FPGA to process the

information.

2 DIGITAL STEREO MATCHING

ALGORITHMS

The two-camera model in stereo vision draws on the

biological model itself, where the object distance

can be determined thanks to the distance between

the two eyes; this could be the considered as the

third dimension. The eye separation produces

displaced images of the same scene captured by two

eyes (as shown in figure 2), i.e. the image of an eye

is almost the same as other’s but displaced a certain

distance, what is inversely proportional to the

distance between eyes and objects.

According to this, stereo vision process includes

Figure 2: Stereo-vision system.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

six main steps (S. T. Barnard, 1982): image

acquisition, camera modeling (depending on the

system geometry. D. Papadimitriou, 1996), features

extraction from the scene, image matching according

to these features, determining the objects distance,

and interpolating, if necessary. In these steps, image

matching is regarded as the most complex of all.

The projection for a three-dimensional-space

point is determined for each image of the stereo pair

during the image matching. The solution for the

matching problem demands to impose restrictions on

the geometric model of the cameras and the

photometric model of the scene objects. Of course,

this solution implies a high computational cost.

A common practice is trying to relate the pixel of an

image with its counterpart on the other one. Some

authors divide the matching methods depending on

the restrictions that exploits. According to this, a

high-level division could be as follows:

 Local methods: Methods that applies

restrictions on a small number of pixels around

the pixel under study. They are usually very

efficient but sensitive to local ambiguities of

the regions (i.e. regions of occlusion or regions

with uniform texture). Within this group are:

the area-based method, features-based method,

as well as those based on gradient optimization

(S.B. Pollard, 1985).

 Global methods: Methods that applies

restrictions on lines of the image or the entire

image itself. They are usually less sensitive to

local peculiarities as add support to regions

difficult to study locally. However, they tend to

be computationally expensive. Within this

group are the dynamic programming methods

and nearest neighbour methods.

Each technique has its advantages and

disadvantages and, depending on the system

restrictions and the cameras geometry (G. Pajares,

2006).

Local methods will be discussed later in more

detail. We won’t go further into global methods

because they are rarely used due to their

computational cost.

2.1 Area-based Matching Algorithms

We calculate the correlation between the distribution

of disparity for each pixel in an image using a

window centered at this pixel, and a window of the

same size centered on the pixel to be analyzed in the

other image (as shown in figure 3). The problem is

to find the point to be adjusted properly at first. The

effectiveness of these methods depends largely on

the width of the taken window. Thus, we can assume

that the larger the window, the better the outcome.

However, the computing power requirements these

methods. We have to find a window size large

enough to ensure finding a correspondence (S.B.

Pollard, 1985) between two images in most of the

cases, but the window width should not be

overwhelmed as it would cause a huge latency in our

system. Also, if the window size is close to the total

size, it would be deriving to the global methods,

which we were dismissed because of their

computational inefficiency.

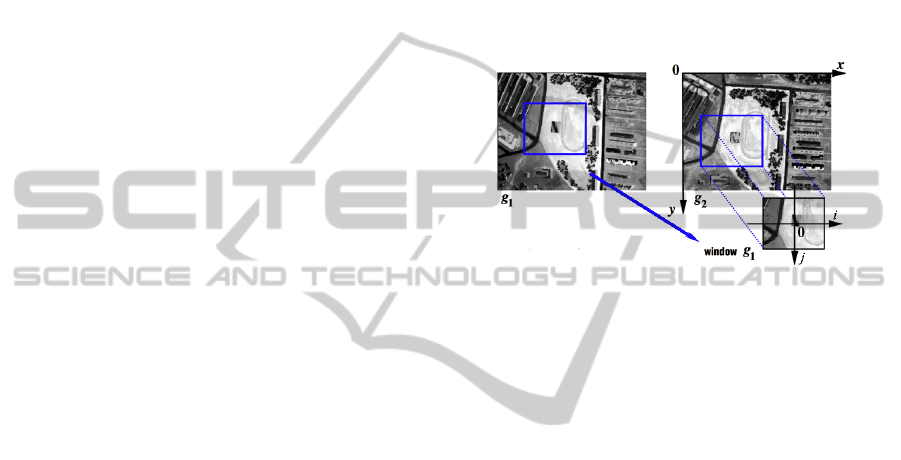

Figure 3: Window correlation.

The main advantage of these correlation

mechanisms has been previously named in multiple

times, and it is their computational efficiency (T.

Tuytelaars, 2000). This characteristic is crucial if we

want our system to perform fairly well in real time.

On the other hand, the main drawbacks in digital

systems primarily focus on results:

 Working directly with each pixel: we can

observe a high sensitivity to distortions due to

the change of point of view, as well as contrast

and illumination changes.

 The presence of edges in the windows of

correlation leads to false matches, since the

surfaces are intermittent or in a hidden image

has an edge over another.

 Are closely tied to the epipolar constraints (D.

Papadimitriou, 1996).

Therefore, area-based stereo vision techniques

look for cross correlation intensity patterns in the

local vicinity or neighbourhood of a pixel in an

image, with intensity patterns in the same

neighbourhood for a pixel of another image. Thus,

area-based techniques use the intensity of the pixels

as an essential characteristic.

2.2 Features-based Matching

Algorithms

As opposed to area-based techniques, the features-

IMAGE MATCHING ALGORITHMS IN STEREO VISION USING ADDRESS-EVENT-REPRESENTATION - A

Theoretical Study and Evaluation of the Different Algorithms

based techniques need an image pre-processing

before the image matching process. This pre-

processing consists of a feature extraction stage from

both images, resulting in the identification of

features of each image. In turn, some attributes have

to be extracted to be used in the matching process.

Thus, this step is closely linked to the matching

stage in those matching algorithms based on features

because without this step, we would not have

enough information to make inferences and obtain

the image correlation.

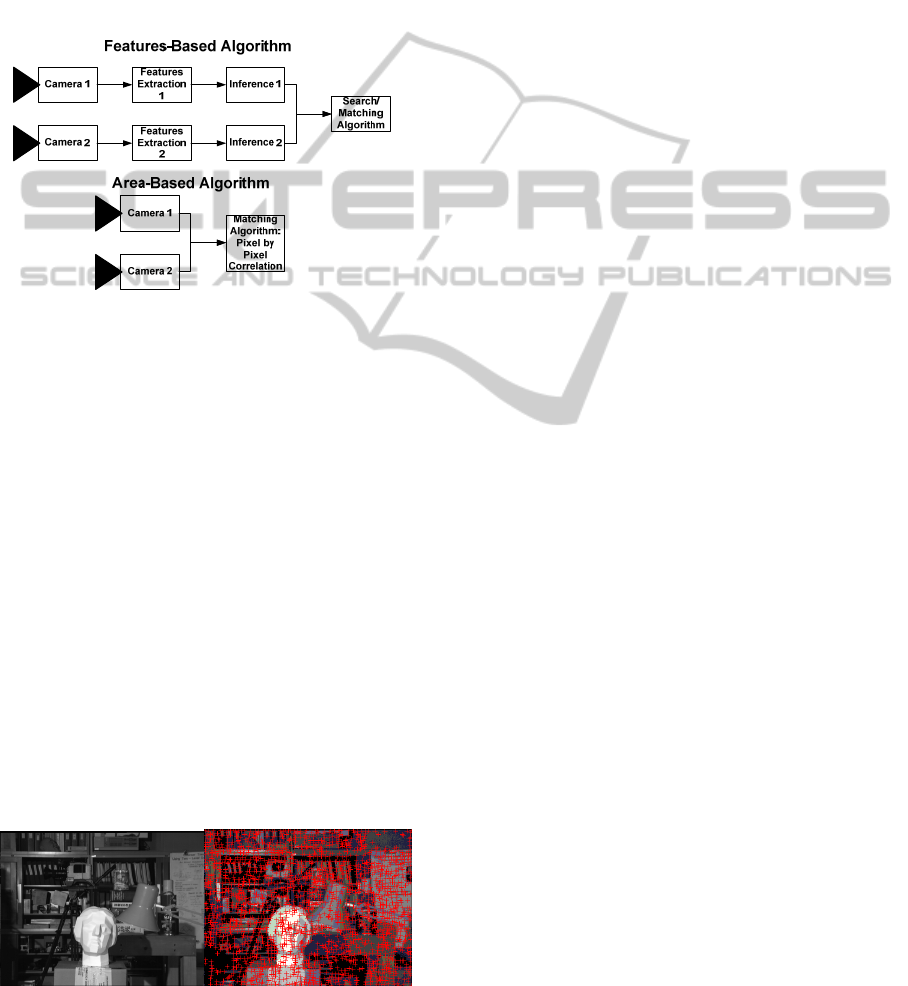

Figure 4: Area-based and features-based algorithms.

For features-based stereo vision, symbolic

representations are taken from the intensity images

rather unless of directly using the intensities. The

most widely used features are: breakpoints isolated

chains of edge points or regions defined by borders.

The three above features make use of the edge

points. It follows that the end points used as

primitives are very important in any stereo-vision

process and, consequently, it is common to extract

the edge points of images. Once the relevant points

of edge have been extracted (as shown in figure 5),

some methods use arrays of edge points to represent

straight segments, not straight segments, closed

geometric structures which form geometric

structures defined or unknown.

Aside from the edges, the regions are another

primitive that can be used in the stereo-vision

process. A region is an image area that is typically

associated with a given surface in the 3D scene and

is bounded by edges.

Figure 5: Edge detections in a features-based algorithm.

With the amount of features and depending on

the matching method that will be used, an additional

segmentation step may be necessary. In this step,

additional information would be extracted from the

known features. This information is calculated based

on inferences from the known characteristics. Thus,

the matching algorithm that receives the inferred

data possess much more information than the

algorithm that works directly on the pixel intensity.

Once the algorithm has both vectors with the

inferred features from the two images, it searches in

the vectors looking for similar features. The

matching algorithm is limited to a search algorithm

on two features sets. We can say that the bulk of

computation corresponds to the feature extraction

algorithm and the inference process.

The main advantages of these techniques are:

 Better stability in contrast and illumination

changes.

 Allow comparisons between attributes or

properties of the features.

 Faster than area-based methods since there are

fewer points (features) to consider, although

require pre-processing time.

 More accurate correspondence since the edges

can be located with greater accuracy.

 Less sensitive to photometric variations as they

represent geometric properties of the scene.

 Focus their interest on the scene that has most

of the information.

Despite these advantages, features-based

techniques have two main drawbacks, which are

easily deduced from the characteristics described

above. The first drawback is the high degree of

dependence on the chosen primitives of these

techniques. This can lead to low quality or unreliable

results if the chosen primitives are not successful or

are not appropriate for these types of images. For

example, in a scene with few and poorly-defined

edges, delimiters would not be advisable to select

regions as primitive.

Another drawback is derived from the

characteristics of the preprocessing stage. We

described this step as a feature extraction mechanism

of the two images and the inference or properties of

the highest level in each of them. As stated above,

there is a high computational cost associated to this

pre-processing stage, to the point that using digital

cameras with existing high-level algorithms running

on powerful machines cannot match the real time

processing.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

3 REAL-TIME SPIKES-BASED

MATCHING ALGORITHM

We have seen two major lines of research about

image matching algorithms for digital systems.

 Area-based matching algorithms: very focused

on speed, without using pre-processing and with

low efficient results.

 Features-based matching algorithms: more

focused on getting good results at the expense of

a pre-processing and inference phases, resulting

in a higher latency.

As a first approximation, we could consider

making an adaptation of the features-based

algorithms to obtain a consistent algorithm with

good results. However, in this case we have a lot of

problems mainly derived from the early stages of

pre-processing and inference. In order to define an

algorithm that is feasible in our system we have to

take into account its features and the goals we want

to achieve.

In the introduction we mentioned AER systems,

motivations, current development and research lines

related to them. Our main goal is to design and build

an autonomous and independent system that works

in real time basis, with no need to use a computer to

run high-level algorithms. The efficiency of our

system is not as important as real-time processing.

Although we sacrifice quality in the results, we

cannot afford to perform pre-processing and

inference stages, which slow down our system

making the real-time processing impossible.

Moreover, due to the independence requirement, a

computer cannot be used to run high level

algorithms.

The information in an AER system is a

continuous flow that cannot be stopped: the

information can only be processed or discarded.

Each spike is transmitted by a number of

communication lines, and contains information from

a single pixel. Moreover, the intensity of a pixel

dimension is encoded in the spike frequency

received from that particular pixel. The AER retinas

used by research groups are up to 128x128 tmpdiff

resolution, which means that measure brightness

changes over time. Thus, taking a load of 10% in the

intensity of the pixels, we would be in the range of

more than four hundred thousand pulses to describe

the current state of the scene with a single retina.

This is too much information to be pre-processed.

We want our system to be independent and based

on an FPGA connected to the outputs of two AER

retinas. The FPGA processes the information using

the proposed algorithm and transmits the resulting

information using a parallel AER bus to an

USBAERmini2 PCB (R. Berner, 2007). This is

responsible for monitoring AER traffic received and

transmitted by USB from and to a computer. Should

be noted that we just use the computer to verify the

algorithm running on the FPGA works as required,

the computer itself is not used to process any

information.

Taking into account the digital algorithms, the

second option is to use a variant of the area-based

matching algorithms (T. Tuytelaars, 2000). In this

case, the topic to consider would be the results

because, as discussed above, these algorithms do not

require preprocessing but not ensure result

reliability.

Among the problems related to the area-based

matching algorithms, AER retinas include failures

caused by variations in the brightness and contrast.

This involved the properties of AER retinas we use,

which do not show us all the visual information it

covers, but the information they send is the spatial

derivative in time. This means that we appreciate the

information only for moving objects, while the rest

of non-mobile environment is not "seen". In

addition, these retinas have very peculiar

characteristics related to information processing.

These characteristics make them immune to

variations in brightness and contrast (lightness and

darkness does not interfere with transmitted

information). With this retina property managed to

avoid the major drawback of area-based algorithms.

Our proposed algorithm is linked to the information

received from the AER bus. It also inherits similar

properties from area-based algorithms, but adapted

to the received information. We propose an

algorithm able to run in a standalone environment in

a FPGA, which receives traffic from two AER

retinas through a parallel bus.

We will count the received spikes for each pixel

of the image and store this information in a table. So

that, we have pixel intensity measures derived from

the moving objects detected by each retina at every

moment. The algorithm will mainly find

correspondences between the two tables of spike

counters. Given that, there are two problems

involving the algorithm and the properties of AER

retinas.

A major issue about the retinas is their unique

properties (AER output frequency, firing intensity

threshold of the pixels, etc) of each retina and its

BIAS setting. Thus, the information of the same

pixel in both retinas is not sent at the same time and

there could be a frequency variation between both of

them. To prevent this, we propose a fuzzy matching

algorithm which will not seek exactly the same

levels of intensity, but would admit an error in the

IMAGE MATCHING ALGORITHMS IN STEREO VISION USING ADDRESS-EVENT-REPRESENTATION - A

Theoretical Study and Evaluation of the Different Algorithms

range of 5 and 8% of these levels (in our case, with

256 intensity levels, we would admit a 12-20 levels

error. G.Pajares, 2006).

The first problem is solved, but we will have a

very inefficient algorithm if we use pixel by pixel

matching. To solve it, we use the principles of area-

based matching algorithms. So we do not limit

ourselves to one pixel correspondence search, but

search within a window of variable width, which

will conduct the correspondence of each pixel in the

window. To emphasize, the correspondence between

each pair of pixels from both retinas will be done

separately using the fuzzy matching algorithm

explained above (G.Pajares, 2006).

Another feature that improves the algorithm

efficiency is what we name the “re-dog” (reset-dog).

It is a process that resets the internal counters of the

pixel intensity measures from time to time to avoid

counters overflow.

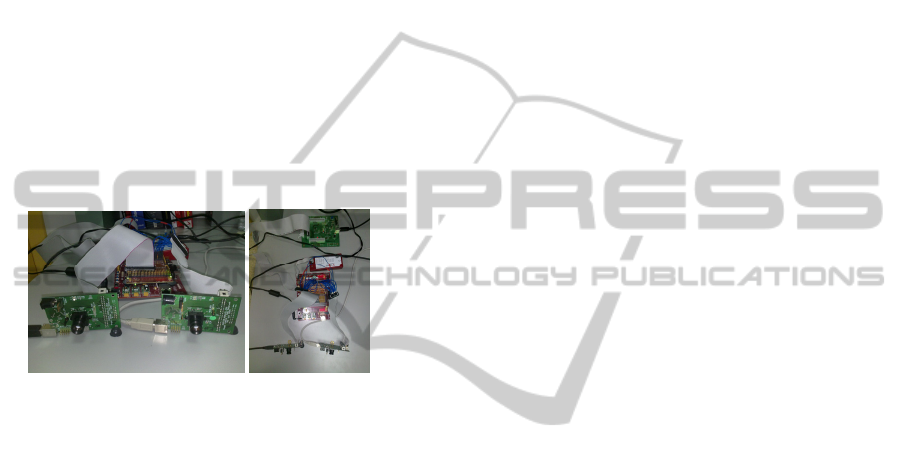

Figure 6: Virtex-5 with AER retinas and USBAERmini2.

To improve the efficiency of the search for

correspondences, we can divide the image into

quadrants, so our program has different threads to do

correlation within each quadrant, but also has a

problem related to the objects being placed between

various quadrants. At present we have implemented

the matching algorithm in a Virtex-5 FPGA model.

We have connected to this board the two inputs from

the AER retinas and it has an output to an

USBAERmini2 PCB (R. Berner, 2007), which is

responsible for monitoring traffic and send it to the

computer using the USB bus (as shown in figure 6).

We are now testing the algorithm.

This work is within the Spanish national project

VULCANO, and will be used for calculating the

distance to the object and, on this basis, controls a

robotic arm that interacts with those objects.

4 CONCLUSIONS

In this paper we have discussed the current trends in

the literature on computer vision, how it has evolved,

step by step to the multi-camera view due to existing

needs. We have analyzed the image matching

algorithms for digital systems, their advantages and

disadvantages.

After this first analysis, we have seen the

problems evolving real-time systems with more than

one camera, especially if the information from two

cameras has to be merged. Because of this, we have

mentioned AER technology as an approach to neuro-

inspired computing. Thus we have named the most

important details of this technology, and its adaptation

to computer vision.

Finally, after identifying the problem and the

means to resolve it, we have proposed an algorithm

that is under test, allowing us to obtain information

from two AER retinas and process information from

both of them, so we can get an image matching

algorithm as close as possible to real-time processing

with an acceptable efficiency.

ACKNOWLEDGEMENTS

This work has been supported by Spanish government

grant VULCANO (TEC2009-10639-C04-02) and the

European project CARDIAC (FP7-248582).

REFERENCES

G. M. Shepherd, 1990. The Synaptic Organization of the

Brain. Oxford University Press, 3rd Edition.

J. Lee, 1981. A Simple Speckle Smoothing Algorithm for

Synthetic Aperture Radar Images. Man and

Cybernetics, vol. SMC-13.

T. Crimmins, 1985. Geometric Filter for Speckle Reduction.

Applied Optics, vol. 24, pp. 1438-1443.

D. Papadimitriou, T. Dennis, 1996. Epipolar line estimation

and rectification for stereo image pairs. IEEE Trans.

Image Processing, 5(4):672-676.

S. B. Pollard, et al, 1985. PMF: a stereo correspondence

algorithm using a disparity gradient limit. Perception,

14:449-470.

S. T. Barnard, M. A. Fischler, 1982. Computational Stereo.

Journal ACM CSUR. Volume 14 Issue 4.

G. Pajares et al, 2006. Fuzzy Cognitive Maps for

stereovision matching. Pattern Recognition, 39, 2101-

2114.

R. Berner et al. In ISCAS’07, A 5 Meps $100 USB2.0

Address-Event Monitor-Sequencer Interface.

A. Linares-Barranco et al. In ISCAS’10, AER Convolution

Processors for FPGA.

B. Cope et al, 2006. Implementation of 2D Convolution on

FPGA, GPU and CPU. Imperial College Report.

B. Cope et al. In FPT’05, Have GPUs made FPGAs

redundant in the field of video processing?

M. Sivilotti, 1991. Wiring Considerations in analog VLSI

Systems with Application to Field-Programmable

Networks. Ph.D. Thesis, Caltech.

T. Tuytelaars et al. In BMVC’00 Wide baseline stereo

matching based on local, affinely invariant regions.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications
