IS IP MULTIMEDIA SUBSYSTEM AFFECTED BY

‘MALFORMED MESSAGE’ ATTACKS?

An Evaluation of OpenIMS

Nikos Vrakas

, Dimitris Geneiatakis

and Costas Lambrinoudakis

Department of Digital Systems, University of Piraeus, 150 Androutsou St., Piraeus 18532, Greece

Department of Computer Science, Columbia University

1214 Amsterdam Avenue, M.C. 0401, New York, 10027-7003, U.S.A.

Keywords: IP Multimedia Subsystem, Session Initiation Protocol, Malformed message attacks, Security.

Abstract: In this paper we assess the open IP Multimedia Subsystem (IMS) robustness against malformed message

attacks. We employ an IMS test-bed architecture using two different testing suites; the PROTOS which is

publicly available, and a proprietary one, that has been develop for the purpose of this specific work.

Results have highlighted that although IMS can effectively handle well-known malformed messages, such

as those utilized in PROTOS, it cannot manage satisfactorily unknown malformed messages. During the

attack scenarios memory consumption increases up to 25%, while the end-to-end delay experienced by the

users increases up to 4000%.

1 INTRODUCTION

IP Multimedia Subsystem (IMS) (3GPP 2008) is the

core of Next Generation Networks (NGNs) for

delivering services in wirelline and wireless end

users, under the umbrella of IP network

infrastructure. IMS specifications specify and

standardize the appropriate mechanisms for

guaranteeing Quality of Service (QoS), security,

availability and reliability of the provided services.

IMS is employed on existing IP network

infrastructures utilizing the Session Initiation

Protocol (SIP) (Rosenberg et al. 2002) for

multimedia session management.

This fact exposes IMS to existing internet threats

(D. Geneiatakis et al., 2006), (Keromytis, 2010)

such as resource consumption, man in the middle

attacks, unauthorized session modification, and

malformed message attacks. In the latter case,

malicious users craft particular messages in order to

affect service availability or to gain unauthorized

access. Previous works (Wieser and Laakso, 2003),

(Dimitris Geneiatakis et al., 2007), pinpoint poor

implementations in the very early SIP based

employments. Particularly, PROTOS (Wieser and

Laakso, 2003) assess various SIP implementations

as far as their robustness against malformed message

attacks is concerned. Results have demonstrated that

the examined SIP developments could not process

properly and finally discard the malformed

messages.

Though various solutions (Dimitris Geneiatakis et

al., 2007), (Niccolini et al., 2006) have been

proposed to protect SIP based infrastructures against

this type of attacks and improvements have been

accomplished in implementations, malformed

messages are still a potential attack method against

IP multimedia services. Asterisk PBX

(www.asterisk.org), for example, has been found

vulnerable to various malformed message attacks

(e.g OSVBD 2007), giving malicious users chances

to gain unauthorized access.

Under this context and taking into consideration

the fact that IMS is a critical component for NGNs’

proper operation, in this paper we examine the

impact of malformed message attacks against the

IMS architecture. To the best of our knowledge

there is no published work in the literature for

evaluating the side effects, in terms of users

“experiences” and server side consequences, of

malformed message attacks against IMS. We

evaluate the open source IMS platform (Open IMS -

www.openims.org), conducting different malformed

message attack scenarios based on the PROTOS test

275

Vrakas N., Geneiatakis D. and Lambrinoudakis C..

IS IP MULTIMEDIA SUBSYSTEM AFFECTED BY ‘MALFORMED MESSAGE’ ATTACKS? - An Evaluation of OpenIMS.

DOI: 10.5220/0003519602750280

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 275-280

ISBN: 978-989-8425-71-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

suite. Furthermore we have developed our own

specific malformed message attack tool. We

measure the overhead, during an attack, in terms of

the introduced latency for the users. Moreover, we

assess the memory consumption on the server side.

Test results confirm that the open IMS platform is

robust against attacks launched through the

PROTOS testing suite, while it is not for attacks

launched through the developed tool. The end-to-

end delay increases in a range between 300% and

4000%, while there is additional memory

consumption of approximately 25%.

The rest of the paper is structured as follows. In

Section 2 we present background information with

regard to IMS architecture, and malformed message

attacks. In Section 3 we evaluate the robustness of

Open IMS system against malformed message

attacks and we discuss the evaluation results.

Finally, in Section 4 we conclude the paper

providing some pointers for future work.

2 BACKGROUND

2.1 IP Multimedia Subsystem

The core of IMS architecture according to (3GPP

2008) consists of the following network elements:

• Proxy Call Session Control Function (CSCF)

(P-CSCF) that handles and routes all signaling

information (requests and responses) to the

appropriate network element for additional

processing depending on the type of signaling

information and the kind of the service.

• Interrogating CSCF (I-CSCF) ensures

communication with users’ home network,

acting as a proxy at the edge of the service

provider network. It communicates with the

Home Subscriber Server (HSS), over the

diameter protocol in order to assign a Serving

CSCF responsible to serve the corresponding

UE.

• Serving CSCF (S-CSCF) manages (statefully)

multimedia sessions and handles users’

authentication: It contacts the HSS to retrieve

the authentication vectors and user profiles.

• Home Subscriber Server administers users’

profile, location, security and any additional

information required for the service provision.

Considering that IMS network elements are logical

entities they can be deployed under the same

physical network element. The communication

amongst IMS network elements is based on SIP.

Figure 1 illustrates a high level IMS network

architecture.

2.2 Malformed Message Attacks in

IMS

Protocols, among others, define specific rules and

grammars for their messages. For the scope of this

work any message violating the protocol’s

definitions is defined as ‘malformed’. As already

mentioned, IMS relies on SIP for session

management. Consequently, malicious users may try

to exploit SIP messages in order to launch a

malformed message attack, similar to the

conventional SIP-based services (Wieser and

Laakso, 2003), (Dimitris Geneiatakis et al., 2007).

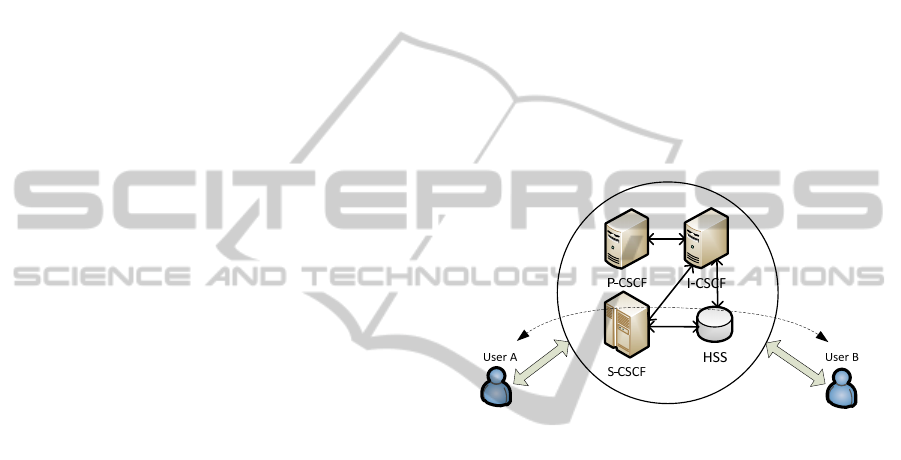

Figure 1: IMS core network architecture. Users contact P-

CSCF in every request, which is responsible to contact I-

CSCF to locate user’s home network.

The freedom of SIP message structure (according

to the SIP grammar) and its text format, offer to

malicious users the chance to develop numerous non

SIP conformed messages. For instance, a malicious

user might not include values in the mandatory

fields of a SIP message, or include inappropriate

values, or even craft a message composed of lengthy

optional information in order to cause buffer

overflow.

In another example a malicious user may insert

multiple or NULL headers, in order to introduce

delays in routing decisions or other unexpected

incidents affecting system’s availability.

Furthermore, the latter user may also craft such a

message by inserting malformed UTF8 sequences in

header fields or by overflowing the messages with

special characters. Figure 2 depicts different

examples of malformed messages. Note that the

target of a malicious user can be any of the IMS

components or even a traditional networking

communication component that IMS interconnects

with NGN.

SECRYPT 2011 - International Conference on Security and Cryptography

276

INVITE nvrakas@ unipi.gr

Via: SIP/2.0/UDP [1050::::0005::120c:354b]

Max-Forwards: 70

From: <sip:nvra_private@unipi.gr>;tag=589f

Call-ID: ak5fj49fhujDUuf0AjU9

Call-ID: ak5fj49fhujDUuf0AjU7

Call-ID: ak5fj49fhujDUuf0AjU8

From: <sip:dgen_private@unipi.gr>;tag=589f

INVITE tel: + ��   

Via: SIP/2.0/UDP [1050::::0005::120c:354b]

Max-Forwards: 70

From: �� 

� ��   � �  ��  

��   �� 

Figure 2: Examples of SIP malformed messages. The first message contains multiple call-id, which is used to uniquely

identify a call, while the second message includes inappropriate values.

3 OPEN IMS EVALUATION

To assess open IMS robustness against malformed

message attacks we employ, in a local network, the

architecture depicted in Figure 3. The open IMS

platform was installed on an Intel core 2 at 2.4Ghz

machine with 4 GB RAM, while the IMS legitimate

users were installed on an Athlon 3 core at 2.4GHz

with 2GB RAM, and the attacker on an Intel

Pentium 4 at 2.8GHz with 2 GB RAM. All the

systems were running Ubuntu O/S.

We employ two main categories of malformed

message attacks based on the main targets of the

attacker. In the first category the malicious user

targets the registration procedure, while in the

second one targets the main service, by creating

different SIP malformed REGISTER and INVITE

messages respectively.



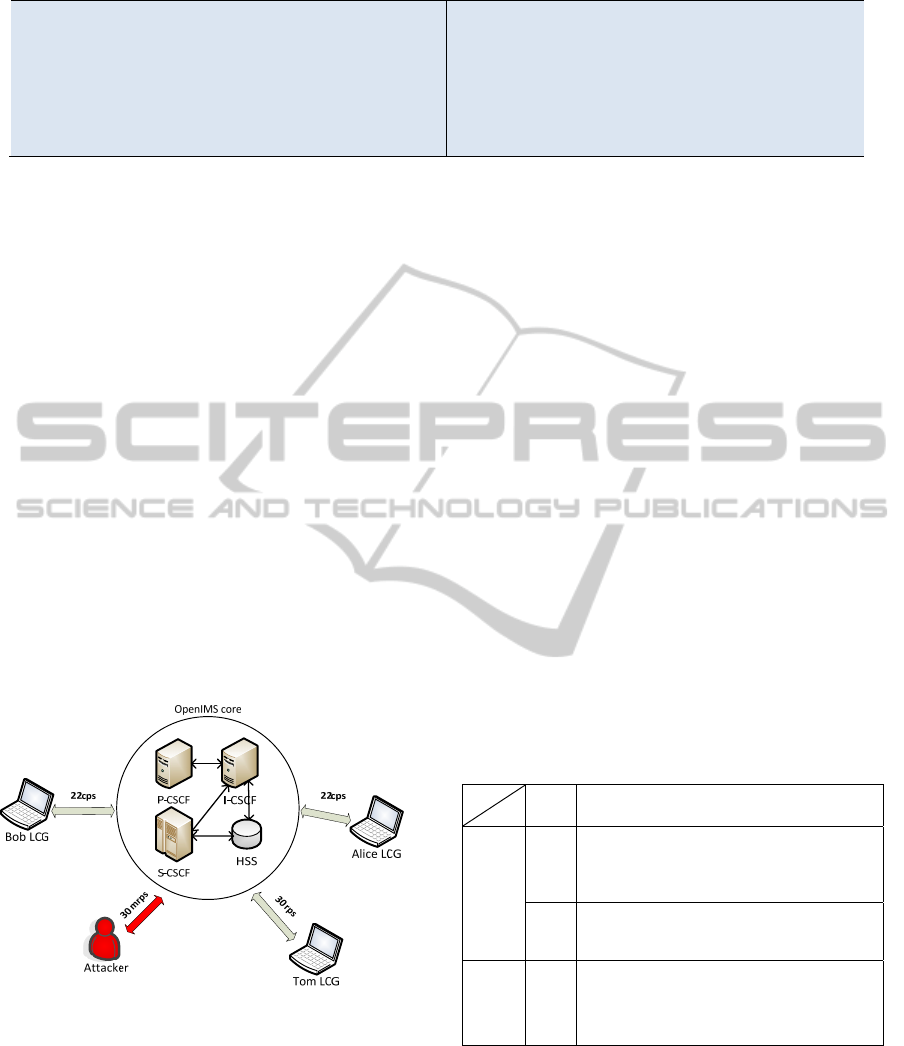

Figure 3: The open IMS test bed that has been employed

for evaluating the robustness of the architecture.

Table 1 briefly describes the employed attack

scenarios. In all of them there is some background

traffic (bgt) of 22 new multimedia sessions per

second between Bob and Alice, while the minimum

duration per session is 5 seconds. Therefore, the

concurrent background media sessions are

approximately 110 (5*22 = 110). To compare the

attack outcomes we employ one additional scenario

for both targets (registration and main service),

named adlt-r and adlt-i respectively, where user

Tom generates 30 legitimate sessions (adlt) per

second. We run all scenarios for a time period of

one hour each.

At this point it is important to stress the

differences between the two attack testing suites. In

our testing suite we utilize messages with multiple

header values while the PROTOS attack tool

includes overflows of special and non-ascii

characters, as well as ANSI escape and malformed

utf-8 sequences.

We evaluate the open IMS robustness against

malformed message attacks by measuring:

a) The introduced overhead legitimate users

experience, and

b) the open IMS memory consumption.

In the following subsection we describe the

results of the tests performed.

Table 1: Malformed message attack scenarios employed

for Evaluating Open IMS robustness.

No.

Description

INVITE

Malformed

In this scenario we generate a traffic of 30

malformed SIP INVITE requests per

second, using the PROTOS malformed

message testing suite.

In this scenario we generate 30 malformed

SIP INVITE requests per second, using our

malformed message testing suite.

Malformed

In this scenario we generate a traffic of 30

malformed SIP REGISTER requests per

second 30 using our malformed message

testing suite

3.1 Server Side Memory Consumption

Figures 4 and 5 illustrate open IMS memory

consumption for the case of malformed REGISTER

and INVITE message attacks correspondingly.

IS IP MULTIMEDIA SUBSYSTEM AFFECTED BY 'MALFORMED MESSAGE' ATTACKS? - An Evaluation of

OpenIMS

277

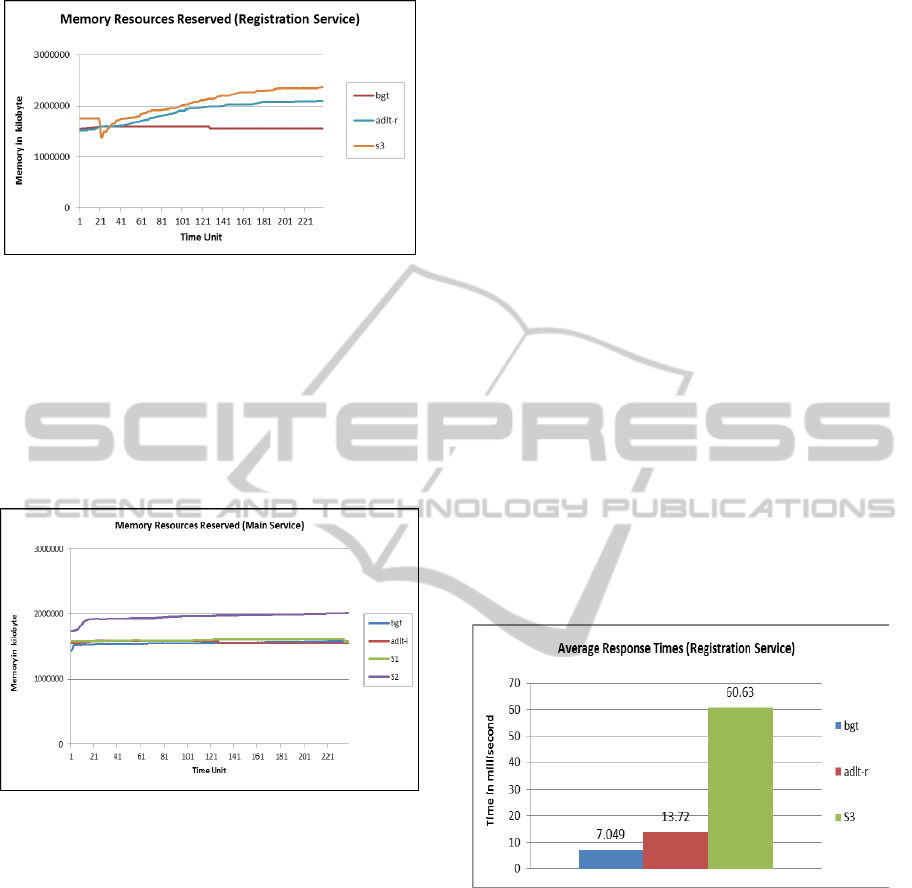

Figure 4: Memory consumption in registration service

during attack scenarios. There is an increase of 9%

compared to additional legitimate traffic scenario.

The PROTOS malformed message testing suite has

not any impact on the open IMS memory resource

consumption for both attack targets (registration and

main service). Open IMS effectively discard such

kind of messages reacting on PROTOS

malformed

Figure 5: Memory consumption in main service during

attack scenarios. There is an increase of 25% compared to

additional legitimate traffic scenario.

messages similar to well-formed messages. This

response was in a way expected as open IMS is built

on SIP Express Router (SER) (www.iptel.org) in

which various extensions have been introduced in

order to enhance it against this type of malformed

message attacks. However, in the case of our

malformed message attacks testing suite there is an

increase in memory consumption of 25% in the case

of targeting the main service, while when the target

is the registration service there is an increase of up

to 9%, compared to the additional legitimate traffic

(addl-r).

The results reveal that the host’s system memory

is barely affected by any kind of attacks to the S-

CSCF. In fact the registration service should be

reached even by an external attacker since everyone

is considered external until its successful

registration. Open IMS proved robust enough to

evade such attacks with an acceptable overhead in

memory consumption. Another point is that the S-

CSCF discards the messages that do not include

authentication header given that the NASS-IMS-

Bundled Authentication (NIBA) (3GPP 2010) is

disabled by default. During the execution of our

attack scenarios it is worth stressing that open IMS

has not crashed.

3.2 Client Side Effects

Similarly to the memory consumption results, the

end-to-end delay experienced by the users in the

case of attacks launched through the PROTOS test

suite is negligible; approximately 0.5 %. On the

other hand, when the IMS is under attack through

our malformed message attack tool, the end-to-end

delay is increased by 4000 %, in the case of INVITE

malformed message attacks and by 300 % during

Figures 6 and 7 depict the average response times.

Considering Figure 8, we draw the conclusion that

open IMS tends to be susceptible to our testing suite.

Figure 6: The end-to-end overhead imposed to user when

the registration service is under attack. There is an

increase up to 300%.

Virtually all (over 95 %) of the legitimate sessions

became fragile due to the large amount of

introduced delay. Constantly the majority of the

sessions ware experiencing response time of over

100ms and with an average time of 413ms. It is

straightforward that an internal attacker can decrease

the QoS introducing such a considerable amount of

delay to media sessions.

SECRYPT 2011 - International Conference on Security and Cryptography

278

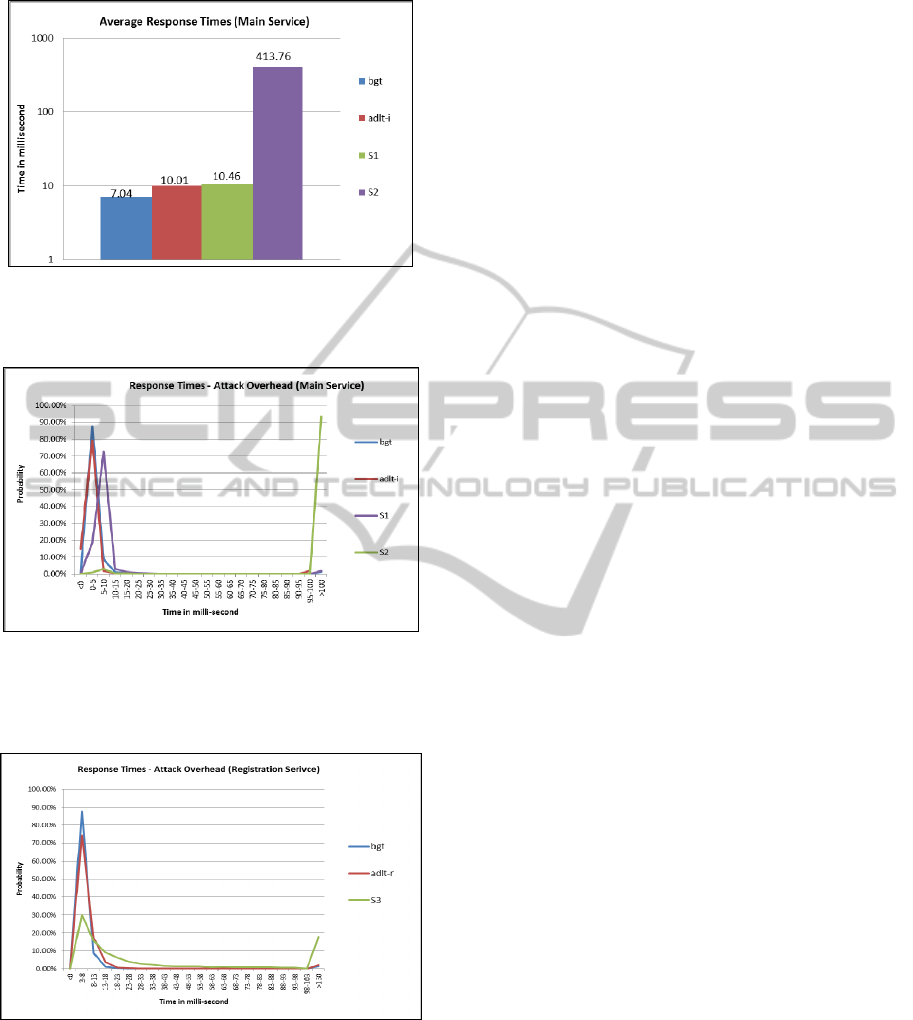

Figure 7: The end to end overhead imposed to user when

the main service is under attack. There is an increase up to

4000%.

Figure 8: Probability density function for end to end delay

in the case of IMS main service. During the attack

scenarios almost all legitimates session impose a delay of

more than 100 milliseconds.

Figure 9: Probability density function for end to end delay

in the case of IMS registration service. During the attack

almost the 70% of registrations require more than 150

milliseconds.

Considering the probability density functions

illustrated in Figure 9 we infer the erratic behavior

of the open IMS core during scenario3. Specifically,

our malformed requests confused the message parser

and the latter became unable to keep a consistent

serving pace: Only 30 % of the legitimate sessions

were established with an acceptable delay time

while the rest 70% of the sessions were established

experiencing an excessive delay of more than

100ms. It is straightforward that the CSCF is able to

deter PROTOS test cases that are mainly consisted

of sequences of special and non-ascii characters. On

the other hand the multiple headers of our suite

introduces excessive delays to the media sessions.

Therefore we can assume that the implementation of

the parser is not versatile enough to face new types

of malformed attacks but only the well-known ones.

4 CONCLUSIONS & FUTURE

WORK

In this paper we evaluate open IMS robustness

against malformed message attacks. Open IMS

assessment results indicate that even though attacks

based on well-known malformed messages have no

impact on IMS performance, there are still

malformed message attacks to which IMS proves to

be vulnerable. From our perspective solutions such

as those proposed in (Dimitris Geneiatakis et al.,

2007) and (Niccolini et al., 2006) could be

employed to eliminate malformed message

consequences in sip based environments such as

IMS. However, even these solutions are not able to

detect new kind of malformed message attacks. For

this reason, additional protection mechanisms are

necessary for enhancing the existing IMS security

level, against malformed message attacks, and

minimize the chances for unauthorized access or

even denial of service.

REFERENCES

3GPP, 2008. TS 23.228: IP Multimedia Subsystems

(IMS), Third Generation Partnership Project,

Technical Specification Group Services and System

Aspects.

3GPP, 2010. TS 33.203: 3G security; Access security for

IP-based services (Release 10): Third Generation

Partnership Project, Technical Specification Group

Services and System Aspects.

Geneiatakis, D. et al., 2006. Survey of security

vulnerabilities in session initiation protocol.

Communications Surveys & Tutorials, IEEE, 8(3), 68-

81.

IS IP MULTIMEDIA SUBSYSTEM AFFECTED BY 'MALFORMED MESSAGE' ATTACKS? - An Evaluation of

OpenIMS

279

Geneiatakis, D. et al., 2007. A framework for protecting a

SIP-based infrastructure against malformed message

attacks. Computer Networks, 51(10), 2580-2593.

Keromytis, A. D., 2010. Voice-over-IP Security: Research

and Practice. IEEE Security and Privacy, 8(2), 76-78.

Niccolini, S. et al., 2006. SIP intrusion detection and

prevention: recommendations and prototype

implementation. In VoIP Management and Security,

2006. 1st IEEE Workshop on. VoIP Management and

Security, 2006. 1st IEEE Workshop on. pp. 47-52.

OSVBD, 2007. Asterisk SIP channel driver SIP

malformed UDP packet DoS. Available at: http://osv

db.org/show/osvdb/34482.

Rosenberg, J. et al., 2002. SIP: Session Initiation Protocol,

RFC 3261.

Wieser, C. and Laakso, M., 2003. Security Testing of SIP

Implementations, 1--2003

SECRYPT 2011 - International Conference on Security and Cryptography

280
