NONPARAMETRIC VIRTUAL SENSORS FOR SEMICONDUCTOR

MANUFACTURING

Using Information Theoretic Learning and Kernel Machines

Andrea Schirru

, Simone Pampuri

1,2

, Cristina De Luca

and Giuseppe De Nicolao

Department of Computer Science Engineering, University of Pavia, Pavia, Italy

Inﬁneon Technologies Austria, Villach, Austria

Keywords:

Semiconductors, Machine learning, Entropy, Kernel methods.

Abstract:

In this paper, a novel learning methodology is presented and discussed with reference to the application of vir-

tual sensors in the semiconductor manufacturing environment. Density estimation techniques are used jointly

with Renyi’s entropy to deﬁne a loss function for the learning problem (relying on Information Theoretic

Learning concepts). Furthermore, Reproducing Kernel Hilbert Spaces (RKHS) theory is employed to handle

nonlinearities and include regularization capabilities in the model. The proposed algorithm allows to estimate

the structure of the predictive model, as well as the associated probabilistic uncertainty, in a nonparametric

fashion. The methodology is then validated using simulation studies and process data from the semiconduc-

tor manufacturing industry. The proposed approach proves to be especially effective in strongly nongaussian

environments and presents notable outlier ﬁltering capabilities.

1 INTRODUCTION

Virtual sensors are employed in many industrial set-

tings to predict the result of an operation (most often a

measurement) when the implementation of an actual

sensor would be uneconomic or impossible (Rallo

et al., 2002). In general, a virtual sensor ﬁnds and

exploits a relation between some easily collectible

variables (input) and one or more target (output)

variables. Virtual sensor modeling techniques range

from purely physics-based approaches(Popovic et al.,

2009) to machine learning and statistical methodolo-

gies (Wang and Vachtsevanos, 2001). This paper

is motivated by a speciﬁc class of virtual sensors

used in semiconductor manufacturing, namely Vir-

tual Metrology (VM) tools. The measurement op-

erations on processed silicon wafers are particularly

time-consuming and cost-intensive: therefore, only a

small subset of the production is actually evaluated

(Weber, 2007). Conversely, Virtual Metrology tools

are able to predict metrology results at process time

for every wafer, relying only on process data: such

predictions are expected to reduce the need for ac-

tual measurement operations and, at the same time,

establish positive interactions with metrology-related

equipment tools (such as Run-to-Run controllers and

decision aiding tools).

A Virtual Metrology tool is expected to (i) ﬁnd

and exploit complex, nonlinear relations between pro-

cess data and metrology results, and (ii) assess pre-

diction uncertainty in a meaningful way; in order to

achieve such goals, it is key to make the right assump-

tions on the observed data. Remarkably, a precise

characterization of the process variability is in gen-

eral hard to obtain: for instance, the observed data

might be distributed according to fat-tailed or strongly

non-Gaussian distributions, be affected by outliers or

present signs of multimodality; it is to note that such

difﬁculties are shared among many disciplines (Ack-

erman et al., 2010). It is intuitive that suboptimal as-

sumptions are likely to result in ineffective predictive

models. In this paper, we present a novel methodol-

ogy, inspired by Information Theoretic Learning the-

ory (Principe, 2010), to tackle such an issue employ-

ing a regularized Reproducing Kernel Hilbert Space

(RKHS) framework jointly with nonparametric den-

sity estimation techniques. The proposed approach is

able to simultaneously estimate nonlinear predictive

models and the associated prediction uncertainty, en-

abling the delivery of probabilistic predictions. The

paper is structured as follows:

• Section 2 introduces the needed elements of ma-

chine learning and Kernel methods.

349

Schirru A., Pampuri S., De Luca C. and De Nicolao G..

NONPARAMETRIC VIRTUAL SENSORS FOR SEMICONDUCTOR MANUFACTURING - Using Information Theoretic Learning and Kernel Machines.

DOI: 10.5220/0003520403490358

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 349-358

ISBN: 978-989-8425-75-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

• Section 3 presents and justiﬁes the proposed ap-

proach from a theoretical point of view.

• Section 4 tests the proposed methodology against

simulation studies and data from the semiconduc-

tor manufacturing environment.

Appendix A is devoted to numerical techniques

used to solve the proposed problem, while Appendix

B contains mathematical proofs.

2 MACHINE LEARNING AND

KERNEL METHODS

The goal of a learning task is to estimate, from data, a

relationship between an input space X and an output

space Y . In order to achieve such result, it is neces-

sary to rely on a set of observations S = {x

∈ X ,y

∈

Y ,i = 1,..., N}. In other words, the goal is to ﬁnd

a map f : X → Y such that, given a new observation

new

∈ X ,y

new

∈ Y }, f(x

new

) will adequately pre-

dict y

new

. In this framework, S is called a training set

and the function f is an estimator. In the follow-

ing, let f depend on a set of parameters θ, such that

f(x) := f(x;θ); the optimization of θ with respect to

some suitable criterion (function of S and θ) leads to

the creation of a predictive model.

2.1 Regularized Machine Learning

In this paper, a regularized machine learning setting is

employed to introduce and test the proposed method-

ology: the estimator f is found by minimizing some

loss function J (θ) with respect to θ. Such loss func-

tion is usually the sum of a loss term L and a regular-

ization term R , so that

J (θ) = L (θ) + λR (θ) (1)

In this framework, given a model speciﬁed by θ, L

measures the quality of approximation on the train-

ing set S and R is a measure of the complexity of the

model. Intuitively, the coexistence of L and R relates

to a tradeoff between model regularity and perfor-

mances on S . The regularization parameter λ ∈ R

acts as a tuning knob for such tradeoff: as λ grows, the

order of the selected model gets lower and lower. In

this paradigm, a learning algorithm is entirely speci-

ﬁed by (i) the loss term L (θ), (ii) the regularization

term R (θ) and (iii) the estimator structure f(x;θ).

Remarkably, this structure assumes that the prediction

of a generic y

can be obtained, at best, up to a random

uncertainty (depending on L ). In other words, adopt-

ing an additive error paradigm, it is implied that

= f(x

) + ε

where ε

is a random variable whose distribution

depends on L .

In the following, let X ≡ R

and, with no loss of

generality, Y ≡ R. The goal is to build a map f :

→ R of the relationship between an input dataset

X ∈R

N×p

and an array of target observationsY ∈R

Furthermore, let x

be the i-th row of X, and y

be the

i-th entry of Y.

2.2 Linear Predictive Models

Perhaps the most notable example of estimation tech-

nique is the method of Least Squares, that can be

traced back to Gauss and Legendre. Such method-

ology assumes a linear relationship between the input

and output spaces, so that

f(x

) := f(x

;w) = x

w (2)

where w is a p-variate vector of parameters. Fur-

thermore, let L be the sum of squared residuals

L (w) =

∑

i=1

− f(x

))

(3)

and let R (w) ≡ 0. The optimal w

∗

(minimizer of

L (w)) is then

∗

= (X

′

−1

′

When a new input observation x

new

is available,

the optimal least squares prediction of y

new

ˆy

new

= E[y

new

] = x

new

∗

Equation (3) implies a Gaussian distributed ε

with

∼ N(0,σ

)

where σ

is the variance of the observation un-

certainty. Notably, ˆy

new

is independent of σ

: it is

necessary to tune the variance term only if a prob-

abilistic output is needed (such as prediction conﬁ-

dence intervals). Least squares is a simple yet pow-

erful method that suffers from two main drawbacks,

namely (i) overﬁtting in high-dimensional spaces (p

close to N) and (ii) possible ill-conditioning of the

matrix X

′

X. In order to overcome such issues, a regu-

larization term is employed: by using (2) and (3), and

letting

R (w) =

∑

i=1

Ridge Regression is obtained. More and more sta-

ble (low sum of squared coefﬁcients) models are se-

lected as λ grows, at the cost of worsening the per-

formances on the training set. The idea behind Ridge

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

350

Regression is that the optimal λ allows to build a pre-

dictor that includes all and only the relevant informa-

tion. The optimal Ridge Regression coefﬁcient vector

∗

= (X

′

X + λI)

−1

′

Similarly to least squares, it is not necessary to

explicitly address the tuning of the error variance σ

unless a probabilistic output is needed.

2.3 Nonlinear Predictive Models

It is apparent that (2) deﬁnes a linear relationship be-

tween the p-variate input space and the output space.

In a wide variety of applications, however, a lin-

ear model is not complex enough to obtain the de-

sired prediction performances. An unsophisticated

approach would be to adopt an expanded basis (aug-

menting the input set X with nonlinear functions of its

columns - for instance, polynomials) to tackle such

issue. It is to note, however, that this simple ap-

proach would yield computationally intractable prob-

lems also for a relatively small values of p (Hastie

et al., 2005): nonlinearities are more efﬁciently han-

dled using kernel-based methodologies. In the case

of Ridge Regression, consider a symmetric positive

deﬁnite matrix K ∈ R

N×N

whose entries arise from

a suitable positive deﬁnite inner product K (kernel

function), such that

= K (x

) (4)

Furthermore, consider the model structure

f(x

) = K

c (5)

where K

is the i-th row of K, and the regulariza-

tion term

R (c) = c

′

In this framework, c ∈ R

is the coefﬁcient vec-

tor of the so-called dual form of the learning prob-

lem, and R is the norm of f in a nonlinear Hilbert

space. The resulting model f exploits a nonlinear re-

lationship (speciﬁed by K ) between X and Y. This re-

sult arises from RKHS (Reproducing Kernel Hilbert

Spaces) theory and Riesz Representation Theorem:

the kernel function K is used to establish a rela-

tionship between the p features and the N examples.

Among the most popular kernel functions, the inho-

mogeneous polynomial kernel

K (x

;d) = (x

′

+ 1)

incorporates the polynomial span of X up to the

d-th grade, and the exponential kernel

K (x

;ξ) = e

−

||x

−x

relates to an inﬁnite-dimensional feature space

whose bandwidth is controlled by ξ

. The optimal

Kernel Ridge Regression coefﬁcient vector is

∗

= (K + λI)

−1

and the predictor is

ˆy

new

= k

new

∗

with k

new

= [K (x

new

)... K (x

new

)]. A thor-

ough review of kernel-based methodologies is beyond

the scope of this section: the interested reader can ﬁnd

more information in (Scholkopf and Smola, 2002).

2.4 Learning in Nongaussian Settings

It is to note that the methodologies reviewed in this

section rely on Gaussian assumptions: the probabilis-

tic interpretation of the loss function (3) is that y

new

can be predicted, at best, with an additive Gaussian-

distributed uncertainty with ﬁxed variance. The rea-

sons for adopting such an assumption are both histor-

ical (linking to the concept of Least Squares estima-

tion) and methodological (Central Limit Theorem and

closed form solution), but other choices are possible.

For instance, the Huber loss function (used in robust

statistics) implies a Gaussian distribution near the ori-

gin with Laplace tails and allows to reduce the weight

of outliers in the learning process. Another notable

example is the ε-insensitive loss function, that relates

to a uniform distribution between [−ε,ε] with Laplace

tails, and is mainly used in Support Vector Machines

(SVM).

Remarkably, all the loss terms described in this

section rely on parametric assumptions: the uncer-

tainty is assumed to follow a speciﬁc (known) distri-

bution depending on a set of unknown parameters. In

a real setting, however, it is often not possible (and

sometimes not even desirable) to identify the uncer-

tainty distribution in a parametric way: in such situ-

ations, a more ﬂexible characterization is needed to

achieve the best performances. In the next section, a

learning method that achieves such ﬂexibility is pre-

sented using Density Estimation techniques jointly

with Entropy-related criteria.

3 REGULARIZED ENTROPY

LEARNING

In this section, an entropy-based learning technique

that makes no assumptions about the uncertainty

distribution is presented and discussed. The novel

methodology will be referred to as ”Regularized En-

tropy Learning”.

NONPARAMETRIC VIRTUAL SENSORS FOR SEMICONDUCTOR MANUFACTURING - Using Information

Theoretic Learning and Kernel Machines

351

Uniform distribution

Theoretic

Estimation

Lognormal distribution

Theoretic

Estimation

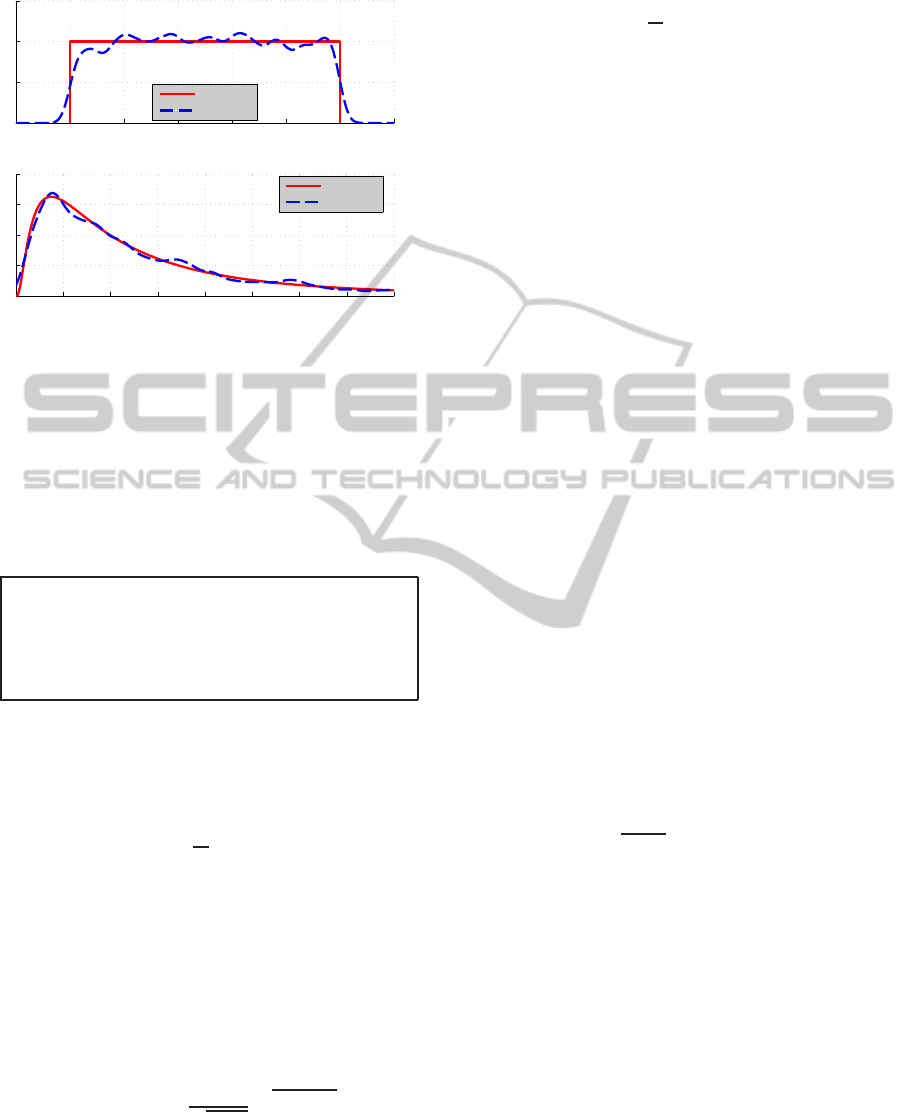

Figure 1: Density estimation of uniform and lognormal dis-

tributions, using Gaussian densities.

3.1 Density Estimation and Learning

Consider a real-valued array ε = [ε

,. ..,ε

]

′

, where

every ε

is assumed to be independently drawn from

the same unknown distribution. In order to obtain a

nonparametric estimate of the probability density of

ε, it is convenient to resort to density estimation tech-

niques (Parzen, 1962).

Remark: it would be more correct to use the term

”kernel density estimation” (KDE). In order to

avoid confusion (the word ”kernel” has different

meaning in KDE and Kernel Methods), KDE will

be referred to as density estimation (DE).

DE techniques are able to estimate a probability

density from a set of observations, using a mixture of

predetermined distributions. Given the vector ε, the

underlying distribution is estimated as

(x) =

∑

i=1

g(ε

;x) (6)

where g(·;x) is a nonnegative function such that

+∞

−∞

g(·;x)dx = 1

It is immediate to prove that (6) is a probability

distribution. In this paper, we employ the Gaussian

density

G(µ,σ

;x) =

√

2πσ

−

(x−µ)

2σ

(7)

so that g(z;x) := G(z,σ

;x). Hereby σ

is the

bandwidth of the estimator, related to the smoothness

of the estimated density: its tuning will be discussed

in a later subsection. The density p

is rewritten as

(x) =

∑

i=1

G(ε

,σ

;x) (8)

that is, a Gaussian density of variance σ

is cen-

tered on every observation ε

. With reference to the

learning setting presented in the previous section, let

be the estimation error (residual) on the i-th sample

of S , for some value of c:

:= ε

−K

c (9)

where K

is the i-th row of the kernel matrix K.

In the next subsection, (8) and (9) are used to deﬁne

a loss term related to the concept of information en-

tropy.

3.2 Entropy-based Loss Term

In information theory, entropy is a measure of the un-

certainty of a random variable: while an high entropy

is associated to chaos and disorder, a quiet and pre-

dictable random variable is characterized by low en-

tropy (Gray, 2010). Notably, by minimizing the en-

tropy of a random variable, a constraint is imposed

on all its moments (Erdogmus and Principe, 2002).

For this reason, the deﬁnition of an entropy-based loss

term is desirable with respect to the Least Squares

loss term, that involves only the second moment (vari-

ance). More interesting properties of such a loss term

are investigated in (Principe et al., 2000).

Shannon’s entropy, perhaps the most notable en-

tropy measure, is deﬁned as the expected value of the

information contained in a message. Renyi’s entropy

generalizes this concept to a family of functions de-

pending on a parameter α ≥0. Consider a continuous

random variable ε; its Renyi’s entropy H

(ε) is

(ε) =

1−α

log

+∞

−∞

(x)

dx (10)

We consider the quadratic Renyi’s entropy H

(·)

of the random variable ε|c, as

(ε(c)) = −log

+∞

−∞

ε|c

(x)

dx (11)

It is easily noted that H

(ε) reaches its inﬁmum

when p

(x) is a Dirac Delta (complete predictability),

and its supremum when p

(x) is ﬂat over R (complete

uncertainty). In order to deﬁne the desired loss term,

we consider the following

Theorem 1. Let A ∈ R

s×s

, a ∈ R

, B ∈ R

t×t

, b ∈ R

and Q ∈R

s×t

. Let x ∈R

be an input variable. It holds

that

G(a,A;Qx)G(b,B;x) = G(a,A + QBQ

′

;b)G(d,D;x)

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

352

with

D = (Q

′

−1

Q+ B

−1

)

−1

d = b+ DQ

′

−1

(a−Qb)

It is possible to express H

(ε) in function of a

weighted sum of Gaussian densities: this result is

summarized in the following

Proposition 1. Applying Theorem 1 (Miller, 1964)

and using (8) and (11), it holds that

(ε(c)) = −log

∑

i=1

∑

j=1

G(y

−y

,2σ

;(K

−K

)c)

Exploiting the symmetry of the Gaussian density,

we deﬁne

H (c) :=

∑

i=1

∑

j=i+1

G(y

−y

,2σ

;(K

−K

)c)

and observe that H (c) is equal to e

−H

(ε(c))

to an additive constant. Since the exponential trans-

formation is monotonic,

argmax

H (c) = argmin

(ε(c)) (12)

Equation (12) states that a minimum entropy es-

timator can be obtained by maximizing a mixture of

Gaussian densities with respect to the parameters vec-

tor c. In the following, since ε is entirely speciﬁed by

c, we let H

(ε(c)).

3.3 Regularized Entropy Learning

In this section, we consider the properties of the learn-

ing algorithm for which

L (c) = H

(c)

R (c) = c

′

f(y

) = k

The novelty of the proposed approach lies in the

RKHS regularization of an entropy-related loss term.

Consider the following

Proposition 2. Given the loss function

J (c) = H

′

Kc (13)

it holds that

−J (c)

∝ H (c)G



−1



(14)

that is, applying an exponential transformation to

J (c), it is possible to write it as the product between

a weighted sum of Gaussian densities (H (c)) and a

Gaussian density dependent on λ.

Furthermore, it has to be considered that H

shift-invariant: this result is discussed in the following

Proposition 3. Let ε(c) be a real valued vector of

residuals associated to a coefﬁcient vector c, and let

ε(c

∗

) = ε(c) + z, where z is a real constant. It holds

that

∗

)

Following Proposition 3, the expected value of the

residuals represents an additional degree of freedom

to be set in advance. Without loss of generality we

choose to ensure that, given a random variable γ,

(p(γ|c) = p

(x)) → (E[γ] = 0) (15)

According to Proposition 2, it is possible to write

J (c), upon a monotonic transformation, as a sum of

products of Gaussian densities. In order to deﬁne an

efﬁcient minimization strategy for J , we consider the

following

Proposition 4. It holds that

−J (c)

∝

∑

i=1

∑

j=i+1

G(d

;c) (16)

with

= G(y

,2σ

−2K

+ K

j j

)



−K

)

′

−K

)

2σ

+ λK



−1

= D

−K

)

′

−y

)

2σ

where K

is the {s,t} entry of K, and therefore

J (c) = −log

∑

i=1

∑

j=i+1

G(d

;c)

up to an additive constant.

Proposition 4 straightforwardly applies Theorem

1 to state that it is possible to write J (c) as the loga-

rithm of a weighted sum of Gaussian densities. The

NONPARAMETRIC VIRTUAL SENSORS FOR SEMICONDUCTOR MANUFACTURING - Using Information

Theoretic Learning and Kernel Machines

353

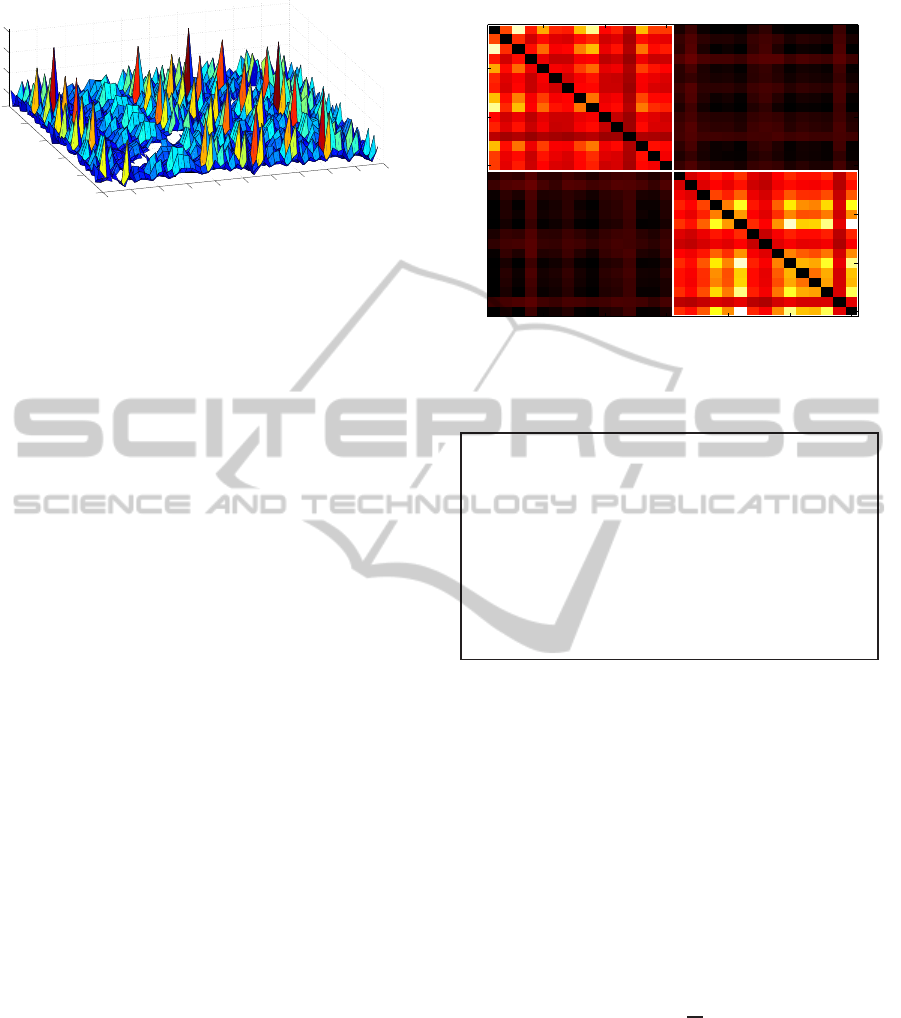

Figure 2: Graphical representation of the matrix {α

} (sur-

face plot).

multiplicative coefﬁcients α

admit an interesting in-

terpretation: α

, for which

0 ≤ α

≤ G(0,2σ

;0) (17)

gets monotonically closer to its supremum as two

conditions are met: (i) y

is close to y

and (ii)

+ K

is close to 2K

. Using the deﬁnition of

= K (x

), it is immediately veriﬁed that con-

dition (ii) occurs when x

is close to x

. Therefore, the

multiplicative coefﬁcient α

relates to the informa-

tion consistency between the i-th and j-th sample: in

other words, it is a measure of the similarity between

the i-th and j-th observations. This allows for two

interesting properties: (i) given a training set S , it is

possible to identify the most consistently informative

pairs of examples (Figure 2). This information can be

subsequently used, for instance, as a pruning criterion

to obtain a minimal representative dataset. Further-

more, (ii) it is possible to use {α

} to discover mix-

tures in S : indeed, if it is possible to identify two sets

⊂ S and S

⊂ S such that, for all (i, j ∈ S

) and

(k,z ∈S

≫ α

the information conveyed by S

and S

are sig-

niﬁcantly decoupled. Figure 3 depicts a colormap of

{α

} for a toy dataset with N = 30, obtained by con-

catenating two decoupled sets of observations. As ex-

pected, the upper-left and lower-right 15x15 subma-

trices show the highest values of α

3.4 Model Estimation

In the previous subsection, we have shown that the

loss function of the proposed method is monotoni-

cally related to a weighted sum of N-variate Gaus-

sian densities. In this subsection, an optimal (entropy-

wise) regularized estimator of c is derived and em-

ployed to build a predictor for new observations. In

order to obtain c

∗

, it is necessary to solve the follow-

ing

Mixture detection with N=30

5 10 15 20 25 30

Figure 3: Mixture recognition capabilities of the coefﬁ-

cients α

: the bright areas are self-consistent groups of ho-

mogeneous observations.

Problem 1. (Minimization of J (c)): ﬁnd

∗

= argmin

J (c)

with

J (c) = −log

∑

i=1

∑

j=i+1

G(d

;c)

Since the exponential transformation is monotonic,

the minimizer of e

J (c)

minimizes also J (c); the expo-

nential formulation yields, however, simpler deriva-

tives. Implementation details about the solution of

Problem 1 are reported in Appendix A. The esti-

mate c

∗

represents a compromise between the RKHS

norm of f, R (c), and Renyi’s second order entropy of

the estimation errors, H

(c). Additionally, H

∗

) is

the minimum reachable entropy conﬁguration for the

dataset S for a given value of λ. As c

∗

is obtained by

solving Problem 1, it is necessary to set the additional

degree of freedom discussed in Proposition 3: the bias

term B is computed as

B := mean({ε

}) =

∑

i=1

−K

∗

)

It is then possible to compute predictions when-

ever a new observation x

new

is available. Using the

real-valued array

new

= [K ( ˜x

new

)... K ( ˜x

new

)]

the estimator ˆy

new

ˆy

new

= E[y

new

] = k

new

∗

(18)

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

354

Furthermore, the prediction uncertainty γ can be es-

timated using a Leave-One-Out approach: let

p(γ) =

∑

i=1

G(y

−K

∗

(i)

−B

(i)

,σ

;x) (19)

where c

∗

(i)

and B

(i)

solve Problem 1 using the re-

duced dataset S

(i)

= S \{x

}. The probabilistic form

of the predictor is then

new

= ˆy

new

+ γ (20)

where ˆy

new

is deterministic and γ is a random vari-

able.

It is to be noted that the solution of Problem 1

was obtained for ﬁxed bandwidth σ

and regulariza-

tion parameter λ. In practice, however, it is generally

needed to estimate such parameters from data as well.

In the presented univariate case, the tuning of such

parameters was efﬁciently performed by means of a

Generalized Cross Validation (GCV) approach. It is

also possible, if there is not enough data to perform

GCV, is to tune σ

relying on some theoretical crite-

rion, such as Silverman’s rule (Silverman, 1986).

4 RESULTS

In this section, Regularized Entropy Learning (REL)

is tested against simulated datasets and data com-

ing from the semiconductor manufacturing industry.

In order to understand the potential of the proposed

approach, its performances are compared with Ker-

nel Ridge Regression (KRR). The performance gap

between Regularized Entropy Learning and Kernel

Ridge Regression is expected to vary: intuitively, if

the real uncertainty distribution is strongly nongaus-

sian, REL is expected to outperform KRR. For all the

experiments, RMSE was used as metric; the parame-

ters of both methods were tuned by means of GCV.

4.1 Simulated Datasets

Two datasets (100 training, 50 validation and 50 test

observations) were generated using strongly nongaus-

sian uncertainty distributions. In the ﬁrst case, a uni-

form random variable was employed; in the second

case, the uncertainty was modeled as a Laplace dis-

tribution. Multiplicative (5x) outliers were inserted

(with 10% probability) in each dataset to test the

robustness of the proposed methodology. Table 1

presents the RMSE ratios for the four simulated ex-

periments: as expected, the best results are obtained

with the Laplace distribution (whose power law is

−3 −2 −1 0 1 2 3

0.05

0.1

0.15

0.2

0.25

0.3

0.35

Error distributions

Regularized Entropy Learning (p( γ))

Kernel Ridge Regression

Real Distribution

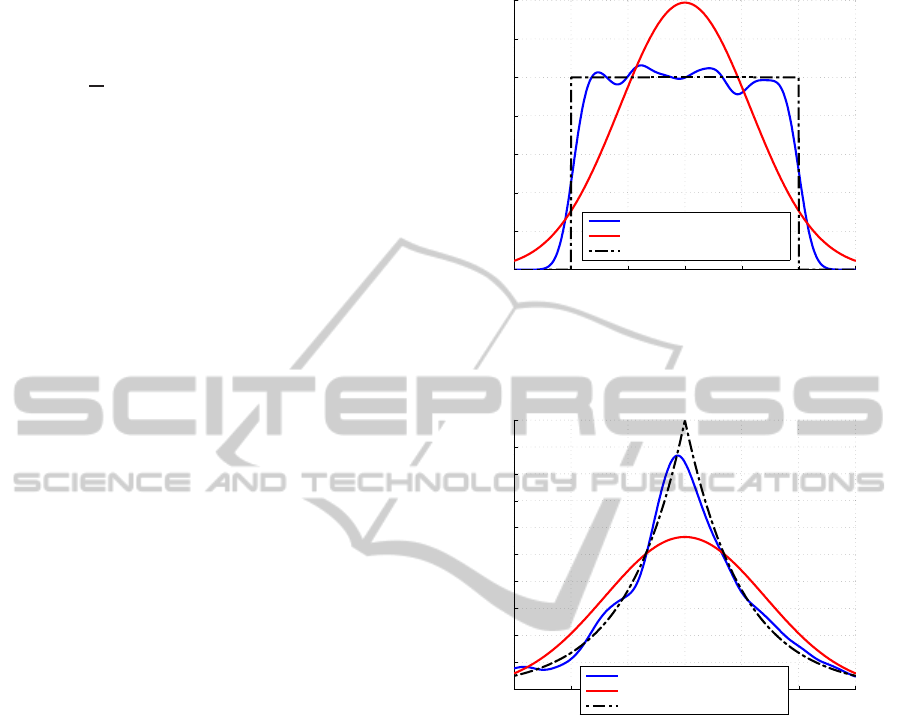

Figure 4: Error distributions for the prediction of a simu-

lated dataset with uniform uncertainty: the nonparametric

estimation of p(γ) allows the proposed methodology to out-

perform KRR.

−3 −2 −1 0 1 2 3

0.05

0.1

0.15

0.2

0.25

0.3

0.35

0.4

0.45

0.5

Error distributions

Regularized Entropy Learning (p( γ))

Kernel Ridge Regression

Real Distribution

Figure 5: Error distributions for the prediction of a simu-

lated dataset with Laplace-distributed uncertainty: the fat

tails of the Laplace distribution are correctly recognized

by REL, while the Gaussian assumptions of KRR fail to

achieve the best prediction results.

hardly approximated by a Gaussian). Figures 4 and 5

show the uncertainty distributions considered by REL

and KRR: the advantage of the proposed approach in

such situations is clear.

4.2 Semiconductor Dataset

REL was tested against a set of homogeneous obser-

vations from the semiconductor manufacturing envi-

ronment (courtesy of the Inﬁneon Austria facility in

Villach). Speciﬁcally, a homogeneous dataset con-

sisting of 239 measured wafers was collected from a

Chemical Vapor Deposition (CVD) equipment. Ev-

ery wafer is characterized by 30 input variables and 9

thickness measurements (associated to different sites

on the wafer). Four experiments were conducted:

NONPARAMETRIC VIRTUAL SENSORS FOR SEMICONDUCTOR MANUFACTURING - Using Information

Theoretic Learning and Kernel Machines

355

−3 −2 −1 0 1 2 3

0.1

0.2

0.3

0.4

0.5

0.6

0.7

Thickness average

Error distributions

Regularized Entropy Learning (p( γ))

Kernel Ridge Regression

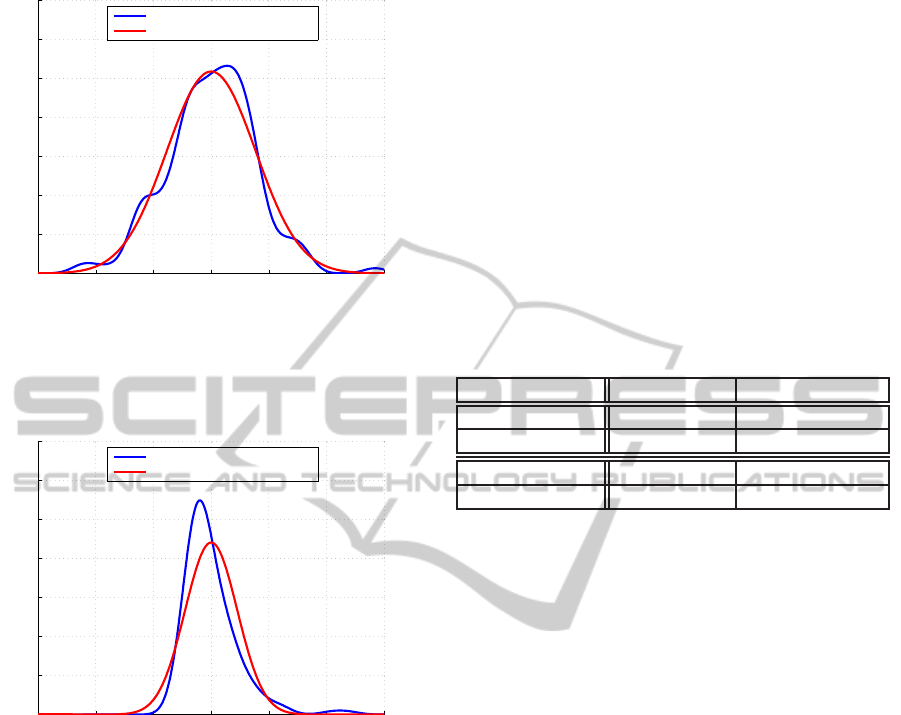

Figure 6: Error distributions for the prediction of average

thickness with no outliers: notably, in this case the Gaussian

assumptions are veriﬁed, and KRR performs better than the

proposed methodology.

−3 −2 −1 0 1 2 3

0.2

0.4

0.6

0.8

1.2

1.4

Thickness std

Error distributions

Regularized Entropy Learning (p( γ))

Kernel Ridge Regression

Figure 7: In the prediction of standard deviation, the density

estimated distribution is skewed and strongly nongaussian

(both the distributions in this Figure has expected value 0).

Thanks to this better understanding of the uncertainty dis-

tribution, the proposed methodology performs well in this

setting.

• Predict the average layer thickness (with and

without outliers).

• Predict the standard deviation (9 points) of layer

thickness (with and without an outliers).

In order to produce outlier-free experiments, a

standard outlier elimination technique based on Ma-

halanobis distance was employed. The original

dataset was split in 3 consecutive groups: a train-

ing dataset of 150 wafers, a validation dataset of 50

wafers and a test dataset of 39 wafers. The validation

dataset was used to tune the hyperparameters, while

the algorithms were compared on the test dataset.

The results of this experiment are reported in Ta-

ble 1. Notably, the Gaussian assumptions are veriﬁed

for the average thickness without outliers (Figure 6):

in this case, KRR performs better than REL. On the

other hand, the presence of outliers in the dataset sig-

niﬁcantly degrades the performances of KRR, while

the proposed methodology proves to be naturally ro-

bust. Perhaps the most interesting result comes from

the prediction of standard deviation: thanks to the

skewed uncertainty distribution associated to the stan-

dard deviation measurements (Figure 7), REL outper-

forms KRR.

Table 1: RMSE ratios REL/KRR: the proposed methodol-

ogy shows natural robustness with respect to outliers, and

performs better than KRR when Gaussianity assumptions

are less realistic. The best result is in bold, while the worst

result is in red.

With outliers Without outliers

Uniform 0.61 0.67

Laplace 0.52 0.56

Thickness Avg. 0.98 1.17

Thickness Std. 0.73 0.89

5 CONCLUSIONS

In this paper, a novel learning methodology is pro-

posed relying on information theory concepts in a

regularized machine learning framework. This study

is motivated by the application of Virtual Metrology

in semiconductor manufacturing. The estimation of

a nonlinear predictive model, jointly with the associ-

ated uncertainty distribution, is achievedin a nonpara-

metric way using a metric based on Renyi’s entropy

and regularized with a RKHS norm. The proposed

methodology, namely Regularized Entropy Learning

(REL), has been tested with promising results on sim-

ulated datasets and process data from the semiconduc-

tor manufacturing environment. Speciﬁcally, the pro-

posed approach presents a clear advantage in outlier-

intensive and strongly nongaussian environments: for

this reasons, REL is a strong candidate for the use in

an industrial setting, where a ﬂexible assessment of

data variability is key to achieve good predictive per-

formances.

REFERENCES

Ackerman, F., Stanton, E., and Bueno, R. (2010). Fat tails,

exponents, extreme uncertainty: Simulating catastro-

phe in DICE. Ecological Economics, 69(8):1657–

1665.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

356

Carreira-Perpi˜n´an, M. (2002). Mode-ﬁnding for mixtures of

Gaussian distributions. Pattern Analysis and Machine

Intelligence, IEEE Transactions on, 22(11):1318–

1323.

Erdogmus, D. and Principe, J. (2002). An error-entropy

minimization algorithm for supervised training of

nonlinear adaptive systems. Signal Processing, IEEE

Transactions on, 50(7):1780–1786.

Gray, R. (2010). Entropy and information theory. Springer

Verlag.

Hastie, T., Tibshirani, R., Friedman, J., and Franklin, J.

(2005). The elements of statistical learning: data min-

ing, inference and prediction. The Mathematical In-

telligencer, 27(2):83–85.

Miller, K. (1964). Multidimensional gaussian distributions.

Wiley New York.

Parzen, E. (1962). On estimation of a probability density

function and mode. The annals of mathematical statis-

tics, 33(3):1065–1076.

Popovic, D., Milosavljevic, V., Zekic, A., Macgearailt, N.,

and Daniels, S. (2009). Impact of low pressure plasma

discharge on etch rate of SiO2 wafer. In APS Meeting

Abstracts, volume 1, page 8037P.

Principe, J. (2010). Information Theoretic Learning:

Renyi’s Entropy and Kernel Perspectives. Springer

Verlag.

Principe, J., Xu, D., Zhao, Q., and Fisher, J. (2000). Learn-

ing from examples with information theoretic criteria.

The Journal of VLSI Signal Processing, 26(1):61–77.

Rallo, R., Ferre-Gin´e, J., Arenas, A., and Giralt, F. (2002).

Neural virtual sensor for the inferential prediction of

product quality from process variables. Computers &

Chemical Engineering, 26(12):1735–1754.

Scholkopf, B. and Smola, A. (2002). Learning with kernels,

volume 64. Citeseer.

Silverman, B. (1986). Density Estimation for Statistics and

Data Analysis. Number 26 in Monographs on statis-

tics and applied probability.

Wang, P. and Vachtsevanos, G. (2001). Fault prognostics

using dynamic wavelet neural networks. AI EDAM,

15(04):349–365.

Weber, A. (2007). Virtual metrology and your technol-

ogy watch list: ten things you should know about

this emerging technology. Future Fab International,

22:52–54.

APPENDIX A

Problem 1 is an unconstrained global optimization

problem. In order to derive a solution, we consider

the features of c

∗

in the following

Proposition 5. Let c

∗

be the global minimum of a

negatively weighted sum of Gaussian densities J(c).

Thanks to the properties of J(c), there exists a real m

such that

||c

∗

−d

−1

≤ m

for at least one mean vector d

. Furthermore,

m ≤log





where C

is a negative constant and

J = min

i, j

J(d

)

That is, m is superiorly limited by a decreasing

function of the minimum value of J evaluated in the

mean vectors d

Proposition 5 has two notable implications: (i)

there is at least one mean vector d

that serves as suit-

able starting point for a local optimization procedure,

and (ii) the global minimum gets closer to one of the

mean vectors as the computable quantity

J increases.

Using these results, c

∗

is found by means of the fol-

lowing

Algorithm 1: solution of Problem 1.

1. Set c

∗

= 0

2. For i = 1, ... ,N

(a) For j = i+ 1,. ..,N

• Use a Newton-Raphson algorithm to solve

the local optimization problem

∗

= argmin

J(c)

using d

as starting point.

• If J(c

∗

) < J(c

∗

)

• c

∗

= c

∗

• End if

(b) End for

3. End for

Algorithm 1 was originally proposed in (Carreira-

Perpi˜n´an, 2002), and guarantees to ﬁnd all the modes

of a mixture of Gaussian distributions. It is to be

noted, however, that the exhaustive search performed

by Algorithm 1 might be computationally demanding,

and only the global minimum of J is of interest in the

presented case. It is convenient, if an approximate

optimal solution is acceptable, to perform convex op-

timization using a reduced number of starting points.

In our experiments, the best performances were ob-

tained using the d

associated to the least (1% to 5%)

values of {J(d

)}. It is to be noted that this reduced

version of Algorithm 1 does not guarantee to reach

the global minimum (although it has been veriﬁed, via

simulation studies, that the global optimum is found

with a very high success rate). In order to set up the

Newton-Raphson algorithm used in Algorithm 1, it is

NONPARAMETRIC VIRTUAL SENSORS FOR SEMICONDUCTOR MANUFACTURING - Using Information

Theoretic Learning and Kernel Machines

357

necessary to know the Jacobian and Hessian matrices

associated to J(c). Letting

(c−d

)

′

−1

(c−d

)

−1

1/2

(2π)

N/2

it is possible to write

J(c) = −

∑

i=1

∑

j=i+1

(c)

Therefore, the Jacobian of J(c) is

∂J

∂c

= −

∑

i=1

∑

j=i+1

∂Q

∂c

and the Hessian is

∂

= −

∑

i=1

∑

j=i+1



∂Q

∂c

∂Q

∂c

′

∂



with

∂Q

∂c

= D

−1

−c)

∂

= −D

−1

Considering the Taylor series of J(c)|

c=c

trun-

cated to the second order

J(c)|

c=c

≈ J(c

) + (c−c

)

′

∂J

∂c

c=c

(c−c

)

′

∂

c=c

(c−c

)

the next c

k+1

= x

−



∂

c=c



−1

∂J

∂c

c=c

Remark: in order to evaluate J(c), as well as its Ja-

cobian and Hessian, it is not necessary to explicitly

compute any matrix inversion: indeed,

−1

−K

)

′

−K

)

2σ

+ λK

APPENDIX B

Proof of Proposition 3. It is apparent that a global

shift of x does not inﬂuence the value of H

, thanks to

the inﬁnite integration interval:

+∞

−∞

(x)

dx ≡

+∞

−∞

(x+ τ)

The result follows.

Proof (by contradiction) of Proposition 5. Con-

sider, without loss of generality, the problem of ﬁnd-

ing the global maximum x

∗

of a weighted sum of

Gaussian densities L(x), such that

L(x) =

∑

i=1

G(µ

,Σ

; x)

Letting

(2π)

N/2

|Σ

1/2

||x−µ

−1

(x−µ

)

′

−1

(x−µ

)

we write L(x) as

L(x) =

∑

i=1

−||x−µ

−1

Consider then the best function value among the

{µ

} as

L = max

L(µ

)

and let x

∗

be far from every µ

so that

||x

∗

−µ

−1

≥ m ∀i

where m is a lower bound. It is apparent that

L ≤L(x

∗

) ≤ Ne

−m

∑

i=1

(21)

and it is immediately veriﬁed that if

m > log



∑

i=1



inequality (21) does not hold: by contradiction, x

∗

is not the global maximum. Therefore, there exists at

least one mean vector µ

such that

||x

∗

−µ

−1

< log



∑

i=1



ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

358
