UNOBSERVABLE INTRUSION DETECTION BASED ON CALL

TRACES IN PARAVIRTUALIZED SYSTEMS

∗

Carlo Maiero and Marino Miculan

Department of Mathematics and Computer Science, University of Udine, Udine, Italy

Keywords:

Intrusion detection systems, Paravirtualization, System call trace analysis.

Abstract:

We present a non-invasive system for intrusion and anomaly detection, based on system call tracing in par-

avirtualized machines over Xen. System calls from guest user programs and operating systems are intercepted

stealthy within Xen hypervisor, and passed to a detection system running in Dom0 via a suitable communi-

cation channel. Guest applications and machines are left unchanged, and an intruder on the virtual machine

cannot tell whether the system is under inspection or not. As for the detection algorithm, we present and study

a variant of Stide, which we verify experimentally to have a good performance on intrusion detection with an

acceptable overhead—in fact, online real-time intrusion detection feasible. However, since the interception

mechanism is kept separated from the detection system, the latter can be replaced according to further needs.

1 INTRODUCTION

Nowadays, the most common form of intrusion and

anomaly detection is host-based, which means that

the detection system runs on the same machine under

inspection. A serious drawback of host-based detec-

tion is that it is invasive, since the computation en-

vironment is modiﬁed by the presence of the detec-

tion system itself (e.g. as a program in the ﬁle sys-

tem, or as a process running in memory, or as a kernel

module, or some open ports...). As a consequence,

an intruder can notice the detection system and mod-

ify her actions accordingly, e.g. by changing the at-

tack methodology in order to avoid detection. This

can be particularly serious in “honeypots”, which are

systems built on the purpose of gathering information

about attacker’s motives and tactics. Moreover, once

the detection system has been discovered, it can be

attacked, e.g. by disabling it or altering its data.

In order to avoid these problems, an intruder on

the machine under inspection must not be able to no-

tice the existence of the detection system. Ideally,

from the intruder’s point of view, a monitored ma-

chine should be observationally equivalent to an un-

monitored machine. This means that a monitored ma-

chine and an unmonitored one cannot differ neither in

the ﬁle system, nor in the user-space and kernel-space

memory, nor in devices, etc.. In particular, the detec-

tion system must execute outside the machine under

∗

Work funded by MIUR project 20088HXMYN SisteR.

inspection, and still be able to observe the behavior of

processes in the machine (which is unmodiﬁed), and

possibly to take appropriate countermeasures.

In this paper we show how to solve this conun-

drum by adopting (para)virtualized machines in con-

junction with syscall-based anomaly detection. In

paravirtualized systems (like Xen (Barham et al.,

2003)), a suitable layer, called virtual machine mon-

itor or hypervisor, allows to run an operating sys-

tems on a virtual version of the underlying hardware,

while maintaining the same architecture of the real

one. Privileged instructions cannot be executed by

the guest operating system, since this runs without

the necessary privileges. Therefore, when a process

in a guest machine executes a system call to its op-

erating system, the trap triggers the hypervisor which

takes care of the usual context-switch between user

and kernel space. In that instant, the hypervisor can

collect data about the system call, as done in (Laure-

ano et al., 2007), and forward these data to a detec-

tion system for analysis. In case the trace appears to

be not correct, the detection system can apply suitable

counter-measures, e.g. it can abort the offending sys-

tem call, or “suspend” the machine (possibly) under

attack.

This solution presents several interesting aspects.

First, system call interception is completely unob-

servable to the guest operating system and processes.

This means that an intruder cannot tell whether the

system is being monitored. Of course, the system ap-

300

Maiero C. and Miculan M..

UNOBSERVABLE INTRUSION DETECTION BASED ON CALL TRACES IN PARAVIRTUALIZED SYSTEMS.

DOI: 10.5220/0003521003000306

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 300-306

ISBN: 978-989-8425-71-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

pears to be paravirtualized (e.g., due to the presence

of some speciﬁc daemons), but this is not uncommon

nowadays, especially for hosted services and cloud

computing. Secondly, the interception mechanism is

kept separated from the detection system, which can

be easily replaced and upgraded, accordingly to fur-

ther needs. Moreover, our approach is “black-box”,

i.e., we do not assume any a priori knowledge about

the internals of the virtual machine nor the applica-

tions therein running. Finally, the overhead intro-

duced by the interception mechanism is quite low, so

that on-line, real-time intrusion detection is feasible.

The paper is organized as follows. In Section 2,

we describe the architecture of the unobservable in-

trusion detection system: the mechanism added to the

Xen hypervisor in order to gather information about

system calls, the channels for communicatingwith the

detection system, etc. In Section 3 we consider some

possible algorithms for the detection system. Basi-

cally, the idea is to compare the system calls traces

with respect to a set of “well-behaved” traces, as done

e.g. in (Hofmeyr et al., 1998). As we will show

in Section 4, the resulting system has good perfor-

mances, concerning both the attacks it can recognize

(with very low false positive rates), and the compu-

tational overhead. Final remarks, related work and

directions for further work are discussed in Section 5.

2 XENINI: UNOBSERVABLE

SYSCALL INTERCEPTION

In this section we present Xenini, a patch to Xen hy-

pervisor implementing the stealthy gathering of in-

formation of the behavior of virtual machines. This

patch is designed to have the following features:

Independence and Flexibility. Xenini must be able

to operate in complete autonomy, without any co-

operation with the machines being monitored.

Security. the patch must affect only the hypervisor

and must not use any guest kernel data structure.

Independence from Memory. Differently from

other solutions using techniques of guest machine

memory and virtual disk introspection, Xenini

observes only the system calls (as in (Laureano

et al., 2007)).

Isolation. the attacker is not aware of being mon-

itored, because the patch is at hypervisor level

without any change to the virtual machine.

Simplicity. the system requires only an initial patch

to the hypervisor, and does not put any constraint

on virtual machines.

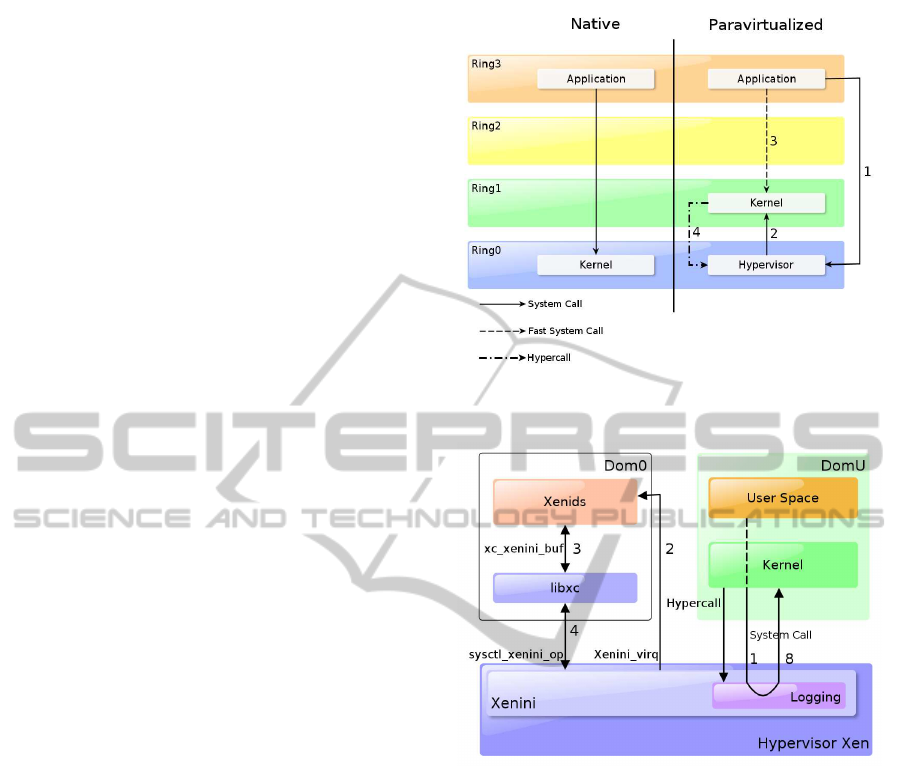

Figure 1: System call handling in a native system (left) and

paravirtualized Xen system (right).

Figure 2: Architecture of the Xenini-XenIds system.

Architecture. In Xen, a guest application executing

a system call raises a trap which yields the hypervisor

to be executed (Figure 1). At this point, before pass-

ing the control to the guest kernel, we can intercept

and log the system call. More precisely, we can ob-

serve the syscall number and the caller process ID.

This information is passed for evaluation to the detec-

tion system, called XenIds, which is a process running

in Dom0. XenIds will scrutiny the syscall trace, and

possibly take suitable countermeasures.

The overall architecture is shown in Figure 2. Be-

fore describing the execution ﬂow, let us describe the

main components of the system.

System Calls Interception. First, in order to han-

dle all system calls by the hypervisor, we disable

“fast” system calls in Xen (without modifying the

guest operating system). Then, for each paravir-

tualized domain DomU, Xen installs a “local” In-

UNOBSERVABLE INTRUSION DETECTION BASED ON CALL TRACES IN PARAVIRTUALIZED SYSTEMS

301

terrupt Descriptor Table (IDT) which it is looked

up by hypervisor when a trap is invoked by domU.

The interrupt 0x80 is not part of the traps han-

dled in local IDTs, and it is managed by hyper-

visor. The traps that must be managed at level 0

are handled by the function

do_guest_trap()

(ﬁle

xen/arch/x86/traps.c

). In this function, the case

of interrupt 0x80 is modiﬁed into a call to Xenini. The

system call number is in the

%eax

stored in a buffer, together with the process ID. Here,

we can also terminate the system call by changing the

value of the virtual processor register

%eax

Communication between Hypervisor and Dom0.

The communication mechanism between Xenini and

intrusion detection systems residing in Dom0, can be

divided into two parts: the event channel and the li-

brary

libxc

for message handling.

Event channels are a simple asynchronous noti-

ﬁcation mechanism provided by Xen. Each domain

has a set of ports that can be associated with an

event source, which can be an interrupt, a physical

IRQ, a virtual interrupt IRQ or port to another do-

main. The events are then handled asynchronously,

so the delivery of the message does not necessar-

ily wait for a response from Xen. In this case

the two domains connected are the hypervisor and

Dom0. This event channel notiﬁes the IDS that

some new interception data is present in the buffer

of Xenini. The communication takes place via an ad

hoc virtual interrupt

VIRQ_XENINI

added in the ﬁle

xen/include/xen/xen.h

Libxc provides an API for Xen control, e.g., for

communicating with Xen through Dom0 and for con-

trolling (e.g., creating, destroying, suspending) other

virtual machines. We have extended the functionali-

ties of this library by adding an internal protocol for

communication between the IDS and Xenini.

Execution Flow is as follows (Figure 2):

1. Xenini intercepts the system call or the hypercall

2. Xenini alerts XenIds via a VIRQ

3. XenIds makes a request get info to libxc

4. Libxc requires data to Xenini

5. Xenini transmits the data to libxc

6. Libxc returns data to IDS

7. the IDS processes the data and gives an answer.

8. the control ﬂow returns to the guest VM

Xenini can act synchronously (i.e., blocking) or asyn-

chronously, depending on the system call. Syn-

chronous operation is intended for system calls (or

hypercalls) which are considered “critical”; in this

case, Xenini waits for the answer from XenIds be-

fore executing the call. Asynchronous operation is

for system calls which have to be logged only; in this

case, Xenini communicates the data to XenIds and

proceeds immediately. We will see in Section 4 that

asynchronous operation yields much less overhead,

still allowing for a high level of recognized attacks.

3 CALL-TRACE BASED

INTRUSION DETECTION

In this Section we discuss the algorithm implemented

in the intrusion detection system XenIds. As for any

IDS, our aim is to recognize when the behavior of a

system is “non-standard”, which may indicate that the

system is being attacked.

Let us recall that Xenini passes to the IDS only the

system call numbers (i.e., the names), together with

the ID of the processes. The IDS does not have access

to guest machines memory, nor it can analyze the pro-

grams which are running on these machines. In fact,

we cannot even know which program a given process

is running. Therefore, we have to follow a black-box

approach: we can only analyze the sequences of sys-

tem calls that are invoked by each process, without

the possibility of inspecting the process’ memory.

State of Art. Considerable work has been carried

out about the analysis of system call traces. In gen-

eral, the principal black-box approaches for the anal-

ysis of system calls traces use statistical approaches

or machine learning techniques for extracting the ba-

sic “correct” structures of call traces; then, the trace

of a single program at once is analyzed, usually of-

ﬂine. Due to lack of space, we can give only a very

short description of the principal approaches.

Frequency-based methods observe the occur-

rences of certain patterns in a sequence of system

calls. (Helman and Bangoo, 1997) propose to clas-

sify each sequence on the frequency that it appears in

traces of intrusions: sequences that occur more fre-

quently in intrusions and less frequently in normal

behaviors are considered suspect. Unfortunately, the

frequency of each sequence in the intrusion traces is

not known a priori.

Data Mining can be used to recognize certain

types of patterns present in a large amount of data.

In the case of intrusion detection, this leads to a def-

inition of “normal” (self) lower than that obtained by

simply listing all sequences that occur in normal be-

havior. We mention Cohen’s RIPPER (Cohen, 1995),

which has been adapted for syscall interception in

(Lee et al., 1997; Lee and Stolfo, 1998).

SECRYPT 2011 - International Conference on Security and Cryptography

302

Finite State Machines can be used for recogniz-

ing a language of “normal traces”. An intrusion

yields a sequence which is not recognized. There

are many techniques for building DFA and NDFA to

solve this problem; we mention the Hidden Markov

Model (HMM). (Zhang et al., 2007) suggests an ap-

proach that deals with the grammar of system calls.

Enumerate Sequences Stide. (Forrest et al., 1996)

introduced an intrusion detection method based on

observation of system calls used by privileged pro-

cesses. The approach is inspired by the natural im-

mune system, which has several aspects in common

with security services (Forrest et al., 1997).

The Stide method of anomaly/intrusion detection

deﬁned in (Hofmeyr et al., 1998) creates a proﬁle de-

ﬁned as “normal” and the substantial deviations from

this proﬁle are deﬁned as “abnormal”. Stide works in

two steps. First, a database of “normal behaviors” is

created by analysing system call traces generated by

processes running in a safe environment. Then, the

real system, possibly subject to attacks, is monitored

looking for abnormal behaviors. This method ana-

lyzes only short sequences of system calls, in chrono-

logical order. Thus, the only information necessary to

the algorithm are the names of system calls performed

by each process; system call parameters are ignored.

The algorithm used to create the database of nor-

mal behavior is very simple: we scan the traces of

system calls generated by a particular process and put

in the database all unique sequences of length k, for

k a ﬁxed parameter. For instance, let us suppose we

observe the following trace:

open, write, mmap, open, write, mmap

If k = 3 we get the following unique sequences:

(open, write, mmap)

(write, mmap, open)

(mmap, open, write)

Once the database of normal behaviors is created,

the same method is used to check the traces under in-

spection. Given a trace, we look-up in the database

all unique sequences of length k in it; the sequences

which do not appear in the database are considered

mismatches. The “strength” of anomaly “signal” can

be measured as the number of events, i.e. mismatches,

in a trace. The anomalies are counted on the last n

system calls. The algorithm raises an anomaly when

this number is overa given threshold, which is usually

speciﬁed as a percentage of n.

Comparison. According to (Warrender et al.,

1999), there is no “best” algorithm in terms of false

positives and false negatives; however, it is also pos-

sible to say that RIPPER and Stide perform better on

a threshold value of 6.

For our application the best algorithm seems to

Stide, for two reasons. First, we can train its database

using directly the data provided by Xenini, during

normal activity of the system. Secondly, we can im-

plement the detection algorithm quite efﬁciently, al-

lowing for a real-time, online intrusion detection. In

fact, sequences are stored in the database as trees,

whose nodes are labelled with system calls. Hence,

there are as many trees as system calls; moreover, the

upper limit for the database size is O(Nk), where k is

the sequence length, and N is the number of unique

sequences. In practice the requirements are lower be-

cause the sequences are stored in trees.

However, the modular structure of XenIds/Xenini

allows to replace easily the detection algorithm.

Implementation. Differently from other work in

literature, our aim is to identify intrusions on online

systems, in (almost) real time. When an anomaly is

detected, XenIds can perform several actions, from

very simple ones (such as reporting the intrusion) to

quite intrusive, such as aborting the compromising

system call or suspending the corresponding virtual

machine to preserve its data.

Operating Principles. Stide is intended to analyze

each process separately, which means that one should

build a database for each program, and compare the

traces from a process with respect to the database of

the corresponding program. However, this is prob-

lematic in our setting, because we do not know which

program is running a given process: Xenini can inter-

cept the process ID, but not the executable ﬁle name.

Therefore, we decide to keep a single database,

i.e. a single tree, for all sequences, coming from any

program. This is suggested by the experimental ob-

servation that different programs have only few se-

quences in common. In other words, a programcan be

identiﬁed by looking the set of its “good” sequences.

Clearly, keeping all sequences from all programs in

the same database could increase the number of false

negatives (because a sequence which is abnormal for

a program could be normal for another), but as we

will see in the next Section this is not the case. In

fact, this problem can be solved by suitably choos-

ing the length k. Let us denote by p

the probability

that at some point in a sequence, an abnormal syscall

is found in the database; then, the probability of rec-

ognizing as normal a k-length abnormal sequence, is

. The possibility of a false negative can be reduced

exponentially by increasing the length of sequences.

XenIds works as follows. When it receives a triple

(VM ID, SysCall number, process ID) from Xenini,

UNOBSERVABLE INTRUSION DETECTION BASED ON CALL TRACES IN PARAVIRTUALIZED SYSTEMS

303

it appends the SysCall number to a buffer of length

k associated to (VM ID, process ID) (the buffer is

created if not already existing). Then the buffer is

searched in the database; if it is not present, the num-

ber of anomalies for that (VM ID, process ID) is in-

cremented. If the anomalies ratio exceeds the thresh-

old, XenIds will perform the corresponding action.

However, some system calls have a special mean-

ing, which must be taken into account in the IDS. In

particular a process can create other processes, or ex-

ecute a different program without changing its ID. In

these cases, a speciﬁc action is required on buffers.

For instance, on Unix-like machines processes are

created using a fork or vfork system call. While fork

creates another instance of the same program which

will be tracked separately, the vfork replace the cur-

rent program with a new one without changing id.

So in the case of vfork the system calls recorded in

the buffer have no relevance, and hence the buffer is

cleared. The same applies to the exec system call,

which replaces the calling program with a new one

program code; also in this case we clear the buffer.

Modes of Operation. As mentioned before, the in-

trusion detection system can operate in two modes:

synchronous or asynchronous. In the synchronous

modality, each system call intercepted by Xenini is

delayed until the IDS has veriﬁed that the behavior is

normal. In the asynchronous modality, Xenini sends

to the IDS the data about the intercepted system call,

and proceeds immediately with the execution of the

system call. Thus, the decision (and possibly the ac-

tion) of the IDS is decoupled from the interception, as

it may be delayed with respect to the compromising

system call. As we will see in the next section, these

two modes present quite different performances.

4 DISCUSSION

Detection Testing. In order to evaluate the detec-

tion ability of XenIDS, we can refer to two datasets of

syscall traces available from the Artiﬁcial Intelligence

Laboratory at MIT, and the Department of Com-

puter Science, University of New Mexico (UNM)

(Hofmeyr et al., 1998; Hofmeyr et al., 1999).

Since the database of XenIds collects sequences

from different programs, we have created a system

call trace by combining a trace of 300,000 system

calls obtained by logging an “idle” Linux virtual ma-

chine, with about 1900 unique sequences from MIT

and UNM datasets for the program “sendmail” (which

contain also sequences arising from various attacks).

The resulting trace contains system calls from 18

Linux services, including sendmail and apache2.

This trace has been submitted both to the original

Stide algorithm (which uses the database for sendmail

only) and to XenIds (which uses instead the database

containing sequences from all processes), with the

following parameters:

• sequence length (stide) k = 6;

• locality frame count equal to 100;

• threshold = 6%.

The following table summarize the results of this test,

for several attacks to sendmail.

Attack mismatch Stide XenIds

decode 8% yes yes

syslog 30% yes yes

fw-loop 16% yes yes

sscp 26% yes yes

sm5x 35% yes yes

Therefore, we can conclude that on these sample trace

sets, our IDS has the same detection skill of the origi-

nal Stide algorithm: no false negative has been found.

This does not guarantee that using a single sequence

database for all programs is always as precise as us-

ing a separate database for each program: a sequence

which could be suspicious for a process, could be

valid for another. It is worthwhile to notice that using

a single sequence database does not affect the false

positive rate. Indeed, if a valid call sequence is not

recognized by our IDS, it means that it does not ap-

pear in the trace set of any program; but then, also the

original Stide algorithm would not recognized it.

As another test, we have installed a simple server

running on a Linux virtual machine, which receives

strings over the network and saves them on a ﬁle. The

IDS has been trained with the trace coming from the

following cases:

• strings of 10 characters, and of 200 characters;

• termination of the server using SIGINT.

Then, we have changed the behavior of the pro-

cess in two ways. First, we have not changed the pro-

gram, but only the data it has to deal with, and how it

is terminated:

• strings of 25 characters, and of 100 characters;

• termination using SIGKILL.

Secondly, we have modiﬁed the program, in or-

der to simulate an intruder that introduces malicious

changes. The modiﬁcations we have introduced are:

• write a copy of the data in a different location;

• opens a backdoor (a system shell);

• sends a copy of the data to a remote address.

SECRYPT 2011 - International Conference on Security and Cryptography

304

The following table summarize the answer of XenIds;

for this experiment the length k is 6, the size of LFC

is 100 and the threshold value is 15%.

Change Mismatch Anomaly?

strings of 25 chars < 15% No

strings of 100 chars < 15% No

closing using kill < 15% No

local copy string 20% Yes

open a system shell 50% Yes

remote copy string 30% Yes

In all cases, the IDS detects correctly the modiﬁed

sequences. We must observe that the accuracy of the

system depends mainly on two factors: the threshold,

and the accuracy of data collected. We noticed that

tests carried out without adequate preparation led to

a false positive rate of 50% for some processes. The

same applies to a very low threshold, i.e. of less than

6%, the false positive rate is always high, and stands

at 15-20% for new jobs. On the other hand, with

the threshold at 15% and a “well-trained” database,

we found no false positives for the traces under test.

However, XenIds stays “on the safe side”, since has

identiﬁed all the attacks carried out in programs, i.e.,

there have been no false negatives.

Performance. In order to run a sample performance

analysis, we installed a Linux virtual machine with

the Apache web server v2.2, that responds to requests

for a simple PHP page. To simulate the requests we

have used the “Apache Benchmark”

tool. The tests

have been performed for four different scenarios:

1. Xen (version 4.0.1) native, without modiﬁcations

(i.e., without Xenini).

2. Xen with Xenini, but interception is not acti-

vated: the hypervisor is patched with Xenini, and

XenIDS is running on Dom0, but interception is

disabled. This test is carried out to check the im-

pact of additional controls.

3. Xen with interception activated, and IDS in asyn-

chronous mode.

4. Xen with Xenini active and IDS in synchronous

mode (i.e., the hypervisor waits for the answer

from the IDS for each system call).

For each case, we have run three tests:

• 50,000 requests, concurrency level=2 (i.e., 2 par-

allel requests at a time);

• 50,000 requests, concurrency level=50;

• 100,000 requests, concurrency level=5.

The results are shown in Figure 3. These tests point

Figure 3: Performance analysis.

out that the patch, when inactive, introduces an over-

head of about 5-6%, which is due to controls on in-

terrupts 0x80 and 0x82 and inspections on some ﬂags

for intercepting calls. Instead, when the interception

is activated, and XenIds operates asynchronously, the

overhead is about 40%; this is due to monitoring, re-

porting and analysis of all system call. However, we

consider this overhead still acceptable for a real-time,

online monitoring. Finally, the tests with XenIds in

synchronous modality have exhibited a drastic over-

head; in fact, the system becomes so slow that seems

to be in deadlock. Thus, we can say that synchronous

modality cannot be used for on-line production sys-

tems, but only for testing purposes.

5 CONCLUSIONS

In this work we have described Xenini and XenIds, a

system for detecting intrusion in paravirtualized Xen,

unobservable by guest applications. This has been

possible by intercepting system calls in the hypervi-

sor, and passing this information to a IDS running in

Dom0, through a Xen communication channel. The

algorithm for the analysis of system call traces that

we have implemented is a variant of Stide, which we

have experimentally veriﬁed to have a good perfor-

mance on intrusion detection, at the price of an ac-

ceptable overhead.

Related Work. One of the ﬁrst implementations of

using virtual machines for intrusion detection and pre-

vention is Livewire (Garﬁnkel and Rosenblum, 2003).

Their approach differs from ours in many aspects;

e.g. the IDS can inspect directly the virtual machine’s

memory, but only the low-level internal state of the

virtual machine is observed, not the activity of each

guest process. Also the actions that the IDS can take

are quite limited: it can either suspend or restart a vir-

tual machine. Memory inspection of Xen virtualized

machines is also used in PsycoTrace (Baiardi et al.,

2009), which adopts a “white box” approach, i.e., it

UNOBSERVABLE INTRUSION DETECTION BASED ON CALL TRACES IN PARAVIRTUALIZED SYSTEMS

305

analyzes the program memory in order to detect pos-

sible anomalies. Moreover PsycoTrace is not trans-

parent, since it requires a module to be installed on

the monitored machines. The same issue affects the

solution proposed by (Payne et al., 2008), where an

active monitoring for Xen is implemented by a spe-

ciﬁc “security driver” to be loaded in the kernel of

monitored machines. However, (Bahram et al., 2010)

have shown that approaches based on virtual memory

introspection can be fooled by the “DKSM attack”

On the other hand, VMScope (Jiang and Wang,

2007) only logs system calls and their arguments (on

QEMU), without any memory inspection. However,

VMScope is used only for a posteriori trace analysis

and attack reconstruction, since it lacks a real IDS.

Finally, the work closest to ours is (Laureano

et al., 2007), which adopts a mechanism for sys-

tem call logging similar to ours (but for User-Mode

Linux). Their intrusion detection methodology in-

tegrates Stide with access control lists: “sensible”

(i.e., possibly dangerous) system calls can be exe-

cuted only by some pre-determined programs; for

each process, the path of the corresponding program

is obtained by direct memory introspection. There-

fore, this approach is not as strictly “black-box” as

ours. Moreover, the DKSM attack could be used for

obfuscating the program names, thus misleading the

IDS.

Future Developments. Although the experimental

evaluation carried out in this paper is encouraging,

keeping the sequences from all programs in a single

database may not scale up as the number of programs

and guest OSs will increase. A possible approach is

to create a separate database for each program (i.e.,

proﬁle), but this raises the issue of how to identify a

program just by its trace of system calls. To this end,

one could use an Hamming distance between a given

process syscall trace, and the proﬁles (i.e., programs)

present in the database; the proﬁle associated with the

process will be the one with the lowest Hamming dis-

tance. Alternatively, one could create statistical pro-

ﬁles based on the distributions of system calls of each

program, and classify processes accordingly.

Finally, it is interesting to investigate whether the

interception mechanism could be detected by means

of some “side channel”. In particular, the intercep-

tion process necessarily introduces some overhead,

increasing the time of system call execution. An at-

tacker could detect this extra delay and use it to distin-

guish an observed system from a non-observed one.

However, this seems unlikely, because virtualization

itself introduces a similar delay, which can be also

quite varying according to several parameters (e.g.

system load, number of virtualized systems, etc.).

REFERENCES

Bahram, S., Jiang, X., Wang, Z., Grace, M., Li, J., Srini-

vasan, D., Rhee, J., and Xu, D. (2010). DKSM:

Subverting virtual machine introspection for fun and

proﬁt. Symp. Reliable Distributed Systems, 82–91.

Baiardi, F., Maggiari, D., Sgandurra, D., and Tamberi, F.

(2009). Transparent process monitoring in a virtual

environment. ENTCS, 85–100.

Barham, P., Dragovic, B., Fraser, K., Hand, S., Harris, T. L.,

Ho, A., Neugebauer, R., Pratt, I., and Warﬁeld, A.

(2003). Xen and the art of virtualization. In Proc.

SOSP, 164–177.

Cohen, W. W. (1995). Fast effective rule induction. In Ma-

chine Learning: the 12th International Conference.

Forrest, S., Hofmeyr, S., and Somayaji, A. (1997). Com-

puter immunology. Comm. ACM, 40(10), 88–96.

Forrest, S., Hofmeyr, S., Somayaji, A., and Longstaff, T.

(1996). A sense of self for UNIX process. Proc. IEEE

Symp. on Security and Privacy, 120–128.

Garﬁnkel, T. and Rosenblum, M. (2003). A virtual machine

introspection based architecture for intrusion detec-

tion. In Proc. NDSS. The Internet Society.

Helman, P. and Bangoo, J. (1997). A statistically based

system for prioritizing information exploration under

uncertainty. IEEE Transaction on System, Man and

Cybernetics, 27(4), 449–466.

Hofmeyr, S., Somayaji, A., and Forrest, S. (1998). Intrusion

detection using sequences of system calls. Journal of

computer security 6(3), 151–180.

Hofmeyr, S., Somayaji, A., and Forrest, S. (1999). Com-

puter immune systems.

Jiang, X. and Wang, X. (2007). Out-of-the-box mon-

itoring of VM-based high-interaction honeypots.

Proc. RAID’07, 198–218.

Laureano, M., Maziero, C., and Jamhour, E. (2007). Pro-

tecting host-based intrusion detectors through virtual

machines. Computer Networks 51, 1275–1283.

Lee, W. and Stolfo, J. (1998). Data mining approaches for

intrusion detection. Proc. 7th USENIX Security Symp.

Lee, W., Stolfo, J., and Chan, P. (1997). Learning patterns

from UNIX process execution traces for intrusion de-

tection. AAAI Workshop on AI Approaches to Fraud

Detection and Risk Management, 50–56.

Payne, B. D., Carbone, M., Sharif, M., and Lee, W. (2008).

Lares: An architecture for secure active monitoring

using virtualization. Proc. IEEE Symp. on Security

and Privacy, 233–247.

Warrender, C., Forrest, S., and Pearlmutter, B. (1999). De-

tecting intrusions using system calls: Alternative data

models. Proc. IEEE Symposium on Security and Pri-

vacy, 133–145.

Zhang, X., J. Li, Z. J., and Feng, H. (2007). Black-box ex-

traction of funtional structures from system call traces

for intrusion detection. Advanced Intelligent Comput-

ing Theories and Application, 135–144.

SECRYPT 2011 - International Conference on Security and Cryptography

306
