A FRAMEWORK FOR SECURITY AND WORKLOAD

GRADUAL ADAPTATION

Antonio Vincenzo Taddeo, Luis Germ´an Garc´ıa Morales and Alberto Ferrante

ALaRI, Faculty of Informatics, University of Lugano, Lugano, Switzerland

Keywords:

Gradual adaptation, Framework, Performances, Workload, Security, Adaptation, Self-adaptivity.

Abstract:

Providing a balanced trade-off among performances, security, and energy consumption is a key challenge in

embedded systems. Traditional security solutions assume a well-known and static operating environment,

thus leading to a static system conﬁguration that cannot be tailed to the system conditions. Wireless sensor

networks are a good example of typical embedded systems.

In this work we propose a framework that reduces energy consumption in nodes of wireless sensor networks.

The framework allows the system to self-modify its security and workload settings. Adaptations are performed

by moving to adjacent conﬁguration and, thus, this mechanism is named gradual adaptation. In this paper

we discuss the policies that can be used to control the adaptations and we present the results obtained when

implementing a case study on Sun SPOT nodes. The results show that the use of the framework increases the

energy efﬁciency of the network nodes. Furthermore, they show the effects of the different policies on the

behavior of nodes.

1 INTRODUCTION

Wireless Sensor Networks (WSN) are composed of a

large number of nodes that are usually able to per-

form some measures through suitable sensors, pro-

cess the gathered data, and send information to other

nodes of the network. A number of more powerful

devices are also usually in the network with the goal

of collecting the data produced by the other nodes.

Nodes are placed in the environment that they have

to sense and, therefore, they are resource-constrained

being limited in terms of area, memory, computation

capabilities, and power. Power consumption is al-

ways among the most important constraints for WSN

nodes (Mura, 2007); power sources can, in some

cases, be recharged by means of local power gener-

ators (e.g., small solar panels). Though, the batteries

might require to last, even for long times, without be-

ing recharged.

An important factor that inﬂuences design and

performance of WSNs is communication security. In

particular, security services such as authentication,

conﬁdentiality, and availability are critical for sen-

sor networks operating in hostile environments and,

at the same time, handling sensitive data. Design-

ing a secure system in these conditions is challeng-

ing (Ravi et al., 2004): traditional security solutions

are designed by using ad-hoc approaches which of-

fer speciﬁc protection against certain attacks (e.g.,

countermeasures against denial of service attacks).

However, they rely on the assumption that the oper-

ative environment is well-known and quite static as

well. Moreover, some of these technologies have not

been speciﬁcally developed for embedded systems;

in many cases, their adoption in the pervasive world

would be impossible due, for example, to high hard-

ware resources requirements (Ferrante et al., 2005).

Typically, when designing secure systems the

worst case scenario is considered: the system has to

guarantee adequate protection against the strongest

possible security attacks. By following this philoso-

phy, security in WSN is typically based on an “on-

off” approach: either security is totally ignored or

it is enabled with the strongest algorithms available,

with a corresponding high consumption of resources.

This is generally in contrast with the requirements of

a resource-constrained devices such as mobility, ﬂex-

ibility, real-time conﬁguration, open and dynamic op-

erative environment (Keeratiwintakorn and Krishna-

murthy, 2006; Grosssch¨adl et al., 2007).

The problem of optimizing resources used for se-

curity, yet providing an adequate level of protection,

is a hot topic at the moment (Ravi et al., 2004). In

particular, the trade-off between energy and perfor-

178

Vincenzo Taddeo A., Germán García Morales L. and Ferrante A..

A FRAMEWORK FOR SECURITY AND WORKLOAD GRADUAL ADAPTATION.

DOI: 10.5220/0003522001780187

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2011), pages 178-187

ISBN: 978-989-8425-71-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

mance requirements of security algorithms is of ut-

most relevance for embedded systems (Chandramouli

et al., 2006). As discussed above, each adopted se-

curity solution should be a good compromise among

factors that are conﬂicting in nature such as, for ex-

ample, power consumption and performances. This

optimization is a complex task, especially when per-

formed run-time (Chigan et al., 2005; Lighfoot et al.,

2007).

In this paper we concentrate on systems that are

able to change their conﬁgurationsat run-time. In par-

ticular, we propose a run-time mechanism to deal with

the optimization of security and of system workload

in accordance both with application security require-

ments and with system dynamic energy constraints.

Our work is based on the “Adequate Protection Prin-

ciple” (Pﬂeeger and Pﬂeeger, 2006) which states that

security should be adequately applied to a given con-

text. We implemented such principle by adopting a

gradual adaptation of application security and of sys-

tem workload: security is adapted by moving between

adjacent conﬁgurations that are compatible with ap-

plication requirements. System workload can be re-

duced by modifying task periodicity or by suspending

some of them.

In WSNs composed of nodes that can be

recharged (e.g., by using local generators such as so-

lar cells), our solution increases WSN nodes lifetime

in between recharges. Different strategies are used to

favor either security or system workload. The strat-

egy to be used and the way in which it will be applied

depends on speciﬁc node energy conditions and ap-

plicative scenario. The solution proposed in this pa-

per has been implemented on Sun SPOT nodes (Mi-

crosystems, 2008).

In Section 2 we discuss a number of relevant re-

lated works; in Section 3 we introduce our framework

and in Section 4 we describe a number of adaptation

policies that we propose; in 5 we introduce the energy

models used by the framework. In Section 6 we dis-

cuss a case study and we show the results obtained

when applying the framework on a sensor network

based on Sun SPOT nodes.

2 RELATED WORK

The principle of gradual adaptation described in this

paper can recall the graceful degradation techniques

used in fault tolerant systems; in this kind of systems,

in fact, performance may be degraded to keep the sys-

tem operational even in presence of faults (Herlihy

and Wing, 1991; Li et al., 2006). Typically this ap-

proach does not address the optimization of security.

The challenge of selecting the best set of cryp-

tographic algorithms that optimizes the trade-off be-

tween resource requirements and security provided

has been tackled in many works. Techniques to

minimize the energy consumed by secure wireless

sessions have been proposed in (Karri and Mishra,

2002). The authors investigated the selection of en-

cryption algorithms and of key exchange protocols.

However, they did not provide explicitly a run-time

self-adaptation mechanism; instead, they shown tech-

niques to minimize energy consumption by matching

block sizes of message compression algorithms with

data cache sizes. In (Chandramouli et al., 2006) a bat-

tery power optimizer for wireless networks has been

presented. Authors have performed experiments to

model the relationship between power consumption

and security of cryptographic algorithms. Such infor-

mation have been used to formulate a knapsack prob-

lem and to ﬁnd the optimal level of vulnerability by

changing the number of rounds in cryptographic al-

gorithms. In contrast with our work, neither appli-

cation requirements nor the possibility of managing

changes in cryptographicalgorithms were considered.

In (Chigan et al., 2005) the authors describe a self-

adaptive security framework at protocol level. The

mechanism proposed provides the ability to select the

optimal set of security protocols with the best se-

curity/performance ratio depending on the malicious

level of a node neighbors. However, their adaptation

is not triggered by an energy consumption constraint,

rather on intrusion detection and peer trust evaluation.

On the other hand, their systematic approach to secu-

rity evaluation can be replicated in our framework in

order to better deﬁne each security level.

Adaptation of cryptographic primitives is instead

presented in (El-Hennawy et al., 2004), where the ba-

sic idea is to change the AES cryptography key length

according to the conﬁdentiality level required by the

user. The matching between conﬁdentiality level and

key length is done statically and is not changeable at

run-time. Moreover, they mainly lead to improve the

overall system performances in terms of encryption

rate rather than energy consumption.

In (Taddeo et al., 2010) an approach for gradual

adaptation is described; the system considered is a

sensor node that may be used in multimedia appli-

cations. In this paper we propose a more complete

and dynamic framework for gradual adaptation of se-

curity along with a set of policies for the system. This

includes, as explained in the following of this paper:

adaptation of sample period for periodic tasks; dy-

namic energy budget computation; dynamic monitor-

ing period; adaptation decisions policies speciﬁed for

each task by means of its requirements.

A FRAMEWORK FOR SECURITY AND WORKLOAD GRADUAL ADAPTATION

179

3 THE FRAMEWORK

In this section we describe our framework for gradual

adaptation. This framework has been designed for ex-

tending battery lifetime in WSN nodes, yet respecting

the constraints ﬁxed by the application designers.

Our framework contains a number of software

components that monitor the execution of the tasks

in the nodes, decides the possible adaptations on sys-

tem conﬁguration, and applies them. The current

node conditions and the policies – directives and con-

straints previously deﬁned by system and application

designers – are used to decide when an adaptation is

necessary and how it should be performed. Adapta-

tions consist in changing task parameters such as level

of security, execution period, and execution state. The

purpose of the framework is to set the best security

conﬁguration, and, at the same time, extend the bat-

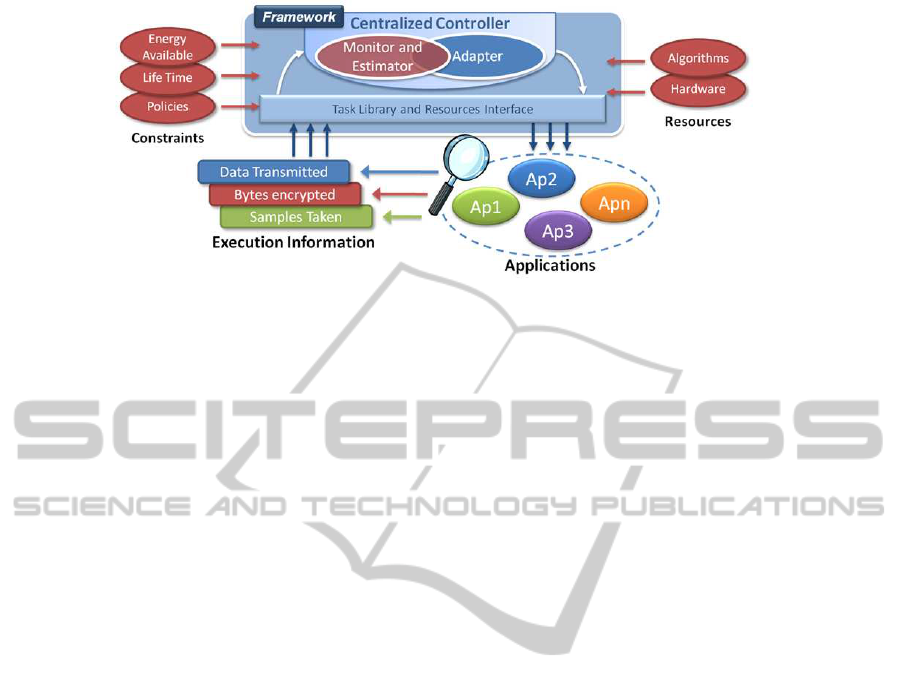

tery life. Figure 1 shows a general scheme for the

framework with its main blocks. The framework is

composed of two main blocks: the centralized con-

troller and the task library.

3.1 Centralized Controller

The centralized controller monitors the system be-

havior periodically and performs suitable downgrades

or upgrades on the task parameters with the goal of

meeting the battery lifetime deﬁned by system de-

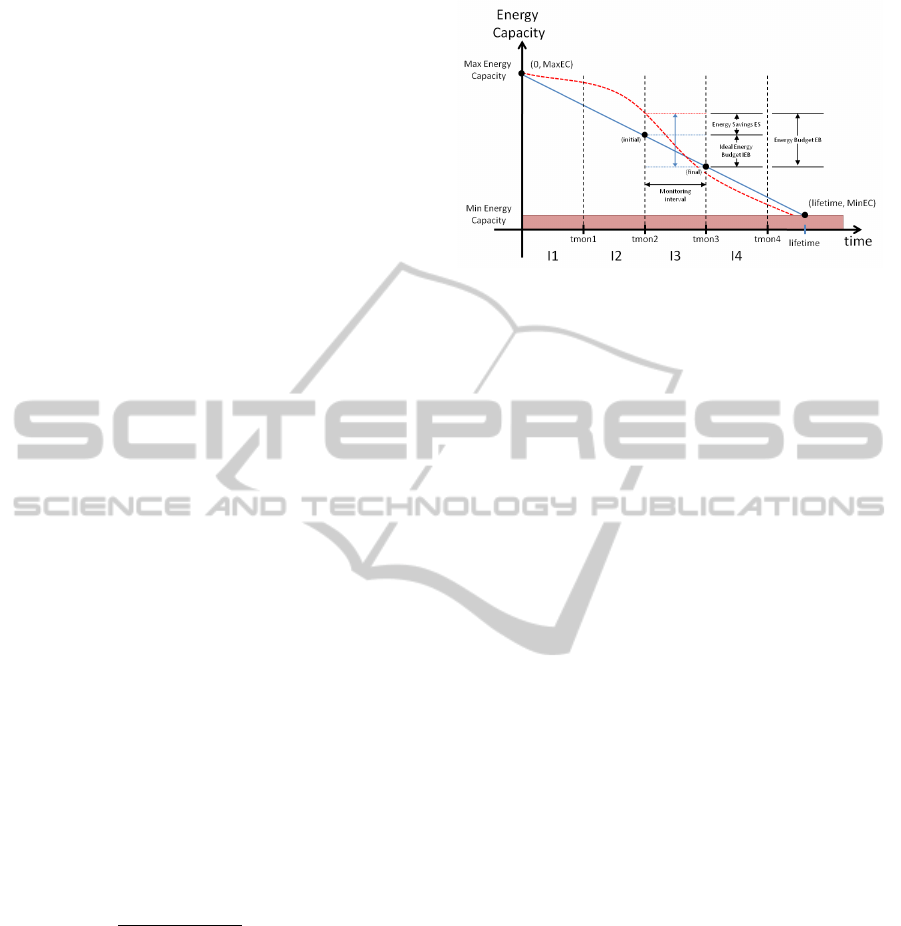

signers. The controller computes the energy available

in each monitoring period by considering the energy

remaining in the battery and the lifetime constraint.

This amount of energyis called Energy Budget. When

the energy consumptionis higher than the energy bud-

get, the controller downgrades the parameters (secu-

rity, execution period, or execution status) of some

tasks to reduce energy consumption. In the same way,

when the energy consumption is lower than the en-

ergy budget, the controller upgrades the parameters of

tasks to bring them closer to their ideal conﬁguration.

The parameters to be changed for each task are de-

termined by the controller depending on the policies

deﬁned by application designers. These policies are

called Tasks Policies. The tasks are selected for adap-

tation based on a node-levelpolicy named Framework

Policy and on a task energy estimator. The estima-

tor monitors the execution of tasks and it provides the

energy ﬁgures of each one of them. Policies are dis-

cussed in Section 4.

3.2 The Task Library and Resources

Interface

The task library and resources interface provides the

ability to install applications and to deﬁne their poli-

cies. Furthermore, this library is used to determine

the energy spent by tasks during their execution.

The task library is composed of a collection of

methods and properties. The tasks are created by ex-

tending one of the objects provided in this library.

The designer, while extending these objects, needs to

specify the kind of task to be created (periodic or non

periodic) and the required policies.

Additionally, the framework provides a resource

interface that makes easy the access to the different

software and hardware resources (e.g. security algo-

rithms). This interface is composed of a collection of

functions named “intermediate functions”. They are

in charge of calling the real resources and also collect-

ing the execution behavior of every resource with the

intention of estimating the energy spent by each one.

This information collected and the resource model are

used by the estimator when the monitoring process is

being performed.

3.3 Security Services

Security can be provided through suitable services

called security services. These services can be

of different kinds such as, for example, encryp-

tion/decryption, authentication, and access control. In

this work we only consider encryption algorithms as

possible security services. Authentication algorithms

could be considered as well without any change in the

framework. Other services are not relevant in the ap-

plication ﬁeld considered in this work.

We divided the encryption algorithms considered

in three groups, depending on their level of security.

These algorithms are deﬁned to have a high, medium,

or low level of security based on their resistance to

known attacks: the higher the number of combina-

tions to be tried for breaking the algorithm, the higher

its security. Inside each group a sorting is performed

based on the energy consumption measured while en-

crypting/decrypting each byte for each algorithm.

Each task has a range of security levels deﬁned by

the application programmers. At the beginning of the

execution, the framework assigns to the task the best

security algorithm available and compatible with this

range. When a downgrade on security is required for

the considered task another security algorithm might

be selected. Some degradations are intra-level (i.e.,

a new, less energy hungry, security algorithm is se-

lected, but the algorithm belongs to the same security

level), while some others are inter-level (i.e., the new

security algorithm may belong to a different security

level). The same applies for security upgrades.

SECRYPT 2011 - International Conference on Security and Cryptography

180

Figure 1: The framework.

4 POLICIES

In the framework different decisions are taken about

security and performances adaptations. These deci-

sions are governed by policies that describe what can

be done for each task (i.e., if and how its security

and performancecan be modiﬁed) and how the frame-

work should work (i.e., which are the adaptations to

be performed, in which order, and with which speed).

Policies for the tasks are named Task Policies; poli-

cies that govern the framework are called Framework

Policies.

4.1 Task Policy Parameters

The task policies allow designers to specify how secu-

rity and performance can be changed for each running

task. More speciﬁcally, the elements that can be al-

tered by the framework are related to the desired level

of security, the execution period (for periodic tasks),

and the execution status (i.e., the possibility to sus-

pend tasks or not). Therefore, each policy contains

ﬁve parameters as shown in Table 1.

4.2 Framework Policies

The framework requires proper rules to govern the

adaptations and to monitor the execution of tasks and

their energy consumption. The rules should provide

both information on the tasks that should be consid-

ered for degradation and on how to monitor them.

The parameters that compose framework policies are

listed below:

• Task Selection. This parameter tells the frame-

work which are the tasks that should be consid-

ered for degradation. We consider four different

options:

– Most-Energy-Demanding tasks. Energy con-

sumed by each task is estimated at runtime. The

tasks with highest energy demand are consid-

ered.

– Least-Degraded tasks. The tasks that are in

lowest levels of degradation (i.e., the ones that

are closer to their optimal performances) are

considered.

– Lowest-Priority ﬁrst. Degradation is ﬁrst per-

formed on tasks with the lowest priority level

(low); degradations are done on tasks with in-

creasing priority levels if necessary.

– Last-Recently-Started tasks. The tasks that

have been started more recently are degraded.

• Adaptation Speed. This parameter speciﬁes the

percentage or the maximum number of tasks to

be adapted in each control period, regardless the

adaptation policy considered. This parameter con-

tributes signiﬁcantly to the speed of adaptation.

The monitoring period used by the self-adaptation

mechanism has to be deﬁned properly: a too short

monitoring interval can lead to excessive energy and

computational overhead on the system; a too long

monitoring interval can lead, instead, to far from op-

timal timing on the adaptation of tasks, thus decreas-

ing the effectiveness of the self-adaptation mecha-

nism. A correct trade off between these two param-

eters should be found to obtain both efﬁciency and

effectiveness of the self-adaptation mechanism. To

this end, the framework allows the designer to spec-

ify a range of values for the monitoring period. At

run-time, the self-adaptation mechanism starts with

the minimum monitoring period. If no adaptations

occur, the monitoring period is increased in the speci-

ﬁed range. When adaptations are necessary, the mon-

itoring period is decreased to allow a more frequent

analysis of system conditions. The range to be used

for the monitoring period should be determined by the

A FRAMEWORK FOR SECURITY AND WORKLOAD GRADUAL ADAPTATION

181

Table 1: Task policy.

Parameter Description

Security Kind of degradation that can be applied to

security. The options available are:

• no degradation;

• intra-level degradations only;

• intra and inter level degradations; op-

tionally the range of security levels

accepted can be speciﬁed.

Period Range of periods accepted by the task.

Execution

status

Sets if the task accepts temporarily sus-

pensions.

Task

priority

Sets the priority of the task (High,

Medium, and Low) with respect to adap-

tations.

Adaptation

order

Speciﬁes the order in which the adapta-

tions are made. There are ﬁve different

options available:

• Auto: the framework has the freedom

to decide which parameters to down-

grade.

• First security, then the others: the

framework downgrades security ﬁrst;

when it is no longer possible to down-

grade security, the period is down-

graded; as a last option, if the other

parameters are no longer degradable

the task is suspended.

• First period, then the others: this pol-

icy is similar to the previous one, but

the period is adapted ﬁrst.

• Suspend only: whenever an adapta-

tion is required, the task is suspended

without considering the security and

the period.

• None: no degradation is performed

on the task.

designer at design-time by considering the character-

istics of the runningtasks and the applicativescenario.

For example, the minimum monitoring period could

coincide with the minimum period among all the pe-

riodic tasks.

5 ENERGY ESTIMATION

In our framework the run-time monitoring of energy

consumption is performed through a piece of software

named energy estimator. The aim of the estimator is

twofold: on the one hand, to estimate the energy con-

sumption of each task; on the other hand, to compute

the energy budget associated with each monitoring in-

terval. These pieces of data are used by the framework

to perform the related adaptations.

5.1 Energy Consumption Models

In each node we can consider two different types of

energy consumptions: static and dynamic. Static en-

ergy is the energy that is necessary to provide the

basic node functionalities. This energy cannot be

changed for a given node and operating system. Dy-

namic energy is the one used to execute tasks. Our

framework tries to optimize the dynamic energy.

Energy consumption of tasks is estimated through

a model that includes the most signiﬁcant contribu-

tions to energy consumption. We considered the fol-

lowing contributions to task energy consumption:

• Radio, E

radio

(b): the energy required by the radio

module to transmit a certain amount of bytes b.

• Sensors, E

sensor

): energy consumption re-

quired to acquire n

samples in the observation

period.

• Encryption/decryption, E

algo

(b).

When no task is being executed the node can be

switched to one of the low-power modes. In this case

the energy consumption becomes E

mode

(t).

The energy consumption of cryptographic algo-

rithms are estimated by considering the following

contributions: the energy spent for initializing the al-

gorithm key, E

init

; and the energy per byte consumed

to processing a block of 16 bytes, E

block

alg

(b) = E

init

+ E

block

∗ b = (1)

= E

init

+ (E

padding

+ E

call

+ E

enc

) ∗ b (2)

where b is the number of blocks. Moreover,E

block

can

be further divided into the energy spent for: padding,

padding

; function calling, E

call

; encryption, E

enc

All the aforementioned models (excluding E

mode

)

refer to the dynamic energy consumption.

The energy consumed by each task can be esti-

mated as the sum of the different contributions men-

tioned above. Similarly, the total energy consumption

of the system within an observation period can be es-

timated as the sum of the energy consumption of all

tasks running on the system and the energy spent in

the current power mode (if enabled).

All of the aforementioned power consumptions

are estimated by using linear models (see Table 2for

a complete model description). Using a linear equa-

tion for modeling the energy consumption of a secu-

rity algorithm has been proved to be quite accurate

(Grosssch¨adl et al., 2007; Keeratiwintakorn and Kr-

ishnamurthy, 2006). Instead, linear equations might

not be as accurate for other parts of the energy con-

sumption. Such models, in fact, are technology-

dependent and have to be characterized according

to the particular node technology considered. Our

SECRYPT 2011 - International Conference on Security and Cryptography

182

framework relies on an energy consumption model to

take decisions on adaptations and the accuracy of the

model can inﬂuence the efﬁciency of the adaptation

mechanism. Though, different energy consumption

models can be easily inserted in the framework with-

out any change in the adaptation logic.

5.2 Energy Budget Computation

For each monitoring interval, the framework com-

putes the total energy consumption based on real con-

sumption. The framework, then, evaluates if the mea-

sured energy consumption is compatible with the de-

sired system lifetime. When the energy consumption

is evaluated to be too high, the system must gradually

reduce it during the successive monitoring intervals.

To evaluate if the energy consumption is compatible

with the desired battery lifetime, the framework com-

pares it with the reference discharge curve speciﬁed

by the system designer. An example of a discharge

curve is shown in Figure 2. According to this ﬁg-

ure, in the monitoring intervals I

and I

, the current

energy consumed (continuous line) is lower then the

reference one (dashed line). Thus, the system does

not need any adaptation. Starting from interval I

, the

current energy consumption becomes higher than the

desired one; in this case adaptations are necessary to

lower the energy consumption.

In this work, we deﬁne the energy budget as the

amount of energy that can be consumed in a given

monitoring interval according to the reference curve

and the real energy consumed in previous monitoring

intervals. The energy budget is compared with the

current overall energy consumption; the result of this

comparison drives the adaptations performed by the

framework.

If a linear reference discharge curve is considered,

the energy budget can be computed as follows. Con-

sidering Figure 2, the reference curve is given by:

E(t) =

minEC − maxEC

lifetime

∗t +maxEC (3)

Thus, the reference consumption in a given interval

[j,j+1] is:

[ j, j+1]

E(t

) −

E(t

j+1

) (4)

Therefore, the energy budget E

budget

can be com-

puted as:

budget,[ j, j+1]

[ j, j+1]

+ E

prev,[ j−1, j]

(5)

where E

prev,[ j−1, j]

is the energy budget not consumed

in the previous interval. When the energy consumed

in the previous interval is higher than the associated

energy budget, E

becomes negative value to take

into account this extra energy consumption. Note

that, the framework allows the designer to specify his

Figure 2: Energy budget computation: parameters and con-

ceptual scheme. Dashed-line is the real energy consump-

tion; continuous-line represents the reference discharge

curve.

custom discharge model and corresponding computa-

tion of the energy budget keeping the validity of self-

adaptation approach here proposed.

6 CASE STUDY

Our framework has been implemented and tested in a

real WSN. In this section we describe this implemen-

tation and the results obtained by running a number

of experiments on this WSN. The goal of the exper-

iments was both to measure the overhead introduced

by the framework and to evaluate the effects of dif-

ferent policies on energy consumption and on perfor-

mances.

6.1 Scenario

The network is based on the Sun SPOT (Sun Small

Programmable Object Technology) nodes (Microsys-

tems, 2008). Sun SPOTs are small wireless devices,

compliant with the IEEE 802.15.4 standard and run-

ning the Squawk Java Virtual Machine (VM) with-

out any underlying OS. The VM acts as both op-

erating system and software layer to provide high

portability and fast prototyping capabilities. The Sun

SPOTs platform is designed to be a ﬂexible, capa-

ble of hosting widely differing application modules.

From the hardware point of view, Sun SPOT nodes

are equipped with: a 32 bit ARM920T working at

180 MHz; 512K RAM/4M Flash Memory; 2.4GHz

IEEE 815.4 radio with integrated antenna; 720 mAh

as maximum battery capacity. By default, these de-

vices are equipped with an accelerometer, a temper-

ature, and a light sensor. Sun SPOT nodes may use

two different low power modes: shallow sleep and

deep sleep mode.

A FRAMEWORK FOR SECURITY AND WORKLOAD GRADUAL ADAPTATION

183

Concerning security suites, Sun SPOTs support

the TLS/SSL protocol with several cryptographic al-

gorithms: AES with 128, 192, and 256 bit keys and

RC4 with 40 and 128 bit keys.

The applications in this scenario are classiﬁed in

three groups according to the different sensors (light,

temperature, or acceleration) that they use. Each

group contains three tasks, each one performing one

of the following operations:

1. Obtaining data from the environment periodically

(short period).

2. Encrypting and transmitting the measures previ-

ously collected periodically (large period).

3. Detecting possible alarm conditions in the envi-

ronment (e.g. ﬁre condition). As soon as an alarm

is detected, a picture of the environment is taken

and transmitted, in an encrypted form, to the other

nodes in the network. Since the SunSPOT does

not have a camera to take pictures, this function-

ality is emulated by taking several samples using

the respective sensor (temperature).

Different tasks have been implemented as differ-

ent threads.

6.2 Proﬁling and Modeling

To determine the parameters of the energy models of

Section 5, we proﬁled the different elements of our

nodes. The average values obtained are shown in Ta-

ble 2. Static energy consumption has been measured

to be about 44% of the total energy consumption.

The cryptographicalgorithms available in the TLS

implementation of SunSPOTs have been also proﬁled

to determine their energy consumptions and the ex-

ecution times. By using these information we could

order the algorithms as explained in Section 3.3. The

algorithms have been grouped in three security levels

as follows:

• High: AES-256, AES-192;

• Medium: AES-128, RC4-128;

• Low: RC4-40.

6.3 Results

Two different sets of experiments have been per-

formed to evaluate the framework overhead and the

effects produced by applying different policy combi-

nations.

6.3.1 Framework Overhead

The monitoring and adaptation activities performed

by the framework introduce an overhead in the sys-

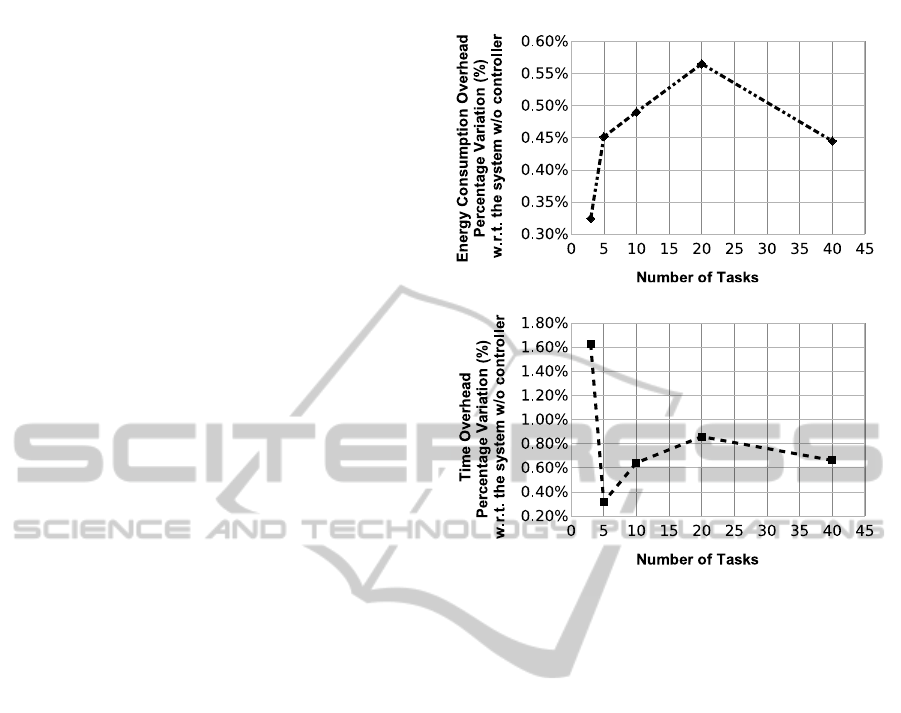

Figure 3: Framework energy consumption (up) and execu-

tion time (down) overheads, with respect to the system w/o

the framework.

tem in terms of time and energy. In order to mea-

sure this overhead, we measured the energy consumed

both when the framework was completely disabled

and when the framework was enabled. In both cases

we considered tasks programmed to always perform

the same actions and to make use of all system re-

sources (sensors, security algorithms, and the radio).

In order to study the overhead scalability, measure-

ments have been collected by repeating the experi-

ment with increasing number of tasks.

When the framework was enabled the following

additional conditions applied:

• The framework was forced to downgrade all the

tasks running over the system in every monitoring

interval (worst case scenario assumption).

• The framework was forced to adapt all the avail-

able parameters (e.g., security, period and execu-

tion state).

• The framework applied fake adaptations over the

tasks. In this way both task and framework per-

formance are kept constant along the experiment

execution.

In Figure 3 the energy consumption and the ex-

ecution time overhead are shown. The overhead in-

troduced by enabling the framework increases when

SECRYPT 2011 - International Conference on Security and Cryptography

184

Table 2: Value of parameters for energy consumption models described in Section 5. To model each resource energy con-

sumption a linear model (y = a+ bx) has been considered.

RESOURCES a b

Shallow sleep mode E

sm,on/of f

= 0 [mAh] E

status

= 8.13E −3 [mAh/s]

Deep sleep mode E

dm,on/of f

= 8.22E −3 [mAh] E

status

= 5.27E −6 [mAh/s]

Radio E

r,on/of f

= 6.40E −5 [mAh] E

process

= 5.60E − 7 [mAh/bytes]

Temp. sensor E

ts,on/o f f

= 0 [mAh] E

sample

= 1.41E − 6 [mAh/sample]

Light sensor E

ls,on/of f

= 0 [mAh] E

sample

= 1.36E − 6 [mAh/sample]

Accel. sensor E

as,on/of f

= 0 [mAh] E

sample

= 4.34E − 6 [mAh/sample]

Table 3: Values of factors in Eq. 2.

Factor AES-256 AES-192 AES-128 RC4-128 RC4-40

init

[mAh] 1.39E-5 1.28E-5 1.14E-5 2.25E-5 2.26E-5

padding

[mAh/16B] 9.40E-8 2.77E-7 3.27E-7 1.27E-7 9.40E-8

call

[mAh/16B] 4.55E-7 2.13E-7 3.89E-7 4.29E-7 3.44E-7

processing

[mAh/16B] 9.89E-6 8.65E-6 7.37E-6 1.57E-6 1.59E-6

the number of tasks in the system is increased. In

terms of energy the overhead ranges from 0.3% to

0.6%. These two values correspond to 3 and 30 tasks

in the system, respectively. In terms of time the over-

head ranges from 0.3% to 1.6%. We can conclude

that the overhead introduced by the framework is al-

most negligible in terms of energy and very small in

terms of time. The overhead is highly compensated

by the added system ﬂexibility.

6.3.2 Effects of Different Policies

The purpose of this set of experiments was to verify

the effects of the different combinations of policies on

the execution of tasks and on battery life. In these ex-

periments we considered a node equipped with three

sensors, each one associated with three tasks. Each of

these tasks had different task policies corresponding

to different settings for security, period, and execution

status. To simulate the most demanding conditions for

the framework, we anyway speciﬁed policies provid-

ing a high degree of ﬂexibility.

We considered 6 different experiments in which

all the different policies described in Section 4, except

the Last-Recently-Started tasks, are combined. The

parameters used in these experiments are listed in Ta-

ble 4. The adaptation speed refers to the percentage

of tasks that can be adapted in the set of candidates:

fast corresponds to 70% of possible candidates; slow

corresponds to 20%.

For these experiments we ﬁxed a desired system

lifetime of 12 hours. The system without our adap-

tation framework, as well as in cases #4 and #5, was

not able to respect this constraint. In all the remaining

cases the constraint on battery life is satisﬁed.

In order to compare the different cases, we consid-

Figure 4: Percentage of time, aggregated by case, all tasks

are at a given degradation level w.r.t. total simulation time.

ered the impact of each policy in terms of degradation

level reached by all the tasks within the observation

time frame. Figure 4 shows the percentage of time

(computed over the total simulation time) in which

each task has been degraded to some degree (e.g.,

degradations of security, workload, or execution sta-

tus). Generally, our self-adaptation mechanism keeps

tasks in one of their possible degradation levels for a

period that spans from 10% to 48% of the total time.

As expected, the cases with a low adaptation

speed show fewer degradations compared to others.

Most-Energy-Demanding and Least-Degraded crite-

ria show a similar behavior from the number of degra-

dation stand point.

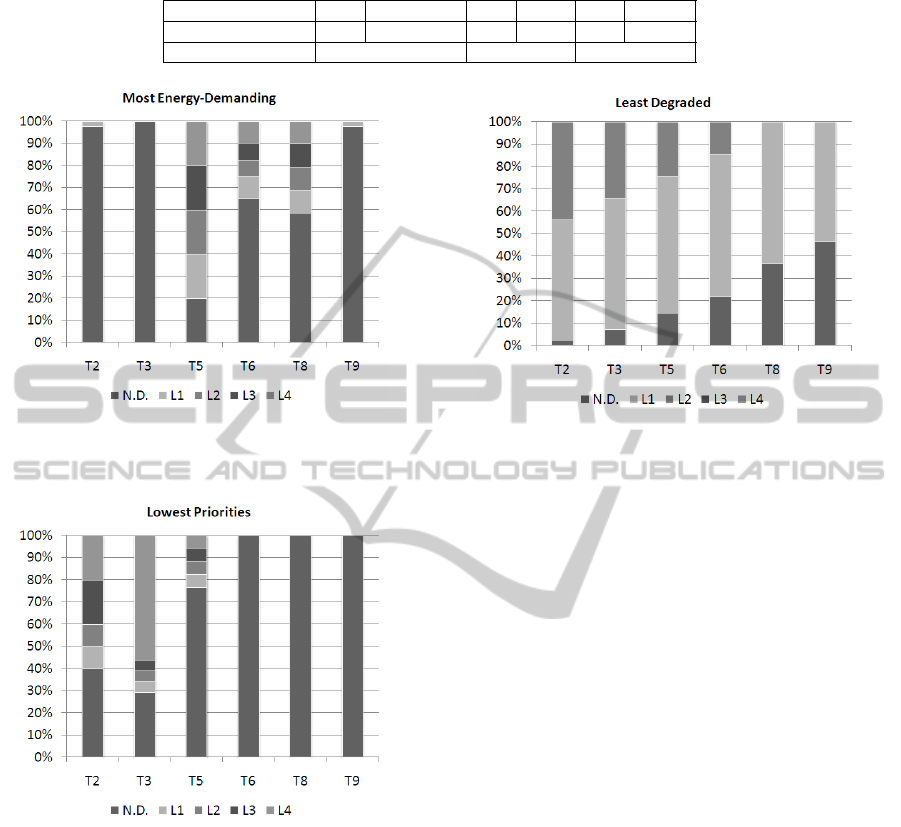

Figures 5, 6 and 7 show details about how the

degradation of security has been performed for each

task according to different adaptation policies. Val-

ues are the percentage of total time in which a task

A FRAMEWORK FOR SECURITY AND WORKLOAD GRADUAL ADAPTATION

185

Table 4: Different combinations of policies used in the simulations.

Case 1 2 3 4 5 6

Adaptation Speed fast slow fast slow fast slow

Criterion most energy dem. low priority less degraded

Figure 5: Most-Energy-Demanding policy (case #2): per-

centage of time in every security degradation level per task.

Only tasks that support security degradation are shown.

Figure 6: Lowest-Priority policy (case #4): percentage of

time in every security degradation level per task. Only tasks

that support security degradation are shown.

has been in a given degradation level. In general

our framework was able to meet the system life-

time constraint even by using optimal or almost op-

timal settings for the tasks in most of the time. The

Most-Energy-Demanding criterion provides the best

results concerning energy consumption. Though, this

is achieved by heavily degrading security of most en-

ergy demanding tasks. The Least-Degraded criterion

provides the best balance in terms of saved energy and

degradation level of tasks: in this case the optimiza-

tion of energy consumptionis obtained by distributing

a low level of degradation on all tasks.

The aforementioned results also provide some

Figure 7: Least-Degraded policy (case #6): percentage of

time in every security degradation level per task. Only tasks

that support security degradation are shown.

guidelines for the choice of different adaptation poli-

cies. The Most-Energy-Demanding policy is suitable

when energy is the most important constraint. This

policy, in fact, tends to limit the energy consump-

tion of the most power-hungry tasks, even by heav-

ily limiting their performances. The Least-Degraded,

instead, is the policy with the lowest inﬂuence on

task performances. Therefore, it is suitable when

energy consumption should be limited, but perfor-

mances remain the most important requirement. The

Last-Recently-Started tasks policy instructs the sys-

tem to perform adaptations on the tasks started more

recently, supposedly the ones that are “additional”

(i.e., not the basic ones that had been started at sys-

tem boot). An adaptation policy based on task priori-

ties (Lowest-Priority) gives the programmers ﬂexibil-

ity, but it is also complex to design.

7 CONCLUSIONS AND FUTURE

WORK

In this paper we discuss a framework for gradual

adaptation of security and of system workload. The

framework tunes the execution of tasks and their se-

curity settings runtime with the goal of optimizing the

trade-off among performances, security, and energy

consumption. Different policies for controlling the

framework along with a model for energy consump-

tion estimation have been also proposed in the paper.

SECRYPT 2011 - International Conference on Security and Cryptography

186

The framework has been tested on a real system along

with the policies.

Although the framework introduces a small, but

inevitable, energy and time overhead, it also allows

the nodes to meet battery lifetime constraints, yet pro-

viding an adequate level of security to tasks.

Future work includes the extension of our frame-

work to support smarter parameters for upgrade poli-

cies. Learning mechanisms may be introduced to fur-

ther optimize the gradual adaptation mechanism.

REFERENCES

Chandramouli, R., Bapatla, S., Subbalakshmi, K. P., and

Uma, R. N. (2006). Battery power-aware encryption.

ACM Trans. Inf. Syst. Secur., 9(2):162–180.

Chigan, C., Li, L., and Ye, Y. (2005). Resource-aware self-

adaptive security provisioning in mobile ad hoc net-

works. In Wireless Communications and Networking

Conference, 2005 IEEE, volume 4, pages 2118–2124.

El-Hennawy, M. E., Dakroury, Y. H., Kouta, M. M.,

and El-Gendy, M. M. (2004). An adaptive secu-

rity/performance encryption system. In Proc. Interna-

tional Conference on Electrical, Electronic and Com-

puter Engineering ICEEC ’04, pages 245–248.

Ferrante, A., Piuri, V., and Owen, J. (2005). IPSec Hard-

ware Resource Requirements Evaluation. In NGI

2005, Rome, Italy. EuroNGI.

Grosssch¨adl, J., Szekely, A., and Tillich, S. (2007). The en-

ergy cost of cryptographic key establishment in wire-

less sensor networks. In ASIACCS ’07: Proceedings

of the 2nd ACM symposium on Information, computer

and communications security, pages 380–382, New

York, NY, USA. ACM.

Herlihy, M. and Wing, J. (1991). Specifying graceful degra-

dation. Parallel and Distributed Systems, IEEE Trans-

actions on, 2(1):93–104.

Karri, R. and Mishra, P. (2002). Minimizing energy con-

sumption of secure wireless session with qos con-

straints. In Proc. IEEE International Conference on

Communications ICC 2002, volume 4, pages 2053–

2057.

Keeratiwintakorn, P. and Krishnamurthy, P. (2006). Energy

efﬁcient security services for limited wireless devices.

In Proc. 1st International Symposium on Wireless Per-

vasive Computing, pages 1–6.

Li, J., Song, Y., and Simonot-Lion, F. (2006). Provid-

ing real-time applications with graceful degradation

of qos and fault tolerance according to (m, k) -ﬁrm

model. Industrial Informatics, IEEE Transactions on,

2(2):112–119.

Lighfoot, L., Ren, J., and Li, T. (2007). An energy efﬁ-

cient link-layer security protocol for wireless sensor

networks. In Electro/Information Technology, 2007

IEEE International Conference on, pages 233–238.

Microsystems, S. (2008). Sun Small Programmable Object

Technology.

Mura, M. (2007). Ultra-low power optimizations for the

ieee 802.15.4 networking protocol. In proceedings of

MASS.

Pﬂeeger, C. P. and Pﬂeeger, S. L. (2006). Security in Com-

puting, 4th Edition. Prentice Hall PTR, 4th edition.

Ravi, S., Raghunathan, A., Kocher, P., and Hattangady,

S. (2004). Security in embedded systems: Design

challenges. Trans. on Embedded Computing Sys.,

3(3):461–491.

Taddeo, A. V., Micconi, L., and Ferrante, A. (2010). Grad-

ual adaptation of security for sensor networks. In

IEEE WoWMoM 2010: Proceedings of the IEEE In-

ternational Symposium on a World of Wireless Mobile

and Multimedia Networks, Montreal, Canada.

A FRAMEWORK FOR SECURITY AND WORKLOAD GRADUAL ADAPTATION

187
