QUALITY EVALUATION OF NOVEL DTD ALGORITHM BASED

ON AUDIO WATERMARKING

Andrzej Ciarkowski and Andrzej Czyżewski

Multimedia Systems Department, Gdansk University of Technology, ul. Narutowicza 11/12, Gdańsk, Poland

Keywords: Acoustic Echo Cancellation, Doubletalk Detection, Echo Hiding.

Abstract: Echo cancellers typically employ a doubletalk detection (DTD) algorithm in order to keep the adaptive filter

from diverging in the presence of near-end speech signal or other disruptive sounds in the microphone

signal. A novel doubletalk detection algorithm based on techniques similar to those used for audio signal

watermarking was introduced by the authors. The application of the described DTD algorithm within

acoustic echo cancellation system is presented. The comparison of the proposed algorithm with very

common, but simple Geigel algorithm and representing current state-of-the-art Normalized Cross-

Correlation algorithms is performed. Both objective (ROC) and subjective (listening tests) performance

evaluation methods are employed to obtain exhaustive evaluation results in simulated real-world conditions.

The evaluation results are presented and their relevance is discussed. An issue of algorithms’ computational

complexity is emphasized and conclusions are drawn.

1 INTRODUCTION

Acoustic echo is one of the most important factors

affecting quality and comprehensibility of speech in

communications systems. An important reason for

increased interest in acoustic echo elimination

systems are changing behavioral patterns of

telephony users due to the fact that frequently

traditional phone handsets are becoming replaced by

laptop computers with built-in loudspeaker and

microphone acting as a speakerphone terminal. Such

a configuration, which is inherently echo-prone due

to high coupling between sound source and receiver,

is also common in teleconferencing applications and

car hands-free adapters making the

telecommunications acoustic echo problem even

more tangible.

Acoustic echo appears in the conversation when

speech signal from far-end speaker, reproduced

locally by the loudspeaker is being fed into the

receiver (microphone) and returns to the original

speaker. High amount of echo mixed with signal

from the local (near-end) speaker distorts the

communication, making his speech unintelligible

and forces the far-end speaker to increase his

concentration on understanding the message, which

is not only stressful, but can even lead to dangerous

accidents in case of car hands-free conversation. To

counteract this problem in full-duplex

communications setups acoustic echo cancellation

(AEC) algorithms are used. Such algorithms

typically process the incoming microphone signal in

order to remove from it the estimate of echo signal,

obtained through the transformation of recently

reproduced far-end speaker signal. Most of the AEC

algorithms proposed in the literature use adaptive

filtering in order to estimate the echo path response.

This allows obtaining accurate estimate of echo

signal through filter adaptation and effectively

eliminate the echo from microphone input by simple

signal subtraction, provided that its contents is the

sole echo signal (Kuo, Lee and Tian, 2006). Such an

assumption however is hardly realistic, as besides

the echo signal the microphone signal will typically

contain some amount of noise and most importantly,

the near-end speech from local speaker. The latter

case, which is called doubletalk has to be detected so

that the process of filter adaptation could be stopped.

This prevents the adaptive filter from diverging from

echo path response, which would lead to substantial

distortion of microphone signal. The detection of

such condition is a task of doubletalk detector

(DTD) algorithm, which is considered the most

significant and troublesome element of an AEC

system.

181

Ciarkowski A. and Czy

zewski A..

QUALITY EVALUATION OF NOVEL DTD ALGORITHM BASED ON AUDIO WATERMARKING.

DOI: 10.5220/0003524701810186

In Proceedings of the International Conference on Signal Processing and Multimedia Applications (SIGMAP-2011), pages 181-186

ISBN: 978-989-8425-72-0

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

The subsequent section of this paper introduces a

DTD algorithm developed at the Multimedia

Systems Department by the authors, based on audio

signal watermarking techniques. The detailed

description of this algorithm is available in the

literature (Szwoch, Czyzewski and Ciarkowski,

2009) (Szwoch and Czyzewski, 2008), therefore

only brief description in provided. The actual

motivation behind this paper is the objective and

subjective quality evaluation of this algorithm,

especially against current state-of-the-art NCC

algorithm.

In accordance with above-set goal, the next

section is devoted to the description of the

evaluation procedures applied to the DTD

algorithms in order to obtain the results which are

consequently presented and discussed.

Finally, the conclusions regarding the practical

implications of obtained results are drawn.

2 WATERMARKING-BASED DTD

OVERVIEW

While most DTD algorithms rely on comparison of

far-end and microphone signals, the proposed

algorithm utilizes a different approach, which is

related to the so called “fragile” watermarking

techniques, typically used for protection of

multimedia contents against tampering. Fragile

watermarking has the property that the signature

embedded into the protected signal is destroyed and

becomes unreadable when the signal is modified. In

case of the double-talk detector algorithm such

signal protected from “tampering” is the far-end

speaker signal, and the tampering is considered an

addition of near-end signal to it. Simultaneously, any

linear modifications to the signal resulting from the

convolution with impulse response of the audio path

should not be considered as tampering, so that the

embedded signature would be detectible in “sole”

echo signal arriving at the microphone and

suppressed in combined echo-and-near-end signal.

The information contents of the signature in this

application is not important, as only the binary

decision whether the signature is present or not is

required. The applied signature embedding and

detection scheme should also be robust against A/D

and D/A conversions, which are inevitable in

telephony application, being at the same time

transparent (i.e. imperceptible) to the listener, not

affecting intelligibility of the speech and perceived

quality of the signal. Finally, minor addition of noise

and non-linear distortions resulting from

imperfections of used analogue elements of audio

path should not impair the ability of the algorithm to

detect presence of signature in echo signal.

The binary decision coming from the signature

detection block of above-described arrangement is

inverse to the expected output from DTD algorithm.

The correct detection of signature in the microphone

signal indicates that near-end speech is not present,

making it possible to control the adaptation process

of adaptive filter. The described concept is presented

in Figure 1. Adaptive filter is used to obtain an

estimate of audio path impulse response h

(n) based

on original far-end speaker signal x(n) and

microphone signal u(n). The far-end speaker signal

provides a subject to filtering with estimated impulse

response yielding echo estimate h

(n), which is

subtracted from microphone signal u(n) yielding in

turn the signal e(n) with cancelled echo. In order to

allow DTD operation the far-end speaker signal x(n)

passes through signature embedding block prior to

reproduction in the loudspeaker, producing the

signal x

(n) with embedded signature. This signature

is being detected in the signature detection block

yielding detection statistic f

(n), which is compared

to the detection threshold T

bringing in result binary

decision y(n) used to control the adaptation process.

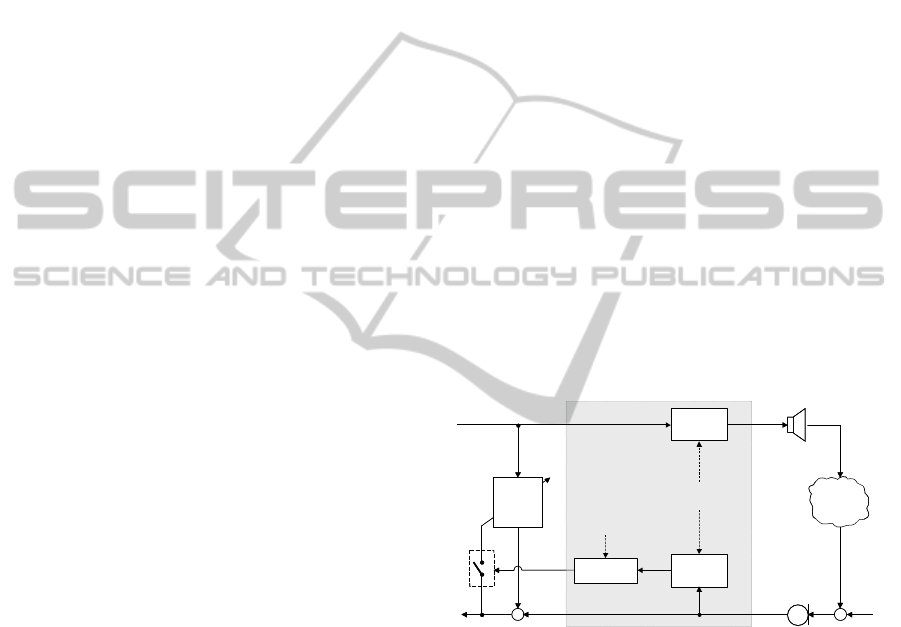

Figure 1: General concept of AEC algorithm with DTD

based on audio signal watermarking.

The above-listed requirements regarding the

signature embedding and detection process make the

choice of a suitable watermarking algorithm

problematic. Most commonly used audio

watermarking methods are either limited to digital

domain only or are too susceptible to noise and

reverberation added in the acoustic path. The

research on this subject led to the choice of echo

hiding method, which adds to the signal single or

multiple echoes with short delay (below 30ms), so

the effect perceived by the listener is only a slight

“coloring” of the sound timbre (Gruhl, Lu and

Bender, 1996). In case of watermarking systems the

Acoustic

feedback

–

Adaptive

filter

Signature

embedding

Signature

detector

Decision

DTD

x(n) x

(n)

u(n) v(n)

(n)

(a, d,

)

(n)

e(n)

(n)y(n)

Acoustic

feedback

–

Adaptive

filter

Signature

embedding

Signature

detector

Decision

DTD

x(n) x

(n)

u(n) v(n)

(n)

(a, d,

)

(n)

e(n)

(n)y(n)

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

182

information content of the signature is contained in

the modulations of the embedded echo delay, the

information being not necessary in this case,

therefore constant, predefined echo delay is used

during signature embedding, which eases the

detection process. It was determined that the use of

multiple echoes makes the signature detection more

accurate. A detailed description of the design of

signature embedding and detection procedure is

contained in literature (Szwoch, Czyzewski and

Ciarkowski, 2009).

On the foundation of described DTD algorithm

acoustic echo cancellation system was created in the

form presented in Figure 1. The system includes

adaptive NLMS filter, whose length (filter order) is

determined by the expected echo delay (length of

echo path impulse response h

(n)). Each single

detection of double-talk condition by the DTD block

causes adaptation of the filter to be held for the time

period corresponding to the filter length in order to

prevent the filter from processing near-end speaker

talkspurt “tail” stored within its buffer.

3 OBJECTIVE AND SUBJECTIVE

QUALITY ASSESSMENT

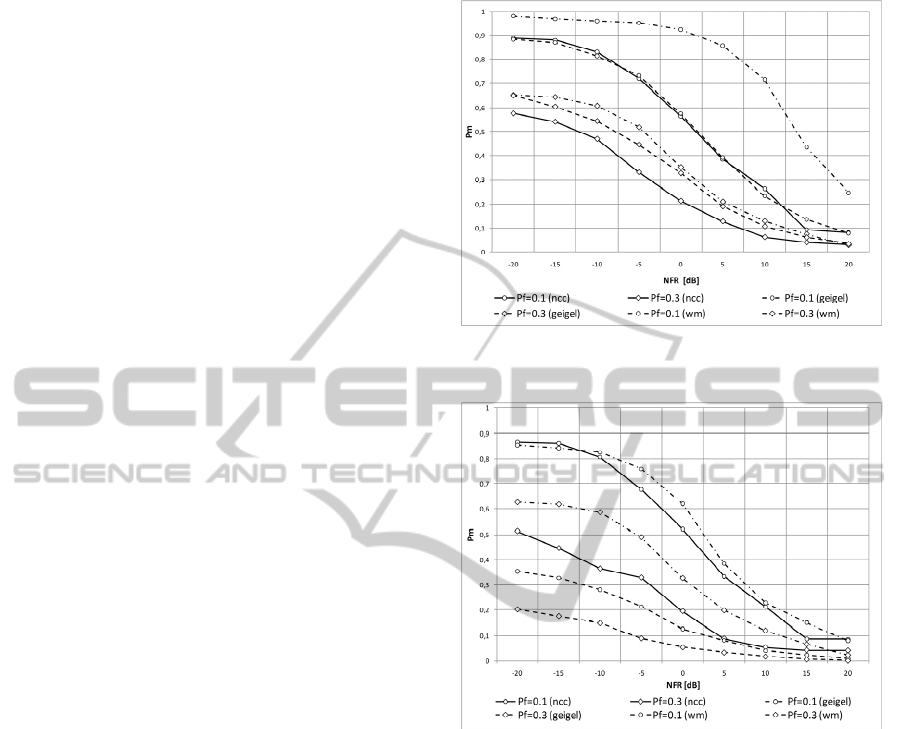

The accuracy of DTD algorithms may be assessed

objectively using the methodology based on

Receiver Operating Characteristic plots proposed by

Cho, Morgan and Benesty (1999). This methodology

expresses the DTD accuracy in terms of the

probability of miss (P

) that describes the risk of not

detecting the doubletalk, and the probability of false

alarm (P

) that describes the risk of declaring a

doubletalk that is not present in the signal. The

evaluation is based on measuring P

performance for

a given false alarm probability P

which is measured

as the portion of far-end speech in which doubletalk

remains declared when there is no near-end speech.

The probability of miss P

is measured as the

portion of near-end speech duration that remains

undetected at different levels of near-end to far-end

speech ratio (NFR).

The evaluation data for all algorithms was

prepared as follows. A single 5s-long speech excerpt

of male speaker was used during all tests as a far-

end sample. For the near-end speakers 4 1s-long

speech excerpts were used (2 male, 2 female). Level

of all the test samples was normalized. For each

NFR value 16 samples were prepared as the

combinations of single far-end speech signal and 4

near-end signals introduced at various time instants

(0.5s, 1.5s, 2.5s, 3.5s). In order to properly simulate

real-life conditions the far-end signal was delayed by

20ms, convolved with pre-recorded room impulse

response of length of 340ms. The impulse response

signal was normalized prior applying the

convolution in order to keep far-end speech level

constant. The actual impulse response is presented in

Figure 2. Finally, white noise at predefined level

was added to the combined near-and-far-end speech

signal. The experiments were conducted at 2 noise

level presets: -30 and -60dB (relative to far-end

speech level).

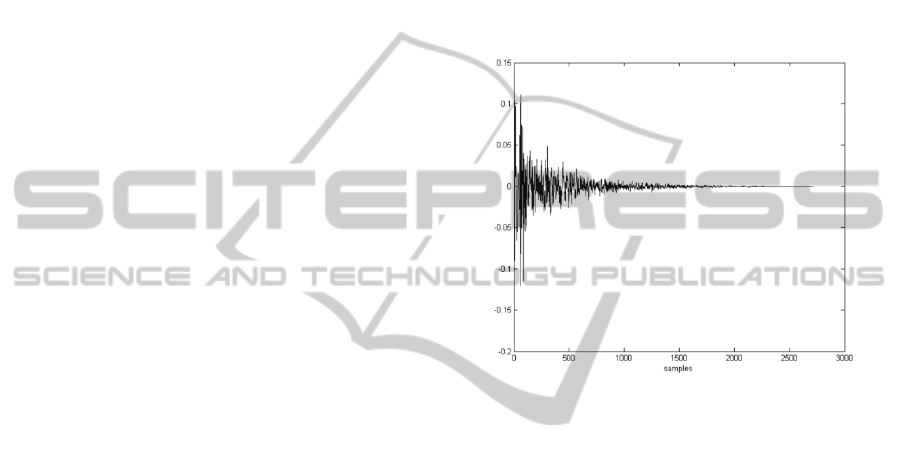

Figure 2: Room impulse response used for simulation of

echo signal.

For the purpose of performing performance

comparison apart from proposed watermarking-

based DTD algorithm, 2 reference DTDs were used,

namely the Geigel algorithm introduced by

Duttweiler (1978) and more modern Normalized

Cross-Correlation (NCC) DTD as described by

Benesty, Morgan and Cho (2000). All the DTD

algorithms were implemented in MATLAB

environment. The choice of the two above-

mentioned algorithms was dictated by the fact that

the Geigel algorithm, although being very simple, is

very commonly found in the literature as a

“reference” algorithm (including the papers on the

NCC algorithm). On the other hand, the NCC

algorithm is relatively recent advancement in the

family of time-domain-based DTD methods and

demonstrates very good performance, therefore it is

considered a state-of-the-art development.

During the experiments the DTD algorithms

were coupled with NLMS adaptive filter in order to

create functional AEC system. This allowed to

obtain not only the DTD output pattern, but also the

resulting signal with cancelled echo, useful for the

second part of the experiments involving the

QUALITY EVALUATION OF NOVEL DTD ALGORITHM BASED ON AUDIO WATERMARKING

183

listening tests. Moreover, a practical implementation

of NCC DTD relies on the reuse of room impulse

response estimate obtained from the adaptive filter.

The length of the NLMS filter used was L=512 and

the NCC algorithm used the window of length

W=500 to obtain estimates of correlation vectors.

These values were chosen identical to those used by

Cho et al. (1999), so that the direct comparison of

results was possible.

The objective evaluation was performed as

follows. A decision threshold of each algorithm was

adjusted so as to achieve requested probability of

false alarm P

in an iterative process. The values of

were chosen identical to those used by Cho et al.

(1999) – 0.1 and 0.3. Then, with fixed P

, for each

NFR value (in the range -20 to 20dB with step 5dB)

a series of 16 aforementioned simulated echo

excerpts was prepared and probability of miss P

for

each excerpt was calculated. Therefore, the actual

values plotted in the results section are obtained

as an average over the whole series.

Apart from objective evaluation, also subjective

one was performed in the form of listening tests. The

purpose of such arrangement was to check the

perception of quality of speech subjected to AEC

system based on various DTD algorithms. The group

of 12 experts (PhD students and staff members of

Multimedia Systems Department at GUT) was asked

to assign their scores to some of the excerpts

obtained during objective evaluation. The excerpts

in a single comparison group consisted of the pure

near-end speech signal, unprocessed simulated echo

signal and output signals from AEC system with

each DTD algorithm. All the excerpts within the

group were obtained at the same NFR value, noise

level and consisted of the same near-end speech

signal introduced at fixed moment. Overall 4 groups

were prepared with NFR values of 0 and -15dB and

noise level of -30 and -60dB, therefore each expert

was subjected to the rehearsal of the total of 20

excerpts. The scores used Mean Opinion Score

(MOS) scale (1-5).

4 EVALUATION RESULTS

The results of objective evaluation are presented in

Figure 3 and Figure 4 for noise levels -30dB and -

60dB, respectively. At the higher noise level and

decision threshold set for false alarm probability

=0.1 all DTD algorithms demonstrate similar

performance. While Geigel algorithm in all

conditions performs the worst, the difference

between NCC and watermarking-based DTD for

=0.3 is almost negligible.

Figure 3: Performance of tested DTD algorithms, noise

level at -30dB.

Figure 4: Performance of tested DTD algorithms, noise

level at -60dB.

When noise level is set at -60dB the proposed

algorithm performs substantially better than the

other two. For the probability of false alarm P

=0.1

NCC algorithm is only slightly better than Geigel

DTD. This is in clear contradiction to the results

obtained by Cho et al. (1999), however the

conditions of this experiment are quite different. In

the original work, the NCC algorithm used the real

room impulse response, while here it uses the

estimate obtained from adaptive filter. Therefore,

any DTD miss leading to NLMS filter divergence

will in turn have great impact on its performance for

subsequent audio samples. However, the conditions

of this experiment better mimic real-life, whereas

room impulse response is not known a priori.

Another difference from the experiment setup

discussed by Cho et al. (1999) is the length of the

impulse response (340 compared to 256ms),

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

184

therefore the effect of unmodeled impulse response

“tail” is here far more significant.

The results of objective evaluation are presented

in tables 1-4. The NCC algorithm demonstrates

almost consistent behaviour regardless of applied

noise level. The watermarking-based algorithm is

the most susceptible to noise, however when the

noise level is low its performance is superior to the

other two. The Geigel algorithm consequently

receives lowest scores.

Table 1: MOS values for DTD algorithm comparison;

noise level at -30dB, NFR=0, P

=0.1.

Test signal MOS

eference (sole nea

-end speech) 4.83

eference (unaltered microphone signal) 1.25

EC output with NCC DTD 3.92

EC output with Geigel DTD 2.58

EC output with proposed DTD 3.75

Table 2: MOS values for DTD algorithm comparison;

noise level at -60dB, NFR=0, P

=0.1.

Test signal MOS

Reference (sole near-end speech) 4.92

Reference (unaltered microphone signal) 1.25

AEC output with NCC DTD 3.75

AEC output with Geigel DTD 3.08

AEC output with proposed DTD 4.33

Table 3: MOS values for DTD algorithm comparison;

noise level at -30dB, NFR=-15dB, P

=0.1.

Test signal MOS

eference (sole nea

-end speech) 4.75

eference (unaltered microphone signal) 1.16

EC output with NCC DTD 2.0

EC output with Geigel DTD 1.25

EC output with proposed DTD 1.84

Table 4: MOS values for DTD algorithm comparison;

noise level at -60dB, NFR=-15dB, P

=0.1.

Test signal MOS

eference (sole nea

-end speech) 4.83

eference (unaltered microphone signal) 1.16

EC output with NCC DTD 1.84

EC output with Geigel DTD 1.84

EC output with proposed DTD 3.75

During the preparation of test signals the authors

also paid attention to the execution time of DTD

simulation. These time spans are presented in Table

5. It is notable that the full iteration over all NFR

levels with 16 test signals at each level took over 17

hours with NCC DTD, so it was running on average

88.6 times slower than the real-time. The same data

set was processed by the other DTD algorithms in

just over 4 minutes. Although unoptimized

MATLAB implementations are not credible target

for complexity benchmarking, the disparity in

achieved execution times is outstanding.

Table 5: Execution time of full DTD simulation for tested

algorithms.

DTD algorithm Execution time [s]

NCC 63793

Geigel 259

Watermarking-based 232

5 CONCLUSIONS

The presented DTD algorithm based on audio

watermarking techniques has been exhaustively

evaluated against both very simple-yet-common

Geigel algorithm and more recent and sophisticated

Normalized Cross-Correlation DTD. The evaluation

technique proposed by Cho et al. (1999) was used to

obtain Receiver Operating Characteristic plots of the

aforementioned algorithms, which are the objective

means of DTD comparison, based on the foundation

of the detection theory. The results show that the

proposed novel DTD algorithm performs

comparably (or only slightly worse) to the NCC

algorithm in high-noise conditions, significantly

outperforming it when the near-end background

noise level is low, while both “modern” algorithms

perform better than Geigel algorithm.

The subjective evaluation of the algorithms was

carried out in order to assess the perceived quality of

echo cancellation performed with them. This allows

not only to statistically verify how often the DTD

algorithm result matches the reference pattern, but

also takes into account how the exact conditions of

DTD miss impact the adaptive filter behavior. This

is especially important for the NCC algorithm, as its

“fast” version relies heavily on the reuse of room

impulse response estimated by the adaptive filter.

That factor is also clearly visible in the obtained

ROC plots, which differ from the reference plots

published by Cho et al. (1999), obtained with the

fixed, real impulse response, whenever tests

conducted by the authors used estimated one to

better simulate real-life usage.

The MOS values obtained through the listening

tests confirm the observation that the proposed,

watermarking-based DTD algorithm is more

susceptible to high noise levels that NCC algorithm.

The Geigel algorithm in all test cases was rated the

lowest, which is consistent with the expectations.

An interesting aspect of the experiment was the

preparation of test data, which allowed to observe

the practical effects of computational complexity of

QUALITY EVALUATION OF NOVEL DTD ALGORITHM BASED ON AUDIO WATERMARKING

185

the algorithms. As a direct consequence of its frame-

based operation, the proposed algorithm achieved

lower execution times than Geigel DTD, which

operates sample-by-sample. On the other hand, the

NCC algorithm even in the “fast” version, reusing

adaptive filter’s room impulse estimate instead of

performing cross-correlation matrix inversion

achieved execution times on the order of tens to

hundreds times slower than the watermarking-based

algorithm. This has direct practical implications, as

it restricts the use of NCC algorithm to specialized

hardware implementations, while the watermarking-

based algorithm with execution time on modern PC

machine several times faster than the real-time is

perfectly suited for software implementations. This

makes it a viable choice as a component of AEC

system embedded in e.g. software VoIP terminal.

The hitherto performed evaluation of proposed

watermarking-based algorithm included only

comparison with the representatives of time-domain-

based operation DTD algorithms, therefore the

authors would like to enhance this study in future

research by including also other recent

developments, e.g. the algorithm based on a soft

decision scheme in the frequency domain proposed

by Park and Chang (2010) or frequency-domain

Gaussian-Mixture Model-based DTD algorithm

proposed by Song et al. (2010).

ACKNOWLEDGEMENTS

The research was funded by the Polish Ministry of

Science and Higher Education within the grant No.

PBZ-MNiSW-02/II/2007.

REFERENCES

Benesty, J., Morgan, D. R., Cho, J. H., (2000). A New

Class of Doubletalk Detectors Based on Cross-

correlation. IEEE Trans. Speech Audio Processing,

8(3), 168-172.

Cho, J. H., Morgan, D. R., Benesty, J., (1999). An

Objective Technique for Evaluating Doubletalk

Detectors in Acoustic Echo Cancelers. IEEE Trans.

Speech Audio Processing, 7(6), 718-724.

Duttweiler, D. L., (1978). A Twelve-Channel Digital Echo

Canceller. IEEE Trans. Commun., 26(5), 647–653.

Gruhl, D., Lu, A., Bender, W., (1996). Echo Hiding. In

Proc. Information Hiding Workshop (pp. 295–315).

Cambridge, UK.

Kuo, S. M., Lee, B. H., Tian, W., (2006). Adaptive Echo

Cancellation. In Real-Time Digital Signal Processing:

Implementations and Applications. Wiley: NewYork.

Szwoch, G., Czyzewski, A., Ciarkowski, A., (2009). A

Double-talk detector using audio watermarking. J.

Audio Eng. Soc., 57(11), 916-926.

Czyzewski, A., Szwoch, G., (2008). Method and

Apparatus for Acoustic Echo Cancellation in VoIP

Terminal. International Patent Application No.

PCT/PL2008/000048.

Vu, T., Ding, H., Bouchard, M., (2004). A Survey of

Double-Talk Detection Schemes for Echo

Cancellation Applications. Can. Acoust., 32, 144–145.

Park, Y-S., Chang, J-H., (2010). Double-talk detection

based on soft decision for acoustic echo suppression.

Signal Processing, 90(5), 1737-1741.

Song, J-H., Lee, K-H., Park, Y-S., Kang, S-I., Chang, J-

H., (2010). On Using Gaussian Mixture Model for

Double-Talk Detection in Acoustic Echo Suppression.

In INTERSPEECH 2010, 2778-2781.

SIGMAP 2011 - International Conference on Signal Processing and Multimedia Applications

186
