ONTOLOGY-BASED TEST DATA GENERATION

USING METAHEURISTICS

Zolt´an Szatm´ari, J´anos Ol´ah and Istv´an Majzik

Department of Measurement and Information Systems, Budapest University of Technology and Economics

H-1117, Magyar Tud´osok krt. 2, Budapest, Hungary

Keywords:

Ontologies, Autonomous agents, Optimization with metaheuristics, Test data generation.

Abstract:

Software testing is an expensive, yet essential stage in all software development models, thus there is a great

effort from the research community to facilitate or even automate this step. Although much of the testing

process is automated by modern software development environments (e.g., test execution, monitoring), the

selection of test data remains generally a manual process.

In this paper we present a novel approach for test data generation in case of testing data dependent behaviour

of autonomous software agents. The proposed method uses the metamodel of the agent’s environment derived

from the context ontology, and utilizes the input speciﬁcations to formulate the goal of testing. Our approach

suggests the use of metaheuristic search techniques for the generation of optimal test data, usually referred to

as search-based software test data generation.

1 INTRODUCTION

Software testing is the process of evaluating the qual-

ity of the software under test (SUT) by controlled

execution, usually with the primary aim to reveal in-

adequate behavior or performance problems. During

testing a set of test cases is executed to verify the ex-

pected behaviour. A test case consists of input data,

precondition, expected output and postcondition.

Testing is an essential step of all software devel-

opment models. However, writing test cases is ex-

pensive, labor-intensive and time consuming, thus fa-

cilitation or automation of the testing process is de-

sired. The main challenge in test generation is to

avoid ad-hoc testing and support test case generation

using measurable coverage metrics and well-deﬁned

method.

One of the most important tasks in automated test

generation is test data generation, which is the pro-

cess of identifying input data that satisfy certain cri-

teria (test goals). A typical test goal is the veriﬁca-

tion of the behaviour in selected (often all) states of

the SUT. Considering this goal, the automated gene-

ration of realistic and feasible input data is usually

difﬁcult, because of the large state space of the SUT.

However, in certain cases, goals of testing can be ex-

pressed solely by referring to the input domain of the

SUT, without considering its internal states.

Such cases include testing of autonomous soft-

ware agents. A formal deﬁnition of autonomous

agents is given in (Franklin and Graesser, 1996),

which states the following: An autonomous agent is

a system situated within and a part of an environment

that senses that environment and acts on it, over time,

in pursuit of its own agenda and so as to effect what

it senses in the future. Thus the goal of testing au-

tonomous agents can be expressed as testing the be-

haviour in case of various conﬁgurations of the envi-

ronment (context).

Construction of efﬁcient test data (that cover all

valid conﬁgurations using a minimal set of test cases)

is still a difﬁcult problem. Application of determinis-

tic test generation algorithms is often impractical, due

to the high number of potential conﬁgurations and the

related semantic constraints that determine the fea-

sible and valid conﬁgurations and inﬂuence the efﬁ-

ciency of testing in a nontrivial way.

In this paper we propose a novel automatic test

data generation approach, which utilizes the context

model of the agent and applies metaheuristics in or-

der to generate efﬁcient test data.

First, we propose an ontology based construction

of the context model (Section 3). This way the hi-

erarchy and relations of the elements (objects and

217

Szatmári Z., Oláh J. and Majzik I..

ONTOLOGY-BASED TEST DATA GENERATION USING METAHEURISTICS.

DOI: 10.5220/0003533902170222

In Proceedings of the 8th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2011), pages 217-222

ISBN: 978-989-8425-75-1

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

changes) in the environment can be precisely formu-

lated, which can be directly utilized when deﬁning

and computingcontext coverage (as an important cov-

erage metric during testing).

Second, on the basis of the context model, we ex-

press the semantic constraints that are included in the

functional speciﬁcation or generally characterize the

domain (determining the valid context conﬁgurations,

e.g., the arrangement of objects or timing of changes)

in the form of model patterns (Section 4). Usually,

these patterns are overlapping and constructed at diff-

erent levels of the hierarchy of the context model,

which makes the search for test data difﬁcult. This is

why we propose search-based software test data gene-

ration (Section 5): instead of deterministic (in worst

case exhaustive) search in the space of valid context

models, we rely on an iterativeimprovement of an ini-

tial test set by modifying conﬁgurations (adding new

elements from the context model) and measuring the

quality of the resulting test data. Measuring requires

the construction of a so-called ﬁtness function that in-

corporates a reﬁned coverage metric with respect to

the model patterns.

Finally, we propose implementation technology in

the form of a model manipulation framework that al-

lows efﬁcient representation of model patterns and

manipulation of test data (Section 6).

2 REFERENCE ARCHITECTURE

An agent can be described with an agent function in

abstract mathematical form. The implementation of

the function is called agent program. The environ-

ment in which the agent operates is usually referred

to as its context.

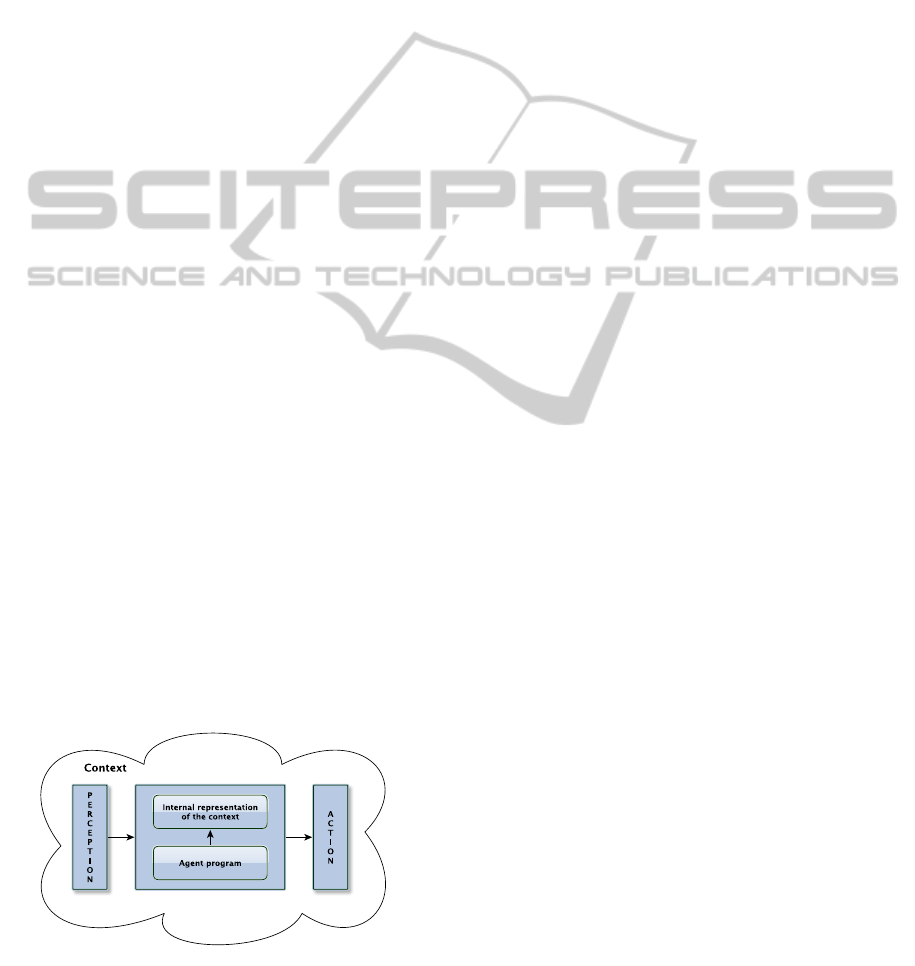

The reference architecture is shown in Figure 1.

This set up is very similar to the arrangement that au-

thors use in (Russell and Norvig, 2003), when deﬁn-

ing the connection between an agent and its context.

Figure 1: Architecture of an autonomous agent.

The agent program utilizes an internal represen-

tation of the context, that stores the knowledge of

the agent about its environment. This representation

should describe all the things and events that are re-

levant for the behaviour (control algorithms) of the

agent.

The input of the agent program is provided by the

perception module, that identiﬁes the current situation

and the changes of the context. Based on the per-

ception information changes are applied on the inter-

nal context representation. The control of the agent

may include reasoning, learning and adaptation to the

evolving context. Based on the internal context repre-

sentation, the internal rules and goals, the agent prog-

ram makes a decision and generates the input for the

actuators. In this paper we focus on the testing of the

agent program, and we will not deal with the testing

of perception and action execution.

Considering our test goal, testing is implemented

through the generation and manipulation of the

agent’s context (this way the input data for the agent

program). Speciﬁc conﬁgurations and changes in the

context are considered as test data. To be able to gen-

erate these test data in an automated way, a ﬂexible

but expressive representation of the context is neces-

sary. For this purpose we propose an ontology based

modeling approach: A context ontology is deﬁned that

supports the description of the context elements.

3 CONTEXT ONTOLOGY

Ontologies expressed in description logic formalism

(Bechhofer, 2004) are commonly used to represent

knowledge base in a well-structured and expressive

way. Domain experts can easily use this modelling

approach since it is close to the human thinking and

supports rapid development of domain speciﬁc lan-

guages.

Ontologies consist of terminologies (TBox) and

model instances (ABox). A TBox describes the con-

cepts, its relationships and properties. An ABox col-

lects the model elements that are TBox-compliant in-

stances. In other words terminology is a metamodel-

like “dictionary” to deﬁne a model while model

instances store the knowledge about the modelled

things.

The context ontology is a domain-speciﬁc descrip-

tion of the objects and events in the agent’s context

that are relevant for its behaviour:

• The static objects that can be found in the context

are modelled using an ontology concept hierarchy

(in other words a dictionary based taxonomy).

• The relations between concepts are also modelled.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

218

• Every object could have some properties (e.g., lo-

cation). Properties can be modelled using Data

properties or Object properties, that are base ele-

ments in an ontology TBox model.

• Dynamic changes in the environment should also

be modelled using this ontology. We included this

dynamic aspect in the context ontology by deﬁn-

ing the concept of changes with regard to objects

(i.e., an object appears, disappears), their proper-

ties (e.g., a property changes) and relations. Us-

ing these concepts a dynamic context can be de-

scribed.

We also deﬁned context patterns. Each context

pattern represents a fragment of a context model as a

speciﬁc arrangement of elements within the context.

These patterns are originated from the speciﬁcation

(use cases) of the SUT.

We propose the usage of the context ontology

during the requirement speciﬁcation and test deﬁni-

tion phases due to its expressiveness and the tool-

supported consistency checking facility. In the later

development and test generation phases the context

ontology can be mapped to a domain speciﬁc meta-

model and model, while the context patterns can be

mapped to model patterns. Axioms in the ontology

can be mapped to well-formedness constraints (with

regard to the metamodel) and model patterns (that re-

quire a desired conﬁguration of model elements).

4 TESTING CONCEPT

Through the last decades, several approaches have ap-

peared for automatic software test data generation,

however most approaches concentrate on structural

testing. In (Ferguson and Korel, 1996) the authors di-

vided these methods into three classes.

Random methods obviously select input data by

random selection. Path-oriented methods reduce the

test data generation to a path problem, where a path

in the control ﬂow is selected (usually to trigger a

selected program statement), and then the task is to

generate input data to execute that path. In the goal-

oriented approach, the path selection is eliminated,

thus the goal is to ﬁnd particular input data which trig-

ger a selected statement in the program code. Meth-

ods using this approach monitor the program execu-

tion with the current input data, and classify branches

according to their inﬂuence on execution of the de-

sired branch.

The weakness of these approaches in case of agent

testing is the program analysis stage. Both path- and

goal-oriented approaches require the analysis of prog-

ram code, which can be complicated in case of large

programs, partly implemented programs with com-

ponent stubs, or legacy code. Furthermore, all in-

troduced approaches handle complex data structures

with difﬁculty, though most modern software appli-

cations deal with large and complex input data.

In this paper we focus on functional testing. Our

approach is based on the high-level behaviour speci-

ﬁcations of the agent program, that are relations be-

tween the program input and output. For example a

speciﬁcation states that if a particular conﬁguration

of objects is present in the context, the agent executes

an associated action.

We utilize these speciﬁcations to formulate re-

quirements regarding the context of the SUT. These

requirements include the presence of particular con-

ﬁguration of objects stated in the input speciﬁcation.

These conﬁgurations can be represented by context

patterns.

The goal of test data generation is to cover all con-

text patterns. Hence a generated suite of test data

is perfect for our goal, if it covers all required con-

text patterns, this way it is appropriate to determine

whether the SUT behaves as speciﬁed. We will refer

to this as sound suite of test data.

The generated test data is an instance model that

conforms to the metamodel constructed from the con-

text ontology, thus it shall fulﬁll the well-formedness

constraints deﬁned by the metamodel. Additionally,

the test data shall conform with the context patterns

that also originate from the context ontology (for ex-

ample, they require the presence of certain objects

when another object is already present in the instance

model). We will refer to these restrictions as semantic

constraints. We will refer to test data that is well-

formed and satisﬁes the semantic constraints as valid

test data.

Since the generated test data is an instance model,

manipulation of this model during the execution of

the test data generation algorithm can be implemented

in the form of a model transformation (MT). These

transformations take an input model and produce an

output model by the application of a transformation

rule. In our case the metamodel of the input and the

output instance models are the same, thus we apply

endogenous MTs.

Previously we have stated that a sound and valid

suite of test data covers all required context patterns

and satisﬁes the semantic constraints. Finding the op-

timal set of test data is a non-trivialproblem due to the

large number of patterns, the hierarchy of objects and

relations included in these patterns and the overlap-

ping nature of patterns and semantic constraints (e.g.,

patterns may contain conﬁgurations of elements from

other patterns, constraints may complementary etc.).

ONTOLOGY-BASED TEST DATA GENERATION USING METAHEURISTICS

219

According to these problems, the issue of test data

generation can be formulated as an optimization prob-

lem. A ﬁtness function assigns a real value to each

suite of generated test data. This value indicates how

well a particular candidate fulﬁlls the criteria aggre-

gated in the ﬁtness function. One such criterion is the

coverage of the patterns, i.e., the number of patterns

that is included directly or indirectly (taking into ac-

count the hierarchy and overlapping of patterns) in the

set of generated test data. Another criterion that can

be taken into account is the size of the set of test data

(that shall be kept low to reduce the cost of testing).

Our task is to locate the global maxima of the ﬁtness

function, this way to ﬁnd the optimal set of test data.

5 SEARCH-BASED TEST DATA

GENERATION

Search-based software engineering (SBSE) is the

use of search-based optimization algorithms (usually

metaheuristic search techniques) to software engi-

neering problems. SBSE is an approach with increas-

ing relevance, since search techniques were success-

fully applied to a number of software engineering

problems throughoutthe whole software development

life-cycle (Harman, 2007). Software testing is proba-

bly the most important application domain of SBSE.

Furthermore the amount of research in search-based

software test data generation alone is so signiﬁcant

that it led to a survey by McMinn (McMinn, 2004).

Metaheuristics are the primary subﬁeld of stochas-

tic optimization applied for a very wide range of prob-

lems. Metaheuristics can be divided into single-state

methods (i.e., hill-climbing, simulated annealing or

tabu search) and population methods (i.e., genetic al-

gorithms and evolution strategy from the ﬁeld of evo-

lutionary computation, or particle swarm optimiza-

tion from the class of swarm intelligence methods).

An exhaustive and up to date description of meta-

heuristics is presented by Luke (Luke, 2009).

Metaheuristics are advantageous in problems de-

scribed as “I know when I see it”. In our case,

for example, the formulation of a deterministic algo-

rithm would be impractical taking into accountthe de-

pendency and hierarchy between semantic constraints

and context patterns to cover, though we are able to

score the quality of a candidate solution (test suite)

and decide whether it is optimal.

The key ingredients for the application of search-

based optimization to test data generation is the

choice of representation of the solutions and the deﬁ-

nition of the ﬁtness function. In order to successfully

apply metaheuristic search techniques, a good repre-

sentation should fulﬁll the heuristic belief about the

space of candidate solutions. This means that similar

solutions behave similarly, thus small changes in pa-

rameters will result in small changes in the quality of

the current solution.

As we already mentioned, the task of test data ge-

neration can be interpreted as generation of instance

models, thus in this case the candidates are repre-

sented as model instances. We call the generated test

data sound according to the ﬁtness function, when all

required objects are covered according to the estab-

lished goals (i.e., there are matches of the context pat-

terns within the model). The ﬁtness function formu-

lated to guide the test data generation should reward

model instances that contain the context patterns with

higher scores. The computation of the coverage of

model patterns, that is the core of the ﬁtness function,

should well handle the introduced hierarchy and de-

pendency problems.

Additionally, the formulationof operators is a fun-

damental question when metaheuristic algorithms are

applied for optimization. These operators deﬁne how

the candidate solution(s) can be updated in each iter-

ation. In traditional problems, the candidate solutions

are represented as vectors, thus updating is executed

by the manipulation of values in the vectors.

Since our candidate solutions are represented by

instance models, updating of a candidate can be exe-

cuted by the introduced model transformations. Pos-

sible transformations of candidate solutions are de-

ﬁned by a set of model transformation rules prior to

the execution of the test data generation algorithm. In

every iteration of the applied metaheuristic algorithm,

an arbitrary number of rules are selected and exe-

cuted. Obviously, these rules do not violate the well-

formedness constraints provided by the metamodel.

Figure 2 presents the entire workﬂow of the pro-

posed test data generation algorithm.

6 IMPLEMENTATION

To implement the proposed test data generation ap-

proach a model manipulation framework is needed,

that supports metamodel based model manipulation

tasks to generate instance models conforming to the

domain speciﬁc metamodel.

The set of initial instance models, which forms the

input for the test data generation algorithm, should be

constructed based on the context metamodel.

The test data generation algorithm utilizes the fol-

lowing functions of the model manipulation frame-

work:

• Since the conformance to the metamodel is the

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

220

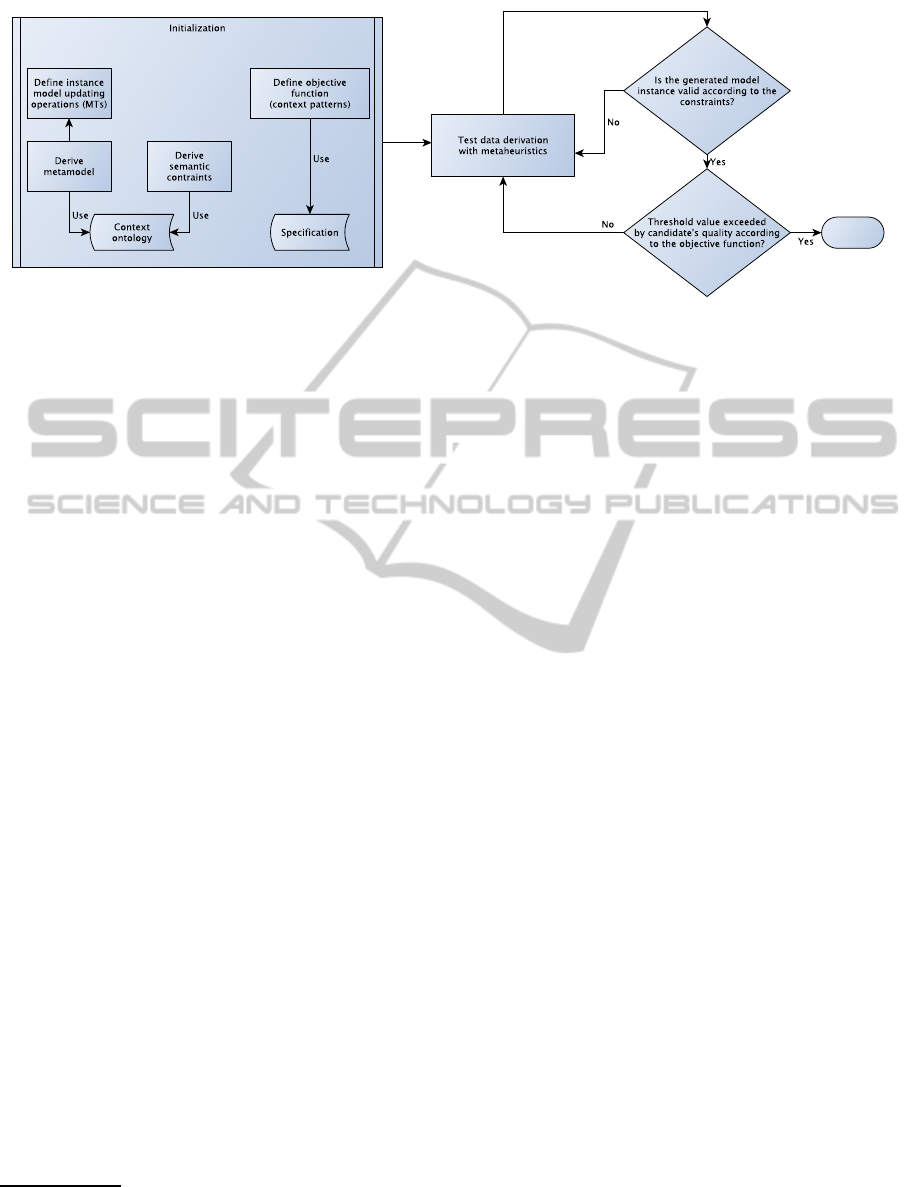

Figure 2: Workﬂow of the proposed approach.

primary requirement in the case of the generated

instance models, the framework should support

efﬁcient metamodel conformance checking.

• Application speciﬁc requirements are represented

using content patterns, so checking the coverage

of model patterns should be supported.

• Since the operators in the test data generation

algorithm are deﬁned as model transformation

rules, the efﬁcient execution of such rules is re-

quired.

Several model transformation frameworks exist

that support these functions. Graph transforma-

tion based frameworks (e.g., VIATRA2

, AGG

) ap-

ply graph pattern matching and graph transformation

rules for checking and manipulating model instances.

Another solution could be the application of a rule en-

gine (e.g., Drools

), which supports the construction

of domain speciﬁc rules that can be used for pattern

checking and model transformation.

In certain cases (e.g., in case of autonomous

robots) the context model describes a real world that

consists of 3D objects and dynamic behaviourof these

objects. For demonstration and visualization purposes

the context model can be transformed into a visualiza-

tion language (e.g., X3D is an open-standard format,

that is able to describe 3D scenes and objects).

7 AN EXAMPLE

We demonstrate our proposed approach on the ex-

ample of a simpliﬁed version of the Wumpus World.

This world is a popular demonstrating environ-

ment for intelligent agents, thoroughly discussed in

(Russell and Norvig, 2003).

See http://www.eclipse.org/gmt/VIATRA2/ for details.

See http://user.cs.tu-berlin.de/˜gragra/agg/ for details.

See http://www.jboss.org/drools for details.

Wumpus World is a cave with a number of rooms.

Each room is represented with a square. The neigh-

borhood of a room consists of four rooms (north,

south, east and west).

In our simpliﬁed example only one Wumpus and

one treasure is present on arbitrary squares. If the

Wumpus is at a square, then there is stench on that

square and all on its neighboring squares. If the trea-

sure is at a square, then there is glitter on that square.

The agent in this world perceives the current

square where it is located. According to the two per-

ceivable elements (i.e., stench and glittering), these

perceptions are represented by two element vectors.

The agent may turn 90

◦

left or right, and go for-

ward. In our case if it goes to a wall nothing happens,

and if the agent advances on a square where a Wum-

pus is waiting, the agent is destroyed. The agent may

decide to leave the cave, if it can not safely determine

the treasure.

Let us consider the following input speciﬁcation.

The agent operating in an arbitrary Wumpus World

that conforms to the rules introduced above, it is able

to avoid the Wumpus, and ﬁnd the treasure or quit,

when no further safe move is possible. We may apply

our proposed approach in order to generate test data

(i.e., Wumpus world) to test whether the agent fulﬁlls

this speciﬁcation.

The context ontology created for the Wumpus

World contains all the elements mentioned above,

with proper relations. The derived metamodel from

this ontology is presented on Figure 3.

According to the ontology axioms deﬁned for the

Wumpus World, we may derive one semantic con-

straint. If the Wumpus is at a square, then there is

stench at all neighboring squares. The model pattern

expressing this constraint is shown on Figure 4. This

is a negative pattern: if it has a match in the candidate

model, then a square exists near a Wumpus without

stench, i.e., the model is not valid for testing.

ONTOLOGY-BASED TEST DATA GENERATION USING METAHEURISTICS

221

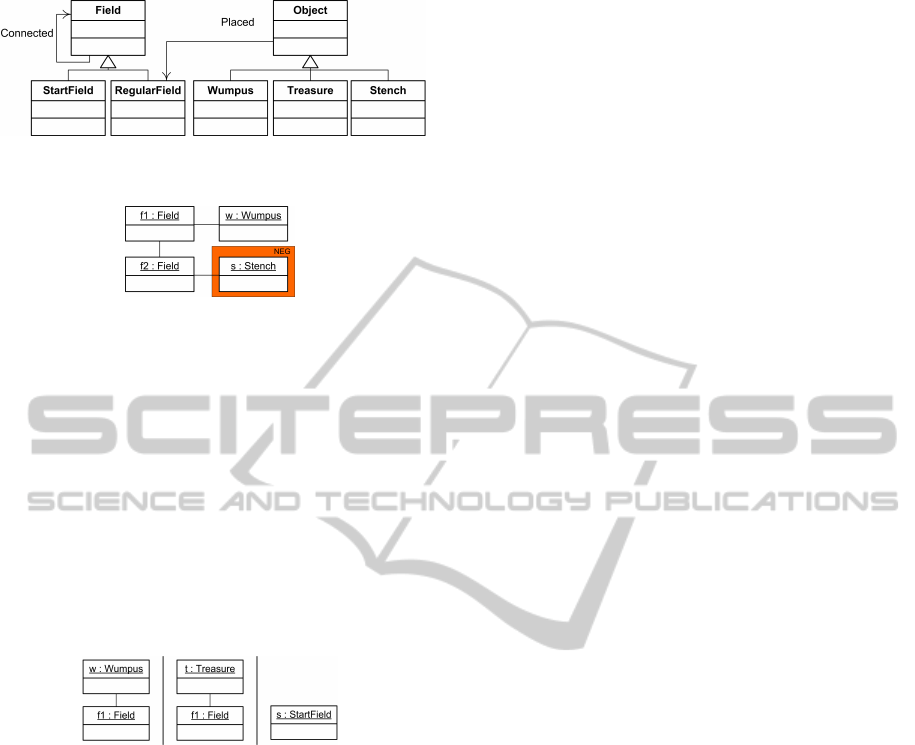

Figure 3: Metamodel of the simpliﬁed Wumpus World.

Figure 4: Semantic constraint for the test generation.

A Wumpus World generated to test the agent is

sound if it contains all possible elements (Wumpus,

treasure and start square). Context patterns express-

ing these requirements are presented on Figure 5. The

ﬁtness function which measures the quality of a can-

didate Wumpus World counts the patterns that are

covered. For example, if the three model fragments

has exactly one occurrences in the model (i.e., there is

one Wumpus, one treasure and one start square), the

ﬁtness function is maximal. The proper appearance

of squares with stench is guaranteed by the semantic

constraint.

Figure 5: Context patterns that shall be covered.

Since an initial model can be an empty n×n cave,

the applied model transformations may add a Wum-

pus, a treasure or stench to a square, or transform

it to a start square. During the iteration of the se-

lected metaheuristic, a candidate solution is checked

whether it fulﬁlls the well-formedness rules and the

semantic constraints, and then the ﬁtness function es-

timates its quality by checking whether there are oc-

currences of each context pattern in the candidate.

In this example, let us denote the number of oc-

currences of a context pattern i in a given candidate

model with k

. Let x

= 0, if k

= 0 || k

> 1, and x

= 1

if k

= 1, where i ∈ S and S is the set of all context pat-

terns. Then the ﬁtness function may assign

∑

i∈S

the candidate. If the selected threshold is three, the

generated test data covers all context patterns once.

8 CONCLUSIONS AND FUTURE

WORK

Veriﬁcation of autonomous software agents is a difﬁ-

cult task, which requires the generation of valid and

sound test data according to the system speciﬁcations.

In this paper we introduced an approach, which

uses the context ontology to determine validity of the

generated test data through the derived metamodel

and semantic constraints, and measures the sound-

ness of test data with context patterns derived from

the system speciﬁcation(s). Furthermore we proposed

the use of search-based test data generation to deter-

mine optimal test data. The implementation of the

proposed approach is currently under development.

The generated test data have to be sound accord-

ing to various, often conﬂicting context patterns si-

multaneously. An optimal solution is as sound as pos-

sible, while it remains valid, thus it is usually a trade-

off between the individual test goals. This type of

problem is usually referred to as multiobjective opti-

mization problem. In the future we plan to investigate

this problem and apply hierarchical decomposition on

the basis of the hierarchy of the input metamodel.

REFERENCES

Bechhofer, S. (2004). OWL web ontology lan-

guage reference. W3C recommendation.

http://www.w3.org/TR/owl-ref/.

Ferguson, R. and Korel, B. (1996). The chaining approach

for software test data generation. ACM Trans. Softw.

Eng. Methodol., 5:63–86.

Franklin, S. and Graesser, A. (1996). Is it an agent, or just

a program?: A taxonomy for autonomous agents. In

Proc. of the Third International Workshop on Agent

Theories, Architectures, and Languages.

Harman, M. (2007). The current state and future of search

based software engineering. In 2007 Future of Soft-

ware Engineering, FOSE ’07, pages 342–357, Wash-

ington, DC, USA. IEEE Computer Society.

Luke, S. (2009). Essentials of Metaheuristics. Available on-

line. (http://cs.gmu.edu/∼sean/book/metaheuristics).

McMinn, P. (2004). Search-based software test data gene-

ration: A survey. Software Testing, Veriﬁcation and

Reliability, 14:105–156.

Russell, S. and Norvig, P. (2003). Artiﬁcal Intelligence. A

Modern Approach. Pearson Education Inc., second

edition.

ICINCO 2011 - 8th International Conference on Informatics in Control, Automation and Robotics

222
