MANAGING TETRA CHANNEL COMMUNICATIONS

IN ANDROID

Luis Corral, Alberto Sillitti and Giancarlo Succi

Center for Applied Software Engineering, Free University of Bozen-Bolzano

Piazza Domenicani 3, I-39100 Bozen-Bolzano, Italy

Keywords: Android, Mobile, Tetra.

Abstract: Mobile systems have evolved to a level in which they have to carry out their operations in environments

demanding high availability and short response time. An excellent radio transmission protocol is necessary

to provide the means to satisfy such requirements. TETRA standard offers a large number of features

designed for safety and emergency use; however, to access a TETRA network it is compulsory the use of a

standard-specific device. In this paper we explore the conditions that have to be fulfilled to extend Android's

capabilities to access TETRA networks from a general-purpose mobile device, and set a path for a future

development aimed to accomplish it.

1 INTRODUCTION

Mobile systems have evolved to a level where they

are required to carry out their operations in

environments demanding high availability, efficient

performance and short response time. Along with

regular radio, cellular telephone communication has

been the choice of organizations that have to satisfy

strict mission-critical requirements (Bissmeier,

2006).

In this context, Terrestrial Trunked Radio

(TETRA) was specifically designed by the European

Telecommunications Standards Institute to meet the

needs of Professional Mobile Radio (PMR),

primarily used in the public safety sector: police

departments, emergency services, fire departments,

surveillance of marine traffic and others (Bakaric,

Borzic, Bratkovic, Grga, 2005).

Major manufacturer Nokia states that now

TETRA is a global standard for PMR

communication in the same way that the Global

System for Mobile Communications (GSM) is the

standard for mobile telephony (NOKIA, 2004).

TETRA provides the capability of trunked, non-

trunked and direct mobile-to-mobile communication.

The services it offers include voice (group or private

calls), circuit switched data, packet switched data

and Short Data Service (SDS) - similar to Short

Message Service (SMS) in GSM (Axiotis and

Xenikos, 2007). TETRA also supports generic and

tailored data applications for each user organization,

such as command and control systems, vehicle

location, database queries, reporting, image transfer

and other customized applications. Thanks to these

characteristics, TETRA is now the official European

Standard for digital PMR and has been selected by

numerous organizations in Asia, Middle-East and

South America for operations considered safe and

emergency critical, according to The TETRA MoU

Association (TETRA MoU, 2011).

Similar to GSM, to access a TETRA network it

is compulsory the use of a device designed for the

use of the standard. This means that the baseband of

the device should recognize the range of frequencies

in which TETRA communications are transported.

Currently, TETRA product lines offered by

manufacturers are not as wide as other equivalent

GSM equipment, and the range of prices makes

disadvantageous to select a TETRA-specific device

against another comparable GSM-specific unit.

In this paper we study the conditions that have to

be fulfilled to access TETRA networks from a

general-purpose mobile device, based on the

possibilities given by Android to incorporate APIs

for utilizing GSM-specific phone features. Then, we

trace a path for a future development aimed to

design and implement an extension to Android for

supporting communication on TETRA networks.

The rest of this paper is organized as follows:

section 2 presents background on current devices

307

Corral L., Sillitti A. and Succi G..

MANAGING TETRA CHANNEL COMMUNICATIONS IN ANDROID.

DOI: 10.5220/0003534303070312

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 307-312

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

available on market; section 3 introduces the

motivation to conduct this research and the scenario

that this work aims to solve; section 4 comments

related work; section 5 describes a comprehensive

analysis of the state of the question and explores the

opportunities given by concurrent technologies;

section 6 identify directions for future work and

finally section 7 draws the conclusions.

2 TETRA MOBILE DEVICES

TETRA devices are designed and produced to work

in a spectrum of radio frequencies from 300 through

1000 MHz. In Europe, TETRA frequencies are

mainly allocated in the 380 to 430 MHz, keeping

lower radio frequency band (380-385 MHz and 390-

395 MHz) reserved for emergency and public

services and the higher (410-430 MHz) for civil use

(Bakaric, Borzic, Bratkovic, Grga, 2005).

The number of active TETRA projects has

continuously shown a growing trend (Mikulic and

Modlic, 2008). With the increasing number of

networks, organizations and users, there is as well an

increasing need of development of technology (e.g.

infrastructure, devices, accessories) to interact with

TETRA networks.

Currently there is a rich variety of devices to

work with TETRA communications. Major

manufacturers (e.g. Motorola, Nokia and Siemens)

include TETRA solutions as part of their product

lines. TETRA devices cover a range of fixed

terminals, mobile handsets, pagers and mobile

devices for vehicles. Encompassing the possibilities

given by the standard, this equipment is able to

deliver services on mobile radio, cellular telephony,

text messaging and digital data.

Records presented by Ascom Group indicate that

TETRA handset prices show a decreasing trend

since 2003, and predictions in the industry foresee a

continuous price pressure towards the level of a

regular cellular phone (ASCOM, n.d.). Nonetheless,

despite of the growing number TETRA products out

in the market, pricing and availability do not match

those shown by GSM-supporting equipment.

3 MOTIVATON

As said, TETRA product lines are not as wide as

equivalent GSM equipment. It is our motivation to

take advantage of the versatility and the diversity of

cutting-edge GSM mobile devices in market to

incorporate them into a TETRA environment. This

incorporation may bring another advantages, for

instance by accessing a TETRA network from a

common mobile device, emergency personnel using

general-purpose mobiles may gain autonomy and

commonality with other interfaces.

It is desired to develop a logic interface that

enables regular mobile devices to directly access a

TETRA network. Because of its simplicity and

disposition to work at different levels, we have

chosen text messaging as the first service to analyze.

To develop the logical interface, we selected

Android as preferred framework, considering its

flexibility and openness. Within Android, different

levels of abstraction are offered, and in particular,

we assume that the telephony API already included

in Android can be a useful element of abstraction to

outline a solution.

The ideal scenario would be that at a lower level,

a parallel layer is placed to collaborate with the

environment that Android already has to manage the

GSM phone signals, in such way to map the TETRA

channel signaling through the composition of proper

Hayes AT commands.

4 RELATED WORK

Comparisons between TETRA and GSM have been

frequently presented in TETRA conferences and

summits, as well as position papers and white papers

that analyze performance or services provided by

each standard. Generally, position papers are issued

by the TETRA Memorandum of Understanding

(TETRA MoU), and white papers are issued by

major manufacturers or service providers. These

works agreed in pointing out several mission critical

characteristics from TETRA that cannot be found in

other similar standards.

We have reviewed as well a number of case

studies showing results of the use of TETRA (i.e.

performance metrics) in a given environment, and

experiences from user organizations using TETRA

around the world. As part of their user experiences,

several comparisons between TETRA and similar

technologies are mentioned too. However, to the

extent of our current review, we were not able to

find any work whose aim is to incorporate TETRA

services to GSM equipment through a customized

software layer.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

308

5 EXTENSIONS TO ANDROID

TELEPHONY SUPPORT

TO HOLD DIVERSE

STANDARDS

To establish an outline of the conditions that satisfy

the necessities described in section 3, first we need

to know the similarities and differences between

GSM and TETRA, as the former is currently

supported by Android through different management

libraries that let users to access different GSM

services. We consider that this availability represents

an important starting point to set the directions for

our work.

Once we know the similarities and differences

between the two standards, a general study on the

way that Android supports GSM will take place, for

us to understand how Android manages GSM

telephony, messaging and data services and how the

currently offered management may be leveraged or

re-used to access TETRA. Given the case that it is

not possible to baseline or re-use GSM libraries to fit

TETRA operations, other strategies (e.g. kernel

programming) may be considered. After that, we

will be in a position to draw conclusions which at

the same time will serve as foundation for the future

work that is needed to incorporate TETRA support

to Android devices.

In light of this strategy, the following activities

were conducted: 1) Know differences between

TETRA and GSM, 2) Understand how SMS is

managed by GSM to leverage the required behavior

for TETRA-SDS, 3) Determine how Android

provides software packages to manage GSM, 4)

Review the different abstraction levels that Android

has to manage GSM and 5) Select the most ideal

level to implement the necessary functionality. The

rest of this section is organized matching the order

of these activities.

5.1 Differences between TETRA and

GSM

ET Industries highlight that TETRA is not intended

to compete with GSM or any other cellular

technology; they are clearly made for different

purposes. While TETRA was designed for PMR

applications, GSM was designed for public cellular

telephony (ETI, n. d.). Table 1 shows a summary of

different mobile services and its availability through

our two relevant standards.

Table 1: Comparison of services offered by GSM and

TETRA.

Service GSM TETRA

Individual call Supported Supported

Group call Not Supported Supported

Emergency call Supported Supported

Short data messages Supported Supported

Encryption Supported Supported

Authentication Not Supported Supported

Data services Supported Supported

Out of network coverage Not Supported Supported

It has been claimed that TETRA is more robust

than GSM (Nordman et al., 2001). TETRA offers

some specific features that cannot be found in GSM,

including a number of features designed for safety

and emergency use. For example, it allows one-to-

one and one-to-many communication modes, and

thanks to its technology based on a four slot system,

it may use multiple carrier frequencies to

significantly increase the utilization of the radio

channel (ASCOM, n.d.).

Commercial GSM services are not mission-

critical; they collapse under heavy load (i.e. during

the emergency events of London underground

bombing and Madrid railway bombing). In the other

hand, TETRA has proven the capacity to handle

location updates of thousands of units in dense city

areas under highly demanding conditions, like those

in the 2008 Olympic Games in Beijing: 86.000

users, (more than 40.000 from Beijing Police),

holding a total of 17 million group calls during the

whole Games period (Korpilahti, 2010).

Major high-level differences between GSM and

TETRA systems may be summarized as follows

(ETI, n.d.) (Swan, 2006) (Pasquali, 2007).

Table 2: Summary of differences between GSM and

TETRA.

GSM TETRA

Purpose

Public cellular

telephony

Professional mobile

radio applications

Freq.

range

900 to 1910 MHz 380 to 430 MHz

Channel

access

method

Frequency Division

Multiplication Access

Time Division

Multiplication

Access

Call set-

up time

Seconds. (Not suitable

for emergency

services)

Milliseconds.

(Suitable for

emergency services)

Security

No authentication for

listening parties

Authentication plus

encryption

Network

tolerance

Congestion of in

demanding situations

Tolerance to

congestion in

stressing situations

MANAGING TETRA CHANNEL COMMUNICATIONS IN ANDROID

309

5.2 SMS Management on GSM

The Short Message Service makes available a means

of sending messages of limited size to and from

mobile devices. The provision of SMS makes use of

a service center, which acts as a store and forward

center for short messages.

It is referenced by the 3rd Generation Partnership

Project that a GSM SMS message can be up to 160

characters long, where each character is 7 bits

according to the 7-bit default alphabet. There are

two ways of sending and receiving SMS messages:

by text mode and by Protocol Description Unit

(PDU) mode. The text mode is an encoding of the

bit stream represented by the PDU mode. Both text

and PDU modes are all set by the AT-commands

when reading the message in a computer application.

The PDU string contains the message and meta-

information about the sender, service center, time

stamp, etc. (3GPP, 2010)

The Short Data Service of TETRA is a data

service that is comparable with the SMS of GSM. A

TETRA SDS message can carry up to 140 byte data

per message. SDS messages may as well be sent and

received through text mode and PDU with

equivalent AT commands (Ozimek and Gorazd,

2002).

5.3 Software Packages Provided

by Android to Support GSM

Android offers APIs for utilizing specific telephony

features, (e.g. phone calls and SMS messaging). In

the beginning, Android delivered APIs for GSM-

specific features, but now these APIs have been

deprecated to incorporate new versions that support

both GSM and Code Division Multiple Access

(CDMA).

Current telephony APIs are structured within a

package (android.telephony) and its corresponding

classes. These APIs monitor the basic phone

information, such as the network type and

connection state, and give methods for manipulating

phone number strings and other telephony services.

For instance, we may find in Android’s online

reference that it has classes to access to information

about the telephony services on the device, or

classes to manage SMS operations such as sending

data, text SMS messages, and PDU SMS messages

(Android, 2011a).

These appealing concepts lead our next steps to

research the level in which these APIs are located,

and how they interface with the rest of the mobile's

environment.

5.4 Abstraction Levels in Android

to Manage GSM

Android has different abstraction layers to place a

variety of services and applications according to

specific requirements and necessities (Santi, Guidi,

and Ricci, 2010).

Android's Radio Interface Layer (RIL) provides

an abstraction level between Android telephony

applications (android.telephony) and radio hardware

(see Figure 1). This RIL is radio agnostic, this means

that it works with any of the frequencies that the

radio hardware can receive. Now Android RIL

includes support for GSM-based radios.

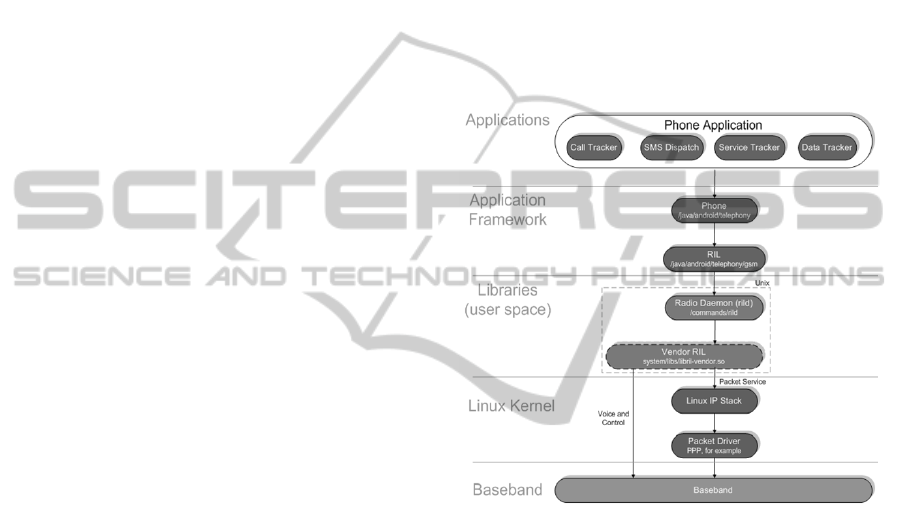

Figure 1: RIL in the context of Android's telephony

system architecture (Android, 2011b).

The RIL consists of two primary components: 1)

RIL Daemon: initializes the Vendor RIL, processes

all communication from Android telephony services,

and dispatches calls to the Vendor RIL as solicited

commands, and 2) Vendor RIL: a radio-specific

vendor RIL that processes all communication with

radio hardware and dispatches calls to the RIL

Daemon through unsolicited commands (Android,

2011b).

To develop a radio-specific RIL, it is required to

create a shared library that implements the set of

functions required by Android to process particular

radio requests. In an abstraction level, we can locate

libraries as software components that rely on the

kernel and provide higher level functionality to user-

level applications (Ponomarenko and Rubanov,

2010).

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

310

5.5 Selection of an Abstraction Level

to Implement New Functionality

Since the Android radio interface is radio agnostic,

the Vendor RIL can use any protocol to

communicate with the radio. Android has a

reference Vendor RIL, using the Hayes AT

command set, that can be used as a quick start for

telephony testing and a guide for commercial vendor

RILs (Android, 2011b). This suggests the possibility

to take advantage of these libraries to communicate

high level APIs with a TETRA radio. Android itself

locates the source code for the reference RIL at

/commands/reference-ril.

This approach is preferable to writing code in

kernel mode, because the adaptation of the physical

transport device and a serial signal would need the

creation of a driver, whilst an application-level

solution would be based only on the adaptation of

APIs and the execution of AT commands at user

mode.

6 FUTURE WORK

Established the grounds from which this work

should be undertaken, the following high-level

stages shall be covered to achieve full TETRA

functionality on an Android-operated target device:

First, it is necessary to create a shared library that

implements the set of functions required by Android

to process particular radio requests, in our case,

TETRA-specific ones. The required functions are

defined in the RIL header (/include/telephony/ril.h),

and such library shall be reviewed in sufficient detail

to determine what functions are required, how to

adapt them and finally how to deploy them in a real-

world device. This new RIL should define a handle

to the functions that will process all radio requests,

and particular functions to handle solicited and

unsolicited commands.

The next step is to perform a thorough review on

current APIs delivered by Android to suit GSM

operations. As mentioned above, our goal is to

determine the feasibility and effectiveness to use

them to meet TETRA requirements, and then

perform the necessary changes or development to

deliver a suite of Android APIs that truly allow an

Android device to interact with a TETRA network,

starting from text messaging (SDS). This stage will

represent a major endeavor that will require the

design and implementation of efficient methods,

able to interact both with the RIL and with high-

level user applications. Currently we are reviewing

different strategies to achieve this goal in the most

appropriate fashion.

Though Android permits full interaction with

Java, we acknowledge that other programming

languages (e.g. C or C++) facilitate hardware and

low-level interfacing. Due to this, it is our goal to

explore the possibility of writing or baselining the

necessary functions using native C code, considering

the possibilities that the Android Native Developer

Kit (NDK) gives.

Writing or re-utilizing C code should not

introduce conflicts with the rest of the Android

environment. Applications written in native code are

still packaged into the usual Android .apk file and

they still run inside of the virtual machine on the

device, leaving the fundamental Android application

model untouched (Android, 2011c). The use of

Android NDK will enable the development effort to

manage the device in an adequate level of detail

beyond the limit of the common framework

(Sangchul and Jeon, 2010).

Currently, we have exercised different examples

on how C code can be written and called by regular

Android applications as native methods. Results

have been positive in methods that return values,

arrays and simple objects. For interaction with

complex objects, the use of aid tools like SWIG may

be advisable. In the same sense of the performance

tests described by Sangchul and Jeon (2010), our

observations have been as well substantially

favorable to native C code when comparing its

execution time with identical methods written in

Java.

7 CONCLUSIONS

The main contribution of this paper is to provide a

background on how Android framework can be

modified in a way to allow it to interact with

services from different communication standards,

additional to GMS or CDMA. Although significant

effort is yet to come, essential information may be

taken from this paper to set a projection in the

forthcoming work:

 Differences between GSM and TETRA are

located chiefly in physical and transport

layers. This proposes that software layers may

deal with different sorts of packages delivered

by radio hardware.

 Android offers different abstraction levels to

interface with the context of telephony system

architecture, including RIL, a radio agnostic

layer that may work with all frequency ranges

MANAGING TETRA CHANNEL COMMUNICATIONS IN ANDROID

311

that the radio can receive. This RIL interfaces

with telephone APIs and libraries within user

space. Vendor RIL can be modified or

replaced to implement a radio-specific RIL, in

this case, a TETRA-specific one.

 Thanks to the RIL abstraction layer, it is

visualized that no kernel programming would

be required but the design and implementation

of a TETRA-specific RIL library at Android's

user space level, capable to work with APIs

that suit specific needs required by TETRA.

 This recommends in consequence undertaking

the effort of creating the RIL that implements

the functions required by Android to process

TETRA radio requests, and re-using and

tailoring android.telephony APIs to satisfy the

requirements set by the new RIL library. We

foresee the use of Java, as well as the

inclusion of native C code as a convenient tool

to incorporate functionality related to low-

level operations.

Our goal is to provide functionality in fundamental

services such as text messaging interchange. At this

point it is not yet possible, though, to assure that all

functionality and enhanced features provided by

TETRA (encryption, direct mode operation, etc.) can

be supported only by adapting basic telephone and

messaging Android APIs.

REFERENCES

Android 2.3 Release Documentation (2011). Android

Package Summary: android.telephony. Retrieved

February 8, 2011, from http://developer.android.com

/reference/packages.html.

Android 2.3 Release Documentation (2011). Android

Radio Layer Interface. Retrieved February 8th, 2011,

from http://source.android.com/porting/telephony.html

Android 2.3 Release Documentation (2011). Android

Native Development Kit. Retrieved February 8th,

2011, from http://developer.android.com/sdk/ndk.

Ascom. Retrieved February 8th, 2011 from http://

www.ascom.com/en/tetra-article.pdf.

Axiotis, D. I., Xenikos, D. (2007). On the effects of short

data service-transport layer message length in QoS

metrics of TETRA networks. Proceedings of the 18th

Annual IEEE International Symposium on Personal,

Indoor and Mobile Radio Communications.

Bakaric, S., Borzic, M., Bratkovic, D., Grga, V. (2005).

TETRA (Terrestrial Trunked Radio) - Technical

Features and Application of Professional

Communication Technologies in Mobile Digital Radio

Networks for Special Purpose Services. Proceedings

of the 47th International Symposium ELMAR-2005.

Bissmeier, R. (2006). High demands on cellular networks-

High demands on Surge Protective Devices.

Proceedings of the 28th Annual International

Telecommunications Energy Conference.

ET Industries. (n.d.). Introduction to TETRA Technology.

Retrieved February 8th, 2011, from http://www.eti

world.com/tetra.pdf.

Korpilahti, T. (2010). TETRA Data Applications. TETRA

Moving Forward in Indonesia. Jakarta 2010.

Retrieved February 8th, 2011, from http://www.

tetramou.com.

Mikulic, M., Modlic, B. (2008) General System

Architecture of TETRA Network for Public Safety

Services. Proceedings of the 50th International

Symposium ELMAR-2008.

February 8th, 2011, from http://www.nokia.com

/NOKIA_COM_1/About_Nokia/Press/White_Papers/

pdf_files/tetraquickguide.pdf.

Nordman, M. et al. (2001). TETRA radio in Monitoring

and Control of Secondary Substations. Proceedings of

the 2001 Developments in Power System Protection

Conference.

Ozimek, I., Gorazd, K. (2002). SCADA System Using

TETRA Communication Network. Proceedings of the

6th WSEAS International Multiconference on Circuits,

Systems, Communications and Computers.

Pasquali, F. (2007). The TETRA Business Case. TETRA

today in Turkey. Retrieved February 8th, 2011, from

http://www.tetramou.com/tetramou.aspx?id=4208

TETRA MoU.

Ponomarenko A., Rubanov. V. (2010). Automated

Verification of Shared Libraries for Backward Binary

Compatibility. Second International Conference on

Advances in System Testing and Validation Lifecycle.

Sangchul L., Jeon, J. W. (2010). Evaluating Performance

of Android Platform Using Native C for Embedded

Systems. 2010 International Conference on Control,

Automation and Systems.

Santi, A., Guidi, M., Ricci, A. (2010). Exploiting Agent-

Oriented Programming for Developing Android

Applications. Undicesimo Workshop Nazionale "Dagli

Oggetti agli Agenti". WOA 2010.

Swan, D. (2006). Comparing TETRA with other

Technologies. TETRA Experience Dubai 2006.

Retrieved February 8th, 2011, from http://www.

tetramou.com.

TETRA (Terrestrial Trunked Radio) Memorandum of

TETRA MoU Association Ltd. Retrieved February

8th, 2011 from http://www.tetramou.com.

Third Generation Partnership Project. (2010). TS 23.040

V9.3.0: Technical realization of the Short Message

Partners. 2010.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

312
