ANALYSIS OF REQUIREMENT CAPTURE BASED ON UML

Tao Ni, Zhenji Zhang

School of Economics and Management, Beijing Jiaotong University, Haidian District, Beijing 100044, China

Yue Yin

School of Economics and Management, Beijing Jiaotong University, Haidian District, Beijing, 100044, China

Keywords: Management information system, UML, Purchasing management, Capture demand.

Abstract: Unified modeling language UML is a visualized modeling language of current object-oriented areas. Many

enterprise information system developers concern how to apply this technique to the development of

enterprise information management system. The capture demand in UML is the first stage of system

development. Its purpose is to find the real demand and suitable for user, the customer and developers,

which is the way to the success of the demand for development system determines. Purchasing management

system is a very important part of the enterprise information management system. In order to solve most of

enterprise information system development and maintenance problems, this paper uses cases prototype

model, combines started software expatiates on how to use UML to purchasing management system of

capture demand analysis based on purchasing management system as example.

1 INTRODUCTION

Capture demand is the first and important stage of

management information system development.

According to statistics of authoritative department,

at present success rate of software is about 25 per

cent, 75percent of the software was a failure. In this

75 percent of failure, about more than 50 percent of

the software is caused by demand reason. Because

any system will have a lot of users and each user just

know how to use the system themselves and

therefore they cannot treat tectonic system to have

accurate, detailed and comprehensive understanding

and description. While listening to the user's demand

personnel, there inevitably will be described in

different understanding, it often has difference in the

demand staff grasps and the actual demand. If this

gap was not discovered during the development

phase or later, the system inevitable meets influence

of failure. So the role of the appropriate

requirements elicitation and analysis method of

system success or failure played cannot be taken

lightly.

So far, there are two capture demand

method,interface prototype model and use case

prototype method (Junwei Li, 2010). According to

the software system needs, interface prototype

model produces interface prototype of software

system. Users can perceptual aware future system

function, interface style and operation mode. Thus

ther rapidly judge whether system in line meet their

own expectations and whether it can meet the needs

of their own work. Through the completed function

of the interface, The analyst get further functional

requirements by using interface prototype and

induce user modify his ideal system, put forward

new demands, and so that user can obtain more

complete, more correct demand.

2 OVERVIEW OF CASES

PROTOTYPE MODEL

In 1992, Ival Jacobson proposed OOSE (Object

Oriented Software Engineering) method (Ival

Jacobson, 1999). The biggest characteristic is to face

cases (Use-Case), and it introduces concept of

participants (Actor). Now, use cases as an effective

way of obtaining business process and system

function demand has got the generally accepted in

the development process use-case. Modeling became

requirement definition and analysis method of

313

Ni T., Zhang Z. and Yin Y..

ANALYSIS OF REQUIREMENT CAPTURE BASED ON UML.

DOI: 10.5220/0003544903130317

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 313-317

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Unified Modeling Language (UML) system. Cases

are the description of a set of actions sequences (and

its variants). System produces observation value for

participants by implementing this action sequences.

Action series expressed interaction of system outside

things and system itself. Participants’ valuable

results value is behaved for users' goals. In essence,

purpose of use-case modeling is to describe system

performance with behavior user's perspective. Cases

for domain experts, final users and developers

provide a communication tool, provide developers

with a kind of cognition and understanding of

elements (like system, subsystem or class) method,

also test each element of the basic during evolution

and development (Shuwei Hu, Xiuru Zhang, 2008).

So, to seek definition and use cases in software

development is very important. However, due to the

limitations of use case itself, misuse of concrete

operation cases, often makes no correct capture

system demand, causing unreason of the system of

object structure design, which affects good

performance of the system function and the

realization.

Based on the theory, purchasing management system

of capture demand prototype workflow is defined

below:

1 Enumerate the candidate needs;

2 Understand the context of the system

(environment);

3 Capture functional requirements;

4 Capture non-functional requirements.

3 DEMAND CAPTURE OF

PURCHASING MANAGEMENT

SYSTEM

Purchasing management system helps purchasing

personnel control and finish all process of

purchasing material from purchasing plan and

purchasing application, purchase order to delivery

receipt and inspection of incoming(Yuhua Zhang,

2009). It can effectively monitor the implementation

of the purchasing plan, procurement cost change and

supplier delivery performance which helps

purchasing personnel select the best suppliers and

procurement strategies to ensure purchasing high

quality, high efficient and low cost of performance,

which makes the enterprise keep best supply

condition.

3.1 Enumerating the Candidate Needs

In the cycle of the system life, the customer, users

and developers will put forward many good ideas,

what can become the real demand; These ideas can

be kept as a series of candidate list of demand, what

may be chosen to be implemented in the future

system version. Combined with examples, software

developers know the main function of the realization

of the purchasing system below after communicating

with the users.

Entry of Requisitions

It is automatically affronted from the warehouse

management system. Warehouse management

system can judge every stock order point (minimum

reserves). Once the inventory quantity is less than or

equal to order point ， Warehouse management

system will automatically generate requisitions made.

2. Making Purchase Plan

Procurement department examine and verify

requisitions callouted by professional staff.

According to request of requisitions, purchasing

managers Choose reasonable price, credit good

suppliers, formulate purchase orders and deposit

purchase orders files from the supplier file and

inventory quotation. Procurement price is generally

maintained by two methods. One is that the supplier

is firstly chosen, and then revise all inventory

quotation given by supplier provides. Two is that

inventory is chosen firstly, then revise quoted price

supplied by all the available stock. At the same time

the purchase is optimized, purchasing orders are

created.

3. Receiving Management

According to purchase orders or other forms of

receiving, arrival notice is formed. Receiving

member put materials into the product quality status,

issue receipt after warden qualified examination.

With resumption of material, storekeepers then

dump the goods and put the goods into the available

inventory.

4. Invoice Handling and Procurement Settlement

When the purchasing department or the accounting

department received the supplier invoice, the invoice

is entry computer. According to purchasing order

number purchase order number systems selects

invoices associated with the data verification from

purchase orders and the storage subsystem, complete

of the procurement settlement, and generate

statements.

5. Payable Management

Procurement receives supplier’s purchase invoices,

and verify whether invoice match the requirements.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

314

Invoices which do not match the requirements are

returned to the suppliers to re-open.

Purchase

invoices which meet the requirements, are submitted

to financial payment. Purchasing department

submits financial payment after approving the

adoption of payment requests.

6. Inquiring Statistics

It is the realization of all purchase requisitions or

purchase orders Subtotals query, the completion of

the procurement plan, the statement of arrival.

3.2 Understanding the System Context

and Capturing System Functional

Requirements

3.2.1 Understanding the Context

Generally speaking, cases can be divided into two

categories: business cases and system cases. But

they are not precisely defined.

The so-called

business case refers to interactions about business

functions provided by the system's and actor’s

activities, the links between the various entities and

business activities in the performance problem areas.

Business cases are used to establish business use

case model in the field of problem. System cases

refer to interactions between activists and system,

performing the system function requirements and

dynamic behavior. System cases are used to

establish use case models of system. Each business

case is supported by a set of system cases. In the

initial phase of system development, developers

should focus on business cases.

Business modeling is the main method of

expressing system context. Its context detail

business process supported by the system. In

addition to the business object involved by

determined business. Business model confirms staff

for each process, whose responsibility and the

operation they will carry out.

First, business use case model is established to

confirm the business cases used by business

participants and actor. Business use case diagram of

purchasing management system is below:

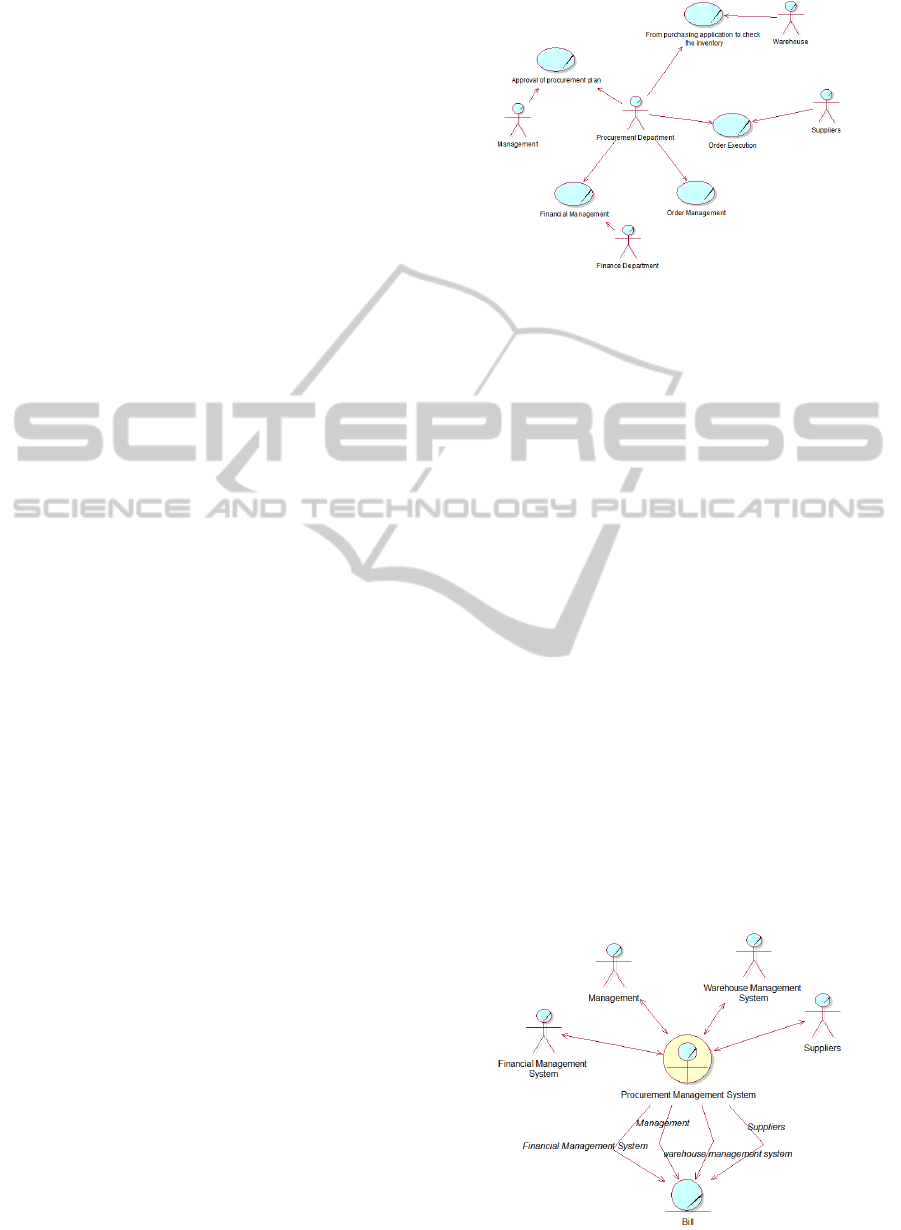

Figure1: Business use cases.

There are 5 participants: procurement department,

management, financial department, warehouse,

suppliers and 5 the business use cases,

From purchasing application to check the inventory:

Warehouse issued a purchase requisition to the

purchasing department and after the arrival of the

goods inspects and stores them.

Order management: purchasing department makes

purchasing plan, creates purchasing order, tracks and

enquiries and maintains order etc.

Approval of purchasing plan: purchasing department

will develop a procurement plan to management for

approval, only the implements it after it is passed.

Order Executive: procurement department informs

supplier shipments.

Financial management: purchasing and financial

department make financial balance sheets, and

generate a variety of invoice.

Then business object model is established, including

the staff and a business entity, who are combined

together to realize the same business cases.

Business object model is business internal model,

describing how a group of staff use some business

entity realize business cases. Diagram of business

objects of purchasing management system shows

below,

Figure 2: Business objects.

ANALYSIS OF REQUIREMENT CAPTURE BASED ON UML

315

The figure shows that business case exists between

financial management systems, management,

warehouse management systems supply businesses

and the procurement management system which are

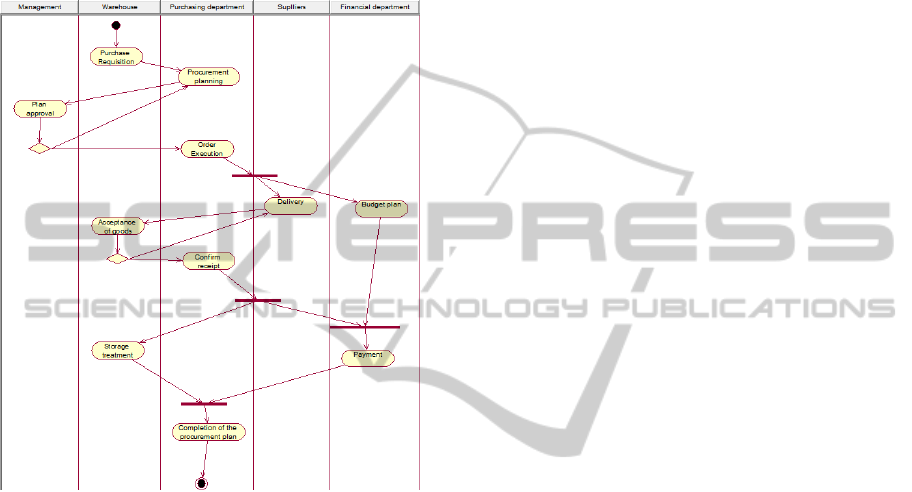

Interacted by the entity of bills. Finally activity

diagram is established to explain realization of

business use cases. Purchasing management system

activity diagrams is shown below:

Figure 3: Activity diagram.

Graph describes a process of procurement activity

from beginning to end. The warehouse issues

purchase requisitions on purchasing department.

According to purchase requisition and database

information, procurement department make a

procurement plan and to give it to the management

to review. If it’s passed, supplier is informed of

delivery and financial department is reminded of the

financial budget at the same time. After receiving

the goods, warehouse conduct its quality inspect,

when passing inspect, warehouse feedback the goods

information to the purchasing department. After

checking information, purchasing department

notifies warehouse to storage and informs financial

department of payment. Finally procurement

department will summarize all bills.

3.2.2 Capturing Functional Requirements

According to above the third figures, we can easily

capture the topmost functional requirements of

purchasing management system. Major roles

involves in the system are system administrators

who is in charge of system management,

Procurement department who is Responsible for

purchasing plan formulation, implementation and

order management etc., warehouse department who

is responsible for issuing purchasing requisitions and

check and store goods, financial departments who is

responsible for the financial budget and accounts

payable settlement, management who is responsible

for purchasing plan review, suppliers who are

responsible for providing purchasing department the

needed goods.

3.3 Capturing Non-functional

Requirements

A non-functional requirement is a kind of such

demand that it is to solve the problem how to make

this system can work in practical environments. Of

course to meet the functional requirements is very

important in the process of design solutions. But, if

not non-functional requirements are considered, the

solution is difficult to obtain actual effect. For

customers may not be even unable to use the system

function. Many non-functional requirements will be

generally carefully designed and implemented at the

bottom of foundation technology platform. The non-

functional requirements which this paper presents

the design of purchasing management system is

below:

1. Constraints

For environment application are quite different, it

requires the system has a good mobility which can

be able to adapt to Win7, Windows XP, Vista,

Windows2000 server environment, etc., Server2000

and server2003 and other web servers, databases

meet requirements of Oracle and Sqlserver2005.

2. Runtime Quality Attributes

(l) high-performance, response time requirements:

Purchase Order Entry: less than 5 seconds;

Purchase Order small: in 5 seconds;

Single payment order system: less than 5 seconds;

Purchase invoice billing: less than 5 seconds;

Purchase receipt (see order): less than 5 seconds;

Single payment account: less than 5 seconds;

Purchase invoices (see receipt): less than 5 seconds;

Analysis of response time: less than 5 seconds;

Failure transaction rate: less than three per cent.

(2) Requires a system with better ease of use, mainly

easy to use in the data permissions to avoid

cumbersome. The screen has rational layout, making

full use of screen space to reduce the number of user

errors. Page should have a unified style, avoiding the

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

316

user interfacing styles for different times.

3. Attributes of development quality

(1) It requires minimizing the number of connecting

to the database, the number of rows each time to

read, the number of rows each time to write into the

database. Data optimized to achieve the optimal

level of general. It also requires avoiding full table

query, try to use the index to reduce the update

transactions. When the program is running, because

of a lot of system modules, there are a large number

of objects cannot be released, while the continuous

new objects generate. When the object is greater

than the required number of system memory free

memory, it will surely come up a lot of memory

overflow error. It requires avoiding large objects

which is more than 10M, while the effective

decomposition of large objects should be done.

4 CONCLUSIONS

Purchasing management system development is

complicated system engineering and is also an

important part of the enterprise management system.

At the stage of capturing demand analysis, in order

to satisfy the needs of our clients and improve

software expansibility and flexibility, object-

oriented method of developing is used. At the same

time with using UML language, under the guidance

of the prototype model, developers describe the

combined business-related use case diagram,

business object diagrams and activity diagrams with

ROSE software. The acquisition needs proposed by

this paper provides the foundation and framework

for the development for the next procurement

management system.

REFERENCES

Junwei Li, 2010. Requirement of Eliciting Software and

Requirement Analysis Method Research, Journal of

Chengde Teachers ’College for Nationalities.

Shuwei Hu, Xiuru Zhang, 2008. Eliciting Software

Requirement by Use Case Analysis Method,

Sciencepaper Online.

Yuhua Zhang, 2009. An Enterprise Purchase Management

System Analysis and Design Based on UML,

Computer Knowledge and Technology.

Ival Jacobson, 1999.The Unified Software Development

Process, Pearson. America, 1

edition.

ANALYSIS OF REQUIREMENT CAPTURE BASED ON UML

317
