SPECIFICATION-BASED AUTOMATED GUI TESTING

Andreas S. Andreou, Anastasis Sofokleous

Department of Electrical Engineering and Information Technology, Cyprus University of Technology, Limassol, Cyprus

Charis Panayi

Department of Computer Science, University of Cyprus, Nicosia, Cyprus

Keywords: GUI testing, Specification- based testing, Automatic test-case generation.

Abstract: GUI testing is currently one of the most expensive and time consuming processes in the software life-cycle

and according to some estimates this cost can reach up to 50 to 70% of the whole cost of the project. This

paper proposes a framework for specification-based automated GUI testing which employs a GUI analyzer

for dynamic analysis and extraction of GUI object information, a system for automatic test case generation

driven by Spec#, a test-case execution algorithm that executes test-cases automatically and a verifier that

compares the expected with the actual result of the test. Preliminary experimental results demonstrate the

efficiency and effectiveness of the framework.

1 INTRODUCTION

This work proposes an automatic GUI testing

framework based on black box testing. The

framework comprises a set of specialized parts: A

GUI analyzer, a way to describe software

specifications using a new modelling language

called Spec#, a test-case generation system, a test-

case execution system and test oracles.

The main contributions of this paper are three.

The first is that it proposes a complete testing

framework which performs all testing tasks

automatically. This includes not only dynamic GUI

analysis but also automatic test-case generation,

execution and verification. The second contribution

is that it demonstrates a relatively novel approach

which uses specifications to generate the test oracles

by executing them under a specified test string, thus

generating the test-case and the corresponding

expected result of the test quickly and accurately.

The final contribution is that it utilizes a

combination of libraries found in Ranorex® Studio,

which allow the interaction with the AUT, and a

specially designed algorithm that automates the run-

time execution of the test-cases.

The rest of this paper is organized as follows:

Section 2 presents other related approaches and

compares their results and findings. Section 3

describes the proposed testing framework. Section 4

evaluates the present work and provides some

experimental results. Finally, Section 5 concludes

the paper and suggests some steps of future work.

2 BACKROUND AND RELATED

RESEARCH

There are various techniques that were used over the

years for automating the GUI testing process. One of

the earlier techniques that tried to automate this

process was record / playback (Li and Wu, 2004).

This technique has two modes. In the first mode, the

tester’s interactions on the AUT are recorded as

mouse coordinates and then are played back in the

form of test cases (second mode). This technique has

several flaws, the most severe of which is that in

case the GUI has the tiniest change, the test cases

will break. This has been later solved by replacing

the record technique with the capture technique.

This technique, instead of recording mouse

coordinates, it captures GUI widgets and therefore

solves the aforementioned problem.

In both of the above cases the vendors of these

tools claim that their products automate the GUI

testing procedure. In reality, the record (or capture) /

playback technique is not automatic. It requires a lot

318

S. Andreou A., Sofokleous A. and Panayi C..

SPECIFICATION-BASED AUTOMATED GUI TESTING.

DOI: 10.5220/0003548103180323

In Proceedings of the 13th International Conference on Enterprise Information Systems (ICEIS-2011), pages 318-323

ISBN: 978-989-8425-55-3

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

of manual efforts by the tester since the test cases

are manually created and, moreover, the testers are

continuously interrupted by these tools so as to

insert verification checkpoints.

Paiva et al. (2005) present an extension of

SpecExplorer® that adds the ability to (i) gather

information about the GUI objects and (ii) generate

a .NET assembly which facilitates simulation of user

actions. In our approach, we have employed libraries

available in the Ranorex® Studio (Ranorex, 2009)

that enabled us to simulate user actions, such as

mouse clicks, on the AUT. In Barnett et al. (2003)

the authors propose an environment for model based

testing with AsmL (Abstract State Machine

Language) that supports semi – automatic parameter

generation, call sequence generation and

conformance testing. In their approach, AsmL is

used for the generation of Finite State Machines by

exploring the state space of the AUT. A technique to

collect information about GUI objects can be found

in (Memon et al., 2003), which utilizes reverse

engineering techniques to obtain GUI object

information. The authors here developed a tool

called GUI Ripper, which incorporates a dynamic

process that automatically traverses the GUI of the

AUT by opening all of its windows and then

extracting the information about each GUI object. In

our approach, a similar ready-made tool has been

utilized in order to obtain the necessary GUI object

information. This tool is called Ranorex® Spy, and

it dynamically extracts all visible GUI information.

Memon et al. (2005) present a framework based on a

GUI Ripper called DART, which automates the

tasks needed in order to perform smoke tests. The

authors make use of event flow graphs in order to

represent GUI components and an integration tree to

identify interactions among components. The tool

presented is not fully automated as it needs testers’

interaction to verify and modify the structure of the

GUI as it is presented by the GUI Ripper, as well as

to define a matrix for the test cases length that are to

be executed. In, an approach is described where

planning techniques from Artificial Intelligence are

exploited in order to generate test cases for GUI

systems as sequences of events. A different

approach for the generation of test cases can be

found in (Briand and Labiche, 2002). In this paper

the authors discuss the use of UML diagrams for

generating test-cases. They support that the

existence of functional system test requirements, and

in particular of use-case diagrams, class diagrams

and collaboration diagrams, is sufficient design

information to generate test cases, test oracles and

test drivers. The same point of view about the use of

UML diagrams to generate test cases is shared in

(Kim et al., 1999). In this paper the authors present

another technique for the generation of test cases out

of UML diagrams. According to their study, control

flow can be identified by transforming UML state

diagrams into EFSMs (Extended Finite State

Machines) and data flow can be identified by

transforming these EFSMs into flow graphs. Finally,

they use these flow graphs to generate test cases.

Nevertheless, they do not support their arguments

with an automated environment as a proof of

concept. In (Edwards, 2001) a general strategy for

automated black box testing is presented, where a

specification language called RESOLVE is used

with pre- and post-conditions attempting to describe

sufficiently the AUTs’ behavior. In (Tahat et al.,

2001) a conversion of SDL (Specification and

Description Language) into an EFSM model is

described, where the latter becomes input to a black

box test generator. In (Krichen and Tripakis, 2004) a

testing framework based on timed automata for

conformance testing is proposed, where the authors

assume that the specifications of the AUT are given

as non-blocking TAIO (Timed Automata with Input

– Output) in order to avoid on the fly reachability

computation, thus reducing the reaction time of the

test. The work of Offutt et al. (2003) presents

formal testing criteria for system level testing based

on formal specifications as part of a case study to

evaluate their ability to detect seeded faults. To

achieve high coverage the authors employ the full

predicate coverage criterion.

3 FRAMEWORK LAYOUT

The proposed framework consists of five parts

(Figure 1).

The first part is essentially a combination of the

Ranorex® Spy tool and a custom XML Parser. The

former provides the functionality required to

dynamically analyze the AUT’s GUI objects, extract

this information and export it to a single XML file,

whereas the latter serves two purposes. Firstly, it is

responsible to present this information to the

user/tester in a comprehensible manner. The

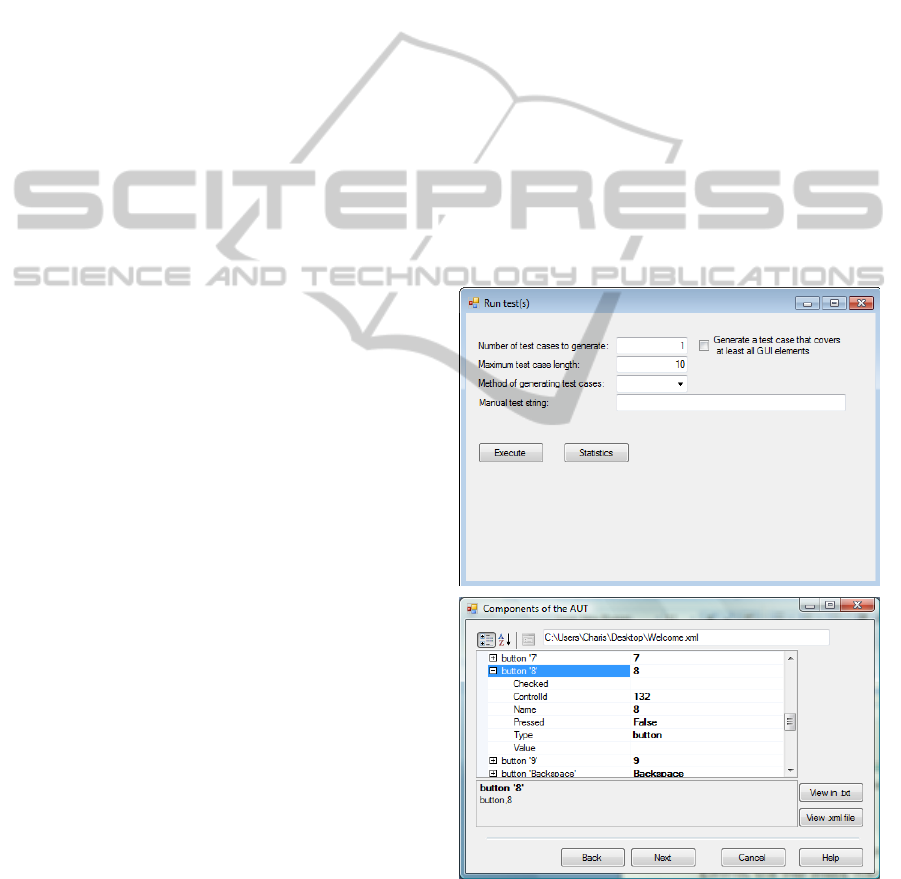

proposed system presents the information extracted

by the XML Parser through a property grid, which is

extremely helpful since, this way the user/tester can

search and find the required information easily.

Secondly, the XML Parser is responsible to convert

the GUI object information in a certain form, so that

the model described in the specifications can be

easily and automatically initialized in order to have

SPECIFICATION-BASED AUTOMATED GUI TESTING

319

the exact same initial state as the actual application

under testing.

The second part of the proposed framework

consists of the AUT’s specifications. The

specifications are written using a new modelling

language called Spec#. Spec# is a product of

Microsoft® Research and is influenced by the

programming languages C# and Eiffel, and includes,

among others, object invariants, pre-conditions and

post-conditions. The basic characteristic that

advocates in favour of the use of Spec# is the fact

that the specifications described by this language are

executable. In order for the components of the model

and the AUT to have the same state when executing

the specifications, the system initializes the

modelled GUI objects to the same information that

these objects have on the actual application. This is

performed by automatically feeding each modelled

object with the characteristics of the equivalent

object of the AUT.

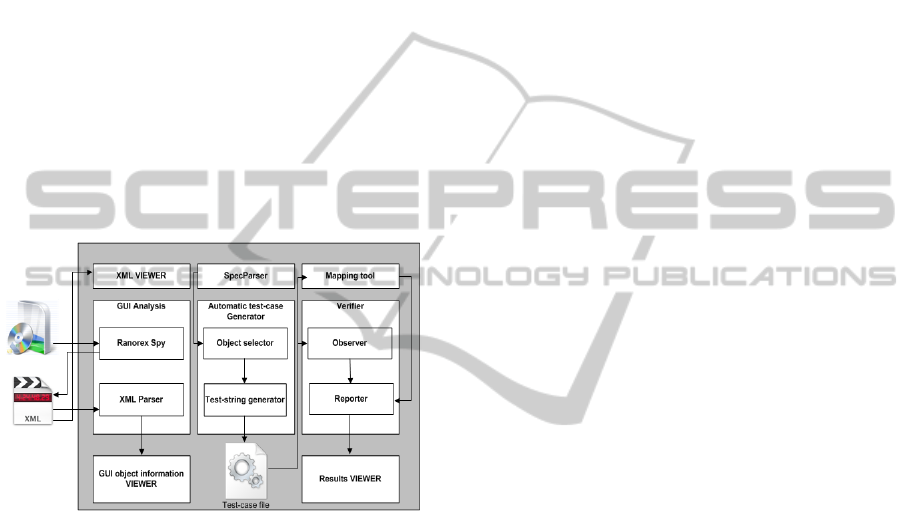

Figure 1: The architecture of the proposed framework

The third part concerns a novel test case

generation process and it is one of the novelties of

the present paper. The test-cases are in fact

generated through the specifications, thus enabling

the test suite to serve as a test oracle as well. In order

to do that, the system parses the specification’s

model and identifies the names of the GUI objects

that are described therein. It then generates a list of

objects, i.e. the GUI objects of our AUT, from which

the user/tester can make a selection of the GUI

objects she/he wants to perform tests on. The

framework here supports the selection of the whole

set of objects from the list generated, or a smaller

subset. Our framework then uses a random selection

algorithm by which GUI objects that are described

in the specifications are randomly selected from the

aforementioned list of objects to generate test-

strings. The latter correspond to sequences of user

driven GUI events. For efficiency purposes, we have

introduced two selection criteria to the framework:

1) a user-defined number of GUI objects that is

selected for testing and 2) all GUI objects that are

present in the GUI are selected for testing at least

once. A sequence of GUI objects (test-string) is

transformed to test-cases as a set of pre-conditions,

actions and post-conditions. To this end, slight

modifications to the specifications model must take

place beforehand. These modifications are actually

print statements, in order to print the states of the

modelled GUI objects to a file before and after a

certain action.

The fourth part is the Mapping tool which

simulates user actions on the AUT without any user

intervention’. The Mapping tool parses the test-cases

and identifies therein the steps of the test to be

performed. As already mentioned in the previous

paragraph, the test-case file is consisted by GUI

events or steps, each of which comprises a triad of

pre-conditions, actions and post-conditions. Next, a

dedicated mapping algorithm is invoked to automate

the AUT’s testing procedure. Basically, this

algorithm reads through the test-case file, recognizes

and then executes the steps mentioned above. More

specifically, when the algorithm recognizes a pre-

condition or a post-condition, it acquires the state of

the AUT. When it recognizes an action (or a

sequence of actions), the algorithm searches for the

GUI object, finds it on the AUT and then executes

the specified action (or actions) directly on the

actual AUT. A simple example of a GUI event (or

step) can be described in a test-case as follows:

[Pre-Conditions]

button1.Pressed = False;

[Actions]

button1.Pressed = True;

[Post-Conditions]

text2.Value = “Hello World”;

button1.Pressed = False;

At first (pre-condition), the algorithm will search in

the AUT for the GUI object with Control_Id =1,

which is a button, and then it will acquire the

Pressed value of the said object (which should be

equal to “False”). Then (action), the algorithm will

make the Pressed (initial) value of the button equal

to “True” (button pressed). Finally (post-conditions),

the algorithm will acquire the state of the GUI,

which must be equal to “True”. In this example, by

pressing button1, the message “Hello World” is

displayed in the textbox with Control_Id = 2.

The final part of the framework is basically a

validation module that works in close co-operation

with the Mapping Tool. The purpose of this module

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

320

is to validate the results given by the AUT in

comparison with the results given by the test oracle.

Since the test-cases include the expected result, the

actual execution of the test cases by the Mapping

tool will provide the means for conductive

comparative assessment. At this point, the module

will compare the two results (expected and actual)

and will present to the user/tester its findings, i.e. the

information needed to enable the user/tester to verify

the AUT’s compliance with its specifications. The

results are presented in a comprehensible manner so

that the user/tester may easily identify any

inconsistency between the AUT and its

specification. More specifically, the tool reports

each interaction our system performs on the AUT,

starting from its execution up to its termination, and

includes the names of all GUI objects it interacts

with, the type of the interaction as well as the actual

state and the state defined in the test-cases for every

GUI object tested. While performing validation, our

tool highlights in green every correct behaviour of

the AUT and in red every incorrect behaviour, thus

making the presentation of the results more user

friendly.

4 EVALUATION

A proof of concept application was developed to

support the experimental process (see Figure 2),

which is organized as a test wizard, including the

following steps:

1. Selection of the software system to be tested.

2. Selection between executing the Ranorex® Spy

tool to generate the XML snapshot of the AUT

and loading of a stored XML file.

3. Presentation of information related to the GUI

objects participating in the AUT.

4. Definition of the system specifications.

5. Selection of the GUI objects to be tested (all or

a smaller subset).

6. Tuning of the parameters of the test. The user

can specify the number of test cases to be

generated, the test case length and the method

of generating test cases (random or manual)

The manual method of test-case generation is

used only for regression testing, in order for

the user/tester to be able to reconstruct a test,

after modifications to the source code of the

AUT have taken place.

7. Execution of the test(s).

The experiments were divided into two sets. The

first set of which aimed at determining, primarily

whether our framework is able to perform automated

GUI testing. The second set attempted to assess its

effectiveness on widely-known, real-case

applications. The former used the sample application

(no functionality) and SpeedSim (small

functionality), while the latter involved assessing the

framework on the Calculator application offered in

Windows. The results of the experiments of the third

application showed that the proposed framework is

able to interact efficiently with the AUT and

achieves automation of the GUI testing process and

can detect all the GUI objects that constituted the

application. The SpeedSim application was used to

specify the GUI objects to be tested and hence to

actually model, maintaining the ability to compare

the actual with the expected response. In this set of

experiments, specifications were modified to be

different from the actual implementation; the results

of the test revealed that the behaviour of GUI objects

model did not completely match that of the GUI

objects in the actual AUT, thus suggesting a

discrepancy between the prescribed (desired) and the

actual functionality.

Figure 2: Screenshots of the supporting software

application.

As shown in Figure 3, the framework was able to

receive feedback from the AUT and therefore detect

the inconsistencies between the actual and the

SPECIFICATION-BASED AUTOMATED GUI TESTING

321

expected result after the simulation of GUI events;

the tester is able to examine the sequence of events

that took place and be informed about the errors that

were identified during the actual execution of GUI

events. For example, as shown in Figure 3, one may

observe that when button “Å” was pressed, the

AUT’s textbox1235 returned a false value, i.e. it

should have returned a “0” instead of a “1”,

something which was captured by the framework

and was indicated with a red highlighted error result

describing the GUI object involved, the actual and

the expected values.

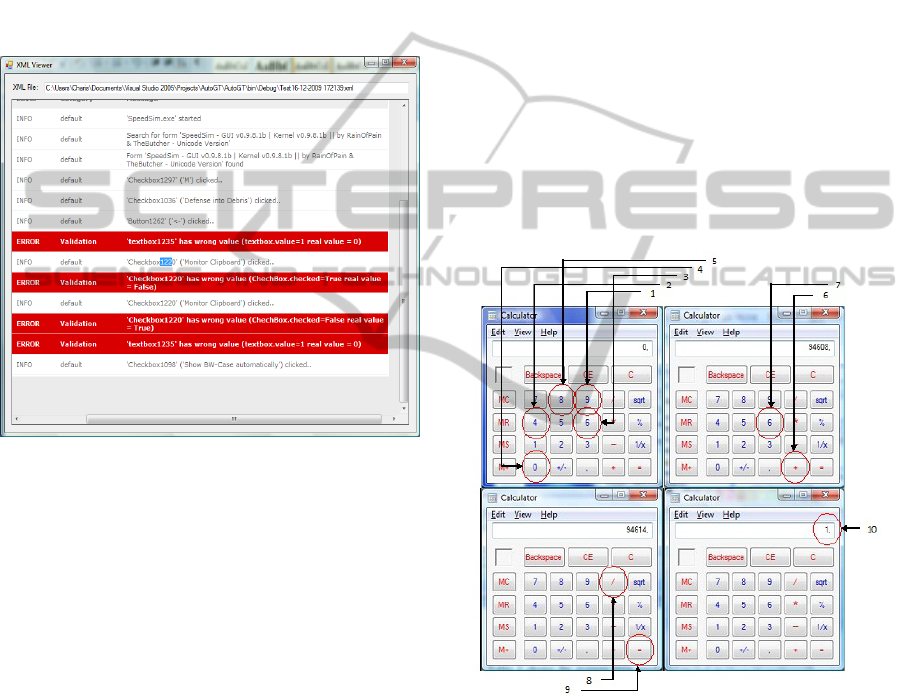

Figure 3: Results of the Speedsim test.

The first set of experiments it shows that the

proposed framework in principle works successfully,

has been achieved. the second part of the

experiments was conducted by testing the well-

known Microsoft® Calculator application and more

specifically through modelling of the specifications

for the buttons representing “0”-“9”, “+”, “-“, “*”,

“/” and “=”. The purpose of this experiment was to

observe the efficiency of the framework in relation

to the functionality complexity and the

specifications complexity. Approximately 200

different tests were performed on the system using

the Calculator application and in each test the

system generated various test-strings of different

lengths and for a different selection of GUI objects.

To facilitate this, we used various configurations of

our system parameters, that is, different test cases,

different size of test-cases and different GUI object

selection methods. These tests suggested that our

framework is highly capable of detecting both

correct and faulty execution. Observations made on

the results showed that correct behaviour was

observed while the equations were in the form

)

and incorrect behaviour was observed while

the equations were in the form (x

)

(“

” denoting

repetition) where:

∈

∀

, N = {‘0’, ‘1’, ‘2’, ‘3’, ‘4’, ‘5’, ‘6’, ‘7’,

‘8’, ‘9’},

(1)

∈

∀

, O = {‘+’, ‘-‘, ‘*’, ‘/’, ‘=’},

(2)

Through this evaluation, inconsistencies are

detected between specifications and the actual

implementation (Figures 4 and 5) as the

specifications are written for the calculator

application through empirical use and not via any

other type of formal knowledge. Overall, the

experiments conducted showed that the proposed

framework was capable of performing automatic

testing of the Calculator application and that the

actual implementation was indeed different from the

one modelled in some occurrences. Figure 5 shows

the results after simulating a sequence of user events

shown in Figure 4.

Figure 4: Execution of a test on Microsoft Calculator

application.

The sequence of events specified above

produced the final result “1” as displayed by the

arrow 10 in Figure 4. In the generated report (Figure

5) the specifications and the implementation of the

AUT are dissimilar, therefore an ERROR message

in red is presented during the automatic validation

process. A close inspection of the report reveals the

case in which the reported error occurs, that is, when

pressing any operator button (i.e. buttons

representing ‘+’. ‘-‘, ‘*’, ‘/’, ‘=’) more than once,

without the intermediate pressing of numeric buttons

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

322

(i.e. buttons representing ‘0’ – ‘9’), the AUT reacts

differently compared to what it should have reacted

according to its specifications. Therefore, the

Verification module of our framework detected the

difference between the modelled and the actual

implementation and reported it correctly.

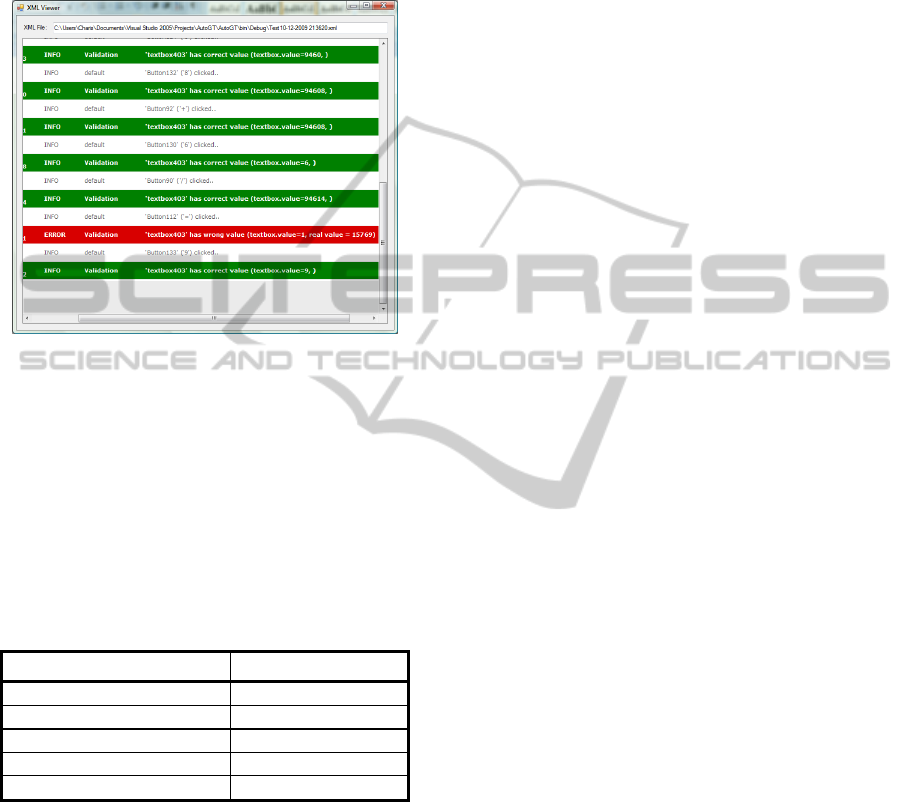

Figure 5: Results of the Microsoft Calculator test.

Table 1 shows the average time needed to

perform the tests on the Microsoft® Calculator

application. These results clearly indicate the vast

increase of time when increasing the length of the

test case. The time limitations are posed by the

libraries of the Ranorex® Studio system, therefore

these limitations currently cannot be altered unless

new means that allow the interaction with the GUI

without user interference are brought to light.

Table 1: Experimental measurements of time.

Test case length (GUI events) Average Time (seconds)

5 12.069

10 23.758

15 35.438

20 46.112

50 116.854

5 CONCLUSIONS AND FUTURE

WORK

This paper presented a specification-based,

automatic GUI testing framework. A proof of

concept application has been developed. Two

different sets of tests were executed on the proposed

framework. The first set verified that the proposed

system can automate the GUI testing procedures,

whereas the second demonstrated that efficient

automated GUI testing may be achieved through the

use of specifications, by successfully detecting and

reporting erroneous GUI behaviour during actual

execution. Future research will attempt to automate

the whole process of constructing the specifications

since this is the only manual work that the tester has

to perform.

REFERENCES

Barnett, M., Grieskamp, W., Nachmanson, L., Schulte,

W., Tillmann, N., Veans, M., 2003. Model-Based

Testing with AsmL.NET. In Proceedings of the 1st

European Conference on Model-Driven Software

Engineering.

Briand, L., Labiche, Y., 2002. A UML-based approach to

system testing. Journal of Software and Systems

Modeling, vol. 1, no. 1, pp. 10-42. Springer.

Edwards, S. H., 2001. A framework for practical,

automated black-box testing of component-based

software. Journal of Software Testing, Verification

and Reliability, vol. 11, no. 2, pp. 97-111.

Kim, Y. G., Hong, H. S., Bae, D. H., Cha, S. D., 1999.

Test cases generation from UML state diagrams IEE

Proceedings – Software, vol. 146, no. 4, pp. 187-192.

Krichen, M., Tripakis, S., 2004. Black-box conformance

testing for real-time systems. Journal of Model

Checking Software, pp. 109-126. Springer.

Li, K., Wu, M,. 2004. Effective GUI Test Automation:

Developing an Automated GUI Testing Tool (Chapter

2). Sybex Inc.

Memon, A., Banerjee, I., Nagarajan, A., 2003. GUI

ripping: Reverse Engineering of graphical user

interfaces for testing. In Proceedings of The 10

Working Conference on Reverse Engineering.

Memon, A., Nagarajan, A., Xie, Q., 2005. Automating

regression testing for evolving GUI software. Journal

of Software Maintenance and Evolution: Research and

Practice vol.17, no. 1, pp.27-64.

Memon, A., Pollack, M., Soffa, M., 2001. Hierarchical

GUI test case generation using automated planning.

Journal of IEEE Transactions on Software

Engineering, vol. 27, no. 2, pp. 144-155.

Offutt, J., Liu, S., Abdurazik, A., Ammann, P., 2003.

Generating test data from state-based specifications.

Journal of Software Testing, Verification and

Reliability, vol. 13, no. 1, pp. 25-53. John Wiley &

Sons.

Paiva, A. C. R., Faria, J. C. P., Tillmann, N., Vidal, R. F.

A. M., 2005. A Model-to-implementation Mapping

Tool for Automated Model-based GUI Testing. In

Proceedings of ICFEM'05, Manchester, UK.

Ranorex GmbH, 2009. Ranorex – GUI Automation &

Automated Testing Tool. www.ranorex.com

Tahat, L. H., Bader, A., Vaysburg, B., Korel, B., 2001.

“Requirement-based automated black-box test

generation. In Proceedings of the 25th International

Computer Software and Applications Conference on

Invigorating Software Development, pp. 489-495.

SPECIFICATION-BASED AUTOMATED GUI TESTING

323
