Security Pattern Mining: Systematic Review

and Proposal

Santiago Moral-García

, Santiago Moral-Rubio

and Eduardo Fernández-Medina

Kybele Group, Dep. of Computer Languages and Systems II, University Rey Juan Carlos

Tulipán s/n, 28933, Móstoles, Madrid, Spain

Dep. Logical Security, BBVA, Batanes 3, 28760, Tres Cantos, Madrid, Spain

GSyA Research Group, Dep. of Information Technologies and Systems

University of Castilla-la Mancha, Paseo de la Universidad, 4, Ciudad Real, Spain

Abstract. Organizations have suffered an increase in cyber attacks in recent

years. For this reason, they need to guarantee confidentiality, integrity and

availability of their information assets. To do this, they should seek support

from security architectures. Security patterns are a good way to design security

architectures, but most current security patterns are not applicable to this field.

In a previous work, we defined a new pattern template to support the design of

security architectures. After that work, we realized that it was necessary to

discover and identify new security patterns adapted to this template, in order to

facilitate the work of those security engineers who design architectures. A good

way to discover and identify new patterns is pattern mining; therefore, in this

paper we have carried out a Systematic Review (SR) of security pattern mining.

After performing the SR, we have reached the conclusion that the proposals

analyzed do not fulfill all main requirements to cover our needs. That’s the

reason why we have defined a high-level architecture of a new framework to

discover, design and document security patterns focused on the design of

security architectures.

1 Introduction

Information Security is currently an important discipline in the management of large

organizations, due to the increase in cyber attacks that they have suffered in recent

years [7]. For this reason, the main need of an organization, in terms of security, is to

guarantee the fundamental security properties of their information assets,

understanding security properties as confidentiality, integrity and availability. To do

this, organizations should seek support from security architectures in order to mitigate

the impact of the constant evolution of the organization’s settings [11], and thus

minimize the risks associated with each of them.

The concept of security architecture can be defined as a complete, structured,

coordinated and rigorous design of information systems that supports a business

Moral-García S., Moral-Rubio S. and Fernández-Medina E..

Security Pattern Mining: Systematic Review and Proposal.

DOI: 10.5220/0003558900130024

In Proceedings of the 8th International Workshop on Security in Information Systems (WOSIS-2011), pages 13-24

ISBN: 978-989-8425-61-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

process in order to reduce the risk of confidentiality, integrity and availability when

managing its information assets [16]. Moreover, Security architectures must identify

the security mechanisms that are needed to define the system’s security.

The security mechanisms used in security architectures are artifacts designed to

prevent, detect and respond to information security incidents, in order to manage and

reduce the confidentiality, integrity and availability of business processes information

risks. A security mechanism cannot be used in isolation to protect a business process,

however, a wide set of security mechanisms can reduce security risks when managing

information assets in a business process. Security architecture therefore consists of a

wide set of security mechanisms, which is complete, structured, coordinated and

rigorous [24].

A good way to design security architectures is the use of security patterns, since

they provide solutions to recurring problems related to systems’ security [23].

Another advantage of security patterns is that they include extensive, accumulated

and structured knowledge about security, thus providing guidelines for the

construction and evaluation of secure systems [4].

Previous to this work, we carried out a Systematic Review (SR) of security

patterns and we checked that the number of published security patterns and

classifications of them has increased considerably in recent years [5, 6, 14, 19, 23,

25]. In that work, we discovered that the vast majority of current security patterns are

focused on supporting the construction of new security mechanisms. In other work

[15], we also discovered that most current security patterns are not applicable to the

design of security architectures, since they do not consider organizations’ settings, i.e.

the variation between people, technologies, risks, processes, volumes of information,

business strategies, etc. For this reason, we defined a new pattern template with the

aim of supporting the design of security architectures [13].

Once the template had been developed, we realized that it was necessary to

discover and document security patterns adapted to the new pattern template, in order

to facilitate the work of organizations’ security engineers when designing new

architectures. Pattern mining is a good way to cover this need, since it is a good

discipline to discover and identify patterns [18]. In this paper, we have therefore

carried out a SR of security pattern mining in order to identify sources, frameworks,

methods or methodologies that help us to discover and identify recurring problems

related to systems’ security. In order to ensure that this SR was performed in a

structured and organized manner, we have used the guidelines proposed by [12 and

the review protocol template developed by [2].

After the accomplishment of the SR, we have reached the conclusion that the

initiatives analyzed do not fulfill all main requirements that are necessary to discover

and document new security patterns adapted to the new pattern template developed.

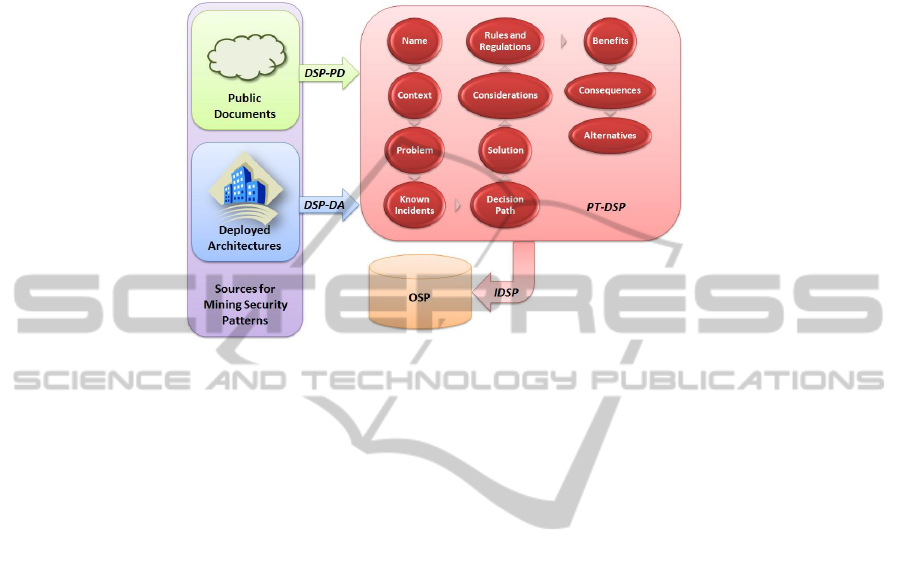

For this reason, we have introduced a high-level architecture of a new framework

based on pattern mining for discovering, designing and documenting security patterns

focused on supporting the design of security architectures.

The remainder of this paper is organized as follows. Section 2 provides a brief

description of pattern mining. In section 3, we carry out an SR of security pattern

mining. Section 4 defines a new framework based on security pattern mining. We

finish with some conclusions and future work in section 5.

2 Pattern Mining

The concept of pattern mining can be defined as the process or technique of

identifying proven solutions [22]. Although many patterns are already available for

different domains, mining new patterns will remain an important activity for the

future [3].

Norman Kerth and Ward Cunningham considered three general approaches to

pattern mining [10]: the introspective, the artifactual and the sociological approach.

The introspective approach is when researchers analyze systems that they have built

and try to discover patterns basing on their experience. This approach allows us to

discover patterns through individual experiences. The artifactual approach is when

researchers analyze systems that have been built by different people who were solving

a similar problem. This approach allows us to find points in common between

different systems analyzed. The sociological approach is when researchers ask people

that have built similar systems how they solved particular problems. This approach

allows us to find recurring problems in the systems analyzed.

However, Linda Rising and David DeLano broke down pattern mining activities

into three categories [18]: individual contributions, second-hand contributions and

patterns mining workshops. In the first category, individual contributions, researchers

write a pattern from his or her own experience. This category is similar to the

introspective approach previously described. In the second category, secondhand

contributions, researchers obtain or find information from interviews with experts or

from the experience of others. This category is a union of the artifactual and

sociological approach previously described. In the third category, patterns mining

workshops, a group of researchers work together discussing about the new patterns

that they find out within a specific scope.

After analyzing the approaches and categories of pattern mining shown above, we

have observed that the artifactual approach, the sociological approach and the

category of patterns mining workshop can be adapted when performing security

pattern mining. The only difference is that researchers should analyze information

security documents, instead of analyzing systems.

3 A Systematic Review of Security Pattern Mining

In this section, we have carried out a systematic review (SR) of security pattern

mining. We have followed the review protocol template developed by Biolchini et al.

[2] in order to facilitate SR planning and execution. The phases included in this

review are the following: review planning, review method and results analysis.

3.1 Review Planning

In this phase, we have defined the SR objectives and we have shown the way to

execute the review. To do this, we have defined the formulation of the research

question and we have planned how the selection of sources and studies will be carried

out. The sections included in this phase are the following: question formularization,

sources selection and studies selection.

3.1.1 Question Formularization

The question focus of this SR is to identify the most relevant initiatives, studies and

reports in the Information Security Engineering discipline which use security pattern

mining to discover and identify solutions for recurring security problems.

The biggest problem that we have encountered in the design of security

architectures is that several information security engineers provide different solutions

to the same problem, because each one has his or her own guidelines or follows

his/her own criteria. Noting the large number of security engineers who can work for

the same organization, it is necessary to find an optimal and proven set of security

guidelines to assist engineers when designing secure architectures. In recent years,

many authors have described security solutions, but most of the repositories based on

security patterns are not applicable to the design of security architectures in real

environments [15.

The research question that will be addressed in this research is the following:

Which studies have been carried out to discover and identify solutions for recurring

security problems by means of Security Pattern Mining? The keywords that cover this

question and which will be used during the SR are: patterns and anti-patterns linked

with mining. In addition, we have added a list of related concepts to information

security to complete our study: security, confidentiality, integrity, availability,

identification, access control, privacy and auditability. All of this will enable us to

perform a more focused investigation on the field of security patterns mining.

The population groups that will be observed are publications in the selected data

sources which use security patterns mining to discover and identify solutions for

recurring security threats.

The expected result at the end of this SR is the identification of studies related to

security pattern mining. If the number of identified studies is not enough, we will

reach the conclusion that security pattern mining is a field that has not been

investigated in depth.

The main application areas that will benefit from the SR results are information

security engineers, information security areas, non-experts in the field of security,

academics and researchers. Finally, we shall obtain a vision of the current situation in

this field, which will allow us to detect shortcomings and new needs for security

pattern mining.

3.1.2 Sources Selection

Before beginning the selection of sources where to execute the searches, we have

carried out a primary search to obtain an initial idea and to evaluate the volume of

studies that exist in relation to security pattern mining. We have also verified whether

a SR in this field currently exists.

Information security is an area that is being published both in prestigious journals

and a variety of conferences, but many of these conferences are not easily accessible

and the search of all proposals would be an impossible task. For this reason, we have

focused on publications of higher quality and demand sources, trusting that the

proposals published in other forums, if they are really successful will be published in

higher quality sources.

The selection criteria used to evaluate the sources are, therefore, the following:

digital libraries which are available for all people via the Internet, digital libraries that

can be accessed through the website of the Universidad Rey Juan Carlos and books

focused on security patterns. In addition, all digital libraries must possess advanced

search mechanisms, that is, searches oriented to the title, abstract, keywords or

authors of the initiatives. Finally, the main sources of the initial sources list, over

which the SR execution will be run, are as follows: ACM digital library, IEEE digital

library, SpringerLink, Science@Direct and some books focused on security patterns.

3.1.3 Studies Selection

Having defined the sources selection, it is now necessary to define the studies

selection. To do this, we have described the search chain, the inclusion and exclusion

criteria and the evaluation criteria for the studies.

We have combined the selected keywords and related concepts with AND and OR

connectors to obtain our search chain. Table 1 shows the general search chain. We

have altered this search chain in order to adapt it to the syntax of specific search

engines.

Table 1. General search chain.

(Mining AND (Pattern OR Antipattern)

AND (Security OR Confidentiality OR Integrity OR

Availability OR Identification OR (Access AND

Control) OR Privacy OR Auditability))

Once the search chain has been defined, we have described the inclusion and

exclusion criteria. On the one hand, all studies obtained after executing the search

chain in the selected sources will be included in the review. On the other hand, all

studies that, first condition, are not within the scope of the Computer Science

discipline, second condition, are duplicated or, third condition, do not contain

sources, frameworks, methods or methodologies to discover and identify solutions for

recurring security problems by means of security pattern mining will be eliminated of

the review.

These criteria have helped us to define the procedure by which the studies will be

obtained and evaluated. The procedure for the studies selection consists of four steps.

At the first step, the search chain will be executed in the selected sources and all

studies returned by each of the sources will be collected. At the second step, all

studies that are not within the scope of the Computer Science discipline or are

duplicated will be eliminated. At the third step, the title, abstract and keywords of all

remaining studies will be read and all studies that clearly meet the third condition of

the exclusion criteria will be eliminated. At the fourth step, all remaining studies will

be read fully and all studies that do not meet the third condition of the exclusion

criteria will be selected as primary proposals.

3.2 Review Execution

After planning the SR, we have initiated the review execution. During this phase, we

have evaluated the studies obtained following the procedure for studies selection

previously defined. Finally, we have extracted from the selected studies the relevant

information for the research question.

3.2.1 Selection Execution

The selection execution has been carried out following the four steps of the procedure

for studies selection (see Section 3.1.3). After carrying out the first step of the

procedure for studies selection, we have obtained 142 studies in total. Once we have

performed the second step, we have obtained 102 studies. After carrying out the third

step, we have obtained 8 studies. Finally, once we have performed the fourth step of

the procedure, we have obtained 2 primary studies.

3.2.2 Information Extraction

After selecting the primary studies, we have extracted important information from

them. To do this, we have analyzed in depth each of the initiatives and have

performed a brief outline.

• “A methodology for mining security tactics from security patterns” [20]:

In this paper, authors introduce a methodology for discovering and identifying

security tactics from well known security patterns. The aim of this methodology is to

examine existing security patterns to verify if any of these patterns satisfies the

conditions necessary to qualify it as a security tactic. These conditions include:

atomicity, force limitation, problem-specificity, completeness and trade-offs between

forces. After defining the methodology, they provide an example to demonstrate how

the criteria described can be used to mine security tactics from existing security

patterns. Finally, authors hope this research will begin to produce new architectures

through tactics mining.

• “Mining Security Patterns”, Section 7.5 of [22]:

In section 7.5 of this book, Schumacher shows different approaches for mining

security patterns. He basically considers two ways: on the one hand, he learns from

typical errors and tries to discover how these errors could have been prevented,

artifactual approach. On the other hand, he directly obtains information from security

standards. In this section, Schumacher also introduces a wide list of information

sources where security patterns can be discovered. This list includes security

information providers (CERT, hackers groups, security companies, newsgroups,

mailing lists, articles and books) and security standards (Common Criteria, IT

Baseline Protection Manual, ISO 17779).

3.3 Results Analysis

After the SR execution, we have analyzed and summarized the primary studies

obtained in the previous phase.

In relation to the study “A methodology for mining security tactics from security

patterns” [20], we have observed that security tactics can be described in a hierarchy

based on the following three categories: resisting attacks, detecting attacks and

recovering from an attack. As authors say in the paper, this categorization can be

useful at an early stage of development, but we have observed that security tactics are

less useful when designing security architectures. This is because the hierarchy of

categories should include subcategories related to the following questions: a) Which

assets need to be protected? b) What are we protecting ourselves from? And c) Which

security properties do we intend to conserve?

In relation to section 7.5, “Mining Security Patterns”, of the book [22], we have

observed that both techniques and information sources shown are very useful to carry

out current security patterns mining, but are not enough to discover, design and

document security patterns oriented to the design of security architectures. This is due

to the fact that security patterns focused on the design of security architectures include

three abstraction levels in their solution and perform a qualitative analysis of the most

important technological aspects with regard to the proposed solution [13]. Information

sources provided by Schumacher could help us to discover, design and document the

first solution level and in some cases the second level, but it is not common to find

public security documents that include solutions oriented to technological products

and detail the most important technological aspects.

We have therefore reached the conclusion that studies analized in this SR do not

fulfill all main requirements for discovering, designing and documenting security

patterns focused on the design of security patterns.

4 D

SP: A New Framework based on Security Pattern Mining

In this section, we have introduced a high-level architecture of a new framework

based on pattern mining for Discovering, Designing and Documenting Security

Patterns (D

SP). The main objective of D

SP is to support the design of security

architectures.

This framework contains: a set of sources for mining security patterns, a Pattern

Template for Documenting Security Patterns (PT-DSP), a method for Discovering

Security Patterns from Public Documents (DSP-PD), a method for Discovering

Security Patterns from Deployed Architectures (DSP-DA), an Ontology of Security

Patterns (OSP) and a method for Integrating Discovered Security Patterns (IDSP) into

the ontology. Figure 1 shows each of the listed elements and how they compose the

framework.

As can be observed in Figure 1, arrows represent methods and figures represent

elements. Next, we have carried out a brief outline of each of the methods and

elements that compose the framework D

SP.

Fig. 1. Framework D

SP.

4.1 Sources for Mining Security Patterns

We have selected two different types of sources to carry out security patterns mining.

On the one hand, we have selected public sources which could be accessed by anyone

via the Internet. On the other hand, we have selected private sources which could only

be accessed if there is a direct contact with an organization. Public sources have been

labeled as public documents and private sources are related to deployed architectures

in large organizations.

4.1.1 Public Documents

We have defined public documents as reports, researches or papers related to systems’

security which can be found in information sources hosted at websites.

After performing an initial search to find public documents which can help us to

discover security patterns, we have selected the following information sources to

carry out security pattern mining: the Open Web Application Security Project [17],

SANS Institute [21], the Information Security Forum [9], the Information Systems

Audit and Control Association [8] and the International Information Systems Security

Certification Consortium [1]. We will perform all searches for public documents from

this set of information sources.

4.1.2 Deployed Architectures

We have defined deployed architectures as designs of information systems which

have been implemented in large organizations in order to reduce the risks of security

when managing their information assets. These architectures must have been used for

a significant time and have demonstrated to be effective for the organization in which

they are implemented.

With the aim of achieving a wide range of deployed architectures, we have begun

to maintain direct contact with a multinational entity of the financial sector.

4.2 A Pattern Template for Documenting Security Patterns (PT-DSP)

In a previous work [13], we proposed a new pattern template to describe and

document security patterns focused on the design of security architectures. PT-DSP

will help us to complement security patterns and make them more applicable to

security architecture design environments. The elements included in the template are

as follows: Name, Context, Problem, Known Incidents, Decision Path, Solution,

Considerations, Rules and Regulations, Benefits, Consequences and Alternatives.

4.3 Method for Discovering Security Patterns from Public Documents

(DSP-PD)

DSP-PD method is based on the artifactual approach of pattern mining proposed by

[10]. After finding a set of public documents from any of the selected information

sources, a researcher must analyze security solutions that have been built to solve a

similar problem. The aim of this analysis is to find points in common between

different solutions analyzed, in order to obtain an optimal solution to the given

problem.

After carrying out the analysis, the researcher must adapt all relevant information

found to design and document one or more security patterns following the elements

included in PT-DSP.

4.4 Method for Discovering Security Patterns from Deployed

Architectures (DSP-DA)

DSP-DA method is based on the artifactual and sociological approach of pattern

mining proposed by [10]. After obtaining a set of deployed architectures from one or

more large organizations, a researcher must, on the one hand, analyze designs of

information systems that have been built by different people who were solving a

similar problem, in order to find points in common between different designs

(artifactual approach), and on the other hand, ask people that have designed similar

information systems how they solved particular problems, in order to find recurring

problems in the design analyzed (sociological approach).

After carrying out the two analyses, in the same way as in DSP-PD, the researcher

must adapt all relevant information found to design and document one or more

security patterns following the elements included in PT-DSP.

4.5 Ontology of Security Patterns (OSP)

OSP is a small ontology which contains definitions of security concepts (such as

vulnerabilities, attacks, threats, security objectives, risk, types of information assets,

etc.), elements included in PT-DSP (security context, security problem, decision path,

security solution, etc.) and relationships between them. OSP provides a wide set of

relationships between security concepts and security patterns, enabling security

engineers to find useful information when designing security architectures. OSP

should answer the following questions: a) What vulnerabilities are eliminated with the

security solution “X”? b) What risks are associated with the vulnerability “Y”? c)

What information assets are ensured with the security solution “Z”? d) etc.

4.6 Method for Integrating Discovered Security Patterns (IDSP)

IDSP method is based on the category of pattern mining, patterns mining workshop,

proposed by [18]. After performing security pattern mining from public documents

(DSP-PD method) or deployed architectures (DSP-DA method), some security

patterns obtained can be invalid or can be a sub-pattern of a security pattern already

found. For this reason, a group of researchers must work together to discuss about the

new security patterns found. A new security pattern will only be integrated into the

ontology if the group of researchers believes it is appropriate.

5 Conclusions and Future Work

Organizations should seek support from security architectures in order to minimize

the risks associated to the constant evolution of the organization’s settings. The

problem is that several information security engineers provide different solutions

when designing security architectures, because each one has his or her own

guidelines. For this reason, it is necessary to provide security engineers with a wide

set of security patterns focused on the design of security architectures.

With the aim of encountering techniques or processes to discover new security

patterns, in this paper, we have carried out a Systematic Review (SR) of security

pattern mining. The obtained result in this SR is that proposals analyzed do not fulfill

the main requirements to carry out security pattern mining focused on the design of

security architectures.

For this reason, after performing the SR, we have introduced a high-level

architecture of a new framework based on security pattern mining. The main objective

of this framework is to discover, design and document security patterns focused on

supporting the design of security architectures. In future works, we have planned to

formalize and develop each of the components included in the framework defined.

Acknowledgements

This research has been carried out in the framework of the following projects:

MODEL-CAOS (TIN2008-03582/TIN) financed by the Spanish Ministry of

Education and Science, BUSINESS (PET2008-0136) financed by the Ministry of

Science and Innovation, and SISTEMAS (PII2I09-0150-3135) and SERENIDAD

(PEII11-0327-7035), all financed by the Local Government of Castilla-La Mancha, in

Spain.

References

1. (ISC)

. (2011). The International Information Systems Security Certification Consortium,

from http://www.isc2.org/

2. Biolchini, J., Mian, P. G., Natali, A. C. C. and Travassos, G. H. (2005). Systematic Review

in Software Engineering. Systems Engineering and Computer Science Department COPPE

/ UFRJ: Rio de Janeiro.

3. Buschmann, F., Meunier, R., Rohnert, H., Sommerlad, P. and Stal., M. (1996). Pattern-

oriented software architecture: A system of patterns. Wiley.

4. Fernandez, E., Washizaki, H., Yoshioka, N., Kubo, A. and Fukazawa, Y. (2008).

Classifying Security Patterns Progress in WWW Research and Development (pp. 342-347).

5. Fernandez, E. B., Washizaki, H. and Yoshioka, N. (2008). Abstract security patterns.

Proceedings of the 15th Conference on Pattern Languages of Programs, Nashville,

Tennessee.

6. Hafiz, M., Adamczyk, P. and Johnson, R. E. (2007). Organizing Security Patterns.

Software, IEEE, 24(4), 52-60.

7. IC3. (2009). 2009 Internet Crime Report: Internet Crime Complaint Center.

8. ISACA. (2011). Information Systems Audit and Control Association, from http://

www.isaca.org/

9. ISF. (2011). The Information Security Forum - the world's leading independent authority on

information security, from https://www.securityforum.org/

10. Kerth, N. L. and Cunningham, W. (1997). Using Patterns to Improve Our Architectural

Vision. IEEE Software, 23, 53-59.

11. Kienzle, D. M., Elder, M. C., Tyree, D. and Edwards-Hewitt, J. (2006). Security patterns

repository, version 1.0.

12. Kitchenham, B. (2004). Procedures for Perfoming Systematic Review. Joint Technical

Report, Software Engineering Group, Department of Computer Scinece Keele University,

United Kingdom and Empirical Software Engineering, National ICT Australia Ltd.:

Australia.

13. Moral-García, S., Ortiz, R., Moral-Rubio, S., Vela, B., Garzás, J. and Fernández-Medina, E.

(2010). A new Pattern Template to Support the Design of Security Architectures.

PATTERNS 2010, The second International Conference on Pervasive Patterns and

Applications, Lisbon (Portugal). pp. 66-71

14. Okubo, T. and Tanaka, H. (2008). Web security patterns for analysis and design.

Proceedings of the 15th Conference on Pattern Languages of Programs, Nashville,

Tennessee.

15. Ortiz, R., Moral-García, S., Moral-Rubio, S., Vela, B., Garzás, J. and Fernández-Medina, E.

(2010). Applicability of Security Patterns. On the Move to Meaningful Internet Systems:

OTM 2010, 6426, 672-684.

16. OSA. (2011). Open Security Architecture, from http://www.opensecurityarchitecture.org/

cms/index.php

17. OWASP. (2011). The Open Web Application Security Project, from http://www.owasp.org

18. Rising, L. and Delano, D. E. (1998). The Patterns handbook: Cambridge University Press.

19. Rosado, D. G., Gutiérrez, C., Fernández-Medina, E. and Piattini, M. (2006). Security

patterns and requirements for internet-based applications. Internet Research: Electronic

Networking Applications and Policy, 16, 519-536.

20. Ryoo, J., Laplante, P. and Kazman, R. (2010). A Methodology for Mining Security Tactics

from Security Patterns. HICSS 2010 - the 43rd Hawaii International Conference on System

Sciences, Honolulu, Hawaii

21. SANS. (2011). SANS Intitute - Computer Security Training, Network Research &

Resources, from http://www.sans.org/

22. Schumacher, M. (2003). Security Engineering with patterns - Origins, Theoretical Model,

and New Applications (Vol. LCNS 2754): Springer-Verlag.

23. Schumacher, M., Fernandez-Buglioni, E., Hybertson, D., Buschmann, F. and Sommerlad,

P. (2006). Security Patterns: Integrating Security and Systems Engineering: Wiley.

24. Stallings, W. (2007). Network security essentials: applications and standards: Prentice Hall.

25. Yskout, K., Heyman, T., Scandariato, R. and Joosen, W. (2006). An inventory of security

patterns. Technical Report CW-469, Katholieke Universiteit Leuven, Department of

Computer Science.
