Accessing Cloud through API in a More Secure

and Usable Way

HongQian Karen Lu

Gemalto, Inc. Austin, Texas, U.S.A.

Abstract. A common method for accessing and managing cloud computing

resources is through an Application Programming Interface (API). Each API

request from an application must include a client authentication to the cloud

service, which proves the possession of a secret key. Securing such keys is

critical to the confidentiality, integrity, and availability of the data and services

hosted in the cloud. Currently users manually handle these keys; a process that

is neither secure nor user-friendly. Where to store the keys and how to access

them are still security challenges especially for those applications that reside in

the cloud themselves. Furthermore, keys are in clear text at least in a

computer’s memory. Attackers can find ways to recover them. This paper

presents a solution to these problems by using portable security devices. The

device securely exchanges keys with the cloud serve, securely stores the keys,

and performs cryptographic computations using these keys for the client

authentication. The user must have the device and authenticate to it in order use

it. The solution enables a two-factor hierarchical security protection of the

cloud computing resources. It not only enhances the security but also improves

the usability.

1 Introduction

Cloud computing enables an on-demand network access to a shared pool of

configurable computing resources. It provides scalability, flexibility, and fault

resilience. Security is a key issue in outsourcing computing and data to the cloud. The

confidentiality, integrity, and availability of data and applications are crucial; any

breach would results in financial losses, reputation damage, loss of compliance, and

pain to the customers. To mitigate these risks, cloud providers deploy layered

security, including physical security, network firewalls, separation of virtual

machines, and access controls.

In addition to web portals for service accesses, cloud providers publish

Application Programming Interface (API) for client applications to programmatically

access and manage cloud computing resources, such as provisioning, operating, and

monitoring. The client application may be a web application in a cloud, a web server

within an organizations firewall, or a desktop software in a user’s computer. To

secure the API-based cloud access the client application must include authentication

information in each API request, which proves the possession of certain secret. For

example, some cloud API requires a digital signature for each request. Such client

authentication serves dual purposes: access control and accounting.

Karen Lu H..

Accessing Cloud through API in a More Secure and Usable Way .

DOI: 10.5220/0003559100250038

In Proceedings of the 8th International Workshop on Security in Information Systems (WOSIS-2011), pages 25-38

ISBN: 978-989-8425-61-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

For API-based cloud access, typically the cloud provider generates one or more

secret keys or key pairs. These keys are credentials that client applications use for

authenticating API requests. Therefore, secure handling of these keys is critical. This

presents many challenges, including the following:

1. Key downloading and storage. The user copies the keys from the cloud provider’s

website and stores them. This posts security risks as the keys are in clear text and the

user’s computer may have malware. Usability is also an issue due to the cumbersome

manual handling of the keys.

2. Key usage. To access the cloud, a client application loads a key from a user

specified location; the key may be hardcoded in the application; or the user may send

the key back to the cloud server [20]. The security and usability issues are similar as

that in #1.

3. Client in cloud. The case that the client application is running in a cloud itself is

especially challenging: how to load the key to that application and where to keep it

[10]?

4. Key in memory. Even if one encrypts the key before storing it to a disk or a

device, the key has to be decrypted before use and it is in clear text inside the

computer’s memory. If there is a malware, an application is compromised, or an

attacker gets hold of the computer, he can recover the key.

5. Server side vulnerability. When the cloud website allows downloading keys,

vulnerabilities, such as cross-site scripting, in the website may enable attackers to

steal the keys [9].

A broker service was proposed to manage the cloud connection and the access keys

[23]. However, one still faces the problems of securely accessing such a service and

loading keys to it.

This paper presents a solution to the above problems. We propose using portable

security devices (PSD) to manage the keys and to secure the API-based access to the

cloud. Figure 1 illustrates two examples of PSDs, one is a credit- card-shaped smart

card, and another is a secure USB token with an embedded smart card.

Fig. 1. Smart-card-based portable security devices.

Desktop applications and mobile devices have used smart cards for user

authentications [12]. Amazon Web Services (AWS) offers a multi-factor user

authentication for account login [2], which is based on the One-Time Password (OTP)

[14] hardware token. We extend the PSD’s services to the API-based cloud access to

address the security and usability issues outlined earlier. This goes beyond the user

authentication and presents a different set of challenges. For example, how to

exchange keys between a cloud provider and a PSD? How to associate keys in the

PSD with cloud resources? How to use the PSD during the formulation of API calls?

How to make this security solution user-friendly as well? This paper describes our

answers.

A computing cloud typically has a hierarchical structure that organizes its

resources, such as services and virtual machines [1]; virtual data centers, clusters, and

storage volumes [17]. We generalize the idea of using a PSD to the cloud structure.

This enables configuring the level of protection, usability, and performance based on

needs.

Our method provides a two-factor security protection to the cloud computing

resources: it requires the user to know something (e.g. PIN) and to possess something

(a PSD). Using the method, no secrets are transferred unencrypted, private keys never

leave the PSD, and no keys will be clear text in a user computer’s memory or disk.

This significantly improves the security. Furthermore, the users do not manually

handle the keys, which improves the usability as well. As a result, the method helps to

mitigate risks associated with three out of the seven top threats to cloud computing [6]

(insecure interfaces and APIs, data loss or leakage, and account or service hijacking).

We have applied existing technologies to solve new real world problems in cloud

computing and made the cloud access more secure and user-friendly. The

contributions of this paper include the following:

• A method for securing API-based cloud resource access using PSD.

• Techniques for establishing and exchanging keys between the cloud service

provider and PSD, and associating keys with cloud resources.

• A method for enabling hierarchical protection of cloud resources.

The rest of the paper is organized as follows. Section 2 outlines related work. Section

3 introduces the system model, the threat model, and portable security devices.

Section 4 presents the basic operations. Section 5 describes the architecture of the

two-factor hierarchical security protection method. Section 6 presents a proof of the

concept. Section 7 discusses how our method solves the problems listed in this

section, and outlines future works.

2 Related Work

Security is a major consideration for the adoption of cloud computing services. The

IEEE and the Cloud Security Alliances (CSA) have collaborated to develop security

standards and to promote best security practices. The CSA has published the security

guide [5] and identified seven top threats to cloud computing [6].

Cloud providers, such as Amazon Web Services [1], Microsoft Windows Azure [13],

Rackspace Mosso [18], and Terremark [22] publish APIs for applications to

programmatically access the cloud resources. Most APIs are RESTful web service APIs.

The cloud API typically requires a client authentication. For examples, AWS

Query API requires computing HMAC-SHA hash using a secret access key [1];

Windows Azure API requires SSL mutual authentication using the client X.509

certificate [13]; Mosso API requires an authentication token for accessing cloud

services [18]; and Terremark API uses HTTP basic authentication [22]. Oracle

recently proposed a cloud management API as a standard to the Distributed

Management Task Force [7]. The proposal also specifies the HTTP basic

authentication for each API request [16]. The Open Cloud Computing Interface [15]

is a set of open specifications from the Open Grid Forum. Unfortunately, OCCI only

recommends that a client authentication mechanism be used where appropriate.

Cloud providers tell the users to keep the secrets well protected and make it clear

that it is the users’ responsibility to do so. However, users do not have good tools to

use and, hence, typically manage the secrets manually, which is not secure. There are

practical tips for software developers to mitigate the security risks associated with the

keys [10]. Each of these tips has pros and cons, but no panacea [21]. Another possible

solution is to use a broker service to manage the access keys and to secure the

connection to the cloud [23]. However, the user or the application still faces the

problem of how to access such as a service securely.

The client API request authentication is different from the user authentication. The

client application needs to include the proof of the possession of a secret for each API

request. As a result, it either keeps the secret in memory or gets it from somewhere

each time. The user typically authenticates once for each login session to access all

the services. As a result, the application does not need to remember or even know the

user’s secret, unless the application caches the user login credential for the next

session. Due to these differences, client authentications face different challenges and,

hence, need new technologies, such as the one presented in this paper.

The most commonly used method of user authentication is username and

password, which is also the weakest and susceptible to many attacks. Cloud providers

are working on enhancing the user authentication process [3]. For example, Amazon

Web Services gives users an option for the multi-factor authentication (MFA) using a

One-Time-Password (OTP) hardware token [2].

This paper focuses on securing cloud access through APIs and securing the keys

used for such an access. User authentication is outside the scope of this paper, even

though the same PSD can also serve as a user authentication token.

Banks in some countries allow online users to digitally sign money transactions

using their smart cards. Conceptually, signing cloud API requests using PSD is

similar to signing online banking transactions. Practically, the former is more generic.

It applies to API requests for cloud resource access, and is not limited to specific

applications. Furthermore, our contributions also include methods for key exchange,

key-resource association, and hierarchical resource protection.

(Note: for simplicity the term key is used when there is no need to distinguish a

secret key or a private key.)

3 Problem Formulation

This section presents the system models and the threat model that this work focuses

on. We also briefly describe the properties of portable security devices (PSD) and

explain why they are the choice of use.

3.1 System Models

We focus on the two commonly used models for the cloud access: web application

and local applications, both of which are clients of the cloud servers. (See Figure 2.)

Fig. 2. The system models.

The web application model can be further classified into two models: (1)

application running in a cloud and (2) application running within an organization’s

domain, most likely behind the firewall. The later is called a hybrid model, which

leverages existing computing resources and uses the cloud resources as needed. It

allows the organization to keep its key assets in house for better control. It also allows

an incremental approach toward moving to the cloud.

The web system model consists of the following:

1. A cloud server providing computing resources and API;

2. A web application;

3. A user (e.g. account administrator) working through a web browser to interact

with the web application or the cloud website directly for accessing the cloud

resources.

4. A user’s computer;

5. The web browser, running in the user’s computer;

6. A user’s portable security device (PSD).

With the local model, the cloud client application runs inside the user’s computer or

inside the web browser. The user interacts with the local application or the web

browser to access his cloud computing resources.

For both models, the software running in the web browser or in the computer can

communicate with the PSD. All connections between the software running in the user

computer, the web application server, and the cloud services are TLS/SSL. The cloud

service requires the proof of the possession of a secret key or a private key for every

service request through the API.

3.2 Threat Model

We assume that the cloud services and the PSD are trustworthy and secure; and that

the user is honest. We do not fully trust the user’s computer, which may contain

malware.

Typically, the cloud provider generates an access ID and a secret access key when

the user signs up for a cloud account. The user copies the ID and the key after logging

into the account, and stores them. Afterwards, the user can request generating more

Cloud

Computing

Services

Web

Application

Server

Browser

Cloud

Computing

Services

a. Web model b. Local model

credentials with symmetric or asymmetric keys and download the keys. An X.509

certificate may be generated by the cloud provider or uploaded by the user. In the

former case, the user downloads the associated private key from the cloud server.

There may be malware in user’s computer or web browser; there may be

vulnerabilities in applications. In these cases, an attacker may steal the key during the

key downloading, storing, or usage, since the keys are in clear text on the user’s

computer, at least in the computer memory. If the client is a web application in a

cloud, the key needed to access cloud services through API may also be vulnerable

regardless of how it is transferred and if it is stored in memory, on a disk, or not

stored [21]. This paper addresses these problems. The malware or attackers may do

other damages; the user may perform inappropriate operations intentionally or

unintentionally. These problems are outside the scope of this paper.

3.3 Portable Security Devices

We focus on smart-card-based portable security devices (PSD). A smart card is a

small card that contains a secure and tamper-resistant microprocessor chip. It has

secure memories, performs cryptographic computations, and contains security

applications. Smart cards are used successfully as subscriber identification modules

(SIM) in cell phones, EMV cards for banking [8], and cards for computer access,

digital signature, and so on.

A PSD requires a PIN to use. A user needs to possess the PSD and knows the PIN.

This provides a two-factor security protection. The PSD typically has a try counter to

prevent brute-force attacks. The try counter is normally set to a small number, for

example 3. For each wrong PIN entry, the PSD decrements the try counter by one.

The PSD locks itself if the user has exhausted the try counter.

A user can enter the PIN from the computer either via a keyboard or a virtual PIN

pad; or by using an external secure hardware PIN pad. The hardware PIN pad is much

more secure because the PIN never enters the computer.

4 Core PSD Functions

We propose a two-factor security protection method for API-based cloud access. The

two factors are what you know (e.g. PIN) and what you have (a PSD). The PSD

contains the keys for the client application to access cloud resources through the API.

The user must authenticate to the PSD to use it. This section describes core functions

that the PSD should perform to support this method.

4.1 Secure Key Storage

The PSDs have a tamper-resistant secure storage that can store keys and other

sensitive information. Since the device itself requires user authentication, an attacker

would need both the device and the PIN to steal or damage the cloud resources. Due

to many logical and physical security measures built into the smart cards [24], it is

prohibitively difficult and expensive to steal keys from the cards even for experienced

hackers with sophisticated equipment.

4.2 Secure Key Exchange

Before issuing a PSD to a user, the issuer can provision the PSD with an X.509

certificate and the associated private key for communicating with the cloud provider.

For key exchange, the PSD sends its certificate to the cloud provider to associate the

certificate with the user account. The cloud server can then encrypt the secret access

key using PSD’s public key and send the encrypted key to the PSD.

Alternatively, the PSD can generate and store a key pair or a secret access key.

The device sends the public key to the cloud server, or encrypts the secret key using

the server’s public key and sends the encrypted secret key to the server.

4.3 Cryptographic Computations

Some clouds APIs require cryptographic computations, such as asymmetric-key-

based digital signature or keyed cryptographic hashing, for the client authentication in

each service request. Such computations are called signing the API [1]. The result is

called a signature. The key (private or secret) used for the computation is called the

signing key. Note: if a cloud API simply requires a password for client authentication,

we may consider the password as the signature and the signing operation is basically

getting the password.

We propose using PSD to perform these cryptographic computations. In this way,

the secret or private keys remain inside the device, preventing attackers from stealing

them. The device does not provide any interface to export the private key nor to

export the secret key without encryption.

5 Architecture

The two-factor security protection method uses the core functions described in

Section 4. It further includes procedures for device registration, association, and

resource connection. The (hierarchical) relationships of the resources in the

infrastructure enable the cloud providers and users to configure the security, usability,

and performance based on their needs.

5.1 General Operations

The user first registers the PSD with his cloud account. The resource protection has

two phases: association and connection. The association relates a key (pair) identifier

with a resource; the connection lets the client application connect to or access the

resource.

5.1.1 Registration

The user can register the PSD during the account activation or afterward. The

registration has the following steps. (See Figure 3).

Fig. 3. Device registration process.

1. User logs into his cloud account, or he creates an account through an application.

He requests to register his PSD.

2. User logs into his PSD, using PIN, for example.

3. At User’s request, the client application gets the PSD information, such as the

serial number and public key. It sends the information to the cloud server.

4. The cloud server associates the PSD information with the account.

5. The cloud provider may want the PSD to use its private key as an initial signing

key, or to use a shared secret as the signing key using the method described in Section

4.2 for key exchange. The PSD uses its signing key to sign initial requests to the

cloud server before other keys are established.

5.1.2 Association

The association phase creates a key pair or a secret key and associates the key (pair)

identifier with a resource in the cloud.

Let K be the key (pair) for the resource R; Id

be the identifier for K; K

is the

signing key established in the registration phase. The goal is to associate Id

with R.

The PSD uses the signing key K

to sign the request to the cloud server for this

association. Once the association is established, the PSD uses K to sign all the future

requests for the resource R.

Figure 4 illustrates a high level view of the association process. It goes as follows:

1. User identifies the cloud resource R.

2. User requests the security device to generate a key (pair) K. The device generates

K and Id

, and stores them in its secure storage.

3. The client application creates the request for associating R and Id

4. The client application asks the device to sign the request.

User

Security

Device

Application

Cloud

Server

registration

Device information

Device association

Establish initial signing key K

5. The device signs the request using its signing key K

, and returns the result to the

client application.

6. The client sends the signed request to the cloud server, which includes the public

key of K or encrypted K.

7. The server verifies the request, for example verifies the signature and associates R

with Id

Fig. 4. Key association process.

5.1.3 Connection or Service Request

The connection phase allows the user to connect to a resource R or to make a service

request for R using the associated key K stored in his PSD. As mentioned earlier, the

request for R must be signed using K. Figure 5 illustrates a high level view of the

connection or service request process.

Fig. 5. Service request process.

The service request process involves the following steps.

1. The user wants to make a service request for resource R.

2. The client application prepares the request.

User requests

Device

signs with K

Application

forms request

Cloud server

verifies and

fulfills request

Signed request

Ask device to sign

Signs request using K

User identifies

Device

generates K, Id

Application

forms request

Ask device to sign

Cloud server

verifies and

associates

R and Id

Signed request

3. The client application asks the security device to sign the request. There are

various ways for the device to know which key to use. For example, if R is at the

account level, the client asks the device to sign using the account signing key K=K

Otherwise, either the user selects Id

, the client finds it from the server and tells the

device, or the device keeps the (R, Id

) pairs and the client tells R to the device.

4. The device performs the operation using K that Id

represents, and returns the

result.

5. The client application sends the signed request, which includes R, to the server.

6. The server verifies signature and provides the service or connection.

5.2 Hierarchical Security Protection

Cloud providers adopt various hierarchical structures for organizing cloud computing

resources [1]; [17]. Some cloud providers allow the user to use the account credentials

to access all the resources belonging to the account; others enable the user to have a

finer security control of the resources, for example, associating a unique key pair to a

virtual machine instance. (See Figure 6).

Our two-factor security protection method can facilitate the access control in the

cloud’s hierarchy. Different methods exist for authenticating API requests. There may

be more than one type of API with different authentication methods and different

kinds of keys to access a same resource. Associating various keys and methods with

the hierarchical resource structure enables finer access controls but makes the

implementation, key management, and usage more complex. Using the methods

described in the previous sections, a PSD helps to manage this complexity. The

device can store multiple keys and perform various cryptographic operations, which

makes it possible to support multiple access control methods to various resources in

the cloud hierarchy.

Fig. 6. Hierarchical structure of the resources.

Consumer’s cloud account

Service

Instance

Data

Volume

Instance

Data

Volume

Data

Object

1.1

Data

Object

1.n

The PSD-based approach also allows the user or the cloud provider to customize

the security level based on the needs in security, performance, and usability, or the

balance of them. For example, (1) the granularity of the security protection: some

resources have their own keys, while others may inherit or share keys; (2) usage of

one or multiple PSDs for different cloud services; and (3) single or multiple user

authentications for various requests.

6 Proof of Concept

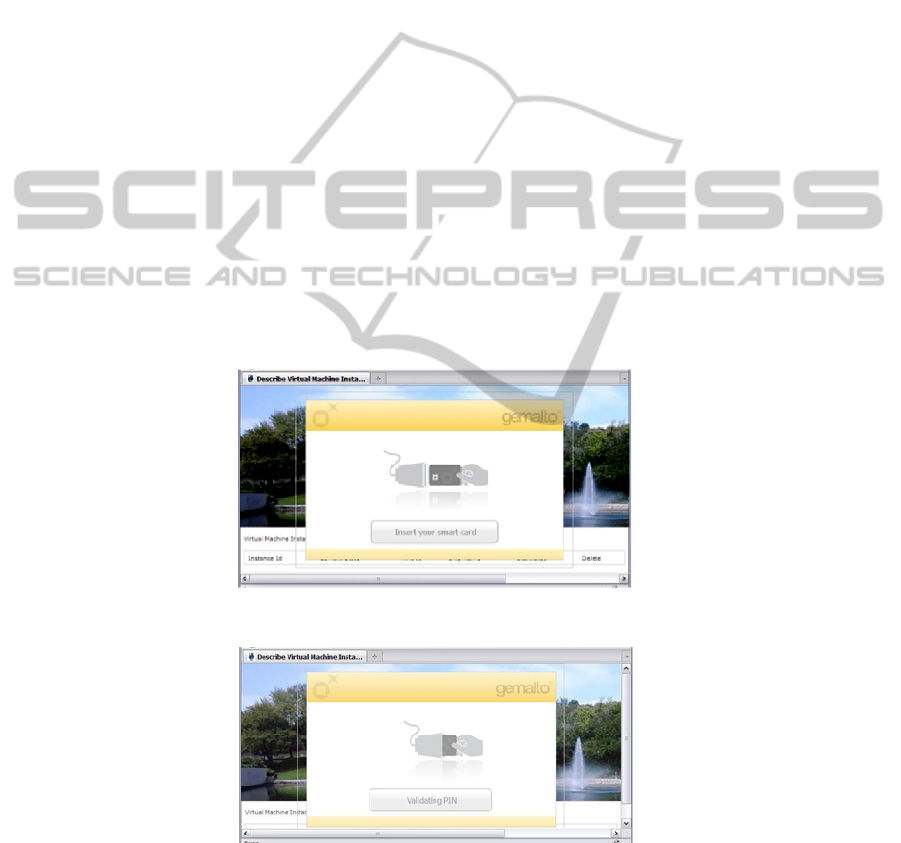

We have implemented the core technology presented in this paper. A full

implementation requires the cloud provider’s collaboration. Our system uses the web

model illustrated in Figure 2-a. It implements the PSD-based client authentication for

accessing a commercial public cloud. The PSD is a Gemalto.Net Smart Card [11]. We

use SConnect [19] for the web application to communicate with the smart card. The

card stores a secret access key generated by the cloud provider. For each cloud service

request, the web application asks the smart card to sign the request and includes the

signature in the API request. The web application has two parts, a server and a client.

The server serves the client and communicates with the cloud service. The client runs

inside the user browser.

For example, the user wants to monitor his virtual machine instances hosted at the

cloud provider. To fulfill this request, the client asks him to insert the smart card, and

then to enter the PIN. (See Figure 7.)

Fig. 7. The user must insert the smart card to continue.

Fig. 8. The smart card is validating the user PIN.

The smart card verifies the PIN. (See Figure 8.) If it is successful, the client asks

the card to sign the service request that it has received from the application server.

The card signs the request and the client returns the signature to the server. The latter

sends the signed request to the cloud server, which returns a list of virtual machine

instances. The client displays this list in the browser. (See Figure 9.)

Fig. 9. A list of virtual machine instances.

In our current system, once the smart card authenticates the user, it can operate

without asking the user PIN again. If the user takes out the card, the application

cannot make any more requests to the cloud. The user needs to insert the card and

enter the PIN again to continue. The card can also be configured to ask for the PIN for

each request.

Performance-wise, using a PSD to sign an API request adds one additional

HTTPS request/response round trip between the application client and the server as

compared to the application server signing the API request directly. User hardly

notice any delay caused by this additional round trip because web applications often

rely on a large number of client and server interactions to display a web page.

The signing operation is the HMAC-SHA1 or HMAC-SHA256 hash of the cloud

service request. The signing time depends on length of the query, cryptographic

algorithm, and communication between the computer and the smart card. Table 1

illustrates an example. The service request is 175 bytes long. The smart card signing

time is measured from the computer, which includes the time for sending data to the

smart card, computing HMAC-SHA inside the card, and receiving the response.

Table 1. Hashing time examples.

HMAC-SHA1 HMAC-SHA256

Hash on server 0.31 ms 0.32 ms

Hash on smart card 643 ms 694 ms

Each time entry in Table 1 is an average of 100 hashing times measured from the

software running on the computer. The server runs on a Dell Latitude E6410 laptop.

Using a smart card to sign is about 600 ms slower. However, this overhead of less

than a second is very small compared to the security and usability gain of using a PSD

to secure the cloud access. Users can hardly tell any difference because fetching data

from the network takes most of the time.

7 Discussions and Future Work

This paper proposes to mitigate key handling risks and complexity by using portable

security devices (PSD). The PSD securely exchanges keys with the cloud service

provider, stores the keys, and performs operations required by the cloud API using the

keys. Neither the application nor the user needs to handle the keys. Hence, this

method enhances both security and usability for accessing cloud resources. More

specifically, let us look at how the proposed methods solve the problems outlined in

Section 1.

1. Key Downloading and Storage. The PSD and the cloud service provider securely

establish and exchange keys. The PSD stores the keys in its secure persistent memory.

The user does not download and store the keys. This solves the security and the

usability problems.

2. Key Usage. The PSD uses the keys stored inside its secure memory to perform

required cryptographic operations. The private key never leaves the PSD, and the

shared secret key never leaves the PSD or the cloud provider unencrypted. This again

solves the associated security and usability problems.

3. Client in Cloud. Even when the client application is running in a cloud, the keys

for the application to access other cloud resources are still in PSD. Users do not need

to worry about how to load the keys to the application.

4. Key in Memory. Since the PSD performs the cryptographic operations for

authenticating cloud API requests, the keys are never in clear text in the computer’s

memory where the client application runs. Therefore an attacker cannot recover the

key from the computer.

5. Server Side Vulnerability. The cloud provider exchanges keys with PSD, and does

not present keys to end users. This prevents attackers from stealing keys from the

cloud service provider’s website.

There are still many unsolved problems that require future work. The PSD is an

external device. As such, there is some performance impact to the cloud services.

How would this affect usability and how to balance security, usability, and

performance are future research subjects. Securely accessing cloud resources from

mobile devices is another important future topic.

Currently, cloud providers have their own proprietary ways to authenticate API

requests for cloud services. Though challenging, it should be possible to establish a

standard protocol with various levels of security. Such a standardized effort can yield

tangible benefits for both consumers and service providers. It will not only add

security and convenience, but also improve interoperability between different cloud

providers.

Acknowledgements

The author would like to thank Kapil Sachdeva, Laurent Castillo, and other Gemalto

colleagues for their input and support to this work.

References

1. Amazon Web Services. 2006. The AWS Home Page. [Online] Available from: http://aws.

amazon.com/.

2. Amazon Web Services. 2009. AWS Multi-Factor Authentication, [Online] Available from:

http://aws.amazon.com/mfa/.

3. Cloud Identity Summit. 2010. [Online] Available from:

http://www.cloudidentitysummit.com/.

4. Cloud Security Alliance (CSA). The CSA Home Page. [Online] Available from:

www.cloudsecurityalliance.org/.

5. Cloud Security Alliance. 2009. Security Guidance for Critical Areas of Focus in Cloud

Computing, v2.1. [Online] Available from: www.cloudsecurityalliance.org/csaguide.pdf.

6. Cloud Security Alliance, 2010. Top Threats to Cloud Computing, v1.0. [Online] Available

from: www.cloudsecurityalliance.org/topthreats/csathreats.v1.0.pdf.

7. Distributed Management Task Force, Inc., 1992. The DMTF Home Page. [Online]

Available from: http://www.dmtf.org/.

8. EMVCo, 2009. The EMVCo Home Page. [Online] Available from:

http://www.emvco.com/,

9. EvilPacket.net, 2009. Theft of a Rackspace Cloud API Key. [Online] Available from:

http://evilpacket.net/2009/jul/9/theft-rackspace-cloud-api-key/.

10. Garnaat, M. 2009. Managing Your AWS Credentials (Part 2). [Online] Available from:

http://www.elastician.com/2009/06/managing-your-aws-credentials-part-2.html.

11. Gemalto. 2006. .NET Card, [Online] Available from: http://www.gemalto.com/

products/dotnet_card/.

12. Jurgensen, T.M. and Guthery, S.B. 2002. Smart Cards – The Developer’s Toolkit. Prentice

Hall PTR, Upper Saddle River, NJ 07458.

13. Microsoft. 2010. Windows Azure Platform. [Online] Available from:

http://www.microsoft.com/windowsazure/.

14. M'Raihi, D. et al, 2005. HOTP: An HMAC-Based One-Time Password Algorithm. IETF

RFC 4226. [Online] Available from: http://www.ietf.org/rfc/rfc4226.txt.

15. Open Cloud Computing Interface. 2011. The OCCI Home Page. [Online] Available from:

http://occi-wg.org/.

16. Oracle. 2010. Oracle Cloud Resource Model API, version 1.0. [Online] Available from:

http://www.oracle.com/technetwork/topics/cloud/oracle-cloud-resource-model-api-154279.pdf.

17. Project Kenai. 2009. The Sun Cloud API. [Online] Available from:

http://kenai.com/projects/suncloudapis/pages/Home.

18. Rackspace. 2006. The Rackspace Cloud. [Online] Available from:

http://www.rackspacecloud.com/

19. Sachdeva, K., Lu, H.K. and Krishna, K. 2009. A Browser-Based Approach to Smart Card

Connectivity. IEEE Workshop on Web 2.0 Security and Privacy, Oakland, California, May 21.

20. SOAtothecloud.com, 2010. Cloud Security Podcast - The question of API Keys. [Online]

Available from: http://www.soatothecloud.com/2010/09/cloud-security-podcast-question-

of-api.html.

21. Swidler, S. 2009. How to Keep Your AWS Credentials on an EC2 Instance Securely.

[Online] Available from: http://shlomoswidler.com/2009/08/how-to-keep-your-aws-

credentials-on-ec2.html.

22. Terremark. 2011. Enterprise Cloud Computing from Terremark. [Online] Available from:

http://www.terremark.com/services/cloudcomputing.aspx.

23. Vordel. 2009. Cloud Service Broker. [Online] Available from:

http://www.vordel.com/products/cloud_service_broker/.

24. Witteman, M. 2002. Advances in Smartcard Security. Information Security Bulletin, July,

page 11-22.
