Circumstantial-evidence-based Judgment for Software

Effort Estimation

Zheng Li

1,2

, Liam O’Brien

3,2

and He Zhang

1,4

NICTA, Sydney, Australia

School of CS, ANU, Canberra, Australia

CSIRO, Canberra, Australia

School of CSE, UNSW, Sydney, Australia

Abstract. Expert judgment for software effort estimation is oriented toward di-

rect evidences that refer to actual effort of similar projects or activities through

experts’ experiences. However, the availability of direct evidences implies the

requirement of suitable experts together with past data. The circumstantial-

evidence-based judgment proposed in this paper focuses on the development

experiences deposited in human knowledge, and can then be used to qualita-

tively estimate implementation effort of different proposals of a new project by

rational inference. To demonstrate the process of circumstantial-evidence-based

judgment, this paper adopts propositional learning theory based diagnostic rea-

soning to infer and compare different effort estimates when implementing a

Web service composition project with some different techniques and contexts.

The exemplar shows our proposed work can help determine effort tradeoff be-

fore project implementation. Overall, circumstantial-evidence-based judgment

is not an alternative but complementary to expert judgment so as to facilitate

and improve software effort estimation.

1 Introduction

Mathematical effort estimation models have been well documented in academia for

many years, while the pervasive estimation method in industry is still based on expert

judgment [1]. One possible reason is that the mental processes software professionals

use to unfold estimation are more closely related to a case-based reasoning (CBR)

approach than a regression-based model [2]. However, expert judgment considerably

depends on experts’ availability and experience, and experts’ knowledge is hardly

accessed by others [3]. Therefore, expert opinion may be not reliable if it is not sup-

ported by objective or scientific evidences. To reduce the possible bias and uncertain-

ty that happens in expert judgment, practical guidelines claim that estimation experts

should be selected based on their experience from similar projects [4]. Following the

practical guidelines, unfortunately, the expert judgment approach could still be in-

feasible if the experts or the past data are not available.

Basically, expert judgment-based software effort estimation must comply with a

golden rule: the expert judgment should always require justification rather than gut

Li Z., O’Brien L. and Zhang H..

Circumstantial-evidence-based Judgment for Software Effort Estimation.

DOI: 10.5220/0003560600180027

In Proceeding of the 1st International Workshop on Evidential Assessment of Software Technologies (EAST-2011), pages 18-27

ISBN: 978-989-8425-58-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

feelings [4]. Inspired by Evidence-Based Software Engineering (EBSE) that is “to

provide the means by which current best evidence from research can be integrated

with practical experience and human values in the decision making process regarding

the development and maintenance of software” [5], we can re-consider the justifica-

tion of expert judgment from an evidence-based perspective. According to the classi-

fication of evidence [6], the results of the CBR-based mental processes in traditional

expert judgment can be regarded as direct evidence: experts act as witnesses and

adduce previous cases for the current one. Considering the aforementioned limitation

of direct evidence collection – the requirement of availability of experts with expe-

rience from similar projects, this paper proposes circumstantial-evidence-based

judgment for software effort estimation. Benefiting from existing software develop-

ment experiences as circumstantial evidence, we can use diagnostic reasoning to

qualitatively infer different implementation effort of different proposals of a new

project. As a result, circumstantial-evidence-based judgment can be used to facilitate

and improve the final quantitative effort estimation for new software projects.

This paper is organized as follows. Section 2 makes a comparison between direct

and circumstantial evidences for effort judgment. Section 3 introduces the method

and inference procedure that can support circumstantial-evidence-based effort judg-

ment. Section 4 takes Web service composition project as sample to demonstrate the

process and result of effort judgment with circumstantial evidences. The conclusion is

drawn, and some future research work is considered in Section 5.

2 Direct vs. Circumstantial Evidence for Effort Judgment

As an analogue of similar forensic scenarios, the traditional CBR-based expert judg-

ment can be viewed as using direct evidence to estimate implementation effort of a

software project. In forensic science, as the name suggests, direct evidence is evi-

dence that proves a fact without requiring inference or presumption [6]. In other

words, direct evidence immediately and precisely establishes a bridge between judge

and fact. An example of direct evidence could be a witness's observation or personal

knowledge of a certain fact. The defendant involved in the past fact is the exact one

involved in the judgment. In the context of effort estimation, different from law, the

new project to be judged is obviously none of the past ones. Nevertheless, to some

extent, experts inevitably view the similar projects as the same one when doing effort

estimation based on their experiences. For example, as suggested by Jørgensen [4],

the actual effort of similar projects or similar activities in other projects will be re-

ferred to as justifications for expert judgment for new project. Therefore, it is reason-

able to consider that in traditional expert judgment experts use their observation on

past projects as direct evidences to estimate effort of new project.

Contrasted with direct evidence, circumstantial evidence does not prove fact in a

straightforward sense, while it requires the intervening or additional evidence infe-

rence to confirm the fact. In forensic science, the most obvious difference between

direct and circumstantial evidence is that “direct evidence is a verbal representation of

a crime itself, whereas circumstantial evidence is an abstract statement about the

connection between the defendant and an incriminating physical trace of the crime”

[7]. Usually, circumstantial evidence is not sufficient, but increases the probability of

the defendant’s guilt, for example blood or fingerprints. Similarly, unlike the direct

evidence in expert judgment that directly gives the estimated effort, circumstantial

evidence for effort judgment must be effort-related abstract statements. Suppose each

finished software project deposits some development experience in the human know-

ledge, similar projects or similar activities should have similar development expe-

riences. Different experiences can then be abstracted into different assertions as scat-

tered fingerprints of existing software projects. As such, different from human beings,

similar software projects or development activities may share the same fingerprints.

To sum up, when estimating effort for a new project, similar projects’ or activi-

ties’ actual effort can be viewed as direct evidence, while existing development expe-

riences can be considered as circumstantial evidence. In forensic science, both direct

and circumstantial evidences are used to draw categorical, yes-no type, conclusions.

In the context of software effort estimation, direct evidence brings quantitative effort

estimate for a particular project proposal, while circumstantial evidence can give

qualitative comparison between effort estimates of different development proposals.

3 Effort Judgment with Circumstantial Evidence

3.1 Collecting Circumstantial Evidences

When it comes to collecting evidences for effort estimation, direct evidence collection

is to gather detailed software project data, while circumstantial evidence collection is

to gather generic software development experiences. Compared with the straightfor-

ward process of direct evidence collection, searching and identifying circumstantial

evidences could be more complicated. We propose to use a systematical method that

is to apply systematic literature review (SLR) in the evidence space formed by all the

effort factors. SLR is the main methodology applied for EBSE, which can be natural-

ly used to collect and justify different effort-related hypothesis aiming at different

effort factors. The justified effort-related hypothesis can then be used as circumstan-

tial evidences for effort judgment. As for the effort factors, we can directly borrow

ideas from existing effort estimation work, such as parametric estimation models. For

example, 15 effort multipliers like Product Complexity and Programmers’ Capability

are employed in COCOMO [20], and each of them can be viewed as an effort factor

towards which we may identify a corresponding circumstantial evidence through

SLR.

3.2 Utilizing Circumstantial Evidences

As specified previously, circumstantial evidences cannot be used without rational

inference to proven facts. The rational inference can be realized as a cascaded process

of diagnostic reasoning. A possible guideline for using circumstantial evidences to do

diagnostic reasoning is the theory of propositional learning (TPL) [15]. TPL is origi-

nally used for belief revision, which comprises three elements: (1) the association

between a possible clue and a possible cause; (2) the forward implication from the

actual cause to the possible clue; (3) the backward implication from the clue to the

possible cause. The clues are circumstantial evidences like fingerprints, while the

causes are suspects’ actions by which the fingerprints are left. When implementing

diagnostic reasoning with TPL, the inference process of diagnostic reasoning can then

be established through the linkage of aforementioned elements, as illustrated in Fig.

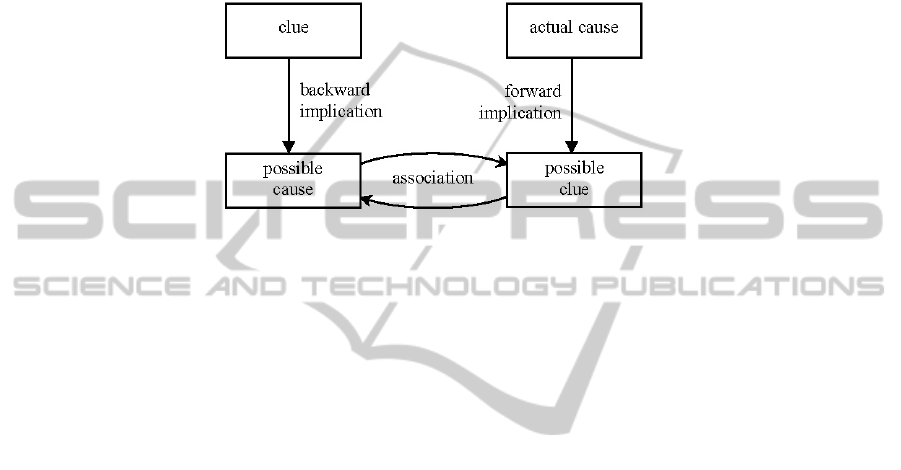

Fig. 1. The inference process of diagnostic reasoning.

For software effort judgment, the first-hand clues are existing software projects,

while the actual cause is the requirement of a new project. When doing backward

implication, benefiting from the techniques of EBSE [5], the original clues can be

collected and used to extract effort-related assertions. Note that, different from the

work in [2] that collects the actual effort of similar projects, EBSE used for circums-

tantial-evidence-based judgment focuses on the generic relationships between effort

and different development actions, namely development experiences. When doing

forward implication, on the other hand, the profile of a concrete project will be ex-

plored to identify possible development actions. The identified possible development

actions can be used to build an association between previous projects and the current

one to further facilitate effort judgment. In general, the association is built by a cas-

caded inference. In a cascaded inference, the conclusion of one inference acts as a

premise for the subsequent inference, while the final conclusion will be the qualita-

tively estimated effort.

In practice, there is usually a set of circumstantial evidences for one effort judg-

ment task. These circumstantial evidences can be either consistent with or contrary to

each other. Here we define different evidences are consistent when the same conclu-

sion can be drawn in an effort judgment, or contrary when different conclusions are

drawn in the judgment. Generally, consistent circumstantial evidences can help con-

firm and reinforce the same conclusion. For contrary circumstantial evidences, we

would have to give further judgment based on the amount and weight of different

standpoints, which is similar to the reality in a forensic trial proceeding.

4 An Exemplar

To better comprehend circumstantial-evidence-based effort judgment, we employ one

Web service composition project as an example to explain the judgment process.

Considering our work is still in the early stage, here we directly choose five hypo-

theses of development experience as original circumstantial evidences. In practice,

however, development experiences should be justified through the evidence collec-

tion approach supplied by EBSE.

4.1 Five Circumstantial Evidences

In software engineering, effort of a task is generally accounted by calculating how

long and how many workers are needed to finish the task. In other words, the amount

of human activities in a project is proportional to the amount of effort required to

finish the project. Therefore, for a certain software project, one basic circumstantial

evidence (CE) can be:

CE1. In general, the increase of required human activities in a project will have a

proportional impact on the final effort.

Human activities include both physical and mental activities. Since software devel-

opment is a knowledge-intensive undertaking, software product/service is a type of

intellectual property produced by human mental activities. Unfortunately, within a

given time span people have limited mental capability to deal with information [8].

For every single person, the increased amount of information beyond a certain point

may even defeat his/her mental ability, and hence result in errors [10]. As a result, the

more information that exists in a project, the more people and human activities might

be required to perform accurate manipulations. Together with CE1, therefore, we can

find a new circumstantial evidence:

CE2. In general, the increase of information in a project will have a proportional

impact on the final effort.

Based on our common experience, the adoption of sophisticated tools usually implies

much information we have to deal with in a project. However, tools are essentially

developed and used to save human activities. For a certain project, the more work the

tools can fulfill, the less human activities the project will require. Consequently, also

together with CE1, a tool-related circumstantial evidence is:

CE3. In general, the increase of work that tools can fulfill in a project will have an

inversely proportional impact on the final effort.

In the software economics field, complexity has been viewed as an inherent property

of the functional requirements of a software product, which cannot be reduced or

simplified beyond a certain threshold [19]. Moreover, complexity has been proved to

be a significant and non-negligible factor that influences software development and

maintenance [11]. In fact, the more complexity involved in a system, the more diffi-

culty the designers or engineers have to understand the implementation process and

thus the system itself [9], and hence the greater mental effort people have to exert to

solve the complexity [8].

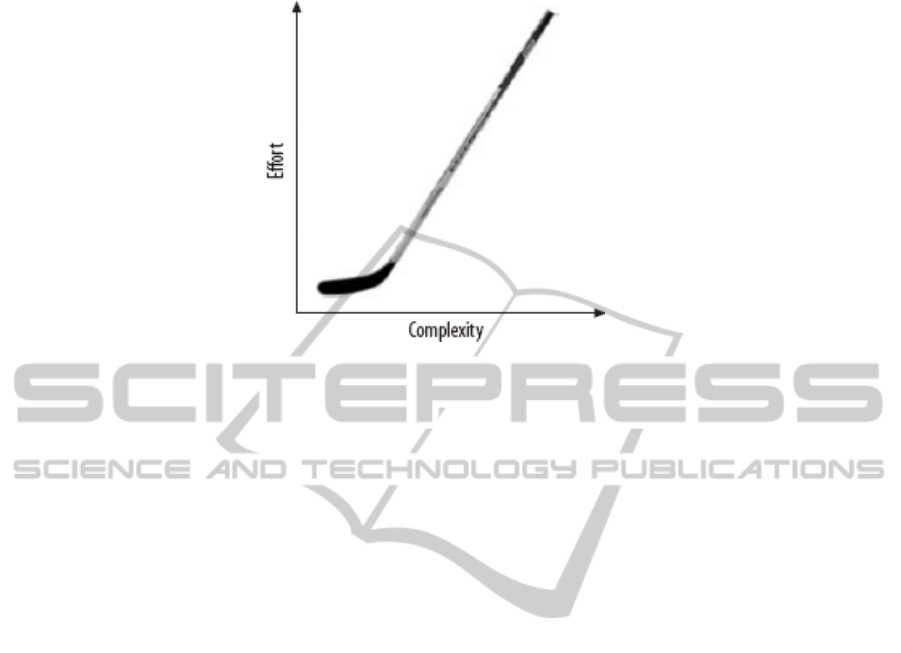

Fig. 2. The hockey stick function.

The hockey stick function [13] vividly depicts the relationship between complexi-

ty and effort of a software project, as illustrated in Fig. 2. The amount of required

effort may suddenly increase when the corresponding project exceeds a certain level

of complexity. Overall, the circumstantial evidence related to complexity can be

summarized as:

CE4. In general, the increase of complexity in a project will have a proportional im-

pact on the final effort.

When it comes to project complexity, one of the main contributors is the complexity

of the methods that target achieving the project goals [12]. The methods of software

development are mainly reflected by the techniques used to implement a correspond-

ing project. In particular, techniques have been viewed as internal environment of a

system (organization), while the system’s complexity is considered a response to the

environmental complexity [13]. Consequently, the complexity of techniques involved

in a software project will positively influence the complexity of the project. There-

fore, together with CE4, we can identify the circumstantial evidence CE5:

CE5. In general, the increase of difficulty of techniques in a project will have a pro-

portional impact on the final effort.

4.2 Circumstantial-evidence-based Judgment for a Web Service Composition

Project

By using an effort-oriented classification matrix [16], existing approaches to Web

service composition can be classified according to different type of contexts and

techniques. For example, we can distinguish between Orchestration and Choreogra-

phy in consideration of composition pattern, Syntactic and Semantic compositions

according to the semiotic context, or REpresentational State Transfer (RESTful) and

Simple Object Access Protocol (SOAP) based compositions according to the compo-

sition mechanism. Since different types of Web service composition require different

development activities, a part of the profile exploration of a Web service composition

project can be done as follows.

Orchestration vs. Choreography: Orchestration normally describes and executes a

centralized process flow that acts as a coordinator to the involved Web services. The

central coordinator explicitly specifies the business logic and controls the order of

invocation of Web services. Choreography represents collaboration between web

services that focuses on the peer-to-peer message exchange. The collaboration is

decentralized where all participating Web services work equally and do not rely on a

central controller. Since distributed processing would be inevitably more complicated

than non-distributed processing [14], generally speaking, for the same Web service

composition project the choreography-based implementation will be more complex

than the orchestration-based implementation. Meanwhile, as the current de facto stan-

dard of orchestrating Web services, Business Process Execution Language (BPEL)

stemmed from existing languages and tools and has been widely accepted, whereas

the choreography language Web Services Choreography Description Language (WS-

CDL) was developed without any prior implementation and is still far from mature

[17]. Considering this technical influence, the implementation of choreography will

be more difficult than that of orchestration. Consequently, if holding the other aspects

of one particular Web service composition project constant, development actions

(DA) can be abstracted and compared between orchestration and choreography:

DA1. In general, the implementation of choreography is more complex than that of

orchestration.

DA2. In general, the techniques used for choreography are more difficult than that for

orchestration.

Syntactic Composition vs. Semantic Composition: The syntactic Web, for example

the current World Wide Web, was designed primarily for human interpretation and

conveying information. The lack of machine-readable semantics then requires human

intervention for Web service discovery and composition, and therefore hampers the

usage of Web services in complex business environment. On the contrary, the seman-

tic Web and semantic Web service were proposed through incremental and informa-

tion-added adjustments. Since semantic Web and semantic Web services are sup-

posed to automate service discovery, selection, composition and execution by adding

the inherent meanings [18], human activities within semantic compositions will be

decreased while the involved information will be increased. However, the increased

information in semantic Web service composition is for machine interpretation rather

than human intervention. Meanwhile, syntactic and semantic Web services share the

unified Web infrastructure and both use markup language based techniques to de-

scribe information. It can then be stated that the difficulty levels of techniques

adopted in both syntactic and semantic Web service compositions are similar. There-

fore, for proposals with different semiotic context for a particular Web service com-

position project, we can assert:

DA3. In general, the implementation within syntactic context requires more human

interventions than that within semantic context.

DA4. In general, the implementation within semantic context involves more informa-

tion for machine interpretation than that within syntactic context.

DA5. In general, the difficulty of techniques used for syntactic implementation is

similar to that for semantic implementation.

RESTful Composition vs. SOAP-based Composition: RESTful Web service compo-

sition integrates normally disparate Web resources to create a new application. These

resources can be the exposure of pure data or traditional application functionality.

SOAP/WS-* based Web service composition is a collection of related, structured

activities or tasks that produce a specific service or product for a particular customer.

Compared with RESTful compositions, SOAP-based compositions employ more

sophisticated techniques including heavyweight protocols, a set of WS-* stack, and

more Message Exchange Patterns (MEPs), which can satisfy more QoS requirements

while also deal with more information. Therefore, if the requirement of a particular

Web service composition project can be satisfied by using either RESTful or SOAP-

based approach, we can assert:

DA6. In general, the techniques used for the SOAP-based implementation are more

difficult than that for the RESTful implementation.

DA7. In general, the SOAP-based implementation deals with more information than

the RESTful implementation does.

To summarize, DA1~DA7 are analysis results drawn from characteristics of different

types of Web service composition projects. These analysis results can be viewed as

abstracts of different development actions, and act as possible inference bridges be-

tween real development actions and the identified circumstantial evidences. Benefit-

ing from TPL based diagnostic reasoning, therefore, we can conveniently and qualita-

tively judge the effort of these composition types. For example, the forward implica-

tion from (DA1, DA2) to (CE4, CE5) can infer that choreography requires more

effort than orchestration does when implementing a particular Web service composi-

tion project, or “E

> E

” for short. Similarly, we can also give qualitative effort

judgment for the other composition types mentioned in this Section, as shown in

Table 1. Note that not all the circumstantial evidences are applicable in this case.

Table 1. Circumstantial-evidence-based effort judgment for different types of Web service

compositions.

Development Actions Circumstantial Evidences Effort Judgment

Orchestration

(DA1, DA2) (CE4, CE5) E

> E

Choreography

Syntactic

DA3 CE1 E

> E

Semantic

RESTful

(DA6, DA7) (CE5, CE2) E

> E

SOAP-based

5 Conclusions

Expert judgment is the widely adopted technique for software effort estimation in in-

industry. From an evidence-based perspective, expert judgment relies on direct evi-

dences that require the availability of both experts and past project data. Considering

the lack of suitable experts and available data in the current practice of software engi-

neering, we propose circumstantial-evidence-based judgment to facilitate qualitative

effort estimate of a new software project. Compared with direct evidences that focus

on actual effort of past projects, circumstantial evidences for effort judgment are

abstracts of existing software development experiences. Before implementing a new

project, identified circumstantial evidences can be combined with the profile of new

project by rational inferences to qualitatively compare the efforts of different devel-

opment proposals. As such, circumstantial-evidence-based judgment can not only

help settle implementation design for software project, but also act as complementary

to expert judgment for the implementation effort. Moreover, the circumstantial evi-

dences in the context of effort judgment can be accumulated and deposited as general

knowledge to further guide and assess individual expert judgments. SLR, as the main

methodology applied for EBSE, can be an effective approach to evidence collection

for circumstantial-evidence-based judgment. All the development experiences men-

tioned in this paper do need the support by further evidences that can be identified

and synthesized by this EBSE methodology. Therefore, our future work will try to

apply SLR to this novel effort judgment method. Moreover, we also plan to use prop-

ositional calculus to formalize the rational inference taking place during judgment

processes.

Acknowledgements

NICTA is funded by the Australian Government as represented by the Department of

Broadband, Communications and the Digital Economy and the Australian Research

Council through the ICT Centre of Excellence program.

References

1. Jørgensen, M., Shepperd, M.: A Systematic Review of Software Development Cost Estima-

tion Studies. IEEE Trans. Software Eng. 33, 1 (2007) 33-53.

2. Menzies, T., Hihn, J.: Evidence-Based Cost Estimation for Better-Quality Software. IEEE

Softw. 23, 4 (2006) 64-66.

3. Keung, J.: An Alternative Approach to Software Cost Estimation: Reasoning by Analogy.

In: Presentations of Australian Conference on Software Measurement (ACOSM 2007),

Sydney, Australia (2007).

4. Jørgensen, M.: Practical Guidelines for Expert-Judgment-Based Software Effort Estima-

tion. IEEE Softw. 22, 3 (2005) 57-63.

5. Dybå, T., Kitchenham, B. A., Jørgensen, M.: Evidence-Based Software Engineering for

Practitioners. IEEE Softw. 22, 1 (2005) 58-65.

6. Siegel, J. A., Knupfer, G. C., Saukko, P. J., Saukko, P. J.: Encyclopedia of Forensic

Sciences. Academic Press, San Diego, CA (2000).

7. Heller, K. J.: The Cognitive Psychology of Circumstantial Evidence. Mich. L. Rev. 105, 2

(2006) 241-306.

8. Globerson, T.: Mental Capacity, Mental Effort, and Cognitive Style. Dev. Rev. 3, 3 (1983)

292-302.

9. Cardoso, J.: How to Measure the Control-Flow Complexity of Web Processes and

Workflows. In: Workflow Handbook 2005. Layna Fischer, Lighthouse Point, Florida

(2005) 199-212.

10. Miller, G. A.: The Magical Number Seven, Plus or Minus Two: Some Limits on Our Ca-

pacity for Processing Information. Psychol. Rev. 63, 2 (1956) 81-97.

11. Francalanci, C., Merlo, F.: The Impact of Complexity on Software Design Quality and

Costs: An Exploratory Empirical Analysis of Open Source Applications. In: Proceedings of

the 16th European Conference on Information Systems (ECIS 2008), Galway, Ireland

(2008) 1442-1453.

12. Turner, J. R., Cochrane, R. A.: Goals-and-Methods Matrix: Coping with Projects with Ill-

defined Goals and/or Methods of Achieving them. Int. J. Project Manage. 11, 2 (1993), 93-

102.

13. Dooley, K.: Organizational Complexity. In: International Encyclopedia of Business and

Management, M. Warner, Ed. Thompson Learning, London (2001) 5013-5022.

14. Josuttis, N. M.: SOA in Practice: The Art of Distributed System Design. O'Reilly Media,

Inc., Sebastopol, CA (2007).

15. Carlson, R. A., Dulany D. E.: Diagnostic Reasoning with Circumstantial Evidence. Cogni-

tive. Psychol. 20, 4 (1988) 463-492.

16. Li, Z., O’Brien, L., Keung, J., and Xu, X.: Effort-Oriented Classification Matrix of Web

Service Composition. In: Proceedings of the Fifth International Conference on Internet and

Web Applications and Services (ICIW 2010), Barcelona, Spain (2010) 357-362.

17. Barros, A., Dumas, M., Oaks, P.: Standards for Web Service Choreography and Orchestra-

tion: Status and Perspectives. Lect. Notes. Comput. Sc. 3812/2006 (2006) 61-74.

18. Hepp, M.: Semantic Web and Semantic Web Services: Father and Son or Indivisible

Twins? IEEE. Internet. Comput. 10, 2 (2006) 85-88.

19. Raymond, E. S.: The Art of UNIX Programming. Addison-Wesley Professional, Boston,

MA (2004).

20. Boehm, B.: Software Engineering Economics. Prentice Hall, Upper Saddle River, NJ

(1981).
