Ontology-based Semantic Annotations for Business

Processes in BPMN2.0

Hui Liu

1,2

and Jean-Pierre Bourey

1,2

Univ Lille Nord de France, Lille, F-59000, France

Ecole Centrale de Lille, Laboratoire de Modélisation et de Management des Organisations

Cité Scientifique – BP 48 – 59651, Villeneuve d’Ascq, France

Abstract. This paper analyzes the reason of BPMN emergence and points out

that business processes in BPMN2.0 need semantic information to align

Business and IT. In order to supplement semantic information in BPMN2.0,

four methods of ontology-based semantic annotations are proposed and they are

all built on the extension mechanism of BPMN2.0. The advantages and

disadvantages of the four methods are subsequently discussed. This paper also

discusses how semantic annotations benefit the vertical model transformation of

business processes.

1 Introduction

Before the advent of computers, business processes are written in papers and

performed by human beings. After information systems came out in computer science

domain in 1970s [1], business processes were partially implemented by application

logics (software) [2], which improved the management efficiency and productivity of

companies. However, all of business processes were buried in software, and they were

not easy to monitor by managers in companies. So in 1990’s, workflow management

systems (WMS) appeared, and they were later renamed Business Process

Management Systems (BPMS), which can design, implement, execute, manage and

analyze business processes explicitly [3]. Unfortunately in WMS/BPMS, business

processes description languages were derived from the traditional programming

languages and they were difficult for business analysts to learn and use [2]. It means

that there is a wide gap between business domain and IT domain. During the

alignment of business and IT, BPMS and SOA went together to realize business

agility [4] – companies could be more rapidly adapted to business changes from

customers, market or themselves. As web service is de-facto implementation protocol

of SOA, nowadays BPMSs are more and more based on web service-based XML

execution languages [5]. However, these languages such as WS-BPEL[6] are still

oriented to IT engineers, not to business people. In order to address the interoperation

of business processes at human-level [5], BPMN was created and published out in

Version 1.1 by OMG in 2008. In order to model collaborations between companies,

some important concepts such as “conversation” and “choreography” were added into

BPMN2.0 released in January 2011.

Liu H. and Bourey J..

Ontology-based Semantic Annotations for Business Processes in BPMN2.0.

DOI: 10.5220/0003567200240033

In Proceedings of the International Joint Workshop on Information Value Management, Future Trends of Model-Driven Development, Recent Trends in

SOA Based Information Systems and Modelling and Simulation, Veriﬁcation and Validation (FTMDD-2011), pages 24-33

ISBN: 978-989-8425-60-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

BPMN2.0 can provide business people and IT engineers with a common and user-

friendly graphical notation of business processes, but it can’t make them have the

same understanding of contents in business processes. That’s to say BPMN2.0 defines

the graphical notation and expression syntax of business processes, but it lacks

semantic information about contents of business processes. So in order to align

business and IT, semantic information of business processes is necessary. Besides, if

business processes have semantic information, it will help to discover and reuse

processes (or process fragments) [7-9] and it will also improve the automation degree

of BPM [9-11].

Moreover, Model-Driven Architecture (MDA) [12]/Model-Driven Interoperability

(MDI) [13] are attracting more and more attentions in both scientific and industrial

domains to align business and IT, so MDA/MDI and business process management

(BPM) are integrated together, especially in order to research

collaborations/interoperability between enterprises from the viewpoint of MDA/MDI.

[14, 15] use collaborative business processes to model their collaborations at the

computation-independent model (CIM) level and BPMN is the preferable model

language. [14, 15] all point out that the modeling of collaborative business processes

must be supported by ontologies. So this paper will provide four ontology-based

methods to annotate semantic information into BPMN2.0-based business processes.

The rest of the paper is structured as follows. Section 2 presents the related work in

the research domain of semantic business processes. Section 3 elaborates the four

methods of ontology-based semantic annotations and compares them. Section 4 shows

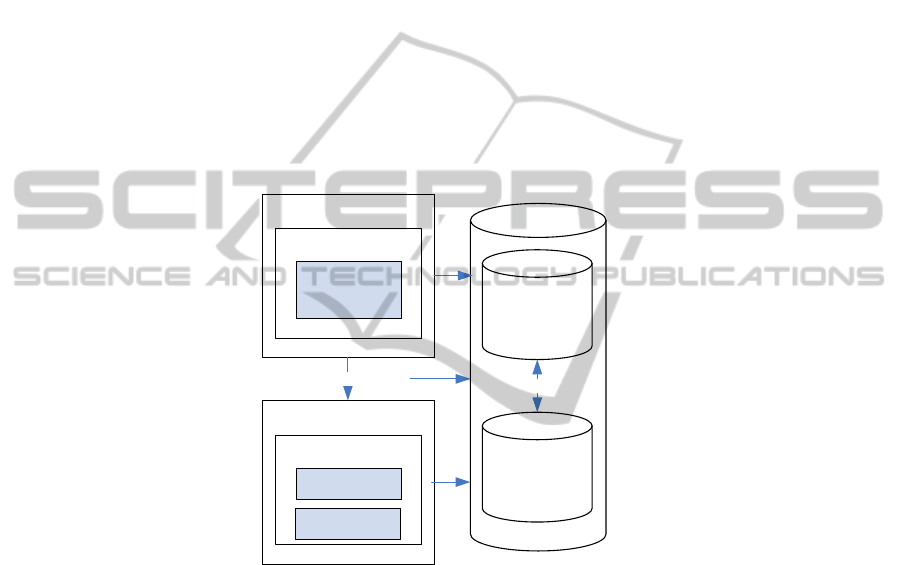

the benefits of semantic annotations to the vertical model transformation of business

processes. Section 5 concludes the whole paper.

2 Related Work

In order to research semantic information of business processes, two aspects should

be considered: which kind of information should be ontologized and how to represent

the information. For the first aspect [16, 17], which are based on European SUPER

project (Semantics Utilised for Process management within and between EnterPrise)

have proposed three kinds of ontologies: process ontology, organisational ontology

and domain ontology. Process ontology describes the structure of business processes

whereas organisation ontology describes the artifacts involved in business processes

(such as actors, resources etc), and domain ontology provides information specific to

a company. [16] also shows that the three kinds of ontologies have different contents

in different phases of BPM lifecycle.

For the second aspect, we have two choices: first, represent whole business

processes as ontologies including the structure and the content of business processes;

second, add semantic annotation for contents of business processes. [18] has proposed

a General Process Ontology and an application domain ontology to ontologize the

structure and content of business processes. In order to do the experiments of

semantic process retrieval, [19] has transformed approximately 5000 business

http://www.ip-super.org/

processes into OWL described by the concepts of MIT Process Handbook

. [20] has

proposed semantic BPMN which constructs BPMN concepts in OWL and uses these

definitions to instantiate BPMN processes. [20] has also proposed semantic BPEL

(sBPEL), semantic Event Process Chain (sEPC) to describe business processes and it

wants to transform business processes based on these ontologies into that based on

BPMO and at last it hopes BPMO can bridge sBPMN, sEPC and sBPEL together. To

achieve the goal, [21] has done the ontology-based translation of business process

models from Business Process Modeling Ontology (BPMO) to sBPEL and from

sBPEL to BPMO. This paper will discuss the second choice, like SAWSDL

realized

by WSMO Studio

3 Semantic Annotations for Business Processes in BPMN

In this paper, semantic annotations for business processes are based on ontologies,

i.e., the annotations will refer to concepts, properties or instances in ontologies

(shown in Fig. 1). However, the construction and distribution of ontologies are

beyond the scope of this paper, so this paper will just focus on how to associate

ontology with BPMN2.0-based business processes. Before that, we provide a concrete

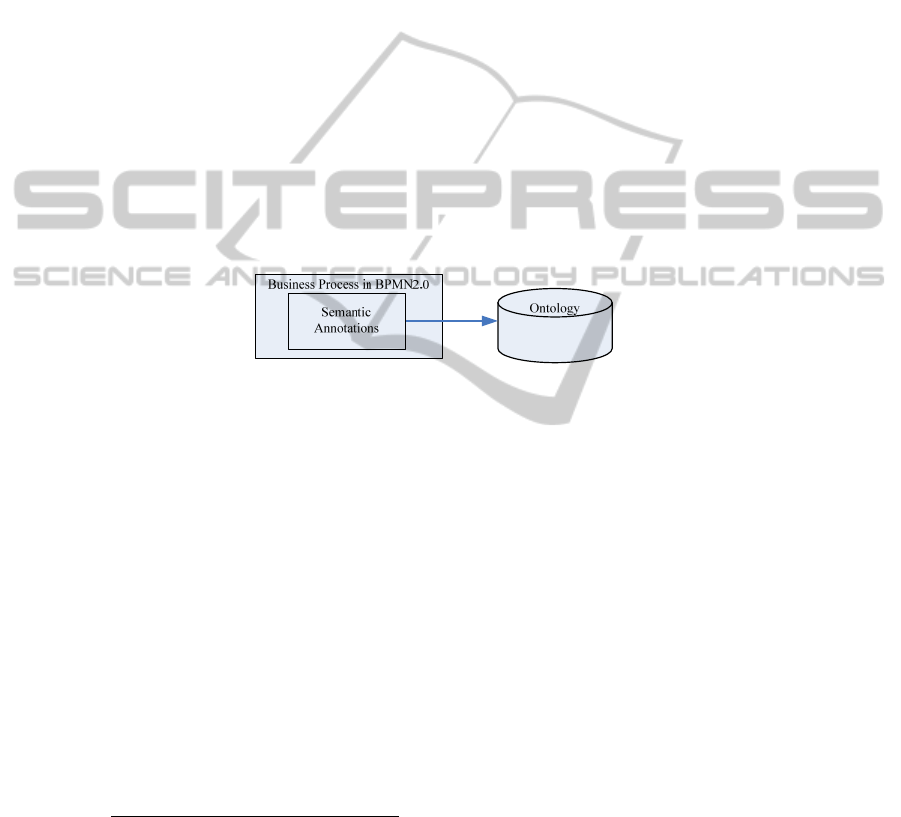

Fig. 1. Ontology-based Semantic Annotations for Business Processes.

example that indicates why a semantic annotation is necessary to business processes:

in a company, for the preparation of an anniversary celebration, there are lots of tasks

to do, one of which is to buy 5 beautiful notebooks as awards. To the organisers of the

preparation activity, “notebook” maybe means “book with blank pages for recording

notes or memoranda”

. However, if the preparation process of the celebration is

supported by information systems and the task, “buy 5 notebooks”, is implemented by

IT engineers as “find a notebook provider on the Internet and send electronic

request”, to IT engineers, “notebook” may be “notebook computer (a small compact

portable computer)”

. That’s to say “notebook” has ambiguity in the “preparation”

process. However, this is just one case for semantic heterogeneity [22, 23]. So the

contents in business processes must be annotated with semantic information for

disambiguation between different people. The following will explain how to realize

the semantic annotation for BPMN2.0-based business processes.

BPMN2.0 metamodel provides an extension mechanism. This allows business

process metamodel to be extended but to be still BPMN-compliant. In BPMN2.0

metamodel, such extensibility is implied in the definitions of “baseElement” (Page 64

http://ccs.mit.edu/ph/

http://www.w3.org/TR/sawsdl/

http://www.wsmostudio.org

http://wordnetweb.princeton.edu/perl/webwn

of [5]), “rootElement” (Page 65 of [5]), “documentation” (Page 64 of [5]), and

“extension” (Page 60 of [5]. This paper proposes the four ontology-based methods of

semantic annotations. Before the elaboration of the four methods, the outline of

BPMN2.0 files is provided in Fig. 2 (a). BPMN2.0 files are based on XML, and their

root element is “definitions” (Page 54 of [5]), and normally it contains two scopes:

one for the structure of collaborations/choreographies/processes and the other for the

visualization of all graphical notations in business collaborations/choreographies/

processes.

(a)

</definitions>

Scope of semantics

Scope of visualization

Scope of structure

(b)

(c)

(d)

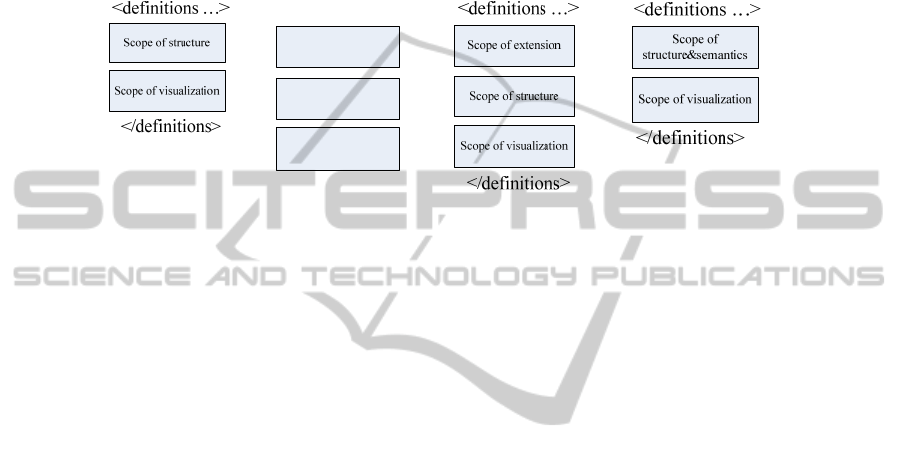

Fig. 2. Structures of BPMN2.0 Files.

3.1 “rootElement”-based Semantic Annotation

According to BPMN2.0 metamodel, “rootElement” is a child element of “definitions”

and it can be replaced by its subclasses, so we can define a subclass of rootElement’s

data type and create a corresponding element to replace “rootElement”. The schema

definition for the scope of semantics is as follows.

Schema definition for semantic annotations of BPMN2.0 (not complete)

<xs:complexType name="tSemanticAnnotation">

<xs:complexContent>

<xs:extension base="bpmn20:tRootElement">

<xs:sequence>

<xs:element name="detail" type="tSemanticDetail"

minOccurs="0" maxOccurs="1"/></xs:sequence>

<xs:attribute name="bpmnElement" type="xs:QName"/>

<xs:attribute name="ontologyRef" type="xs:anyURI"/>

<xs:attribute name="level" type="tMDALevel"/>

</xs:extension></xs:complexContent>

</xs:complexType>

<xs:complexType name="tSemanticAnnotationList">

<xs:complexContent>

<xs:extension base="bpmn20:tRootElement">

<xs:sequence>

<xs:element name="semanticAnnotation"

type="tSemanticAnnotation" minOccurs="0"

maxOccurs="unbounded"/>

</xs:sequence></xs:extension></xs:complexContent>

</xs:complexType>

<xs:element name="semanticAnnotationList"

type="tSemanticAnnotationList"

substitutionGroup="bpmn20:rootElement"/>

In the above code, the type “tSemanticAnnotation” defines which attributes

should be included in the semantic annotation for an element in BPMN2.0-based

business processes. Its attribute “bpmnElement” points to a corresponding element in

the scope of structure. The attribute “ontologyRef” points to a concept defined in an

ontology and the concept explains what the above “bpmnElement” means. The

attribute “level” means an MDA level at which the semantic annotation is. The sub-

element “detail” contains the detailed semantic information of the annotated element

and it can appear at most one time in a semantic annotation, for example, for a certain

task in a business process, there is not any corresponding concept/instance in the

dependent ontology, then the task can be described by its actors, action, resources and

other conditions which may have corresponding concepts/instances. Besides, the list

“semanticAnnotationList” contains all required semantic annotations for elements in

business processes.

After applying the above schema into a business process in BPMN2.0, the

BPMN2.0 files will be like Fig. 2 (b). The following gives an example of the scope of

semantics (the namespace in Italic is the namespace of the dependent ontology).

Example of “rootElement”-based semantic annotation

<bpmnsa:semanticAnnotationList id="sid-1">

<bpmnsa:semanticAnnotation id="sid-2_s"

bpmnElement="sid-2"

ontologyRef="{namespace}/logisticOnto.owl#TrainTicket"

level="CIM"/>

</bpmnsa:semanticAnnotationList>

However, this method requires that the new schema and the original BPMN2.0

schema (metamodel) share the same “targetNamespace”, and BPMN2.0 schema must

include the new schema. That’s to say the original BPMN2.0 schema will be

modified, and this is the drawback of the method.

3.2 “extension”-based Semantic Annotation

According to BPMN2.0 metamodel, “extension” is a sub-element of “definitions”,

and it can be extended. So this method is to add semantic annotations into the

“extension” element. The definition of semantic annotations is the same as that in the

first method. After applying this method into a business process, the BPMN2.0 files

will be like Fig. 2 (c). The following gives an example of the scope of semantics. In

this method, the scope of semantics is included in the scope of “extension”, not

directly stored as the sibling scope of business processes’ structures like

“rootElement”-based method, so the representation style of semantic annotations in

this method is less clear than that in “rootElement”-based method.

Example of “extension”-based semantic annotation

<bpmnsa:semanticAnnotationList id="sidl-1">

<bpmnsa:semanticAnnotation id="sid-2_s"

bpmnElement="sid-2"

ontologyRef=

"{namespace}/logisticOnto.owl#TrainTicket"/>

</bpmnsa:semanticAnnotationList>

</documentation></extension>

3.3 Attribute/Element-based Semantic Annotation

In BPMN2.0 metamodel, the type of “baseElement” makes it possible to add new

attributes or new elements into it, and fortunately collaboration, choreography,

process, task, artefact, event, message, gateway, participant and expression are

extended based on the type of “baseElement”, so all of the above concepts can add a

new attribute to point to a concept defined in an ontology. The attribute can be

defined as follows.

Attribute definition for semantic annotation

<xs:attribute name="ontologyRef" type="xs:anyURI" />

So after applying such annotation method, the extended business process is

obtained and the following shows one fragment.

Example of attribute-based semantic annotation

<dataObject id="sid-2" isCollection="false"

name="ticket"

bpmnsa:ontologyRef=

"{namespace}/logisticOnto.owl#TrainTicket"/>

In this method, all semantic annotations are scattered in BPMN2.0 files, not like

the above two methods where all semantic annotations are collected in one scope. The

structure of BPMN2.0 files is like Fig. 2 (d). This method is similar to SAWSDL.

3.4 “textAnnotation”-based Semantic Annotation

As “textAnnotation” is extended from the type of “baseElement”, so it has

extensibility inherently. And “textAnnotation” can be associated with activities,

events, gateways, message flows, sequence flows and other objects whose type is

derived from the type of “baseElement”. So “textAnnotation” can be used as a

method of semantic annotations. However, “textAnnotation” is associated with an

annotated element by an association, not like the above three methods which associate

semantic annotations and annotated elements by ID mappings (“bpmnElement” in

Section 3.1). In a business process, the usage of “textAnnotation”-based semantic

annotation is as follows and the structure of BPMN2.0 files will be like Fig. 2 (d).

Example of “textAnnotation”-based semantic annotation

<text>

<bpmnsa:semanticAnnotation id="sid-2_s"

ontologyRef=

"{namespace}/logisticOnto.owl#TrainTicket"/>

</text></textAnnotation>

In terms of the above elaboration of four methods, the first two methods collect all

semantic annotations together in the scope of semantics, instead the second two

methods merge semantic annotations within the scope of business processes’

structures. Table 1 compares the four methods in detail.

Table 1. Comparison between four semantic annotation methods of business processes.

Semantic Annotation advantages disadvantages

“rootElement”-based Keep all semantic

annotations together;

Modify the metamodel of

BPMN2.0;

“extension”-based Keep all semantic

annotations together;

Less clear than “rootElement”-

based SA

attribute/element-based Semantic annotations are

attached directly to

designated BPMN elements;

All semantic annotations are

scattered in the structure scope

of BPMN files;

“textAnnotation”-based Semantic annotations are

attached to designated;

BPMN elements

Not directly mapped;

“textAnnotation” appears

everywhere in BPMN

graphical diagrams;

The above four ontology-based semantic annotation methods can be adopted by

BPMN2.0 Tools such as BizAgi Xpress

, Oracle BPM Suite

, Bonita Open Solution

etc. According to Table 1, the second method is preferable. If BPMN2.0 tools want to

add semantic annotations into business processes, they must provide IT engineers

with a graphical user interface (GUI) which could show all concepts/instances in

dependent ontologies and which should also easily associate them with graphical

elements in business processes. Of course, these tools should also provide a GUI for

IT engineers to create detailed semantic annotations -- “detail” in Section 3.1, which

can help generate new concepts/instances in dependent ontologies.

4 Semantic Annotations and Model Transformation

Besides facilitating process (or process fragment) discovery and reuse, semantic

information in business processes can also help model transformation in MDA

research domain. In [15], a process-based method for enterprise interoperability has

been proposed and it is integrated with MDA. At the CIM level, this method uses

collaborative business processes to describe collaboration requirements between

http://www.bizagi.com/index.php?option=com_content&view=article&id=19&Itemid=100

http://www.oracle.com/us/corporate/press/079865

http://www.bonitasoft.com/

enterprises and after several model (business process) transformations, it is expected

to generate several executable business processes. Each business process

transformation will need semantic information retrieved from ontologies and add new

information into generated business processes. Semantic Annotations for business

processes can be a suitable method to support such business process transformation.

Fig.3 shows a general model transformation in the method of [15] and the

transformation takes advantage of semantic annotations. In Fig. 3, Business Process i

has the existing semantic annotations which point to ontology, especially point to

Ontology i, and the newly generated Business Process j contains new semantic

annotations besides the originals. The new semantic annotations also point to

ontology, especially points to Ontology j. During the transformation from Business

Process i to j (from MDA high level to MDA low level), the mapping between

Ontology i and j will be needed. With the help of the mapping, the transformation will

find the concepts/instances in Ontology j corresponding to concepts/instances in

existing semantic annotations of Business Process i. The new semantics will be added

into Business Process j.

Business Process i

Scope of Semantics

Existing

Semantics

Business Process j

Scope of Semantics

Existing

Semantics

New Semantics

Ontology

Ontology i

Ontology j

Model transformation

mapping

Fig. 3. Semantic Annotations in Business Process Transformation.

From the above narration, semantic annotations of business processes are very

useful for vertical model transformation (from MDA high level to low level).

5 Conclusions

Business processes need semantic information during the alignment between business

and IT. In order to supplement semantic information in BPMN2.0-based business

processes, this paper has presented four methods of ontology-based semantic

annotations and these methods are all built on the existent extensibility mechanism of

BPMN2.0. After the comparison of the four methods, the “extension”-based semantic

annotation method will be preferable to the other three methods. This paper has also

shown that semantic annotations are helpful to the vertical transformation of business

processes (a business process is regarded as a model in MDA).

Apart from bringing benefits to BPMN2.0-based business processes, semantic

annotations are also beneficial to ontologies. This paper has indicated that the detailed

semantic annotations will help to generate new concepts/instances to enhance

contents of ontologies. Furthermore, semantic annotations imply the reversible

associations between business processes and ontologies, hence some

concepts/instances in ontologies have corresponding structural elements in business

processes and they can find their preconditions/post-conditions through business

processes. In fact, business processes can be regarded as contexts for some

concepts/instances in ontologies. So, BPMN2.0-based business processes are one kind

of structural annotations for ontologies.

Acknowledgements

This work has been partially funded by the ISTA3 project. This project has been

labeled by the Aerospace Valley Pole in Aquitaine/Midi-Pyrénées in France.

References

1. C. Avgerou, "Information systems: what sort of science is it?," Omega, vol. 28, pp. 567-

579, 2000.

2. D. E. Jenz. Ontology-based business process management-the vision statement. 2003.

Available: http://www.bpiresearch.com/Resources/WP_BPMVision.pdf

3. W. M. P. van der Aalst, A. H. M. ter Hofstede, and M. Weske, "Business Process

Management: A Survey," in Proceedings of the International Conference of Business

Process Management, Eindhoven, The Netherlands, 2003, pp. 1-12.

4. C. Ling and L. Xin, "Achieving Business Agility by Integrating SOA and BPM

Technology," in 2009 International Forum on Information Technology and Applications,

Chengdu, China, 2009, pp. 334-337.

5. OMG, "Business Process Model and Notation (BPMN) Version 2.0," ed: Object

Management Group, 2011.

6. A. Alve and A. Arkin, "Web Services Business Process Execution Language Version 2.0,"

ed: OASIS, 2007.

7. K. Belhajjame and M. Brambilla, "Ontology-based Description and Discovery of Business

Processes," in 10th Workshop on Business Process Modeling, Development, and Support

(BPMDS) at CAiSE 2009, Amsterdam, 2009, pp. 85-98.

8. M. Dimitrov, A. Simov, S. Stein, and M. Konstantinov, "A BPMO Based Semantic

Business Process Modelling Environment," in ESWC-SBPM, Innsbruck, Austria, 2007.

9. W. Abramowicz, K. Haniewicz, M. Kaczmarek, and D. Zyskowski, "Semantic Modelling

of Collaborative Business Processes," presented at the Proceedings of the 2009

International Conference on Information, Process, and Knowledge Management, 2009.

10. A. Awad, A. Polyvyanyy, and M. Weske, "Semantic Querying of Business Process

Models," in Enterprise Distributed Object Computing Conference, 2008. EDOC '08. 12th

International IEEE, 2008, pp. 85-94.

11. M. Hepp, F. Leymann, J. Domingue, A. Wahler, and D. Fensel, "Semantic Business

Process Management: A Vision Towards Using Semantic Web Services for Business

Process Management," in Proceedings of the IEEE ICEBE, 2005, pp. 535-540.

12. J. Miller and J. Mukerji, "MDA Guide Version 1.0.1," ed: Object Management Group,

2003.

13. J.-P. Bourey, R. Grangel, G. Doumeingts, and B. Arne-J., "Deliverable DTG2.3 Report on

Model-Driven Interoperability," 15 May 2007.

14. J. Touzi, "Aide à conception de système d'information Collaboratif support de

l'interopérabilité des enterprises," Doctoral, Centre de Génie Industriel, Ecole des Mines

d'Albi Carmaux, 2007.

15. H. Liu, A.-F. Cutting-Decelle, and J.-P. Bourey, "Use of Ontology for Solving

Interoperability Problems between Enterprises," in Collaborative Networks for a

Sustainable World--11th IFIP WG 5.5 Working Conference on Virtual Enterprises, PRO-

VE 2010, St. Etienne, France, October 11-13, 2010. Proceedings. vol. 336, L. Camarinha-

Matos, X. Boucher, and H. Afsarmanesh, Eds., ed: Springer Boston, 2010, pp. 730-737.

16. A. Filipowska, M. Hepp, M. Kaczmarek, and I. Markovic, "Organisational Ontology

Framework for Semantic Business Process Management," in Business Information Systems.

vol. 21, W. Abramowicz, Ed., ed: Springer Berlin Heidelberg, 2009, pp. 1-12.

17. A. Filipowska, M. Kaczmarek, M. Kowalkiewicz, I. Markovic, and X. Zhou,

"Organizational ontologies to support semantic business process management," presented at

the Proceedings of the 4th International Workshop on Semantic Business Process

Management, Heraklion, Greece, 2009.

18. Y. Lin and H. Ding, "Ontology-based Semantic Annotation for Semantic Interoperability of

Process Models," in Proceedings of the International Conference on Computational

Intelligence for Modelling, Control and Automation and International Conference on

Intelligent Agents, Web Technologies and Internet Commerce Vol-1 (CIMCA-IAWTIC'06)

2005, pp. 162-167.

19. C. Kiefer, A. Bernstein, H. J. Lee, M. Klein, and M. Stocker, "Semantic Process Retrieval

with iSPARQL," presented at the Proceedings of the 4th European conference on The

Semantic Web: Research and Applications, Innsbruck, Austria, 2007.

20. SUPER-Project, "D.1.1. Business Process Ontology Framework," SUPER

Deliverable,April 2007.

21. B. Norton, L. Cabral, and J. Nitzsche, "Ontology-Based Translation of Business Process

Models," presented at the Proceedings of the 2009 Fourth International Conference on

Internet and Web Applications and Services, 2009.

22. Z. Xu and Y. C. Lee, "Semantic Heterogeneity Of Geodata " in ISPRS Commission IV, WG

IV/2, Ottawa, Canada, 2002.

23. H. Wang and J. N. K. Liu, "Analysis of Semantic Heterogeneity Using a New Ontological

Structure Based on Description Logics," in Fuzzy Systems and Knowledge Discovery, 2009.

FSKD '09. Sixth International Conference on, 2009, pp. 216-221.
