AN ANTI-PHISHING MODEL FOR ECOMMERCE UNDER

A NETWORK ENVIRONMENT

Yifei Cheng and Gen Li

School of Economics and Management, Harbin Engineering University, Nantong St.145-11, Harbin City, China

Keywords: Phishing, Ecommerce, Fuzzy algorithm.

Abstract: It is a complicated problem to detect the ecommerce phishing websites in real time. The detection is

affected by a lot of factors which are indistinct and correlative. Therefore, fuzzy classification tools can

translate the phishing websites details into crisp numbers which could be understood by human. In this

paper, we proposed a model which includes six standards and twenty seven elements with fuzzy data mining

method to detect and assess the ecommerce phishing risk rate. Although lack of the specific data to do

experiment to check the validity, it is a good start to focus on the ecommerce security.

1 INTRODUCTION

The word phishing is abbreviation of the phrase

“website phishing”. The idea is that bait is launched

and to wish a victim will bite it just like a fish. When

a user is browsing the B2C or C2C websites (e.g.

Taobao, Youa, Alibaba), the criminals may send an

e-mail or a link URL from instant messaging

services such as QQ or other web messengers which

will take the user to hostile phishing websites

(James, 2006). At present, phishing websites are

overflow with the rapid development of ecommerce

which are fabricated to feign the real ecommerce

websites by criminals. With the advanced

programming and webpage making methods, some

of these web pages just look like the real ecommerce

websites. The phishing websites have little visual

difference to hoax the victims. Negligent cyber

citizens could easily fall into the snare and lose their

credit card number, payment account, password, or

other important private information. The result is

that the disturbance of the normal ecommerce

sequence and the victims lose heart to the security of

ecommerce. Compared with other crime forms,

phishing is relatively new Internet crime. More and

more phishing web pages have been found in recent

years in an accelerative way (Liu et al., 2006).

Ecommerce phishing website is a complicated topic

to discuss and analyze, because it is a combination

and mixture of social and technical problem. At the

moment, there is no an effective prescription to cure

it. This paper focus on building an effective method

that uses fuzzy data mining algorithms to against the

attack of ecommerce phishing websites. Data mining

techniques can be used in the fuzzy logic model. It

took less time in distinguishing the most important

ecommerce phishing website features pointers by

analyzing historical data for training purposes.

The paper is organized as follows: Section 2

shows the literature review and related work.

Section 3 introduces the theory and methodology for

assessing the risk of ecommerce phishing website.

Section 4 presents the model design and discussion.

Section 5 reveals the conclusion and future work.

2 LITERATURE REVIEW AND

RELATED WORK

2.1 Literature Review

Phishing website is only a new form of crime, but it

has a destructive influence on ecommerce and other

online financial services. Therefore, many parties

took steps to prevent and defend such ecommerce

phishing website attacks. There are several methods

with great promise reported previously. Here we just

have a short review of existing anti-phishing

solutions and related work. One method is to stop

phishing by increasing defense level of email (Adida

et al., 2005), because phishing attacks use group

mail to tempt victims to click the phishing website

(Wu et al., 2006a). The next method is to distinguish

400

Cheng Y. and Li G..

AN ANTI-PHISHING MODEL FOR ECOMMERCE UNDER A NETWORK ENVIRONMENT.

DOI: 10.5220/0003569404000404

In Proceedings of the 13th International Conference on Enterprise Information Systems (NMI-2011), pages 400-404

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

visually the phishing websites from the real ones.

Dynamic Security Skins (Dhamija & Tygar, 2005)

introduces to adopt a randomly generated visual

hash to tailor the interface or web composition to

point to the real ones. A common method is to install

security toolbars, IE 7 (Sharif, 2006) or higher

version web browsers with the phishing filter will

block the user’s operation when it detect the

phishing site. Another method is double factors

warranty, which guarantees that the user knows both

a secret and a security wand (FDIC, 2004).

Nevertheless it has its shortcoming which cannot be

authenticated by double factors and cannot protect

private information such as credit card information

which is not related to a specific website (Wu, et al.,

2006b).

Many web browsers use security toolbars to

prevent phishing attacks. But some researchers have

proven the ineffectiveness through their study.

Herzberg and Gbara (2004) introduced a new tool

which combines a visual inspection of correct

certification with the technique standard certificates.

If the certificate was valid, a site-dependent logo

would appear in the browser. The credential was

provided by a trusted party who has blacklisted

existing phishing websites. Bridges and Vaughn

(2001), Dhamija and Tygar (2005) presented a

scheme that adopts a coded identification and

recognition method that allows remote web servers

to confirm. While this plan need the whole web base

installation, so it is difficult to get supports from the

entire industry. In Liu, Deng, Huang, &Fu (2006)

proposed a method to model and depict phishing by

quantifying a given site’s threat, but it is not a

solution. Netcraft anti-phishing toolbar (Netcraft,

2004) adopts a blacklist of existing phishing URLs

to prevent phishing attacks. The same method also

was taken by McAfee, Cloudmark and Microsoft

(Pan & Ding, 2006). But the method has its

limitation of scalability and timeliness. Given the

low-cost short life of phishing websites, APWG

proposed an Anti-phishing Working Group (2007)

which consists of most of the major anti-phishing

companies. Dhamija and Tygar (2005) and Wu

(2006b) presented methods with rigid webpage-

making rules, random skin or HTML code. But in

practice, seldom webpage-makers would take the

method (Fu et al., 2006). Then a visual method to

detect phishing was first introduced by Liu, Huang,

Liu, Zhang, & Deng (2005), Fu et al. (2006), Liu et

al., (2006). The method can detect phishing attacks

and report in an automatic way. With their efforts,

phishing detection begins to focus on visually

distinguishable block regions. Fu et al. (2006)

clarified the visual similarity in three dimensions:

layout, block level and overall style similarity.

2.2 Main Characteristics of

Ecommerce Phishing Websites

At present, the crime group consists of professionals

with phishing techniques. The phishing websites are

highly realistic with sophisticated and undetectable

design skills. The criminals always make a phishing

website which just looks like a real ecommerce

website. They dress up as the goods or service

providers with lower price to tempt victims. In fact,

there are a plenty of factors and characteristics that

can discriminate the real ecommerce websites from

the ecommerce phishing ones, such as too long URL

address. The detail list is shown in Table 1.

Table 1: Levels and elements of ecommerce phishing

websites standard.

Standard N Element

Level

No.

Domain & UR

Identity

(Weight=0.4)

bnormal URL

Level 1

bnormal RUL of Ancho

bnormal request URL

sing the IP address

bnormal DNS record

Java Script &

Source Code

(Weight=0.2)

1 Server Form Handle

Level 2

harming Attac

edirect Pages

sing onMouseOver to hide the

5 Straddling Attac

Encryption &

Security

(Weight=0.1)

bnormal Cookie

sing SSL Certificate

istinguished Names Certificate

4 Certification Authority

Network

Address Bar

(Weight=0.1)

sing @ to confoun

Level 3

isplacing analogical chars for

ong URL Address

dding a suffix or prefix

sing Hexadecimal Codes

Contents &

Stylesheets

(Weight=0.1)

sing Pop-Ups Windows

2 Spelling Errors

isabling Right-Click

4 Copying Websites

sing Forms with “Submit”

utton

Standard N Element

Level

No.

Social Human

Factors

1 Social General Appellation

2 Buying Time to Access Account

3 Much stress on Security and

Response

Total Weight 1

AN ANTI-PHISHING MODEL FOR ECOMMERCE UNDER A NETWORK ENVIRONMENT

401

3 THE METHODOLOGY TO

ASSESS RISK OF

ECOMMERCE PHISHING

WEBSITES

3.1 The Method of Fuzzy Data Mining

The method of fuzzy data mining is to assess risk of

ecommerce phishing website from 27 characteristics

from Table 1 which label the risky website. It is

useful to represent key phishing characteristics by

linguistic variables.

3.1.1 Fuzzifierion

First, we descript every key phishing characteristic

indicator by using a range of linguistic descriptors,

for example, high, low or medium and we assign

different values which from low to high could be

divided into classes. In other words, cluster is the

degree of belongingness of the values to the

membership. An equation is established for every

phishing characteristic indicators which shows the

mapped input space between 0 and 1. While in

decrypting the risk of ecommerce phishing website,

linguistic values are assigned as very legal, legal,

doubtful, dangerous, risky, very risky. The values of

input are between 0 and 10, while for output, range

from 0 to 100.

3.1.2 Rule Generation Algorithms

According to the specific risk of ecommerce

phishing websites and its key factors, the second

step is to clarify the probability varies. The existing

rules based on the experts’ experience and

knowledge in the form of “if…then” are useful to

assess the probability. We use data mining method

and correlation rules to classify the key factors and

elements in our ecommerce phishing website model

as shown in Fig. 1. There also have some existing

research findings about data mining such as Prism

(Cendrowska, 1987), C4.5 (Quinlan, 1996), CBA

packages (Liu et al., 1998) algorithms to study the

relationship of the different phishing elements. All

methods above mentioned are easily understood by

human (Ciesielski and Lalani, 2003).

3.1.3 Cluster of the Rule Outputs and

Defuzzification

Through this step, we can unify the outputs and with

the equation of membership to build single fuzzy

sets.

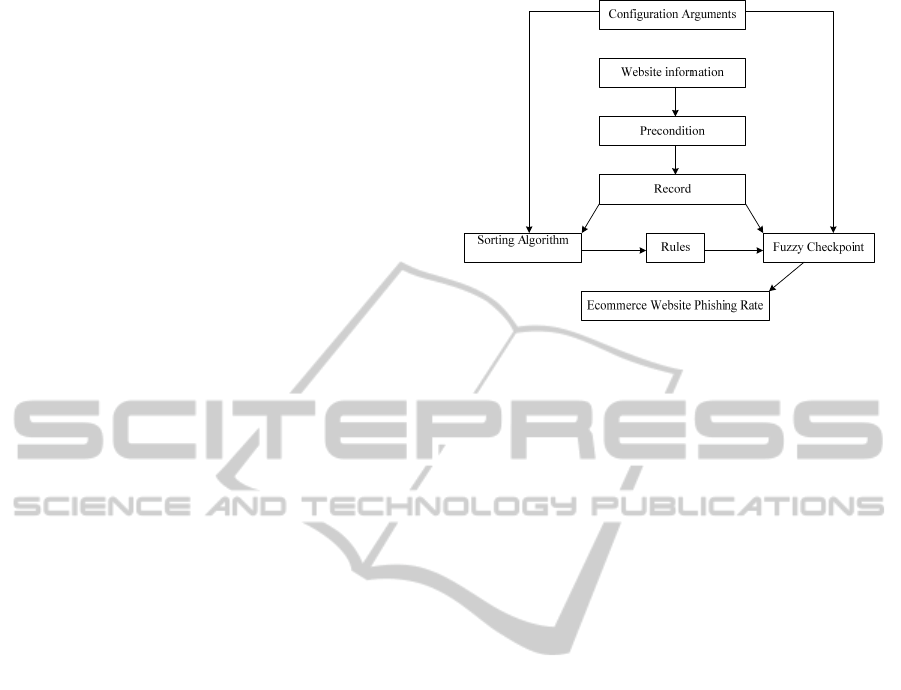

Figure 1: Ecommerce phishing website model.

In this step, we translate a fuzzy output into a

crisp output. In the course of fuzziness, we scale the

rules, but the end output has to be a number.

Centroid technique (Han & Karypis, 2000) was

adopted. The output is ecommerce phishing website

risk rate and the fuzzy sets from very legal to very

risky and defuzzified to get a value.

3.2 Challenges and Classification

Algorithms

There are a plenty of challenges to classify

ecommerce phishing website. First, it is difficult to

collect data of ecommerce phishing websites due to

their elusiveness. Secondly, it is a big problem of

data life cycle because of ecommerce phishing

websites’ transience. As estimated, the average

phishing site stays live for about 2.25 days (Putting

an end to account-hijacking identity theft, 2004).

Moreover, it is really difficult to record the original

ecommerce phishing website without a mistake.

Therefore, it is impossible to find a high accurate

algorithm.

In practice, five data mining algorithms such as

CBA, Prism, Part, C4.5 and Ripper are very

common. They can be used in learning rules from

data sets according to different conditions (Misch,

2006).

4 MODEL DESIGN AND

DISCUSSION

In this paper, as Table 1 shown, there are six main

standards and different elements for every standard.

There are 27 elements altogether. There also are

three levels on the ecommerce phishing website

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

402

model as shown in Fig 2. Through classification,

cluster and correlation algorithms, we can mine

ecommerce phishing website database.

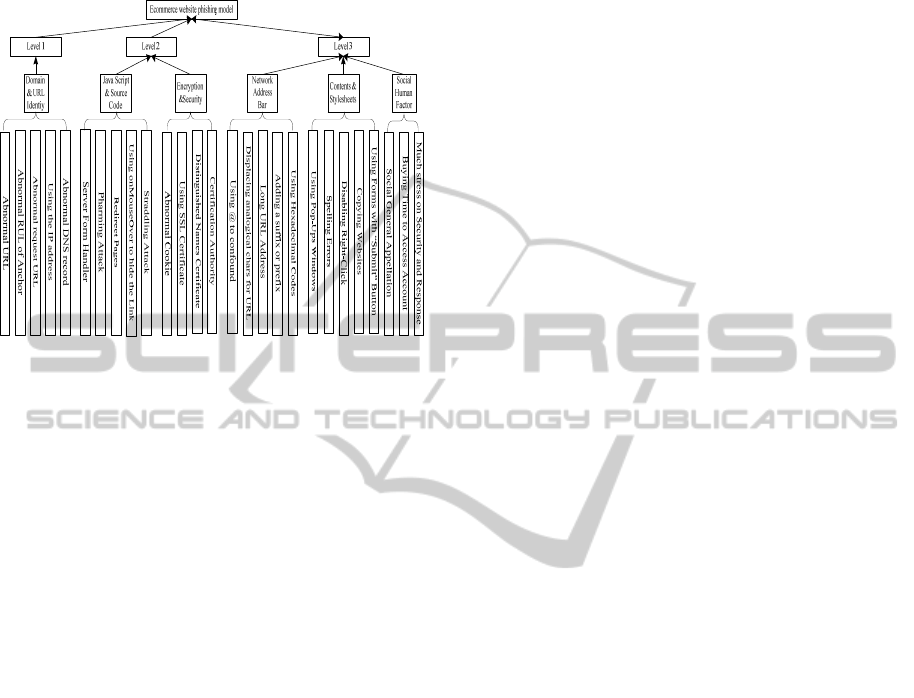

Figure 2: Structure of the model to assess ecommerce

phishing website risk rate.

Ecommerce phishing website

rating=0.4*Domain and URL Identity crisp [level 1]

+ ((0.2*Java Script crisp) + (0.1*Encryption crisp

&Security crisp)) [level 2] + ((0.1*Contents &

Stylesheets crisp) + (0.1* Network Address Bar

crisp) + (0.1*Social Human Factor crisp)) [Level 3]

4.1 Rules of Design

4.1.1 Rules for Level 1

In Level 1, there are five input parameters and one

output. Every standard has five elements while each

element is assumed to be one of three values. While

the only one output is the ecommerce phishing

website rate fuzzy sets (Fake, Uncertain, Legal) to

stand for Domain & URL Identity standard which

combines with “If…then” rules to form Rule base 1.

4.1.2 Rules for Level 2

In Level 2, there are two inputs and one output.

Through Rule base 1, Java &Source Code standard

has five elements while Encryption & Security

standard has four elements. The model structure of

Level 2 is combined by the two ecommerce phishing

website standards, which produces Rule base 2.

There is one output rule of the ecommerce phishing

website rate fuzzy sets (Fraud, Doubtful or Genuine)

indicating Level 2 standard phishing risk rate.

4.1.3 Rules for Level 3

In Level 3, there are three inputs and one output.

Through Rule base 1, Contents & Stylesheets

standard has five elements. Network Address Bar

standard has five elements too. Social Human Factor

standard only has three elements. The model

structure for Level 3 is combined by the three

standards, which produces Rule base 2. There is one

output rule of the ecommerce phishing website rate

fuzzy sets (Fraud, Doubtful or Genuine) indicating

Level 3 standard phishing risk rate.

4.1.4 Rules for End Ecommerce Phishing

Website Rate

At last step, there are three inputs, which are

respectively Level 1, Level 2 and Level 3. There is

one output which is the ecommerce phishing website

rate. The model structure is combined by Level 1,

Level 2 and Level 3, which produces end

ecommerce phishing website rule base. There is one

end output fuzzy sets (Very legal, Legal, Doubtful,

risky, very risky) indicating end ecommerce

phishing website rate.

4.2 Discussion

Because we have no existing data about ecommerce

phishing data, we cannot do data mining exercise.

We build this model to start the research on

ecommerce phishing risk. In this step, some

approaches could be adopted. For example, clipping

method (Ho, Ling, & Reiss, 2006) could cluster the

consequences. Mamdani method (Liu, Chen, & Wu,

2002) could be used to defuzzify the rule evaluation.

We believe the 27 characteristics cover the

ecommerce phishing website. In the future, if we

cooperate with other institutes to collect the recorded

data, the validity of the ecommerce anti-phishing

model can be tested.

5 CONCLUSIONS AND FUTURE

WORK

The ecommerce anti-phishing website model

showed the six main standards of the ecommerce

phishing website and related twenty seven elements

under three levels.

The first purpose in the paper was whether we

could find any effective method to detect

ecommerce phishing risk automatically. But as

mentioned in the paper, it is very difficult to record

AN ANTI-PHISHING MODEL FOR ECOMMERCE UNDER A NETWORK ENVIRONMENT

403

the data by single researcher. In other words, it

requires some other groups’ cooperation to collect

the data. In this area, there is more new work to be

done and other new techniques should be integrated.

However, we believe this model is a good starting

for other users to further their research in

ecommerce anti-phishing.

REFERENCES

Adida, B., Hohenberger, S. & Rivest, R., (2005). Fighting

Phishing Attacks:A Lightweight Trust Architecture fro

Detecting Spoofed Emails. In DIMACS Wkshp on

Theft in E-Commerce.

Anti-Phishing Working Group (2007). Phishing Activity

Trends Report. Available from www.antiphishing.org/

reports/apwg_report_april_2007.pdf

Bridges, S. M. & Vaughn, R. B., (2001). Fuzzy data

mining and genetic algorithms applied to intrusion

detection. Department of Computer Science

Mississippi State University, White Paper.

Cendrowska, J., (1987). PRISM: An algorithm for

inducing modular rules. International Journal of Man

–

Machine Studies, 27(4), 349–370.

Ciesielski Vic & Lalani Anand (In press). Data mining of

web access logs from an academic web site. In

Proceedings of the third international conference on

hybrid intelligent systems (HIS

’

03): Design and

Application of Hybrid Intelligent Systems (pp. 1034–

1043). IOS Press.

Dhamija, R. & Tygar, J. D., (2005). The battle against

phishing: Dynamic security skins. In Proceeding s of

the 2005 symposium on Usable Privacy and Security.

Han, E. & Karypis, G., (2000). Centroid-based document

classification: Analysis and experimental results.

Principles of Data Mining and Knowledge Discovery,

424–431.

FDIC (2004). Putting an end to account – hijacking

identity theft. Available from http://www.fdic.gov/

consumers/consumer/idtheftstudy/identity_theft.pdf

Herzberg, A. & Gbara, A., (2004). TrustBar: Protecting

(even naive) web users from spoofing and phishing

attacks. Draft of July, 11.

Ho, C. Y., Ling, B. W. & Reiss, J. D., (2006). Fuzzy

impulsive control of high-order interpolative low-pass

sigma – delta modulators. IEEE Transactions on

Circuits and Systems–I: Regular Papers, 53(10).

James, L., (2006). Phishing exposed. Tech target article
