RESEARCH AND APPLICATION OF CARRIER-GRADE

MASHUP PLATFORM ON ONEAPI

Jie Di, Haihong E. and Lin Ma

PCN & CAD Center, Beijing University of Posts and Telecommunications, Xitucheng Street, Beijing, China

Keyword: Mashup platform, GSMA OneAPI, RESTful web service.

Abstract: The emergence of Mashup enables its development more convenient, with more and more service providers

open their own API. Although users join the Mashup developing group using the service provided on

internet, there are hardly any telecommunication services supplied. Based on the characteristics of Mashup

technology, in this paper we provide a new Mashup application system framework based on the GSMA

OneAPI interface and REST Web Service, which access telecommunication services to Mashup. The

application we present demonstrate the feasibility of carrier-grade Mashup application, and indicate that

OneAPI interface and Mashup application in the information field covering Internet and

telecommunications network has great potential.

1 INTRODUCTION

Mashup application is a web application which

integrates content retrieved from multiple external

data sources (Jackson C, 2007). Having been widely

used recently, the type of it includes maps Mashup,

video and image Mashup (Merrill D, 2006), and

other types of search and shopping Mashup.

Currently, most web service providers such as

Yahoo, eBay, Amazon, Google has been providing

Web services API, which allows developers to use

the Mashup API to build the corresponding

applications, making this new type of Web

application model become reality. Mashup attracts

academic and industrial with its characteristic of

more reusability, based on Web, lightweight and end

users oriented (Liu Xuanzhe, 2007).

In this paper, we adopt the OneAPI provided by

GSMA and Google map API to construct a Mashup

application.

And we introduce the feasibility and potential of

Mashup application which based on the REST web

Service performing in information sharing and

application development.

In this article we first introduce some related

technologies, then as an application for instance, we

provide the system structure and implementation

process of Mashup application.

2 CONCEPTION AND FEATURES

OF GSMA ONEAPI

2.1 Conception of the GSMA OneAPI

The GSMA OneAPI (GSMA OneAPI Reference,

2008) is an initiative to define a commonly

supported API to allow mobile (and other network)

operators to expose useful network information and

capabilities to a Web application developers. It aims

to reduce the effort and time needed to create

applications and content that is portable across

mobile operators. The project aims to reuse existing

standards (or proper subset thereof) as well as advise

standards bodies as to what Web developers expect

from network operator APIs, so that such standards

can evolve accordingly.

The project is a work in progress we appreciate

your feedback via the forum to help us improve the

APIs.

2.2 Work Mode of OneAPI

The GSMA OneAPI is intended to complement

existing client-side and server-side APIs by

providing a missing piece: access to network

capabilities and information, regardless of operator.

As such it can be accessed by client and server side

technologies when required; although for reasons of

504

Di J., E. H. and Ma L..

RESEARCH AND APPLICATION OF CARRIER-GRADE MASHUP PLATFORM ON ONEAPI.

DOI: 10.5220/0003585505040509

In Proceedings of the 13th International Conference on Enterprise Information Systems (SSE-2011), pages 504-509

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)



authentication and security it is likely that client

APIs will not call the GSMA OneAPIs directly, but

instead by invoking a server-side API to make the

call. For example the OMTP BONDI framework

includes a 'wrapper' API that can be used to

encapsulate a OneAPI call if needed.

2.3 Location&SMS API

The OneAPI location function can acquire location

information of one phone through GPRS networks

anytime and anywhere, in conjunction with the

relevant other message it may develop a good

application. We can develop a emergency rescue

apply by combining the position information,

electronic map, traffic information and other

information. If the tourist attractions combined, we

also can carry out many tour guide's information,

and of course, there are many other good business,

such as advertising and children's custody. if

thinking openly and deeply, there would be many

other apply.

The OneAPI SMS interface allows a Web

application to send and receive SMS messages.

 To

receive SMS sent to your Web application by end

users, you will need to obtain a registration Id (e.g.

short code or similar identifier) to identify your

application to the network for correct routing.

Mashup Based on mobile network has a very wide

range of application (LI Yan, 2008) The application

of the Internet combined with mobile network can

offer more abundant application. The application of

Mashup based on location is specific characteristic

of network, which can acquire location information

at anytime and anywhere through mobile network.

3 MASHUP PLATFORM

3.1 Introduction of Mashup

As a new type of data integration application based

on Web on the internet Mashup is gradually arisen.

Mashup technique was originated from pop music,

which is a new song constituted by audio tracks

mixed by singing and instruments two different

songs. According to the explanation of Wikimedia

(http://en.wikipedia.org/wiki/Mashup,2010), Mashup

is a new Web service formed by stacking a number

of different application which support Web API. It

uses the content retrieved from external data source

to create new innovation service, which will

combine contents come from more than one data

source, creating more value-added services. As more

Web site open its API, Mashup applications

constructed by using eBay, amazon.com, Google and

Yahoo APIs appear ceaselessly, which make this

kind of new Web application mode become a reality.

In IBM Developer Works of China's description

(

IBM QEDWiki, 2010), a Mashup application can be

divided into three different components: the

API/content providers, Mashup sites and Mashup

client (i.e. user's browser).

The main advantages of Mashup development

modes are as follows:

• Development form simplified, which is a light

and convenient development mode.

• Advocate to use again, which can reduce

duplication of work.

• Data sources are rich.

• Based on open standards, easy to realize sharing

and interoperability of data and service.

• Development cost is reduced greatly.

3.2 The Differentiation between

Mashup Technique and Traditional

Integration System

With the rapid development of information

technology, integrated information get more and

more attention, such as enterprise informationization,

EAI (enterprise information integration) etc. On the

information integration, there are many differences

between integration scheme adopting the traditional

data and the technology of Mashup based on

Web2.0:

• The requirements of platform and system.

Based on the traditional system integration

program needs the support of the traditional

platform API layer, such as the J2EE platform and

the. NET platform, and integration process is very

complicated. Using Mashup technology to build

applications, the integrate process is relatively

simple. It can easily aggregate and restructuring

the content from different places, including the

services and data, to conduct agile business

development, fast to meet their changing needs due

to different scenes.

• Supporting for new features and functionality

extensions. Data integration based on the

traditional way required programming to complete

the system extensions, involving the presentation

layer, business logic and data storage layer or

multi-layer structure, with poor scalability;

Mashup-based technology uses loosely coupled

approach to integration information to create new

applications and functions, because it is loosely

coupled manner, it could greatly improve system

compatibility and scalability.

• Presentation layer support. The presentation

layer of traditional system integration program in

the traditional integration mode mostly use a

RESEARCH AND APPLICATION OF CARRIER-GRADE MASHUP PLATFORM ON ONEAPI

505



graphical user interface GUI, when the client sends

a request, you need to load the entire page; Mashup

technologies based on Web2.0 uses a technology

called Ajax to call a web applications, browser

clients do not need to reload the entire page each

time it communicating with the server, which has a

great dynamicity.

• Bottom integrated technical support. Based on

the traditional data integration solutions use

multilayer enterprise application integration

technology, involving different layers of

integration, such as business process integration

and application integration and data integration,

etc.; Based on the Web2.0 Mashup technology

uses the Service oriented architecture (SOA)

ideological to integrate underlying system, such

integrated system has a modularization, loose

coupling feature, and also a good characteristic of

extensibility.

• The physical location of the content

aggregation. Traditional web application is a mode

based on HTML page and server-side data

transmission, and HTML is suitable for text. With

the increasing complexity of web applications, the

traditional web application can not meet the

gradually higher, all-round experience

requirements of web browser. At present, many

Mashup site choose to aggregate content on the

client machine, data can be cached on the client, in

order to achieve a user interface with a faster

response than that based on HTML and a fewer

number of times the data transporting between the

fewer. The interface provides fast response time

without refreshing the page.



3.3 The Framework of Mashup

Application

The framework of Mashup applications is composed

of three different parts, they are logically and

physically disconnected from each other (Duane

Merrill, 2006)

(possibly separated by the network

and organizational boundaries): service providers

(including the API interface and data sources),

Mashup Web site and client browser. Framework is

shown in Figure 1:



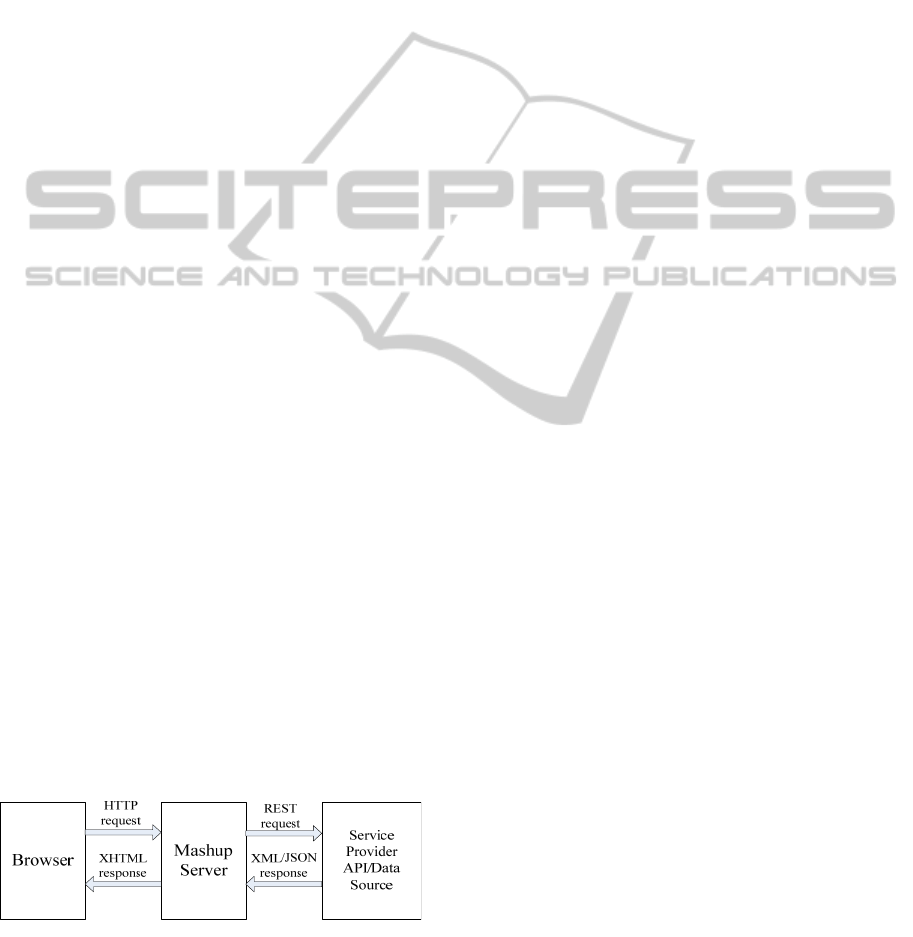

Figure 1: Framework of Mashup application.

• API interface or data source. They are generally

independent providers of content or interface of

each other. In order to facilitate data retrieval, the

provider will usually provide outside their own

content through the Web protocol outside.

However, there are many potentially valuable data

source did not easily provide API out. However,

developers can also use screen scraping technology

to achieve data acquisition.

• Mashup site. That is where the Mashup exists.

It is very interesting that this simply because this is

the place where Mashup logic being, rather than

the implementation of these logical. On the one

hand, Mashup can use server-side dynamic content

generation technologies (such as Java Servlets,

CGI, PHP or ASP) to implement Web applications

similar to conventional ones.The client-side logic

is often a combination of directly the code

embedded in the Mashup Web pages with these

scripting API reference library or applet (provided

by the content provider) in Web pages.

• Client Web browser. This is where the

application presented graphically, and where the

user interaction takes place. Mashup often use

client-side logic to build integrated content.

4 APPLICATION OF THE

MASHUP PLATFORM BASED

ON ONEAPI

4.1 System Architecture

In this paper we use a kind of Mashup architecture,

which can create combination service. It consists of

Mashup API access components, Mashup server and

Mashup generator, corresponding SOA (Luo

Xiaoxiang, 2008) of service providers, service agent

and service users executing function expansion.

Mashup API access components will access all the

Meta-services various format provides including API,

RSS or screen grab to system; Mashup server

functions include service directory, Mashup

component storage; Mashup generator completing

the user in the browser Mashup component selection

and complete service combine function.

In this case, we will use the Location API of

OneAPI which GSMA provides and Google Map

API to create an application, then transform the

response of an XML format from the request URL to

JSON format, finally display the result in the output

of system, thus, the user can query the location

information of the cell phone number user inputs,

and marked in the Google Map, realizing the

telecommunication level Mashup service.

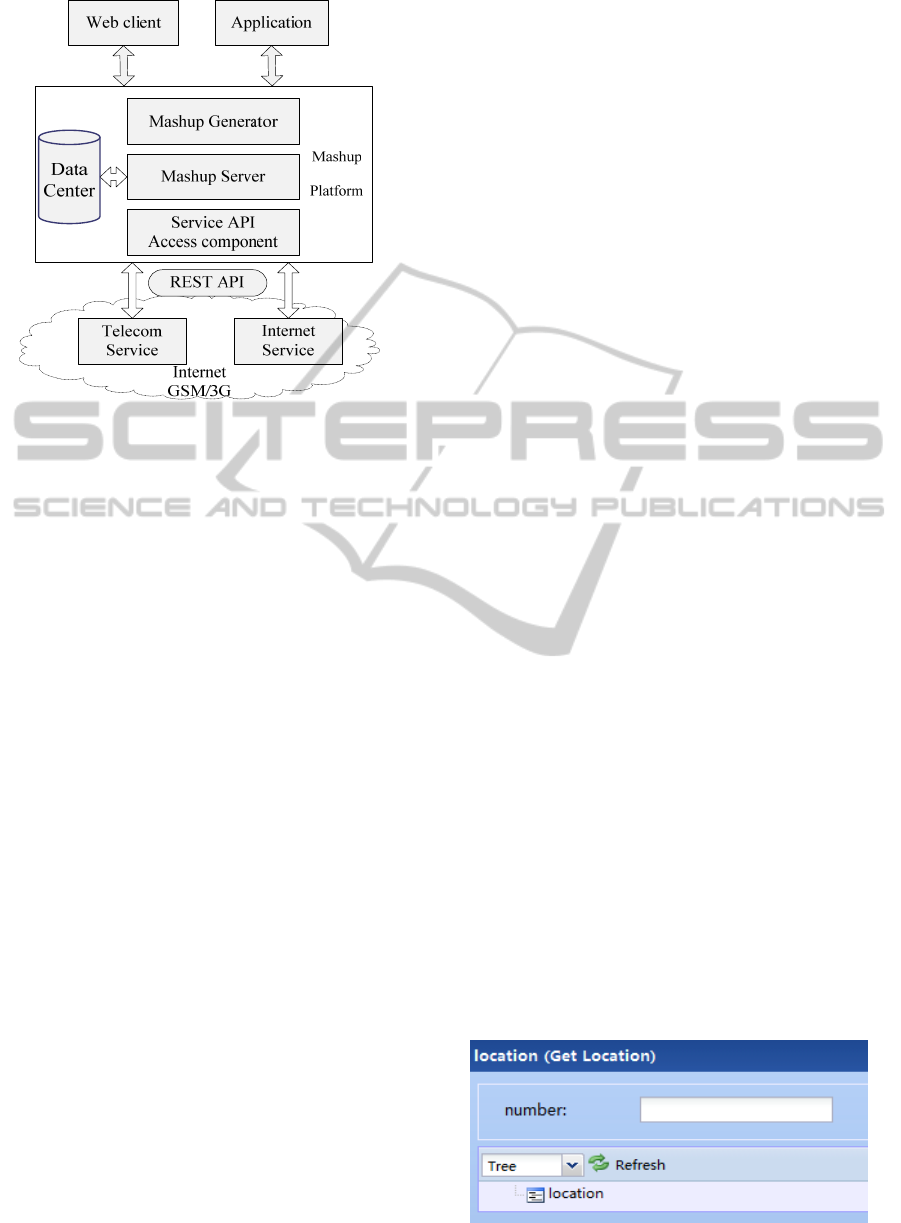

System structure chart is shown in Figure2:

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

506



Figure 2: System Architecture.

4.2 The Key Technology

4.2.1 Ajax Building API Engine

Ajax is a Web application model, rather than a

specific technology. It includes several asynchronous

loading and present technologies of content

attention:

• The XHTML and CSS used to determine the

present style;

• Browser provided document object model

(DOM) API for dynamic display and interactive;

• Asynchronous data exchange, usually XML

data;

• The browser script, mainly JavaScript.

With these techniques used together, they aim to

create smooth, good Web user experience for users

through small amounts of data with content server,

not having to perform reloading and restart presents

the entire page after certain tasks. Google Maps

API(Google Mashup Editor, 2010), (Google Maps,

2010) includes a special Ajax engine, it having a

really strong influence on user experience: its work

way similar to a real native application, of which no

scrolling can operate, also did not have a move

button with compulsory page reloading.

4.2.2 REST Web Services Access

Web Service is some Independent, modular

application modules that can be described, published,

located, and invoked through the Internet. Its

purpose is to build a common platform-independent,

language-independent technology layer on variety of

heterogeneous platforms presently, to ensure the

applications interoperable on different platforms.

REST is the acronym for Representational State

Transfer (Fielding RT, 2000), this is a only use

HTTP and XML, Web-based communication

technologies. Its simplicity and lack of strict

configuration files make it isolated with SOAP, and

has attracted widespread attention. REST

fundamentally supports only a few operations (i.e.

POST, GET, PUT, and DELETE), these operations

apply to all messages. REST emphasizes the

information itself, referred to as resources (Eric van

der Vlist, 2007)

4.2.3 Return Data in JSON

As to Ajax Web 2.0 site application, JSON is the

most flexible lightweight solution(MILLER M

S,2009), such as at present more popular Mashup

Web services.

Same as XML, JSON is a data format based on

pure text. JSON data format is very simple, we can

use JSON transmit a simple String, Number,

Boolean, also can transmit an array, or a complex

Object. Through comparing the characteristics

between XML and JSON, you can find JSON

simplified data coding and visit, so as to increase the

efficiency of data transmission.

4.3 Application Realization

4.3.1 User Interface

The front interface design uses Ext.

services database with JavaScript (Nilanjan Banerjee,

2008), and generates the corresponding window in

the front interface for users.

Input the form according to function. Form

contains a String, Long and other types of input box

(Inputs array), by editing the input box you can pass

the required parameters. Click the Refresh function

key to display the results in the output window.

Call Location Services, you can enter the phone

number in the window to get its location information,

as shown in Figure 3:



Figure 3: Service invoke window.

RESEARCH AND APPLICATION OF CARRIER-GRADE MASHUP PLATFORM ON ONEAPI

507



4.3.2 Servlet Calling Service API

Servlet is a server-side Java applications, with

platform-independent and protocol-independent

characteristics, which can generate dynamic Web

pages. It bears a mid layer between customer request

(Web browser or other HTTP client) and the server

response (HTTP server database or application).

Servlet is Java application located on server-side

inside the Web server, loaded by Web server, which

must include Java virtual machine supporting of

Servlet.

Request the URL corresponding to the API, while

validating some information parameters, then deliver

the request by invoking of HTTP GET method, and

get the response.

String numb =

req.getParameter("number");//get the

phone number user inputs

String getUrl = SANDBOX_ENDPOINT +

FORWARD_SLASH + sandbox + FORWARD_SLASH +

subscriber; //API URL

GetMethod getMethod = new

GetMethod(getUrl);

Int getStatusCode =

client.executeMethod(getMethod);

System.out.println("HTTP status code: "

+ getStatusCode + " " +

getMethod.getStatusText());

String

response=getMethod.getResponseBodyAsStr

ing();//get response

4.3.3 Parse the Data in JSON-format

The response of OneAPI Location interface is

XML-format data, we need to transfer them to

JSON-format in the backed system.

We import net.sf.json.jar in the Servlet which

invoke the service API, using it to complete the

JSON transform, then display them in certain format

the Mashup output system required.

XMLSerializer xmls = new

XMLSerializer();

JSON json =

xmls.read(response);//transform to JSON

format

String res = callback + "('" + index

+ "', "+ json +", 200, null, 200)";

resp.getWriter().println(res);

resp.getWriter().close();

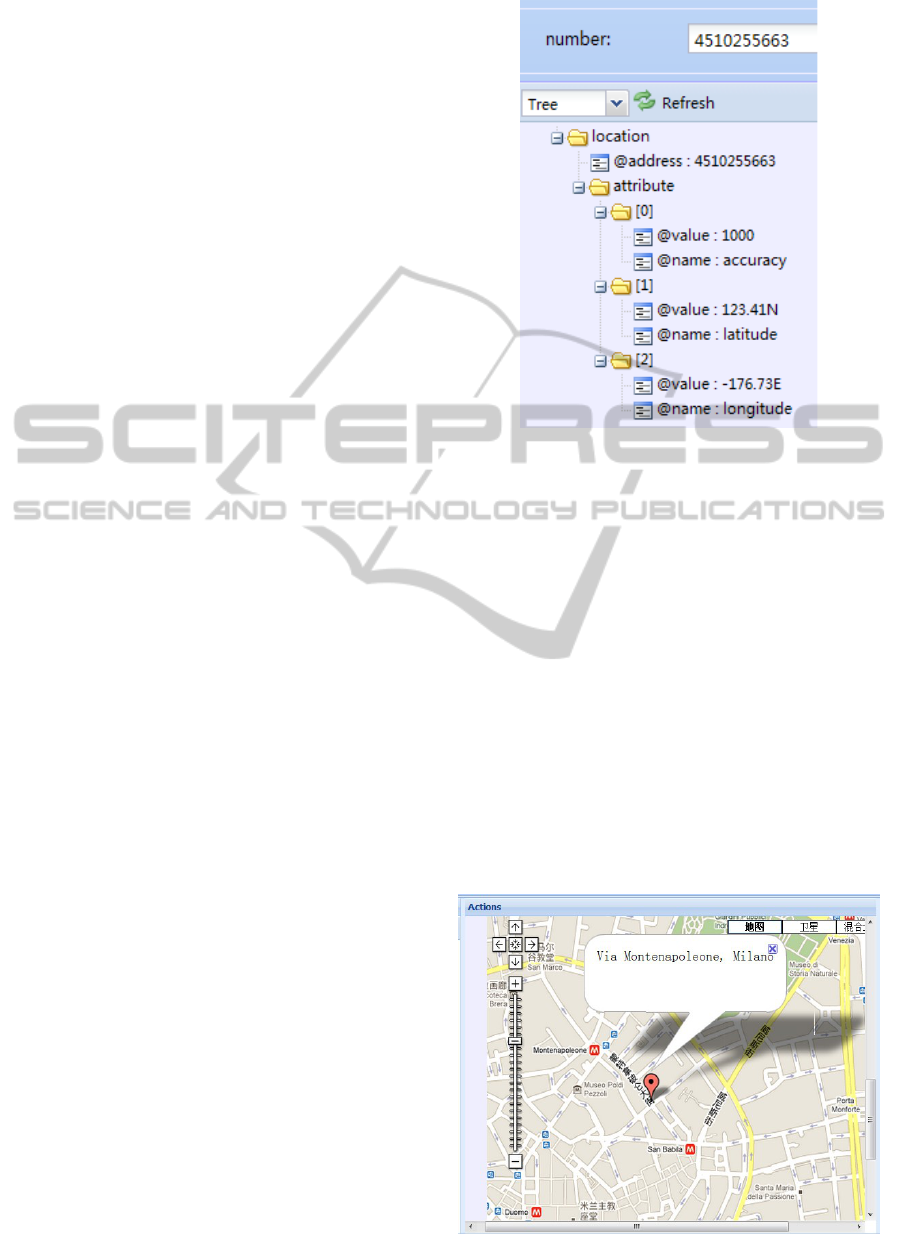

The results are shown in Figure 4:

Figure 4: The location result.

4.3.4 Location API combined with Google

Map API

The result of Location API as listed below:

{"@address":"4253658456","attribute":

[{"@value":"1000","@name":"accuracy"}

{"@value":"45.28N","@name":"latitude"

{"@value":"9.10E","@name":"longitude"

}]}

There include the latitude and longitude

information data of the phone.

Combine the location information data with

Google Map API, marking the location of the phone

in Google Map by the latitude and longitude data we

already got.

The results are shown in Figure 5:

Figure 5: The result marked in Google Map.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

508



5 CONCLUSIONS

In this paper we analyze the characteristics of

Mashup technology, Mashup has many advantages,

development in simplified forms, advocating the

reuse, rich data source, based on open standards, the

development cost reduced greatly, etc. It allows the

user to develop Web application in a simple and

interesting process, fully embodies simple, user

participation and resource sharing characteristic of

the Web2.0.

Based on this, we present a Mashup development

platform based on a carrier-grade OneAPI service,

and introduce the system architecture and its key

technologies, finally we verify the effectiveness of

this Mashup platform through an application.

We believed that Mashup applications could bring

more abounding experience for users and promote

telecommunications business development.

ACKNOWLEDGEMENTS

This work is supported by the National Key project

of Scientific and Technical Supporting Programs of

China (Grant Nos. 2008BAH24B04,

2008BAH21B03, 2009BAH39B03); The National

Natural Science Foundation of China Grant

No.61072060; The Program for New Century

Excellent Talents in University No.NECET-08-0738;



and the Innovation Technology Star Program of

Beijing (Grant No.2007A045).

REFERENCES

Jackson C, Wang H. Subspace:Secure cross-domain

communication for web Mashups [C]. PJ Proceedings

of the 16

International Conference on World Wide

Web WWW’07. New York:ACM,2007:611—620.

Merrill D. Mashups: New member in Web Application

[EB/OL].2006-08.http://www.ibm.com/developerwork

s/cn/xml/x-mashups.html.

Liu Xuanzhe, Hui Yi, Sun Wei. et a1. Towards service

Composition Based On Mashup [C]. 2007. IEEE

Congress on Services. 2007:332—339.

GSMA OneAPI Reference. www.gsmworld.com/oneapi.

Li Yan. Telecommunication Mashup Service Architecture.

http://labs.chinamobile.corn/community/my_blog/933

9/ 9355.

Mashup (Web application hybrid). http://en.wikipedia.org/

wiki/Mashup.

IBM QEDWiki.

http://services.alphaworks.ibm.com/qedwiki.

Google Maps. http://en.wikipedia.org/wiki/Google_Map.

Duane Merrill. Mashups: the new breed of Web app IBM

Developerworks, 2006, http://www.ibm.eom/

developeworks/xml/Librmy/x-mashups.html?S_TACT

=105AGX52&S_CMP=cn—a—x

Luo Xiaoxiang, Xu Huiyang, Song Meina, et a1. Research

On SOA-based platform to enable mobile Mashups.

In: ICCT 2008. Hangzhou, China, 2008.

Google Mashup Editor. http://editor.googlemashups.corn.

Fielding RT. Architectural Styles and the Design of

Network-based Software Architecture [A]. Doctorial

Dissertation, Dept. of Computer Science [C]. Univ. of

California, Irvine, 2000.

Eric van der Vlist. Professional Web 2.0 Programming

[M]. Wiley Publishing, 2007.

Miller M S, Samuel M, Laurie B, et al. Caja:Safe active

content in sanitized JavaScript [EB/OL]. 2009, 09,20.

http://code.google.com/p/google-caja.

Nilanjan Banerjee, Koustuv Dasgupta. Telecom Mashups:

enabling Web2.0 for telecom services. In: Proceedings

of the 2nd lnternational Conference. Suwon, Korea,

2008.

RESEARCH AND APPLICATION OF CARRIER-GRADE MASHUP PLATFORM ON ONEAPI

509
