A METHOD OF ADJUSTING THE NUMBER OF REPLICA

DYNAMICALLY IN HDFS

Bing Li and Ke Xu

School of Computer Science and Technology, Beijing University of Posts and Telecommunications, Beijing, China

Keywords: Hadoop, HDFS, Network congestion, Hot spots detection, Adaptive replica control.

Abstract: With the development of Cloud Computing, Hadoop –an Infrastructure as a Service open source project of

Apache – has been used more and more widely. As the basis of Hadoop, the Hadoop Distributed File

System (HDFS) provides basic function of file storage. HDFS-an open source implementation of Google

File System (GFS) –was designed for specific demand. Once the demand was changed, HDFS cannot fit it

very well. Especially when the access demand of file is different, there will be hot spots and the existing

replica will not be enough. It will lower the efficiency of the whole system. This paper introduced a system-

level strategy which could adjust the replica number of specific file dynamically. And the experiment shows

that this mechanism can prevent the problem of decline of user experience bring by hot spots and improve

the overall efficiency.

1 INTRODUCTION

In the era of information explosion, there are billions

of Internet services provided to users and increasing

sharply every day. As a result, user’s interest is

changing every minute and hard to be traced. So

developers can hardly know whether their service

could attract enough users to cover their expenses.

Nowadays Cloud Computing seems to be one of the

solutions to this problem. Cloud Computing could

provide limitless ability of storage and computing

according to developer’s demand. If the service was

welcomed and have thousands of users, developer

can order extra resources from Cloud Computing

provider. If users were not interested any more, the

developer can rent less resource to reduce their cost.

In a word, developers will not necessary to buy a lot

of hardware by the estimation of market size. That’s

why Cloud Computing costs much less than the

traditional ways.

Therefore, Cloud Computing becomes a hot topic

in industry area and academy area now. A lot of

organizations and institutes have been developed

their own Cloud Computing framework. There are

also a lot of open source Cloud Computing projects

and Hadoop (Apache Hadoop, 2011) which is

sponsored by Apache foundation is one of them.

Hadoop is an open source framework that

implements the MapReduce parallel programming

model (J. Dean and S. Ghemawat, 2004). Yahoo!

and Facebook contribute a lot to this project and use

Hadoop in their real computing environment.

There are lots of components in Hadoop such as

Hadoop Common, HDFS, and MapReduce.

In this paper, section II gives a brief introduction

to HDFS, especially about the flaws and the

solutions; section III talks about auto hot spot

detector in HDFS, section IV introduces the adaptive

replica controller, section V shows the experiment

data and section VI gives the conclusion.

2 HADOOP DISTRIBUTED FILE

SYSTEM

HDFS is an open source implementation of Google

File System (GFS) (Sanjay Ghemawat, Howard

Gobioff, and Shun-Tak Leung, 2003). It is one of the

core components of Hadoop and provides the basic

function of file storage to the upper components

such as MapReduce and Hbase. HDFS is a file

system designed for storing very large files

(typically 64M each block) with streaming data

access patterns, running on clusters on commodity

hardware (Tom White, 2009).

529

Li B. and Xu K..

A METHOD OF ADJUSTING THE NUMBER OF REPLICA DYNAMICALLY IN HDFS.

DOI: 10.5220/0003587005290533

In Proceedings of the 13th International Conference on Enterprise Information Systems (SSE-2011), pages 529-533

ISBN: 978-989-8425-53-9

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

The HDFS cluster has a master-slave architecture

and primarily consists of one Namenode and several

Datanodes. This architecture ensures all the data will

not flow through the Namenode and reduce the

workload of Namenode. This is a single point of

failure for an HDFS installation. If the Namenode

goes down, the file system is offline. Normally there

is a secondary node as the backup of Namenode.

……

Namenode

(Metadata)

Datanode

Secondary

Node

Datanode Datanode

Rack 1

……

Datanode Datanode Datanode

Rack 2

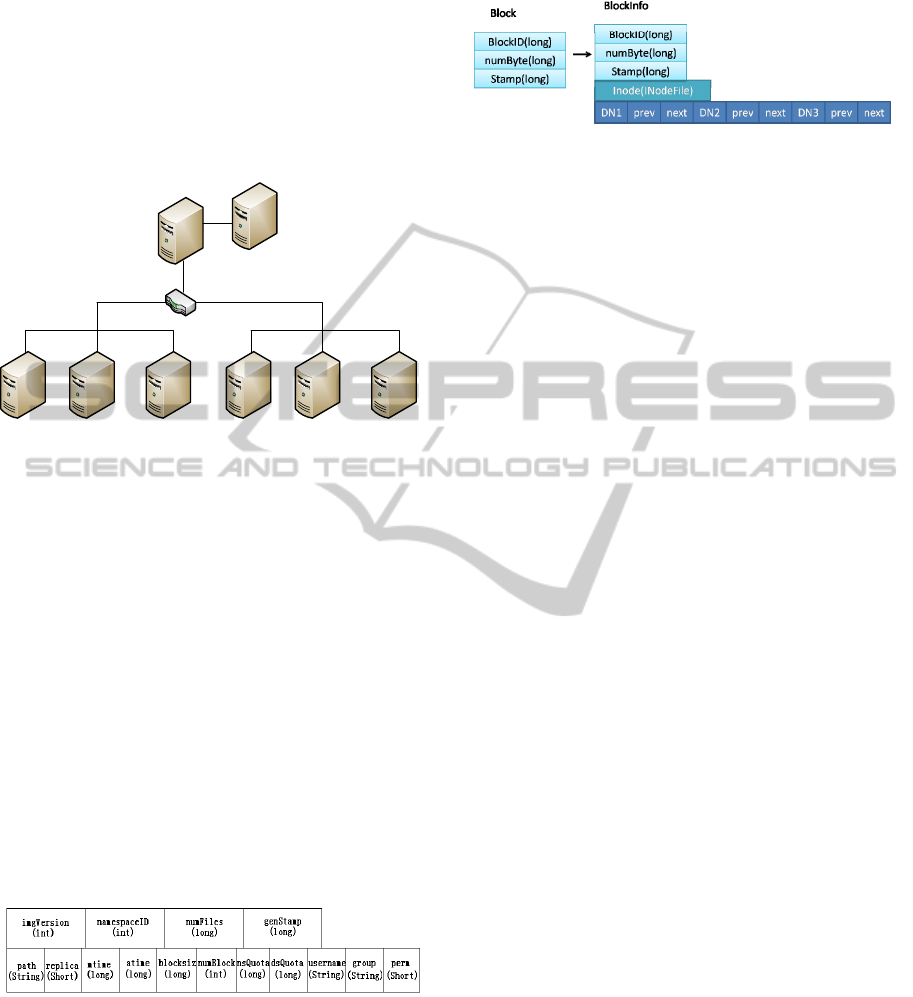

Figure 1: HDFS Architecture.

z Namenode

Namenode is the primary node in HDFS. It

manages the file system metadata instead of data

itself. Namenode has to maintain the directory tree, a

mapping between HDFS files, a list of blocks and

the location of those blocks. And more, Namenode

provides management and control service.

Namenode will store the Metadata of directory

and file in a binary file called fsimage which is the

most important part related to the procedure of read

and write. Every operation before the fsimage saving

will be recorded in editlog. When the editlog reach

certain size or a certain time passed, Namenode will

refresh the Metadata to fsimage. That’s how

Namenode ensure the security of Metadata

information of HDFS.

The form of fsimage shows in figure 2:

Figure 2: Fsimage information.

When a Datanode start and join in the HDFS, it

will scan its disk and report the block information to

Namenode. Namenode keeps this information in its

memory with the datanode information. And then,

the chart of block to Datanode list is constructed.

This chart information is saved in a data

organization called BlockMap. The BlockMap has

the information of Datanode, block and replica.

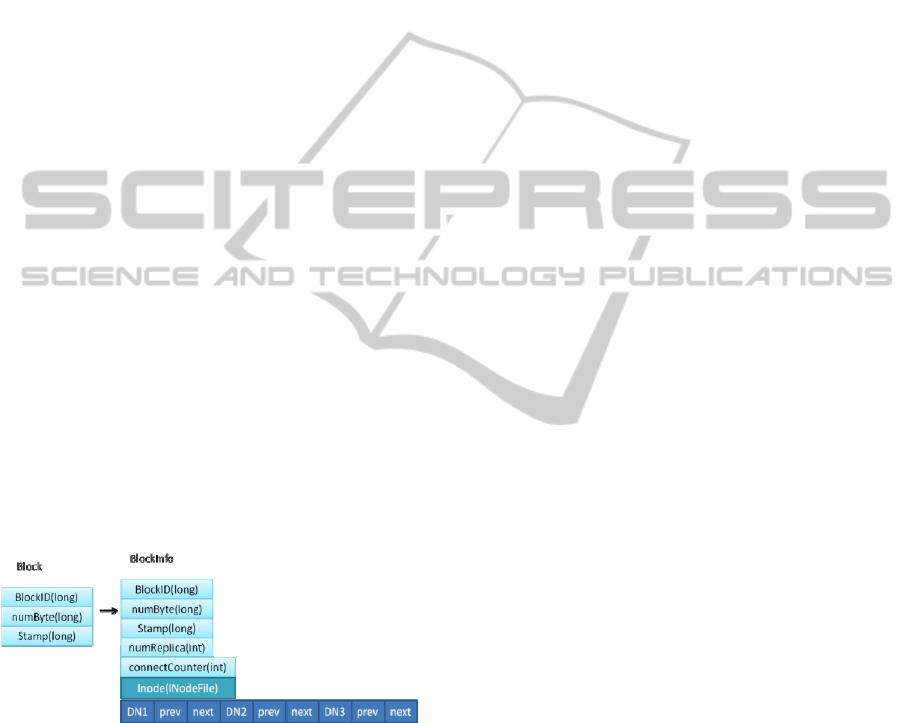

Figure 3: BlockMap.

The BlockMap is showd in figure 3. There are 3

replica of a block. Each replica information is a tree-

element group. DN means which Datanode has the

replica; prev means the previous BlockInfo quota of

this block in the Datanode; next means the next

BlockInfo quota of this block in the Datanode. The

number of this three-element group is as same as the

number of replica.

z Datanode

DataNode stores and manages the actual data.

Each file was split into one or more blocks and these

blocks are stored in a set of Datanode. We can

simply think Datanode stores the block ID, the

content of block and the mapping relationship.

A HDFS cluster normally has thousands of

Datanode. These Datanode communicate to

Namenode periodically.

z Replica

HDFS achieves reliability by replicating the data

across multiple hosts. Each block has one or more

replica in other Datanodes and each Datanode has

one replica of a file at most. With the default

replication value 3, data is stored on three nodes:

two on the same rack, and one on a different rack.

Generally, the node on the different rack has lower

chance to fail.

Developers can set the parameter to determine the

number of replica they want. More replicas mean the

better reliability and more disk space wasted. Each

replica of block is recorded in Namenode. Client

could access the nearest Datanode to read/write the

block. And if one replica was changed, HDFS will

automatically change all these replicas in other

Datanode through pipe mechanism.

z Block Read Procedure

At first, client sent a message to Namenode

through RPC to get a block list of specific file and

the address of Datanode where all the replicas

located. And then, the client connected those

Datanode and sent a requests of those blocks to build

the link. After the link was built, client read those

Blocks one after one.

z Flow

 HDFS has a single point failure problem: if

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

530

the Namenode dead, all the system would go

off-line;

 HDFS is designed for big files (typically the

size is GB or TB) and not work well for small

files: the I/O mechanism is not fit for small

files, and Namenode keep all the metadata in

its memory, the size of memory determines

the number of files HDFS can keep.

 Balancing portability and Performance:

HDFS is written in Java and designed for

portability across heterogeneous hardware

and software platforms, there are

architectural bottlenecks that result in

inefficient HDFS usage;

 HDFS has a hot spot problem: HDFS has the

same replica number for all the files, if files

access frequency was different, some were

welcomed and some cared by nobody, there

will be hot spot. If an access burst happened,

the existing replica may not satisfy the users.

The hot spot problem will cause the local

network congestion and reduce the

throughout rate of the whole system.

z Solutions

 Single point failure problem: we can set a

secondary not to be the backup of Namenode.

And Feng Wang (Feng Wang, Jie Qiu, Jie

Yang, 2009) etc.. have done a great job to

solve this problem through metadata

replication;

 Small files problem: Grant Mackey and Saba

Sehrish (Grant Mackey, Saba Sehrish, Jun

Wang, 2009) provide a solution to improving

metadata management for small files in

HDFS; Xuhui Liu and Jizhong Han etc

(Xuhui Liu, Jizhong Han, Yunqin Zhong,

Chengde Han and Xubin He, 2009).

introduce a solution to combine small files

into large ones to reduce the file number and

build index for each file;

 Balancing portability and Performance:

Jeffrey Shafer and Scott Rixner (Jeffrey

Shafer, Scott Rixner, and Alan L. Cox, 2010)

have done a great job to investigate the root

causes of these performance bottlenecks in

order to evaluate tradeoffs between

portability and performance in HDFS;

 Hot spot problem: this paper introduces a

system-level strategy by given each Block a

independent replica configuration; when the

reading requests became higher than system

capacity, the Namenode will increase the

replica number of specific Block.

z Hot spot Bottleneck analysis

The user’s access demand to each file is different.

Some files have been visited a lot and some others

are silence. Moreover, those hot files are not

specified all the time. Sometime, natural accidents

and social incidents such as earthquake and

Olympics will create new hot files. And sometimes

social trend make these old silence files become

welcomed. If huge number of clients visit the same

block at the same Datanode, there will be hot spot.

Because of the limited of host hardware capability

and network throughput, the access performance will

decrease sharply and the user experience will

become unacceptable. Unfortunately, the Namenode

and system operator is hard to know which file or

block will get visited frequently. There is a need of a

mechanism to tell if a block has become a hot spot

and its location.

Hadoop takes the multi-replica way to deal with

parallel reading of the same block. The number of

replica was set in the fsimage we have already

introduced before the whole cluster began to work

and the configuration is valid in the whole system.

All the Datanodes would take the same

configuration, and all Blocks has the same number

of replica.

So, there will be two problems: the first one, when

the reading requests exceed more than the

expectation, the number of replica configuration is

hard to meet the demand; and the second, if we set

the number of replica much bigger, there will be

huge waste of hard-drive space of the system

obviously. If the number of replica plus from 3 to 6,

there is half space left.

Because the Hadoop takes multi-thread and NIO

to deal with parallel reading problem, the bottleneck

of the distributed system is hard-drive IO

performance. We use a 7200rpm and 133M/S of

external transfer rate in order to void the influence of

network throughout performance to the experiment.

When the number of reading requests was lower or

equal to the number of replica, the average reading

speed is 113.7M/S. Consider of the difference of

theory data and real experimental environment, the

result is acceptable. And when we set the number of

reading requests as much as twice of the number of

replica, the experiment data shows the average read

speed S is 52.8M/S.

TnFS

average

÷×= )(

The

average

S represents the average reading speed,

the F represents the file size, the n represents the

number of requests and the T means the total time.

We can see that the average reading speed was

roughly liner downward.

A METHOD OF ADJUSTING THE NUMBER OF REPLICA DYNAMICALLY IN HDFS

531

According to the analysis, we can assume that the

reading requests to the specific file increase sharply

lead by some social incidents, the system cannot

support the huge traffic and the user experience will

become unacceptable. That’s why we should adjust

the number of replica of each file. And at the same

time we also need to monitor the number of requests.

If the number of request exceeds the threshold, we

should increase the number of replica. And if the

number of request is less than the threshold, the

system will automatically reduce the number of

replica.

In section III, we introduce a method to solve

those problems.

3 DESIGN DETAIL

Normally, if a client wants to read a file, it will

connect the NameNode first and find out which

DataNode has the file. So we can simply record the

number of connection to tell which DataNode has

become hot spot.

3.1 New Variable in Namenode

At first we change the replications in fsimage to a

minimal number of replica. It means the system will

read this value when it checks the replica number of

Block.

Second, we set two new variables named

numReplica and connectCounter after the BlockID

in BlockMap which shows in Figure 4.

Figure 4: BlockMap with new variables.

At the very beginning, the numReplica equals to

the minal number of replications in fsimage. And the

system could set the number of replication for each

Block according to the numReplica. The

connectCounter is a parameter which shows how

many clients are read the Block at the same time.

When there is a new request to read a file from a

client, the connectCounter of those Blocks which

belong to this file will plus one. Blocks from same

file have the same numReplica and connectCounter.

3.2 DataNode Response

In order to prevent the connectCounter keep

increasing, we need to make client send a message

to Namenode when reading is finished. And after

Namenode received this message, the

connectCounter should reduce by one.

3.3 Minimal Value

We set the minimal number of replica in the fsimage,

which means each Block’s number of replica cannot

be less than this value.

3.4 Add and Reduce Replica

When the connectCounter is bigger than the

threshold, Namenode will trigger the procedure of

increasing replica. This procedure is the original one

in Hadoop. Namenode will instruct Datanode get a

copy of the Block from other Datanode, and it will

update the BlockMap.

When the connectCounter is less than the

threshold, Namenode will start the procedure of

reducing replica. Namenode will instruct the

Datanode move the Block into /trash directory, and

update the BlockMap also.

4 EXPERIMENT

We compare the performance between the original

system and the new design one. Each of them run on

the same cluster with one Namenode and twelve

Datanodes, all the machines are configured with

dual 2.0 GHZ processor, 1GB memory, two 80GB

disks(7200rpm with 133M/S) and a 1000 Mbps

Ethernet connection switch. The operating system is

ubuntu10.04. The version of Hadoop is 0.20.2 and

java version is 1.6.0.

There are three kinds of file which size are 64Mb,

128Mb and 256Mb in the system. It has been

divided into 1, 2 and 4 Blocks. The size of Block is

typically 64Mb. In order to ensure the static

precisely, those Blocks cannot be stored in a same

Datanode. We try to make each Datanode have the

same number of Block. We have ten clients reading

those Blocks at the same time. The default number

of replica is 3.

From the experiment, we got two groups of results.

One is from the control group which takes the

original system and the other result is from an

optimization system. The actual experiment result

shows in Table I, Table II and figure 5.

ICEIS 2011 - 13th International Conference on Enterprise Information Systems

532

Table 1: Experiment result from the original system.

128Mb 256Mb 512Mb

Total Time Cost(s) 2.61 3.37 8.45

Table 2: Experiment result from the optimization system.

128Mb 256Mb 512Mb

Total Time Cost(s) 1.97 3.39 8.50

There are 2 blocks in one Datanode at most in the

512Mb condition. Theoretically, the total time cost

should approximately be as much as twice of the

time cost in the condition of file with 256Mb.

However, we can see from the experiment result it’s

much higher than that. The reason is HDFS reads

Blocks of the same file in order. If the client hasn’t

finish Block 1, it cannot read Block 2 first.

Moreover, in the condition of file with the size

of 256Mb, the total time cost for the optimization

system is roughly equal to the time cost for the

original system. That’s because there is no more

room for another replica. As a result, the replica

adjusting procedure cannot be activated.

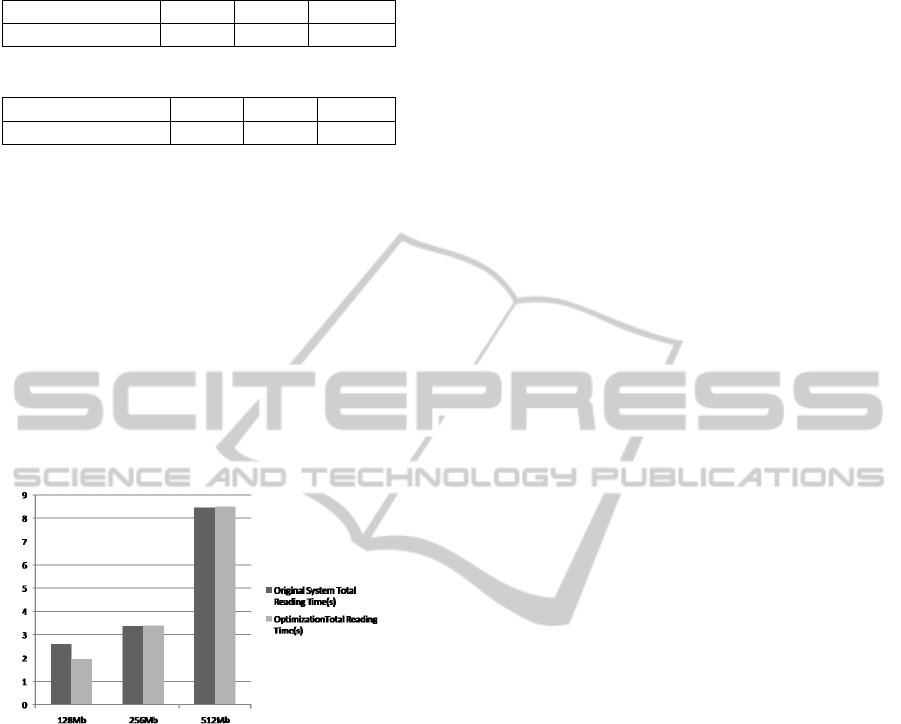

Figure 5: Total Time Cost Contrast.

And last, when there is enough space for new

replica, the improvement of system performance is

obviously. But the total time cost from the

optimization system in the condition of 128Mb is

not equal to 0.96s theoretically. Real number is

higher than the ideal one. That’s because the system

detect there is less replica than the access requests

and activated replica adjusting procedure. The time

cost consisted of three parts. One is the normal

reading time cost, and the second is the cost of

communication between Namenode and Datanode,

the third part is the cost of transfer Block between

Datanodes.

5 CONCLUSIONS

HDFS takes replica of block to store large files and

suffers performance penalty while some file became

hot spot and a huge number of client send a request

to Namenode in order to read this file. In this paper,

we optimize the HDFS replica strategy and improve

the system performance by adjusting replica number

dynamically. So the file in hot spot could get more

replicas to deal with file access. We also compare

the optimization system to the original system in 3

ways: full of space for more replicas, the number of

Datanode is equal to the number of block and the

number of block is more than Datanode. We can

see, in the condition 1, the optimization could

improve the system performance by 25 percent.

ACKNOWLEDGEMENTS

This work is supported by the National Key project

of Scientific and Technical Supporting Programs of

China (Grant Nos.2008BAH24B04,

2008BAH21B03, 2009BAH39B03); the National

Natural Science Foundation of China(Grant

No.61072060); the Program for New Century

Excellent Talents in University (No.NECET-08-

0738); Engineering Research Center of Information

Networks. Ministry of Education.

REFERENCES

Apache Hadoop. http://hadoop.apache.org/

J. Dean and S. Ghemawat, “MapReduce: Simplified data

processing on large clusters”, In OSDI’04:

Proceedings of the 6th Symposium on Operating

Systems Design & Implementation, pages 10–10,

2004.

Sanjay Ghemawat, Howard Gobioff, and Shun-Tak

Leung, “The Google File System”, In SOSP’03:

Proceedings of the nineteenth ACM symposium on

Operating systems principles, page 29–43, New York,

NY, YSA, 2003. ACM Press.

Tom White, “Hadoop: The Definitive Guide”, O’Reilly

Press, 2009

Feng Wang, Jie Qiu, Jie Yang. “Hadoop High Availability

through metadata Replication”, CloudDB’09,

November 2, 2009, Hong Kong, China.

Grant Mackey, Saba Sehrish, Jun Wang, “Improving

Metadata Management for Small Files in HDFS”,

IEEE International Conference on Cluster Computing

and Workshop, 2009.

Xuhui Liu, Jizhong Han, Yunqin Zhong, Chengde Han

and Xubin He, “Implementing WebGIS on Hadoop: A

Case Study of Improving Small File I/O Performance

on HDFS”, IEEE, International Conference on Cluster

Computing and Workshops, 2009

Jeffrey Shafer, Scott Rixner, and Alan L. Cox, “The

Hadoop Distributed Filesystem: Balancing Portability

and Performance”, IEEE International Sympossium on

Performane Analysis of Systems & Software

(ISPASS), 2010.

A METHOD OF ADJUSTING THE NUMBER OF REPLICA DYNAMICALLY IN HDFS

533
