Towards a Semantic Web-enabled Knowledge Base

to Elicit Security Requirements for Misuse Cases

Haibo Hu

, Dan Yang

, Hong Xiang

, Li Fu

, Chunxiao Ye

and Ren Li

The School of Software Engineering, Huxi Campus of Chongqing University

410331, Chongqing, China

College of Computer Science, Chongqing University

400030, Chongqing, China

Abstract. Eliciting security requirements is critical but hard for non-expert to

fulfill an exhaustive analysis on large body of security knowledge. Emerging

models in requirements engineering (R

E) society release some burden of such

difficulty, as well as security ontologies are booming for knowledge sharing and

reuse. There exists necessity for the synergy of them, such as utilizing security

ontology (S

O) as the back end of Knowledge Base (KB) for capturing security

requirements by using known R

E models. Research advances in the Semantic

Web (S

W) community provide a common framework of technologies that al-

lows data to be shared and reused across boundaries of various application and

community. This paper proposes a knowledge base which is constructed on S

and Misuse Case Model (M

CM), by representing them into OWL (Web Ontology

Language). Semantic rules can be derived from the correlation of S

O and MCM

to be utilized for reasoning and querying security knowledge via MCM-based

requirements elicitation. The proposed K

B coordinates SO with a specific RE

model to facilitate knowledge sharing to be a foundation for eliciting security

requirements automatically.

1 Introduction

In the last decades, researchers and practitioners have been aware that security con-

cerns in software system must be taken into account at the very beginning of develop-

ment life cycle, due to adding security features in ad-hoc manner at later stages is

costive in term of time and resources [1][2]. Most requirements engineers and soft-

ware developers are not primarily interested in security domain [3], or poorly trained

to elicit, analyze, and specify security requirements, often confusing them with the

architectural security mechanisms [4]. Thus it’s hard for a non-expert to understand

jargons of security issues, such as “under which circumstances does an information

asset have vulnerability that can be utilized by attackers to form threats, and how to

find adaptable mechanisms to defend or to retrieve a policy to mitigate the risk?”

The state-of-the-art works show research trend in two directions to overcome the

bottle neck. In their systematic literature review, Fabian et al [5] and Mellado et al [6]

Hu H., Yang D., Xiang H., Fu L., Ye C. and Li R..

Towards a Semantic Web-enabled Knowledge Base to Elicit Security Requirements for Misuse Cases .

DOI: 10.5220/0003588301030112

In Proceedings of the 8th International Workshop on Security in Information Systems (WOSIS-2011), pages 103-112

ISBN: 978-989-8425-61-4

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

survey one direction which is mainly derived from RE community that extends tradi-

tional methodologies of requirements analysis to manifest security concerns. These

work includes adopting anti-models to goal-oriented approaches[7], introducing Mi-

suse Case [8]/Abuse Case [9] to existing Use Case models (U

CM), customizing UML

profiles as to U

MLsec [10], reinforcing Goal/Agent-oriented model like i*/Tropos with

the capability of security analysis [11-14], or using Abuse Frame[15] to extend Prob-

lem Frame, etc. The other direction is mainly located in security engineering domain

which aims to represent and manage security knowledge for reuse. This direction

leads to several approaches such as developing security patterns [16] for abstraction or

reuse, engineering S

Os for knowledge sharing [17], and representing security know-

ledge with the S

W technologies for reasoning and querying [18].

While engineering security requirements by means of known R

E models (such as

AOS [19], i*[20]/Tropos [21], Use Case [22], or Problem Frame [23], etc.) stress

their objectives on modeling the system-to-be requirements by taking security as con-

strains, thus lacking of facilities represents complex cause-and-effect relationships for

security issues. Moreover, it’s costive to train stakeholders with adequate security

knowledge to fulfill security analysis in requirement stage.

We aim to facilitate engineering security requirements with known R

E models as

CM by means of security ontology for knowledge management. Security require-

ments to be modeled into misuse cases can be elicited in an automatic way by map-

ping existing use cases into a specialized ontological security K

B for reasoning and

querying. We map core concepts of M

CM to the SO developed by Herzog et al [17]

and Lasheras et al [18], to rebuild security core ontology for the T

BOX [25] of the KB.

The K

B is qualified with semantic rule-based languages (SWRL and SQWRL) for rea-

soning and querying. In real usage of the K

B, we put refined use cases as instances in

the A

BOX [25], and execute predefined rules to reason and query knowledge for mi-

suse cases. The framework of our proposed method is illustrated in Fig. 1.

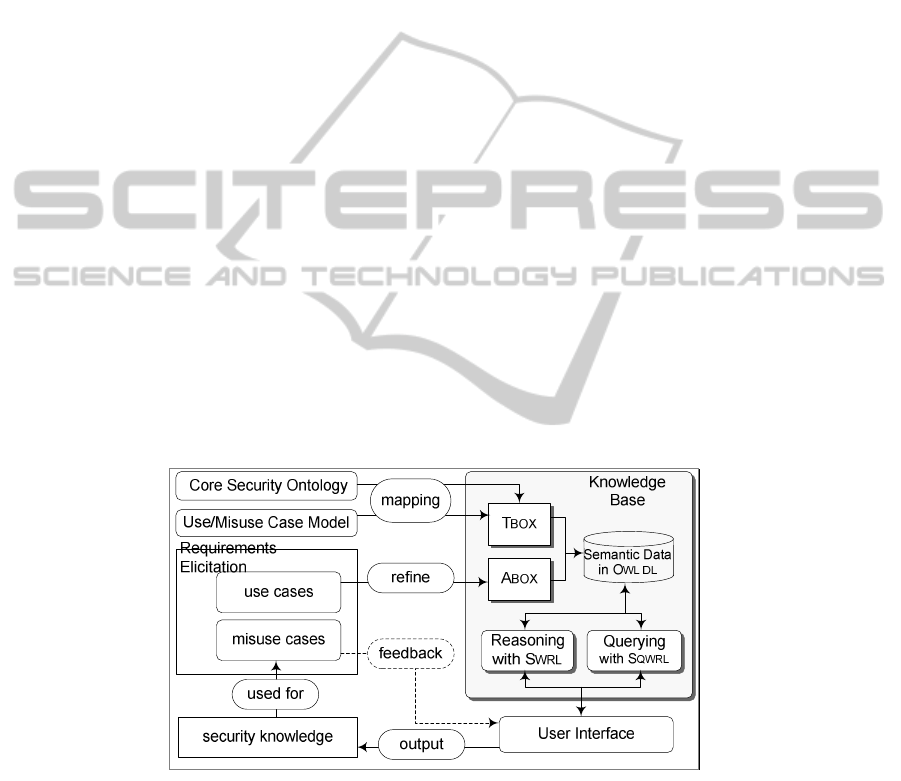

Fig. 1. Framework of the proposed methods.

The advantages of our proposed approach are twofold: on the one hand this method

offers a step-by-step process for modeling ontologies and requirements in U/M

CM as

well as bridging concepts among them onto semantic level. Based on this preliminary

104

process, the framework also shows an approach for eliciting security requirements

with misuse cases into automation.

2 Related Works

In this section, we present literature review of related works both on security ontolo-

gies and misuse case for security R

E, as well as research advances in the semantic web

community that are utilized in our work for constructing the knowledge base.

CM is the inverse or anti-model of UCM [22] which is introduced by Sindre and

Opdahl [8] in late 1990’s. The required behaviour of software under development

specified with U

CM which is essentially structured stories or scenarios describing what

should happen when the software or product is used. On the contrary, a misuse case

describes a negative scenario that should not happen, and identify system threats thus

leads to new requirements expressed in use cases for mitigation. It’s a good tool to

treat non-functional requirements [26] from the very beginning of development life

cycle by avoiding premature design decisions [27]. The significance of employing

CM is that it enhances the communication between the developers and the stake-

holders to agree on critical system solutions by regarding the trade-off analysis [28],

and relates well with U

CM and UML for Model Driven Development of secure soft-

ware system [29-30]. Visaggio and de Rosa introduce a system to capture and reason

software security knowledge for M

CM [31-32], by means of similarity function.

In the last decade, Ontology as a methodology has applied to security engineering

in a broad range. The benefits of employing Ontology for security domain are know-

ledge representation, sharing and reuse. In terms of derivation for vocabulary, security

standards play important roles, such as Common Criteria (CC) [33] and BS7799 [34].

While representing relationships of these concepts owes much more to security models

or framework of best practices, such as O

CTAVE [35], MAGERIT [34], or CORAS [37].

Known SOs are surveyed by Blanco et al in [24], with their applications in various

domains, such as access control modelling and reasoning [39], security management

[40], intrusion detection [41], web services [42], and security R

E [18].

To the best of our knowledge, there is not so much works on the pattern of syner-

gistic above directions as S

O2RE. Among these relate works, there are two fruits that

are most relevant to our work. The first one is Lasheras et al’s S

O framework [18] for

reusing security requirements. However, this framework concentrates on managing

security knowledge, without concern of any security requirement models. The other is

Visaggio et al’s knowledge management system to capture and reason security know-

ledge for M

CM [32], while the system is based on similarity function instead of onto-

logical and S

W-based technology.

The current set of W3

C standards is based on RDF [43], a language that provides a

basic capability of specifying graphs with a simple interpretation and serializing them

in X

ML. The OWL [44] is a family of knowledge representation languages based on

Description Logics (D

L) [43] with a representation in RDF. OWL supports the specifi-

cation and use of ontologies that consist of terms representing individuals, classes of

individuals, properties, and axioms that assert constraints over them. The axioms can

be realized as simple assertions or simple rules. Semantic Web Rule Language (S

WRL)

105

[45] is a proposal for a Semantic Web rules-language, combining sublanguages of the

WL with those of the Rule Markup Language (RuleML) [46]. Rules are of the form of

an implication between an antecedent (body) and consequent (head). The intended

meaning can be read as: whenever the conditions specified in the antecedent hold,

then the conditions specified in the consequent must also hold. S

QWRL (Semantic

Query-enhanced Web Rule Language) [47] is built on the S

WRL rule language. SQWRL

takes a standard S

WRL rule antecedent and effectively treats it as a pattern specifica-

tion for a query. In addition, standard S

WRL serialization mechanisms can be used, so

queries can be stored in O

WL ontologies.

3 Knowledge Base on Security Ontology for Mcm

3.1 The Core Security Ontology for U/Mcm

In our work, we aim to build a security knowledge base according to existing known

SOs that can be used for M

CM to elicit security requirements. Thus we adopt the SOs

developed by Herzog et al [29] and Lasheras et al [18] whose works are mainly based

on security risk analysis model with core concepts as Asset, Threat, Vulnerability and

Countermeasure. In order to cooperate with M

CM, we also add some other concepts

discussed in [31] as Attack, Attacker and Security Goal to the core ontology.

The core SO should represent relationships of above concepts capable of express-

ing fair knowledge for M

CM. Fig. 2 shows the core concepts and relationships of this

core SO with U

ML class diagram.

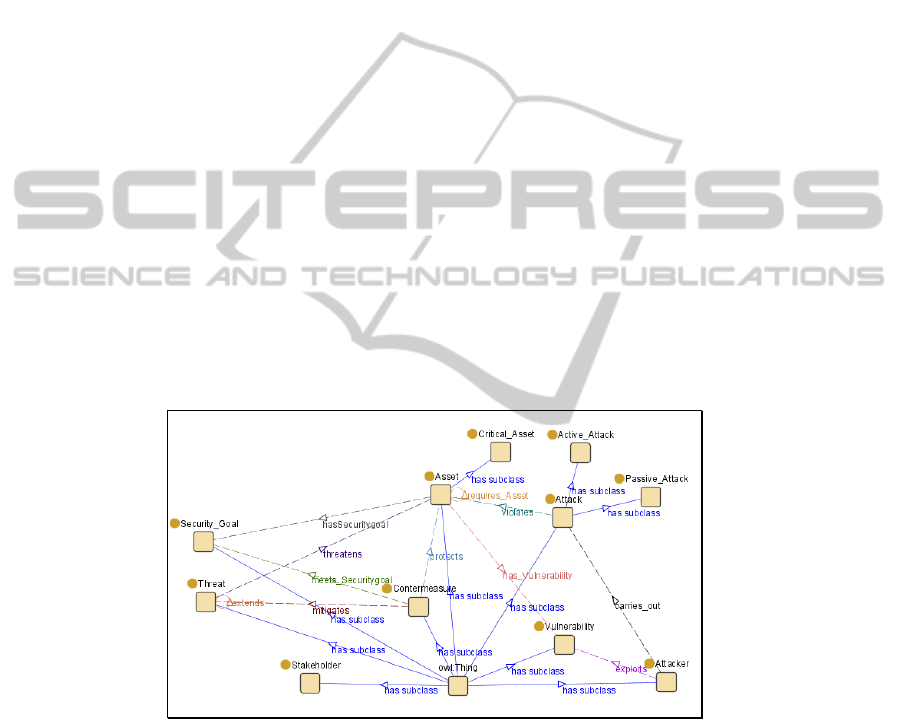

Fig. 2. Core Security Ontology used for the Knowledge Base.

3.2 Representing Ucm/Mcm in the SW

In our work, we represent the Ontology of U/M

CM in OWL to facilitate the KB with

capability of reasoning and querying. In order to represent it without ambiguity, the

core ontology of U

CM/MCM is defined with some axioms derived from related works

106

[8, 29]. These axioms are rules in syntax level for making us choose a pattern or man-

ner to design the Ontology, as shown in Table 1.

Table 1. Axioms in the Core Ontology of Use/Misuse Case Model.

Axioms Description

1 Only does User associate with Use Case, and Misuser with Misuse Case.

2 A use case may include a use case, or a security use case.

3 A misuse case only threatens a use case but a security use case.

4 Only does a security use case mitigate a misuse case.

5 One use case does not mitigate anther use case, or a security use case.

Base on axioms 1, we find that it’s better to define the concepts like User and Mi-

suser by represent the association relationship between User and Use Case, Misuer

and Misuse Case prospectively. While for axioms 2-5, Security Use Case should not

be a sub-class of Use Case. The correlation of Use Case, Misuse Case and Security

Use Case can be represented as object properties among them. The core ontology of

Use/Misuse Case is edited with Protégé 3.4 and visualized in Fig. 3.

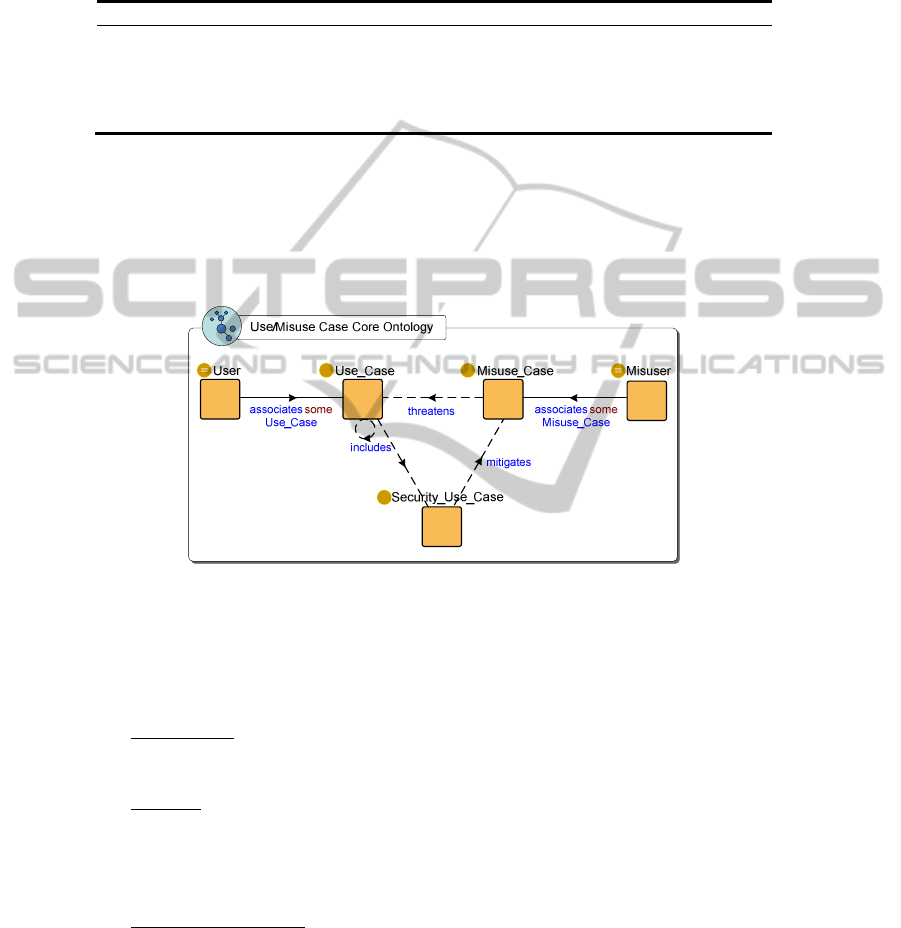

Fig. 3. The Core Ontology of Use/Misuse Case represented in OWL.

We discuss how to fulfill the task by clarifications as well as examples, to make

guidelines for refinement. Mining more facts from use cases to guide refinement of

use cases is prerequisite work to make the K

B works. Due to limited space, we only

present two cases for illustration.

(1) Clarification

: An asset (critical asset) is vulnerable in a specific context or a

given scenario for exploitation of security attack by a misuser (attacker), thus

leads to threats for the system.

Example

: For an E-commerce system, a use case as “User Login” is specified

like “user login the system by inputting user-id and password”. In this case,

password should be identified into critical asset (as a type of data) that if be

transmitted in plaintext (without declaring data transmission by secure mechan-

ism) will be vulnerable for eavesdropping by attackers.

Refinement Guideline

: All assets should be recognized and valued in use cases,

as well as be declared their context for indicating clues of vulnerabilities. In most

cases, the vulnerability of an asset can be realized by non-declaration of security

constrains.

107

(2) Clarification: If an asset (dependor) depends on other assets (dependees) which

are vulnerable, then the dependor asset is vulnerable.

Example

: For the same E-commerce system, a use case as “User Reset Pass-

word” specifies “When a user forgets his password, s/he can claim to the system

to reset she/his password.” This case may include another use case, i.e., “Reset

Password by E-mail”, which specifies “When user claimed reset password, an

acknowledgement of the claim with a U

RL for performing password reset is sent

to the user by E-mail”. In these cases, password depends on anther asset E-mail.

If secure E-mail transmission is not declared, then the password is vulnerable

when being reset.

Refinement Guideline

: The correlation of assets should be identified in a use case,

as well as in use cases with associations as includes and extends relations.

3.3 ABOX of the Knowledge Base

The roles of A

BOX are important to representing concrete real world cases in real

usage other than concept modeling. There are two steps to fulfill this task, one is to

add instances of security ontology and assert their relationships with constraining of

concept model in T

BOX, the second step is adding instances of UCM with refinement

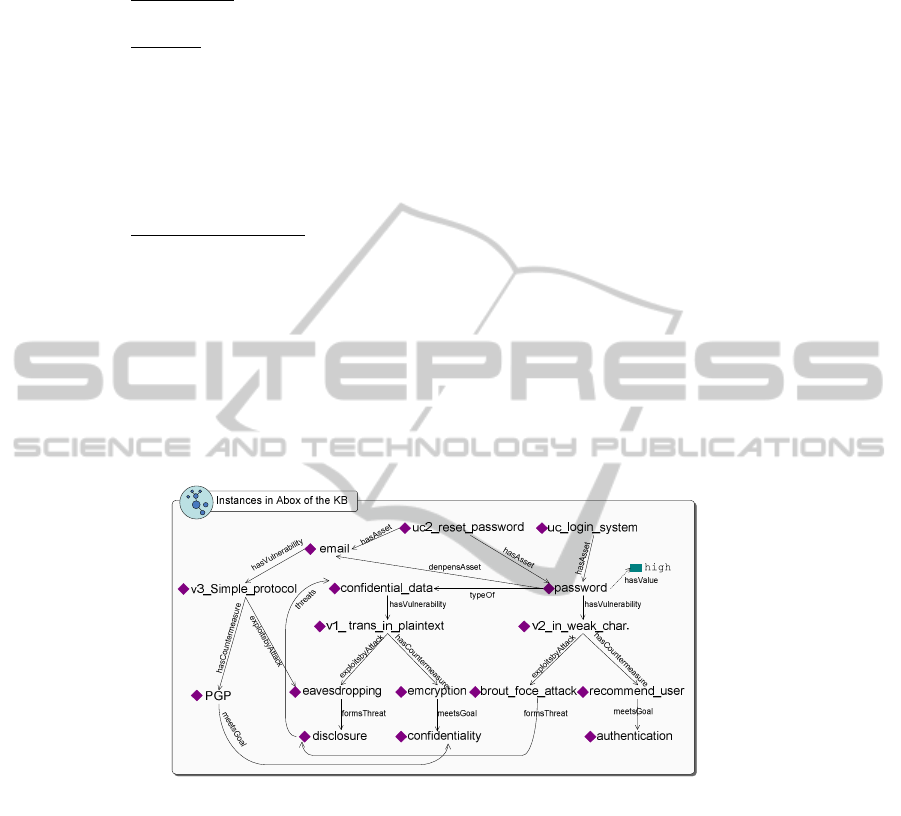

of use cases. A partial view of the A

BOX in Fig. 4 shows the cases discussed

Fig. 4. A partial view of ABOX in the Knowledge Base.

4 Extracting Rules for Reasoning and Querying

In the KB, responsibilities of rules are twofold, i.e., reasoning and querying. Rules for

reasoning are represented in S

WRL in line with knowledge presentation in OWL aiming

to find tacit knowledge for mapping use cases to SO, and to be executed to mine facts

from use cases to A

BOX of the KB, such as inference for vulnerable assets.

The guidelines for refining use cases discussed in sub-section 3.2 can be used to ex-

tract rules in and for the K

B. For readability the rule is expressed as software code

style in this paper. For example, a rule for “inferring an asset is vulnerable when it

depends on anther vulnerable asset” is shown as follow.

108

Example Rule-1: Infer vulnerability of Asset on Dependency

/* An asset is vulnerable when it depends on anther vulnera-

ble asset */

/*Antecedent of Rule-1*/

hasAsset(?uc_a, ?a) ^ hasAsset(?uc_b, ?b) ^

includes(?uc_a, ?uc_b) ^ depnsesAssest(?a, ?b) ^

isVuneralbeAsset(?b)

/*consequent of Rule-1*/

•isVuneralbeAsset(?a)

/*end of Rule-1*/

Requisite of or based on reasoning, rules for querying are represented in SQWRL and

objective to retrieve security knowledge to be used for use cases to elicit misuse cases,

such as querying possible security attacks on a given vulnerable asset and retrieving

corresponding countermeasures for the asset for mitigations, as shown bellow.

Example Rule-2: Query security attacks on vulnerable assets and relevant countermea-

sures

/* Querying possible security attacks on a given vulnerable

asset and retrieving corresponding countermeasures for the

asset for mitigations */

/*Antecedent of Rule-2*/

Asset(?asset) ^ haVulnerability(?asset, ?vul) ^

exploitsbyAttack(?vul, ?att) ^ formsThreat(?att, ?thr)

hasCountermeasure(?vul, ?cout)

/*consequent of Rule-2*/

•sqwrl:select(?asset, ?vul, ?att, ?thr, ?cout)

/*end of Rule-2*/

5 User Interface of the Knowledge Base

Rules may be used for inferring explicit or implicit facts, depends on the granularity of

knowledge fragments that users are interested in. User Interface interacts with user and

the K

B, and should be open for new features. Currently, Protégé 3.4 is employed as the

interface with capability of editing O

WL ontology, defining rules and reasoning them with

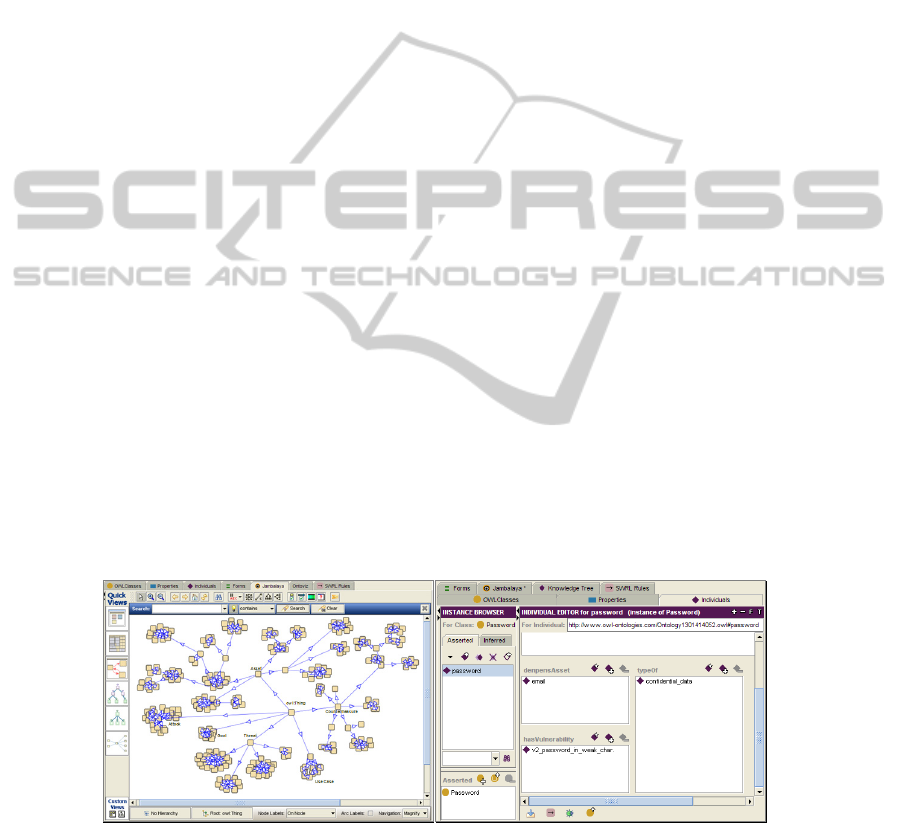

third party rule engines like Jena or Jess. Screenshots of the tool are given below.

(a) (b)

Fig. 5. Screenshots for Interface of proposed Knowledge Base. Notes: (a) class hierarchy in

TBOX; (b) refined and mapped use cases into ABOX by extracting relationships of instances.

109

6 Conclusions

This paper presents a process of constructing a KB represented in OWL by SO and for

CM. Rules for reasoning and querying can be derived from the correlation of SO and

MCM as well as refinement of use cases. The proposed Kb coordinates SO with specif-

ic R

E model by executing rules to elicit security requirements. The proposed frame-

work is capable of customizing to be used for other known R

E models such as

i*/Tropos or NFR framework/patterns by properly mapping their concept models to

Limitations of the proposed K

B and method mainly attribute to the weakness of

rule languages, such as decidability by safe logical constrains, and can not call each

other without programs. Moreover, Protégé is a tool in general purpose which is not

specific for R

E, thus it can not work well on requirements refinement. In our future’s

work, we consider to develop a specific tool to overcome the problems. Besides, ex-

ploitations on applying the K

B to other RE model will also be taken into account.

Acknowledgements

The work is supported by the National S&T Major Project in China under grant no.

2009

ZX07315-006, NSF-China under grant no. 60803027. We also thank the anonym-

ous reviewers for their coming helpful comments, and members in Protégé-owl mail-

ing list for their help.

References

1. Falcarin, P., Morisio, M.: Developing secure software and systems, in IEC NetworkSe-

curity: Technology Advances, Strategies, and Change Drivers. IEC, (2004) 15-22

2. Tondel, I.A., Jaatun, M.G., Meland, P.H.: Security requirements for the rest of us: A sur-

vey. IEEE Software. 20-27 (2008).

3. Mouratidis, H., Giorgini, P., Manson, G.: When security meets software engineering: a

case of modelling secure information systems. Information Systems. 30, 8, (2005) 609-629

4. Firesmith D. Engineering security requirements. Journal of Object Technology. 2, 1, (2003)

53-68

5. Fabian, B., Gürses, S., Heisel, M., Santen, T., Schmidt, H.: A comparison of security

requirements engineering methods. Requirements engineering. 15, 1, 7-40 (2010).

6. Mellado, D., Blanco, C., Sánchez, L.E., Fernández-Medina, E.: A systematic review of

security requirements engineering. Computer Standards & Interfaces. 32, 153-165 (2010).

7. van Lamsweerde, A.: Elaborating security requirements by construction of intentional

anti-models. Proceedings of the 26th International Conference on Software Engineering.

IEEE CS, (2004) 148-157

8. Sindre, G., Opdahl, A.L.: Eliciting security requirements by misuse cases. Proceedings of

the 37th International Conference on Technology of Object-oriented Languages and Sys-

tems, (2000) 120-131

9. McDermott, J., Fox, C.: Using abuse case models for security requirements analysis. Pro-

ceedings of the 15th Annual Computer Security Applications Conference. IEEE CS, (1999)

55-66

110

10. Jürjens, J. UMLsec: extending UML for secure systems development. Proceedings of the

5th International Conference on the Unified Modeling Language. LNCS, vol. 2460.

Springer, (2002) 412-425

11. Yu, E., Liu, L., Mylopoulos, J.: A social ontology for integrating security and software

engineering. In Mouratidis H. and Giorgini P. ed., Integrating Security and Software En-

gineering: Advances and Future Visions. Idea Group Publishing, (2006) 70-105

12. Dubois E., Mayer N., Rifaut A.: Improving risk-based security analysis with i*. In Yu E.

et al ed, Social Modeling for Requirements Engineering. The MIT Press, (2011) 281-311

13. Giorgini P., Mouratidis H., Zannone N.: Modelling security and trust with secure Tropos,

In Mouratidis H. and Giorgini P. ed., Integrating Security and Software Engineering: Ad-

vances and Future Visions. Idea Group Publishing, (2006) 70-105

14. Mouratidis H., Giorgini P.: Secure Tropos: extending i* and Tropos to model security

throughout the development process. In Yu E. et al ed, Social Modeling for Requirements

Engineering. The MIT Press, (2011) 363-402

15. Lin, L., Nuseibeh, B., Ince, D., Jackson, M.: Using abuse frames to bound the scope of

security problems. Proceedings of the 12th IEEE International Conference on Require-

ments Engineering. IEEE CS, (2004) 354-355

16. Cheng, B.H.C., Konrad, S., Campbell, L.A., Wassermann, R.: Using security patterns to

model and analyze security. In IEEE Workshop on Requirements for High Assurance Sys-

tems. (2003) 13-22

17. Herzog, A., Shahmehri, N., Duma, C.: An ontology of information security. International

Journal of Information Security and Privacy. 1, 4, (2007) 1-23

18. Lasheras, J., Valencia-Garcia, R., Fernandez-Breis, J.T., Toval, A.: Modelling reusable

security requirements based on an ontology framework. Journal of Research and Practice

in Information Technology. 41, 2, (2009) 119-133

19. Dardenne A., van Lamsweerde A., Fickas S.: Goal-directed requirements acquisition.

Science of Computer Programming. 20,1-2, (1993) 3-50

20. Yu, E.S.K.: Towards modelling and reasoning support for early-phase requirements engi-

neering. Proceedings of the 3rd International Symposium on Requirements Engineering,

IEEE, (1997) 226-235

21. Giunchiglia, F., Mylopoulos, J., Perini, A.: The Tropos software development methodolo-

gy: Processes, models and diagrams. Proceedings of the 1st International Joint Conference

on: Autonomous Agents and Multi-agent Systems. ACM, (2002) 35-36.

22. Jacobson I., Christerson M., Jonsson P., Overgaard G.: Object-Oriented Software Engi-

neering - A Use Case Driven Approach, Addison-Wesley, (1992)

23. Jackson M.: Problem Frames: Analysing and Structuring Software Development Problems

Addison-Wesley (2001)

24. Blanco, C. et al.: Basis for an integrated security ontology according to a systematic re-

view of existing proposals. Computer Standards and Interfaces, online first publication,

(2011) doi:10.1016/j.csi.2010.12.002

25. Thomas R.G.: A translation approach to portable ontology specifications. Knowledge

Acquisition. 5, 2, (1993) 199-220

26. Alexander, I.: Misuse cases help to elicit non-functional requirements. Computing and

Control Engineering Journal. 14, 1, (2003) 40-45

27. Sindre, G., Opdahl, A.L. Templates for misuse case description. Proc. of the 7th Interna-

tional Workshop on Requirements Engineering, Foundation for Software Quality

(REFSQ’ 01). (2001) 4-5

28. Alexander, I.: Initial industrial experience of misuse cases in trade-off analysis. Proceed-

ings of IEEE Joint International Conference on Requirements Engineering (RE’02). IEEE

CS, (2002) 61-68

29. Hartong, M., Goel, R., Wijesekera, D.: Meta-models for misuse cases. Proceedings of the

5th Annual Workshop on Cyber Security and Information Intelligence Research: Cyber

Security and Information Intelligence Challenges and Strategies. ACM, (2009) 33:1-4

111

30. Whittle, J., Wijesekera, D., Hartong, M.: Executable misuse cases for modeling security

concerns. Proceedings of the 30th international conference on Software engineering

(ICSE’08). ACM, (2008) 121-130

31. Visaggio, C.A., de Rosa, F.: Managing security knowledge through case based reasoning.

Proceedings of the 7th International Workshop on Security in Information Systems,

OSIS’2009 , INSTICC Press. (2009) 127-136

32. Visaggio, C.A., de Rosa, F.: A System for Managing Security Knowledge using Case.

Journal of Universal Computer Science. 15, 15, (2009) 3059-3078

33. ISO/IEC, ISO/IEC 15408-1: Information Technology – Security Techniques – Evaluation

Criteria for Security. Part I: introduction and general model, ISO/IEC, Switzerland, 1999.

34. ISO/IEC 27002: Information technology: Security techniques – Code of practice for in-

formation security management, (2005)

35. Alberts, C. Dorofee, A.: Managing information security risks: The OCTAVE (SM) ap-

proach, Addison Wesley, Boston (2002)

36. M

AGERIT: Methodology for information systems risk analysis and management.

http://www.csi.map.es/csi/pg5m20.htm. (last viewed on 15 Mar. 2011)

37. C

ORAS: A platform for risk analysis of security critical systems http://www2.nr.no/coras/,

(last viewed on 15 Mar. 2011)

38. Schumacher, M.: Toward a security core ontology. Security Engineering with Patterns,

Lecture Notes in Computer Science, vol. 2754. Springer, (2003) 87-96

39. Crespo, Á.G., Gómez-Berbís, J.M., Colomo-Palacios, R., Alor-Hernández, G.: SecurOn-

tology: A semantic web access control framework, Computer Standard and Interfaces. 33,

1, (2011) 42-49

40. Tsoumas, B., Gritzalis, D. Towards an ontology-based security management. 20th Interna-

tional Conference on Advanced Information Networking and Applications, IEEE CS,

(2006) 985-990

41. Undercoffer, J., Joshi, A., Pinkston, J.: Modeling computer attacks: an ontology for intru-

sion detection, The Sixth International Symposium on Recent Advances in Intrusion De-

tection, LNCS vol. 2802. Springer, (2003) 113-135

42. Wang, J., Guo, M., Camargo, J.: An ontological approach to computer system security,

Information Security Journal: A Global Perspective. 19, 2, (2010) 61-73

43. Lassila, O, Swick, R.R.: Resource Description Framework (RDF) Model and Syntax

Specification. Available online: http://www.w3.org/TR/1999/REC-rdf-syntax-19990222/.

(last viewed on 15 Mar. 2011).

44. Bechhofer, S. et al. O

WL Web Ontology Language Reference, W3C recommendation. 10,

2006–01. http://www.w3.org/TR/ owl-ref/. (last viewed on 15 Mar. 2011)

45. Baader, F., Calvanese, D., McGuinness, D.L., Nardi, D., Patel-Schneider, P.F.: The de-

scription logic handbook. Cambridge University Press (2003)

46. Horrocks, I., Patel-Schneider, P.F., Boley, H., Tabet, S., Grosof, B., Dean, M.: SWRL: A

semantic web rule language combining OWL and RuleML. W3C Member submission. 21,

(2004). Available online: http://www.w3.org/Submission/SWRL/. (last viewed on 15 Mar.

2011)

47. Boley, H., Tabet, S., Wagner, G.: Design rationale of RuleML: a markup language for

Semantic Web rule”. Proc. Semantic Web Working Symp, (2001) 381-401

48. O'Connor, M., Das, A.: S

QWRL: A query language for OWL. In Proceedings of Workshop

on O

WL: Experiences and Directions (OWLED). (2009)

112
