Using Models to Assess Impact of Defective Software

Juan C. Augusto

, George Wilkie

, Chunping Li

, Hui Wang

and Jun Liu

CSRI and School of Computing and Mathematics, University of Ulster, Coleraine, U.K.

School of Software, Tsinghua University, Tsinghua, P.R. China

Abstract. We explain a new strategy to model a set of java classes and to

abstract a model from them that can be use to study the impact that defects

affecting specific classes can have on the whole system. We use the models of

the software implementation as an abstraction of the software that can be used

for experimentation We used simulation and verification in SPIN but the idea

can be applied to implementations in other languages than java and the analysis

of defects impact can be done with other verification tools as well.

1 Introduction

As software applications become more complex, software reliability is becoming

more important. To improve reliability we need to reduce probability of software

failure, which can be catastrophic. An important approach to reducing probability of

failure is by predicting and then removing software defects. Existing methods for

defect prediction include those proposed in (Gaffney, 1984), (Khoshgoftaar and

Seliya, 2004) and (Subramanyam and Krishnan, 2003). These methods are all

machine learning based using some program features or program complexity

measures such as the CK measure (Chidamber and Kemerer, 1994). The performance

of these methods is still not desirable and much research is needed. For example,

Menzies et al. studied defect prediction for 5 software systems of NASA (Menzies et

al., 2004), with an average prediction accuracy of 36%. (Wilkie and Hylands, 1998)

reported that approximately 48% of defects could be predicted by the combination of

two of the CK measures.

This paper presents part of the findings in our BEACON project which focuses on

the creation of strategies that facilitates the study of software defects and their

consequences. We present here one of the strategies we investigated which as a

qualitative analysis focus and relies on the abstraction of models out of a collection of

java classes in such a way that the fundamental entities and interactions are

represented. This model is then used to assess the effect of injecting defects in

different parts of the system and through simulation and verification (Berard et al.,

2001) study how they affect the system. The content of the paper is organized as

follows. Section 2 explains the step of model creation then in section 3 we explain

how we used it and we finalize in Section 4 with conclusions and proposed further

work.

Augusto J., Wilkie G., Wang H., Liu J. and Li C..

Using Models to Assess Impact of Defective Software.

DOI: 10.5220/0003596000710077

In Proceedings of the International Joint Workshop on Information Value Management, Future Trends of Model-Driven Development, Recent Trends in

SOA Based Information Systems and Modelling and Simulation, Veriﬁcation and Validation (MSVVEIS-2011), pages 71-77

ISBN: 978-989-8425-60-7

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

2 Model Extraction

Part of the project was devoted to qualitative analysis of defects and how features

from the code can be used to create models which inform the analysis of impact of

those defects in the overall system. Starting with a java implementation of a system

we looked at the classes and their interaction to extract a model. We choose to model

systems using a well known and respected system: Promela/SPIN (Holzmann, 2003).

The analysis of a java implementation used for didactical purposes led the

identification of classes/methods which suggested the network of possible interactions

amongst the classes depicted in Figure 1. These classes are used to illustrate basic

concepts in java to the students of one of our modules.

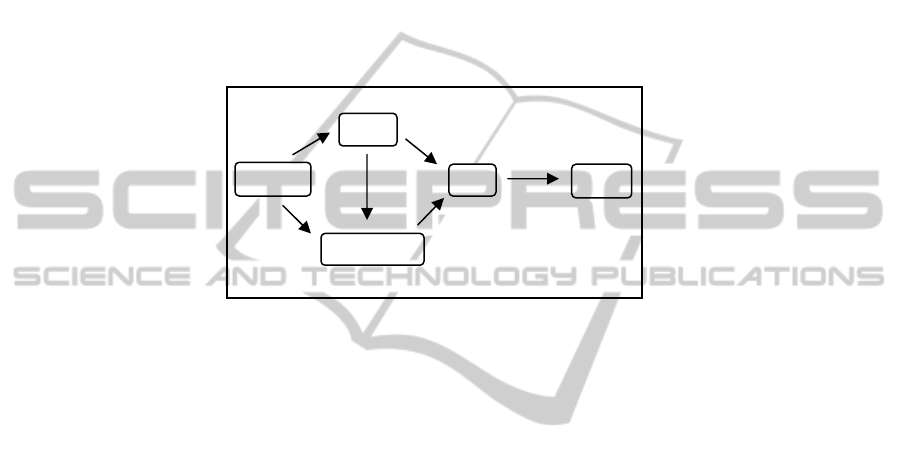

Fig. 1. Network representing the interactions of classes.

We use this network as a basis to define the processes and their interactions in the

Promela model. A basic transformation algorithm can be easily implemented to

translate a network into a Promela model:

1) for each node create a process with that name

2) for each transition create a channel with the names of both

3) the direction of the arrow in the graph dictates who send/receives the message

4) the interaction can be normal or defective

5) once a process is contacted by a defective module it sends a defective message to

everyone it interacts with and then blocks

A more subtle analysis can be carried of in the java code to identify the modality of

that interaction:

 for any interaction: is it mandatory or is only a possibility?

 when more than one call, are they independent or related (all have to be

done)

 if more than one incoming transition: are both required as a precondition for the

receiving node to operate or just some of them are enough?

In our example we considered all the arrows in figure 1 as “and’s”, that is that a node

with two outgoing arrows call methods from both destination nodes and that a node

with two incoming arrows is called by both classes in the origin nodes (notice this still

omit details like in which order the methods are called) then we can refine the above

models to obtain (a subset of the first model of this doc).

The following model is a first approach to representing possible behaviour in the

road users

driver

manufacturer

car

status

set of java classes under examination.

mtype = {ok};

chan car_status = [0] of {mtype};

chan driver_car = [0] of {mtype};

chan driver_manufacturer = [0] of {mtype};

chan manufacturer_car = [0] of {mtype};

chan roadusers_driver = [0] of {mtype};

chan roadusers_manufacturer= [0] of {mtype};

active proctype roadUsers ()

{

if /* i.e., methods in the classes of

both destination nodes are invoked

but we do not know in which order

so we need to provide SPIN with the

option to choose any of the

possible orders */

:: roadusers_manufacturer!ok ;

roadusers_driver!ok

:: roadusers_driver!ok;

roadusers_manufacturer!ok

}

active proctype driver ()

{ if

:: roadusers_driver?ok -->

:: driver_car!ok ;

driver_manufacturer!ok

:: driver_manufacturer!ok;

driver_car!ok

}

active proctype manufacturer ()

{ if /* it has to be contacted by both in

any order to proceed contacting the

next class */

:: driver_manufacturer?ok ;

roadusers_manufacturer?ok -->

manufacturer_car!ok

:: roadusers_manufacturer?ok ;

driver_manufacturer?ok -->

manufacturer_car!ok

}

active proctype car ()

{ if /* it has to be contacted by both in

any order to proceed contacting the

next class */

:: driver_car?ok; manufacturer_car?ok-->

car_status!ok

:: manufacturer_car?ok; driver_car?ok-->

car_status!ok

}

active proctype status ()

{ if

:: car_status?ok

}

3 Exploring the Model

Once we have a model we can take advantage of SPIN’s multiple features to examine

a model and inform us of the potential implications of a system built following the

strategy represented by that model.

On first inspection the model created in the previous section does not seem to

uncover any problems. Figure 2 shows a simulation.

We can now inject faults into the system. This was done manually but a

recommendation of our project is that this can be incorporated to a tool that first

distils a model from a group of classes and then allows the user to select in which

areas of the model to inject faulty interactions which can then be analyzed using

SPIN.

The following model has been injected faulty interactions in a couple of arbitrary

places. The message types are now offering SPIN two types of interactions. A line

“manufacturer_car!defect” has been added to proctype ‘manufacturer’ and another

line “manufacturer_car?defect --> skip” has been added to proctype ‘car’. We have

also modified the model to allow the checking of some behavioural properties which

we can use to force SPIN to conduct a more rigorous analysis. We have added to the

model introducing a boolean variable ‘

end_reached’ which we use to create a

“guarantee” formula checking if the end of ‘status’ can be reached (see that ‘status’ is

the final class in according to the network of Figure 1).

mtype = {ok, defect};

chan car_status = [0] of {mtype};

chan driver_car = [0] of {mtype};

chan driver_manufacturer = [0] of {mtype};

chan manufacturer_car = [0] of {mtype};

chan roadusers_driver = [0] of {mtype};

chan roadusers_manufacturer = [0] of {mtype};

bool end_reached=false;

active proctype roadUsers ()

{

if /* i.e., methods in the classes of

both destination nodes are invoked

but we do not know in which order

so we need to provide SPIN with the

option to choose any of the

possible orders */

:: roadusers_manufacturer!ok ;

roadusers_driver!ok

:: roadusers_driver!ok;

roadusers_manufacturer!ok

}

active proctype driver ()

{ if

:: roadusers_driver?ok -->

:: driver_car!ok ;

driver_manufacturer!ok

:: driver_manufacturer!ok;

driver_car!ok

}

active proctype manufacturer ()

{ if /* it has to be contacted by both in

any order to proceed contacting the

next class */

:: driver_manufacturer?ok ;

roadusers_manufacturer?ok -->

manufacturer_car!defect

:: driver_manufacturer?ok ;

roadusers_manufacturer?ok -->

manufacturer_car!ok

:: roadusers_manufacturer?ok ;

driver_manufacturer?ok -->

manufacturer_car!ok

}

active proctype car ()

{ if /* it has to be contacted by both in

any order to proceed contacting the

next class */

:: driver_car?ok; manufacturer_car?ok-->

car_status!ok

:: manufacturer_car?ok; driver_car?ok-->

car_status!ok

:: manufacturer_car?defect --> skip

}

active proctype status ()

{ if

:: car_status?ok

fi;

end_reached=true

}

If we run a verification of that property, SPIN detects a problem as indicated in Figure

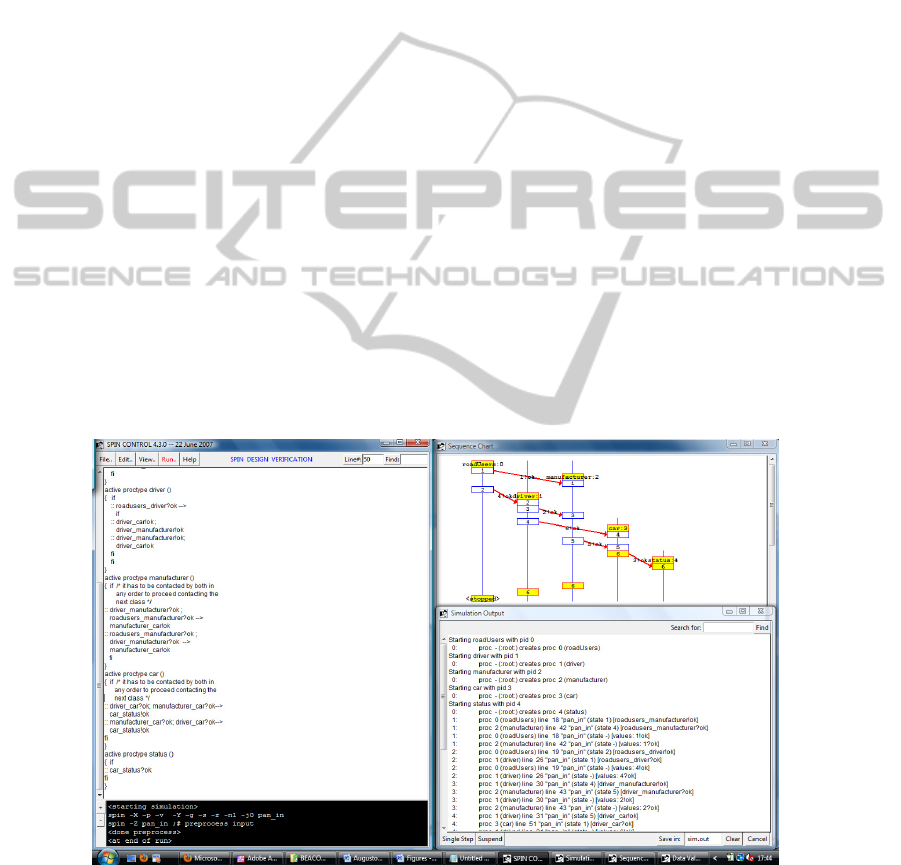

Fig. 2. A simple simulation in SPIN showing a possible way of interaction amongst classes.

If we follow the Guided Simulation offered by SPIN we get a counterexample as

feedback which we show in Figure 4 and shows the system gets stalled when ‘car’

expects an OK from ‘manufacturer’ and gets a defective interaction instead.

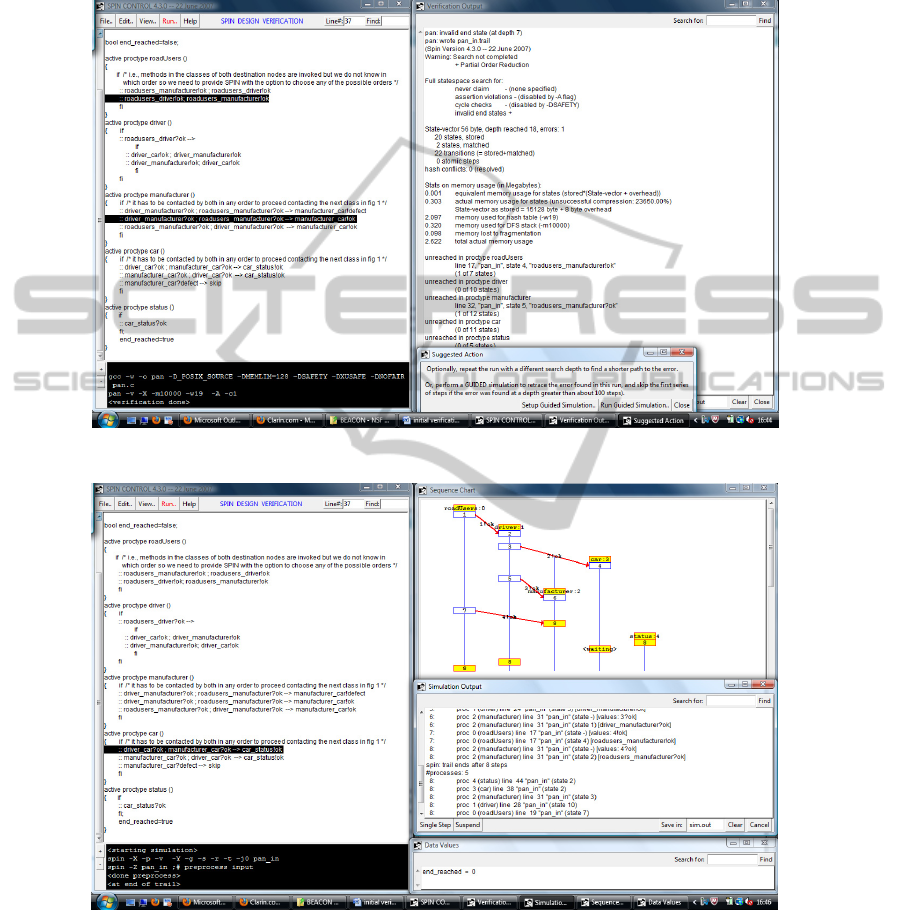

Fig. 3. Problems detected by SPIN after injection of faults in the model.

Fig. 4. Simulation with SPIN after faults in the model were detected.

4 Conclusions

The most important finding on this aspect of the project is that:

 there is a way to automatically translate java into Promela so that the impact of

defects can be studied.

 a tool can be built which can perform the translation and also allow the injection of

Promela code in the model representing faulty classes. These classes may be those

which have been identified by statistical methods and this will enrich the assessment

of the effect of defects within a system.

The strategy we explored in this paper is one of several approaches. The focus in this

strategy was qualitative. Other strategies considered tried to quantify which classes

may be more prone to faults. There is no single strategy or group of strategies that

can provide definitive answers to these problems but a number of them may help to

identify were a team should focus their efforts.

Acknowledgements

We want to acknowledge the financial support offered by the Royal Society to the

BEACON project under the eGAP2 initiative.

References

1. Gaffney, J. R. Estimating the Number of Faults in Code, IEEE Trans. Software Eng., 10(4),

1984.

2. Khoshgoftaar, T. M. and Seliya, N. The Necessity of Assuring Quality in Software

Measurement Data, Proc. 10th Int’l Symp. Software Metrics, IEEE Press, 2004.

3. Subramanyam, R. and Krishnan, M. S. Empirical Analysis of CK Metrics for Object-

Oriented Design Complexity: Implications for Software Defects, IEEE Trans. Software

Eng., 29(4), 2003.

4. Chidamber, S. R. and Kemerer, C. F. A Metrics Suite for Object-Oriented Design, IEEE

Trans. Software Eng., 20, 1994.

5. Menzies, T. DiStefano, J. Orrego, A. and Chapman, R. Assessing Predictors of Software

Defects, Proc. Workshop Predictive Software Models, 2004.

6. Wilkie, F. G. and Hylands. B. Measuring Complexity in C++ Applications. Software

Practice & Experience, 28(5), 1998.

7. Berard, B., Bidoit, M., Finkel, A., Laroussinie, F., Petit, A., Petrucci, L., Schnoebelen, P.

Systems and Software Verification: Model-Checking Techniques and Tools, Springer

Verlag, 2001.

8. Holzmann, G. J. The Spin Model Checker Primer and Reference Manual, Addison-Wesley,

Reading, Massachusetts. 2003.
