ENHANCING UNDERSTANDING OF MODELS

THROUGH ANALYSIS

Kara A. Olson and C. Michael Overstreet

Department of Computer Science, Old Dominion University, Norfolk, Virginia, U.S.A.

Keywords:

Discrete event simulation, Model analysis, Model understanding, Static analysis, Dynamic analysis.

Abstract:

Simulation is used increasingly throughout research and development for many purposes. While in many

cases the model output is of primary interest, often it is the insight gained through the simulation process into

the behavior of the simulated system that is the primary beneﬁt. This insight can come from the actions of

building and validating the model as well as observing its behavior through animations and execution traces or

statistical analysis of simulation output. However, much that could be of interest may not be easily discernible

through these traditional approaches, particularly as models become increasingly complex.

The authors suggest several possibilities of how to obtain such insights. These analyses have other obvious

uses including aid in debugging, veriﬁcation and documentation. The authors, however, are primarily inter-

ested in how these analysis techniques can be used to help modelers gain additional insights into the models

they are using or constructing.

The discussed techniques are used with signiﬁcant beneﬁt within computer science and software engineering;

the authors believe these techniques can also serve simulation well. The authors’ experience with these tech-

niques thus far has involved discrete event simulations; their potential beneﬁt with other model representations

and implementation approaches has not yet been explored.

1 INTRODUCTION AND

MOTIVATION

We begin with an unusual frame of mind about model

speciﬁcations, but one that the authors ﬁnd intrinsi-

cally appealing. In mathematics, an axiomatic system

is any set of axioms from which some or all axioms

can be used in combination to logically derive theo-

rems. A mathematical theory consists of an axiomatic

system and all of its derived theorems (Wikipedia,

2011). In our view, one’s assumptions about a simula-

tion can be viewed as a set of axioms, with the proper-

ties of that system being our derivable theorems. Sev-

eral approaches are used to discover these properties

including observing a simulation during execution or

analyzing data generated during simulation runs: but

another approach is to reason about the system. With

this in mind, consider then that our goal is to comple-

ment existing analysis techniques by “deducing” what

we can about our system of interest.

It is often stated by users of simulation that its pri-

mary beneﬁt is not necessarily the data produced, but

the insight that building the model provides. Paul et

al. discuss this in (Paul et al., 2005), noting that “sim-

ulation is usually resorted to because the problem is

not well understood,” and more often than not, the

simulation is no longer of interest once the problem

is fully understood. We believe that techniques such

as those discussed here can be used to enhance both

modelers’ and model users’ understanding.

A prime problem with model descriptions,

whether in textual or graphical notations, is that even

in simple models, descriptions are often difﬁcult to

fully comprehend. Paul accurately states (Paul and

Kuljis, 2010):

Even when we think we know what we are

modeling there are many problems: we do not

have the software skills to know if the soft-

ware is doing the right thing; we cannot be

certain that the logic of the problem is faith-

fully represented in the model; we cannot be

sure that the assumptions built into the model,

the uses it was designed to be put to and not

put to, will be adhered to by future users etc.

And then with the passage of time, and proba-

bly with some model updates, corrections, and

possible changes of logic, we cannot be sure

of the way the model works at all.

321

A. Olson K. and Overstreet C..

ENHANCING UNDERSTANDING OF MODELS THROUGH ANALYSIS.

DOI: 10.5220/0003597603210326

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

321-326

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

Insights can arise from many different sources.

One can be surprised to learn that one event causes

another seemingly-unrelated event. One can also gain

insight when something that is expected to happen

does not occur. Sometimes events can happen with

regularity or as clusters which may not be noticed by a

modeler and may reveal important aspects of the sim-

ulated system. Often these facts are not immediately

obvious, particularly in large simulations (Overstreet

and Levinstein, 2004; Nance et al., 1999). Anecdotal

reports from modelers support the frequent difﬁculty

of detecting important aspects of their models which

when pointed out are quite useful.

Indeed, in one of our experiences, a model-coder

was studying trace data produced during simulation

executions. It was noted that the events that occurred

could be divided into a small number of groups based

on the number of times each event occurred; every

event in each group occurred the same number of

times. This observation revealed a structure of the

model (and the system it represented) that had not

been previously recognized; this fundamental system

property may not have been apparent through more

traditional techniques.

We suggest many possibilities and types of possi-

bilities of how to obtain such insights throughout the

next section.

2 DISCUSSION POINTS

What kind of analyses might reveal insights into a

given model? First, let us consider potential beneﬁ-

ciaries of such analyses.

Certainly at least two groups could beneﬁt from

insightful discoveries: modelers and model users. A

modeler, by our deﬁnition, is one who realizes the

model into the computer: perhaps in terms of a pro-

gramming language such as C++ or GPSS, or in terms

of a visual product like Simio or Arena. A model user,

then, is one who uses the simulation to meet some ob-

jective such as training, evaluating different scenarios,

or perhaps trying to understand better the system at

hand.

The analyses we discuss herein can beneﬁt both

groups in possibly different ways.

The types of analyses in which we are most inter-

ested are static analysis and dynamic analysis. With

static analysis, an object (such as code or a list of

speciﬁcations) is analyzed without executing it. With

dynamic analysis, data is collected during execution

of the object of interest (normally code). Dynamic

analysis often requires inclusion of additional state-

ments into the code to enable data collection during

code execution, such as output or proﬁling statements.

These two techniques have a long history of use in

both the computer science community and the soft-

ware engineering community to support, for example,

code optimization and automated generation of some

types of system documentation.

Previous model analysis research has used multi-

ple model representation/speciﬁcation forms such as

Petri nets, DEVS and event graphs. An excellent

survey of Petri net analysis can be found in (Mu-

rata, 1989). These techniques, though, require that

a Petri net model be constructed and not all simula-

tions lend themselves to this representational form.

Zeigler’s DEVS formalism (Zeigler, 1990) has been

the basis of signiﬁcant analysis work. However, the

focus of much of this work concerns model veriﬁ-

cation – for example, (Hwang and Zeigler, 2006).

Event graphs (Schruben, 1983) are also used as a ba-

sis for model analysis, though as our objectives differ

from Schruben’s, the information in our graphs dif-

fer. Each of these representational forms could sup-

port the types of analyses we discuss, but we do not

explore their potentials here.

2.1 Insights – Static Code Analysis

Observing and analyzing the behaviors produced by

a simulation are the usual techniques for improving

understanding of a system being simulated. However,

static analysis of the model speciﬁcation itself can of-

ten reveal characteristics of a model not readily ap-

parent from observing merely its run-time behavior.

In compiler optimization, several techniques are

used routinely that could potentially provide useful

insights to the modeler. Data ﬂow analysis is used to

help identify data dependencies – that is, to help iden-

tify relationships among different parts of the code.

This analysis also can help determine interactions

among variables in different model components, un-

realized relationships, both causal and coincidental,

relationships among different code modules, or rela-

tionships among different simulation components –

relationships of which the modeler might not be so

aware.

For example, using data ﬂow analysis, one can po-

tentially identify both the events which can cause a

speciﬁc simulation event, and those events which can

be caused by a speciﬁc event. If these lists can be

generated, they can be informative by possibly iden-

tifying unanticipated effects previously unrecognized

by the modeler. They can also serve a diagnostic pur-

pose if the list omits events the modeler knows should

be included, or includes events the modeler knows

should not be included.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

322

Another beneﬁt of static code analysis: no ﬁnite

number of runs can deduce what is possible. Not test-

ing, execution traces or animations can necessarily

discover all things that are possible in some simula-

tion run. However, from static analysis, one can re-

veal the possibility of infrequent situations occurring.

Data ﬂow techniques also can be used to deter-

mine if race conditions exist. In a common implemen-

tation of a discrete event simulation, an events list is

checked before the clock is advanced. Ideally, the or-

der in which events that are scheduled to occur at the

same time happen to be on the list should not matter

to the simulation results; however, analysis can ﬂag

this possibility – or point out a potential surprise to

the modeler.

2.2 Insights – Dynamic Code Analysis

Static code analysis has its limitations; it can identify

possible actions but since the possible complexity of

code is unbounded, the results of the analysis can on

rare occasions be misleading. From static analysis,

one may discover that event A can cause event B, but

dynamic analysis often can reveal speciﬁcs of which

events caused which events – that is, which event

caused a particular event, and which event(s) a par-

ticular event caused – which cannot always be deter-

mined prior to run-time. In addition, if static analysis

suggests that event A can cause event B, but dynamic

analysis reveals that this never happens, this may be

of interest to a modeler or user of the simulation.

The ancedote in Section 1 about the grouping of

events by frequency of occurrence is another example

of useful information revealed through dynamic anal-

ysis.

2.3 Insights – Examining the Model

Differently, Interactively

Alas, source code tends to involve many issues un-

related to the model itself, such as data collection,

animation, and tricks for efﬁcient run-time behav-

ior. Unless the modeler is an expert programmer,

this other code tends to obscure the model as imple-

mented. Consider if one were able to be shown only

what one considered currently relevant.

Weinberg identiﬁed the importance of program lo-

cality (Weinberg, 1971), the property obtained when

all relevant parts of a program are found in the same

place. He noted that “...when we are not able to ﬁnd a

bug, it is usually because we are looking in the wrong

place.” Since “issues of concern” vary widely, no sin-

gle organization of a program can exhibit locality for

all such concerns. Additionally, as the problem of

interest changes, the information considered relevant

also changes.

Consider if there were multiple model “views,”

where one could see only the aspects of (current) in-

terest, and as the aspects of interest changed, so could

what was shown to the modeler or model user. Per-

haps these “slices,” not unlike Weiser’s programslices

(Weiser, 1984), could aid in allowing model charac-

teristics to be more easily understood.

An additional interactive possibility – a zoomable

action cluster interaction graph – is discussed below.

2.4 Insights – Visualizing the Model

When given an unfamiliar model to modify or use,

modelers and model users traditionally examine text

output, source code, and perhaps animations if avail-

able. Animations aside, most analyses are not par-

ticularly visual, a shame since pictures help us build

mental models (Glenberg and Langston, 1992) – in

this context, a mental model of the encoded model.

Some work has been done on the “visuality” of

models. Program visualization (which is distinct

from visual programming – “the body of techniques

through which algorithms are expressed using vari-

ous two-dimensional, graphic, or diagrammatic nota-

tions,” such as Nassi-Schneiderman diagrams (Nassi

and Schneiderman, 1973)) has similarly stated goals:

“to facilitate a clear and correct expression of the

mental images of the producers (writers) of computer

programs, and to communicate these mental images

to the consumers (readers) of programs” (Baecker,

1988). However, the approach to doing so “focuses

on output, on the display of programs, their code, doc-

umentation, and behavior” and “[displaying] program

execution in novel ways independent of the method of

speciﬁcation or coding” (Baecker, 1988).

A prime problem with model descriptions,

whether in textual or graphical notations, is that even

for simple models, the descriptions are often difﬁcult

to fully comprehend. Even in relatively simple cases,

the wealth of data available can easily obscure useful

information in the volume of what is presented. The

type of tools for which we argue may help with the

problem of having “too much information” by allow-

ing the interactive exploration of a model so that only

relevant information is presented.

An information mural (Jerding and Stasko, 1998)

is a technique for displaying and navigating large in-

formation spaces. The goal of the mural is to visu-

alize a particular information space, displaying what

the user wants to see and allowing the user to focus

quickly on areas of interest. As Jerding and Stasko

aptly state, “A textual display of such voluminous in-

ENHANCING UNDERSTANDING OF MODELS THROUGH ANALYSIS

323

formation is difﬁcult to read and understand. A graph-

ical view [...] could better help a software developer

understand what occurs during a program’s execu-

tion.” We ﬁnd this notion particularly appealing, since

the source code is the true speciﬁcation of the model

as executed.

The action cluster interaction graph (Overstreet,

1982) is a type of dependency graph that can assist

in model decomposition. The main purpose of this

graph, derived from source code, is to show which

events can cause which events. In these graphs, a

solid line indicates that event A can cause event B

to occur at the same instance in time; a dashed line

indicates that event A will cause event B at a future

instance in time.

Consider several modiﬁcations of this dependency

graph. First, combining the static nature of this graph

– which events can cause which events – with dy-

namic analysis – which event did cause which events

– could prove insightful to a modeler. Second, imag-

ine if the graph were “zoomable” – where one could

see only one or a few steps at a time, rather than

be overwhelmed with a graph of several hundreds,

thousands or more events. We feel that exploring

this graph interactively – perhaps as the simulation

progresses, perhaps as the curiosity of the moment

changes – could be insightful as well.

3 VISION

Our vision involves a unique product that can incor-

porate these types of analyses into one, useful, user-

friendly tool, enabling both modelers and model users

to gain additional insights into their models. This

tool could start as something similar to CodeSurfer

(Anderson et al., 2003), a commercially-available

software static analysis tool based on prior De-

fense Advanced Research Projects Agency (DARPA)-

sponsored research at the University of Wisconsin.

CodeSurfer can create system dependences graphs

– similar to our action cluster interaction graphs –

based on static analysis, and allow those graphs to be

queried in multiple ways.

Since these graphs explode as the number of

events increases, our envisioned tool would allow the

user to see the graph of all events – perhaps presented

in a way akin to an information mural – and allow the

user to select a particular event to follow, either stat-

ically (event A could cause events B or C to occur),

or dynamically within a particular run at a particular

time (in this execution trace, at time t, event A caused

event B, which then caused events C and D, ...).

CodeSurfer also has multiple views that allow the

user to view the parts of the code that s/he ﬁnds rele-

vant at the time – analogous to our vision of showing

the user only the currently relevant information.

3.1 Example

Consider a standard harbor model from (Nance et al.,

1999): ships arrive at a harbor and wait for both a

berth and a tug boat to become available; a ship is

then escorted to a berth, unloaded, and escorted back

to sea. This model is used to study tug boat utilization

and ship in-harbor time.

A sample view of the model’s action clusters

might look like a subset of Figure 1. An action clus-

ter is a collection of model actions that must always

occur atomically. For example, an initialization ac-

tion cluster in this context might consist of setting the

mean interarrival time of ships; the unload time of a

ship; how long a tug boat takes to travel while em-

cumbered and while unencombered; how many tug

boats and berths will be available; and so on. These

actions will occur as an indivisibleunit every time ini-

tialization occurs.

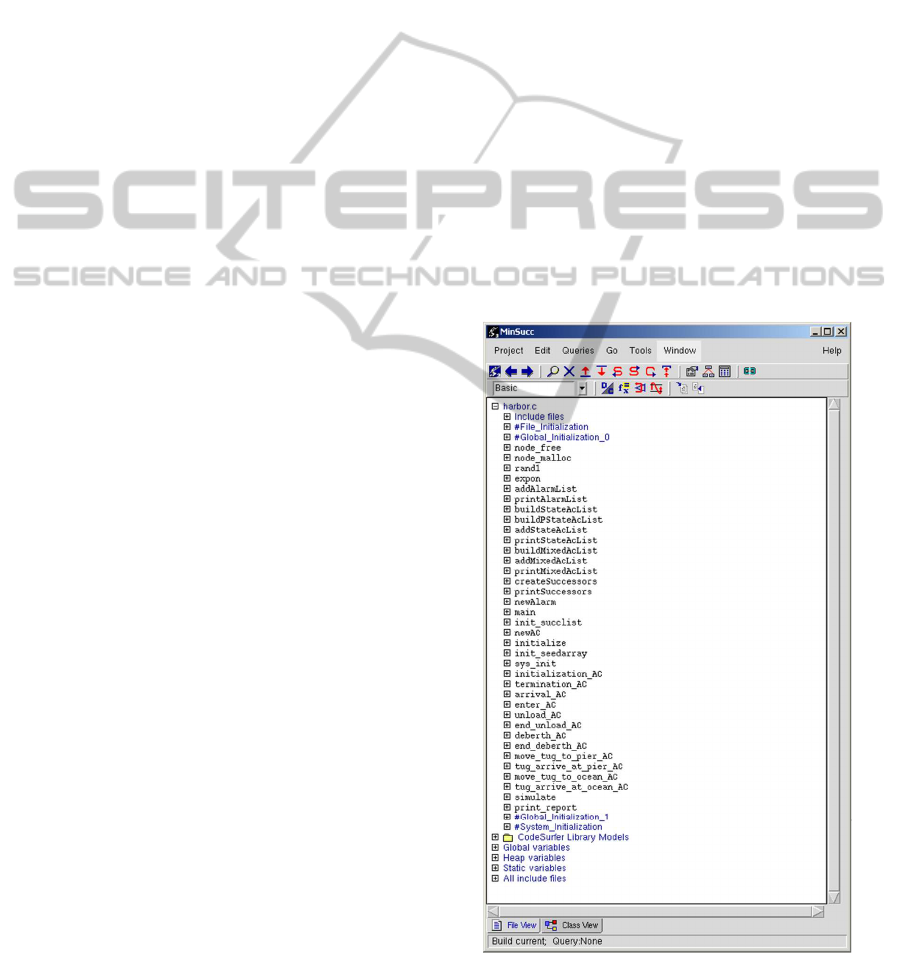

Figure 1: List of a sample model’s action clusters.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

324

With the harbor C code [Figure 2], using static

analysis techniques, one can obtain its action cluster

interaction graph [Figure 3]. As mentioned above, in

these graphs, a solid line indicates that event A can

cause event B to occur at the same instance in time;

a dashed line indicates that event A will cause event

B at some instance in time. Here, the simulation is

started with the event initialization. An initialization

event can cause an enter, deberth, move tug to ocean,

move tug to pier, or termination event to occur at

start-up, and will schedule an arrival event to occur;

and similarly for the other nodes in the graph. As one

can see, this graph is already non-trivial for a model

of merely 12 events.

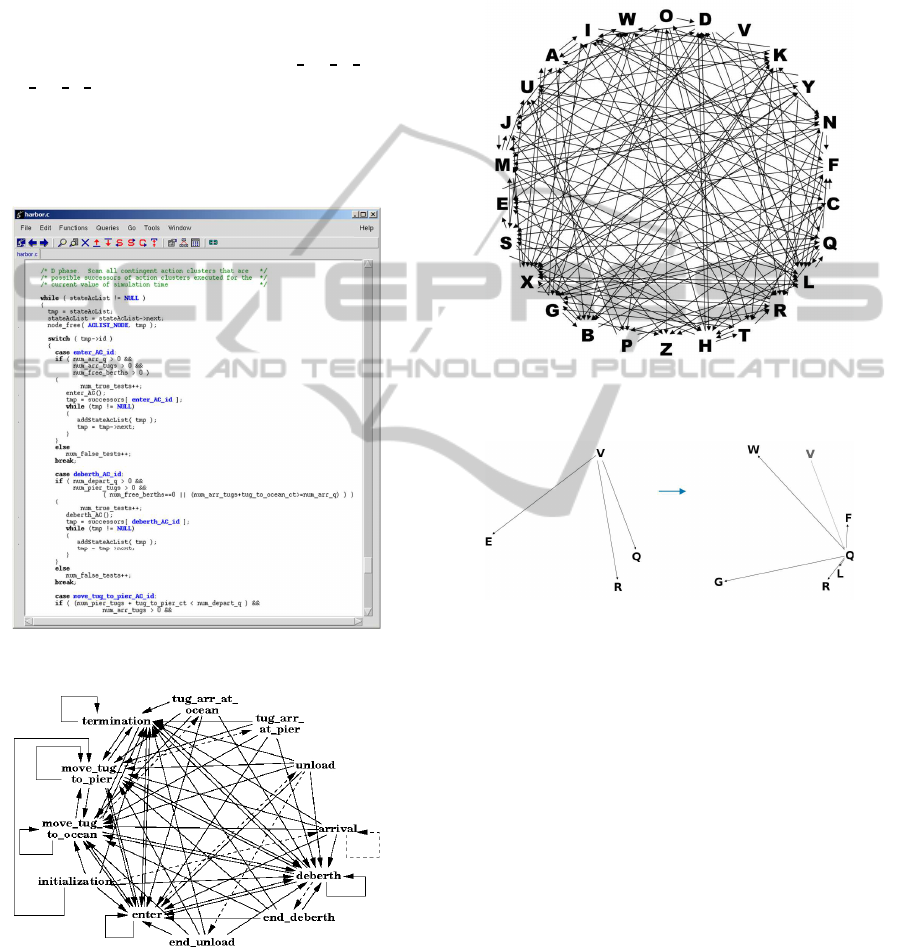

Figure 2: Sample source code.

Figure 3: Action cluster interaction graph.

Let us take an example of a 26-event model. Static

analysis could yield something like Figure 4; how-

ever, using an interactive tool, one could study, say,

event V: ﬁrst, the user could click on event V and see

(more clearly) that it could cause events E, R, and Q;

then, selecting event Q, s/he could see that event Q

can cause events F, W, G, R, and L [Figure 5]. Given

a speciﬁc execution trace and timeline of events, this

type of visual could be used to traverse through the

entire run, seeing which events caused which events.

Figure 4: A sample action cluster interaction graph for a

model with 26 events.

Figure 5: Exploring event V.

4 CONCLUSIONS

This work presents several challenges. Identifying

a model speciﬁcation form that works for model

builders and model users and can be the basis for

analysis techniques is challenging and will require a

compromise due to conﬂicting needs. Additionally,

identifying only the additional information likely to

be useful to modelers and model users is a challenge.

Use of modeler-directed interactive tools can assist.

In this paper, we have discussed a many-faceted

approach to obtaining insights into a given model

based on both source code and model execution.

Types of analyses considered include static analysis,

dynamic analysis, looking at the model differently, in-

teractively, and visually – perhaps all at once, as dif-

ferent activities, or some combination thereof.

We propose a tool that would help with the prob-

lem of having “too much information” while incorpo-

ENHANCING UNDERSTANDING OF MODELS THROUGH ANALYSIS

325

rating these types of analyses. Indeed, our long in-

terest is in enhancing model understanding – helping

modelers gain additional insights into the models they

are using or constructing.

REFERENCES

Anderson, P., Reps, T. W., Teitelbaum, T., and Zarnis, M.

(2003). Tool support for ﬁne-grained software inspec-

tion. IEEE Software, 20(4):42–50.

Baecker, R. (1988). Enhancing program readability and

comprehension with tools for program visualization.

In Proceedings of the 10th International Conference

on Software Engineering, pages 356–366.

Glenberg, A. M. and Langston, W. E. (1992). Comprehen-

sion of illustrated text: Pictures help to build mental

models. J. Mem. Lang., 31(2):129–151.

Hwang, M. H. and Zeigler, B. P. (2006). A modular ver-

iﬁcation framework based on ﬁnite & deterministic

DEVS. In Proceedings of the 2006 DEVS Integrative

M&S Symposium, pages 57–65.

Jerding, D. F. and Stasko, J. T. (1998). The information mu-

ral: A technique for displaying and navigating large

information spaces. IEEE Trans. Vis. Comput. Graph.,

4(3):257–271.

Murata, T. (1989). Petri nets: Properties, analysis and ap-

plications. Proc. IEEE, 77(4):541–580.

Nance, R. E., Overstreet, C. M., and Page, E. H. (1999).

Redundancy in model speciﬁcations for discrete event

simulation. ACM Trans. Model. Comput. Simul.,

9(3):254–281.

Nassi, I. and Schneiderman, B. (1973). Flowcharting tech-

niques for structured programming. ACM SIGPLAN

Notices, 8(8):12–26.

Overstreet, C. M. (1982). Model Speciﬁcation and Analysis

for Discrete Event Simulation. PhD thesis, Virginia

Polytechnic Institute and State University, Blacks-

burg, VA.

Overstreet, C. M. and Levinstein, I. B. (2004). Enhancing

understanding of model behavior through collabora-

tive interactions. Operational Research Society (UK)

Simulation Study Group 2nd Two Day Workshop.

Paul, R. J., Eldabi, T., Kuljis, J., and Taylor, S. J. E. (2005).

Is problem solving, or simulation model solving, mis-

sion critical? In Kuhl, M. E., Steiger, N. M., Arm-

strong, F. B., and Joines, J. A., editors, Proceedings of

the 2005 Winter Simulation Conference, pages 547–

554.

Paul, R. J. and Kuljis, J. (2010). Problem solving, model

solving, or what? In Johansson, B., Jain, S., Hugan, J.

R. M.-T. J. C., and Y¨ucesan, E., editors, Proceedings

of the 2010 Winter Simulation Conference, pages 353–

358.

Schruben, L. (1983). Simulation modeling with event

graphs. Comm. ACM, 26(11):957–963.

Weinberg, G. M. (1971). The Psychology of Computer Pro-

gramming. Computer Science Series. Van Nostrand

Reinhold Company, New York, NY.

Weiser, M. (1984). Program slicing. IEEE Trans. Softw.

Eng., SE-10(4):352–357.

Wikipedia (2011). Wikipedia. Axiomatic system,

http://en.wikipedia.org/wiki/Axiomatic system.

Zeigler, B. P. (1990). Object-Oriented Simulation with

Hierarchical, Modular Models. Academic Press,

Boston, MA.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

326
