A MODEL TRANSFORMATION APPROACH FOR THE

DEVELOPMENT OF HLA-BASED DISTRIBUTED

SIMULATION SYSTEMS

Andrea D’Ambrogio, Giuseppe Iazeolla, Alessandra Pieroni

University of Roma TorVergata, Rome, Italy

Daniele Gianni

European Space Agency, Noordwijk, The Netherlands

Keywords: Distributed simulation system, High level architecture, HLA, Model driven development, MDA, Model

transformation.

Abstract: The development of HLA-based distributed simulation systems requires a significant expertise and a

considerable effort for the inherent complexity of the HLA standard. This paper introduces an automated

approach for the development of HLA-based simulation systems of higher quality at largely reduced time,

effort and cost. The proposed approach is founded on the use of model transformation techniques and relies

on standards introduced by the Model Driven Architecture (MDA). The proposed approach takes as input a

UML model of the system to be simulated and yields as output both an intermediate UML model and the

final code of the HLA-based distributed simulation system.

1 INTRODUCTION

The most prominent standard for distributed

simulation, High Level Architecture (HLA) (IEEE

1516, 2000), has been initially proposed to increase

the reuse and the interoperability of simulation

software, as a way of reducing the development

effort of complex distributed simulation systems.

After the release, however, HLA has failed to fulfill

and anticipate the community needs in terms of

semantic interoperability (Tolk & Muguira, 2003)

and effortless development (Gianni, D’Ambrogio &

Iazeolla, 2008)). A generalization of this latter

concept can be envisioned by reducing the technical

coding effort with the introduction of an automated

approach to the development of HLA-based

software systems.

Automating the derivation of software code from

a high-level model specification has proven

effective to cope with the increasing complexity of

modern software systems. Asides from shortening

software production time, an automated approach to

software development brings other advantages.

These are related to the model abstraction level for

the system design, and to the increased reuse of

software products. Providing a model abstraction

level for the design and implementation of software

eliminates the pure technical effort that the final

implementation would require. In addition, this

approach fosters the reuse of software products,

such as software model patterns and software

components, and thus also increases the quality of

the final product. As a consequence of both these

advantages, the software code can be obtained for

various platforms with no extra effort.

Commercial software industries have fully

embraced these considerations and have introduced

standard technologies that support the automation of

the entire development process. In particular, the

Object Management Group has introduced MDA

(Model-Driven Architecture) (OMG, 2003), a set of

specifications addressing the issues of automating

software production from UML (Unified Modeling

Language) model descriptions of software systems

(OMG, 2009). MDA supports the model-driven

development of software-intensive systems through

the transformation of platform independent models

155

D’Ambrogio A., Iazeolla G., Pieroni A. and Gianni D..

A MODEL TRANSFORMATION APPROACH FOR THE DEVELOPMENT OF HLA-BASED DISTRIBUTED SIMULATION SYSTEMS.

DOI: 10.5220/0003599001550160

In Proceedings of 1st International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2011), pages

155-160

ISBN: 978-989-8425-78-2

 2011 SCITEPRESS (Science and Technology Publications, Lda.)

(PIMs) to platform specific models (PSMs),

executable components and applications.

As aforementioned, the HLA standard promotes

interoperability and reusability of simulation

components in different contexts and is based on the

following concepts: federate, federation and RTI

(Run Time Infrastructure). A federate is a

simulation program and represents the unit of reuse

within HLA. Federates communicate through shared

object instances (i.e., permanent entities) and by

interactions (i.e., messages). A federation is a

distributed simulation execution composed of a set

of federates. Finally, the RTI is a simulation-oriented

middleware that coordinates the execution of

federates. An HLA-based simulation system is

described by use of a set of Simulation Object

Models (SOMs) and a Federation Object Model

(FOM). Each SOM documents a single federate,

while the FOM documents the entire federation.

Similarly to general purpose software, HLA-

based distributed simulation systems are becoming

increasingly more complex, and therefore a MDA-

based approach for the production of such systems

can be seen as an effective solution for supporting

the development of distributed simulation systems of

higher quality at largely reduced time and effort.

This paper introduces a model transformation

approach that exploits MDA standards and

techniques to automate the production of HLA-

based distributed simulation systems.

The approach takes as input a UML model of a

system to be simulated and produces as output the

code of the corresponding HLA-based simulation

system. To achieve such an objective, the model

transformation approach introduces two

transformation steps, the former to obtain an

intermediate HLA-specific UML model from the

initial UML model and the latter to yield the

software code — ready for execution — of the

HLA-based simulation system from the HLA-

specific UML model.

In addition, the approach also introduces a HLA-

based UML profile, i.e., a standard UML extension

mechanism to specify the intermediate HLA-specific

UML model by use of HLA-specific annotations.

The paper is organized as follows. Section 2

remarks this paper contribution compared to other

state-of-the-art works. Section 3 presents the details

of the proposed two-steps model transformation

approach. Finally, Section 4 concludes the paper by

illustrating the automatic derivation of the HLA

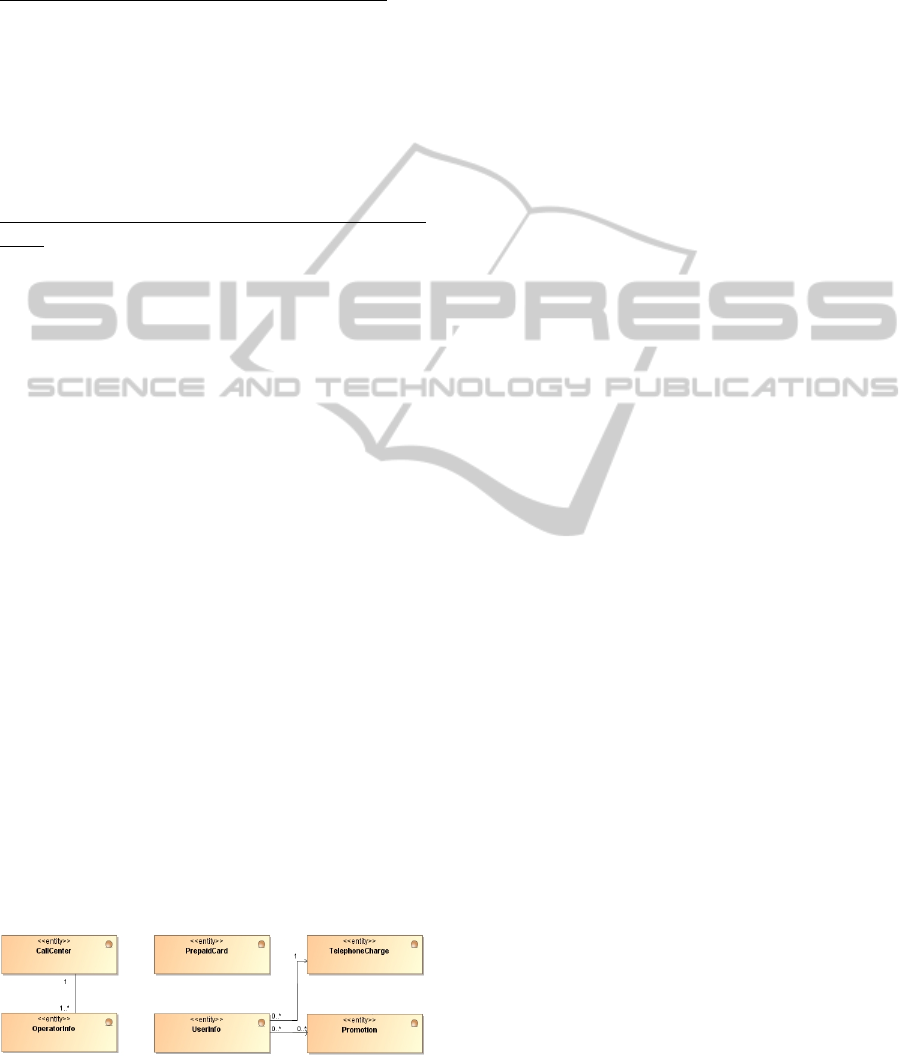

code for the distributed simulation of a mobile SIM

card management system.

2 RELATED WORK

Model specification technologies based on model-

driven approaches are used to reduce the gap

between the model specification and the distributed

system implementation. These technologies do not

impose any constraints on system modeling, and

similarly obtain a reduction of development effort

by automating the production of simulation code

from a formal model specification. In this field, the

contribution proposed in this paper can be compared

to contributions introduced in (Tolk & Muguira,

2004), (Parr & Keith, 2003), (Jiménez, Galan &

Gariía, 2006) and (El Haouzi, 2006).

The contribution in (Tolk & Muguira, 2004),

differs from this paper approach in terms of the

application strategy, the UML diagrams adopted and

the state of implementation. Concerning the

application strategy, the contribution proposes the

creation of a specific domain for Modeling and

Simulation (M&S) within MDA. Differently, this

paper focuses on the application of MDA techniques

to the production of simulation systems treated as

general-purpose software systems. This means that,

in case of simulation of a software system, the same

approach can be adopted to eventually generate both

the operational system and the simulation system

from the same model specification. The set of UML

diagrams adopted in (Tolk & Muguira, 2004) is

wider and includes implementation diagrams.

Conversely, this paper focuses on a narrower set of

diagrams, including class diagrams and interaction

diagrams. The state of the implementation of

contribution in (Tolk & Muguira, 2004), however, is

not complete in terms of both MDA compliance and

software. Differently, this paper approach

implements a MDA compliant process by

introducing an HLA-specific UML profile and two

transformations for deriving the simulation code

from a UML model specification.

Similarly, the approach in (Parr & Keith, 2003)

differs from this paper contribution in three ways:

visual representation of specification model, MDA

compliance and software technologies for code

derivation. A visualization tool for representing

HLA objects and for deriving the corresponding

FOM and SOMs is introduced. Differently, this

paper’s approach relies on general-purpose

visualization tools, which also prove to be more

reliable and open to extensions. The MDA

compliance achieved in (Parr & Keith, 2003) is

lower because it does not provide either an HLA-

based UML profile or the transformations

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

156

introduced in this paper. As regards software

technologies for code derivation, the contribution in

(Parr & Keith, 2003) adopts proprietary

technologies, while this paper contribution is

founded on standard languages for model

transformation.

The contribution in (Jiménez, Galan & Gariía,

2006) also proposes a MDA-based development of

HLA simulation systems. However, this contribution

is limited to the definition of an initial UML profile

for HLA.

Finally, the contribution in (El Haouzi, 2006)

only outlines the main concepts behind the

application of MDA techniques to the development

of HLA systems.

3 MODEL TRANSFORMATION

APPROACH

The development of HLA-based distributed

simulation systems is defined by three phases:

development of the federation conceptual model,

design of the federation, and development of the

federation. The development of the federation

conceptual model cannot be automated because

requires understanding and creativity. Differently,

the design and the development of the federation

from the conceptual model require only technical

and mechanical skills, and therefore such phases can

be automated. As a consequence, a model-driven

design with an increased reuse of simulation

components can be successfully applied. The former

enables developers to cope with the increasing

complexity of simulation model. The latter

contributes to reduce the time required by validation

and verification sessions, as simulation components

yield increased reliability and accuracy. In addition,

the adoption of a standard methodology, such as

MDA, brings two other advantages. First,

developers produce model specifications in standard

UML, and therefore they need not be concerned

with either the HLA modeling paradigm or any

other non standard paradigm. Second, design and

development phases can be carried out by use of

standard tools for model definition and

transformation (e.g., the many commercially

available or freeware UML-based software

development environments).

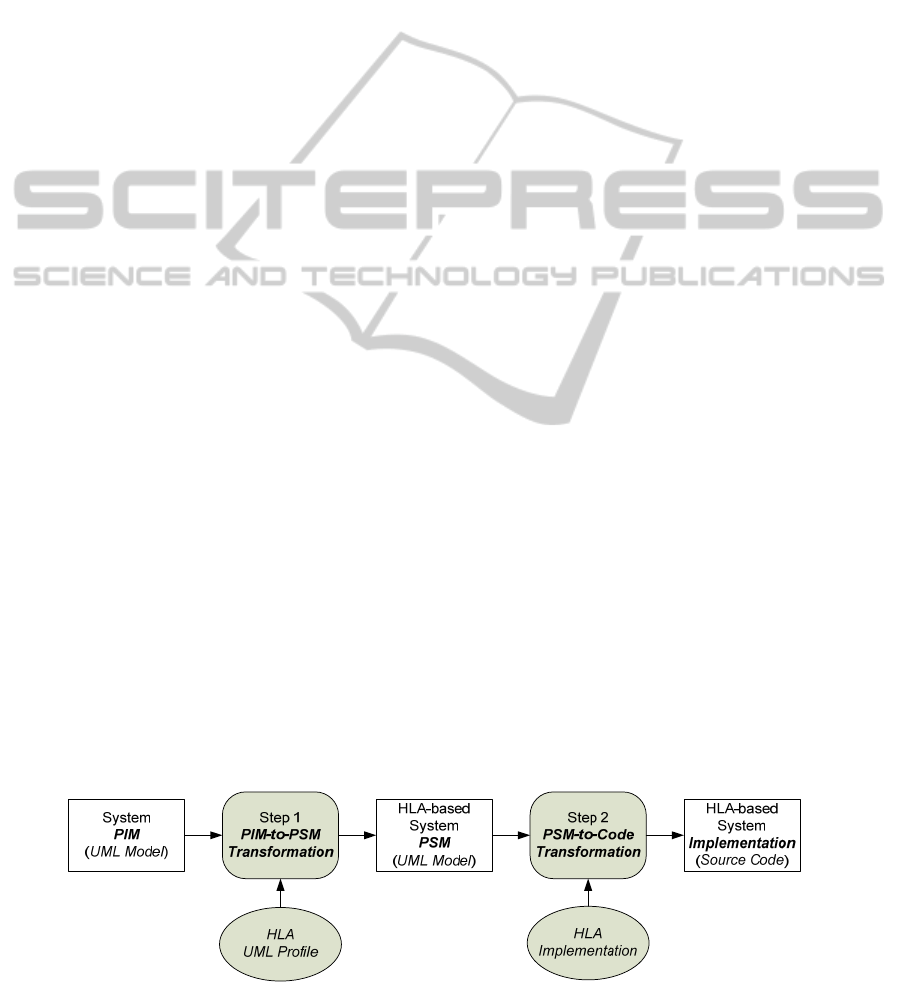

Figure 1 describes the model transformation

approach, which is based on two steps. The first step

consists of the PIM-to-PSM transformation that

maps the PIM of the system to be simulated into the

PSM of the HLA-based distributed simulation

system. This step takes as input the UML profile of

the HLA platform, HLA profile, which allows

annotating standard UML elements with HLA-

specific features. The second step takes as input the

PSM obtained from the first step and yields as

output the final code of the HLA-based distributed

simulation system. This step requires the choice of a

specific HLA implementation (e.g., Pitch, Portico,

etc.) that provides the HLA services in a given

programming language (e.g. Java or C++).

The following subsections describe the PIM-to-

PSM transformation and the PSM-to-Code

transformation, respectively. The details of the HLA

profile can be found in (D’Ambrogio, Loprieno &

Tiberia, 2009).

3.1 From PIM to PSM

The first step of the model transformation approach

consists of the PIM-to-PSM transformation. The

transformation rules are here presented informally,

using natural language. Their formal specification

has been specified in the QVT model transformation

language (OMG, 2008).

To simplify the implementation of the

transformation it is assumed that the input PIM is a

UML model that consists of a use case diagram, a

set of sequence diagrams for each use case and a

class diagram built according to the MVC (Model-

View-Controller) architectural pattern. This pattern

structures the model description into entity classes

Figure 1: The two-step model transformation approach for the development of HLA-based systems.

A MODEL TRANSFORMATION APPROACH FOR THE DEVELOPMENT OF HLA-BASED DISTRIBUTED

SIMULATION SYSTEMS

157

(i.e., domain-specific data), control classes (i.e.,

business logic) and boundary classes (i.e., interfaces

between system and actors).

This section illustrates a subset of the

transformation rules that map the input UML model

into the output HLA-based UML model stereotyped

by use of the HLA profile. The subset includes the

six rules described below.

Rule 1: Actor-Boundary to Federate

Each PIM actor-boundary couple of classes must be

mapped into a PSM federate.

Within a PIM, a boundary class represents the

communication interface between system and

outside world. Similarly, the actor entity models the

user submitting requests to the system. Differently,

within the HLA-based PSM, the boundary concept

is not present because actor entities are modeled

within the distributed simulation system. Each actor

entity in the PIM is always provided with a

boundary interface, and therefore the actor–

boundary couple is mapped into the smallest

independent unit (i.e., Federate) within the HLA-

based PSM.

Rule 2: Control to Federate

The control units of the set of use cases in the PIM

must be mapped into a single federate in the PSM.

A PIM control unit represents a class that manages

the flow of execution within a use case. Thus, in a

PIM there are as many control classes as the number

of use cases. Such PIM classes are mapped into a

single HLA federate that manages the requests of all

federates. Therefore, the set of PIM control classes

is to be mapped into a single PSM class stereotyped

as Federate.

Rule 3: Entity to ObjectClass

Each PIM entity class must be mapped into a PSM

object class.

A PIM entity models a persistent object used to

exchange data between two or more actors. Such a

concept is naturally mapped into the HLA Object

class concept, and thus each PIM entity class is

mapped to a PSM class stereotyped as ObjectClass.

Rule 4: Associated Entities to Federate

A set of associated PIM entities must be mapped

into a single PSM federate.

PIM entities can be grouped to form a set of entities

with a main entity (e.g., an entity that models a DB

table with a set of foreign keys) and a number of

associated entities (e.g., the set of tables referenced

by the foreign keys). In such a case, the set of

entities is mapped into a single PSM class

stereotyped as Federate, by applying Rule 3 to the

main entity grouping all the entities (e.g., a single

database table rather than a set of database tables

associated by use of foreign keys).

Rule 5: Actor-Boundary Messages to Self Messages

Each sequence diagram message exchanged

between a PIM actor object and a PIM boundary

object must be mapped to a self message of the

corresponding PSM federate.

This rule is applied to PIM sequence diagrams to

obtain the corresponding PSM sequence diagram

and takes into account the transformation specified

by the forenamed Rule 1.

Rule 6: Boundary-Control messages to RTI

messages

Each sequence diagram message exchanged

between a PIM boundary object and a control object

must be mapped to a message between the

corresponding PSM federate and the RTI executive,

and vice versa.

This rule is applied to PIM sequence diagrams to

obtain the corresponding PSM sequence diagram

and takes into account both the transformation

specified by the forenamed Rule 1 and the use of the

RTI middleware for carrying out the interactions

between the federates of a HLA-based distributed

simulation system.

3.2 From PSM to Code

The second, and last, step of the proposed model

transformation approach for the development of

HLA-based systems consists of the PSM-to-Code

transformation.

The transformation rules are here presented

informally, using natural language. Their formal

specification has been specified in the Xpand model-

to-text transformation language (EMF, n.d.).

This section illustrates the three rules that map

the PSM model, consisting of class and sequence

diagrams, into the corresponding code of the HLA-

based distributed simulation system.

Rule 1: PSM Federate to Java Federate and Federate

Ambassador Classes

Each Federate PSM entity is mapped into two Java

classes, one for the Federate code and one for the

Federate Ambassador code.

The implementation of a HLA federate typically

consists of three portions of statements: internal

processing statements, RTI service statements, and

RTI-initiated statements, because the RTI operates

in an asynchronous multi-threading manner.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

158

Therefore, each Federate PSM entity is mapped into

a Java class that contains the internal and RTI

service statements and a FederateAmbassador class

that contains the RTI-initiated statements.

Rule 2: PSM Object Class to FOM Object Class

Each PSM Object Class entity is mapped into a

FOM Object Class.

In the PSM, an Object Class represents a system

persistent entity that does not incorporate any

behavioral logic. Moreover, a persistent entity is

also used to carry out a data exchange mean among

different PSM Federates entities. The analogy with

FOM Objects is thus immediate.

Rule 3: PSM Interaction Class to FOM Interaction

Class

Each PSM Interaction Class entity is transformed in

a FOM Interaction Class.

A PSM Interaction Class models an instantaneous

communication between two or more Federate

entities. Similarly to the PSM Object Class, the

Interaction Class does not incorporate any

behavioral logic. As a consequence, mapping a PSM

Interaction class into a corresponding FOM class is

immediate.

4 EXAMPLE APPLICATION

This section describes the application of the model

transformation approach to the production of a

simulation program for a prepaid SIM card

management system (D’Ambrogio, Loprieno &

Tiberia, 2009). The considered scenarios include

three actors: User, Operator, and Bank. The User

interacts with the system to recharge the SIM credit

through a Bank operation, to update the SIM plan, to

buy new offers, and to enquire for assistance by

sending a request to an Operator of the phone

company. From this summary of use cases, the PIM

of the card management system is first derived in

terms of an UML class diagram and a set of UML

sequence diagrams for each of the above described

use cases, as shown in Figure 2.

Figure 2: Entity classes for the example application.

The diagram consists of five classes stereotyped

as <<entity>>: CallCenter, Operator, Prepaid Card,

TelephoneRecharge, UserInfo, Promotion.

A CallCenter instance represents a phone

company customer service and is associated to the

set of OperatorInfo instances that describe the

details of the phone company operators. A

PrepaidCard instance describes a user SIM card. A

TelephoneRecharge instance models the SIM card

credit recharge and is associated to a UserInfo

instance. A UserInfo instance might also be

associated to the set of promotions subscribed by the

user, as modeled by use of Promotion instances.

Sequence diagrams describing the interactions

between class instances are defined for each use

case.

The PIM-to-PSM transformation of Section 4.2

can be applied to the above PIM to obtain the HLA-

based PSM for the SIM card management system.

The PSM is extended by use of the HLA profile

and thus its elements are grouped in the following

main packages: Federates, Interactions, Object

Classes, Publish and Subscribe Diagrams and

Behaviour Diagrams.

The Federates package includes the components

stereotyped as <<Federate>>. Such components

represent the federates of the HLA-based distributed

simulation system, i.e.: CallCenterServer,

CustomersServer, NetworkServicesServer,

Operator, PrepaidCardsServer and User.

The Interactions package includes the

components stereotyped as <<InteractionClass>>

and the attributes stereotyped as

<<InteractionParameter>>, which represent the

interaction among federates and the interaction

parameters, respectively. The package contains the

following interaction classes: Message,

Message_usr_srv, Message_usr_operator,

Message_usr_disk.

The Message interaction class defines the

generic interaction in terms of interaction parameters

as type, sender, destination, timestamp, and so forth.

The Message_usr_srv interaction class specializes

the generic interaction for the communication

between the User and the NetworkServiceServer

federates. The Message_usr_operator interaction

class specializes the generic interaction for the

communication between the User and the Operator

federates, while the Message_srv_disk interaction

class specializes the generic interaction for the

communication between the NetworkServiceServer

federate and the PrepaidCardsServer, the

CustomersServer and the CallCenterServer

federates.

A MODEL TRANSFORMATION APPROACH FOR THE DEVELOPMENT OF HLA-BASED DISTRIBUTED

SIMULATION SYSTEMS

159

The Object Classes package includes the set of

elements that represent the data exchanged by

federates, i.e., classes stereotyped as

<<ObjectClass>> and attributes stereotyped as

<<ObjectAttribute>>. Figure 3 illustrates the

hierarchy of object classes for the example

application.

The Publish/Subscribe Diagrams package

includes the set of diagrams representing the

publish/subscribe specification of federates. Such

specification enables the communication among

federates within a federation.

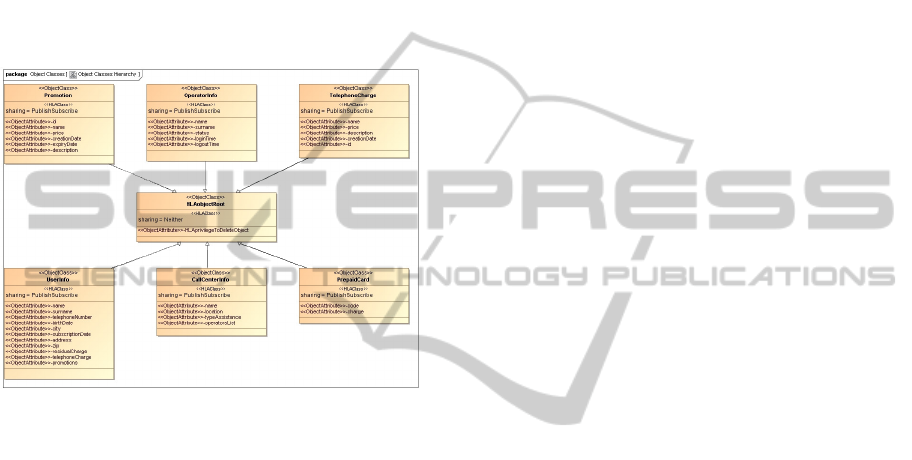

Figure 3: Hierarchy of PSM object classes.

The Behavior Diagrams package describes the

federate behavior by use of a sequence diagram for

each federate in the Federates package. The set of

sequence diagrams is obtained by applying Rule 5

and Rule 6 of Section 3.1, plus a set of initialization

and termination interactions that are automatically

included for each federate.

The obtained PSM is finally used to derive the

code of the HLA-based distributed simulation

system, by applying to the PSM the set of rules

described in Section 3.2. The transformation rules

generate both the Java code of federates and the

XML representation of the FOM. The Java code of

federates is compliant to the Portico Open Source

HLA implementation, while the FOM is coded

according to the standard DTD for HLA FOMs.

The so obtained Java classes include the

implementation of both initialization/termination

methods and the

run() method for each federate.

Then, the set of federates can be allocated onto a set

of possibly remote hosts for the distributed

execution of the simulation system. This last activity

may in turn be automated by introducing at PSM

level a UML deployment diagram that describes the

allocation of federate components onto the

processing nodes of the execution infrastructure.

5 CONCLUSIONS

This paper has proposed a model transformation

approach that derives the code of an HLA-based

simulation system from a model specification of the

system to be simulated. The approach has

introduced a UML profile for HLA modeling and

two transformations that automatically map the

source UML system model into a HLA-specific

model and eventually into the source code.

REFERENCES

IEEE 1516, 2000. Standard for Modeling and Simulation

(M&S) High Level Architecture (HLA) - Framework

and Rules.

Tolk, A., and Muguira, J. A., 2003. The Levels of

Conceptual Interoperability Model (LCIM), Proc. of

the 2003 Fall Simulation Interoperability Workshop.

Gianni, D., D’Ambrogio, A., and Iazeolla, G., 2008. A

Layered Architecture for the Model-driven

Development of Distributed Simulators, Proc.

SIMUTOOLS08, Marseille, France, March, 2008.

OMG, 2003. MDA Guide, version 1.0.1.

OMG, 2009. Unified Modelling Language, version 2.2.

OMG, 2008. MOF 2.0 QVT Specification, version 1.0.

Tolk, A., and Muguira J. A., 2004. M&S within the model

driven architecture, Proc. of the Interservice/Industry

Training, Simulation, and Education (I/ITSEC)

Conference, 2004.

Parr, S., and Keith, R., 2003. The Next Step – Applying

the Model Driven Architecture to HLA, Proceedings

of the 2003 Spring Simulation Interoperability

Workshop.

Jiménez, P., Galan, S., Gariía, D., 2006. Spanish HLA

abstraction layer: towards a higher interoperability

model for national, Proc. of the European Simulation

Interoperability Workshop.

El Haouzi, H., 2006. Models Simulation and

Interoperability using MDA and HLA, IFAC/IFIP

International conference on Interoperability for

Enterprise Applications and Software (I-ESA'2006).

EMF, N. D., Eclipse Modeling Framework Project,

<http://www.eclipse.org/modeling/emf>.

A. D'Ambrogio, S. Loprieno, G. Tiberia, 2009. A Model-

driven Approach for the Development of HLA-based

Distributed Simulation Systems, Technical Report

RI.01.09, Software Engineering Lab, University of

Roma TorVergata, Roma, Italy.

SIMULTECH 2011 - 1st International Conference on Simulation and Modeling Methodologies, Technologies and

Applications

160
